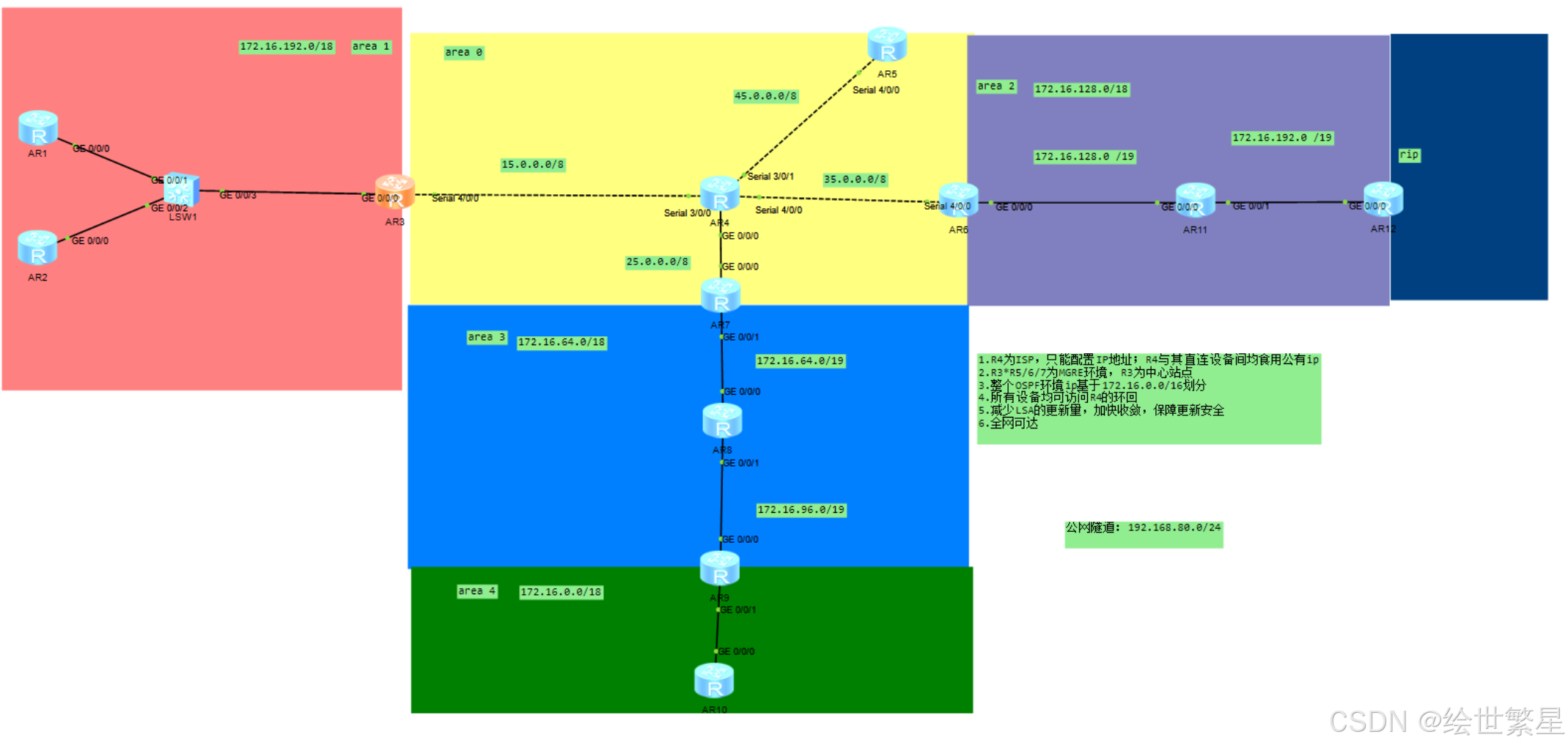

OSPF综合实验

一.ip配置：

        因为划分了5个ospf区域有一个是公网所以需要从172.16.0.0/16划分出五个网段

                area 1：172.16.192.0        /18
                area 2：172.16.128.0        /18
                area 3：172.16.64.0          /18
                area 4：172.16.0.0            /18

                      rip：192.168.0.12        /32

        R1：

                GE0/0/0:172.16.192.1 /18

                LoopBack0:192.168.0.1 /32

                配置：

                [r1]interface GigabitEthernet 0/0/0

                [r1-GigabitEthernet0/0/0]ip address 172.16.192.1 18

                [r1]interface LoopBack 0

                [r1-LoopBack0]ip address 192.168.0.1 32

        R2:

                GE0/0/0:172.16.192.2 /18

                LoopBack0:192.168.0.2 /32

                配置：

                [r2]interface GigabitEthernet 0/0/0

                [r2-GigabitEthernet0/0/0]ip address 172.16.192.2 18

                [r2]interface LoopBack 0

                [r2-LoopBack0]ip address 192.168.0.2 32

        R3:

                GE0/0/0:172.16.192.3 /18

                Serial4/0/0:15.0.0.3 /8

                LoopBack0:192.168.0.3 /32

                配置：

                [r3]interface GigabitEthernet 0/0/0

                [r3-GigabitEthernet0/0/0]ip address 172.16.192.3 18

                [r3]interface Serial 4/0/0

                [r3-Serial4/0/0]ip address 15.0.0.3 8

                [r3]interface LoopBack 0

                [r3-LoopBack0]ip address 192.168.0.3 32

        R4:

                GE0/0/0:25.0.0.4 /8

                Serial3/0/0:15.0.0.4 /8

                Serial3/0/1:45.0.0.4 /8

                Serial4/0/0:35.0.0.4 /8

                LoopBack0:192.168.0.4 32

                配置：

                [r4]interface GigabitEthernet 0/0/0

                [r4-GigabitEthernet0/0/0]ip address 25.0.0.4 8

                [r4]interface Serial 3/0/0

                [r4-Serial3/0/0]ip address 15.0.0.4 /8

                [r4]interface Serial 3/0/1

                [r4-Serial3/0/1]ip address 45.0.0.4 /8

                [r4]interface Serial 4/0/0

                [r4-Serial4/0/0]ip address 35.0.0.4 /8

                [r4]interface LoopBack 0

                [r4-LoopBack0]ip address 192.168.0.4 /32

        R5：

                Serial4/0/0:45.0.0.5 /8

                LoopBack0:192.168.0.5 /32

                配置：

                [r5]interface Serial 4/0/0

                [r5-Serial4/0/0]ip address 45.0.0.5 8

                [r5]interface LoopBack 0

                [r5-LoopBack0]ip address 192.168.0.5 32

        R6:

                GE0/0/0:172.16.128.6 /19

                Serial4/0/0:35.0.0.6 /8

                LoopBack0:192.168.0.6 /32

                 配置:

                [r6]interface  Serial 4/0/0

                [r6-Serial4/0/0]ip address 35.0.0.6 8

                [r6]interface GigabitEthernet 0/0/0

                [r6-GigabitEthernet0/0/0]ip address 172.16.128.6 19

                [r6]interface LoopBack 0

                [r6-LoopBack0]ip address 192.168.0.6 32

        R7:

                GE0/0/0:25.0.0.7 /8

                GE0/0/1:172.16.64.7 /19

                LoopBack0:192.168.0.7 /32

                配置：

                [r7]interface GigabitEthernet 0/0/0

                [r7-GigabitEthernet0/0/0]ip address 25.0.0.7 8

                [r7]interface GigabitEthernet 0/0/1

                [r7-GigabitEthernet0/0/1]ip address 172.16.64.7 19

                [r7]interface LoopBack 0

                [r7-LoopBack0]ip address 192.168.0.7 32

        R8:

                GE0/0/0:172.16.64.8 /19

                GE0/0/1:172.16.96.8 /19

                LoopBack 0:192.168.0.8 /32

                配置：

                [r8]interface GigabitEthernet 0/0/0

                [r8-GigabitEthernet0/0/0]ip address 172.16.64.8 19

                [r8-GigabitEthernet0/0/0]interface GigabitEthernet 0/0/1

                [r8-GigabitEthernet0/0/1]ip address 172.16.96.8 19

                [r8]interface LoopBack 0

                [r8-LoopBack0]ip address 192.168.0.8 32

        R9：

                GE0/0/0:172.16.96.9 /19

                GE0/0/1:172.16.0.9 /18

                LoopBack0:192.168.0.9 /32

                配置：

                [r9]interface GigabitEthernet 0/0/0

                [r9-GigabitEthernet0/0/0]ip address 172.16.96.9 19

                [r9-GigabitEthernet0/0/0]interface GigabitEthernet 0/0/1

                [r9-GigabitEthernet0/0/1]ip address 172.16.0.9 18

                [r9]interface LoopBack 0

                [r9-LoopBack0]ip address 192.168.0.9 32

        AR10:

                GE0/0/0:172.16.0.10 /18

                 LoopBack 0:192.168.0.10 /32

                配置：

                [10]interface GigabitEthernet 0/0/0

                [10-GigabitEthernet0/0/0]ip address 172.16.0.10 18

                [10]interface LoopBack 0

                [10-LoopBack0]ip address 192.168.0.10 32

        AR11:

                GE0/0/0:172.16.128.11 /19

                GE0/0/1:172.16.192.11 /19

                LoopBack 0:192.168.0.11 /32

                配置：

                [r11]interface GigabitEthernet 0/0/0

                [r11-GigabitEthernet0/0/0]ip address 172.16.128.11 19

                [r11-GigabitEthernet0/0/0]interface GigabitEthernet 0/0/1

                [r11-GigabitEthernet0/0/1]ip address 172.16.192.11 19

                [r11]interface LoopBack 0

                [r11-LoopBack0]ip address 192.168.0.11 32

AR12:

                GE0/0/0:172.16.192.12 /19

                LoopBack0:192.168.0.12 /32

                配置：
                [r12]interface GigabitEthernet 0/0/0

                [r12-GigabitEthernet0/0/0]ip address 172.16.192.12 19

                [r12]interface LoopBack 0

                [r12-LoopBack0]ip address 192.168.0.12 32

        缺省路由：

                R3:[r3]ip route-static 0.0.0.0 0 15.0.0.4

                R5:[r5]ip route-static 0.0.0.0 0 45.0.0.4

                R6:[r6]IP route-static 0.0.0.0 0 35.0.0.4

                R7:[r7]IP route-static 0.0.0.0 0 25.0.0.4

二.MGRE环境搭建:

        公网隧道地址为192.168.80.0 24

        R3(中心):

                [r3]interface Tunnel 0/0/0

                [r3-Tunnel0/0/0]ip address 192.168.80.3 24

                [r3-Tunnel0/0/0]tunnel-protocol gre p2mp

                [r3-Tunnel0/0/0]nhrp network-id 100

                [r3-Tunnel0/0/0]source 15.0.0.3

        R5(分支):

                [r5]interface Tunnel 0/0/0

                [r5-Tunnel0/0/0]ip address 192.168.80.5 24

                [r5-Tunnel0/0/0]tunnel-protocol gre p2mp

                [r5-Tunnel0/0/0]source 45.0.0.5

                [r5-Tunnel0/0/0]nhrp network-id 100

                [r5-Tunnel0/0/0]nhrp entry 192.168.80.3 15.0.0.3 register

        R6(分支):

                [r6]interface Tunnel 0/0/0

                [r6-Tunnel0/0/0]ip address 192.168.80.6 24

                [r6-Tunnel0/0/0]tunnel-protocol gre p2mp

                [r6-Tunnel0/0/0]nhrp network-id 100

                [r6-Tunnel0/0/0]source 35.0.0.6

                [r6-Tunnel0/0/0]nhrp entry 192.168.80.3 15.0.0.3 register

        R7(分支):

                [r7]interface Tunnel 0/0/0

                [r7-Tunnel0/0/0]IP address 192.168.80.7 24

                [r7-Tunnel0/0/0]tunnel-protocol gre p2mp

                [r7-Tunnel0/0/0]source 25.0.0.7

                [r7-Tunnel0/0/0]nhrp network-id 100

                [r7-Tunnel0/0/0]nhrp entry 192.168.80.3 15.0.0.3 register

                验证：



三.配置OSPF协议和RIP实现全网通：

                要想在MGRE环境下配置OSPF必须在MGRE中心开启伪广播

                        [r3-Tunnel0/0/0]nhrp entry multicast dynamic

                因为ospf是以组播的方式发送hello报文所以得把接口协议改为broadcast

                        [r6-Tunnel0/0/0]ospf network-type broadcast

                        [r5-Tunnel0/0/0]ospf network-type broadcast

                        [r7-Tunnel0/0/0]ospf network-type broadcast

       区域0：

                R3:

                        [r3]ospf 1 router-id 3.3.3.3

                        [r3-ospf-1]area 0

                        [r3-ospf-1-area-0.0.0.0]network 192.168.80.3 0.0.0.255

                R5:

                        [r5]ospf 1 router-id 5.5.5.5

                        [r5-ospf-1]area 0

                        [r5-ospf-1-area-0.0.0.0]network 192.168.80.5 0.0.0.255

                        [r5-ospf-1-area-0.0.0.0]network 192.168.0.5 0.0.0.0

                R6:

                        [r6]ospf 1 router-id 6.6.6.6

                        [r6-ospf-1]area 0

                        [r6-ospf-1-area-0.0.0.0]network 192.168.80.6 0.0.0.255

                        [r6-ospf-1-area-0.0.0.0]network 192.168.0.6 0.0.0.0

                R7：

                        [r7]ospf 1 router-id 7.7.7.7

                        [r7-ospf-1]area 0

                        [r7-ospf-1-area-0.0.0.0]network 192.168.80.7 0.0.0.255

                        [r7-ospf-1-area-0.0.0.0]network 192.168.0.7 0.0.0.255

        区域1：

                R1：

                        [r1]ospf 1 router-id 1.1.1.1

                        [r1-ospf-1]area 1

                        [r1-ospf-1-area-0.0.0.1]network 192.168.0.1 0.0.0.255

                        [r1-ospf-1-area-0.0.0.1]network 172.16.192.1 0.0.63.255

                R2：

                        [r2]ospf 1 router-id 2.2.2.2

                        [r2-ospf-1]area 1

                        [r2-ospf-1-area-0.0.0.1]network 192.168.0.2 0.0.0.255

                        [r2-ospf-1-area-0.0.0.1]network 172.16.192.2 0.0.63.255

                R3:

                        [r3]ospf 1 router-id 3.3.3.3

                        [r3-ospf-1]area 1

                        [r3-ospf-1-area-0.0.0.1]network 192.168.0.3 0.0.0.255

                        [r3-ospf-1-area-0.0.0.1]network 12.16.192.3 0.0.63.255

        区域3：

                R7:

                        [r7]ospf 1 router-id 7.7.7.7

                        [r7-ospf-1]area 3

                        [r7-ospf-1-area-0.0.0.3]network 172.16.64.7 0.0.31.255

                R8：

                        [r8]ospf 1 router-id 8.8.8.8

                        [r8-ospf-1]area 3

                        [r8-ospf-1-area-0.0.0.3]network 172.16.64.8 0.0.31.255

                        [r8-ospf-1-area-0.0.0.3]network 172.16.96.8 0.0.31.255
                        [r8-ospf-1-area-0.0.0.3]network 192.168.0.8 0.0.0.255

                R9：

                        [r9]ospf 1 router-id 9.9.9.9

                        [r9-ospf-1]area 3

                        [r9-ospf-1-area-0.0.0.3]network 172.16.96.9 0.0.31.255

        区域4：

                R9:

                        [r9]ospf

                        [r9-ospf-1]area 4
                        [r9-ospf-1-area-0.0.0.4]network 172.16.0.9 0.0.63.255
                        [r9-ospf-1-area-0.0.0.4]network 192.168.0.9 0.0.0.255

                R10:

                        [10]ospf 1 router-id 10.10.10.10

                        [10-ospf-1]area 4

                        [10-ospf-1-area-0.0.0.4]network 172.16.0.10 0.0.63.255

                        [10-ospf-1-area-0.0.0.4]network 192.168.0.10 0.0.0.255

        区域2：

                R6：

                        [r6]ospf 1
                        [r6-ospf-1]area 2

                        [r6-ospf-1-area-0.0.0.2]network 172.16.128.6 0.0.31.255

                R11:

                        [r11]ospf 1 router-id 11.11.11.11

                        [r11-ospf-1]area 2

                        [r11-ospf-1-area-0.0.0.2]network 172.16.192.11 0.0.31.255
                        [r11-ospf-1-area-0.0.0.2]network 172.16.128.11 0.0.31.255

                R12:

                        [r12]ospf 1 router-id 12.12.12.12

                        [r12-ospf-1]area 2

                        [r12-ospf-1-area-0.0.0.2]network 172.16.192.12 0.0.31.255

        RIP:

                R12:

                        [r12]rip

                        [r12-rip-1]version 2

                        [r12-rip-1]network 192.168.0.0

        验证：

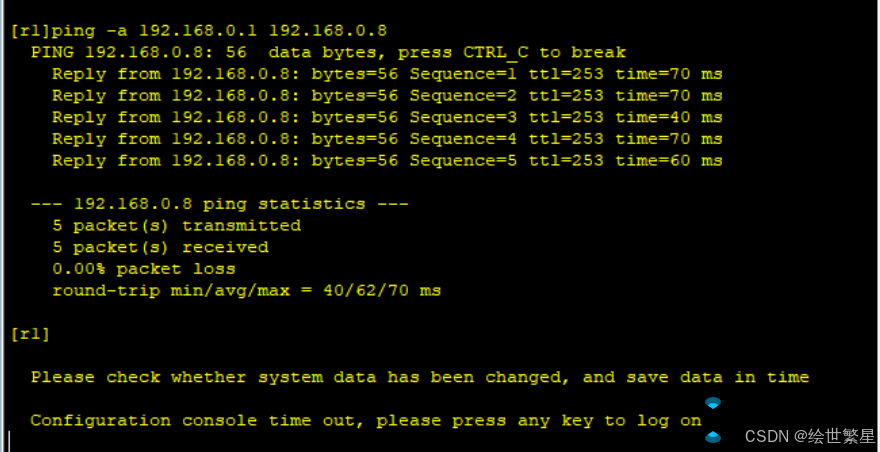

                区域1能与区域3通信：

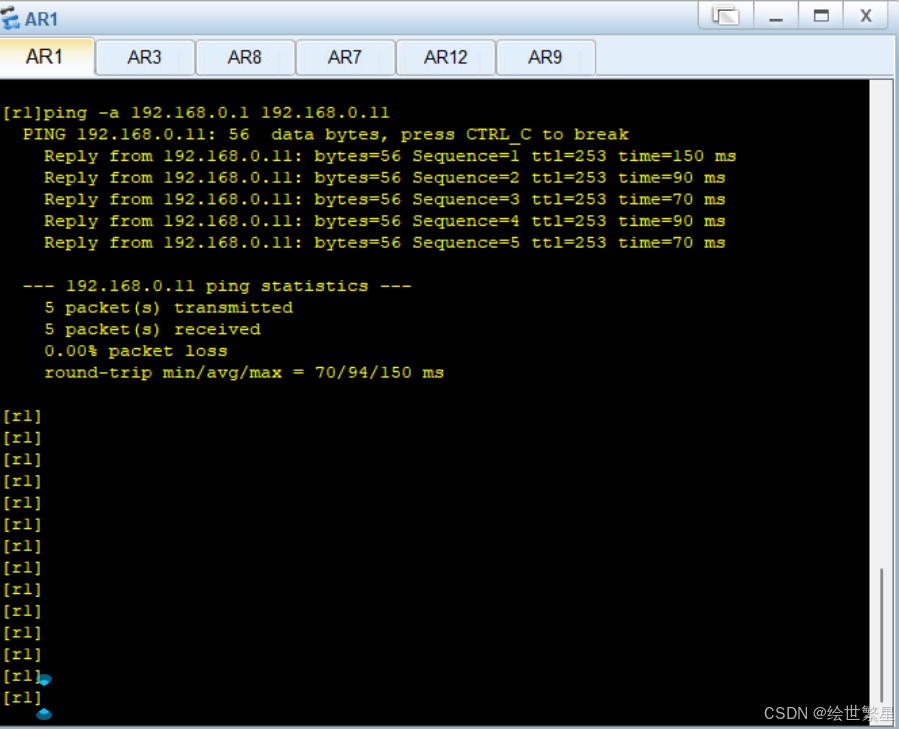

                区域1能与区域2通信：

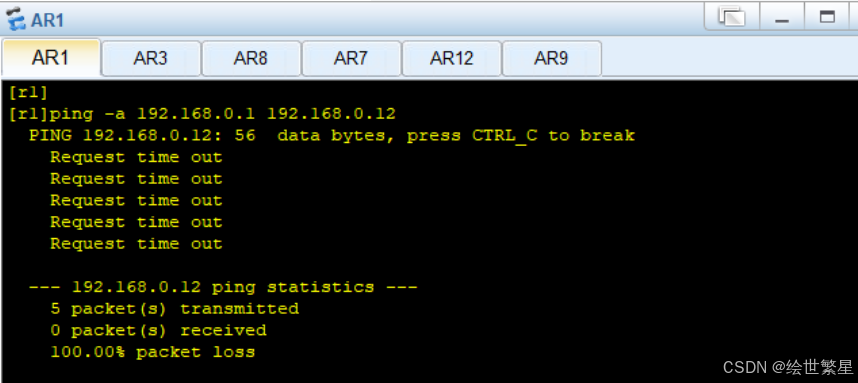

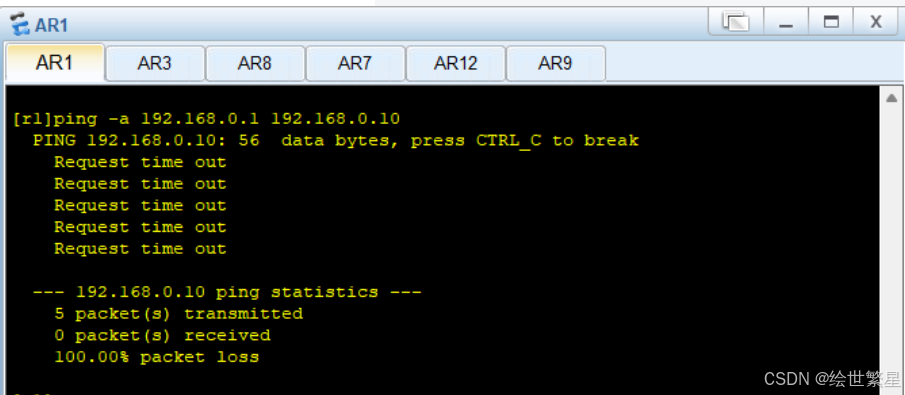

                区域1不能与区域4和rip区域通信：





                这个时候还不能全网通，只有与骨干区域直接相连的才能通行，因为

                非法ABR设备无法传递路由表，因为ospf与rip所用算法不一样所以也

                不能直接传递路由表，所以需要把rip区域重发布到ospf中，把区域4的进程改为2

       更改配置：

                        area 3：

                                 AR9:

                                        [r9]undo ospf

                                        Warning: The OSPF process will be deleted. Continue? [Y/N]:y

                                        [r9]OSPF 1 router-id 9.9.9.9

                                        [r9-ospf-1]area 3

                                        [r9-ospf-1-area-0.0.0.3]network 172.16.96.9 0.0.31.255

                         area 4：

                                AR9:

                                        [r9]ospf 2 router-id 9.9.9.9

                                        [r9-ospf-2]area 4

                                        [r9-ospf-2-area-0.0.0.4]network 192.168.0.9 0.0.0.0

                                        [r9-ospf-2-area-0.0.0.4]network 172.16.0.9 0.0.63.255

                                AR10:

                                        [10]undo ospf 1
                                        Warning: The OSPF process will be deleted. Continue? [Y/N]:y

                                        [10]ospf 2 router-id 10.10.10.10

                                        [10-ospf-2]area 4

                                        [10-ospf-2-area-0.0.0.4]network 172.16.0.10 0.0.63.255

                                        [10-ospf-2-area-0.0.0.4]network 192.168.0.10 0.0.0.0

                                AR9(ABR):

                                        [r9]ospf 1

                                        [r9-ospf-1]import-route os
                                        [r9-ospf-1]import-route ospf 2

                                        [r9]ospf 2
                                        [r9-ospf-2]import-route ospf 1

                                AR10(ASBR):

                                        [r12]ospf 1

                                        [r12-ospf-1]import-route rip 1

                                        [r12]rip

                                        [r12-rip-1]import-route ospf 1

验证：

                与rip区域相通

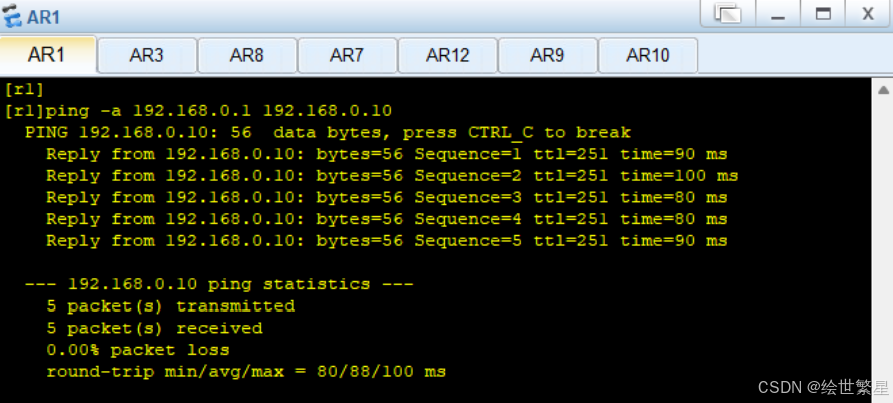

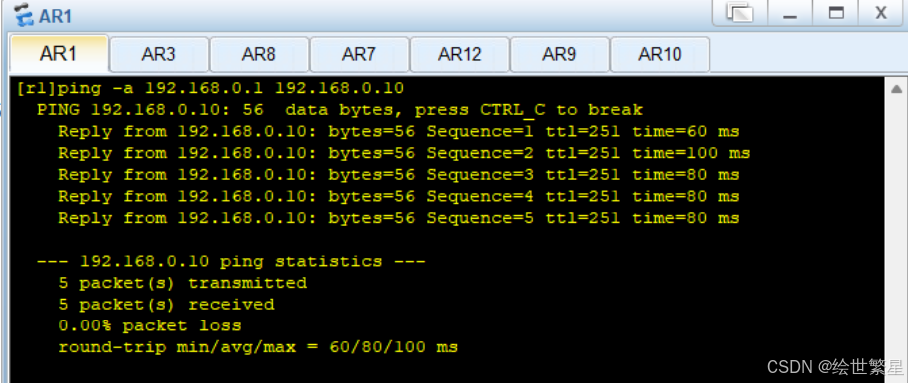

                与区域4相通



四.减少LSA更新，加快收敛

                在area 1 area 2 area 3 area 4 的ABR配置stub区（减少4类5类LSA）

                在area 2 rip 的ASBR配置NSSA区

                ABR的stub区配置：

                     （以R3为例）

                        [r3]ospf 1

                        [r3-ospf-1]asbr-summary

                        [r3-ospf-1-area-0.0.0.1]network 172.16.192.0 0.0.63.255

                        其中重新宣告的网段是汇总后的网段

                非ABR的stub区配置：

                      （以在同一area 1区的R2为例）

                        [r2]ospf 1

                        [r2-ospf-1]area 1

                        [r2-ospf-1-area-0.0.0.1]stub

                验证：

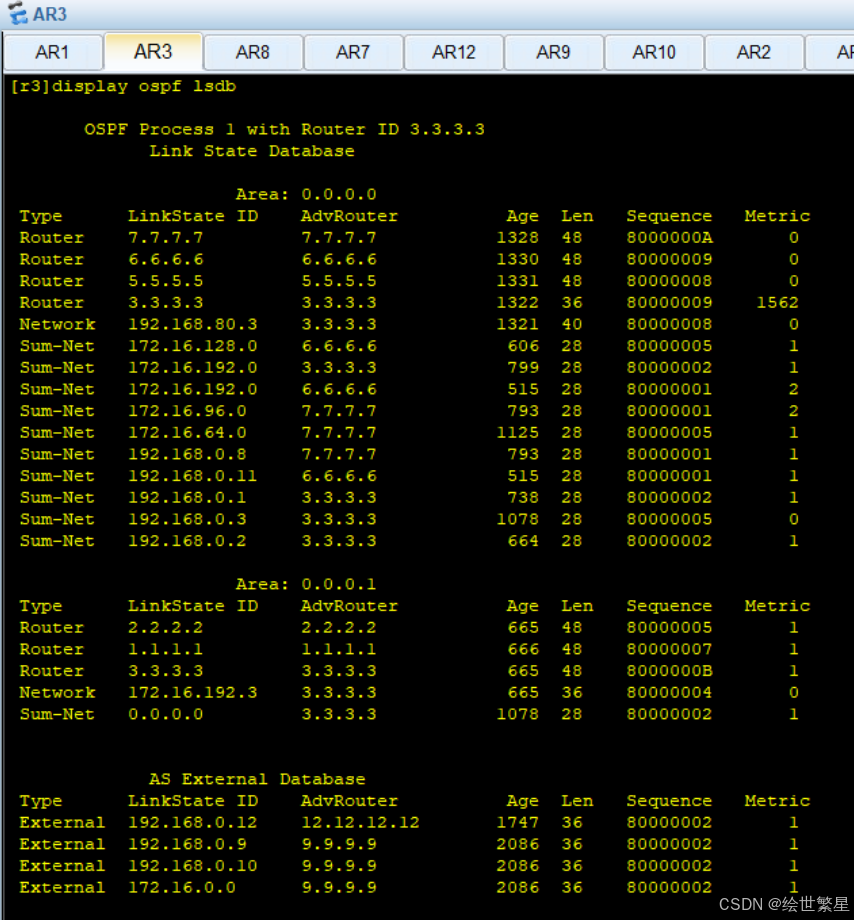

                        这是配置完area 1区stub区的LSA信息



                        stub区配置完后：
