WireShark捕获有效的POP/SMTP会话（163）

发邮件

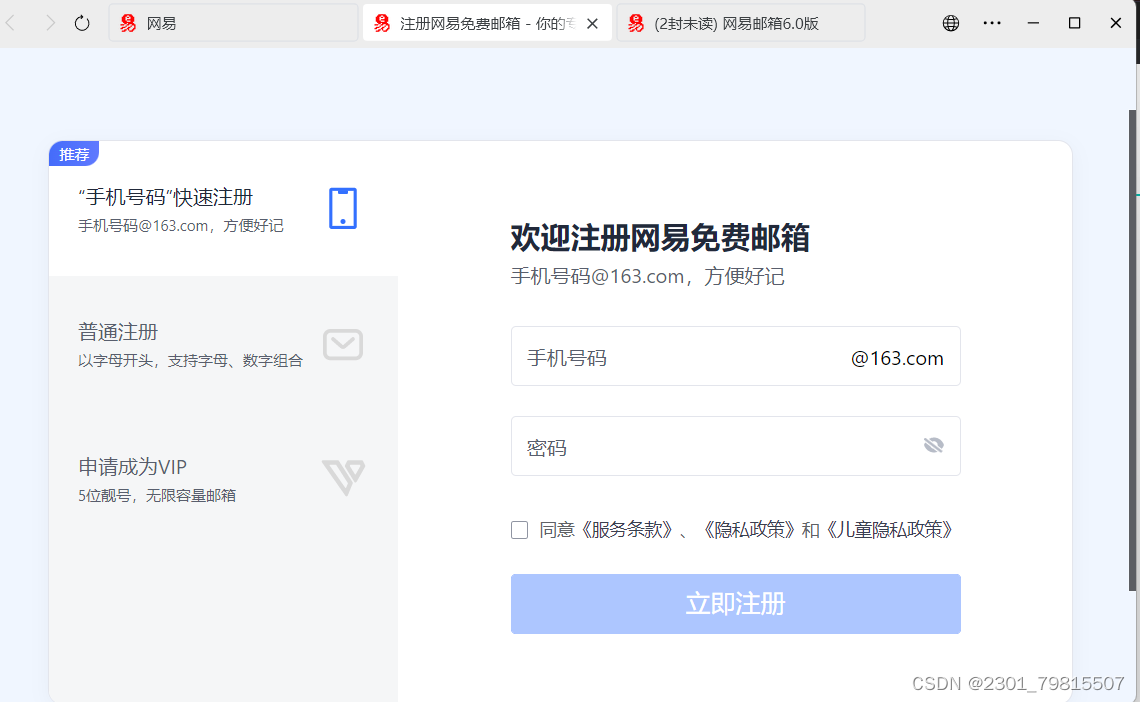

1. 注册一个网易邮箱

2. 在Web端，登陆邮箱后，开启POP3/SMTP服务

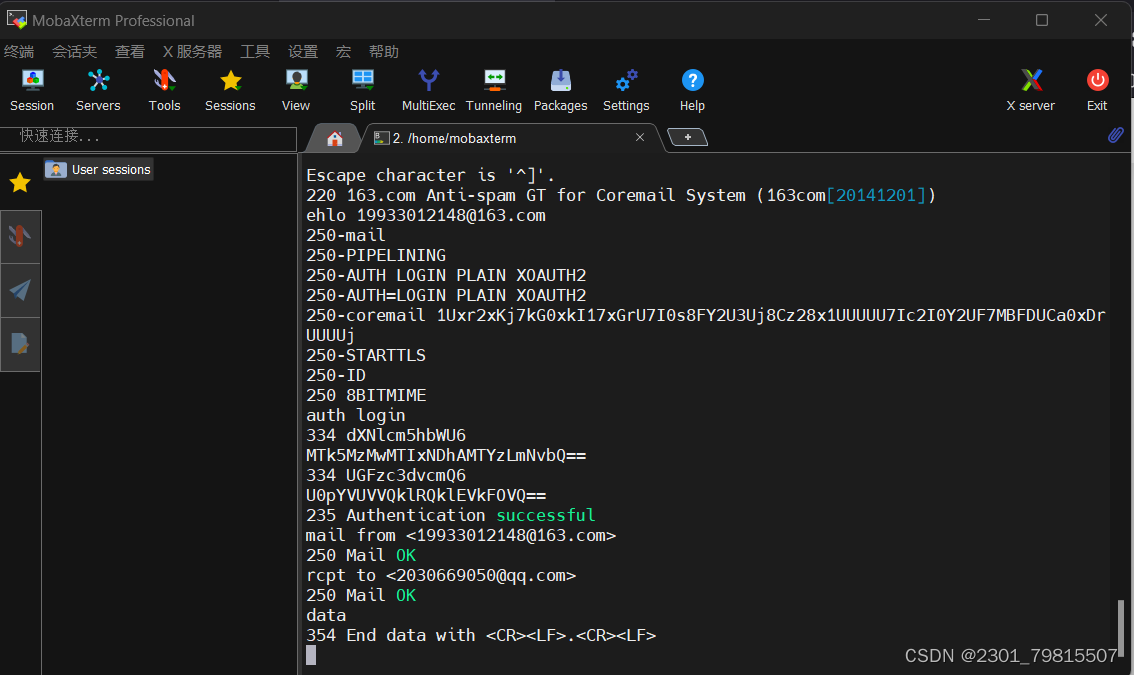

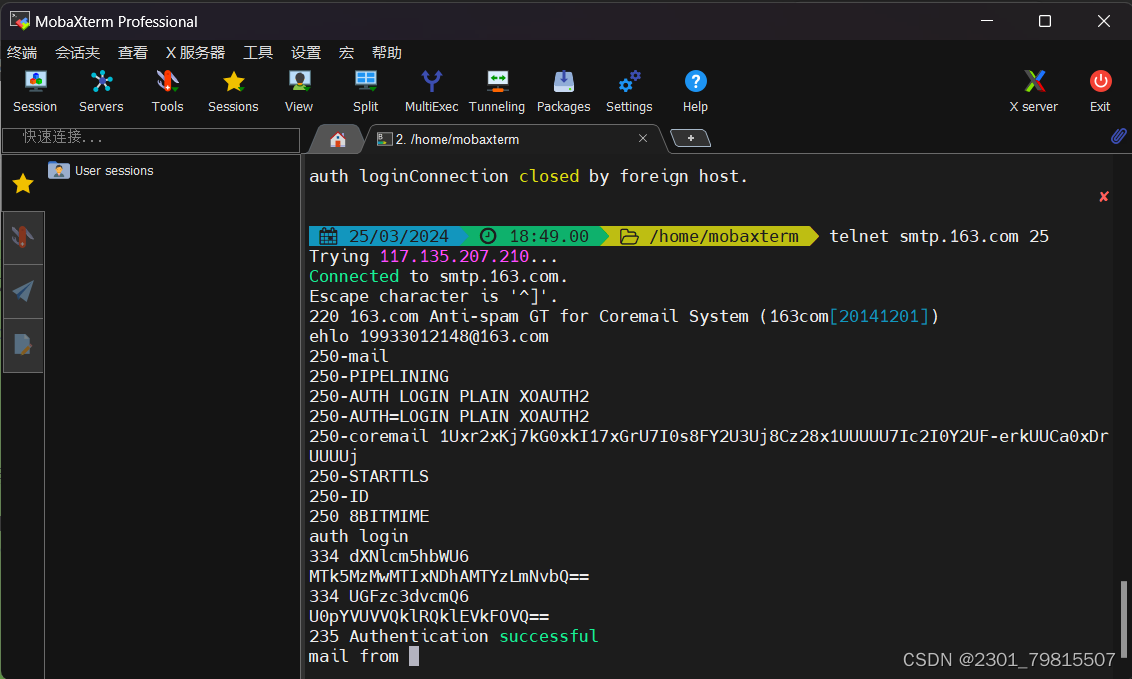

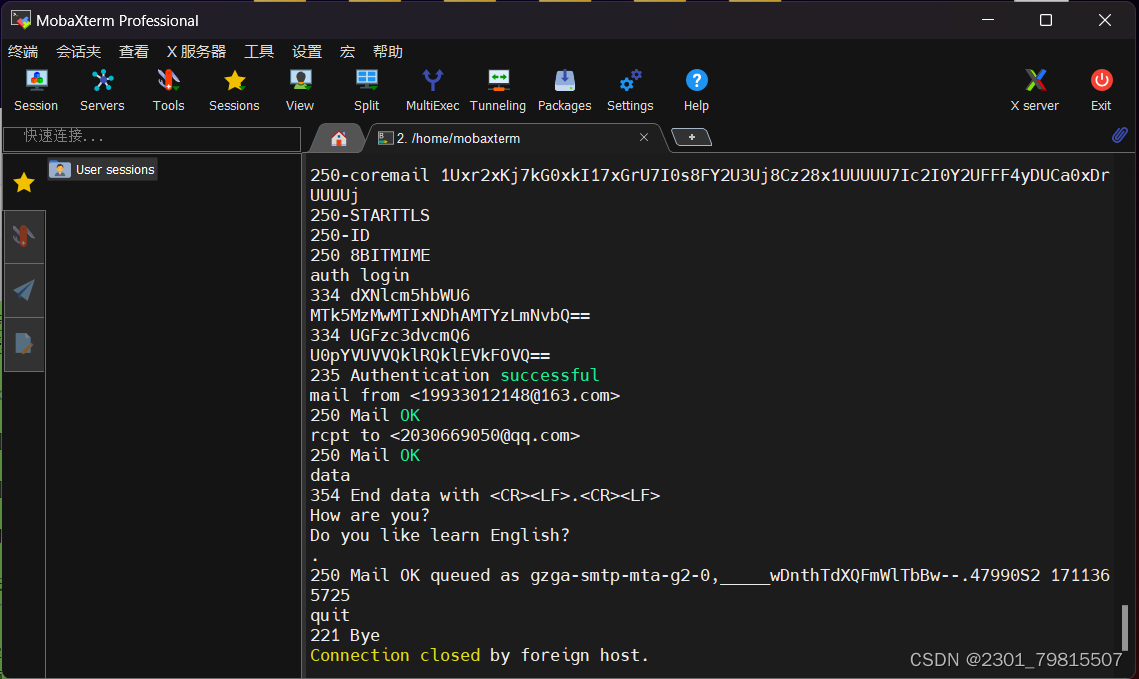

3. 在MobaXterm中，使用telnet连接网易的邮件服务器

 telnet smtp.163.com 25

 ehlo 19933012148@163.com
 auth login
 MTk5MzMwMTIxNDhAMTYzLmNvbQ==    //用户名的64base
 U0pYVUVVQklRQklEVkFOVQ==       //授权码的64base

 mail from <19933012148@163.com>
 rcpt to <2030669050@qq.com>      //用来接收的一个邮件

邮件内容：

 Enter.Enter   //退出编写
 quit         //断开SMTP服务器连接

4. 启动Wireshark进入捕获状态,按照POP3协议规定的语法，语义和时序，访问POP3服务器以查看和接收邮件

打开Wireshark，进入捕获状态：

 telnet pop.163.com 110
 user 19933012148@163.com
 pass SJXUEUBIQBIDVANU

 list
 retr 3
 quit

5. 停止捕获，查看并分析捕获到的POP3会话和ESMTP会话过程。

TCP跟踪内容：

 +OK POP3 ready
 user 19933012148@163.com
 +OK
 pass SJXUEUBIQBIDVANU
 +OK 3 message(s) [66755 byte(s)]
 list
 +OK 3 66755
 1 20241
 2 43062
 3 3452
 .
 retr 3
 +OK 3452 octets
 Received: from xmbgsz5.mail.qq.com (unknown [113.108.92.28])
     by gzga-mx-mta-g2-1 (Coremail) with SMTP id _____wDnN5jiYAFmmIRAAg--.32286S3;
     Mon, 25 Mar 2024 19:32:50 +0800 (CST)
 DKIM-Signature: v=1; a=rsa-sha256; c=relaxed/relaxed; d=qq.com; s=s201512;
     t=1711366369; bh=1QWTk4tG9KAWBbFC0qMekqsjTLv8ZRwRMpMToPGdidU=;
     h=From:To:Subject:Date;
     b=P3W4Vim8pyW+ZwWi8YLAq2Ytm4ERS7bDy+V89o+IOYypr0+L4WDFbwm4yH/pDDEqw
      8JOFFdqLGyDDKyZ1YkiWECt3nZ5u4a8wX7XzcKX+tl74esk/BvGG7J2vs9Ej5Qib9H
      wyiWTmHkM7AxnhsZMC1jynLNh7xnP92jNVWgdcq8=
 X-QQ-XMRINFO: OD9hHCdaPRBwq3WW+NvGbIU=
 X-QQ-XMAILINFO: MSZM6bBZzQobKVheMI8UnANNMkKriZrWJTOJLKom/Kcrwd6V/tojhjfmzOc5vX
      pnfLNeou3d8gL+PPPE7jDBYARCcC3BO2Bb2rZiD/p4Jv9WjaolXJP4X08ZVLlBmDBEYSDiG2hxRLM
      NueqBbP8DHMDLmoS5Ycix6e1s1LPxDdQEPdJrObLvD7TV4do9vtTf2FEHzsh+YZi8BQNy9nzFv1VL
      k6PSuHhuqlyZd1+h2Eo/8CmkKs8w/EFQJUyvfhAh9RVEMB641EqFAJ1KDls3FM1clIikcxJlAy+sV
      OFuM7OlVE7xOjIkPFpqWmZYqrRMAXHGD0vuBavLgmXShyWYRXWQ2asPfOnM2ZbUkxSS3QqUTDT0ur
      a8FIDkhDia3rqZCpiMYqGR0ZMhOoleHH9RZ6TSuRqdQhOyCB5SUMFY+M6MWGNomZSEcmqtW7tP+Nl
      YdQINDeL6rbCjG2lKK2bUmQR9lncKQgzZZT3HO0DQmj4OtuNqsIFyrnOAOVvQJQUzO0YrsTpl4vDc
      C8fVWUxDo5TTeG9PckT6U4sndhAYjfT0kC3SJjnVqBRFcriVVfBh65OCS+B9Azt5ag6AsUb3VmMDA
      IEVkU14Jjnrpx3CAk7Wmr4C/nUlQkUTwauq1zXtEoq3EMKqUISPkx0lm7jBxHm/eo1rxf2Jtijzoj
      JWmfb2iYSDDSYCwQ6B75kSqqfjmA6P6u2ro0sdbqWrnkJmrAxmTyx1Xf0tdThySGg0OVEIRnU+Ia4
      w9DFV/yFHsn+M2AhQXLHrLXj4G9w1KmPhHaBIIIxxH9JT2dmI3nNmSRC8gmW7XOphHa8T+ej6sMzK
      UZaoSbi8PGxb0H/Fiv+qAgrTb57zbkNpuAmf0n8EIfXhSFYfE7jw/fo7jABvipesEtNanU+eIg6I0
      kiy4DlkdgAld9UKGpoEmiLURmai2S0jXhCtmOVa3bA2bnp89A6UKyL3D/pE4K3EK4DSKJjE4RTYE1
      9dKy6PcX1s8vyLyWi6TfrAwiaX/aGTdqwF5FcIFeD1QhYmw73X3LBuw6cRA/8=
 From: "=?utf-8?B?WOaHkuaHkg==?=" <2964563946@qq.com>
 To: "=?utf-8?B?MTk5MzMwMTIxNDg=?=" <19933012148@163.com>
 Subject:
 Mime-Version: 1.0
 Content-Type: multipart/alternative;
     boundary="----=_NextPart_660160E1_7E89D1E0_1C5CB6D1"
 Content-Transfer-Encoding: 8Bit
 Date: Mon, 25 Mar 2024 19:32:49 +0800
 X-Priority: 3
 Message-ID: <tencent_1FD11BC33ECC3C4D377EF0C6E9F35308FA05@qq.com>
 X-QQ-MIME: TCMime 1.0 by Tencent
 X-Mailer: QQMail 2.x
 X-QQ-Mailer: QQMail 2.x
 X-QQ-mid: xmapsza6-0t1711366369t0nh0rzj9
 X-CM-TRANSID:_____wDnN5jiYAFmmIRAAg--.32286S3
 Authentication-Results: gzga-mx-mta-g2-1; spf=pass smtp.mail=296456394
     6@qq.com; dkim=pass header.i=@qq.com
 X-Coremail-Antispam: 1Uf129KBjDUn29KB7ZKAUJUUUUU529EdanIXcx71UUUUU7v73
     VFW2AGmfu7bjvjm3AaLaJ3UbIYCTnIWIevJa73UjIFyTuYvjxUFeOGUUUUU
 ​
 This is a multi-part message in MIME format.
 ​
 ------=_NextPart_660160E1_7E89D1E0_1C5CB6D1
 Content-Type: text/plain;
     charset="utf-8"
 Content-Transfer-Encoding: base64
 ​
 SG93IGFyZSB5b3XvvJ8NCg0KDQoNCuWPkeiHquaIkeeahGlQaG9uZQ==
 ​
 ------=_NextPart_660160E1_7E89D1E0_1C5CB6D1
 Content-Type: text/html;
     charset="utf-8"
 Content-Transfer-Encoding: base64
 ​
 PGRpdiBzdHlsZT0ibWluLWhlaWdodDoyMnB4O21hcmdpbi1ib3R0b206OHB4OyI+SG93IGFy
 ZSB5b3XvvJ88L2Rpdj48ZGl2IHN0eWxlPSJtaW4taGVpZ2h0OjIycHg7bWFyZ2luLWJvdHRv
 bTo4cHg7Ij48YnIgIC8+PC9kaXY+PGRpdiBpZD0iUVFNYWlsU2lnbmF0dXJlIiBjbGFzcz0i
 bWFpbC1mb290ZXIiIGFyaWEtaGlkZGVuPSJ0cnVlIj48aHIgc3R5bGU9Im1hcmdpbjogMCAw
 IDEwcHggMDtib3JkZXI6IDA7Ym9yZGVyLWJvdHRvbToxcHggc29saWQgI0U2RThFQjtoZWln
 aHQ6MDtsaW5lLWhlaWdodDowO2ZvbnQtc2l6ZTowO3BhZGRpbmc6IDIwcHggMCAwIDA7d2lk
 dGg6IDUwcHg7IiAgLz7lj5Hoh6rmiJHnmoRpUGhvbmU8L2Rpdj48ZGl2IGlkPSJvcmlnaW5h
 bC1jb250ZW50Ij48L2Rpdj4=
 ​
 ------=_NextPart_660160E1_7E89D1E0_1C5CB6D1--
 .
 quit
 +OK core mail
 ​

pop3分析：

根据捕获到的POP3会话过程，该会话首先进行了用户身份验证，然后使用 “list” 命令获取了邮件列表信息，随后使用 “retr 3” 命令获取了第三封邮件的内容，最后使用 “quit” 命令结束了会话。

在获取到的第三封邮件内容中，可以看到该封邮件是一封多部分消息，包含了文本和 HTML 两种格式的内容。邮件主题为空，发件人为 “2964563946@qq.com”，收件人为 “19933012148@163.com”。邮件正文内容经过了 Base64 编码：

 <div style="min-height:22px;margin-bottom:8px;">How are you?</div>

​

How are you?

​
