宜搭,高级认证实操2,FaaS连接器指导教程

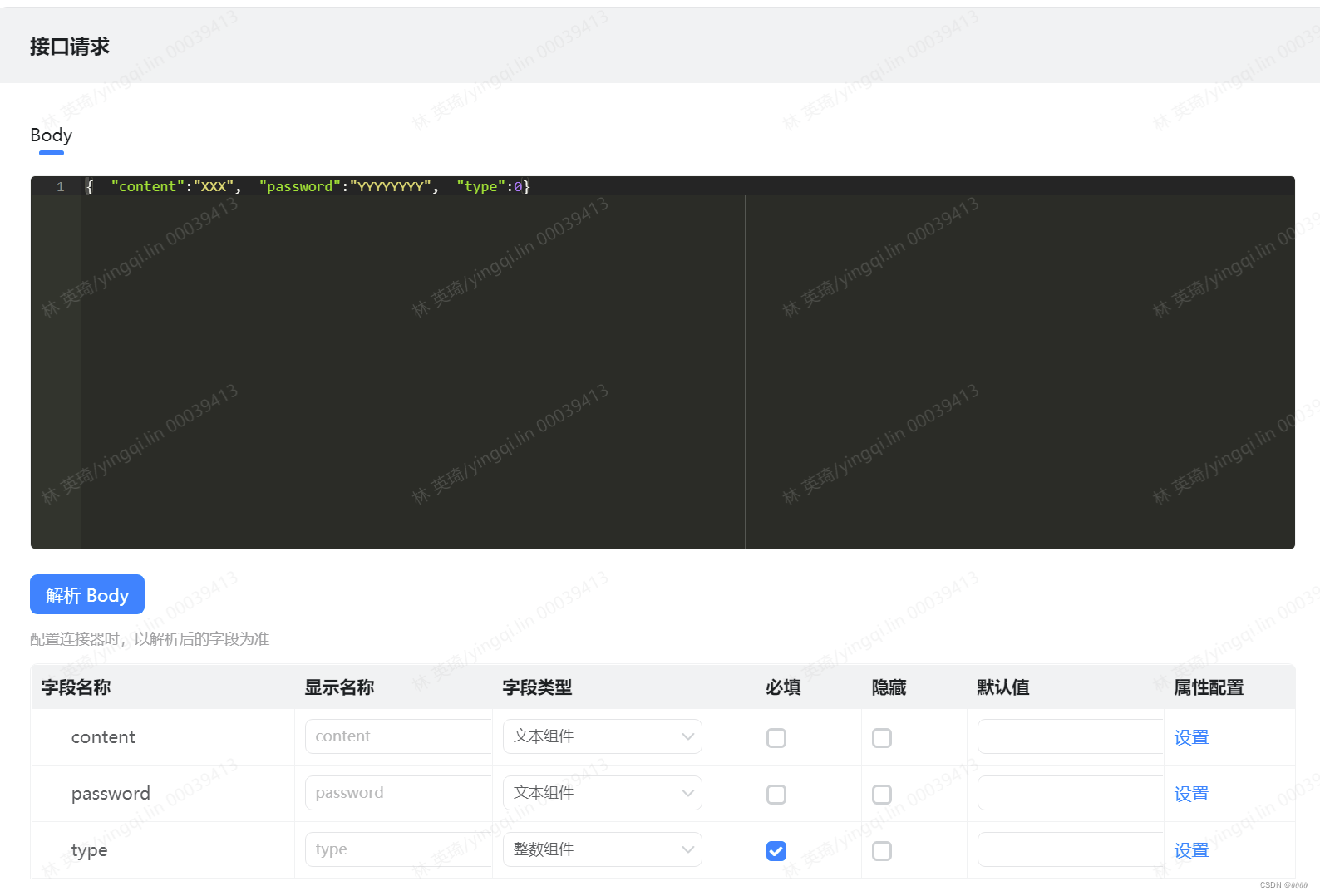

连接器工厂-->新建FaaS连接器

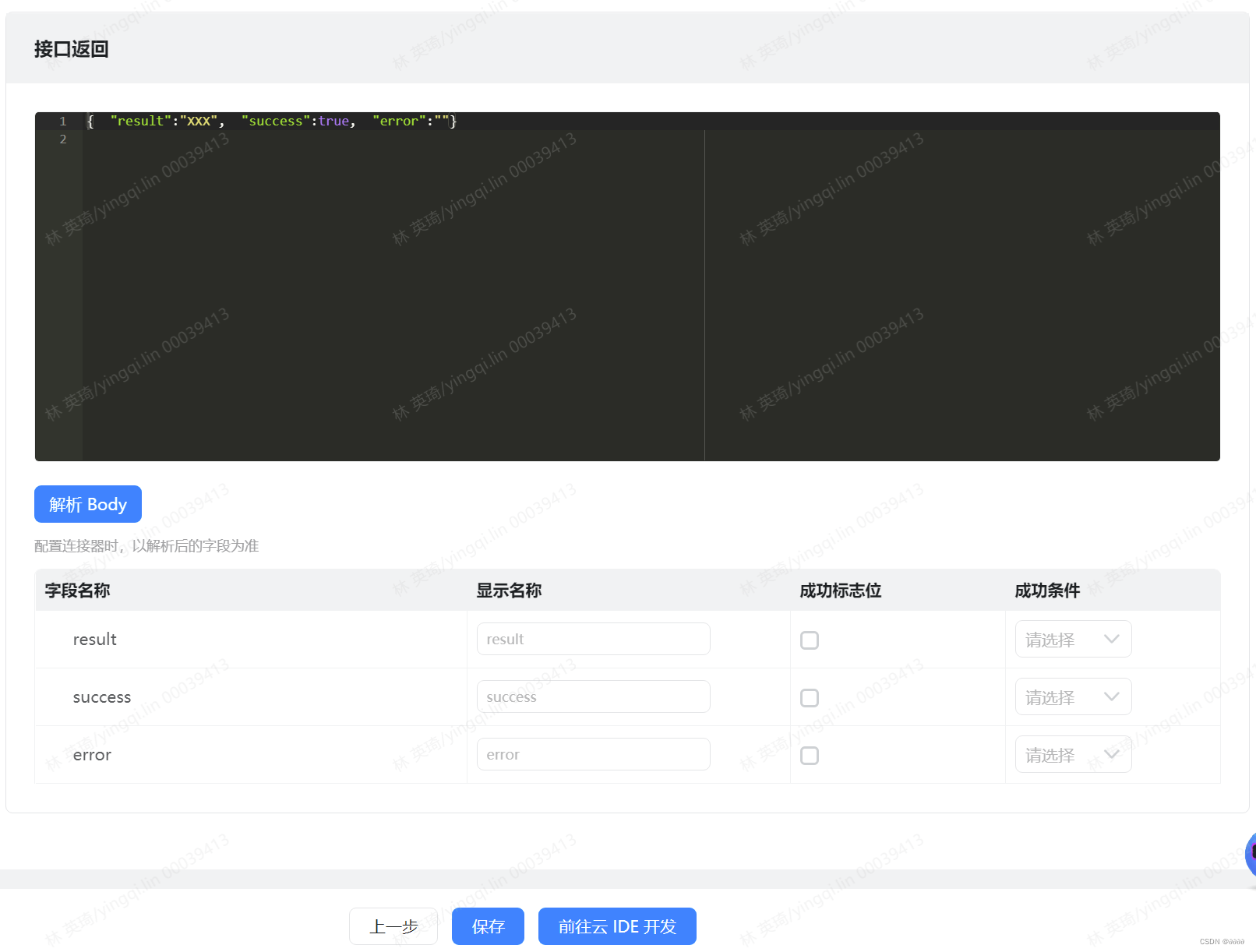

保存-->前往云IDE开发

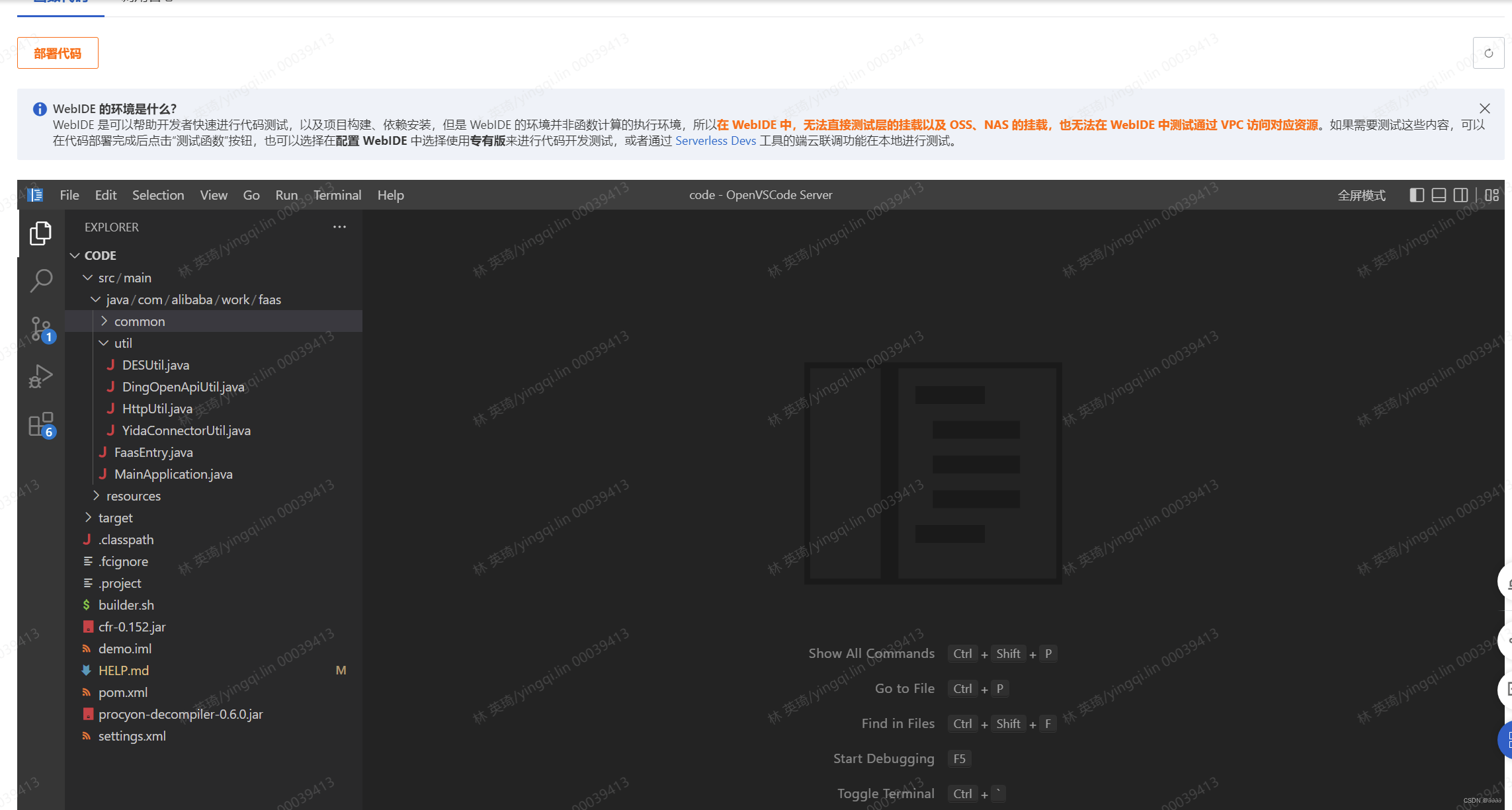

等待代码加载完毕

如图所示在util下新建EDSUtil.java代码如下

package com.alibaba.work.faas.util;

import javax.crypto.SecretKeyFactory;
import javax.crypto.spec.DESKeySpec;

import com.aliyuncs.utils.StringUtils;

import java.security.SecureRandom;
import org.apache.commons.codec.binary.Base64;
import javax.crypto.SecretKey;
import java.io.IOException;
import javax.crypto.Cipher;

public class DESUtil {
private final static String DES = "DES";

public static void main(String[] args) {
String data = "XXX";
String key = "yida12#$";
String encryptStr = encrypt(data, key);
System.out.println("加密后的字符串:" + encryptStr);
String decryptStr = decrypt(encryptStr, key);
System.out.println("解密后的字符串:" + decryptStr);
}

/**
* Description 根据键值进行加密
*
* @param data
* @param key 加密键byte数组
* @return
* @throws Exception
*/
public static String encrypt(String data, String key) {
    if (!StringUtils.isEmpty(data) && !StringUtils.isEmpty(key)) {
        try {
            byte[] bt = encrypt(data.getBytes(), key.getBytes());
            String strs = Base64.encodeBase64String(bt);
            return strs;
        } catch (Exception var4) {
            System.out.println("加密遇到错误:");
            var4.printStackTrace();
            return null;
        }
    } else {
        System.out.println("入参为空,data:" + data + ",key=" + key);
        return null;
    }
}

/**
* Description 根据键值进行解密
*
* @param data
* @param key 加密键byte数组
* @return
* @throws IOException
* @throws Exception
*/
public static String decrypt(String data, String key) {
    if (!StringUtils.isEmpty(data) && !StringUtils.isEmpty(key)) {
        try {
            byte[] dataNew = Base64.decodeBase64(data);
            byte[] bt = decrypt(dataNew, key.getBytes());
            return new String(bt);
        } catch (Exception var4) {
            System.out.println("解密遇到错误:");
            var4.printStackTrace();
            return null;
        }
    } else {
        System.out.println("入参为空,data:" + data + ",key=" + key);
        return null;
    }
}
/**
* Description 根据键值进行加密
*
* @param data
* @param key 加密键byte数组
* @return
* @throws Exception
*/
private static byte[] encrypt(byte[] data, byte[] key) throws Exception {
// 生成一个可信任的随机数源
SecureRandom sr = new SecureRandom();

// 从原始密钥数据创建DESKeySpec对象
DESKeySpec dks = new DESKeySpec(key);

// 创建一个密钥工厂，然后用它把DESKeySpec转换成SecretKey对象
SecretKeyFactory keyFactory = SecretKeyFactory.getInstance(DES);
SecretKey securekey = keyFactory.generateSecret(dks);

// Cipher对象实际完成加密操作
Cipher cipher = Cipher.getInstance(DES);

// 用密钥初始化Cipher对象
//cipher.init(Cipher.ENCRYPT_MODE, securekey, sr);
cipher.init(1, securekey, sr);

return cipher.doFinal(data);
}


/**
* Description 根据键值进行解密
*
* @param data
* @param key 加密键byte数组
* @return
* @throws Exception
*/
private static byte[] decrypt(byte[] data, byte[] key) throws Exception {
// 生成一个可信任的随机数源
SecureRandom sr = new SecureRandom();

// 从原始密钥数据创建DESKeySpec对象
DESKeySpec dks = new DESKeySpec(key);

// 创建一个密钥工厂，然后用它把DESKeySpec转换成SecretKey对象
SecretKeyFactory keyFactory = SecretKeyFactory.getInstance(DES);
SecretKey securekey = keyFactory.generateSecret(dks);

// Cipher对象实际完成解密操作
Cipher cipher = Cipher.getInstance(DES);

// 用密钥初始化Cipher对象
//cipher.init(Cipher.DECRYPT_MODE, securekey, sr);
cipher.init(2, securekey, sr);
return cipher.doFinal(data);
}
}

找到FaasEntry.java将如下代码整体替换,注意引包

package com.alibaba.work.faas;

import java.util.Arrays;
import java.util.Collections;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.Objects;

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;

import com.alibaba.work.faas.common.AbstractEntry;
import com.alibaba.work.faas.common.FaasInputs;
import com.alibaba.work.faas.util.DESUtil;
import com.alibaba.work.faas.util.DingOpenApiUtil;
import com.alibaba.work.faas.util.YidaConnectorUtil;
import com.alibaba.work.faas.util.YidaConnectorUtil.ConnectorTypeEnum;
import com.aliyun.dingtalkyida_1_0.models.BatchSaveFormDataRequest;

import org.apache.commons.lang3.StringUtils;

/**
 * 您的业务逻辑请从此类开始
 *
 * @Date 2023/09/21 11:16 AM
 * @Description 宜搭Faas连接器函数入口，FC handler：com.alibaba.work.faas.FaasEntry::handleRequest
 * @Version 2.0
 * @Author bufan
 *
 **/
public class FaasEntry extends AbstractEntry {
	public FaasEntry() {}
    @Override
    public JSONObject execute(FaasInputs faasInputs) {
		System.out.println("faasInputs: " + JSON.toJSONString(faasInputs));
		//填充宜搭工具类的上下文, 必须调用此方法!!! 请不要删除
		initYidaUtil(faasInputs);

		//登录态里的钉钉userId
		String userId = (String) faasInputs.getYidaContext().get("userId");
		//登录态里的钉钉corpId
		String corpId = (String) faasInputs.getYidaContext().get("corpId");

		//业务传的实际入参(如果您配置了参数映射(也就是点击了连接器工厂里的解析Body按钮并配置了各个参数描述和映射), 那么就是业务实际参数经过参数映射处理后的值)
		Map<String,Object> input = faasInputs.getInputs();

		/**
		 * 示例1, 在doYourBusiness方法里编写您的业务代码, 也可以将业务代码封装到其他Class源文件或方法里, cloudIDE和您的本地IDE基本无区别。
		 */
		JSONObject result = new JSONObject();
		try {
		   Object businessResult = doYourBusiness(input);
		   result.put("success",true);
		   result.put("result",businessResult);
		   result.put("error","");
		   return result;
		} catch (Exception e) {
		   result.put("success",false);
		   result.put("result",null);
		   result.put("error",e.getMessage());
		   return result;
		}
		/**
		 * 返回的JSONObject并不是一定要带success、result、error, 下面的代码只是示例, 具体返回哪些key-value由您自己决定, 尽量与您在宜搭连接器工厂里配置的出参结构保持一致即可
		 */
		// JSONObject result = new JSONObject();
		// result.put("success",true);
		// result.put("result","恭喜您, 成功调用宜搭FASS连接器!");
		// result.put("error","");

		// return result;
	}

	/**
	 * 将相关参数存到宜搭工具类里, 必须要调用此方法!!! 请不要删除!!!
	 *
	 * @param faasInputs
	 */
	private static final void initYidaUtil(FaasInputs faasInputs){
		/**
		 * 用于调用钉钉开放平台OpenAPI的accessToken, 宜搭提供的, 仅申请了钉钉开放平台的部分OpenAPI的调用权限
		 * 如果此accessToken不满足您的需求,可在钉钉开放平台创建您自己的钉钉应用并获取appKey和APPSecret并使用com.alibaba.work.faas.util.DingOpenApiUtil获取您自己的customAccessToken
		 *
		 * @see com.alibaba.work.faas.util.DingOpenApiUtil#getCustomAccessTokenThenCache(String,String)
		 */
		String accessToken = (String) faasInputs.getYidaContext().get("accessToken");
		// 设置钉开放平台访问token, 后续无需再设置
		DingOpenApiUtil.setAccessToken(accessToken);

		// try {
		//     //调用该方法就会自动存储customAccessToken, 之后请不要调用DingOpenApiUtil.setAccessToken(accessToken)将返回的customAccessToken覆盖宜搭传入的accessToken;
		//     DingOpenApiUtil.getCustomAccessTokenThenCache("您的钉钉应用appKey", "您的钉钉应用appSecret");
		// } catch (Exception e) {
		//     System.out.println("getCustomAccessTokenThenCache error:"+e.getMessage());
		// }
		/**
		 *调用宜搭连接器依赖consumeCode
		 */
		String consumeCode = (String)faasInputs.getYidaContext().get("consumeCode");
		//设置连接器消费码, 后续无需再设置
		YidaConnectorUtil.setConsumeCode(consumeCode);
	}
	private Object doYourBusiness(Map<String,Object> input) throws Exception{
		String content = (String)input.get("content");
String password = (String)input.get("password");
Integer type = Integer.parseInt(String.valueOf(input.get("type")));
/**
*在这里编写您的业务代码, 也可以将业务代码封装到其他类或方法里.
*/
JSONObject result = new JSONObject();
result.put("success",false);
result.put("result","");
result.put("error","");
String encryptContent;
if (0 == type) {
/**
* 加密
*/
encryptContent = DESUtil.encrypt(content, password);
System.out.println("加密后的字符串123:" + encryptContent);
if (StringUtils.isEmpty(encryptContent)) {
result.put("error", "empty string got!");
return DESUtil.encrypt(content, password);
}
result.put("result", encryptContent);
result.put("success", true);
}
else {
/**
* 解密
*/
encryptContent = DESUtil.decrypt(content, password);
System.out.println("解密后的字符串:" + encryptContent);
if (StringUtils.isEmpty(encryptContent)) {
result.put("error", "empty string got!");
return result;
}
result.put("result", encryptContent);
result.put("success", true);
}
System.out.println("返回:" + JSON.toJSONString(result));
return result.get("result");
    }

    public static void main(String[] args) {
        Map<String, Object> m = new HashMap();
        m.put("content", "xxxx");
        m.put("password", "YYYYYYYY");
        m.put("type", 0);
		// //取实际的入参
		// String param1 = (String)input.get("参数1");
		// String param2 = (String)input.get("参数2");
		// String paramN = (String)input.get("参数N");
		// //业务处理
		// return "doYourBusiness成功";
	}
    private Object invokeYidaConnector(FaasInputs faasInputs) throws Exception {
        Map<String, Object> input = faasInputs.getInputs();
        String userId = (String)faasInputs.getYidaContext().get("userId");
        String corpId = (String)faasInputs.getYidaContext().get("corpId");
        JSONObject connectorActionInputs = new JSONObject();
        connectorActionInputs.put("unionId", Arrays.asList(userId));
        connectorActionInputs.put("subject", (String)input.get("title"));
        connectorActionInputs.put("creatorId", Arrays.asList(userId));
        connectorActionInputs.put("description", "Faas连接器里调用钉钉官方连接器创建待办");
        connectorActionInputs.put("dueTime", System.currentTimeMillis() + 600000L);
        connectorActionInputs.put("priority", 10L);
        YidaConnectorUtil.YidaResponse response = YidaConnectorUtil.invokeService("G-CONN-1016B8AEBED50B01B8D00009", "G-ACT-1016B8B1911A0B01B8D0000I", ConnectorTypeEnum.DING_INNER_CONNECTOR, (Long)null, connectorActionInputs);
        if (Objects.nonNull(response) && response.isSuccess()) {
            try {
                return YidaConnectorUtil.extractYidaConnectorExecutionResult(response);
            } catch (Exception var8) {
                throw new Exception(var8.getMessage());
            }
        } else {
            throw new Exception(Objects.isNull(response) ? "执行宜搭连接器失败" : response.getErrorCode() + " " + response.getErrorMsg());
        }
    }
}

部署

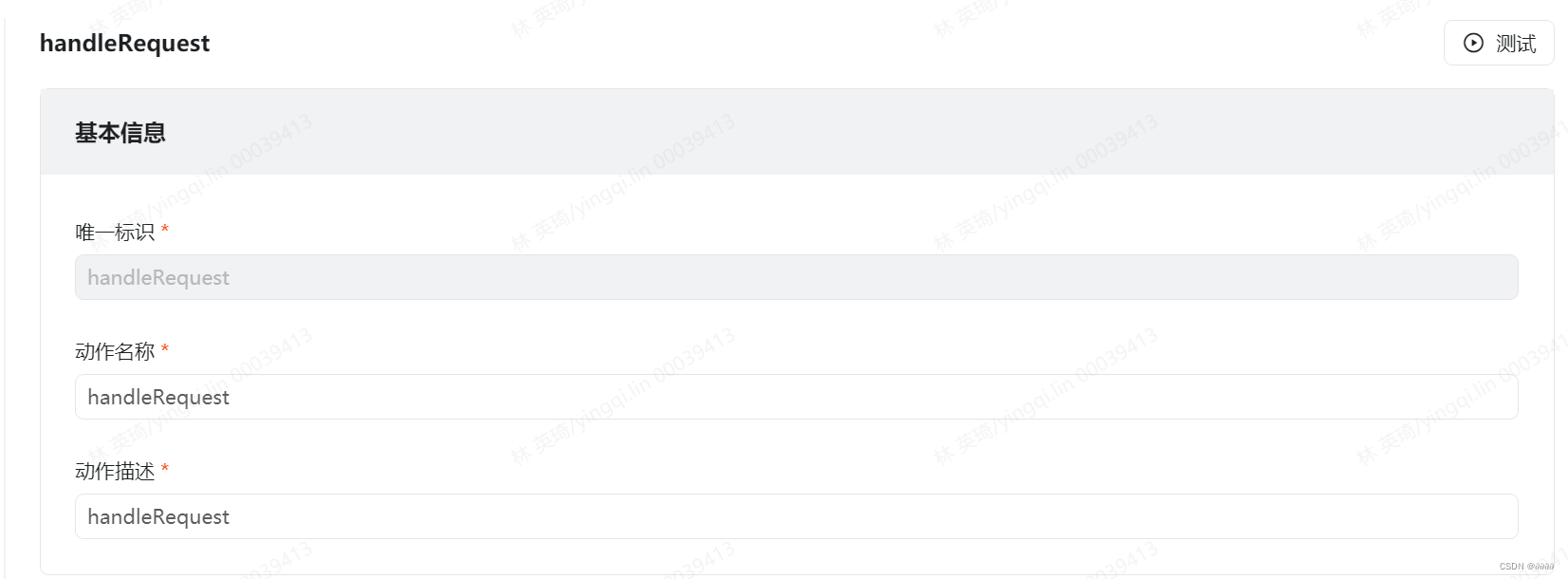

回到连接器界面点击右上角测试-->测试

返回如图所示代码,部署成功
