无线路由配置

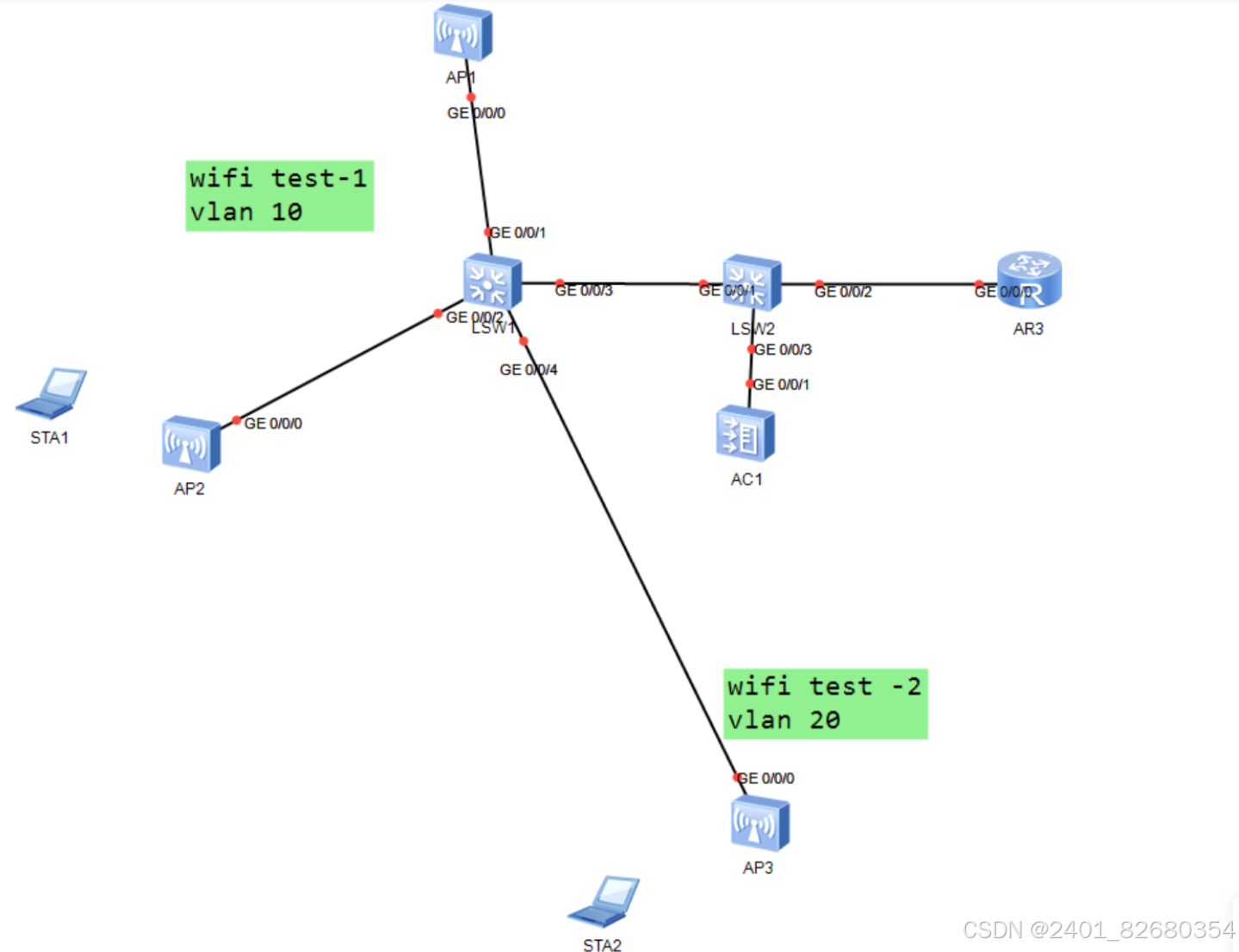

要配置如图所示的无线路由

AC1

[AC6605]vlan batch 10 20 100

[AC6605]interface GigabitEthernet 0/0/1

[AC6605-GigabitEthernet0/0/1]port link-type trunk
[AC6605-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 20 100

[AC6605]interface Vlanif 100

[AC6605-Vlanif100]ip address 100.0.0.1 24

[AC6605]dhcp enable

[AC6605]ip pool aaa

[AC6605-ip-pool-aaa]network 100.0.0.0 mask 24

[AC6605-ip-pool-aaa]gateway-list 100.0.0.1

[AC6605]interface Vlanif 100

[AC6605-Vlanif100]dhcp select global

[AC6605]capwap source interface Vlanif 100

[AC6605]wlan

[AC6605-wlan-view]regulatory-domain-profile name domain

[AC6605-wlan-regulate-domain-domain]country-code CN

[AC6605-wlan-view]ap-group name group-1

[AC6605-wlan-ap-group-group-1]regulatory-domain-profile domain
[AC6605-wlan-view]ap auth-mode mac-auth

[AC6605-wlan-view]ap-id 1 ap-mac 00e0-fc2a-3690

[AC6605-wlan-ap-1]ap-group group-1

[AC6605-wlan-view]ap-id 2 ap-mac 00e0-fc55-2d90

[AC6605-wlan-ap-2]ap-group group-1

[AC6605-wlan-view]ap-id 3 ap-mac 00e0-fc35-6740

[AC6605-wlan-ap-3]ap-group group 2

GROUP 1

[AC6605]wlan

[AC6605-wlan-view]ssid-profile name test-1

[AC6605-wlan-ssid-prof-test-1]ssid AP1   （更改wifi的名字）

[AC6605-wlan-view]security-profile name test-1

[AC6605-wlan-sec-prof-test-1]security wpa-wpa2 psk pass-phrase huawei123 aes  （设置密码）
[AC6605-wlan-view]vap-profile name test-1

[AC6605-wlan-vap-prof-test-1]ssid-profile test-1

[AC6605-wlan-vap-prof-test-1]security-profile test-1

[AC6605-wlan-vap-prof-test-1]forward-mode direct-forward

[AC6605-wlan-view]ap-group name group-1

[AC6605-wlan-ap-group-group-1]vap-profile test-1 wlan 1 radio all

[AC6605]ip pool vlan10    （分发vlan）

[AC6605]interface Vlanif 10

[AC6605-Vlanif10]ip address 192.168.10.1 24

[AC6605-ip-pool-vlan10]network 192.168.10.0 mask 24

[AC6605-ip-pool-vlan10]gateway-list 192.168.10.1

[AC6605-ip-pool-vlan10]dns-list 8.8.8.8

[AC6605]interface Vlanif 10

[AC6605-Vlanif10]dhcp select global

GROUP2

[AC6605-wlan-view]ap-group name group-2
[AC6605-wlan-ap-group-group-2]regulatory-domain-profile domain
[AC6605-wlan-view]ssid-profile name test-2
[AC6605-wlan-ssid-prof-test-2]ssid AP3

[AC6605-wlan-view]security-profile name test-2
[AC6605-wlan-sec-prof-test-2]security wpa-wpa2 psk pass-phrase huawei456 aes
[AC6605-wlan-view]vap-profile name test-2

[AC6605-wlan-vap-prof-test-2]service-vlan vlan-id 20
[AC6605-wlan-vap-prof-test-2]ssid-profile test-2
[AC6605-wlan-vap-prof-test-2]security-profile test-2
[AC6605-wlan-vap-prof-test-2]forward-mode direct-forward
[AC6605-wlan-view]ap-group name group-2

[AC6605-wlan-ap-group-group-2]vap-profile test-2 wlan 1 radio all [AC6605]ip pool vlan20

[AC6605]interface Vlanif 20

[AC6605-Vlanif20]ip address 192.168.20.1 24
[AC6605-ip-pool-vlan20]network 192.168.20.0 mask 24
[AC6605-ip-pool-vlan20]gateway-list 192.168.20.1
[AC6605-ip-pool-vlan20]dns-list 8.8.8.8
[AC6605]interface Vlanif 20

[AC6605-Vlanif20]dhcp select global

SW1

[SW1]vlan batch 10 20 100

[SW1]interface GigabitEthernet 0/0/3

[SW1-GigabitEthernet0/0/3]port link-type trunk
[SW1-GigabitEthernet0/0/3]port trunk allow-pass vlan 10 20 100
[SW1]interface GigabitEthernet 0/0/1

[SW1-GigabitEthernet0/0/1]port link-type trunk
[SW1-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 100

[SW1-GigabitEthernet0/0/1]port trunk pvid vlan 100

[SW1]interface GigabitEthernet 0/0/2

[SW1-GigabitEthernet0/0/2]port link-type trunk
[SW1-GigabitEthernet0/0/2]port trunk allow-pass vlan 10 100

[SW1-GigabitEthernet0/0/2]port trunk pvid vlan 100

[SW1]interface GigabitEthernet 0/0/4

[SW1-GigabitEthernet0/0/4]port link-type trunk
[SW1-GigabitEthernet0/0/4]port trunk allow-pass vlan 20 100

[SW1-GigabitEthernet0/0/4]port trunk pvid vlan 100

SW2

[SW2]vlan batch 10 20 100

[SW2]interface GigabitEthernet 0/0/3

[SW2-GigabitEthernet0/0/3]port link-type trunk
[SW2-GigabitEthernet0/0/3]port trunk allow-pass vlan 10 20 100

[SW2]interface GigabitEthernet 0/0/1

[SW2-GigabitEthernet0/0/1]port link-type trunk
[SW2-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 20 100

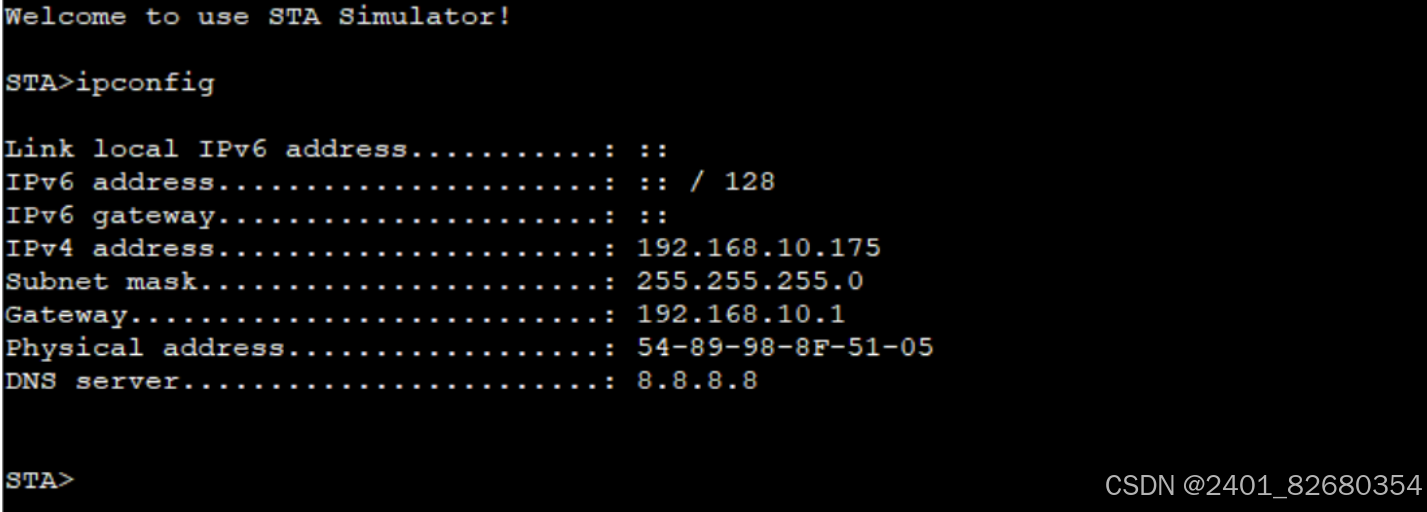

STA1

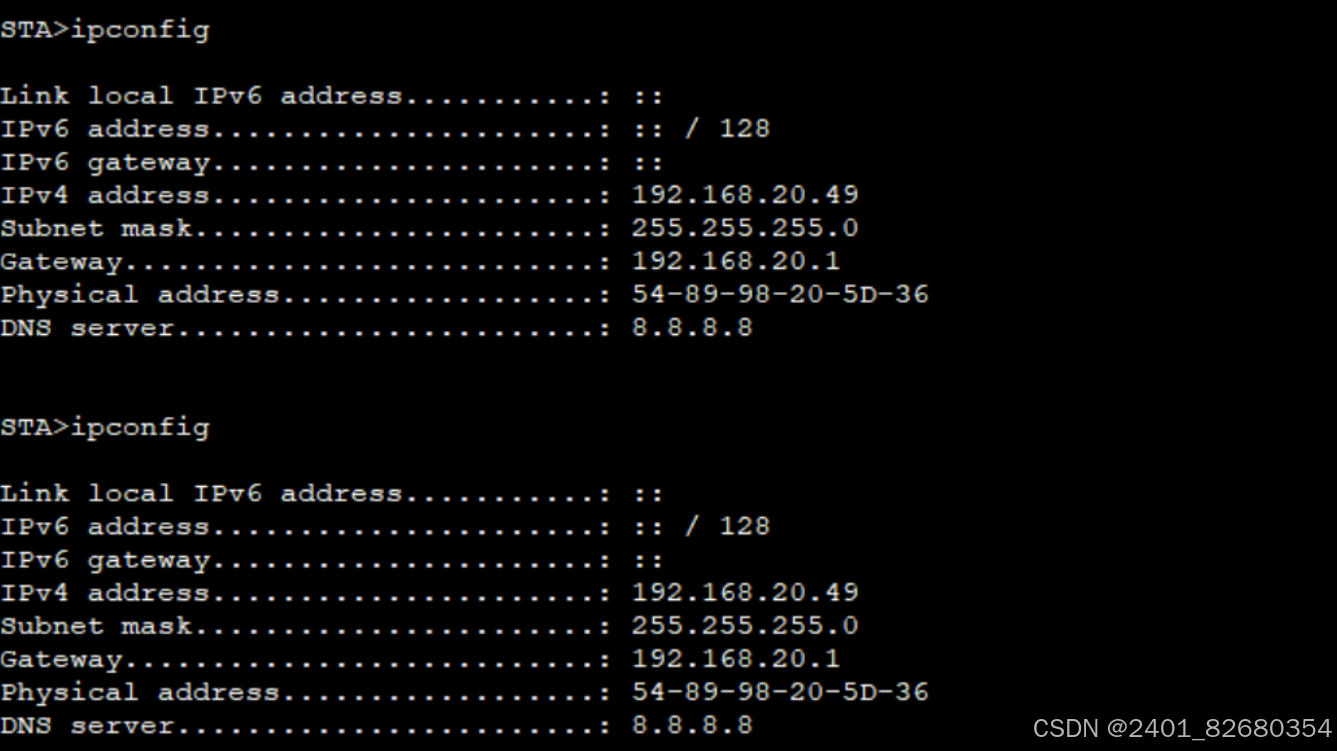

STA2

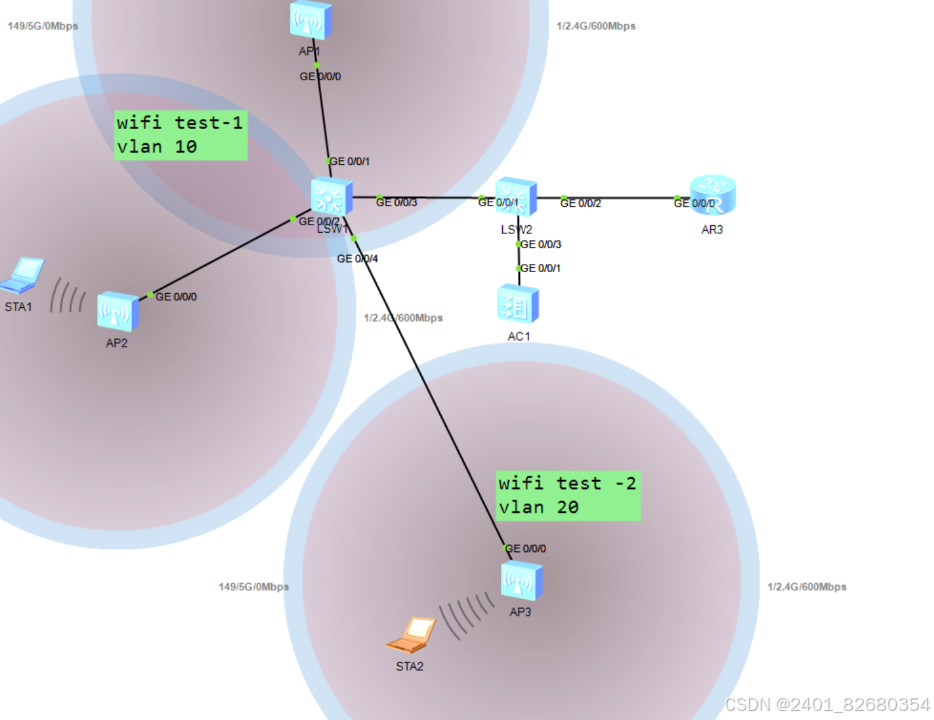

效果图
