源码剖析
private Collection getSpringFactoriesInstances(Class type) {
return getSpringFactoriesInstances(type, new Class<?>[] {});
}
private Collection getSpringFactoriesInstances(Class type, Class<?>[] parameterTypes, Object… args) {
ClassLoader classLoader = getClassLoader();
// Use names and ensure unique to protect against duplicates
// 使用 Set保存names
Set names = new LinkedHashSet<>(SpringFactoriesLoader.loadFactoryNames(type, classLoader));
// 根据names进行实例化
List instances = createSpringFactoriesInstances(type, parameterTypes, classLoader, args, names);
// 对实例进行排序
AnnotationAwareOrderComparator.sort(instances);
return instances;
}
2. 设置监听器
源码剖析
/**
-
Sets the {@link ApplicationListener}s that will be applied to the SpringApplication
-
and registered with the {@link ApplicationContext}.
-
@param listeners the listeners to set
*/
public void setListeners(Collection<? extends ApplicationListener<?>> listeners) {
this.listeners = new ArrayList<>(listeners);
}
继承了ApplicationListener()接口
源码剖析
/**
-
Interface to be implemented by application event listeners.
-
Based on the standard {@code java.util.EventListener} interface
-
for the Observer design pattern.
-
As of Spring 3.0, an {@code ApplicationListener} can generically declare
-
the event type that it is interested in. When registered with a Spring
-
{@code ApplicationContext}, events will be filtered accordingly, with the
-
listener getting invoked for matching event objects only.
-
@author Rod Johnson
-
@author Juergen Hoeller
-
@param the specific {@code ApplicationEvent} subclass to listen to
-
@see org.springframework.context.ApplicationEvent
-
@see org.springframework.context.event.ApplicationEventMulticaster
-
@see org.springframework.context.event.EventListener
*/
@FunctionalInterface
public interface ApplicationListener extends EventListener {
/**
-
Handle an application event.
-
@param event the event to respond to
*/
void onApplicationEvent(E event);
}
总结:
在这里使用到了观察者模式,有一个被观察者和许多观察者,当被观察者的状态发生改变时,要通知所有的观察者做一些操作。
3. 推断主应用入口类
源码剖析
private Class<?> deduceMainApplicationClass() {
try {
// 构造一个异常类
StackTraceElement[] stackTrace = new RuntimeException().getStackTrace();
for (StackTraceElement stackTraceElement : stackTrace) {
// 通过main的栈帧推断出入口类的名字
if (“main”.equals(stackTraceElement.getMethodName())) {
return Class.forName(stackTraceElement.getClassName());
}
}
}
catch (ClassNotFoundException ex) {
// Swallow and continue
}
return null;
}
三、run() 方法源码剖析
源码剖析
/**
-
Run the Spring application, creating and refreshing a new
-
{@link ApplicationContext}.
-
@param args the application arguments (usually passed from a Java main method)
-
@return a running {@link ApplicationContext}
*/
public ConfigurableApplicationContext run(String… args) {
// 记时器,统计应用启动的时间
StopWatch stopWatch = new StopWatch();
stopWatch.start();
// 初始化应用上下文和异常报告集合
ConfigurableApplicationContext context = null;
// SpringBootExceptionReporter 是异常处理器,启动的时候通过它把异常信息展示出来
Collection exceptionReporters = new ArrayList<>();
// 设置系统属性java.awt.headless的值,默认为true
configureHeadlessProperty();
// 监听器,SpringApplicationRunListeners实际上是一个集合
SpringApplicationRunListeners listeners = getRunListeners(args);
// 回调所有的获取SpringApplicationRunListener.starting()方法
listeners.starting();
try {
// 初始化默认参数
ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
// 准备 Spring 环境
ConfigurableEnvironment environment = prepareEnvironment(listeners, applicationArguments);
// 创建环境完成后回调,配置bean
configureIgnoreBeanInfo(environment);
// 打印器,springboot启动的时候会打印springboot的标志以及对应的版本
Banner printedBanner = printBanner(environment);
// 创建Spring应用上下文,来决定创建web的ioc还是普通的ioc
context = createApplicationContext();
// 实例化异常报告器
exceptionReporters = getSpringFactoriesInstances(SpringBootExceptionReporter.class,
new Class[] { ConfigurableApplicationContext.class }, context);
//准备上下文环境
// Spring上下文前置处理
prepareContext(context, environment, listeners, applicationArguments, printedBanner);
// prepareContext运行完成以后回调所有的SpringApplicationRunListener的contextLoaded();
// Spring上下文刷新,表示刷新完成,进行后续的一些操作
refreshContext(context);
// Spring上下文后置处理
afterRefresh(context, applicationArguments);
// 停止计时器
stopWatch.stop();
// 输出日志记录的类名、时间信息
if (this.logStartupInfo) {
new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), stopWatch);
}
// 发布应用上下文启动完成事件
listeners.started(context);
// 执行所有 Runner 运行器
callRunners(context, applicationArguments);
}
catch (Throwable ex) {
handleRunFailure(context, ex, exceptionReporters, listeners);
throw new IllegalStateException(ex);
}
try {
// 发布应用上下文就绪事件
listeners.running(context);
}
catch (Throwable ex) {
handleRunFailure(context, ex, exceptionReporters, null);
throw new IllegalStateException(ex);
}
// 返回应用上下文
return context;
}
1. 开启计时器
开启计时器,用来统计应用启动的时间
public void start() throws IllegalStateException {
// 传入一个空字符串作为当前任务的名称
this.start(“”);
}
public void start(String taskName) throws IllegalStateException {
if (this.currentTaskName != null) {
// 如果当前任务名字不为空,抛出异常
throw new IllegalStateException(“Can’t start StopWatch: it’s already running”);
} else {
// 否则,记录当前任务的开始时间
this.currentTaskName = taskName;
this.startTimeNanos = System.nanoTime();
}
}
- 首先,传入一个空字符串作为当前任务的名称
- 其次,判断当前任务名是否空,如果为空,则记录当前应用启动的开始时间
2. 设置系统属性的值
系统属性的值默认是true,系统属性的值来源于System.getProperty()。
private void configureHeadlessProperty() {
System.setProperty(SYSTEM_PROPERTY_JAVA_AWT_HEADLESS,
System.getProperty(SYSTEM_PROPERTY_JAVA_AWT_HEADLESS, Boolean.toString(this.headless)));
}
3. 监听器
private SpringApplicationRunListeners getRunListeners(String[] args) {
// 类加载对应的监听器
Class<?>[] types = new Class<?>[] { SpringApplication.class, String[].class };
// 创建SpringApplicationRunListener实例
return new SpringApplicationRunListeners(logger,
getSpringFactoriesInstances(SpringApplicationRunListener.class, types, this, args));
}
4. 初始化默认参数
ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
5.创建 Spring 环境
private ConfigurableEnvironment prepareEnvironment(
SpringApplicationRunListeners listeners,
ApplicationArguments applicationArguments) {
// 获取环境。如果存在就直接返回,否则先创建一个再返回
ConfigurableEnvironment environment = getOrCreateEnvironment();
// 配置环境
configureEnvironment(environment, applicationArguments.getSourceArgs());
// 准备监听器环境
listeners.environmentPrepared(environment);
// 将环境绑定到SpringApplication上面
bindToSpringApplication(environment);
// 如果不是web应用环境,将环境转换成StandardEnvironment
if (this.webApplicationType == WebApplicationType.NONE) {
environment = new EnvironmentConverter(getClassLoader())
.convertToStandardEnvironmentIfNecessary(environment);
}
ConfigurationPropertySources.attach(environment);
// 返回环境
return environment;
}
总结:
- 获取环境。如果存在就直接返回,否则先创建一个再返回
- 配置环境
- 准备监听器环境
- 将环境绑定到SpringApplication上面
- 如果不是web应用环境,将环境转换成StandardEnvironment
- 最后返回环境
6. 打印器
springboot启动的时候会打印springboot的标志以及对应的版本
private Banner printBanner(ConfigurableEnvironment environment) {
if (this.bannerMode == Banner.Mode.OFF) {
return null;
}
-
ResourceLoader resourceLoader = (this.resourceLoader != null) ? this.resourceLoader
- new DefaultResourceLoader(getClassLoader());
SpringApplicationBannerPrinter bannerPrinter = new SpringApplicationBannerPrinter(resourceLoader, this.banner);
if (this.bannerMode == Mode.LOG) {
return bannerPrinter.print(environment, this.mainApplicationClass, logger);
}
return bannerPrinter.print(environment, this.mainApplicationClass, System.out);
}
7. 创建Spring应用上下文
protected ConfigurableApplicationContext createApplicationContext() {
// 首先进行判断有没有指定的实现类
Class<?> contextClass = this.applicationContextClass;
// 如果没有,则根据应用类型选择
if (contextClass == null) {
try {
// 根据webApplicationType的类型去反射创建ConfigurableApplicationContext的具体实例
switch (this.webApplicationType) {
case SERVLET:
contextClass = Class.forName(DEFAULT_SERVLET_WEB_CONTEXT_CLASS);
break;
case REACTIVE:
contextClass = Class.forName(DEFAULT_REACTIVE_WEB_CONTEXT_CLASS);
break;
default:
contextClass = Class.forName(DEFAULT_CONTEXT_CLASS);
}
}
catch (ClassNotFoundException ex) {
throw new IllegalStateException(
“Unable create a default ApplicationContext, please specify an ApplicationContextClass”, ex);
}
}
// 通过反射,得到创建的对象
return (ConfigurableApplicationContext) BeanUtils.instantiateClass(contextClass);
}
总结:
- 首先进行判断有没有指定的实现类; 如果没有,则根据应用类型选择;
- 根据webApplicationType的类型去反射创建ConfigurableApplicationContext的具体实例;
- 最后通过反射,得到创建的对象
对于Web应用,上下文类型是DEFAULT_WEB_CONTEXT_CLASS。
8. 实例化异常报告器
用 getSpringFactoriesInstances() 方法,获取配置的异常类名称,并实例化所有的异常类。
源码剖析
private Collection getSpringFactoriesInstances(Class type, Class<?>[] parameterTypes, Object… args) {
ClassLoader classLoader = getClassLoader();
// Use names and ensure unique to protect against duplicates
// 使用名称并确保唯一,以防止重复
Set names = new LinkedHashSet<>(SpringFactoriesLoader.loadFactoryNames(type, classLoader));
List instances = createSpringFactoriesInstances(type, parameterTypes, classLoader, args, names);
AnnotationAwareOrderComparator.sort(instances);
return instances;
}
9. Spring上下文前置处理
源码剖析
private void prepareContext(ConfigurableApplicationContext context, ConfigurableEnvironment environment,
SpringApplicationRunListeners listeners, ApplicationArguments applicationArguments, Banner printedBanner) {
// 给IOC容器设置一些环境属性
context.setEnvironment(environment);
// 给IOC容器注册一些组件
postProcessApplicationContext(context);
// 调用初始化方法
applyInitializers(context);
// 监听器,触发contextPrepared 事件
listeners.contextPrepared(context);
// 记录启动过程中的日志
if (this.logStartupInfo) {
logStartupInfo(context.getParent() == null);
logStartupProfileInfo(context);
}
// Add boot specific singleton beans
// 添加特定的单例beans
ConfigurableListableBeanFactory beanFactory = context.getBeanFactory();
beanFactory.registerSingleton(“springApplicationArguments”, applicationArguments);
if (printedBanner != null) {
beanFactory.registerSingleton(“springBootBanner”, printedBanner);
}
if (beanFactory instanceof DefaultListableBeanFactory) {
((DefaultListableBeanFactory) beanFactory)
.setAllowBeanDefinitionOverriding(this.allowBeanDefinitionOverriding);
}
if (this.lazyInitialization) {
context.addBeanFactoryPostProcessor(new LazyInitializationBeanFactoryPostProcessor());
}
// Load the sources
// 加载所有资源
Set sources = getAllSources();
Assert.notEmpty(sources, “Sources must not be empty”);
// 加载启动类,将启动类注入到容器中去
load(context, sources.toArray(new Object[0]));
// 触发contextLoaded 事件
listeners.contextLoaded(context);
}
10. Spring上下文刷新
刷新完成以后,会进行后续的一些操作
源码剖析
private void refreshContext(ConfigurableApplicationContext context) {
// 调用父类的refresh操作
refresh(context);
if (this.registerShutdownHook) {
try {
// 注册一个关闭容器时的钩子函数,在JVM关机的时候关闭这个上下文。
context.registerShutdownHook();
}
catch (AccessControlException ex) {
// Not allowed in some environments.
}
}
}
调用了registerShutdownHook()方法
/**
-
Register a shutdown hook {@linkplain Thread#getName() named}
-
{@code SpringContextShutdownHook} with the JVM runtime, closing this
-
context on JVM shutdown unless it has already been closed at that time.
-
Delegates to {@code doClose()} for the actual closing procedure.
-
@see Runtime#addShutdownHook
-
@see ConfigurableApplicationContext#SHUTDOWN_HOOK_THREAD_NAME
-
@see #close()
-
@see #doClose()
*/
@Override
public void registerShutdownHook() {
if (this.shutdownHook == null) {
// No shutdown hook registered yet.
this.shutdownHook = new Thread(SHUTDOWN_HOOK_THREAD_NAME) {
@Override
public void run() {
synchronized (startupShutdownMonitor) {
// 调用doClose方法,进行容器销毁时的清理工作
doClose();
}
}
};
Runtime.getRuntime().addShutdownHook(this.shutdownHook);
}
}
11. Spring上下文后置处理
在Spring容器刷新上下文后进行调用,依次调用注册的Runners。
/**
-
Called after the context has been refreshed.
-
@param context the application context
-
@param args the application arguments
*/
protected void afterRefresh(ConfigurableApplicationContext context, ApplicationArguments args) {
}
private void callRunners(ApplicationContext context, ApplicationArguments args) {
List runners = new ArrayList<>();
runners.addAll(context.getBeansOfType(ApplicationRunner.class).values());
runners.addAll(context.getBeansOfType(CommandLineRunner.class).values());
AnnotationAwareOrderComparator.sort(runners);
// CommandLineRunner、ApplicationRunner 这两个接口,是在容器启动成功后的最后一步进行回调
for (Object runner : new LinkedHashSet<>(runners)) {
if (runner instanceof ApplicationRunner) {
callRunner((ApplicationRunner) runner, args);
}
if (runner instanceof CommandLineRunner) {
callRunner((CommandLineRunner) runner, args);
}
}
}
CommandLineRunner、ApplicationRunner 这两个接口,是在容器启动成功后的最后一步进行回调
12. 停止计时器
做计时监听器停止操作,并统计一些任务执行信息
public void stop() throws IllegalStateException {
if (this.currentTaskName == null) {
throw new IllegalStateException(“Can’t stop StopWatch: it’s not running”);
} else {
long lastTime = System.nanoTime() - this.startTimeNanos;
this.totalTimeNanos += lastTime;
this.lastTaskInfo = new StopWatch.TaskInfo(this.currentTaskName, lastTime);
if (this.keepTaskList) {
自我介绍一下,小编13年上海交大毕业,曾经在小公司待过,也去过华为、OPPO等大厂,18年进入阿里一直到现在。
深知大多数同学面临毕业设计项目选题时,很多人都会感到无从下手,尤其是对于计算机专业的学生来说,选择一个合适的题目尤为重要。因为毕业设计不仅是我们在大学四年学习的一个总结,更是展示自己能力的重要机会。
因此收集整理了一份《2024年计算机毕业设计项目大全》,初衷也很简单,就是希望能够帮助提高效率,同时减轻大家的负担。
既有Java、Web、PHP、也有C、小程序、Python等项目供你选择,真正体系化!

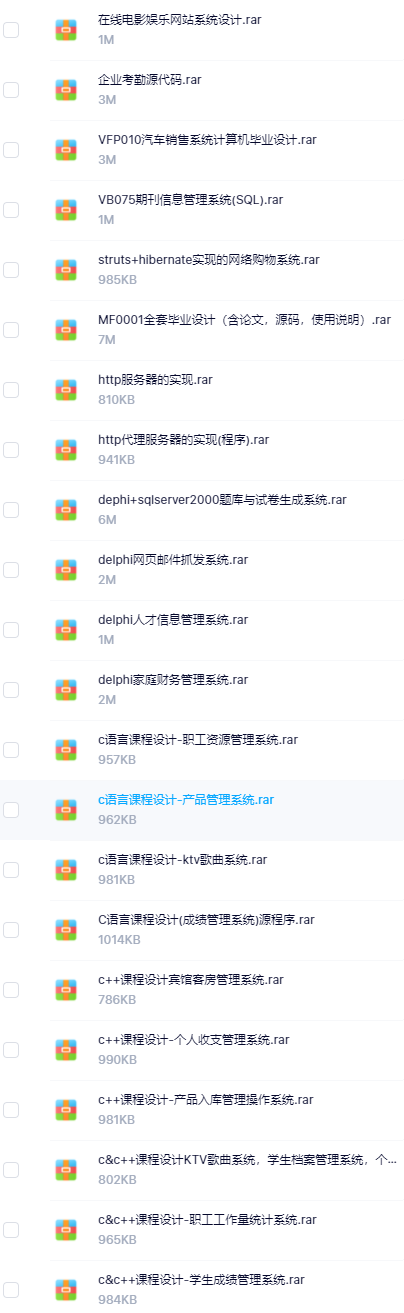

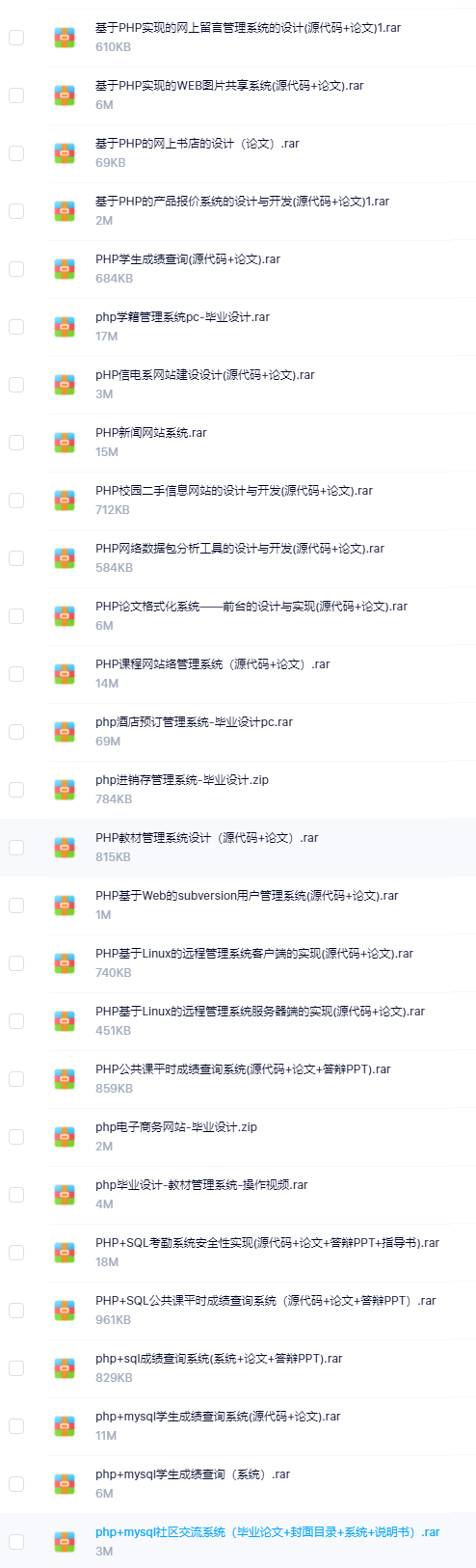

由于项目比较多,这里只是将部分目录截图出来,每个节点里面都包含素材文档、项目源码、讲解视频
如果你觉得这些内容对你有帮助,可以添加VX:vip1024c (备注项目大全获取)
12. 停止计时器
做计时监听器停止操作,并统计一些任务执行信息
public void stop() throws IllegalStateException {
if (this.currentTaskName == null) {
throw new IllegalStateException(“Can’t stop StopWatch: it’s not running”);
} else {
long lastTime = System.nanoTime() - this.startTimeNanos;
this.totalTimeNanos += lastTime;
this.lastTaskInfo = new StopWatch.TaskInfo(this.currentTaskName, lastTime);
if (this.keepTaskList) {
自我介绍一下,小编13年上海交大毕业,曾经在小公司待过,也去过华为、OPPO等大厂,18年进入阿里一直到现在。
深知大多数同学面临毕业设计项目选题时,很多人都会感到无从下手,尤其是对于计算机专业的学生来说,选择一个合适的题目尤为重要。因为毕业设计不仅是我们在大学四年学习的一个总结,更是展示自己能力的重要机会。
因此收集整理了一份《2024年计算机毕业设计项目大全》,初衷也很简单,就是希望能够帮助提高效率,同时减轻大家的负担。
[外链图片转存中…(img-som2mj0N-1712584279627)]
[外链图片转存中…(img-3KIm7vdP-1712584279628)]
[外链图片转存中…(img-WieHL66u-1712584279628)]
既有Java、Web、PHP、也有C、小程序、Python等项目供你选择,真正体系化!
由于项目比较多,这里只是将部分目录截图出来,每个节点里面都包含素材文档、项目源码、讲解视频
如果你觉得这些内容对你有帮助,可以添加VX:vip1024c (备注项目大全获取)
[外链图片转存中…(img-rLdD1xsA-1712584279628)]
