简介

本文主要是分析CVE-2024-3446漏洞的成因和漏洞的补丁，以及之前的补丁为何失效，顺便对Qemu历史重入漏洞进行了分析梳理

时间线

2020/07/21 e1000e重入导致的UAF（还没归为重入问题）
2021/08/23 重入漏洞整理为一类问题
https://lore.kernel.org/qemu-devel/CAFEAcA_23vc7hE3iaM-JVA6W38LK4hJoWae5KcknhPRD5fPBZA@mail.gmail.com/
2023/04/28 给出第一个通用用修复方案
https://gitlab.com/qemu-project/qemu/-/commit/c40ca2301c7603524eaddb5308a3f524c6f89d24
2024/04/09 修复后再次爆出的重入漏洞（CVE-2024-3446）
https://bugzilla.redhat.com/show_bug.cgi?id=2274211
2024/04/10 修复CVE-2024-3446
https://gitlab.com/qemu-project/qemu/-/commit/f243175727903a0d2b52422e7baef86c1838a895

漏洞成因

通常是在设备交互的函数执行了DMA操作，即调用了函数cpu_physical_memory_write、address_space_write或pci_dma_write类似函数，当目标地址是设备地址时，导致再次进入设备的交互函数中，从而引发一些安全问题

设备交互

众所周知操作设备有以下3种方式：

BH
Timer
PMIO/MMIO

接下来我们分别了解一下这三种方式的操作及原理

外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传

BH 被注册到全局的qemu_aio_context结构中，在事件轮询处理时做响应。BH 维护一个链表，新的操作会插入到尾部，在主线程的qemu_main_loop中依次处理，所以仅仅使用BH不会导致重入

struct QEMUBH {`    `AioContext *ctx;    // 下半部所在的context（qemu_aio_context）`    `const char *name;`    `QEMUBHFunc *cb;    // 下半部要执行的函数`    `void *opaque;        // 函数参数`    `QSLIST_ENTRY(QEMUBH) next;    // 下一个要执行的下半部`    `unsigned flags;        // 调用qemu_bh_schedule后赋值为BH_PENDING | BH_SCHEDULED，使用后变为0`    `MemReentrancyGuard *reentrancy_guard;    // 新增防护重入``};

qemu_bh_schedule触发后插入到BH事件处理链表

static void bh_test_cb(void *opaque)``{`    `bhtestState *obj = opaque;` `    print_timestamp_ms();`    `qemu_bh_schedule(obj->bh);``}` `static void pci_bhtest_realize(PCIDevice *pdev, Error **errp)``{`    `bhtestState *obj = DO_UPCAST(bhtestState, pdev, pdev);`    `    // 初始化`    `obj->bh = qemu_bh_new(bh_test_cb, obj);`    `// 激活`    `qemu_bh_schedule(obj->bh);``}

外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传

Timer

Timer 对象会被注册到main_loop_tlg结构中，初始化时会设置timer_list指向main_loop_tlg中对应类型的链表，Timer 处理同样在主线程的qemu_main_loop函数中，所以仅仅使用Timer也不会导致重入

static void timer_cb(void *opaque)``{`    `mmiotestState *obj = opaque;`    `printf("in timer_cb\n");``}` `static void pci_mmiotest_realize(PCIDevice *pdev, Error **errp)``{`    `mmiotestState *obj = DO_UPCAST(mmiotestState, pdev, pdev);`    `// 初始化`    `obj->timer = timer_new_ns(QEMU_CLOCK_VIRTUAL, timer_cb, obj);``}

激活时会将timer对象放到main_loop_tlg的链表中，并设置到期时间

timer_mod(obj->timer, qemu_clock_get_ns(QEMU_CLOCK_VIRTUAL));

外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传

PMIO/MMIO

IO内存注册，当对内存读写时会执行注册的MemoryRegionOps操作，当IO函数中再次执行了DMA操作时，会再次进入对应的操作函数，就会导致重入

static const MemoryRegionOps mmiotest_mmio_ops = {`    `.read = mmiotest_mmio_read,`    `.write = mmiotest_mmio_write,`    `.endianness = DEVICE_NATIVE_ENDIAN,``    .valid = {`        `.min_access_size = 1,`        `.max_access_size = 8,`    `},`    `.impl = {`        `.min_access_size = 1,`        `.max_access_size = 8,`    `},``};` `static void pci_mmiotest_realize(PCIDevice *pdev, Error **errp)``{`    `mmiotestState *obj = DO_UPCAST(mmiotestState, pdev, pdev);` `    memory_region_init_io(&obj->mmio, OBJECT(obj), &mmiotest_mmio_ops, obj, "mmiotest-mmio",0x100);`    `pci_register_bar(pdev, 0, PCI_BASE_ADDRESS_SPACE_MEMORY, &obj->mmio);``}

mmio重入调用栈样例
DMA操作进入了mr_mmio_write，然后在函数中调用cpu_physical_memory_write再次进入mr_mmio_write导致了重入

#0  0x0000555555a3d6c7 in mr_mmio_write (opaque=0x555557779930, addr=3840, val=0, size=8) at ../hw/pci/mr.c:132``#1  0x0000555555bf58c3 in memory_region_write_accessor (mr=0x55555777a2a0, addr=3840, value=0x7ffff6acfdf8, size=8, shift=0, mask=18446744073709551615, attrs=...) at ../softmmu/memory.c:492``#2  0x0000555555bf5b11 in access_with_adjusted_size (addr=3840, value=0x7ffff6acfdf8, size=8, access_size_min=1, access_size_max=8, access_fn=0x555555bf57c9 <memory_region_write_accessor>, mr=0x55555777a2a0, attrs=...) at ../softmmu/memory.c:554``#3  0x0000555555bf8c0f in memory_region_dispatch_write (mr=0x55555777a2a0, addr=3840, data=0, op=MO_64, attrs=...) at ../softmmu/memory.c:1504``#4  0x0000555555beb934 in flatview_write_continue (fv=0x7fff302b57c0, addr=4273938176, attrs=..., ptr=0x55555777a500, len=8, addr1=3840, l=8, mr=0x55555777a2a0) at ../softmmu/physmem.c:2782``#5  0x0000555555beba7d in flatview_write (fv=0x7fff302b57c0, addr=4273938176, attrs=..., buf=0x55555777a500, len=8) at ../softmmu/physmem.c:2822``#6  0x0000555555bebdf7 in address_space_write (as=0x555556768ec0 <address_space_memory>, addr=4273938176, attrs=..., buf=0x55555777a500, len=8) at ../softmmu/physmem.c:2914``#7  0x0000555555bebe68 in address_space_rw (as=0x555556768ec0 <address_space_memory>, addr=4273938176, attrs=..., buf=0x55555777a500, len=8, is_write=true) at ../softmmu/physmem.c:2924``#8  0x0000555555bebed6 in cpu_physical_memory_rw (addr=4273938176, buf=0x55555777a500, len=8, is_write=true) at ../softmmu/physmem.c:2933``#9  0x0000555555a3d167 in cpu_physical_memory_write (addr=4273938176, buf=0x55555777a500, len=8) at /home/test/Desktop/qemu-6.2.0/include/exec/cpu-common.h:82` `#10 0x0000555555a3d5c2 in mr_mmio_write (opaque=0x555557779930, addr=3840, val=313778176, size=8) at ../hw/pci/mr.c:117``#11 0x0000555555bf58c3 in memory_region_write_accessor (mr=0x55555777a2a0, addr=3840, value=0x7ffff6ad0148, size=8, shift=0, mask=18446744073709551615, attrs=...) at ../softmmu/memory.c:492``#12 0x0000555555bf5b11 in access_with_adjusted_size (addr=3840, value=0x7ffff6ad0148, size=8, access_size_min=1, access_size_max=8, access_fn=0x555555bf57c9 <memory_region_write_accessor>, mr=0x55555777a2a0, attrs=...) at ../softmmu/memory.c:554``#13 0x0000555555bf8c0f in memory_region_dispatch_write (mr=0x55555777a2a0, addr=3840, data=313778176, op=MO_64, attrs=...) at ../softmmu/memory.c:1504` `#14 0x0000555555d30f75 in io_writex (env=0x555556a49410, iotlbentry=0x7fff307ba9a0, mmu_idx=1, val=313778176, addr=140444038311680, retaddr=140735287403492, op=MO_64) at ../accel/tcg/cputlb.c:1420``#15 0x0000555555d33592 in store_helper (env=0x555556a49410, addr=140444038311680, val=313778176, oi=49, retaddr=140735287403492, op=MO_64) at ../accel/tcg/cputlb.c:2355``#16 0x0000555555d33a2e in helper_le_stq_mmu (env=0x555556a49410, addr=140444038311680, val=313778176, oi=49, retaddr=140735287403492) at ../accel/tcg/cputlb.c:2469``#17 0x00007fff7cd023e4 in code_gen_buffer ()``#18 0x0000555555d1e243 in cpu_tb_exec (cpu=0x555556a40b60, itb=0x7fffba817180, tb_exit=0x7ffff6ad0864) at ../accel/tcg/cpu-exec.c:357``#19 0x0000555555d1f108 in cpu_loop_exec_tb (cpu=0x555556a40b60, tb=0x7fffba817180, last_tb=0x7ffff6ad0870, tb_exit=0x7ffff6ad0864) at ../accel/tcg/cpu-exec.c:842``#20 0x0000555555d1f4c6 in cpu_exec (cpu=0x555556a40b60) at ../accel/tcg/cpu-exec.c:1001``#21 0x0000555555d41bea in tcg_cpus_exec (cpu=0x555556a40b60) at ../accel/tcg/tcg-accel-ops.c:67``#22 0x0000555555d41f7a in mttcg_cpu_thread_fn (arg=0x555556a40b60) at ../accel/tcg/tcg-accel-ops-mttcg.c:95``#23 0x0000555555efd63b in qemu_thread_start (args=0x555556a60820) at ../util/qemu-thread-posix.c:556``#24 0x00007ffff7938609 in start_thread () from target:/lib/x86_64-linux-gnu/libpthread.so.0``#25 0x00007ffff785d353 in clone () from target:/lib/x86_64-linux-gnu/libc.so.6

场景

外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传

漏洞场景

mmio -> dma -> mmio
bh -> dma -> mmio
timer -> dma -> mmio

外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传

利用场景

单设备重复进入（A -> A -> …）
多设备重复进入（A -> B -> A -> B -> … ）（是否存在存疑）

漏洞危害

stack overflow

因为不断的进入mmio的操作函数，不断的递归，从而导致了栈被撑爆，触发了Dos攻击

UAF

在触发重入后，比较常见的场景是去执行reset函数，导致一些对象被释放，函数返回继续执行导致UAF

Fix

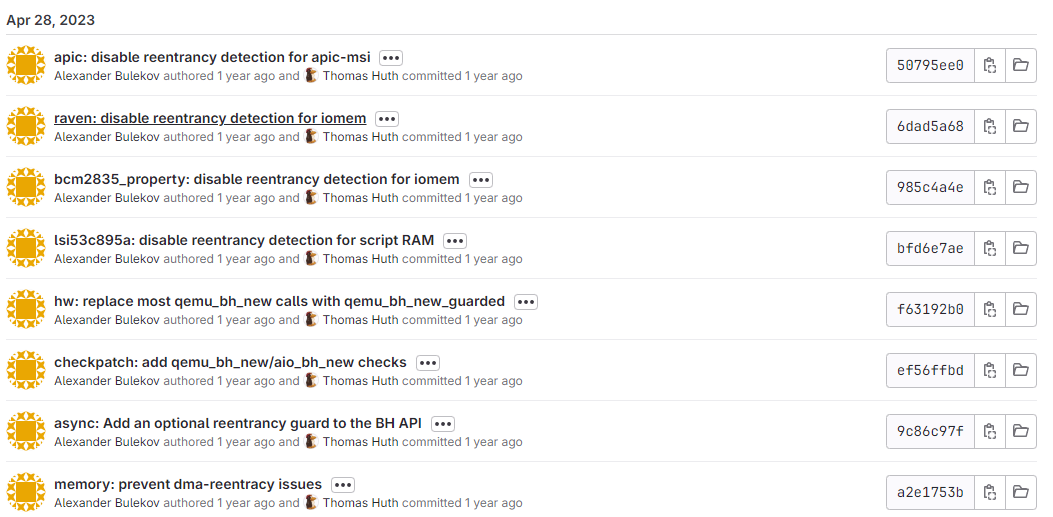

@a1xndr在2023/04/28提交了多个commit修复re-entrancy问题

分析其中3个重要的Fix

外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传

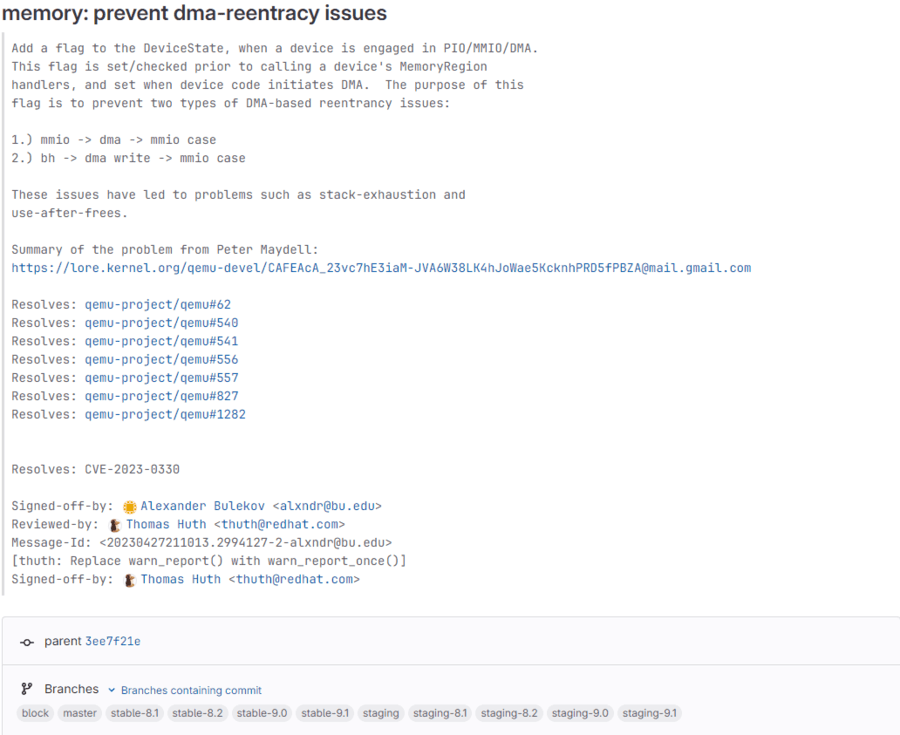

Fix01

这个补丁主要针对场景：mmio -> dma -> mmio (√)

在mr结构中增加了dev对象和disable_reentrancy_guard
在dev对象中增加mem_reentrancy_guard标志
在access_with_adjusted_size函数中对mem_reentrancy_guard标志做了判断

https://github.com/qemu/qemu/commit/a2e1753b8054344f32cf94f31c6399a58794a380#diff-164a41822a3316a554081cfd1c7202bb60723035af488f3fe5a16bff05cdc130L770

static MemTxResult access_with_adjusted_size(hwaddr addr,`                                      `uint64_t *value,`                                      `unsigned size,`                                      `unsigned access_size_min,`                                      `unsigned access_size_max,`                                      `MemTxResult (*access_fn)`                                                  `(MemoryRegion *mr,`                                                   `hwaddr addr,`                                                   `uint64_t *value,`                                                   `unsigned size,`                                                   `signed shift,`                                                   `uint64_t mask,`                                                   `MemTxAttrs attrs),`                                      `MemoryRegion *mr,`                                      `MemTxAttrs attrs)``{`    `uint64_t access_mask;`    `unsigned access_size;`    `unsigned i;`    `MemTxResult r = MEMTX_OK;`    `bool reentrancy_guard_applied = false;` `    if (!access_size_min) {`        `access_size_min = 1;`    `}`    `if (!access_size_max) {`        `access_size_max = 4;`    `}` `    /* Do not allow more than one simultaneous access to a device's IO Regions */`    `if (mr->dev && !mr->disable_reentrancy_guard &&`        `!mr->ram_device && !mr->ram && !mr->rom_device && !mr->readonly) {`        `if (mr->dev->mem_reentrancy_guard.engaged_in_io) {`            `warn_report_once("Blocked re-entrant IO on MemoryRegion: "`                             `"%s at addr: 0x%" HWADDR_PRIX,`                             `memory_region_name(mr), addr);`            `return MEMTX_ACCESS_ERROR;`        `}`        `mr->dev->mem_reentrancy_guard.engaged_in_io = true;`        `reentrancy_guard_applied = true;`    `}` `    /* FIXME: support unaligned access? */`    `access_size = MAX(MIN(size, access_size_max), access_size_min);`    `access_mask = MAKE_64BIT_MASK(0, access_size * 8);`    `if (memory_region_big_endian(mr)) {`        `for (i = 0; i < size; i += access_size) {`            `r |= access_fn(mr, addr + i, value, access_size,`                        `(size - access_size - i) * 8, access_mask, attrs);`        `}`    `} else {`        `for (i = 0; i < size; i += access_size) {`            `r |= access_fn(mr, addr + i, value, access_size, i * 8,`                        `access_mask, attrs);`        `}`    `}`    `if (mr->dev && reentrancy_guard_applied) {`        `mr->dev->mem_reentrancy_guard.engaged_in_io = false;`    `}`    `return r;``}

外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传

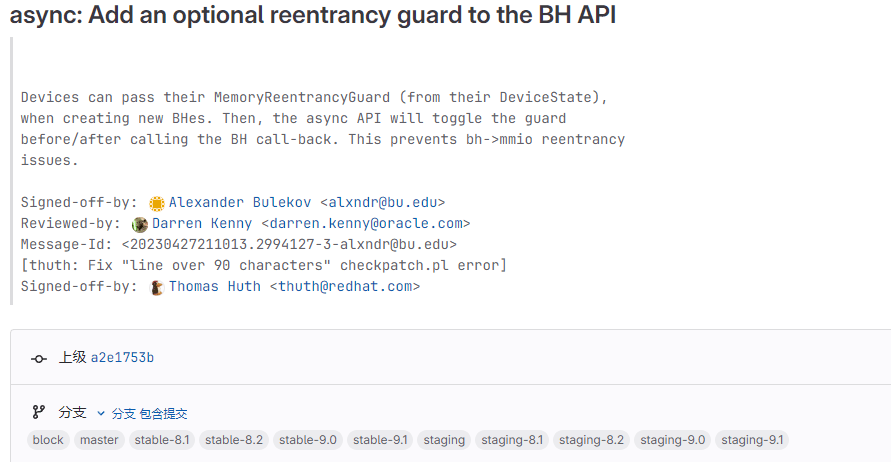

Fix02

这个补丁主要针对场景：bh -> dma -> mmio (√)

在BH结构中增加了reentrancy_guard标志
在执行BH回调时会对reentrancy_guard进行置位，再进入mr操作则会被阻止

https://gitlab.com/qemu-project/qemu/-/commit/9c86c97f12c060bf7484dd931f38634e166a81f0

void aio_bh_call(QEMUBH *bh)``{`    `bool last_engaged_in_io = false;` `    /* Make a copy of the guard-pointer as cb may free the bh */`    `MemReentrancyGuard *reentrancy_guard = bh->reentrancy_guard;`    `if (reentrancy_guard) {`        `last_engaged_in_io = reentrancy_guard->engaged_in_io;`        `if (reentrancy_guard->engaged_in_io) {`            `trace_reentrant_aio(bh->ctx, bh->name);`        `}`        `reentrancy_guard->engaged_in_io = true;`    `}` `    bh->cb(bh->opaque);` `    if (reentrancy_guard) {`        `reentrancy_guard->engaged_in_io = last_engaged_in_io;`    `}``}

外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传

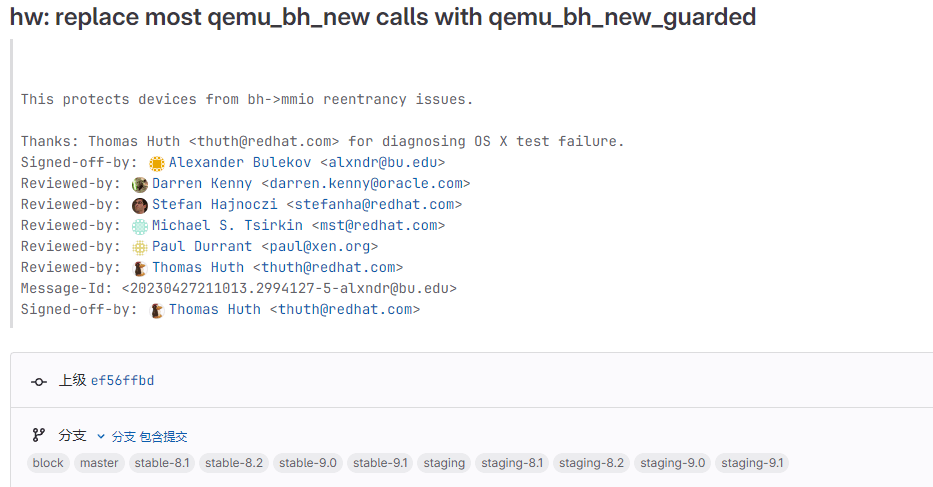

Fix03

通过替换以下函数，对设备开启防护：

qemu_bh_new-> qemu_bh_new_guarded
aio_bh_new-> aio_bh_new_guarded

https://gitlab.com/qemu-project/qemu/-/commit/f63192b0544af5d3e4d5edfd85ab520fcf671377

被修改的设备列表：

1. xen9pfs``2. virtio-blk``3. xen-block``4. virtio-serial-bus``5. qxl``6. virtio-gpu``7. ahci``8. imx_rngc``9. mac_dbdma``10. virtio-net``11. nvme``12. scsi/*``13. usb/*``14. virtio-balloon``15. virtio-crypto

新增的guard类函数，主要是添加了reentrancy_guard参数

#define aio_bh_new_guarded(ctx, cb, opaque, guard) \`    `aio_bh_new_full((ctx), (cb), (opaque), (stringify(cb)), guard)`        `QEMUBH *qemu_bh_new_full(QEMUBHFunc *cb, void *opaque, const char *name,`                         `MemReentrancyGuard *reentrancy_guard)``{`    `return aio_bh_new_full(qemu_aio_context, cb, opaque, name,`                           `reentrancy_guard);``}` `QEMUBH *aio_bh_new_full(AioContext *ctx, QEMUBHFunc *cb, void *opaque,`                        `const char *name, MemReentrancyGuard *reentrancy_guard)``{`    `QEMUBH *bh;`    `bh = g_new(QEMUBH, 1);`    `*bh = (QEMUBH){`        `.ctx = ctx,`        `.cb = cb,`        `.opaque = opaque,`        `.name = name,`        `.reentrancy_guard = reentrancy_guard,`    `};`    `return bh;``}` `QEMUBH *virtio_bh_new_guarded_full(DeviceState *dev,`                                   `QEMUBHFunc *cb, void *opaque,`                                   `const char *name)``{`    `DeviceState *transport = qdev_get_parent_bus(dev)->parent;` `    return qemu_bh_new_full(cb, opaque, name,`                            `&transport->mem_reentrancy_guard);``}

这里有一个问题，补丁只修复了两种情况，第三种情况是没有修复的

mmio -> dma -> mmio (√)

bh -> dma -> mmio (√)

timer -> dma -> mmio (x)

CVE-2024-3446

漏洞描述

在 QEMU virtio 设备（virtio-gpu、virtio-serial-bus、virtio-crypto）中发现了双重释放漏洞，其中 mem_reentrancy_guard 标志不足以防止 DMA 重入问题。此问题可能允许恶意特权来宾用户破坏主机上的 QEMU 进程，从而导致拒绝服务或允许在主机上的 QEMU 进程上下文中执行任意代码。

之前的补丁为何无效？

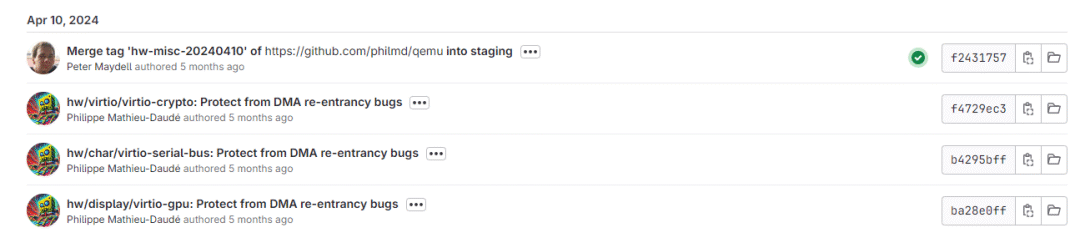

重新修复了这个三个设备代码（其它设备为什么不受影响？）

virtio-gpu
virtio-crypto
virtio-serial-bus

https://gitlab.com/qemu-project/qemu/-/commits/master?search=CVE-2024-3446

Fix分析

以virtio-gpu为样例，替换了qemu_bh_new_guarded函数使用virtio_bh_new_guarded_full函数

virtio_bh_new_guarded_full函数将判断重入时使用的设备从dev变成了dev->parent_bus->parent，parent指向的是谁？
这就涉及virtio设备的注册过程，如果是普通的pci设备它的结构就是pci-bus -> pci-device，而virtio设备会注册一个代理设备virtio-xx-pci，以virtio-gpu为例，它的结构是pci-bus -> virtio-gpu-pci -> virtio-bus -> virtio-gpu，所以parent指向的是virtio-gpu-pci设备，为什么要使用它呢？

QEMUBH *virtio_bh_new_guarded_full(DeviceState *dev,`                                   `QEMUBHFunc *cb, void *opaque,`                                   `const char *name)``{`    `// dev->parent_bus->parent(virtio-xx-pci)`    `DeviceState *transport = qdev_get_parent_bus(dev)->parent;` `    return qemu_bh_new_full(cb, opaque, name,`                            `&transport->mem_reentrancy_guard);``}

跟一下virtio设备mmio初始化流程，virtio设备调用realize函数初始化时会执行到virtio_bus_device_plugged，在virtio_bus_device_plugged中会注册mmio操作，而在注册io操作中指定的owner（就是proxy对象，virtio-xx-pci），会被保存到mr->dev中，所以mr->dev指向的是virtio-xx-pci，这就导致了之前补丁无效的原因

`static void virtio_pci_device_plugged(DeviceState *d, Error **errp)``{`    `VirtIOPCIProxy *proxy = VIRTIO_PCI(d);`    `VirtioBusState *bus = &proxy->bus;`    `bool legacy = virtio_pci_legacy(proxy);`    `bool modern;`    `bool modern_pio = proxy->flags & VIRTIO_PCI_FLAG_MODERN_PIO_NOTIFY;`    `uint8_t *config;`    `uint32_t size;`    `VirtIODevice *vdev = virtio_bus_get_device(bus);` `    ...`    `        virtio_pci_modern_regions_init(proxy, vdev->name);` `        virtio_pci_modern_mem_region_map(proxy, &proxy->common, &cap);`        `virtio_pci_modern_mem_region_map(proxy, &proxy->isr, &cap);`        `virtio_pci_modern_mem_region_map(proxy, &proxy->device, &cap);`        `virtio_pci_modern_mem_region_map(proxy, &proxy->notify, &notify.cap);` `    ....``}` `static void virtio_pci_modern_regions_init(VirtIOPCIProxy *proxy,`                                           `const char *vdev_name)``{`    `...` `    g_string_printf(name, "virtio-pci-common-%s", vdev_name);`    `memory_region_init_io(&proxy->common.mr, OBJECT(proxy),`                          `&common_ops,`                          `proxy,`                          `name->str,`                          `proxy->common.size);` `    g_string_printf(name, "virtio-pci-isr-%s", vdev_name);`    `memory_region_init_io(&proxy->isr.mr, OBJECT(proxy),`                          `&isr_ops,`                          `proxy,`                          `name->str,`                          `proxy->isr.size);` `    g_string_printf(name, "virtio-pci-device-%s", vdev_name);`    `memory_region_init_io(&proxy->device.mr, OBJECT(proxy),`                          `&device_ops,`                          `proxy,`                          `name->str,`                          `proxy->device.size);` `    g_string_printf(name, "virtio-pci-notify-%s", vdev_name);`    `memory_region_init_io(&proxy->notify.mr, OBJECT(proxy),`                          `&notify_ops,`                          `proxy,`                          `name->str,`                          `proxy->notify.size);` `    g_string_printf(name, "virtio-pci-notify-pio-%s", vdev_name);`    `memory_region_init_io(&proxy->notify_pio.mr, OBJECT(proxy),`                          `&notify_pio_ops,`                          `proxy,`                          `name->str,`                          `proxy->notify_pio.size);``}`

如何发现此类漏洞

fuzz

之前外界公开过一个fuzz工具的实现，它对Qemu代码进行了定制，通过hook dma相关操作，喂给dma操作特定的数据，这样就能捕获到dma操作导致的异常

codeql

《Hunting and Exploiting Recursive MMIO Flaws in QEMU/KVM》中提供的Codeql代码，主要功能就是路径搜索，源为内存io操作的注册函数，目标为dma write的功能函数

/**``* @kind path-problem``*/` `class MMIOFn extends Function {`  `MMIOFn() {`    `exists(GlobalVariable gv |`    `gv.getFile().getAbsolutePath().regexpMatch(".*qemu-6.1.0/hw/.*") and`    `gv.getType().getName().regexpMatch(".*MemoryRegionOps.*") and`    `gv.getName().regexpMatch(".*mmio.*") and`    `gv.getInitializer().getExpr().getChild(1).toString() = this.toString()`    `)`  `}``}``class BHTFn extends Function {`  `BHTFn() {`    `exists(FunctionCall fc |`    `fc.getTarget().getName().regexpMatch("qemu_bh_new_full|timer_new_ns") and`    `fc.getFile().getAbsolutePath().regexpMatch(".*qemu-6.1.0/hw/.*") and`    `(fc.getChild(0).toString() = this.toString() or fc.getChild(1).toString() = this.toString())`    `)`  `}``}` `class FreeFn extends Function {`  `FreeFn() {`    `exists(FunctionCall fc |`    `fc.getTarget().getName().matches("g_free") and`    `fc.getEnclosingFunction() = this and`    `not this.getName().regexpMatch(".*shutdown.*") and`    `not this.getFile()`    `.getRelativePath()`    `.regexpMatch(".*error.*|.*test.*|.*replay.*|.*translate-all.*|.*xen.*|.*qapi-visit.*")`    `)`  `}``}` `class ReentryFn extends Function {`  `ReentryFn() {`    `this.getName()`    `.regexpMatch("address_space_write|dma_memory_write|stb_dma|stl_be_dma|stl_le_dm``a|stq_be_dma|stq_le_dma|stw_be_dma|stw_le_dma|pci_dma_write|dma_buf_read|...")`  `}``}` `query predicate edges(Function a, Function b) {`  `a.calls(b)``}` `from MMIOFn entry_fn, ReentryFn end_fn``where edges+(entry_fn, end_fn)``select end_fn, entry_fn, end_fn, "MMIO -> Reentry: from " + entry_fn.getName() + " to " +``end_fn.getName()

扩展分析

对比上面的修复列表还有3个virtio设备没有更新补丁，是否还存在漏洞
