如何简单使用eNSP配置ping通教程

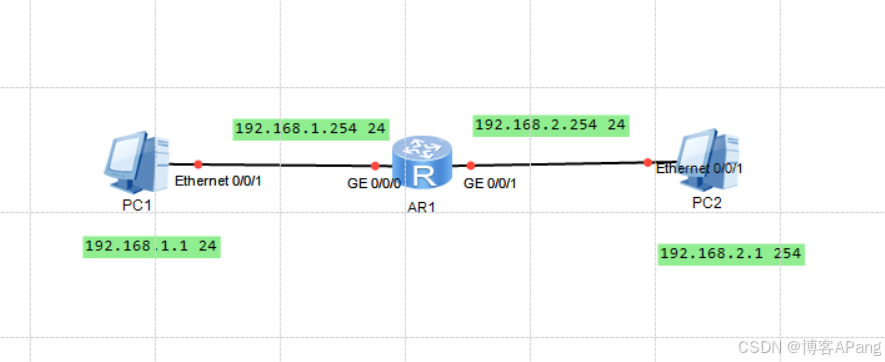

1.创建两台PC和路由器

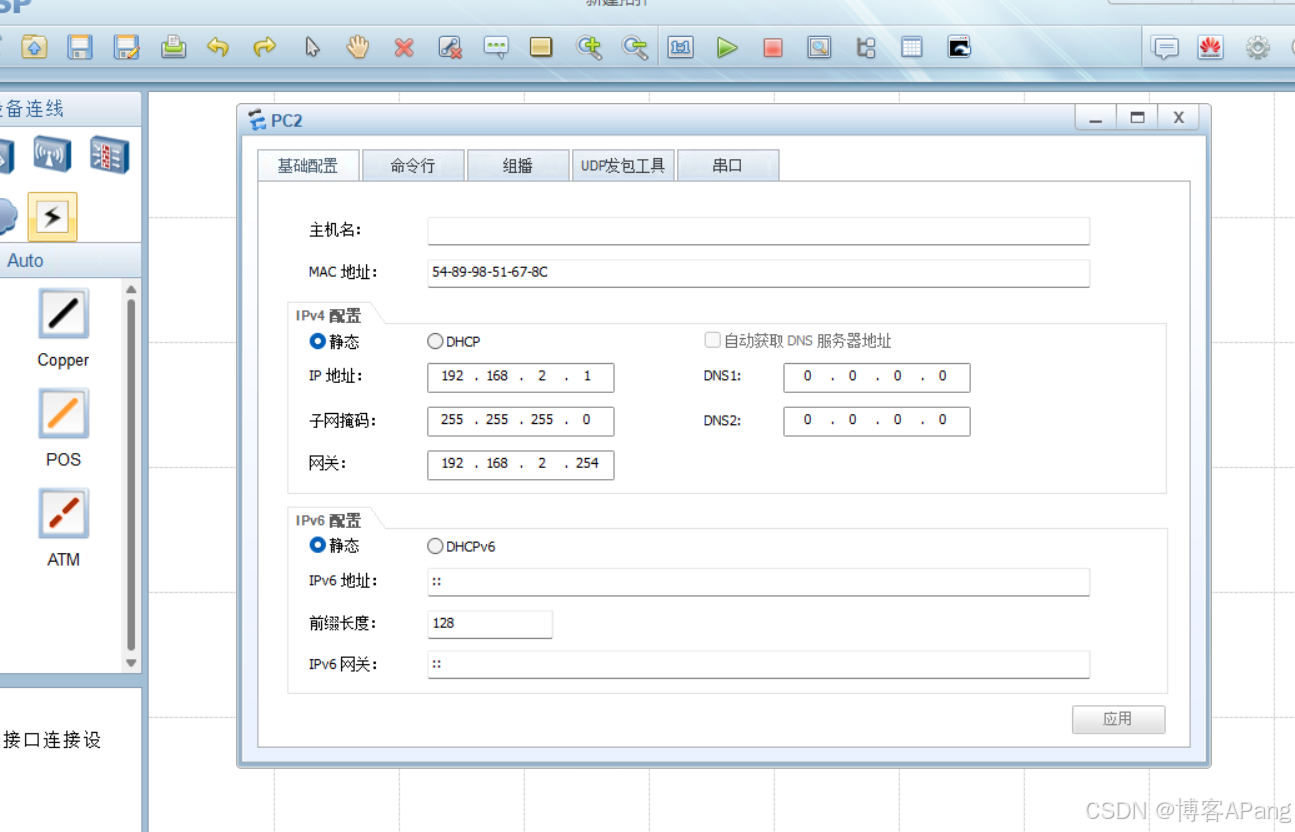

二.配置PC

点击pc两下对其配置

三.配置路由器

点击AR(路由器）在命令栏输入system-view更改设备

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]

后面我们给PC1配置端口（如果不知道这个g0/0/0从哪里的可以看后面）

[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]ip add
[Huawei-GigabitEthernet0/0/0]ip address 192.68.1.254 24
Oct 28 2024 16:32:10-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
 IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[Huawei-GigabitEthernet0/0/0]q
[Huawei]

配置好PC1，现在我们来继续配置PC2（记得要返回上一步才能继续配置）

返回上一步命令简写q(不分大小写）

[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 192.168.2.254 24
[Huawei-GigabitEthernet0/0/1]
Oct 29 2024 15:28:04-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[1]:The line protocol
 IP on the interface GigabitEthernet0/0/1 has entered the UP state.
[Huawei-GigabitEthernet0/0/1]q
[Huawei]

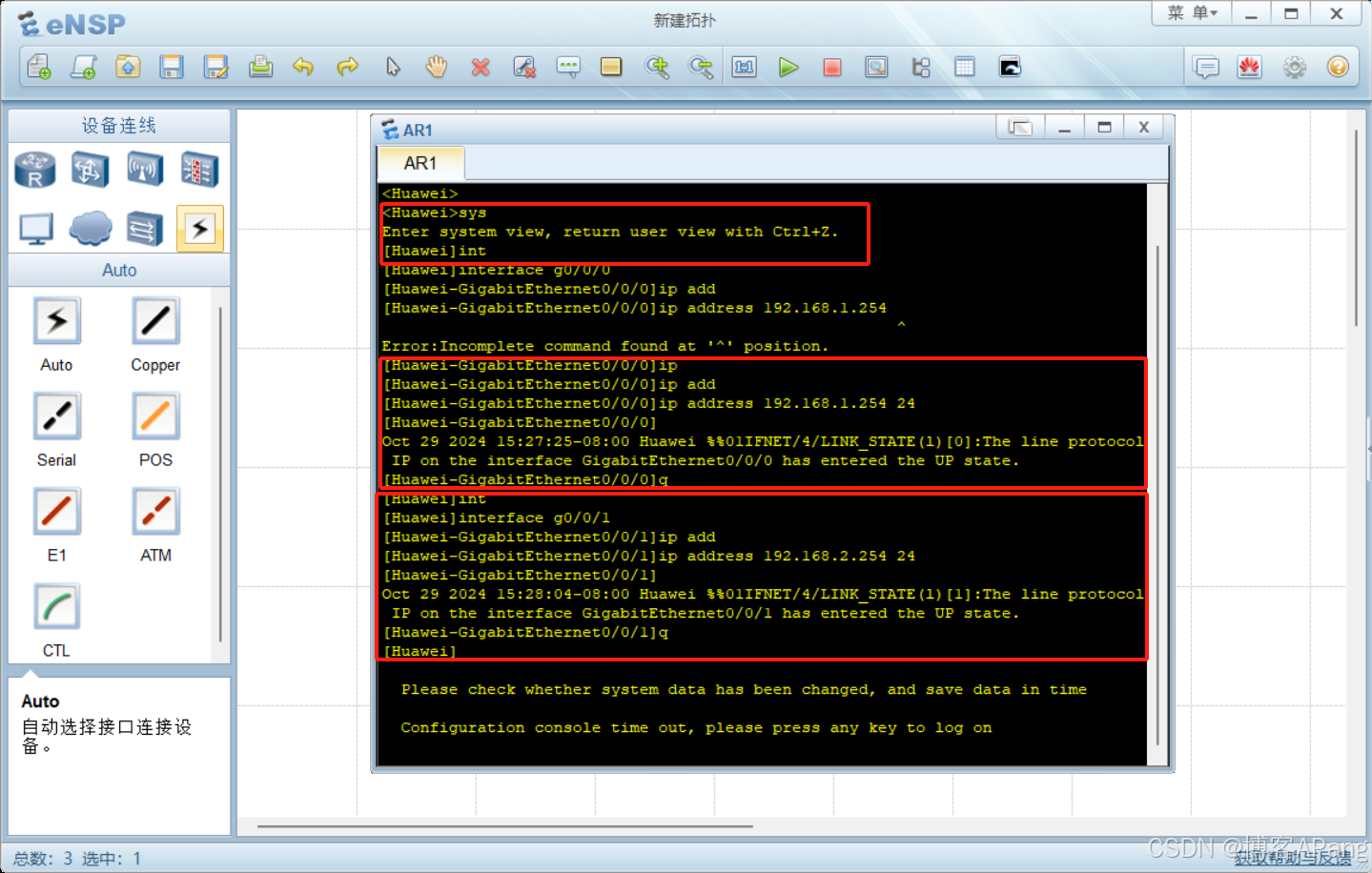

看我框起来的地方

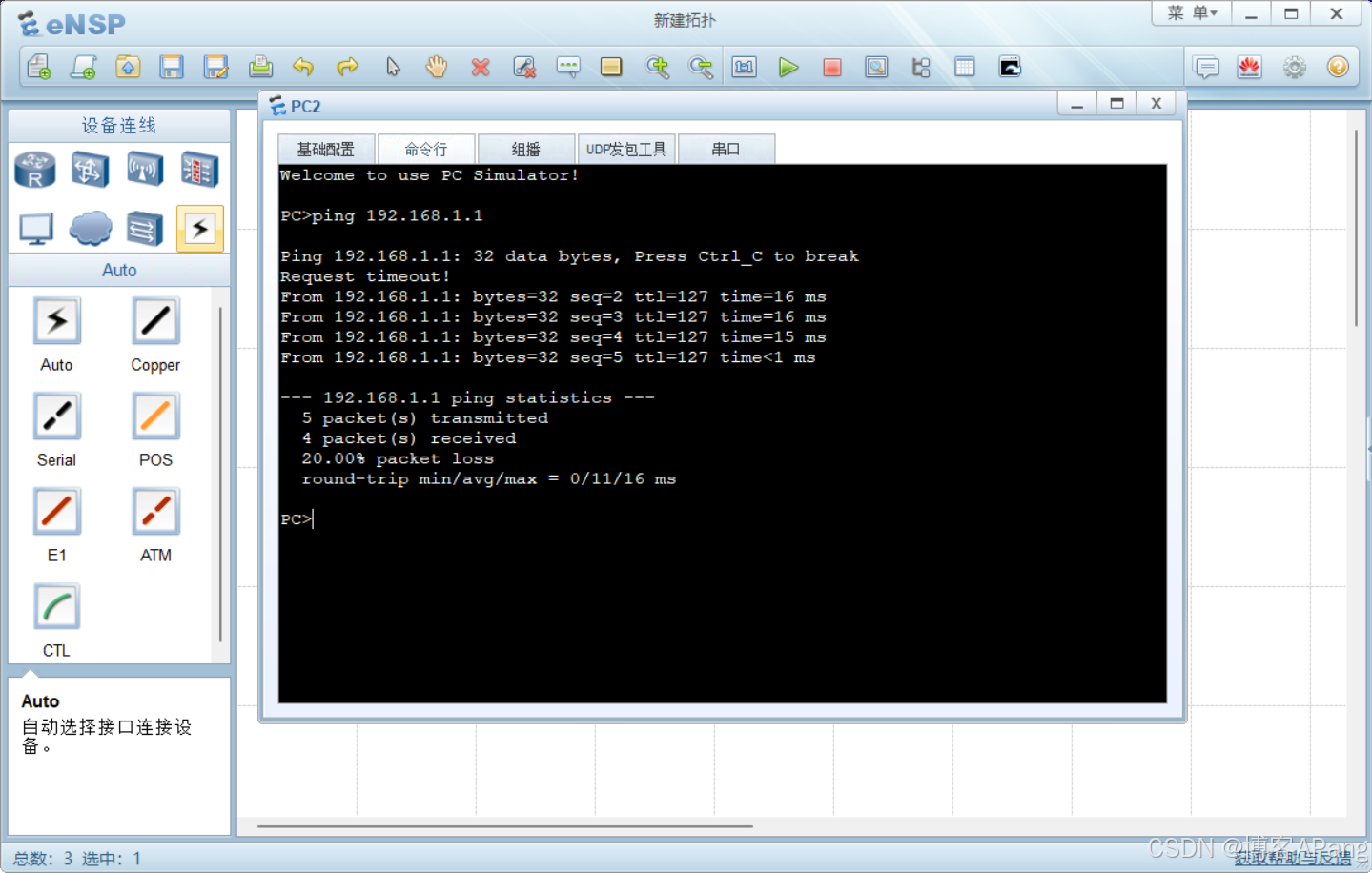

四.尝试两台PC能不能ping通

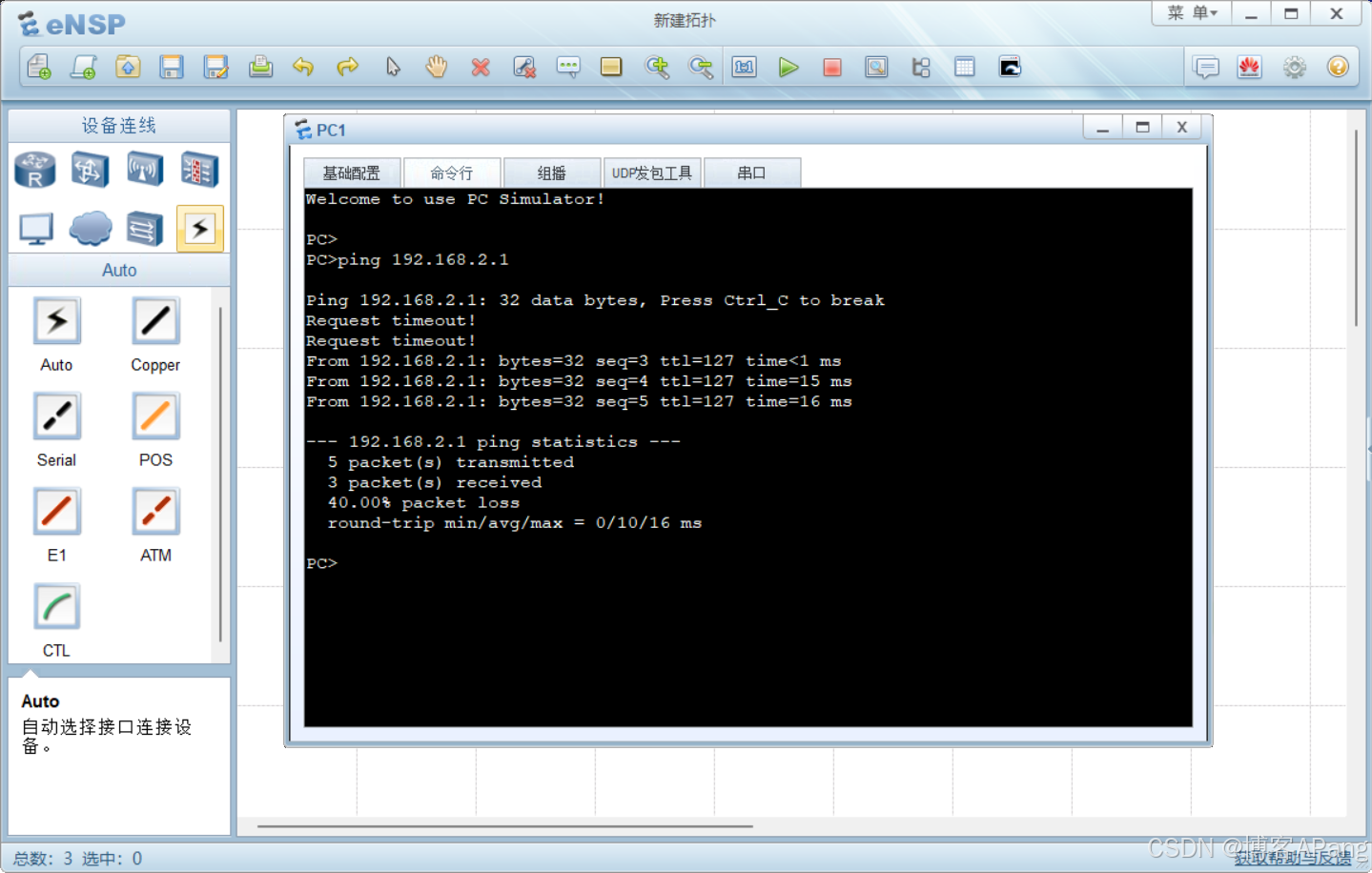

这边我们用PC1 ping通 PC2成功了这就没问题了

PC>
PC>ping 192.168.2.1

Ping 192.168.2.1: 32 data bytes, Press Ctrl_C to break
Request timeout!
Request timeout!
From 192.168.2.1: bytes=32 seq=3 ttl=127 time<1 ms
From 192.168.2.1: bytes=32 seq=4 ttl=127 time=15 ms
From 192.168.2.1: bytes=32 seq=5 ttl=127 time=16 ms

--- 192.168.2.1 ping statistics ---
  5 packet(s) transmitted
  3 packet(s) received
  40.00% packet loss
  round-trip min/avg/max = 0/10/16 ms

这边就已经完成了，两台PC能互通

！！！

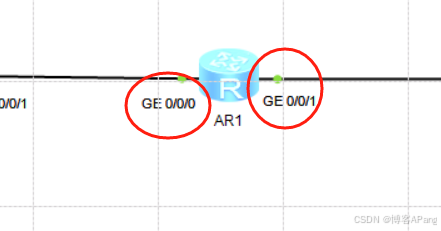

上面的g0/0/0这个是
