交换机的聚合链路

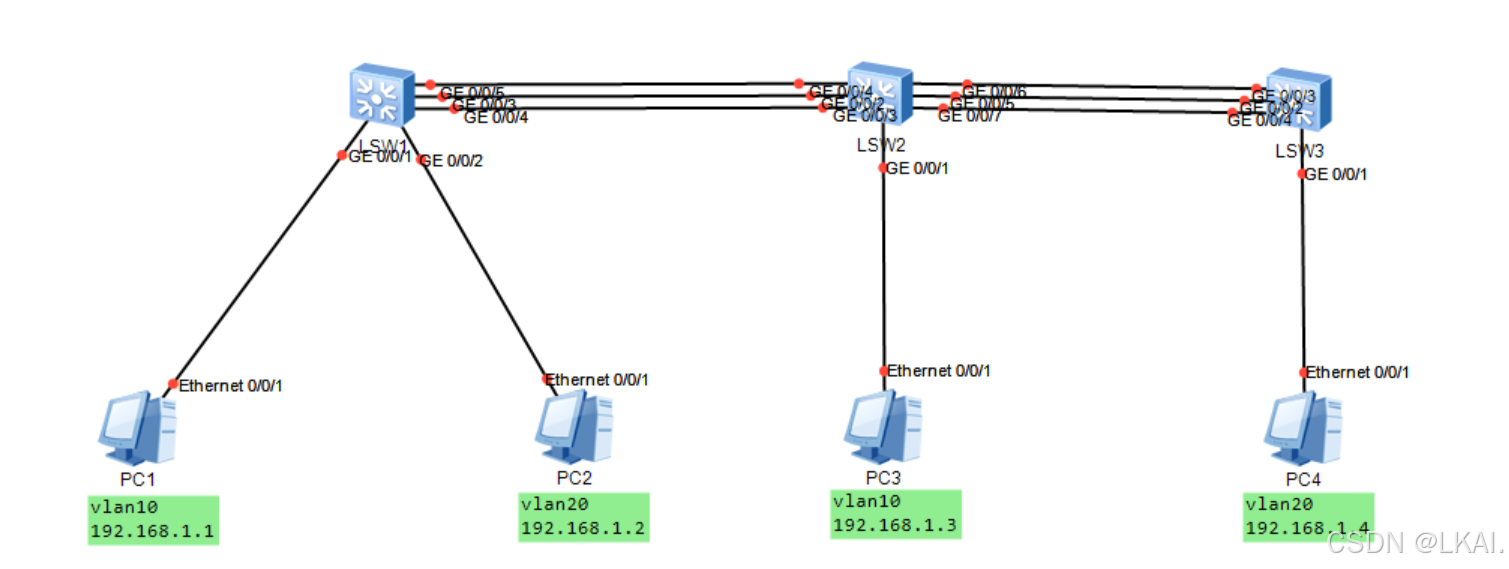

一、环境

二、步骤

1.启动设备

2.给pc配置IP地址

3.每台交换机创建vlan10和20并将接口加入指定vlan

4.配置聚合链路

[sw1]int Eth-Trunk 1

[sw1- Eth-Trunk 1]port link tr

[sw1- Eth-Trunk 1]port tr all vlan all

[sw1- Eth-Trunk 1]trunkport g0/0/3

[sw1- Eth-Trunk 1]trunkport g0/0/4

[sw1- Eth-Trunk 1]trunkport g0/0/5

[sw2]int Eth-Trunk 1

[sw2- Eth-Trunk 1]port link tr

[sw2- Eth-Trunk 1]port tr all vlan all

[sw2- Eth-Trunk 1]trunkport g0/0/2

[sw2- Eth-Trunk 1]trunkport g0/0/3

[sw2- Eth-Trunk 1]trunkport g0/0/4

[sw2- Eth-Trunk 1]quit

[sw2]int Eth-Trunk 2

[sw2- Eth-Trunk 1]port link tr

[sw2- Eth-Trunk 1]port tr all vlan all

[sw2- Eth-Trunk 1]trunkport g0/0/5

[sw2- Eth-Trunk 1]trunkport g0/0/6

[sw2- Eth-Trunk 1]trunkport g0/0/7

[sw3]int Eth-Trunk 2

[sw3- Eth-Trunk 1]port link tr

[sw3- Eth-Trunk 1]port tr all vlan all

[sw3- Eth-Trunk 1]trunkport g0/0/2

[sw3- Eth-Trunk 1]trunkport g0/0/3

[sw3- Eth-Trunk 1]trunkport g0/0/4

三、结果

pc1能ping通pc3，删除一条sw1和sw2的线路也可以ping通

pc2能ping通pc4，删除一条sw2和sw3的线路也可以ping通
