最近在朋友弄一个调整省政府政务工作流的程序。。
需要把当前的信息推送到政务网上,采用的是带证书的https webservice。。
下面说一下实现过程
第一步,引用webservice地址,删除web.config中相关配置。同时安装好证书
用如下数据替换:
<system.serviceModel>
<bindings>
<customBinding>
<binding name="IServiceSoapBinding" closeTimeout="00:01:00"
openTimeout="00:01:00" receiveTimeout="00:10:00" sendTimeout="00:01:00">
<textMessageEncoding maxReadPoolSize="64" maxWritePoolSize="16"
messageVersion="Soap11" writeEncoding="utf-8">
<!-- 政务大厅接口需要使用Soap11 -->
<readerQuotas maxDepth="32" maxStringContentLength="819200000" maxArrayLength="1638400000"
maxBytesPerRead="4096000" maxNameTableCharCount="16384000" />
</textMessageEncoding>
<httpsTransport manualAddressing="false" maxBufferPoolSize="52428800"
maxReceivedMessageSize="6553600" allowCookies="false" authenticationScheme="Anonymous"
bypassProxyOnLocal="false" hostNameComparisonMode="StrongWildcard"
keepAliveEnabled="true" maxBufferSize="6553600" proxyAuthenticationScheme="Anonymous"
realm="" transferMode="Buffered" unsafeConnectionNtlmAuthentication="false"
useDefaultWebProxy="true" requireClientCertificate="true" />
</binding>
</customBinding>
</bindings>
<client>
<endpoint address="https://WebService网址/CXFWebService/webservice/iservice" behaviorConfiguration="endpointBehavior1" binding="customBinding" bindingConfiguration="IServiceSoapBinding" contract="ZwdtServices.IService" name="ServiceImplPort" />
</client>
<behaviors>
<endpointBehaviors>
<behavior name="endpointBehavior1">
<dataContractSerializer maxItemsInObjectGraph="209715200"/>
<clientCredentials>
<clientCertificate findValue="证书用户" x509FindType="FindBySubjectName" storeLocation="LocalMachine" storeName="My"/>
<serviceCertificate>
<authentication certificateValidationMode="None"/>
<!--<defaultCertificate findValue="ShanXi Digital Certificate Authority" x509FindType="FindBySubjectName" storeLocation="CurrentUser" storeName="My"/>-->
</serviceCertificate>
</clientCredentials>
</behavior>
</endpointBehaviors>
</behaviors>
</system.serviceModel>
但在实际调用时,提示找不到对应的证书用户

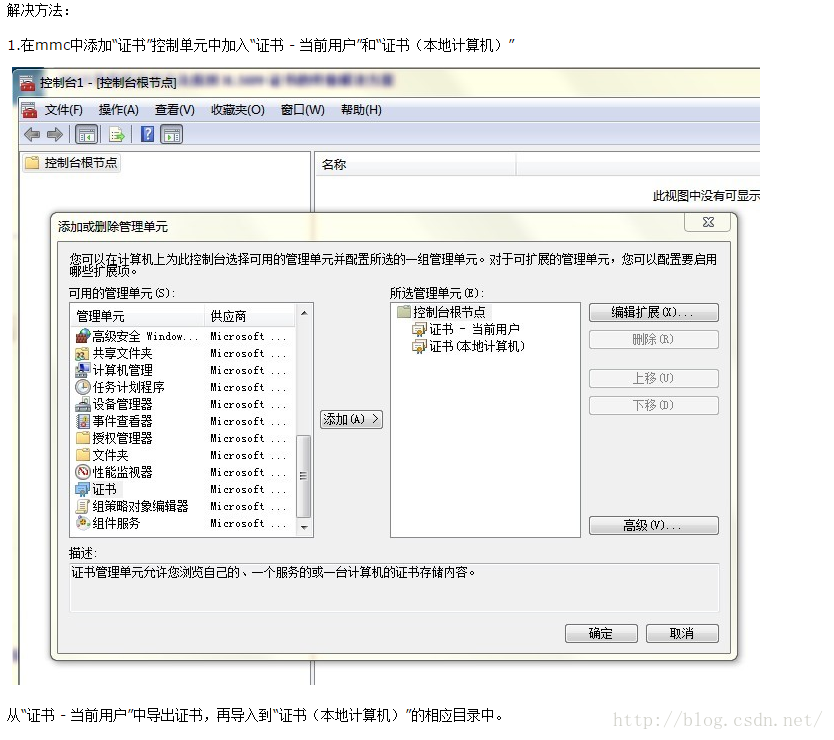

我猜测可能是iis用户访问证书有关,那么就在用户和计算机上都导入证书。运行MMC,打开两个证书管理器,都把证书导入一次。
如图
完成之后,果然错误不一样。。
继续运行,出现没有权限的错误
继续设计证书权限
OK完成。。。。。
