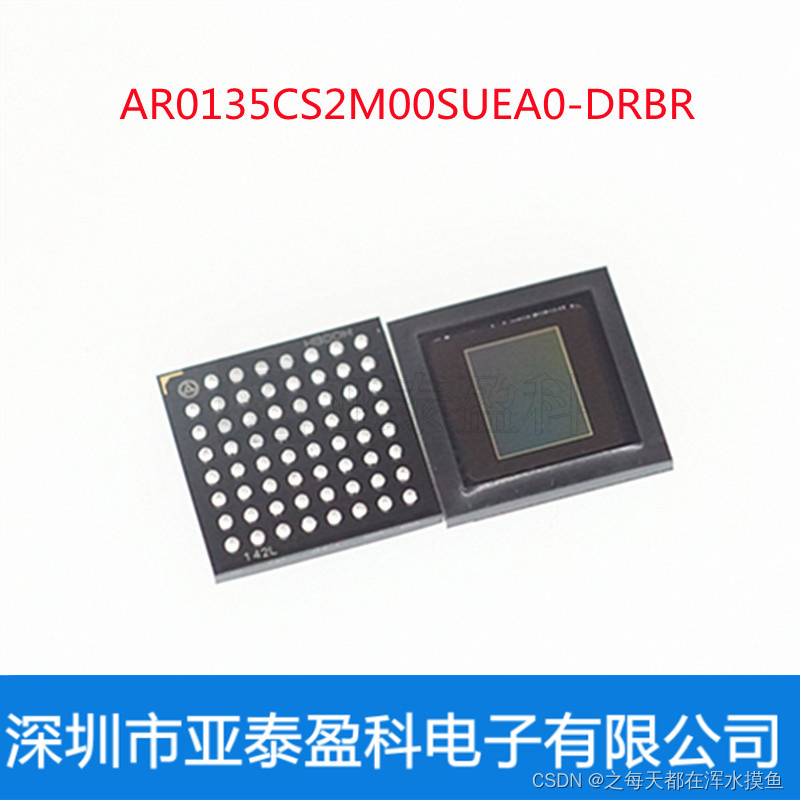

AR0135CS2M00SUEA0-DRBR 图像传感器

AR0135CS2M00SUEA0-DRBR
规格信息：

制造商:ON Semiconductor

产品种类:图像传感器

RoHS:是

图象大小:1280 H x 960 V

颜色读出:Monochrome

最小工作温度:- 30 C

最大工作温度:+ 80 C

分辨率:1.2 Megapixels

每秒帧数:54 fps

像素大小 - 宽x高:3.75 um x 3.75 um

封装 / 箱体:IBGA-63

工作电源电压:1.8 V

封装:Tray

系列:AR0135CS

类型:Image Sensors

商标:ON Semiconductor

湿度敏感性:Yes

光学格式:1/3 in

产品类型:Image Sensors

工厂包装数量:2600

子类别:Sensors

电源电压-最大:1.95 V

电源电压-最小:1.7 V

特性

• 安森美半导体的下一代全局快门技术

• 卓越的低光性能 • 高清视频 （720p60）

• 视频/单帧模式

• 灵活的跳行模式

• 片上自动曝光和统计引擎

• 并行和串行输出

• 支持外部 LED 或闪光灯

• 自动黑电平校准

• 上下文切换 有关更多功能，请参阅数据表

应用

• 条码扫描器

• 3D扫描

• 位置跟踪

• 虹膜扫描

• 增强现实
