1、后端页面的解析
1.1 页面的布局
1.1 页面布局说明
1.2 树形结构
<ul class="easyui-tree">
<li>
<span>商品管理</span>
<ul>
<li>商品新增</li>
<li>商品修改</li>
<li>
<span>商品删除</span>
<ul>
<li>删除1</li>
<li>删除2</li>
</ul>
</li>
</ul>
</li>
<li>
<span>商品标题</span>
</li>
</ul>
1.3 选项卡技术
function addTab(title, url){
if ($(’#tt’).tabs(‘exists’, title)){
$(’#tt’).tabs(‘select’, title);
} else {
var content = ‘’;
$(’#tt’).tabs(‘add’,{
title:title,
content:content,
closable:true
});
}
}
2.商品展现
2.1 JSON 格式
2.1.1 什么是JSON?
JSON 是一种轻量级的数据交换格式。它使得人们很容易的进行阅读和编写。同时也方便了机器进行解析和生成。
说明: JSON本质就是特殊格式的字符串。
2.1.2 对象的格式
{ "key1":"value1","key2":"value2"}
2.1.3 数组的格式
[ "value1","value2","value3"]
2.1.4 嵌套格式
2.2 商品数据信息
2.2.1 编辑POJO对象
2.2.2 实现商品列表说明
1)页面的标签
- 新增商品
2)跳转页面信息
3)分析表格数据展现
2.3 商品表格数据展现实现过程
2.3.1 页面也够的说明
说明:该UI框架提供了一个规则,只要返回值是特定的格式要求,则会根据特定的属性展现具体的数据

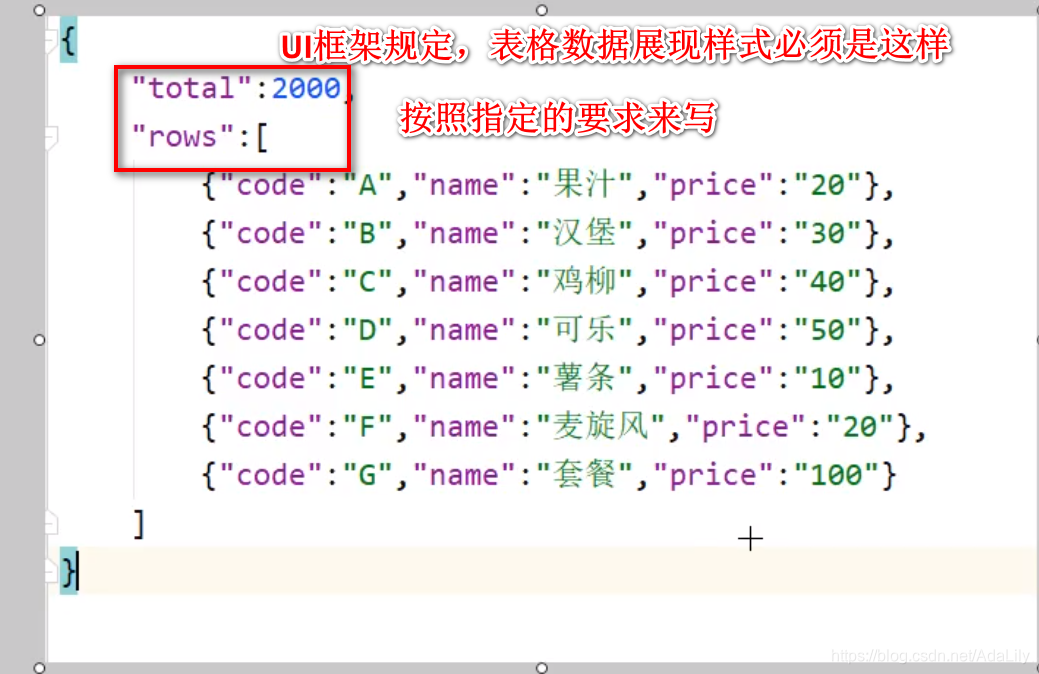

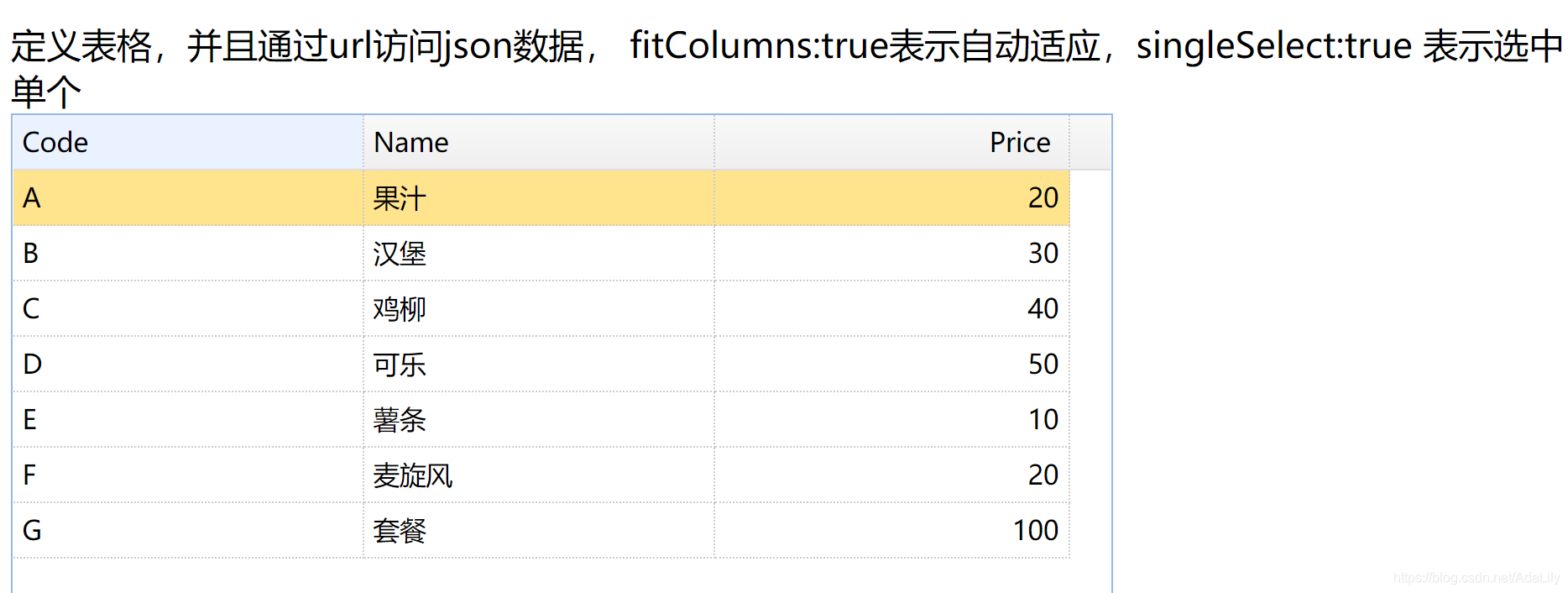

``定义表格,并且通过url访问json数据, fitColumns:true表示自动适应,singleSelect:true 表示选中单个` ``` ![在这里插入图片描述](https://img-blog.csdnimg.cn/20210301162903935.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0FkYUxpbHk=,size_16,color_FFFFFF,t_70) ### 2.3.2 数据结构的样式 ![在这里插入图片描述](https://img-blog.csdnimg.cn/20210301163724621.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0FkYUxpbHk=,size_16,color_FFFFFF,t_70) ### 2.3.3 编辑EasyUITable VO对象 package com.jt.vo;Code Name Price import com.jt.pojo.Item;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import lombok.experimental.Accessors;
import org.springframework.web.bind.annotation.ResponseBody;import java.util.List;
@Data
@Accessors(chain = true)
@NoArgsConstructor
@AllArgsConstructor
public class EasyUITable {
private Long total;
private List rows;/** * 对象转化为JSON时,必须对象的什么方法??? get方法 * JSON转化为对象时,调用的是对象的setxxx方法 * json转化时,必须提供get/set方法 */ /*public String getJT(){ return "你好我是京淘"; }*/
}

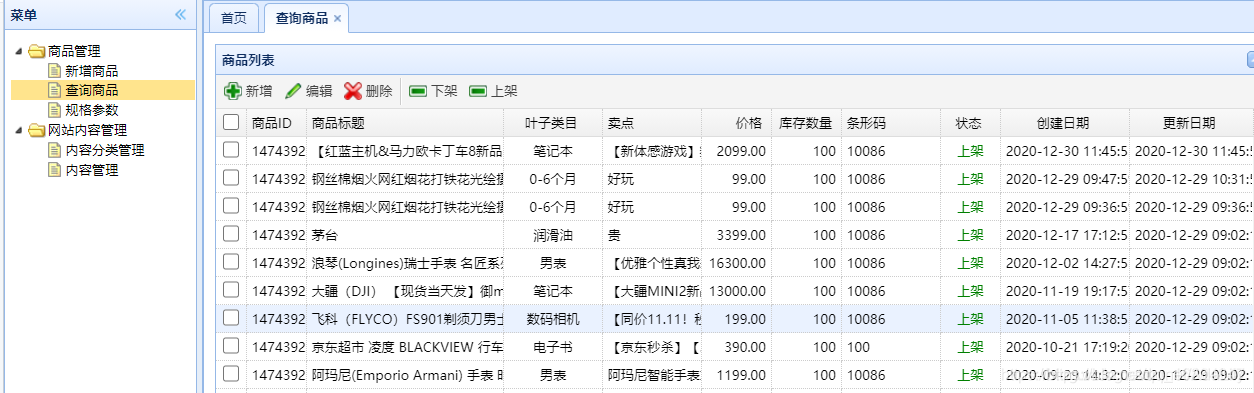

2.4 商品列表的实现
2.4.1 页面标识
说明:通过下列的代码,可以获取URL地址:/item/query ;返回值:经过特殊格式封装的Json 数据
<table class="easyui-datagrid" id="itemList" title="商品列表" data-options="singleSelect:false,fitColumns:true,collapsible:true,pagination:true,url:'/item/query',method:'get',pageSize:20,toolbar:toolbar"> <thead> <tr> <th data-options="field:'ck',checkbox:true"></th> <th data-options="field:'id',width:60">商品ID</th> <th data-options="field:'title',width:200">商品标题</th> <th data-options="field:'cid',width:100,align:'center',formatter:KindEditorUtil.findItemCatName">叶子类目</th> <th data-options="field:'sellPoint',width:100">卖点</th> <th data-options="field:'price',width:70,align:'right',formatter:KindEditorUtil.formatPrice">价格</th> <th data-options="field:'num',width:70,align:'right'">库存数量</th> <th data-options="field:'barcode',width:100">条形码</th> <th data-options="field:'status',width:60,align:'center',formatter:KindEditorUtil.formatItemStatus">状态</th> <th data-options="field:'created',width:130,align:'center',formatter:KindEditorUtil.formatDateTime">创建日期</th> <th data-options="field:'updated',width:130,align:'center',formatter:KindEditorUtil.formatDateTime">更新日期</th> </tr> </thead>
2.4.2 请求网址
说明:由于页面中添加了分页标签,所以在发起请求时,会默认的自动的拼接分页参数
2.3.3 编辑ItemController
package com.jt.controller; import com.jt.vo.EasyUITable; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.stereotype.Controller; import org.springframework.web.bind.annotation.RequestMapping; import com.jt.service.ItemService; import org.springframework.web.bind.annotation.RestController; import java.util.ArrayList; import java.util.List; @RestController //返回的数据都是JSON数据. @RequestMapping("/item") public class ItemController { @Autowired private ItemService itemService; /** * 业务说明: 完成商品分页查询 * URL地址: http://localhost:8091/item/query?page=1 页数 &rows=20 行数 * 参数: page/rows * 返回值: EasyUITable */ @RequestMapping("/query") public EasyUITable findItemByPage(Integer page,Integer rows){ return itemService.findItemByPage(page,rows); } } ### 2.3.4 编辑ItemService package com.jt.service; import com.jt.pojo.Item; import com.jt.vo.EasyUITable; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.stereotype.Service; import com.jt.mapper.ItemMapper; import java.util.List; @Service public class ItemServiceImpl implements ItemService { @Autowired private ItemMapper itemMapper; /** * 1.方式1 查询所有的商品信息 * 2.方式2 自己能否手写sql实现分页查询 * 2.1 分页查询规则 sql: select * from tb_item limit 起始位置,记录数 * 第一页 SELECT * FROM tb_item LIMIT 0,20 [0,19] 共20条 * 第二页 SELECT * FROM tb_item LIMIT 20,20 [20,39]共20条 * 第三页 SELECT * FROM tb_item LIMIT 40,20 [40,59]共20条 * 第N页 SELECT * FROM tb_item LIMIT (page-1)*20,20 共20条 * @param page * @param rows * @return */ @Override public EasyUITable findItemByPage(Integer page, Integer rows) { //1.手写分页查询 //1.1计算起始位置 int start = (page-1)*rows; List<Item> itemList = itemMapper.findItemByPage(start,rows); //2.查询总记录数 long total = itemMapper.selectCount(null); return new EasyUITable(total,itemList); } } 2.3.5 编辑ItemMapper public interface ItemMapper extends BaseMapper<Item>{ /*Linux系统中严格区分大小写,所以表名及字段都必须与表一致... * 老师为什么我的程序在windows中正常执行 ,linux中报错??? * */ @Select("SELECT * FROM tb_item ORDER BY updated DESC LIMIT #{start},#{rows}") List<Item> findItemByPage(int start, Integer rows); } ### 2.3.6 页面效果展现 ![在这里插入图片描述](https://img-blog.csdnimg.cn/20210302174546627.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0FkYUxpbHk=,size_16,color_FFFFFF,t_70) ## 2.4 MP实现分页 ### 2.4.1 编辑ItemService /** * MP分页相关说明: * 1.构建一个分页对象(当前页,记录数,总记录数......) * 2.为分页对象进行初始化操作 * 3.从分页操作中获取有效数据之后返回 * @param page * @param rows * @return */ @Override public EasyUITable findItemByPage(Integer page, Integer rows) { //1.定义分页对象 之后进行查询, IPage<Item> iPage = new Page<>(page,rows); //2.获取分页对象的其他数据 QueryWrapper<Item> queryWrapper = new QueryWrapper<>(); queryWrapper.orderByDesc("updated"); iPage = itemMapper.selectPage(iPage,queryWrapper); long total = iPage.getTotal(); //获取总记录数 List<Item> itemList = iPage.getRecords(); //获取当前页的数据 return new EasyUITable(total,itemList); } ### 2.4.2 编辑分页配置类 @Configuration //标识配置文件 public class MybatisPlusConfig { @Bean //将数据交给spring容器管理 public PaginationInterceptor paginationInterceptor() { PaginationInterceptor paginationInterceptor = new PaginationInterceptor(); // 设置请求的页面大于最大页后操作, true调回到首页,false 继续请求 默认false paginationInterceptor.setOverflow(true); // 设置最大单页限制数量,默认 500 条,-1 不受限制 // paginationInterceptor.setLimit(500); // 开启 count 的 join 优化,只针对部分 left join paginationInterceptor.setCountSqlParser(new JsqlParserCountOptimize(true)); return paginationInterceptor; } } ### 2.5 数据格式化 #### 2.5.1 格式化价格 1).检查html代码 <th data-options="field:'price',width:70,align:'right',formatter:KindEditorUtil.formatPrice">价格</th> 1 2).检查函数 /** * val代表是当前节点的值 row代表当前的行级元素信息 对象 */ // 格式化价格 formatPrice : function(val,row){ return (val/100).toFixed(2); }, ### 2.5.2 格式化时间 1).编辑HTML代码 <th data-options="field:'created',width:130,align:'center',formatter:KindEditorUtil.formatDateTime">创建日期</th> 1 2).编辑页面JS // 格式化时间 formatDateTime : function(val,row){ //将字符串转化为js对象 时间对象 var now = new Date(val); //将当前时间按照指定的格式进行转化 return now.format("yyyy-MM-dd hh:mm:ss"); }, ### 2.5.3 格式化商品状态 1).编辑HTML页面 <th data-options="field:'status',width:60,align:'center',formatter:KindEditorUtil.formatItemStatus">状态</th> 1 2).编辑页面JS // 格式化商品的状态 formatItemStatus : function formatStatus(val,row){ if (val == 1){ return '<span style="color:green;">上架</span>'; } else if(val == 2){ return '<span style="color:red;">下架</span>'; } else { return '<span style="color:blue;">未知</span>'; } }, ### 2.5.4 JS引入过程 1).在父级页面中index.jsp中添加如下操作 <jsp:include page="/commons/common-js.jsp"></jsp:include> 1 2).检查common-js ![在这里插入图片描述](https://img-blog.csdnimg.cn/20210302174633996.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0FkYUxpbHk=,size_16,color_FFFFFF,t_70) 3.实现分类操作 3.1 实现商品分类回显 3.1.1 编辑ItemCat对象 说明: 在jt-common中添加pojo对象 package com.jt.pojo; import com.baomidou.mybatisplus.annotation.IdType; import com.baomidou.mybatisplus.annotation.TableId; import com.baomidou.mybatisplus.annotation.TableName; import lombok.Data; import lombok.experimental.Accessors; @TableName("tb_item_cat") @Data @Accessors(chain = true) public class ItemCat extends BasePojo{ @TableId(type = IdType.AUTO) private Long id; //商品分类id 主键自增 private Long parentId; //定义父级分类Id private String name; //商品分类名称 private Integer status; //指定状态 1正常 2删除 private Integer sortOrder; //排序号 private Boolean isParent; //是否为父级 } ### 3.1.1 页面标识 1).编辑html <th data-options="field:'cid',width:100,align:'center',formatter:KindEditorUtil.findItemCatName">叶子类目</th> 1 2).编辑JS /** * 完成$.ajax业务调用 属性说明: 1.type : 定义请求的类型 GET/POST/PUT/DELETE 2.URL: 指定请求的路径 3.dataType: 指定返回值类型 一般可以省略 4.data : ajax向后端服务器传递的数据 1.{key:value,key2:value2} 2.key=value&key2=value2 5.success: 设定回调函数一般都会携带参数 6.async 异步操作 默认值为true 改为false表示同步操作. 7.error 请求异常之后 执行的函数. 8.cache ajax是否使用缓存 默认值为true 1.动态获取用户传递的itemCatId的值. 2.利用ajax实现数据的动态的获取 ajax: $.get/$.post/$.getJSON/$.ajax **/ findItemCatName : function(val,row){ //console.log("商品分类ID号:"+val); let name = null; // //异步出现了问题 由于异步操作程序没有返回数据之前,提前结束所以程序为null $.ajax({ type : "GET", url : "/itemCat/findItemCatById", data : {id:val}, success : function(result){ //ItemCat //console.log(result.name); name = result.name; }, async : false //设置为同步操作 true为异步.... }) return name; }, ### 3.1.2 编辑ItemCatController package com.jt.controller; import com.jt.pojo.ItemCat; import com.jt.service.ItemCatService; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; @RestController @RequestMapping("/itemCat") public class ItemCatController { @Autowired private ItemCatService itemCatService; /** * 实现商品分类查询 * url地址: http://localhost:8091/itemCat/findItemCatById?id=163 * 参数: id=163 * 返回值结果: itemCat对象 */ @RequestMapping("/findItemCatById") public ItemCat findItemCatById(Long id){ return itemCatService.findItemCatById(id); } } ### 3.1.3 编辑ItemCatService package com.jt.service; import com.jt.mapper.ItemCatMapper; import com.jt.pojo.ItemCat; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.stereotype.Service; @Service public class ItemCatServiceImpl implements ItemCatService{ @Autowired private ItemCatMapper itemCatMapper; @Override public ItemCat findItemCatById(Long id) { return itemCatMapper.selectById(id); } } ### 3.1.4 页面效果展现 ![在这里插入图片描述](https://img-blog.csdnimg.cn/20210302174649849.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L0FkYUxpbHk=,size_16,color_FFFFFF,t_70)
