ARM-BASE HPC SOC design

SOC攒机

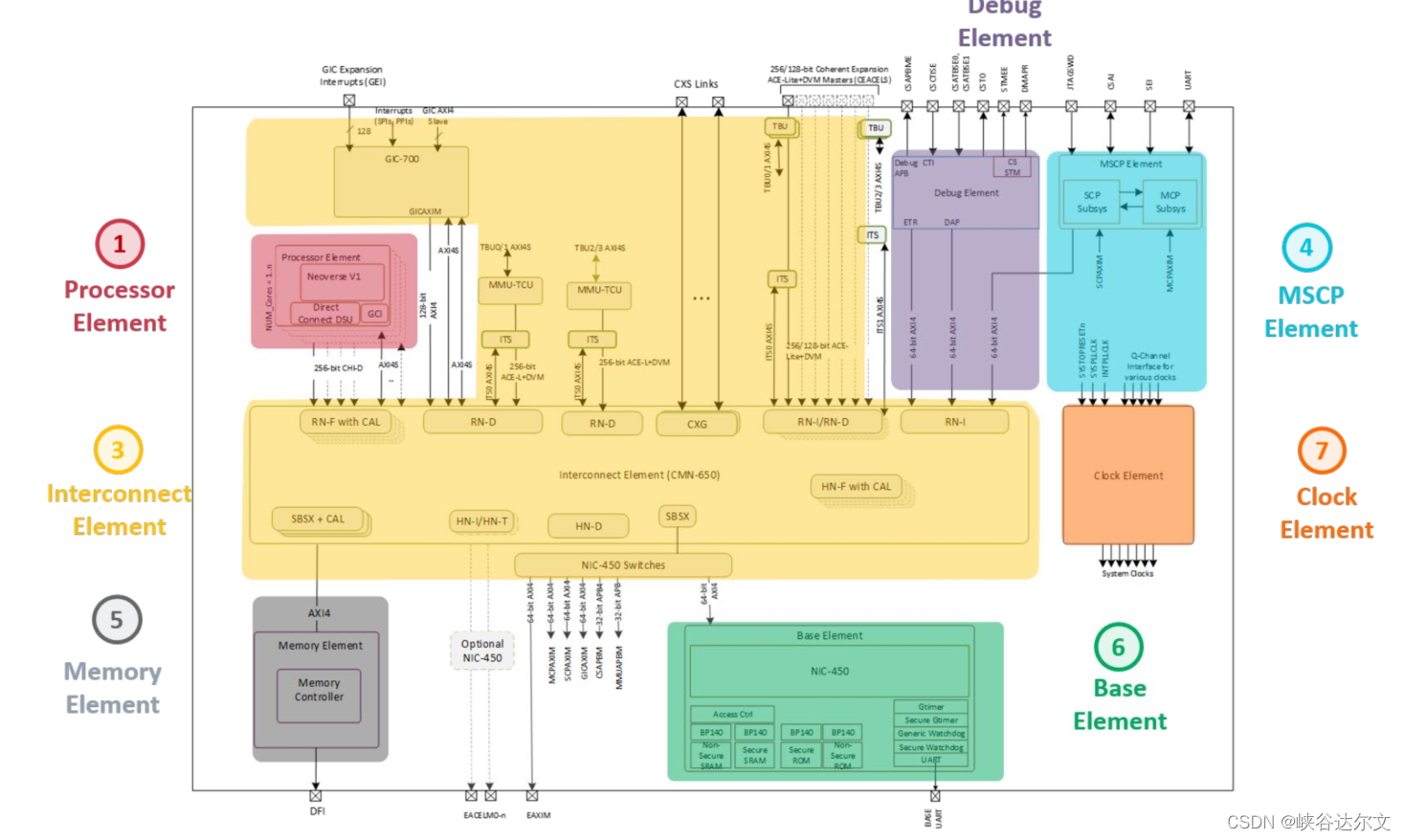

一、SOC组成

处理器子系统：ARMv8.4 -A Arm Neoverse V1 core,direct DSU,dbeug and power management unit
debug子系统：coresight IP provide for real-time trace facilities
interconnect 子系统: CMN-650 coherent mesh network, GIC-700 implement,MMU-600,NIC-450
MSCP 子系统：M7 for system control and power control
memory 子系统：DMC wit TZC-400 control logic
