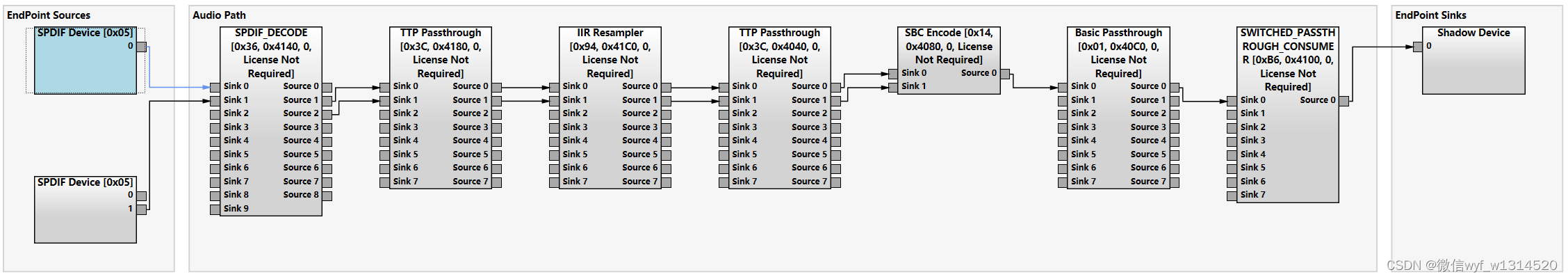

qcc3086发射，spdif输入，qact链路参考

qcc3086默认只支持模拟输入和usb audio，这里实际就是用spdif取代了模拟输入。

/*!

    \copyright  Copyright (c) 2021 - 2023 Qualcomm Technologies International, Ltd.\n

                All Rights Reserved.\n

                Qualcomm Technologies International, Ltd. Confidential and Proprietary.

    \version    %version

    \file       state_of_charge.c

    \ingroup    state_of_charge

    \brief

*/

#ifndef HAVE_NO_BATTERY

#define DEBUG_LOG_MODULE_NAME state_of_charge

#include <logging.h>

DEBUG_LOG_DEFINE_LEVEL_VAR

#include <ps.h>

#include <panic.h>

#include <pio.h>

#include <vm.h>

#include <hydra_macros.h>

#include <limits.h>

#include <task_list.h>

#include <logging.h>

#include <led.h>

#ifdef INCLUDE_DFU

#include <upgrade.h>

#endif

#include "adk_log.h"

#include "state_of_charge_private.h"

#include "battery_monitor.h"

#include "charger_monitor.h"

#include "battery_monitor_config.h"

#include "unexpected_message.h"

#include <stdlib.h>

/* Make the type used for message IDs available in debug tools */

LOGGING_PRESERVE_MESSAGE_ENUM(soc_messages)

ASSERT_MESSAGE_GROUP_NOT_OVERFLOWED(STATE_OF_CHARGE, STATE_OF_CHARGE_MESSAGE_END)

typedef struct

{


    const soc_lookup_t* soc_config_table;

    unsigned soc_config_size;

}soc_ctx_t;

static soc_ctx_t soc_ctx;

soc_data_t app_battery_charge;

/*!

    \brief Send battery state of charge update message to all registered clients.

    \param battery_region pointer to battery_region_data_t structure

*/

static void soc_ServiceClients(soc_data_t *battery_charge)

{


    socRegisteredClient *client = NULL;

    for (client = battery_charge->client_list; client != NULL; client = client->next)

    {


        uint8 percent = (uint8)battery_charge->state_of_charge;

        if (percent != client->percent)

        {


            MESSAGE_MAKE(msg, MESSAGE_SOC_UPDATE_T);

            msg->percent = percent;

            client->percent = percent;

            MessageSend(client->form.task, SOC_UPDATE_IND, msg);

        }

    }

}

/*! Add a client to the list of clients */

static bool soc_ClientAdd(soc_data_t *battery_charge, soc_registration_form_t *form)

{


    socRegisteredClient *new = calloc(1, sizeof(*new));

    if (new)

    {


        new->form = *form;

        new->next = battery_charge->client_list;

        battery_charge->client_list = new;

        return TRUE;

    }

    return FALSE;

}

/*! Remove a client from the list of clients */

static void soc_ClientRemove(soc_data_t *battery_charge, Task task)

{


    socRegisteredClient **head;

    for (head = &battery_charge->client_list; *head != NULL; head = &(*head)->next)

    {


        if ((*head)->form.task == task)

        {


            socRegisteredClient *toremove = *head
