一、在MB52报表中新增字段

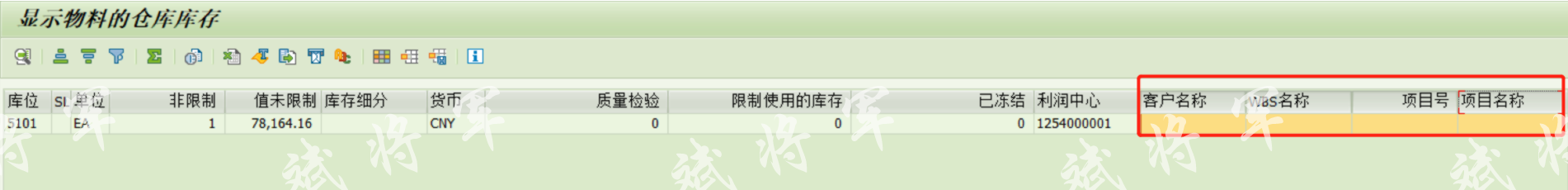

实现如图效果

二、增强实现

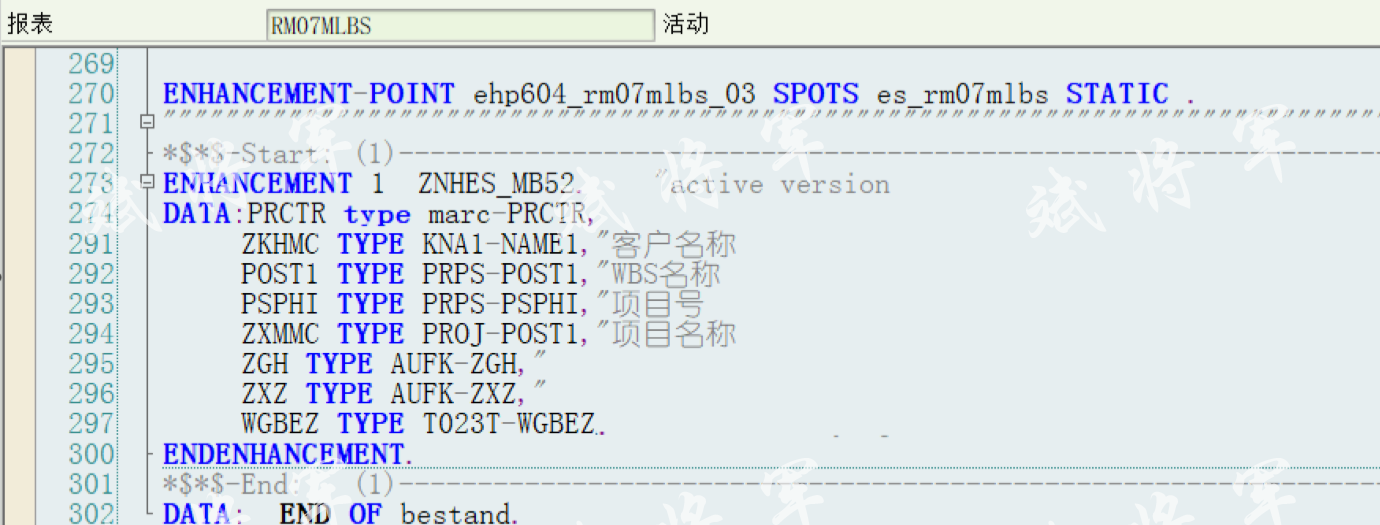

MB52程序为RM07MLBS，在程序中找到定义的内表结构bestand，在最后创建隐式增强，加入增强字段，该内表为将来展示的ALV数据

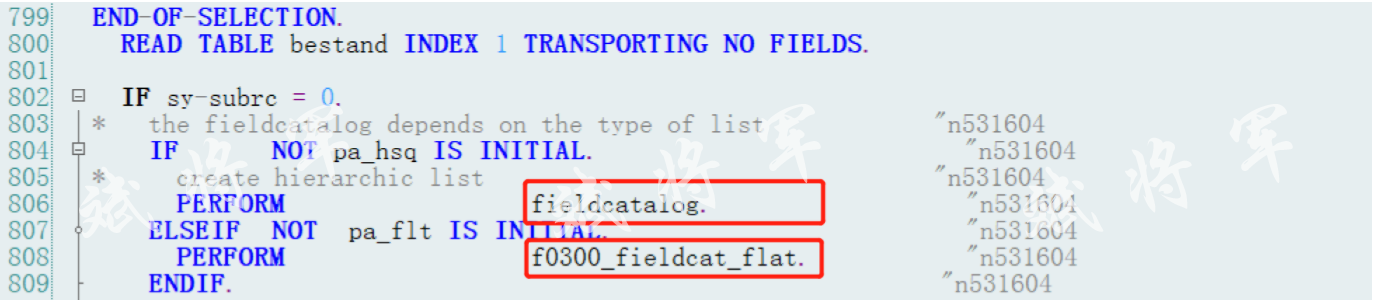

设置ALV列，在子例程最后创建隐式增强，加入列字段，在子例程fieldcatalog和f0300_fieldcat_flat中都添加

"-----------------------------------------@斌将军--------------------------------------------
"-----------------------------fieldcatalog-------------------------------
ENHANCEMENT 2  ZMB52.    "active version
  CLEAR fieldcat.
  fieldcat-fieldname     = 'ZKHMC'.
  fieldcat-seltext_l = fieldcat-seltext_s     =  fieldcat-seltext_m     = '客户名称'.
  APPEND fieldcat.

    CLEAR fieldcat.
  fieldcat-fieldname     = 'POST1'.
  fieldcat-seltext_l = fieldcat-seltext_s     =  fieldcat-seltext_m     = 'WBS名称'.
  APPEND fieldcat.

    CLEAR fieldcat.
  fieldcat-fieldname     = 'PSPHI'.
  fieldcat-seltext_l = fieldcat-seltext_s     =  fieldcat-seltext_m     = '项目号'.
  APPEND fieldcat.

    CLEAR fieldcat.
  fieldcat-fieldname     = 'ZXMMC'.
  fieldcat-seltext_l = fieldcat-seltext_s     =  fieldcat-seltext_m     = '项目名称'.
  APPEND fieldcat.

ENDENHANCEMENT.

*$*$-End:   (2)---------------------------------------------------------------------------------$*$*
ENDFORM.                               " FELDKATALOG_AUFBAUEN
"-----------------------------------------@斌将军--------------------------------------------

"-----------------------------------------@斌将军--------------------------------------------
"-----------------------------f0300_fieldcat_flat-----------------------
        fieldcat-seltext_l     = '客户名称'.
        macro_fill_fieldcat 'ZKHMC'  ''   c_out.
        fieldcat-seltext_l     = 'WBS名称'.
        macro_fill_fieldcat 'POST1'  ''   c_out.
        fieldcat-seltext_l     = '项目号'.
        macro_fill_fieldcat 'PSPHI'  ''   c_out.
        fieldcat-seltext_l     = '项目名称'.
        macro_fill_fieldcat 'ZXMMC'  ''   c_out.
ENDENHANCEMENT.
*$*$-End:   (4)---------------------------------------------------------------------------------$*$*
ENDFORM.                     "f0300_fieldcat_flat
"-----------------------------------------@斌将军--------------------------------------------

获取数据，在子例程list_output中加入隐式增强，查询字段的数据

"-----------------------------------------@斌将军--------------------------------------------
FORM list_output.
"""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""$"$\SE:(3) Form LIST_OUTPUT, Anfang                                                                                                                          A
*$*$-Start: (3)---------------------------------------------------------------------------------$*$*
ENHANCEMENT 3  ZMB52.    "active version
  data:l_index type i.
  DATA:LT_CHAR TYPE TABLE OF BAPI1003_ALLOC_VALUES_CHAR WITH HEADER LINE.
  IF bestand[] IS NOT INITIAL.
    SELECT
      KUNNR,
      NAME1
    FROM KNA1
    INTO TABLE @DATA(LT_KNA1)
    FOR ALL ENTRIES IN @bestand
    WHERE KUNNR = @bestand-KUNNR.

    SELECT
      PRPS~PSPNR,
      PRPS~POST1,"WBS名称
      PRPS~PSPHI,"项目号
      PROJ~POST1 AS ZXMMC"项目名称
    FROM PRPS
    INNER JOIN PROJ ON PRPS~PSPHI = PROJ~PSPNR
    INTO TABLE @DATA(LT_PRPS)
    FOR ALL ENTRIES IN @bestand
    WHERE PRPS~PSPNR = @bestand-PSPNR.
  ENDIF.

  LOOP AT bestand  .
    l_index = sy-tabix.

    "客户名称
    READ TABLE lt_kna1 INTO DATA(ls_kna1) WITH KEY kunnr = bestand-kunnr.
    IF sy-subrc EQ 0.
      bestand-zkhmc = ls_kna1-name1.
    ENDIF.

    READ TABLE LT_PRPS INTO DATA(LS_PRPS) WITH KEY PSPNR = bestand-PSPNR.
    IF SY-SUBRC EQ 0.
      bestand-POST1 = LS_PRPS-POST1.
      bestand-PSPHI = LS_PRPS-PSPHI.
      bestand-ZXMMC = LS_PRPS-ZXMMC.
    ENDIF.

    MODIFY bestand INDEX l_index.
  ENDLOOP.
ENDENHANCEMENT.
*$*$-End: (3)---------------------------------------------------------------------------------$*$*


* set pf-status 'STANDARD'.


ENHANCEMENT-SECTION rm07mlbs_09 SPOTS es_rm07mlbs.

"-----------------------------------------@斌将军--------------------------------------------
