ESP8266 AT MQTT-TCP 透传指令TLS加密接入阿里云物联网平台笔记；

一、简介

前面为大家带来的是无加密的AT MQTT直连阿里云物联网平台的笔记，链接为：

https://blog.csdn.net/Boantong_/article/details/104791452

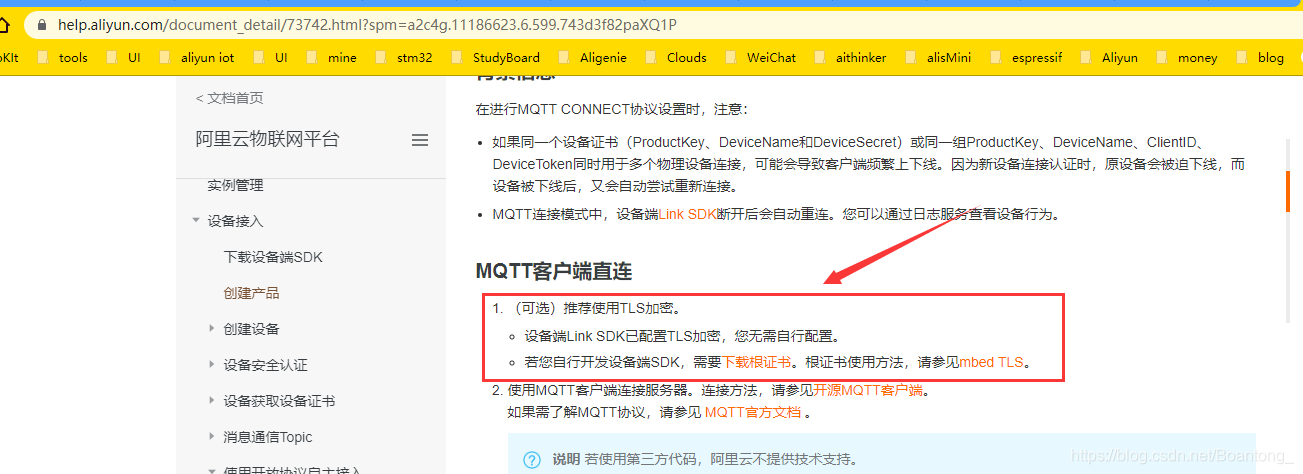

上述提到，推荐使用TLS加密直连！
今天，给大家带来的是如何在这基础之上TLS加密连接，安全性更高！

二、准备材料

• ESP-12S模组一个；
• AT MQTT固件阿里云物联网专有固件：已经加入阿里云根证书: 点我下载

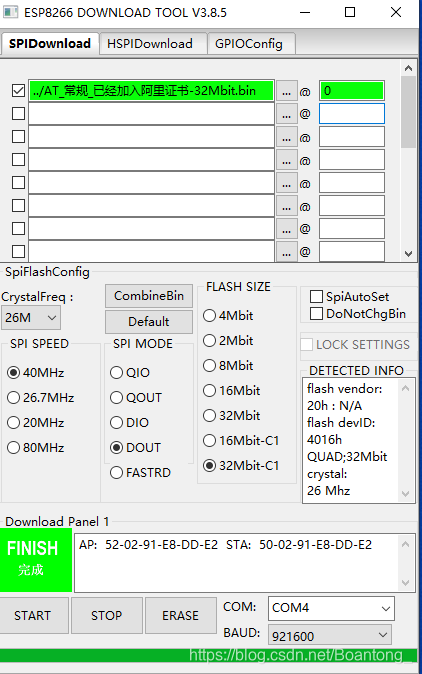

烧录截图：

三、指令说明

至于在阿里云物联网后台新建一个产品，如何生成连接MQTT的参数，这里不再累赘！下面只说关键的AT说明！

• AT+CWMODE=1设置为 station 模式！

• AT+CWJAP="iot@xuhongv","12345678"连接路由器！

• AT+MQTTUSERCFG=0,3,"ClientId","userName","password",0,0,"" 配置连接参数，第2个参数为3，表示本地校验服务器域名证书！如果是1则表示无校验！

• AT+MQTTCONN=0,"xxxxx.iot-as-mqtt.cn-shanghai.aliyuncs.com",1883,1 设置域名，开始连接！

---

AT固件支持多种加密形式传输，上面我们只用到了非双向认证，只用到了本地校验服务器，也就是第二个参数为3！

1: MQTT over TCP
2: MQTT over TLS(no certificate verify)
3: MQTT over TLS(verify server certificate)
4: MQTT over TLS(provide client certificate)
5: MQTT over TLS(verify server certificate and provide client certificate)
6: MQTT over WebSocket(based on TCP)
7: MQTT over WebSocket Secure(based on TLS, no certificate verify)
8: MQTT over WebSocket Secure(based on TLS, verify server certificate)
9: MQTT over WebSocket Secure(based on TLS, provide client certificate)
10: MQTT over WebSocket Secure(based on TLS, verify server certificate and provide client certificate)

所以，整个交互过程：

ready
AT+CWMODE=1

OK
AT+CIPSNTPCFG=1,8,"ntp1.aliyun.com"

OK
AT+CWJAP="iot@xuhongv","xuhong12345678"
WIFI CONNECTED
WIFI GOT IP

OK
AT+CIPSNTPCFG=1,8,"ntp1.aliyun.com"

OK
AT+MQTTUSERCFG=0,3,"123|securemode=2\,signmethod=hmacsha1\,timestamp=20190725|","CA01-01&a1PcEbO4qmU","B7FDC3D825C1C271544B0ECD11D846484236C018",0,0,""

OK
AT+MQTTCONN=0,"a1PcEbO4qmU.iot-as-mqtt.cn-shanghai.aliyuncs.com",1883,1
+MQTTCONNECTED:0,3,"a1PcEbO4qmU.iot-as-mqtt.cn-shanghai.aliyuncs.com","1883","",1

OK

---

• 共勉~联系：support@aithinker.com
