day 1

1.使用自制数据集读取图

对于分类网络，在其Dataset下包括N个文件夹，每个文件夹为一类，在没有使用使用自制数据集读取图片之前，我们使用了 datasets.ImageFolder数据进行读取， ImageFolder 的功能就是将root下所有文件和其类别(文件对应的文件夹索引)，如{‘DOG’:0, ‘CAT’:1, ‘rabbit’:2}
主要步骤：
step1：构建数据集
step2：读取数据集

1)直接利用ImageFolder

ToTensor 实现两个功能， 一个是维度的转变（HWC->CHW）,二是实现标准化 [0,255]->[0,1]\

import torch
from torchvision import datasets
from torch.utils.data import DataLoader
from torchvision.transforms import transforms

data_transform = transforms.Compose(
    [transforms.ToTensor(),
    transforms.Normalize((0.5,0.5,0.5), (0.5,0.5,0.5))]   #tensor数据标准化   均值mean和标准差std)

train_dir = config["train"]["datapath"]
train_dataset = datasets.ImageFolder(root=train_dir, transform=data_transform)
train_loader = DataLoader(dataset=train_dataset,
                          batch_size=8,
                          shuffle=True,
                          num_workers=0)

Image Folder的具体作用，构建文件名和文件夹（分类）的对应关系，其返回值是图片的位置与其对应分类，此部分的解释参考处 点击这里

import torchvision.datasets as dset
dataset = dset.ImageFolder('./data/dogcat_2') #没有transform，先看看取得的原始图像数据
print(dataset.classes)  #根据分的文件夹的名字来确定的类别
print(dataset.class_to_idx) #按顺序为这些类别定义索引为0,1...
print(dataset.imgs) #返回从所有文件夹中得到的图片的路径以及其类别

返回

['cat', 'dog']
{'cat': 0, 'dog': 1}
[('./data/dogcat_2/cat/cat.12484.jpg', 0), ('./data/dogcat_2/cat/cat.12485.jpg', 0), ('./data/dogcat_2/cat/cat.12486.jpg', 0), ('./data/dogcat_2/cat/cat.12487.jpg', 0), ('./data/dogcat_2/dog/dog.12496.jpg', 1), ('./data/dogcat_2/dog/dog.12497.jpg', 1), ('./data/dogcat_2/dog/dog.12498.jpg', 1), ('./data/dogcat_2/dog/dog.12499.jpg', 1)]

2)自制dataset

from PIL import Image
import torch
from torch.utils.data import Dataset
import os
import glob
import json
from matplotlib import pyplot as plt

class Mydataset(Dataset):

    def __init__(self,dataset_folder, transform=None):
        self.dataset_folder = dataset_folder
        self.images_path = []
        self.label_list = []
        self.transform = transform
        _class = [cla for cla in os.listdir(dataset_folder) if os.path.isdir(os.path.join(dataset_folder, cla))]
        # 排序，保证顺序一致
        _class.sort()
        # 生成类别名称以及对应的数字索引
        class_indices = dict((k, v) for v, k in enumerate(_class))
        json_str = json.dumps(dict((val, key) for key, val in class_indices.items()), indent=4)
        with open('class_indices.json', 'w') as json_file:
            json_file.write(json_str)

        for root, dirs, files in os.walk(dataset_folder):
            for dir in dirs:
                files_list = glob.glob(os.path.join(root, dir, '*png'))
                # img_list.sort(key=lambda x: str(x))
                for i in range(len(files_list)):
                    # print(files_list[i])
                    # print(dir)
                    self.images_path.append(files_list[i])
                    image_class = class_indices[dir]
                    self.label_list.append(image_class)

    def __len__(self):
        return len(self.images_path)

    def __getitem__(self, item):
        img = Image.open(self.images_path[item]).convert('L')   #(W,H)->(512,512)
        # print(img.size)#此时还是图片
        # print(img)
        if img.mode != 'L':
            raise ValueError("image:{} is not RGB mode".format(self.images_path[item]))
        label = self.label_list[item]
        # print(self.images_path[item],"aaaaaaa",self.images_class[item])

        if self.transform is not None:
            img = self.transform(img)   #图片转Tensor
            print(img.shape)

        return img, label

    @staticmethod
    #自定义打包方式
    def collate_fn(batch):
        # *batch表示可以接收任意多的元素数，将他们打包成{images:labels}再将这些放进元组中
        images,labels = tuple(zip(*batch))
        # torch.stack：把多个2维的张量凑成一个3维的张量；多个3维的凑成一个4维的张量…以此类推，也就是在增加新的维度进行堆叠。
        images = torch.stack(images,dim=0)  #将一个batch 里面的图片进行拼接   (1,512,512)->(8,1,512,512)
        labels = torch.as_tensor(labels)  #将label转为Tensor
        return images, labels

此时可以直接调用Mydataset来处理
opencv读取图片时,读取后转为numpy数组的格式是(H,W,C).
torch将图片转为Tensor,读取格式为（C,H,W）\

from my_dataset import Mydataset
import torch
from torch.utils.data import DataLoader
from torchvision.transforms import transforms
import yaml

with open('config.yaml', 'r', encoding='utf-8') as f_config:
    config_result = f_config.read()
    config = yaml.load(config_result, Loader=yaml.FullLoader)


dataset=config["train"]["dataset_folder"]

data_transform=transforms.Compose([
    transforms.Resize(512),
    transforms.ToTensor(),
    transforms.Normalize([0.5],[0.5])
     ])

train_dataset = Mydataset(dataset_folder=dataset,
                          transform=data_transform)

train_loader = DataLoader(dataset=train_dataset,
                          batch_size=8,
                          shuffle=True,
                          num_workers=0,
                          collate_fn=train_dataset.collate_fn)

for step, data in enumerate(train_loader):
    imgs,labels = data
    # print(labels)
    print(imgs.shape)

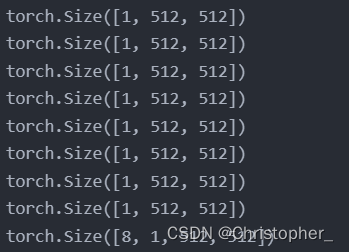

把两个tensor的shape打印出来，结果如下

2.网络的搭建

1. 网络的主体应该分为两个部分一个是网络，一个是网络的传播路径forward
2. 初始化网络,分为两类，一类是随机初始化，一类是加载预训练模型.

随机初始化

#自定义的随机初始化,# 1. 根据网络层的不同定义不同的初始化方式\
#一般需要初始化的层数包括卷积层、BN层、linear层
def _initialize_weights(self):
    #m 为module里面的所有层数，一般需要初始化的
    for m in self.modules():
        if isinstance(m, nn.Conv2d):
            n = m.kernel_size[0]*m.kernel_size[1]*m.outchannels
            m.weight.data.normal_(0, math.sqrt(2./n))
            if m.bias is not None:
                m.bias,data.zero_()
        elif isinstance(m, nn.BatchNormal2d):
            m.weight.data.fill_(1)
            m.bias.data.zero_()
        elif isinstance(m, nn.Linear):
            m.weight.data.normal_(0, 0.01)
            m.bias.data.zero_()

#定义在模型中，使用kaiming initialization, pytorch常用
    for m in self.modules():
        if isinstance(m, nn.Conv2d):
            #“fan_in”保留前向传播时权值方差的量级，“fan_out”保留反向传播时的量级
            nn.init.kaiming_normal_(m.weight, mode='fan_out', nonlinearity='relu')
        #对于BN层的初始化为权重为1，偏置为0
        elif isinstance(m, (nn.BatchNorm2d, nn.GroupNorm)):
            nn.init.constant_(m.weight, 1)
            nn.init.constant_(m.bias, 0)

网络结构，意思一下

import torch
from torch import nn

class YourNet(nn.Module):
    def __init__(self):   #def __init__(self, num_class):
        super(YourNet, self).__init__()
        self.conv1 = nn.Conv2d(in_channels=3, out_channels=8, kernel_size=7, stride=1, padding=1)
        #dengdeng
    def forward(self, x):
        x1 = self.conv1(x)

        return x1

以LeNet为例

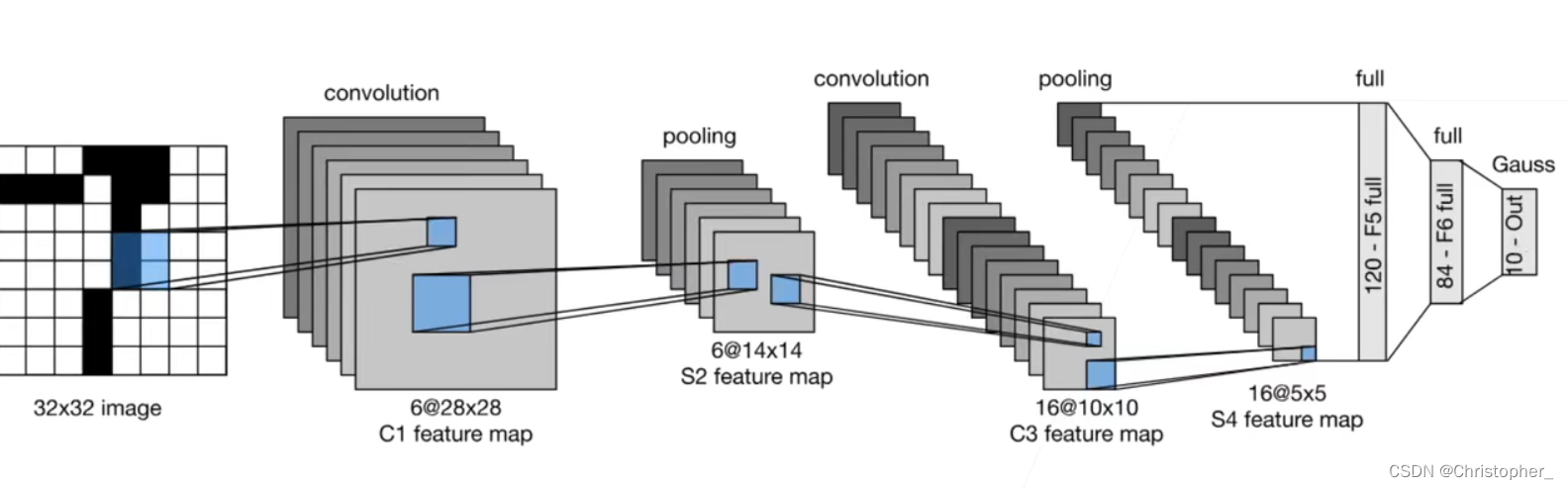

模型结构图

import torch
from torch import nn
from torchsummary import summary

class MyLeNet(nn.Module):
    def __init__(self):
        super(MyLeNet, self).__init__()
        self.conv1 = nn.Conv2d(in_channels=1, out_channels=6, kernel_size=5, padding=2)
        self.Sigmoid = nn.Sigmoid()
        self.avgpool = nn.AvgPool2d(kernel_size=2,stride=2)
        self.conv2 = nn.Conv2d(in_channels=6, out_channels=16,kernel_size=5)
        self.faltten = nn.Flatten()
        self.linear1 = nn.Linear(16*5*5,84)
        self.output = nn.Linear(84,10)

    def forward(self, x):  # input  (1,28,28)
        # x = x.view(-1,1,28,28)
        x = self.conv1(x)    #(1,28,28)-> (6,28,28)
        x = self.Sigmoid(x)
        x = self.avgpool(x)  #(6,28,28)-> (6,14,14)
        x = self.conv2(x)  #(6,14,14) -> (16,10,10)
        x = self.Sigmoid(x)
        x = self.avgpool(x) # (16,10,10)->(16,5,5)
        x = self.faltten(x)    (16,5,5) -> (16*5*5)
        x = self.linear1(x)  #(1,16*5*5)-> (84)
        x = self.output(x)    # 10
        return x
if __name__ == "__main__":
    device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
    model = MyLeNet().to(device)

    summary(model,(1,28,28))

函数 summary(model, input_size)可以打印模型的层数参数量以及每一层的输出shape，返回的效果

----------------------------------------------------------------
        Layer (type)               Output Shape         Param #
================================================================
            Conv2d-1            [-1, 6, 28, 28]             156
           Sigmoid-2            [-1, 6, 28, 28]               0
         AvgPool2d-3            [-1, 6, 14, 14]               0
            Conv2d-4           [-1, 16, 10, 10]           2,416
           Sigmoid-5           [-1, 16, 10, 10]               0
         AvgPool2d-6             [-1, 16, 5, 5]               0
           Flatten-7                  [-1, 400]               0
            Linear-8                   [-1, 84]          33,684
            Linear-9                   [-1, 10]             850
================================================================
Total params: 37,106
Trainable params: 37,106
Non-trainable params: 0
----------------------------------------------------------------
Input size (MB): 0.00
Forward/backward pass size (MB): 0.11
Params size (MB): 0.14
Estimated Total Size (MB): 0.26
----------------------------------------------------------------

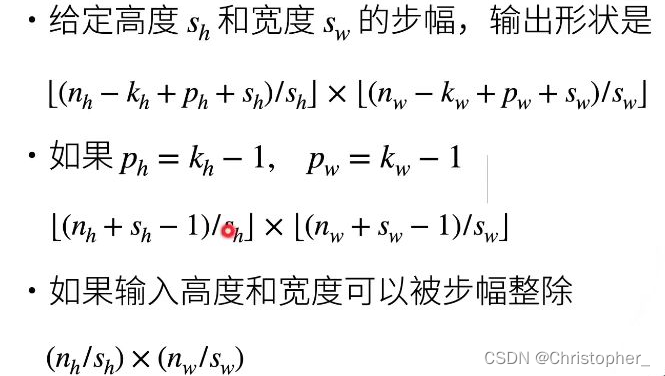

根据图像大小（nh,nw）,padding, kenerl_size,以及stride 计算卷积后的大小公式
