20150419 S3C2440实现dm9000网卡驱动程序移植
2015-04-19 Lover雪儿
首先附上厂家提供的完整的dm9000程序：
1 /*
2
3 dm9ks.c: Version 2.08 2007/02/12
4
5 A Davicom DM9000/DM9010 ISA NIC fast Ethernet driver for Linux.
6
7 This program is free software; you can redistribute it and/or
8 modify it under the terms of the GNU General Public License
9 as published by the Free Software Foundation; either version 2
10 of the License, or (at your option) any later version.
11
12 This program is distributed in the hope that it will be useful,
13 but WITHOUT ANY WARRANTY; without even the implied warranty of
14 MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
15 GNU General Public License for more details.
16
17
18 (C)Copyright 1997-2007 DAVICOM Semiconductor,Inc. All Rights Reserved.
19
20 V2.00 Spenser - 01/10/2005
21 - Modification for PXA270 MAINSTONE.
22 - Modified dmfe_tx_done().
23 - Add dmfe_timeout().
24 V2.01 10/07/2005 -Modified dmfe_timer()
25 -Dected network speed 10/100M
26 V2.02 10/12/2005 -Use link change to chage db->Speed
27 -dmfe_open() wait for Link OK
28 V2.03 11/22/2005 -Power-off and Power-on PHY in dmfe_init_dm9000()
29 -support IOL
30 V2.04 12/13/2005 -delay 1.6s between power-on and power-off in
31 dmfe_init_dm9000()
32 -set LED mode 1 in dmfe_init_dm9000()
33 -add data bus driving capability in dmfe_init_dm9000()
34 (optional)
35 10/3/2006 -Add DM8606 read/write function by MDC and MDIO
36 V2.06 01/03/2007 -CONT_RX_PKT_CNT=0xFFFF
37 -modify dmfe_tx_done function
38 -check RX FIFO pointer
39 -if using physical address, re-define I/O function
40 -add db->cont_rx_pkt_cnt=0 at the front of dmfe_packet_receive()
41 V2.08 02/12/2007 -module parameter macro
42 2.4 MODULE_PARM
43 2.6 module_param
44 -remove #include <linux/config>
45 -fix dmfe_interrupt for kernel 2.6.20
46 V2.09 05/24/2007 -support ethtool and mii-tool
47 05/30/2007 -fix the driver bug when ifconfig eth0 (-)promisc and (-)allmulti.
48 06/05/2007 -fix dm9000b issue(ex. 10M TX idle=65mA, 10M harmonic)
49 -add flow control function (option)
50 10/01/2007 -Add #include <asm/uaccess.h>
51 -Modyfy dmfe_do_ioctl for kernel 2.6.7
52 11/23/2007 -Add TDBUG to check TX FIFO pointer shift
53 - Remove check_rx_ready()
54 - Add #define CHECKSUM to modify CHECKSUM function
55 12/20/2007 -Modify TX timeout routine(+)check TCR&0x01
56
57 */
58
59 //#define CHECKSUM
60 //#define TDBUG /* check TX FIFO pointer */
61 //#define RDBUG /* check RX FIFO pointer */
62 //#define DM8606
63
64 #define DRV_NAME "dm9KS"
65 #define DRV_VERSION "2.09"
66 #define DRV_RELDATE "2007-11-22"
67
68 #ifdef MODVERSIONS
69 #include <linux/modversions.h>
70 #endif
71
72 //#include <linux/config.h>
73 #include <linux/init.h>
74 #include <linux/delay.h>
75 #include <linux/module.h>
76 #include <linux/ioport.h>
77 #include <linux/netdevice.h>
78 #include <linux/etherdevice.h>
79 #include <linux/skbuff.h>
80 #include <linux/version.h>
81 #include <asm/dma.h>
82 #include <linux/spinlock.h>
83 #include <linux/crc32.h>
84 #include <linux/mii.h>
85 #include <linux/ethtool.h>
86 #include <asm/uaccess.h>
87
88 #ifdef CONFIG_ARCH_MAINSTONE
89 #include <asm/io.h>
90 #include <asm/hardware.h>
91 #include <asm/irq.h>
92 #endif
93
94
95
96 /* Board/System/Debug information/definition ---------------- */
97
98 #define DM9KS_ID 0x90000A46
99 #define DM9010_ID 0x90100A46
100 /*-------register name-----------------------*/
101 #define DM9KS_NCR 0x00 /* Network control Reg.*/
102 #define DM9KS_NSR 0x01 /* Network Status Reg.*/
103 #define DM9KS_TCR 0x02 /* TX control Reg.*/
104 #define DM9KS_RXCR 0x05 /* RX control Reg.*/
105 #define DM9KS_BPTR 0x08
106 #define DM9KS_FCTR 0x09
107 #define DM9KS_FCR 0x0a
108 #define DM9KS_EPCR 0x0b
109 #define DM9KS_EPAR 0x0c
110 #define DM9KS_EPDRL 0x0d
111 #define DM9KS_EPDRH 0x0e
112 #define DM9KS_GPR 0x1f /* General purpose register */
113 #define DM9KS_CHIPR 0x2c
114 #define DM9KS_TCR2 0x2d
115 #define DM9KS_SMCR 0x2f /* Special Mode Control Reg.*/
116 #define DM9KS_ETXCSR 0x30 /* Early Transmit control/status Reg.*/
117 #define DM9KS_TCCR 0x31 /* Checksum cntrol Reg. */
118 #define DM9KS_RCSR 0x32 /* Receive Checksum status Reg.*/
119 #define DM9KS_BUSCR 0x38
120 #define DM9KS_MRCMDX 0xf0
121 #define DM9KS_MRCMD 0xf2
122 #define DM9KS_MDRAL 0xf4
123 #define DM9KS_MDRAH 0xf5
124 #define DM9KS_MWCMD 0xf8
125 #define DM9KS_MDWAL 0xfa
126 #define DM9KS_MDWAH 0xfb
127 #define DM9KS_TXPLL 0xfc
128 #define DM9KS_TXPLH 0xfd
129 #define DM9KS_ISR 0xfe
130 #define DM9KS_IMR 0xff
131 /*---------------------------------------------*/
132 #define DM9KS_REG05 0x30 /* SKIP_CRC/SKIP_LONG */
133 #define DM9KS_REGFF 0xA3 /* IMR */
134 #define DM9KS_DISINTR 0x80
135
136 #define DM9KS_PHY 0x40 /* PHY address 0x01 */
137 #define DM9KS_PKT_RDY 0x01 /* Packet ready to receive */
138
139 /* Added for PXA of MAINSTONE */
140 #ifdef CONFIG_ARCH_MAINSTONE
141 #include <asm/arch/mainstone.h>
142 #define DM9KS_MIN_IO (MST_ETH_PHYS + 0x300)
143 #define DM9KS_MAX_IO (MST_ETH_PHYS + 0x370)
144 #define DM9K_IRQ MAINSTONE_IRQ(3)
145 #else
146 #define DM9KS_MIN_IO 0x300
147 #define DM9KS_MAX_IO 0x370
148 #define DM9KS_IRQ 3
149 #endif
150
151 #define DM9KS_VID_L 0x28
152 #define DM9KS_VID_H 0x29
153 #define DM9KS_PID_L 0x2A
154 #define DM9KS_PID_H 0x2B
155
156 #define DM9KS_RX_INTR 0x01
157 #define DM9KS_TX_INTR 0x02
158 #define DM9KS_LINK_INTR 0x20
159
160 #define DM9KS_DWORD_MODE 1
161 #define DM9KS_BYTE_MODE 2
162 #define DM9KS_WORD_MODE 0
163
164 #define TRUE 1
165 #define FALSE 0
166 /* Number of continuous Rx packets */
167 #define CONT_RX_PKT_CNT 0xFFFF
168
169 #define DMFE_TIMER_WUT jiffies+(HZ*5) /* timer wakeup time : 5 second */
170
171 #ifdef DM9KS_DEBUG
172 #define DMFE_DBUG(dbug_now, msg, vaule)\
173 if (dmfe_debug||dbug_now) printk(KERN_ERR "dmfe: %s %x\n", msg, vaule)
174 #else
175 #define DMFE_DBUG(dbug_now, msg, vaule)\
176 if (dbug_now) printk(KERN_ERR "dmfe: %s %x\n", msg, vaule)
177 #endif
178
179 #ifndef CONFIG_ARCH_MAINSTONE
180 #pragma pack(push, 1)
181 #endif
182
183 typedef struct _RX_DESC
184 {
185 u8 rxbyte;
186 u8 status;
187 u16 length;
188 }RX_DESC;
189
190 typedef union{
191 u8 buf[4];
192 RX_DESC desc;
193 } rx_t;
194 #ifndef CONFIG_ARCH_MAINSTONE
195 #pragma pack(pop)
196 #endif
197
198 enum DM9KS_PHY_mode {
199 DM9KS_10MHD = 0,
200 DM9KS_100MHD = 1,
201 DM9KS_10MFD = 4,
202 DM9KS_100MFD = 5,
203 DM9KS_AUTO = 8,
204 };
205
206 /* Structure/enum declaration ------------------------------- */
207 typedef struct board_info {
208 u32 io_addr;/* Register I/O base address */
209 u32 io_data;/* Data I/O address */
210 u8 op_mode;/* PHY operation mode */
211 u8 io_mode;/* 0:word, 2:byte */
212 u8 Speed; /* current speed */
213 u8 chip_revision;
214 int rx_csum;/* 0:disable, 1:enable */
215
216 u32 reset_counter;/* counter: RESET */
217 u32 reset_tx_timeout;/* RESET caused by TX Timeout */
218 int tx_pkt_cnt;
219 int cont_rx_pkt_cnt;/* current number of continuos rx packets */
220 struct net_device_stats stats;
221
222 struct timer_list timer;
223 unsigned char srom[128];
224 spinlock_t lock;
225 struct mii_if_info mii;
226 } board_info_t;
227 /* Global variable declaration ----------------------------- */
228 /*static int dmfe_debug = 0;*/
229 static struct net_device * dmfe_dev = NULL;
230 static struct ethtool_ops dmfe_ethtool_ops;
231 /* For module input parameter */
232 static int mode = DM9KS_AUTO;
233 static int media_mode = DM9KS_AUTO;
234 static int irq = DM9KS_IRQ;
235 static int iobase = DM9KS_MIN_IO;
236
237 #if 0 // use physical address; Not virtual address
238 #ifdef outb
239 #undef outb
240 #endif
241 #ifdef outw
242 #undef outw
243 #endif
244 #ifdef outl
245 #undef outl
246 #endif
247 #ifdef inb
248 #undef inb
249 #endif
250 #ifdef inw
251 #undef inw
252 #endif
253 #ifdef inl
254 #undef inl
255 #endif
256 void outb(u8 reg, u32 ioaddr)
257 {
258 (*(volatile u8 *)(ioaddr)) = reg;
259 }
260 void outw(u16 reg, u32 ioaddr)
261 {
262 (*(volatile u16 *)(ioaddr)) = reg;
263 }
264 void outl(u32 reg, u32 ioaddr)
265 {
266 (*(volatile u32 *)(ioaddr)) = reg;
267 }
268 u8 inb(u32 ioaddr)
269 {
270 return (*(volatile u8 *)(ioaddr));
271 }
272 u16 inw(u32 ioaddr)
273 {
274 return (*(volatile u16 *)(ioaddr));
275 }
276 u32 inl(u32 ioaddr)
277 {
278 return (*(volatile u32 *)(ioaddr));
279 }
280 #endif
281
282 /* function declaration ------------------------------------- */
283 int dmfe_probe1(struct net_device *);
284 static int dmfe_open(struct net_device *);
285 static int dmfe_start_xmit(struct sk_buff *, struct net_device *);
286 static void dmfe_tx_done(unsigned long);
287 static void dmfe_packet_receive(struct net_device *);
288 static int dmfe_stop(struct net_device *);
289 static struct net_device_stats * dmfe_get_stats(struct net_device *);
290 static int dmfe_do_ioctl(struct net_device *, struct ifreq *, int);
291 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,5,0)
292 static void dmfe_interrupt(int , void *, struct pt_regs *);
293 #else
294 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,6,19)
295 static irqreturn_t dmfe_interrupt(int , void *, struct pt_regs *);
296 #else
297 static irqreturn_t dmfe_interrupt(int , void *);/* for kernel 2.6.20 */
298 #endif
299 #endif
300 static void dmfe_timer(unsigned long);
301 static void dmfe_init_dm9000(struct net_device *);
302 static unsigned long cal_CRC(unsigned char *, unsigned int, u8);
303 u8 ior(board_info_t *, int);
304 void iow(board_info_t *, int, u8);
305 static u16 phy_read(board_info_t *, int);
306 static void phy_write(board_info_t *, int, u16);
307 static u16 read_srom_word(board_info_t *, int);
308 static void dm9000_hash_table(struct net_device *);
309 static void dmfe_timeout(struct net_device *);
310 static void dmfe_reset(struct net_device *);
311 static int mdio_read(struct net_device *, int, int);
312 static void mdio_write(struct net_device *, int, int, int);
313 static void dmfe_get_drvinfo(struct net_device *, struct ethtool_drvinfo *);
314 static int dmfe_get_settings(struct net_device *, struct ethtool_cmd *);
315 static int dmfe_set_settings(struct net_device *, struct ethtool_cmd *);
316 static u32 dmfe_get_link(struct net_device *);
317 static int dmfe_nway_reset(struct net_device *);
318 static uint32_t dmfe_get_rx_csum(struct net_device *);
319 static uint32_t dmfe_get_tx_csum(struct net_device *);
320 static int dmfe_set_rx_csum(struct net_device *, uint32_t );
321 static int dmfe_set_tx_csum(struct net_device *, uint32_t );
322
323 #ifdef DM8606
324 #include "dm8606.h"
325 #endif
326
327 //DECLARE_TASKLET(dmfe_tx_tasklet,dmfe_tx_done,0);
328
329 /* DM9000 network baord routine ---------------------------- */
330
331 /*
332 Search DM9000 board, allocate space and register it
333 */
334
335 struct net_device * __init dmfe_probe(void)
336 {
337 struct net_device *dev;
338 int err;
339
340 DMFE_DBUG(0, "dmfe_probe()",0);
341
342 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,5,0)
343 dev = init_etherdev(NULL, sizeof(struct board_info));
344 //ether_setup(dev);
345 #else
346 dev= alloc_etherdev(sizeof(struct board_info));
347 #endif
348
349 if(!dev)
350 return ERR_PTR(-ENOMEM);
351
352 SET_MODULE_OWNER(dev);
353 err = dmfe_probe1(dev);
354 if (err)
355 goto out;
356 #if LINUX_VERSION_CODE > KERNEL_VERSION(2,5,0)
357 err = register_netdev(dev);
358 if (err)
359 goto out1;
360 #endif
361 return dev;
362 out1:
363 release_region(dev->base_addr,2);
364 out:
365 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,5,0)
366 kfree(dev);
367 #else
368 free_netdev(dev);
369 #endif
370 return ERR_PTR(err);
371 }
372
373 int __init dmfe_probe1(struct net_device *dev)
374 {
375 struct board_info *db; /* Point a board information structure */
376 u32 id_val;
377 u16 i, dm9000_found = FALSE;
378 u8 MAC_addr[6]={0x00,0x60,0x6E,0x33,0x44,0x55};
379 u8 HasEEPROM=0,chip_info;
380 DMFE_DBUG(0, "dmfe_probe1()",0);
381
382 /* Search All DM9000 serial NIC */
383 do {
384 outb(DM9KS_VID_L, iobase);
385 id_val = inb(iobase + 4);
386 outb(DM9KS_VID_H, iobase);
387 id_val |= inb(iobase + 4) << 8;
388 outb(DM9KS_PID_L, iobase);
389 id_val |= inb(iobase + 4) << 16;
390 outb(DM9KS_PID_H, iobase);
391 id_val |= inb(iobase + 4) << 24;
392
393 if (id_val == DM9KS_ID || id_val == DM9010_ID) {
394
395 /* Request IO from system */
396 if(!request_region(iobase, 2, dev->name))
397 return -ENODEV;
398
399 printk(KERN_ERR"<DM9KS> I/O: %x, VID: %x \n",iobase, id_val);
400 dm9000_found = TRUE;
401
402 /* Allocated board information structure */
403 memset(dev->priv, 0, sizeof(struct board_info));
404 db = (board_info_t *)dev->priv;
405 dmfe_dev = dev;
406 db->io_addr = iobase;

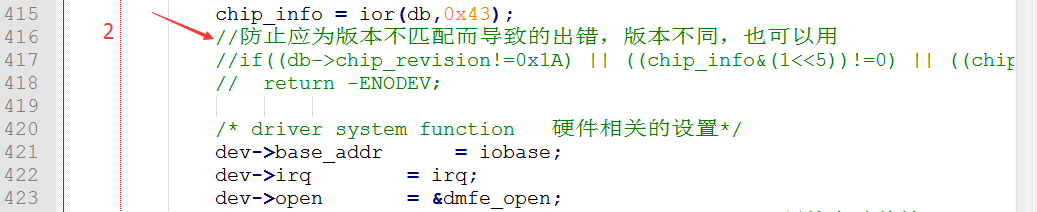

407 db->io_data = iobase + 4;
408 db->chip_revision = ior(db, DM9KS_CHIPR);
409
410 chip_info = ior(db,0x43);
411 if((db->chip_revision!=0x1A) || ((chip_info&(1<<5))!=0) || ((chip_info&(1<<2))!=1)) return -ENODEV;
412
413 /* driver system function */
414 dev->base_addr = iobase;
415 dev->irq = irq;
416 dev->open = &dmfe_open;
417 dev->hard_start_xmit = &dmfe_start_xmit;
418 dev->watchdog_timeo = 5*HZ;
419 dev->tx_timeout = dmfe_timeout;
420 dev->stop = &dmfe_stop;
421 dev->get_stats = &dmfe_get_stats;
422 dev->set_multicast_list = &dm9000_hash_table;
423 dev->do_ioctl = &dmfe_do_ioctl;
424 #if LINUX_VERSION_CODE >= KERNEL_VERSION(2,4,28)
425 dev->ethtool_ops = &dmfe_ethtool_ops;
426 #endif
427 #ifdef CHECKSUM
428 //dev->features |= NETIF_F_IP_CSUM;
429 dev->features |= NETIF_F_IP_CSUM|NETIF_F_SG;
430 #endif
431 db->mii.dev = dev;
432 db->mii.mdio_read = mdio_read;
433 db->mii.mdio_write = mdio_write;
434 db->mii.phy_id = 1;
435 #if LINUX_VERSION_CODE >= KERNEL_VERSION(2,4,20)
436 db->mii.phy_id_mask = 0x1F;
437 db->mii.reg_num_mask = 0x1F;
438 #endif
439 //db->msg_enable =(debug == 0 ? DMFE_DEF_MSG_ENABLE : ((1 << debug) - 1));
440
441 /* Read SROM content */
442 for (i=0; i<64; i++)
443 ((u16 *)db->srom)[i] = read_srom_word(db, i);
444
445 /* Get the PID and VID from EEPROM to check */
446 id_val = (((u16 *)db->srom)[4])|(((u16 *)db->srom)[5]<<16);
447 printk("id_val=%x\n", id_val);
448 if (id_val == DM9KS_ID || id_val == DM9010_ID)
449 HasEEPROM =1;
450
451 /* Set Node Address */
452 for (i=0; i<6; i++)
453 {
454 if (HasEEPROM) /* use EEPROM */
455 dev->dev_addr[i] = db->srom[i];
456 else /* No EEPROM */
457 dev->dev_addr[i] = MAC_addr[i];
458 }
459 }//end of if()
460 iobase += 0x10;
461 }while(!dm9000_found && iobase <= DM9KS_MAX_IO);
462
463 return dm9000_found ? 0:-ENODEV;
464 }
465
466
467 /*
468 Open the interface.
469 The interface is opened whenever "ifconfig" actives it.
470 */

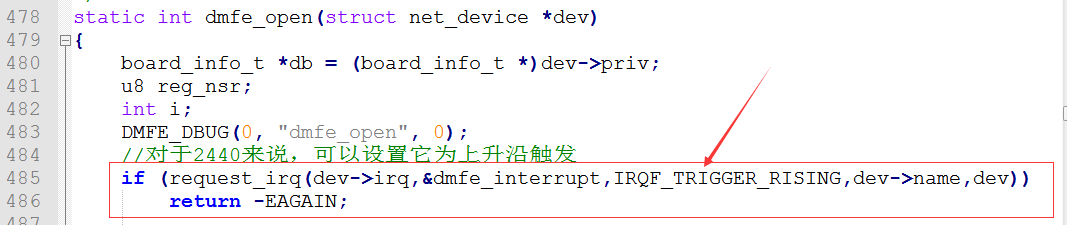

471 static int dmfe_open(struct net_device *dev)
472 {
473 board_info_t *db = (board_info_t *)dev->priv;
474 u8 reg_nsr;
475 int i;
476 DMFE_DBUG(0, "dmfe_open", 0);
477
478 if (request_irq(dev->irq,&dmfe_interrupt,0,dev->name,dev))
479 return -EAGAIN;
480
481 /* Initilize DM910X board */
482 dmfe_init_dm9000(dev);
483 #ifdef DM8606
484 // control DM8606
485 printk("[8606]reg0=0x%04x\n",dm8606_read(db,0));
486 printk("[8606]reg1=0x%04x\n",dm8606_read(db,0x1));
487 #endif
488 /* Init driver variable */
489 db->reset_counter = 0;
490 db->reset_tx_timeout = 0;
491 db->cont_rx_pkt_cnt = 0;
492
493 /* check link state and media speed */
494 db->Speed =10;
495 i=0;
496 do {
497 reg_nsr = ior(db,DM9KS_NSR);
498 if(reg_nsr & 0x40) /* link OK!! */
499 {
500 /* wait for detected Speed */
501 mdelay(200);
502 reg_nsr = ior(db,DM9KS_NSR);
503 if(reg_nsr & 0x80)
504 db->Speed =10;
505 else
506 db->Speed =100;
507 break;
508 }
509 i++;
510 mdelay(1);
511 }while(i<3000); /* wait 3 second */
512 //printk("i=%d Speed=%d\n",i,db->Speed);
513 /* set and active a timer process */
514 init_timer(&db->timer);
515 db->timer.expires = DMFE_TIMER_WUT;
516 db->timer.data = (unsigned long)dev;
517 db->timer.function = &dmfe_timer;
518 add_timer(&db->timer); //Move to DM9000 initiallization was finished.
519
520 netif_start_queue(dev);
521
522 return 0;
523 }
524
525 /* Set PHY operationg mode
526 */
527 static void set_PHY_mode(board_info_t *db)
528 {
529 #ifndef DM8606
530 u16 phy_reg0 = 0x1000;/* Auto-negotiation*/
531 u16 phy_reg4 = 0x01e1;
532
533 if ( !(db->op_mode & DM9KS_AUTO) ) // op_mode didn't auto sense */
534 {
535 switch(db->op_mode) {
536 case DM9KS_10MHD: phy_reg4 = 0x21;
537 phy_reg0 = 0x1000;
538 break;
539 case DM9KS_10MFD: phy_reg4 = 0x41;
540 phy_reg0 = 0x1100;
541 break;
542 case DM9KS_100MHD: phy_reg4 = 0x81;
543 phy_reg0 = 0x3000;
544 break;
545 case DM9KS_100MFD: phy_reg4 = 0x101;
546 phy_reg0 = 0x3100;
547 break;
548 default:
549 break;
550 } // end of switch
551 } // end of if
552 #ifdef FLOW_CONTROL
553 phy_write(db, 4, phy_reg4|(1<<10));
554 #else
555 phy_write(db, 4, phy_reg4);
556 #endif //end of FLOW_CONTROL
557 phy_write(db, 0, phy_reg0|0x200);
558 #else
559 /* Fiber mode */
560 phy_write(db, 16, 0x4014);
561 phy_write(db, 0, 0x2100);
562 #endif //end of DM8606
563
564 if (db->chip_revision == 0x1A)
565 {
566 //set 10M TX idle =65mA (TX 100% utility is 160mA)
567 phy_write(db,20, phy_read(db,20)|(1<<11)|(1<<10));
568
569 //:fix harmonic
570 //For short code:
571 //PHY_REG 27 (1Bh) <- 0000h
572 phy_write(db, 27, 0x0000);
573 //PHY_REG 27 (1Bh) <- AA00h
574 phy_write(db, 27, 0xaa00);
575
576 //PHY_REG 27 (1Bh) <- 0017h
577 phy_write(db, 27, 0x0017);
578 //PHY_REG 27 (1Bh) <- AA17h
579 phy_write(db, 27, 0xaa17);
580
581 //PHY_REG 27 (1Bh) <- 002Fh
582 phy_write(db, 27, 0x002f);
583 //PHY_REG 27 (1Bh) <- AA2Fh
584 phy_write(db, 27, 0xaa2f);
585
586 //PHY_REG 27 (1Bh) <- 0037h
587 phy_write(db, 27, 0x0037);
588 //PHY_REG 27 (1Bh) <- AA37h
589 phy_write(db, 27, 0xaa37);
590
591 //PHY_REG 27 (1Bh) <- 0040h
592 phy_write(db, 27, 0x0040);
593 //PHY_REG 27 (1Bh) <- AA40h
594 phy_write(db, 27, 0xaa40);
595
596 //For long code:
597 //PHY_REG 27 (1Bh) <- 0050h
598 phy_write(db, 27, 0x0050);
599 //PHY_REG 27 (1Bh) <- AA50h
600 phy_write(db, 27, 0xaa50);
601
602 //PHY_REG 27 (1Bh) <- 006Bh
603 phy_write(db, 27, 0x006b);
604 //PHY_REG 27 (1Bh) <- AA6Bh
605 phy_write(db, 27, 0xaa6b);
606
607 //PHY_REG 27 (1Bh) <- 007Dh
608 phy_write(db, 27, 0x007d);
609 //PHY_REG 27 (1Bh) <- AA7Dh
610 phy_write(db, 27, 0xaa7d);
611
612 //PHY_REG 27 (1Bh) <- 008Dh
613 phy_write(db, 27, 0x008d);
614 //PHY_REG 27 (1Bh) <- AA8Dh
615 phy_write(db, 27, 0xaa8d);
616
617 //PHY_REG 27 (1Bh) <- 009Ch
618 phy_write(db, 27, 0x009c);
619 //PHY_REG 27 (1Bh) <- AA9Ch
620 phy_write(db, 27, 0xaa9c);
621
622 //PHY_REG 27 (1Bh) <- 00A3h
623 phy_write(db, 27, 0x00a3);
624 //PHY_REG 27 (1Bh) <- AAA3h
625 phy_write(db, 27, 0xaaa3);
626
627 //PHY_REG 27 (1Bh) <- 00B1h
628 phy_write(db, 27, 0x00b1);
629 //PHY_REG 27 (1Bh) <- AAB1h
630 phy_write(db, 27, 0xaab1);
631
632 //PHY_REG 27 (1Bh) <- 00C0h
633 phy_write(db, 27, 0x00c0);
634 //PHY_REG 27 (1Bh) <- AAC0h
635 phy_write(db, 27, 0xaac0);
636
637 //PHY_REG 27 (1Bh) <- 00D2h
638 phy_write(db, 27, 0x00d2);
639 //PHY_REG 27 (1Bh) <- AAD2h
640 phy_write(db, 27, 0xaad2);
641
642 //PHY_REG 27 (1Bh) <- 00E0h
643 phy_write(db, 27, 0x00e0);
644 //PHY_REG 27 (1Bh) <- AAE0h
645 phy_write(db, 27, 0xaae0);
646 //PHY_REG 27 (1Bh) <- 0000h
647 phy_write(db, 27, 0x0000);
648 }
649 }
650
651 /*
652 Initilize dm9000 board
653 */
654 static void dmfe_init_dm9000(struct net_device *dev)
655 {
656 board_info_t *db = (board_info_t *)dev->priv;
657 DMFE_DBUG(0, "dmfe_init_dm9000()", 0);
658
659 spin_lock_init(&db->lock);
660
661 iow(db, DM9KS_GPR, 0); /* GPR (reg_1Fh)bit GPIO0=0 pre-activate PHY */
662 mdelay(20); /* wait for PHY power-on ready */
663
664 /* do a software reset and wait 20us */
665 iow(db, DM9KS_NCR, 3);
666 udelay(20); /* wait 20us at least for software reset ok */
667 iow(db, DM9KS_NCR, 3); /* NCR (reg_00h) bit[0] RST=1 & Loopback=1, reset on */
668 udelay(20); /* wait 20us at least for software reset ok */
669
670 /* I/O mode */
671 db->io_mode = ior(db, DM9KS_ISR) >> 6; /* ISR bit7:6 keeps I/O mode */
672
673 /* Set PHY */
674 db->op_mode = media_mode;
675 set_PHY_mode(db);
676
677 /* Program operating register */
678 iow(db, DM9KS_NCR, 0);
679 iow(db, DM9KS_TCR, 0); /* TX Polling clear */
680 iow(db, DM9KS_BPTR, 0x3f); /* Less 3kb, 600us */
681 iow(db, DM9KS_SMCR, 0); /* Special Mode */
682 iow(db, DM9KS_NSR, 0x2c); /* clear TX status */
683 iow(db, DM9KS_ISR, 0x0f); /* Clear interrupt status */
684 iow(db, DM9KS_TCR2, 0x80); /* Set LED mode 1 */
685 if (db->chip_revision == 0x1A){
686 /* Data bus current driving/sinking capability */
687 iow(db, DM9KS_BUSCR, 0x01); /* default: 2mA */
688 }
689 #ifdef FLOW_CONTROL
690 iow(db, DM9KS_BPTR, 0x37);
691 iow(db, DM9KS_FCTR, 0x38);
692 iow(db, DM9KS_FCR, 0x29);
693 #endif
694
695 #ifdef DM8606
696 iow(db,0x34,1);
697 #endif
698
699 if (dev->features & NETIF_F_HW_CSUM){
700 printk(KERN_INFO "DM9KS:enable TX checksum\n");
701 iow(db, DM9KS_TCCR, 0x07); /* TX UDP/TCP/IP checksum enable */
702 }
703 if (db->rx_csum){
704 printk(KERN_INFO "DM9KS:enable RX checksum\n");
705 iow(db, DM9KS_RCSR, 0x02); /* RX checksum enable */
706 }
707
708 #ifdef ETRANS
709 /*If TX loading is heavy, the driver can try to anbel "early transmit".
710 The programmer can tune the "Early Transmit Threshold" to get
711 the optimization. (DM9KS_ETXCSR.[1-0])
712
713 Side Effect: It will happen "Transmit under-run". When TX under-run
714 always happens, the programmer can increase the value of "Early
715 Transmit Threshold". */
716 iow(db, DM9KS_ETXCSR, 0x83);
717 #endif
718
719 /* Set address filter table */
720 dm9000_hash_table(dev);
721
722 /* Activate DM9000/DM9010 */
723 iow(db, DM9KS_IMR, DM9KS_REGFF); /* Enable TX/RX interrupt mask */
724 iow(db, DM9KS_RXCR, DM9KS_REG05 | 1); /* RX enable */
725
726 /* Init Driver variable */
727 db->tx_pkt_cnt = 0;
728
729 netif_carrier_on(dev);
730
731 }
732
733 /*
734 Hardware start transmission.
735 Send a packet to media from the upper layer.
736 */
737 static int dmfe_start_xmit(struct sk_buff *skb, struct net_device *dev)
738 {
739 board_info_t *db = (board_info_t *)dev->priv;
740 char * data_ptr;
741 int i, tmplen;
742 u16 MDWAH, MDWAL;
743
744 #ifdef TDBUG /* check TX FIFO pointer */
745 u16 MDWAH1, MDWAL1;
746 u16 tx_ptr;
747 #endif
748
749 DMFE_DBUG(0, "dmfe_start_xmit", 0);
750 if (db->chip_revision != 0x1A)
751 {
752 if(db->Speed == 10)
753 {if (db->tx_pkt_cnt >= 1) return 1;}
754 else
755 {if (db->tx_pkt_cnt >= 2) return 1;}
756 }else
757 if (db->tx_pkt_cnt >= 2) return 1;
758
759 /* packet counting */
760 db->tx_pkt_cnt++;
761
762 db->stats.tx_packets++;
763 db->stats.tx_bytes+=skb->len;
764 if (db->chip_revision != 0x1A)
765 {
766 if (db->Speed == 10)
767 {if (db->tx_pkt_cnt >= 1) netif_stop_queue(dev);}
768 else
769 {if (db->tx_pkt_cnt >= 2) netif_stop_queue(dev);}
770 }else
771 if (db->tx_pkt_cnt >= 2) netif_stop_queue(dev);
772
773 /* Disable all interrupt */
774 iow(db, DM9KS_IMR, DM9KS_DISINTR);
775
776 MDWAH = ior(db,DM9KS_MDWAH);
777 MDWAL = ior(db,DM9KS_MDWAL);
778
779 /* Set TX length to reg. 0xfc & 0xfd */
780 iow(db, DM9KS_TXPLL, (skb->len & 0xff));
781 iow(db, DM9KS_TXPLH, (skb->len >> 8) & 0xff);
782
783 /* Move data to TX SRAM */
784 data_ptr = (char *)skb->data;
785
786 outb(DM9KS_MWCMD, db->io_addr); // Write data into SRAM trigger
787 switch(db->io_mode)
788 {
789 case DM9KS_BYTE_MODE:
790 for (i = 0; i < skb->len; i++)
791 outb((data_ptr[i] & 0xff), db->io_data);
792 break;
793 case DM9KS_WORD_MODE:
794 tmplen = (skb->len + 1) / 2;
795 for (i = 0; i < tmplen; i++)
796 outw(((u16 *)data_ptr)[i], db->io_data);
797 break;
798 case DM9KS_DWORD_MODE:
799 tmplen = (skb->len + 3) / 4;
800 for (i = 0; i< tmplen; i++)
801 outl(((u32 *)data_ptr)[i], db->io_data);
802 break;
803 }
804
805 #ifndef ETRANS
806 /* Issue TX polling command */
807 iow(db, DM9KS_TCR, 0x1); /* Cleared after TX complete*/
808 #endif
809
810 #ifdef TDBUG /* check TX FIFO pointer */
811 MDWAH1 = ior(db,DM9KS_MDWAH);
812 MDWAL1 = ior(db,DM9KS_MDWAL);
813 tx_ptr = (MDWAH<<8)|MDWAL;
814 switch (db->io_mode)
815 {
816 case DM9KS_BYTE_MODE:
817 tx_ptr += skb->len;
818 break;
819 case DM9KS_WORD_MODE:
820 tx_ptr += ((skb->len + 1) / 2)*2;
821 break;
822 case DM9KS_DWORD_MODE:
823 tx_ptr += ((skb->len+3)/4)*4;
824 break;
825 }
826 if (tx_ptr > 0x0bff)
827 tx_ptr -= 0x0c00;
828 if (tx_ptr != ((MDWAH1<<8)|MDWAL1))
829 printk("[dm9ks:TX FIFO ERROR\n");
830 #endif
831 /* Saved the time stamp */
832 dev->trans_start = jiffies;
833 db->cont_rx_pkt_cnt =0;
834
835 /* Free this SKB */
836 dev_kfree_skb(skb);
837
838 /* Re-enable interrupt */
839 iow(db, DM9KS_IMR, DM9KS_REGFF);
840
841 return 0;
842 }
843
844 /*
845 Stop the interface.
846 The interface is stopped when it is brought.
847 */
848 static int dmfe_stop(struct net_device *dev)
849 {
850 board_info_t *db = (board_info_t *)dev->priv;
851 DMFE_DBUG(0, "dmfe_stop", 0);
852
853 /* deleted timer */
854 del_timer(&db->timer);
855
856 netif_stop_queue(dev);
857
858 /* free interrupt */
859 free_irq(dev->irq, dev);
860
861 /* RESET devie */
862 phy_write(db, 0x00, 0x8000); /* PHY RESET */
863 //iow(db, DM9KS_GPR, 0x01); /* Power-Down PHY */
864 iow(db, DM9KS_IMR, DM9KS_DISINTR); /* Disable all interrupt */
865 iow(db, DM9KS_RXCR, 0x00); /* Disable RX */
866
867 /* Dump Statistic counter */
868 #if FALSE
869 printk("\nRX FIFO OVERFLOW %lx\n", db->stats.rx_fifo_errors);
870 printk("RX CRC %lx\n", db->stats.rx_crc_errors);
871 printk("RX LEN Err %lx\n", db->stats.rx_length_errors);
872 printk("RESET %x\n", db->reset_counter);
873 printk("RESET: TX Timeout %x\n", db->reset_tx_timeout);
874 printk("g_TX_nsr %x\n", g_TX_nsr);
875 #endif
876
877 return 0;
878 }
879
880 static void dmfe_tx_done(unsigned long unused)
881 {
882 struct net_device *dev = dmfe_dev;
883 board_info_t *db = (board_info_t *)dev->priv;
884 int nsr;
885
886 DMFE_DBUG(0, "dmfe_tx_done()", 0);
887
888 nsr = ior(db, DM9KS_NSR);
889 if (nsr & 0x0c)
890 {
891 if(nsr & 0x04) db->tx_pkt_cnt--;
892 if(nsr & 0x08) db->tx_pkt_cnt--;
893 if(db->tx_pkt_cnt < 0)
894 {
895 printk(KERN_DEBUG "DM9KS:tx_pkt_cnt ERROR!!\n");
896 while(ior(db,DM9KS_TCR) & 0x1){}
897 db->tx_pkt_cnt = 0;
898 }
899
900 }else{
901 while(ior(db,DM9KS_TCR) & 0x1){}
902 db->tx_pkt_cnt = 0;
903 }
904
905 netif_wake_queue(dev);
906
907 return;
908 }
909
910 /*
911 DM9000 insterrupt handler
912 receive the packet to upper layer, free the transmitted packet
913 */
914 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,5,0)
915 static void dmfe_interrupt(int irq, void *dev_id, struct pt_regs *regs)
916 #else
917 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,6,19)
918 static irqreturn_t dmfe_interrupt(int irq, void *dev_id, struct pt_regs *regs)
919 #else
920 static irqreturn_t dmfe_interrupt(int irq, void *dev_id) /* for kernel 2.6.20*/
921 #endif
922 #endif
923 {
924 struct net_device *dev = dev_id;
925 board_info_t *db;
926 int int_status,i;
927 u8 reg_save;
928
929 DMFE_DBUG(0, "dmfe_interrupt()", 0);
930
931 /* A real interrupt coming */
932 db = (board_info_t *)dev->priv;
933 spin_lock(&db->lock);
934
935 /* Save previous register address */
936 reg_save = inb(db->io_addr);
937
938 /* Disable all interrupt */
939 iow(db, DM9KS_IMR, DM9KS_DISINTR);
940
941 /* Got DM9000/DM9010 interrupt status */
942 int_status = ior(db, DM9KS_ISR); /* Got ISR */
943 iow(db, DM9KS_ISR, int_status); /* Clear ISR status */
944
945 /* Link status change */
946 if (int_status & DM9KS_LINK_INTR)
947 {
948 netif_stop_queue(dev);
949 for(i=0; i<500; i++) /*wait link OK, waiting time =0.5s */
950 {
951 phy_read(db,0x1);
952 if(phy_read(db,0x1) & 0x4) /*Link OK*/
953 {
954 /* wait for detected Speed */
955 for(i=0; i<200;i++)
956 udelay(1000);
957 /* set media speed */
958 if(phy_read(db,0)&0x2000) db->Speed =100;
959 else db->Speed =10;
960 break;
961 }
962 udelay(1000);
963 }
964 netif_wake_queue(dev);
965 //printk("[INTR]i=%d speed=%d\n",i, (int)(db->Speed));
966 }
967 /* Received the coming packet */
968 if (int_status & DM9KS_RX_INTR)
969 dmfe_packet_receive(dev);
970
971 /* Trnasmit Interrupt check */
972 if (int_status & DM9KS_TX_INTR)
973 dmfe_tx_done(0);
974
975 if (db->cont_rx_pkt_cnt>=CONT_RX_PKT_CNT)
976 {
977 iow(db, DM9KS_IMR, 0xa2);
978 }
979 else
980 {
981 /* Re-enable interrupt mask */
982 iow(db, DM9KS_IMR, DM9KS_REGFF);
983 }
984
985 /* Restore previous register address */
986 outb(reg_save, db->io_addr);
987
988 spin_unlock(&db->lock);
989 #if LINUX_VERSION_CODE > KERNEL_VERSION(2,5,0)
990 return IRQ_HANDLED;
991 #endif
992 }
993
994 /*
995 Get statistics from driver.
996 */
997 static struct net_device_stats * dmfe_get_stats(struct net_device *dev)
998 {
999 board_info_t *db = (board_info_t *)dev->priv;
1000 DMFE_DBUG(0, "dmfe_get_stats", 0);
1001 return &db->stats;
1002 }
1003 /*
1004 * Process the ethtool ioctl command
1005 */
1006 static int dmfe_ethtool_ioctl(struct net_device *dev, void *useraddr)
1007 {
1008 //struct dmfe_board_info *db = dev->priv;
1009 struct ethtool_drvinfo info = { ETHTOOL_GDRVINFO };
1010 u32 ethcmd;
1011
1012 if (copy_from_user(ðcmd, useraddr, sizeof(ethcmd)))
1013 return -EFAULT;
1014
1015 switch (ethcmd)
1016 {
1017 case ETHTOOL_GDRVINFO:
1018 strcpy(info.driver, DRV_NAME);
1019 strcpy(info.version, DRV_VERSION);
1020
1021 sprintf(info.bus_info, "ISA 0x%lx %d",dev->base_addr, dev->irq);
1022 if (copy_to_user(useraddr, &info, sizeof(info)))
1023 return -EFAULT;
1024 return 0;
1025 }
1026
1027 return -EOPNOTSUPP;
1028 }
1029 /*
1030 Process the upper socket ioctl command
1031 */
1032 static int dmfe_do_ioctl(struct net_device *dev, struct ifreq *ifr, int cmd)
1033 {
1034 board_info_t *db = (board_info_t *)dev->priv;
1035 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,6,7) /* for kernel 2.6.7 */
1036 struct mii_ioctl_data *data=(struct mii_ioctl_data *)&ifr->ifr_data;
1037 #endif
1038 int rc=0;
1039
1040 DMFE_DBUG(0, "dmfe_do_ioctl()", 0);
1041
1042 if (!netif_running(dev))
1043 return -EINVAL;
1044
1045 if (cmd == SIOCETHTOOL)
1046 rc = dmfe_ethtool_ioctl(dev, (void *) ifr->ifr_data);
1047 else {
1048 spin_lock_irq(&db->lock);
1049 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,6,7) /* for kernel 2.6.7 */
1050 rc = generic_mii_ioctl(&db->mii, data, cmd, NULL);
1051 #else
1052 rc = generic_mii_ioctl(&db->mii, if_mii(ifr), cmd, NULL);
1053 #endif
1054 spin_unlock_irq(&db->lock);
1055 }
1056
1057 return rc;
1058 }
1059
1060 /* Our watchdog timed out. Called by the networking layer */
1061 static void dmfe_timeout(struct net_device *dev)
1062 {
1063 board_info_t *db = (board_info_t *)dev->priv;
1064 int i;
1065
1066 DMFE_DBUG(0, "dmfe_TX_timeout()", 0);
1067 printk("TX time-out -- dmfe_timeout().\n");
1068 db->reset_tx_timeout++;
1069 db->stats.tx_errors++;
1070
1071 #if FALSE
1072 printk("TX packet count = %d\n", db->tx_pkt_cnt);
1073 printk("TX timeout = %d\n", db->reset_tx_timeout);
1074 printk("22H=0x%02x 23H=0x%02x\n",ior(db,0x22),ior(db,0x23));
1075 printk("faH=0x%02x fbH=0x%02x\n",ior(db,0xfa),ior(db,0xfb));
1076 #endif
1077
1078 i=0;
1079
1080 while((i++<100)&&(ior(db,DM9KS_TCR) & 0x01))
1081 {
1082 udelay(30);
1083 }
1084
1085 if(i<100)
1086 {
1087 db->tx_pkt_cnt = 0;
1088 netif_wake_queue(dev);
1089 }
1090 else
1091 {
1092 dmfe_reset(dev);
1093 }
1094
1095 }
1096
1097 static void dmfe_reset(struct net_device * dev)
1098 {
1099 board_info_t *db = (board_info_t *)dev->priv;
1100 u8 reg_save;
1101 int i;
1102 /* Save previous register address */
1103 reg_save = inb(db->io_addr);
1104
1105 netif_stop_queue(dev);
1106 db->reset_counter++;
1107 dmfe_init_dm9000(dev);
1108
1109 db->Speed =10;
1110 for(i=0; i<1000; i++) /*wait link OK, waiting time=1 second */
1111 {
1112 if(phy_read(db,0x1) & 0x4) /*Link OK*/
1113 {
1114 if(phy_read(db,0)&0x2000) db->Speed =100;
1115 else db->Speed =10;
1116 break;
1117 }
1118 udelay(1000);
1119 }
1120
1121 netif_wake_queue(dev);
1122
1123 /* Restore previous register address */
1124 outb(reg_save, db->io_addr);
1125
1126 }
1127 /*
1128 A periodic timer routine
1129 */
1130 static void dmfe_timer(unsigned long data)
1131 {
1132 struct net_device * dev = (struct net_device *)data;
1133 board_info_t *db = (board_info_t *)dev->priv;
1134 DMFE_DBUG(0, "dmfe_timer()", 0);
1135
1136 if (db->cont_rx_pkt_cnt>=CONT_RX_PKT_CNT)
1137 {
1138 db->cont_rx_pkt_cnt=0;
1139 iow(db, DM9KS_IMR, DM9KS_REGFF);
1140 }
1141 /* Set timer again */
1142 db->timer.expires = DMFE_TIMER_WUT;
1143 add_timer(&db->timer);
1144
1145 return;
1146 }
1147
1148
1149 /*
1150 Received a packet and pass to upper layer
1151 */
1152 static void dmfe_packet_receive(struct net_device *dev)
1153 {
1154 board_info_t *db = (board_info_t *)dev->priv;
1155 struct sk_buff *skb;
1156 u8 rxbyte;
1157 u16 i, GoodPacket, tmplen = 0, MDRAH, MDRAL;
1158 u32 tmpdata;
1159
1160 rx_t rx;
1161
1162 u16 * ptr = (u16*)℞
1163 u8* rdptr;
1164
1165 DMFE_DBUG(0, "dmfe_packet_receive()", 0);
1166
1167 db->cont_rx_pkt_cnt=0;
1168
1169 do {
1170 /*store the value of Memory Data Read address register*/
1171 MDRAH=ior(db, DM9KS_MDRAH);
1172 MDRAL=ior(db, DM9KS_MDRAL);
1173
1174 ior(db, DM9KS_MRCMDX); /* Dummy read */
1175 rxbyte = inb(db->io_data); /* Got most updated data */
1176
1177 #ifdef CHECKSUM
1178 if (rxbyte&0x2) /* check RX byte */
1179 {
1180 printk("dm9ks: abnormal!\n");
1181 dmfe_reset(dev);
1182 break;
1183 }else {
1184 if (!(rxbyte&0x1))
1185 break;
1186 }
1187 #else
1188 if (rxbyte==0)
1189 break;
1190
1191 if (rxbyte>1)
1192 {
1193 printk("dm9ks: Rxbyte error!\n");
1194 dmfe_reset(dev);
1195 break;
1196 }
1197 #endif
1198
1199 /* A packet ready now & Get status/length */
1200 GoodPacket = TRUE;
1201 outb(DM9KS_MRCMD, db->io_addr);
1202
1203 /* Read packet status & length */
1204 switch (db->io_mode)
1205 {
1206 case DM9KS_BYTE_MODE:
1207 *ptr = inb(db->io_data) +
1208 (inb(db->io_data) << 8);
1209 *(ptr+1) = inb(db->io_data) +
1210 (inb(db->io_data) << 8);
1211 break;
1212 case DM9KS_WORD_MODE:
1213 *ptr = inw(db->io_data);
1214 *(ptr+1) = inw(db->io_data);
1215 break;
1216 case DM9KS_DWORD_MODE:
1217 tmpdata = inl(db->io_data);
1218 *ptr = tmpdata;
1219 *(ptr+1) = tmpdata >> 16;
1220 break;
1221 default:
1222 break;
1223 }
1224
1225 /* Packet status check */
1226 if (rx.desc.status & 0xbf)
1227 {
1228 GoodPacket = FALSE;
1229 if (rx.desc.status & 0x01)
1230 {
1231 db->stats.rx_fifo_errors++;
1232 printk(KERN_INFO"<RX FIFO error>\n");
1233 }
1234 if (rx.desc.status & 0x02)
1235 {
1236 db->stats.rx_crc_errors++;
1237 printk(KERN_INFO"<RX CRC error>\n");
1238 }
1239 if (rx.desc.status & 0x80)
1240 {
1241 db->stats.rx_length_errors++;
1242 printk(KERN_INFO"<RX Length error>\n");
1243 }
1244 if (rx.desc.status & 0x08)
1245 printk(KERN_INFO"<Physical Layer error>\n");
1246 }
1247
1248 if (!GoodPacket)
1249 {
1250 // drop this packet!!!
1251 switch (db->io_mode)
1252 {
1253 case DM9KS_BYTE_MODE:
1254 for (i=0; i<rx.desc.length; i++)
1255 inb(db->io_data);
1256 break;
1257 case DM9KS_WORD_MODE:
1258 tmplen = (rx.desc.length + 1) / 2;
1259 for (i = 0; i < tmplen; i++)
1260 inw(db->io_data);
1261 break;
1262 case DM9KS_DWORD_MODE:
1263 tmplen = (rx.desc.length + 3) / 4;
1264 for (i = 0; i < tmplen; i++)
1265 inl(db->io_data);
1266 break;
1267 }
1268 continue;/*next the packet*/
1269 }
1270
1271 skb = dev_alloc_skb(rx.desc.length+4);
1272 if (skb == NULL )
1273 {
1274 printk(KERN_INFO "%s: Memory squeeze.\n", dev->name);
1275 /*re-load the value into Memory data read address register*/
1276 iow(db,DM9KS_MDRAH,MDRAH);
1277 iow(db,DM9KS_MDRAL,MDRAL);
1278 return;
1279 }
1280 else
1281 {
1282 /* Move data from DM9000 */
1283 skb->dev = dev;
1284 skb_reserve(skb, 2);
1285 rdptr = (u8*)skb_put(skb, rx.desc.length - 4);
1286
1287 /* Read received packet from RX SARM */
1288 switch (db->io_mode)
1289 {
1290 case DM9KS_BYTE_MODE:
1291 for (i=0; i<rx.desc.length; i++)
1292 rdptr[i]=inb(db->io_data);
1293 break;
1294 case DM9KS_WORD_MODE:
1295 tmplen = (rx.desc.length + 1) / 2;
1296 for (i = 0; i < tmplen; i++)
1297 ((u16 *)rdptr)[i] = inw(db->io_data);
1298 break;
1299 case DM9KS_DWORD_MODE:
1300 tmplen = (rx.desc.length + 3) / 4;
1301 for (i = 0; i < tmplen; i++)
1302 ((u32 *)rdptr)[i] = inl(db->io_data);
1303 break;
1304 }
1305
1306 /* Pass to upper layer */
1307 skb->protocol = eth_type_trans(skb,dev);
1308
1309 #ifdef CHECKSUM
1310 if((rxbyte&0xe0)==0) /* receive packet no checksum fail */
1311 skb->ip_summed = CHECKSUM_UNNECESSARY;
1312 #endif
1313
1314 netif_rx(skb);
1315 dev->last_rx=jiffies;
1316 db->stats.rx_packets++;
1317 db->stats.rx_bytes += rx.desc.length;
1318 db->cont_rx_pkt_cnt++;
1319 #ifdef RDBG /* check RX FIFO pointer */
1320 u16 MDRAH1, MDRAL1;
1321 u16 tmp_ptr;
1322 MDRAH1 = ior(db,DM9KS_MDRAH);
1323 MDRAL1 = ior(db,DM9KS_MDRAL);
1324 tmp_ptr = (MDRAH<<8)|MDRAL;
1325 switch (db->io_mode)
1326 {
1327 case DM9KS_BYTE_MODE:
1328 tmp_ptr += rx.desc.length+4;
1329 break;
1330 case DM9KS_WORD_MODE:
1331 tmp_ptr += ((rx.desc.length+1)/2)*2+4;
1332 break;
1333 case DM9KS_DWORD_MODE:
1334 tmp_ptr += ((rx.desc.length+3)/4)*4+4;
1335 break;
1336 }
1337 if (tmp_ptr >=0x4000)
1338 tmp_ptr = (tmp_ptr - 0x4000) + 0xc00;
1339 if (tmp_ptr != ((MDRAH1<<8)|MDRAL1))
1340 printk("[dm9ks:RX FIFO ERROR\n");
1341 #endif
1342
1343 if (db->cont_rx_pkt_cnt>=CONT_RX_PKT_CNT)
1344 {
1345 dmfe_tx_done(0);
1346 break;
1347 }
1348 }
1349
1350 }while((rxbyte & 0x01) == DM9KS_PKT_RDY);
1351 DMFE_DBUG(0, "[END]dmfe_packet_receive()", 0);
1352
1353 }
1354
1355 /*
1356 Read a word data from SROM
1357 */
1358 static u16 read_srom_word(board_info_t *db, int offset)
1359 {
1360 iow(db, DM9KS_EPAR, offset);
1361 iow(db, DM9KS_EPCR, 0x4);
1362 while(ior(db, DM9KS_EPCR)&0x1); /* Wait read complete */
1363 iow(db, DM9KS_EPCR, 0x0);
1364 return (ior(db, DM9KS_EPDRL) + (ior(db, DM9KS_EPDRH) << 8) );
1365 }
1366
1367 /*
1368 Set DM9000/DM9010 multicast address
1369 */
1370 static void dm9000_hash_table(struct net_device *dev)
1371 {
1372 board_info_t *db = (board_info_t *)dev->priv;
1373 struct dev_mc_list *mcptr = dev->mc_list;
1374 int mc_cnt = dev->mc_count;
1375 u32 hash_val;
1376 u16 i, oft, hash_table[4];
1377
1378 DMFE_DBUG(0, "dm9000_hash_table()", 0);
1379
1380 /* enable promiscuous mode */
1381 if (dev->flags & IFF_PROMISC){
1382 //printk(KERN_INFO "DM9KS:enable promiscuous mode\n");
1383 iow(db, DM9KS_RXCR, ior(db,DM9KS_RXCR)|(1<<1));
1384 return;
1385 }else{
1386 //printk(KERN_INFO "DM9KS:disable promiscuous mode\n");
1387 iow(db, DM9KS_RXCR, ior(db,DM9KS_RXCR)&(~(1<<1)));
1388 }
1389
1390 /* Receive all multicast packets */
1391 if (dev->flags & IFF_ALLMULTI){
1392 //printk(KERN_INFO "DM9KS:Pass all multicast\n");
1393 iow(db, DM9KS_RXCR, ior(db,DM9KS_RXCR)|(1<<3));
1394 }else{
1395 //printk(KERN_INFO "DM9KS:Disable pass all multicast\n");
1396 iow(db, DM9KS_RXCR, ior(db,DM9KS_RXCR)&(~(1<<3)));
1397 }
1398
1399 /* Set Node address */
1400 for (i = 0, oft = 0x10; i < 6; i++, oft++)
1401 iow(db, oft, dev->dev_addr[i]);
1402
1403 /* Clear Hash Table */
1404 for (i = 0; i < 4; i++)
1405 hash_table[i] = 0x0;
1406
1407 /* broadcast address */
1408 hash_table[3] = 0x8000;
1409
1410 /* the multicast address in Hash Table : 64 bits */
1411 for (i = 0; i < mc_cnt; i++, mcptr = mcptr->next) {
1412 hash_val = cal_CRC((char *)mcptr->dmi_addr, 6, 0) & 0x3f;
1413 hash_table[hash_val / 16] |= (u16) 1 << (hash_val % 16);
1414 }
1415
1416 /* Write the hash table to MAC MD table */
1417 for (i = 0, oft = 0x16; i < 4; i++) {
1418 iow(db, oft++, hash_table[i] & 0xff);
1419 iow(db, oft++, (hash_table[i] >> 8) & 0xff);
1420 }
1421 }
1422
1423 /*
1424 Calculate the CRC valude of the Rx packet
1425 flag = 1 : return the reverse CRC (for the received packet CRC)
1426 0 : return the normal CRC (for Hash Table index)
1427 */
1428 static unsigned long cal_CRC(unsigned char * Data, unsigned int Len, u8 flag)
1429 {
1430 u32 crc = ether_crc_le(Len, Data);
1431
1432 if (flag)
1433 return ~crc;
1434
1435 return crc;
1436 }
1437
1438 static int mdio_read(struct net_device *dev, int phy_id, int location)
1439 {
1440 board_info_t *db = (board_info_t *)dev->priv;
1441 return phy_read(db, location);
1442 }
1443
1444 static void mdio_write(struct net_device *dev, int phy_id, int location, int val)
1445 {
1446 board_info_t *db = (board_info_t *)dev->priv;
1447 phy_write(db, location, val);
1448 }
1449
1450 /*
1451 Read a byte from I/O port
1452 */
1453 u8 ior(board_info_t *db, int reg)
1454 {
1455 outb(reg, db->io_addr);
1456 return inb(db->io_data);
1457 }
1458
1459 /*
1460 Write a byte to I/O port
1461 */
1462 void iow(board_info_t *db, int reg, u8 value)
1463 {
1464 outb(reg, db->io_addr);
1465 outb(value, db->io_data);
1466 }
1467
1468 /*
1469 Read a word from phyxcer
1470 */
1471 static u16 phy_read(board_info_t *db, int reg)
1472 {
1473 /* Fill the phyxcer register into REG_0C */
1474 iow(db, DM9KS_EPAR, DM9KS_PHY | reg);
1475
1476 iow(db, DM9KS_EPCR, 0xc); /* Issue phyxcer read command */
1477 while(ior(db, DM9KS_EPCR)&0x1); /* Wait read complete */
1478 iow(db, DM9KS_EPCR, 0x0); /* Clear phyxcer read command */
1479
1480 /* The read data keeps on REG_0D & REG_0E */
1481 return ( ior(db, DM9KS_EPDRH) << 8 ) | ior(db, DM9KS_EPDRL);
1482
1483 }
1484
1485 /*
1486 Write a word to phyxcer
1487 */
1488 static void phy_write(board_info_t *db, int reg, u16 value)
1489 {
1490 /* Fill the phyxcer register into REG_0C */
1491 iow(db, DM9KS_EPAR, DM9KS_PHY | reg);
1492
1493 /* Fill the written data into REG_0D & REG_0E */
1494 iow(db, DM9KS_EPDRL, (value & 0xff));
1495 iow(db, DM9KS_EPDRH, ( (value >> 8) & 0xff));
1496
1497 iow(db, DM9KS_EPCR, 0xa); /* Issue phyxcer write command */
1498 while(ior(db, DM9KS_EPCR)&0x1); /* Wait read complete */
1499 iow(db, DM9KS_EPCR, 0x0); /* Clear phyxcer write command */
1500 }
1501 //====dmfe_ethtool_ops member functions====
1502 static void dmfe_get_drvinfo(struct net_device *dev,
1503 struct ethtool_drvinfo *info)
1504 {
1505 //board_info_t *db = (board_info_t *)dev->priv;
1506 strcpy(info->driver, DRV_NAME);
1507 strcpy(info->version, DRV_VERSION);
1508 sprintf(info->bus_info, "ISA 0x%lx irq=%d",dev->base_addr, dev->irq);
1509 }
1510 static int dmfe_get_settings(struct net_device *dev, struct ethtool_cmd *cmd)
1511 {
1512 board_info_t *db = (board_info_t *)dev->priv;
1513 spin_lock_irq(&db->lock);
1514 mii_ethtool_gset(&db->mii, cmd);
1515 spin_unlock_irq(&db->lock);
1516 return 0;
1517 }
1518 static int dmfe_set_settings(struct net_device *dev, struct ethtool_cmd *cmd)
1519 {
1520 board_info_t *db = (board_info_t *)dev->priv;
1521 int rc;
1522
1523 spin_lock_irq(&db->lock);
1524 rc = mii_ethtool_sset(&db->mii, cmd);
1525 spin_unlock_irq(&db->lock);
1526 return rc;
1527 }
1528 /*
1529 * Check the link state
1530 */
1531 static u32 dmfe_get_link(struct net_device *dev)
1532 {
1533 board_info_t *db = (board_info_t *)dev->priv;
1534 return mii_link_ok(&db->mii);
1535 }
1536
1537 /*
1538 * Reset Auto-negitiation
1539 */
1540 static int dmfe_nway_reset(struct net_device *dev)
1541 {
1542 board_info_t *db = (board_info_t *)dev->priv;
1543 return mii_nway_restart(&db->mii);
1544 }
1545 /*
1546 * Get RX checksum offload state
1547 */
1548 static uint32_t dmfe_get_rx_csum(struct net_device *dev)
1549 {
1550 board_info_t *db = (board_info_t *)dev->priv;
1551 return db->rx_csum;
1552 }
1553 /*
1554 * Get TX checksum offload state
1555 */
1556 static uint32_t dmfe_get_tx_csum(struct net_device *dev)
1557 {
1558 return (dev->features & NETIF_F_HW_CSUM) != 0;
1559 }
1560 /*
1561 * Enable/Disable RX checksum offload
1562 */
1563 static int dmfe_set_rx_csum(struct net_device *dev, uint32_t data)
1564 {
1565 #ifdef CHECKSUM
1566 board_info_t *db = (board_info_t *)dev->priv;
1567 db->rx_csum = data;
1568
1569 if(netif_running(dev)) {
1570 dmfe_stop(dev);
1571 dmfe_open(dev);
1572 } else
1573 dmfe_init_dm9000(dev);
1574 #else
1575 printk(KERN_ERR "DM9:Don't support checksum\n");
1576 #endif
1577 return 0;
1578 }
1579 /*
1580 * Enable/Disable TX checksum offload
1581 */
1582 static int dmfe_set_tx_csum(struct net_device *dev, uint32_t data)
1583 {
1584 #ifdef CHECKSUM
1585 if (data)
1586 dev->features |= NETIF_F_HW_CSUM;
1587 else
1588 dev->features &= ~NETIF_F_HW_CSUM;
1589 #else
1590 printk(KERN_ERR "DM9:Don't support checksum\n");
1591 #endif
1592
1593 return 0;
1594 }
1595 //=========================================
1596 #if LINUX_VERSION_CODE >= KERNEL_VERSION(2,4,28) /* for kernel 2.4.28 */
1597 static struct ethtool_ops dmfe_ethtool_ops = {
1598 .get_drvinfo = dmfe_get_drvinfo,
1599 .get_settings = dmfe_get_settings,
1600 .set_settings = dmfe_set_settings,
1601 .get_link = dmfe_get_link,
1602 .nway_reset = dmfe_nway_reset,
1603 .get_rx_csum = dmfe_get_rx_csum,
1604 .set_rx_csum = dmfe_set_rx_csum,
1605 .get_tx_csum = dmfe_get_tx_csum,
1606 .set_tx_csum = dmfe_set_tx_csum,
1607 };
1608 #endif
1609
1610 #ifdef MODULE
1611
1612 MODULE_LICENSE("GPL");
1613 MODULE_DESCRIPTION("Davicom DM9000/DM9010 ISA/uP Fast Ethernet Driver");
1614 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,5,0)
1615 MODULE_PARM(mode, "i");
1616 MODULE_PARM(irq, "i");
1617 MODULE_PARM(iobase, "i");
1618 #else
1619 module_param(mode, int, 0);
1620 module_param(irq, int, 0);
1621 module_param(iobase, int, 0);
1622 #endif
1623 MODULE_PARM_DESC(mode,"Media Speed, 0:10MHD, 1:10MFD, 4:100MHD, 5:100MFD");
1624 MODULE_PARM_DESC(irq,"EtherLink IRQ number");
1625 MODULE_PARM_DESC(iobase, "EtherLink I/O base address");
1626
1627 /* Description:
1628 when user used insmod to add module, system invoked init_module()
1629 to initilize and register.
1630 */
1631 int __init init_module(void)
1632 {
1633 switch(mode) {
1634 case DM9KS_10MHD:
1635 case DM9KS_100MHD:
1636 case DM9KS_10MFD:
1637 case DM9KS_100MFD:
1638 media_mode = mode;
1639 break;
1640 default:
1641 media_mode = DM9KS_AUTO;
1642 }
1643 dmfe_dev = dmfe_probe();
1644 if(IS_ERR(dmfe_dev))
1645 return PTR_ERR(dmfe_dev);
1646 return 0;
1647 }
1648 /* Description:
1649 when user used rmmod to delete module, system invoked clean_module()
1650 to un-register DEVICE.
1651 */
1652 void __exit cleanup_module(void)
1653 {
1654 struct net_device *dev = dmfe_dev;
1655 DMFE_DBUG(0, "clean_module()", 0);
1656
1657 unregister_netdev(dmfe_dev);
1658 release_region(dev->base_addr, 2);
1659 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,5,0)
1660 kfree(dev);
1661 #else
1662 free_netdev(dev);
1663 #endif
1664
1665 DMFE_DBUG(0, "clean_module() exit", 0);
1666 }
1667 #endif
其实总结一下移植，很简单，总共就以下四步：
①开启入口函数，②配置网卡io内存，③配置网卡中断，④配置内存控制器读写时序。
接下来我们一步一步来实现dm9000的驱动移植：
1.开启入口函数，修改入口函数名字
在源程序中，我们的module_init()等函数被 #ifdef MODULE 这一个条件所包围，所以，此时我们要将其注释，同样也包括最后面的#end if,
同时修改入口函数名字为dm9000c_init,如图所示
2.开启入口函数，修改入口函数名字
在入口函数dm9000_init中添加映射网卡的内存地址，同样在exit出口函数中进行iounmap操作：
3.在dmfe_probe1去除版本版本检测，防止因为版本不同而导致程序退出
4.配置网卡中断

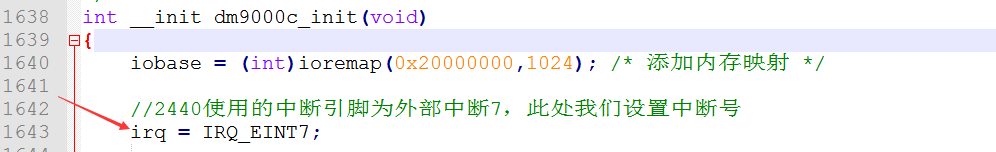

在入口函数中设置中断线
在open函数中设置中断触发方式：
5.增加头文件包含
6.在入口函数中设置芯片的内存读写时序
1 int __init dm9000c_init(void)
2 {
3 volatile unsigned long *bwscon; // 0x48000000
4 volatile unsigned long *bankcon4; // 0x48000014
5 unsigned long val;
6
7 iobase = (int)ioremap(0x20000000,1024); /* 添加内存映射 */
8
9 //2440使用的中断引脚为外部中断7，此处我们设置中断号
10 irq = IRQ_EINT7;
11
12 /* 设置S3C2440的memory controller */
13 bwscon = ioremap(0x48000000, 4);
14 bankcon4 = ioremap(0x48000014, 4);
15
16 /* DW4[17:16]: 01-16bit
17 * WS4[18] : 0-WAIT disable
18 * ST4[19] : 0 = Not using UB/LB (The pins are dedicated nWBE[3:0])
19 */
20 val = *bwscon;
21 val &= ~(0xf<<16);
22 val |= (1<<16);
23 *bwscon = val;
24
25 /*
26 * Tacs[14:13]: 发出片选信号之前,多长时间内要先发出地址信号
27 * DM9000C的片选信号和CMD信号可以同时发出,
28 * 所以它设为0
29 * Tcos[12:11]: 发出片选信号之后,多长时间才能发出读信号nOE
30 * DM9000C的T1>=0ns,
31 * 所以它设为0
32 * Tacc[10:8] : 读写信号的脉冲长度,
33 * DM9000C的T2>=10ns,
34 * 所以它设为1, 表示2个hclk周期,hclk=100MHz,就是20ns
35 * Tcoh[7:6] : 当读信号nOE变为高电平后,片选信号还要维持多长时间
36 * DM9000C进行写操作时, nWE变为高电平之后, 数据线上的数据还要维持最少3ns
37 * DM9000C进行读操作时, nOE变为高电平之后, 数据线上的数据在6ns之内会消失
38 * 我们取一个宽松值: 让片选信号在nOE放为高电平后,再维持10ns,
39 * 所以设为01
40 * Tcah[5:4] : 当片选信号变为高电平后, 地址信号还要维持多长时间
41 * DM9000C的片选信号和CMD信号可以同时出现,同时消失
42 * 所以设为0
43 * PMC[1:0] : 00-正常模式
44 *
45 */
46 //*bankcon4 = (1<<8)|(1<<6); /* 对于DM9000C可以设Tacc为1, 对于DM9000E,Tacc要设大一点,比如最大值7 */
47 *bankcon4 = (7<<8)|(1<<6); /* TQ2440和MINI2440使用DM9000E,Tacc要设大一点 正常来说1也可以 */
48
49 iounmap(bwscon);
50 iounmap(bankcon4);
51
52
53 switch(mode) {
54 case DM9KS_10MHD:
55 case DM9KS_100MHD:
56 case DM9KS_10MFD:
57 case DM9KS_100MFD:
58 media_mode = mode;
59 break;
60 default:
61 media_mode = DM9KS_AUTO;
62 }
63 dmfe_dev = dmfe_probe();
64 if(IS_ERR(dmfe_dev))
65 return PTR_ERR(dmfe_dev);
66 return 0;
67 }
7.测试驱动程序
/*
1把文件放入内核的drivers/net目录下
2修改drivers/net/Makefile
3把 obj-$(CONFIG_DM9000) += dm9000.o
改为obj-$(CONFIG_DM9000) += dm9dev9000c.o
4使用网络文件系统启动的话，说明已经能用了
不用网络文件系统的话，
就 ifconfig eth0 xxx.xxx.xxx.xxx
ping xxx.xxx.xxx.xxn
*/
附上修改好的dm9000c网卡驱动程序：
1 /*
2
3 dm9ks.c: Version 2.08 2007/02/12
4
5 A Davicom DM9000/DM9010 ISA NIC fast Ethernet driver for Linux.
6
7 This program is free software; you can redistribute it and/or
8 modify it under the terms of the GNU General Public License
9 as published by the Free Software Foundation; either version 2
10 of the License, or (at your option) any later version.
11
12 This program is distributed in the hope that it will be useful,
13 but WITHOUT ANY WARRANTY; without even the implied warranty of
14 MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
15 GNU General Public License for more details.
16
17
18 (C)Copyright 1997-2007 DAVICOM Semiconductor,Inc. All Rights Reserved.
19
20 V2.00 Spenser - 01/10/2005
21 - Modification for PXA270 MAINSTONE.
22 - Modified dmfe_tx_done().
23 - Add dmfe_timeout().
24 V2.01 10/07/2005 -Modified dmfe_timer()
25 -Dected network speed 10/100M
26 V2.02 10/12/2005 -Use link change to chage db->Speed
27 -dmfe_open() wait for Link OK
28 V2.03 11/22/2005 -Power-off and Power-on PHY in dmfe_init_dm9000()
29 -support IOL
30 V2.04 12/13/2005 -delay 1.6s between power-on and power-off in
31 dmfe_init_dm9000()
32 -set LED mode 1 in dmfe_init_dm9000()
33 -add data bus driving capability in dmfe_init_dm9000()
34 (optional)
35 10/3/2006 -Add DM8606 read/write function by MDC and MDIO
36 V2.06 01/03/2007 -CONT_RX_PKT_CNT=0xFFFF
37 -modify dmfe_tx_done function
38 -check RX FIFO pointer
39 -if using physical address, re-define I/O function
40 -add db->cont_rx_pkt_cnt=0 at the front of dmfe_packet_receive()
41 V2.08 02/12/2007 -module parameter macro
42 2.4 MODULE_PARM
43 2.6 module_param
44 -remove #include <linux/config>
45 -fix dmfe_interrupt for kernel 2.6.20
46 V2.09 05/24/2007 -support ethtool and mii-tool
47 05/30/2007 -fix the driver bug when ifconfig eth0 (-)promisc and (-)allmulti.
48 06/05/2007 -fix dm9000b issue(ex. 10M TX idle=65mA, 10M harmonic)
49 -add flow control function (option)
50 10/01/2007 -Add #include <asm/uaccess.h>
51 -Modyfy dmfe_do_ioctl for kernel 2.6.7
52 11/23/2007 -Add TDBUG to check TX FIFO pointer shift
53 - Remove check_rx_ready()
54 - Add #define CHECKSUM to modify CHECKSUM function
55 12/20/2007 -Modify TX timeout routine(+)check TCR&0x01
56
57 */
58
59 /* 主要就是修改基地址，位宽，中断引脚等 */
60
61 //#define CHECKSUM
62 //#define TDBUG /* check TX FIFO pointer */
63 //#define RDBUG /* check RX FIFO pointer */
64 //#define DM8606
65
66 #define DRV_NAME "dm9KS"
67 #define DRV_VERSION "2.09"
68 #define DRV_RELDATE "2007-11-22"
69
70 #ifdef MODVERSIONS
71 #include <linux/modversions.h>
72 #endif
73
74 //#include <linux/config.h>
75 #include <linux/init.h>
76 #include <linux/delay.h>
77 #include <linux/module.h>
78 #include <linux/ioport.h>
79 #include <linux/netdevice.h>
80 #include <linux/etherdevice.h>
81 #include <linux/skbuff.h>
82 #include <linux/version.h>
83 #include <asm/dma.h>
84 #include <linux/spinlock.h>
85 #include <linux/crc32.h>
86 #include <linux/mii.h>
87 #include <linux/ethtool.h>
88 #include <asm/uaccess.h>
89
90 #ifdef CONFIG_ARCH_MAINSTONE
91 #include <asm/io.h>
92 #include <asm/hardware.h>
93 #include <asm/irq.h>
94 #endif
95
96 #include <asm/delay.h>
97 #include <asm/irq.h>
98 #include <asm/io.h>
99 #include <asm/arch-s3c2410/regs-mem.h>
100
101 /* Board/System/Debug information/definition ---------------- */
102
103 #define DM9KS_ID 0x90000A46
104 #define DM9010_ID 0x90100A46
105 /*-------register name-----------------------*/
106 #define DM9KS_NCR 0x00 /* Network control Reg.*/
107 #define DM9KS_NSR 0x01 /* Network Status Reg.*/
108 #define DM9KS_TCR 0x02 /* TX control Reg.*/
109 #define DM9KS_RXCR 0x05 /* RX control Reg.*/
110 #define DM9KS_BPTR 0x08
111 #define DM9KS_FCTR 0x09
112 #define DM9KS_FCR 0x0a
113 #define DM9KS_EPCR 0x0b
114 #define DM9KS_EPAR 0x0c
115 #define DM9KS_EPDRL 0x0d
116 #define DM9KS_EPDRH 0x0e
117 #define DM9KS_GPR 0x1f /* General purpose register */
118 #define DM9KS_CHIPR 0x2c
119 #define DM9KS_TCR2 0x2d
120 #define DM9KS_SMCR 0x2f /* Special Mode Control Reg.*/
121 #define DM9KS_ETXCSR 0x30 /* Early Transmit control/status Reg.*/
122 #define DM9KS_TCCR 0x31 /* Checksum cntrol Reg. */
123 #define DM9KS_RCSR 0x32 /* Receive Checksum status Reg.*/
124 #define DM9KS_BUSCR 0x38
125 #define DM9KS_MRCMDX 0xf0
126 #define DM9KS_MRCMD 0xf2
127 #define DM9KS_MDRAL 0xf4
128 #define DM9KS_MDRAH 0xf5
129 #define DM9KS_MWCMD 0xf8
130 #define DM9KS_MDWAL 0xfa
131 #define DM9KS_MDWAH 0xfb
132 #define DM9KS_TXPLL 0xfc
133 #define DM9KS_TXPLH 0xfd
134 #define DM9KS_ISR 0xfe
135 #define DM9KS_IMR 0xff
136 /*---------------------------------------------*/
137 #define DM9KS_REG05 0x30 /* SKIP_CRC/SKIP_LONG */
138 #define DM9KS_REGFF 0xA3 /* IMR */
139 #define DM9KS_DISINTR 0x80
140
141 #define DM9KS_PHY 0x40 /* PHY address 0x01 */
142 #define DM9KS_PKT_RDY 0x01 /* Packet ready to receive */
143
144 /* Added for PXA of MAINSTONE */
145 #ifdef CONFIG_ARCH_MAINSTONE
146 #include <asm/arch/mainstone.h>
147 #define DM9KS_MIN_IO (MST_ETH_PHYS + 0x300)
148 #define DM9KS_MAX_IO (MST_ETH_PHYS + 0x370)
149 #define DM9K_IRQ MAINSTONE_IRQ(3)
150 #else
151 #define DM9KS_MIN_IO 0x300
152 #define DM9KS_MAX_IO 0x370
153 #define DM9KS_IRQ 3
154 #endif
155
156 #define DM9KS_VID_L 0x28
157 #define DM9KS_VID_H 0x29
158 #define DM9KS_PID_L 0x2A
159 #define DM9KS_PID_H 0x2B
160
161 #define DM9KS_RX_INTR 0x01
162 #define DM9KS_TX_INTR 0x02
163 #define DM9KS_LINK_INTR 0x20
164
165 #define DM9KS_DWORD_MODE 1
166 #define DM9KS_BYTE_MODE 2
167 #define DM9KS_WORD_MODE 0
168
169 #define TRUE 1
170 #define FALSE 0
171 /* Number of continuous Rx packets */
172 #define CONT_RX_PKT_CNT 0xFFFF
173
174 #define DMFE_TIMER_WUT jiffies+(HZ*5) /* timer wakeup time : 5 second */
175
176 #ifdef DM9KS_DEBUG
177 #define DMFE_DBUG(dbug_now, msg, vaule)\
178 if (dmfe_debug||dbug_now) printk(KERN_ERR "dmfe: %s %x\n", msg, vaule)
179 #else
180 #define DMFE_DBUG(dbug_now, msg, vaule)\
181 if (dbug_now) printk(KERN_ERR "dmfe: %s %x\n", msg, vaule)
182 #endif
183
184 #ifndef CONFIG_ARCH_MAINSTONE
185 #pragma pack(push, 1)
186 #endif
187
188 typedef struct _RX_DESC
189 {
190 u8 rxbyte;
191 u8 status;
192 u16 length;
193 }RX_DESC;
194
195 typedef union{
196 u8 buf[4];
197 RX_DESC desc;
198 } rx_t;
199 #ifndef CONFIG_ARCH_MAINSTONE
200 #pragma pack(pop)
201 #endif
202
203 enum DM9KS_PHY_mode {
204 DM9KS_10MHD = 0,
205 DM9KS_100MHD = 1,
206 DM9KS_10MFD = 4,
207 DM9KS_100MFD = 5,
208 DM9KS_AUTO = 8,
209 };
210
211 /* Structure/enum declaration ------------------------------- */
212 typedef struct board_info {
213 u32 io_addr;/* Register I/O base address */
214 u32 io_data;/* Data I/O address */
215 u8 op_mode;/* PHY operation mode */
216 u8 io_mode;/* 0:word, 2:byte */
217 u8 Speed; /* current speed */
218 u8 chip_revision;
219 int rx_csum;/* 0:disable, 1:enable */
220
221 u32 reset_counter;/* counter: RESET */
222 u32 reset_tx_timeout;/* RESET caused by TX Timeout */
223 int tx_pkt_cnt;
224 int cont_rx_pkt_cnt;/* current number of continuos rx packets */
225 struct net_device_stats stats;
226
227 struct timer_list timer;
228 unsigned char srom[128];
229 spinlock_t lock;
230 struct mii_if_info mii;
231 } board_info_t;
232 /* Global variable declaration ----------------------------- */
233 /*static int dmfe_debug = 0;*/
234 static struct net_device * dmfe_dev = NULL;
235 static struct ethtool_ops dmfe_ethtool_ops;
236 /* For module input parameter */
237 static int mode = DM9KS_AUTO;
238 static int media_mode = DM9KS_AUTO;
239 static int irq = DM9KS_IRQ;
240 static int iobase = DM9KS_MIN_IO;
241
242 #if 0 // use physical address; Not virtual address
243 #ifdef outb
244 #undef outb
245 #endif
246 #ifdef outw
247 #undef outw
248 #endif
249 #ifdef outl
250 #undef outl
251 #endif
252 #ifdef inb
253 #undef inb
254 #endif
255 #ifdef inw
256 #undef inw
257 #endif
258 #ifdef inl
259 #undef inl
260 #endif
261 void outb(u8 reg, u32 ioaddr)
262 {
263 (*(volatile u8 *)(ioaddr)) = reg;
264 }
265 void outw(u16 reg, u32 ioaddr)
266 {
267 (*(volatile u16 *)(ioaddr)) = reg;
268 }
269 void outl(u32 reg, u32 ioaddr)
270 {
271 (*(volatile u32 *)(ioaddr)) = reg;
272 }
273 u8 inb(u32 ioaddr)
274 {
275 return (*(volatile u8 *)(ioaddr));
276 }
277 u16 inw(u32 ioaddr)
278 {
279 return (*(volatile u16 *)(ioaddr));
280 }
281 u32 inl(u32 ioaddr)
282 {
283 return (*(volatile u32 *)(ioaddr));
284 }
285 #endif
286
287 /* function declaration ------------------------------------- */
288 int dmfe_probe1(struct net_device *);
289 static int dmfe_open(struct net_device *);
290 static int dmfe_start_xmit(struct sk_buff *, struct net_device *);
291 static void dmfe_tx_done(unsigned long);
292 static void dmfe_packet_receive(struct net_device *);
293 static int dmfe_stop(struct net_device *);
294 static struct net_device_stats * dmfe_get_stats(struct net_device *);
295 static int dmfe_do_ioctl(struct net_device *, struct ifreq *, int);
296 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,5,0)
297 static void dmfe_interrupt(int , void *, struct pt_regs *);
298 #else
299 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,6,19)
300 static irqreturn_t dmfe_interrupt(int , void *, struct pt_regs *);
301 #else
302 static irqreturn_t dmfe_interrupt(int , void *);/* for kernel 2.6.20 */
303 #endif
304 #endif
305 static void dmfe_timer(unsigned long);
306 static void dmfe_init_dm9000(struct net_device *);
307 static unsigned long cal_CRC(unsigned char *, unsigned int, u8);
308 u8 ior(board_info_t *, int);
309 void iow(board_info_t *, int, u8);
310 static u16 phy_read(board_info_t *, int);
311 static void phy_write(board_info_t *, int, u16);
312 static u16 read_srom_word(board_info_t *, int);
313 static void dm9000_hash_table(struct net_device *);
314 static void dmfe_timeout(struct net_device *);
315 static void dmfe_reset(struct net_device *);
316 static int mdio_read(struct net_device *, int, int);
317 static void mdio_write(struct net_device *, int, int, int);
318 static void dmfe_get_drvinfo(struct net_device *, struct ethtool_drvinfo *);
319 static int dmfe_get_settings(struct net_device *, struct ethtool_cmd *);
320 static int dmfe_set_settings(struct net_device *, struct ethtool_cmd *);
321 static u32 dmfe_get_link(struct net_device *);
322 static int dmfe_nway_reset(struct net_device *);
323 static uint32_t dmfe_get_rx_csum(struct net_device *);
324 static uint32_t dmfe_get_tx_csum(struct net_device *);
325 static int dmfe_set_rx_csum(struct net_device *, uint32_t );
326 static int dmfe_set_tx_csum(struct net_device *, uint32_t );
327
328 #ifdef DM8606
329 #include "dm8606.h"
330 #endif
331
332 //DECLARE_TASKLET(dmfe_tx_tasklet,dmfe_tx_done,0);
333
334 /* DM9000 network baord routine ---------------------------- */
335
336 /*
337 Search DM9000 board, allocate space and register it
338 */
339
340 struct net_device * __init dmfe_probe(void)
341 {
342 struct net_device *dev;
343 int err;
344
345 DMFE_DBUG(0, "dmfe_probe()",0);
346
347 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,5,0)
348 dev = init_etherdev(NULL, sizeof(struct board_info));
349 //ether_setup(dev);
350 #else
351 dev= alloc_etherdev(sizeof(struct board_info)); //分配一个net_device结构体
352 #endif
353
354 if(!dev)
355 return ERR_PTR(-ENOMEM);
356
357 SET_MODULE_OWNER(dev);
358 err = dmfe_probe1(dev);
359 if (err)
360 goto out;
361 #if LINUX_VERSION_CODE > KERNEL_VERSION(2,5,0)
362 err = register_netdev(dev);
363 if (err)
364 goto out1;
365 #endif
366 return dev;
367 out1:
368 release_region(dev->base_addr,2);
369 out:
370 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,5,0)
371 kfree(dev);
372 #else
373 free_netdev(dev);
374 #endif
375 return ERR_PTR(err);
376 }
377
378 int __init dmfe_probe1(struct net_device *dev)
379 {
380 struct board_info *db; /* Point a board information structure */
381 u32 id_val;
382 u16 i, dm9000_found = FALSE;
383 u8 MAC_addr[6]={0x00,0x60,0x6E,0x33,0x44,0x55};
384 u8 HasEEPROM=0,chip_info;
385 DMFE_DBUG(0, "dmfe_probe1()",0);
386
387 /* Search All DM9000 serial NIC 对网卡芯片，与读内存差不多，读某个地址就可以了*/
388 do {
389 outb(DM9KS_VID_L, iobase); /* DM9000C的索引寄存器 cmd = 0*/
390 id_val = inb(iobase + 4); /* 读DM9000C的数据寄存器 cmd = 1*/
391 outb(DM9KS_VID_H, iobase);
392 id_val |= inb(iobase + 4) << 8;
393 outb(DM9KS_PID_L, iobase);
394 id_val |= inb(iobase + 4) << 16;
395 outb(DM9KS_PID_H, iobase);
396 id_val |= inb(iobase + 4) << 24;
397
398 if (id_val == DM9KS_ID || id_val == DM9010_ID) {
399
400 /* Request IO from system */
401 if(!request_region(iobase, 2, dev->name))
402 return -ENODEV;
403
404 printk(KERN_ERR"<DM9KS> I/O: %x, VID: %x \n",iobase, id_val);
405 dm9000_found = TRUE;
406
407 /* Allocated board information structure */
408 memset(dev->priv, 0, sizeof(struct board_info));
409 db = (board_info_t *)dev->priv;
410 dmfe_dev = dev;
411 db->io_addr = iobase;
412 db->io_data = iobase + 4;
413 db->chip_revision = ior(db, DM9KS_CHIPR);
414
415 chip_info = ior(db,0x43);
416 //防止应为版本不匹配而导致的出错，版本不同，也可以用
417 //if((db->chip_revision!=0x1A) || ((chip_info&(1<<5))!=0) || ((chip_info&(1<<2))!=1))
418 // return -ENODEV;
419
420 /* driver system function 硬件相关的设置*/
421 dev->base_addr = iobase;
422 dev->irq = irq;
423 dev->open = &dmfe_open;
424 dev->hard_start_xmit = &dmfe_start_xmit; //硬件启动传输
425 dev->watchdog_timeo = 5*HZ;
426 dev->tx_timeout = dmfe_timeout;
427 dev->stop = &dmfe_stop;
428 dev->get_stats = &dmfe_get_stats;
429 dev->set_multicast_list = &dm9000_hash_table;
430 dev->do_ioctl = &dmfe_do_ioctl;
431 #if LINUX_VERSION_CODE >= KERNEL_VERSION(2,4,28)
432 dev->ethtool_ops = &dmfe_ethtool_ops;
433 #endif
434 #ifdef CHECKSUM
435 //dev->features |= NETIF_F_IP_CSUM;
436 dev->features |= NETIF_F_IP_CSUM|NETIF_F_SG;
437 #endif
438 db->mii.dev = dev;
439 db->mii.mdio_read = mdio_read;
440 db->mii.mdio_write = mdio_write;
441 db->mii.phy_id = 1;
442 #if LINUX_VERSION_CODE >= KERNEL_VERSION(2,4,20)
443 db->mii.phy_id_mask = 0x1F;
444 db->mii.reg_num_mask = 0x1F;
445 #endif
446 //db->msg_enable =(debug == 0 ? DMFE_DEF_MSG_ENABLE : ((1 << debug) - 1));
447
448 /* Read SROM content */
449 for (i=0; i<64; i++)
450 ((u16 *)db->srom)[i] = read_srom_word(db, i);
451
452 /* Get the PID and VID from EEPROM to check */
453 id_val = (((u16 *)db->srom)[4])|(((u16 *)db->srom)[5]<<16);
454 printk("id_val=%x\n", id_val);
455 if (id_val == DM9KS_ID || id_val == DM9010_ID)
456 HasEEPROM =1;
457
458 /* Set Node Address */
459 for (i=0; i<6; i++)
460 {
461 if (HasEEPROM) /* use EEPROM */
462 dev->dev_addr[i] = db->srom[i];
463 else /* No EEPROM */
464 dev->dev_addr[i] = MAC_addr[i];
465 }
466 }//end of if()
467 iobase += 0x10;
468 }while(!dm9000_found && iobase <= DM9KS_MAX_IO);
469
470 return dm9000_found ? 0:-ENODEV;
471 }
472
473
474 /*
475 Open the interface.
476 The interface is opened whenever "ifconfig" actives it.
477 */
478 static int dmfe_open(struct net_device *dev)
479 {
480 board_info_t *db = (board_info_t *)dev->priv;
481 u8 reg_nsr;
482 int i;
483 DMFE_DBUG(0, "dmfe_open", 0);
484 //对于2440来说，可以设置它为上升沿触发
485 if (request_irq(dev->irq,&dmfe_interrupt,IRQF_TRIGGER_RISING,dev->name,dev)) //申请注册中断
486 return -EAGAIN;
487
488 /* Initilize DM910X board */
489 dmfe_init_dm9000(dev);
490 #ifdef DM8606
491 // control DM8606
492 printk("[8606]reg0=0x%04x\n",dm8606_read(db,0));
493 printk("[8606]reg1=0x%04x\n",dm8606_read(db,0x1));
494 #endif
495 /* Init driver variable */
496 db->reset_counter = 0;
497 db->reset_tx_timeout = 0;
498 db->cont_rx_pkt_cnt = 0;
499
500 /* check link state and media speed */
501 db->Speed =10;
502 i=0;
503 do {
504 reg_nsr = ior(db,DM9KS_NSR);
505 if(reg_nsr & 0x40) /* link OK!! */
506 {
507 /* wait for detected Speed */
508 mdelay(200);
509 reg_nsr = ior(db,DM9KS_NSR);
510 if(reg_nsr & 0x80)
511 db->Speed =10;
512 else
513 db->Speed =100;
514 break;
515 }
516 i++;
517 mdelay(1);
518 }while(i<3000); /* wait 3 second */
519 //printk("i=%d Speed=%d\n",i,db->Speed);
520 /* set and active a timer process */
521 init_timer(&db->timer);
522 db->timer.expires = DMFE_TIMER_WUT;
523 db->timer.data = (unsigned long)dev;
524 db->timer.function = &dmfe_timer;
525 add_timer(&db->timer); //Move to DM9000 initiallization was finished.
526
527 netif_start_queue(dev);
528
529 return 0;
530 }
531
532 /* Set PHY operationg mode
533 */
534 static void set_PHY_mode(board_info_t *db)
535 {
536 #ifndef DM8606
537 u16 phy_reg0 = 0x1000;/* Auto-negotiation*/
538 u16 phy_reg4 = 0x01e1;
539
540 if ( !(db->op_mode & DM9KS_AUTO) ) // op_mode didn't auto sense */
541 {
542 switch(db->op_mode) {
543 case DM9KS_10MHD: phy_reg4 = 0x21;
544 phy_reg0 = 0x1000;
545 break;
546 case DM9KS_10MFD: phy_reg4 = 0x41;
547 phy_reg0 = 0x1100;
548 break;
549 case DM9KS_100MHD: phy_reg4 = 0x81;
550 phy_reg0 = 0x3000;
551 break;
552 case DM9KS_100MFD: phy_reg4 = 0x101;
553 phy_reg0 = 0x3100;
554 break;
555 default:
556 break;
557 } // end of switch
558 } // end of if
559 #ifdef FLOW_CONTROL
560 phy_write(db, 4, phy_reg4|(1<<10));
561 #else
562 phy_write(db, 4, phy_reg4);
563 #endif //end of FLOW_CONTROL
564 phy_write(db, 0, phy_reg0|0x200);
565 #else
566 /* Fiber mode */
567 phy_write(db, 16, 0x4014);
568 phy_write(db, 0, 0x2100);
569 #endif //end of DM8606
570
571 if (db->chip_revision == 0x1A)
572 {
573 //set 10M TX idle =65mA (TX 100% utility is 160mA)
574 phy_write(db,20, phy_read(db,20)|(1<<11)|(1<<10));
575
576 //:fix harmonic
577 //For short code:
578 //PHY_REG 27 (1Bh) <- 0000h
579 phy_write(db, 27, 0x0000);
580 //PHY_REG 27 (1Bh) <- AA00h
581 phy_write(db, 27, 0xaa00);
582
583 //PHY_REG 27 (1Bh) <- 0017h
584 phy_write(db, 27, 0x0017);
585 //PHY_REG 27 (1Bh) <- AA17h
586 phy_write(db, 27, 0xaa17);
587
588 //PHY_REG 27 (1Bh) <- 002Fh
589 phy_write(db, 27, 0x002f);
590 //PHY_REG 27 (1Bh) <- AA2Fh
591 phy_write(db, 27, 0xaa2f);
592
593 //PHY_REG 27 (1Bh) <- 0037h
594 phy_write(db, 27, 0x0037);
595 //PHY_REG 27 (1Bh) <- AA37h
596 phy_write(db, 27, 0xaa37);
597
598 //PHY_REG 27 (1Bh) <- 0040h
599 phy_write(db, 27, 0x0040);
600 //PHY_REG 27 (1Bh) <- AA40h
601 phy_write(db, 27, 0xaa40);
602
603 //For long code:
604 //PHY_REG 27 (1Bh) <- 0050h
605 phy_write(db, 27, 0x0050);
606 //PHY_REG 27 (1Bh) <- AA50h
607 phy_write(db, 27, 0xaa50);
608
609 //PHY_REG 27 (1Bh) <- 006Bh
610 phy_write(db, 27, 0x006b);
611 //PHY_REG 27 (1Bh) <- AA6Bh
612 phy_write(db, 27, 0xaa6b);
613
614 //PHY_REG 27 (1Bh) <- 007Dh
615 phy_write(db, 27, 0x007d);
616 //PHY_REG 27 (1Bh) <- AA7Dh
617 phy_write(db, 27, 0xaa7d);
618
619 //PHY_REG 27 (1Bh) <- 008Dh
620 phy_write(db, 27, 0x008d);
621 //PHY_REG 27 (1Bh) <- AA8Dh
622 phy_write(db, 27, 0xaa8d);
623
624 //PHY_REG 27 (1Bh) <- 009Ch
625 phy_write(db, 27, 0x009c);
626 //PHY_REG 27 (1Bh) <- AA9Ch
627 phy_write(db, 27, 0xaa9c);
628
629 //PHY_REG 27 (1Bh) <- 00A3h
630 phy_write(db, 27, 0x00a3);
631 //PHY_REG 27 (1Bh) <- AAA3h
632 phy_write(db, 27, 0xaaa3);
633
634 //PHY_REG 27 (1Bh) <- 00B1h
635 phy_write(db, 27, 0x00b1);
636 //PHY_REG 27 (1Bh) <- AAB1h
637 phy_write(db, 27, 0xaab1);
638
639 //PHY_REG 27 (1Bh) <- 00C0h
640 phy_write(db, 27, 0x00c0);
641 //PHY_REG 27 (1Bh) <- AAC0h
642 phy_write(db, 27, 0xaac0);
643
644 //PHY_REG 27 (1Bh) <- 00D2h
645 phy_write(db, 27, 0x00d2);
646 //PHY_REG 27 (1Bh) <- AAD2h
647 phy_write(db, 27, 0xaad2);
648
649 //PHY_REG 27 (1Bh) <- 00E0h
650 phy_write(db, 27, 0x00e0);
651 //PHY_REG 27 (1Bh) <- AAE0h
652 phy_write(db, 27, 0xaae0);
653 //PHY_REG 27 (1Bh) <- 0000h
654 phy_write(db, 27, 0x0000);
655 }
656 }
657
658 /*
659 Initilize dm9000 board
660 */
661 static void dmfe_init_dm9000(struct net_device *dev)
662 {
663 board_info_t *db = (board_info_t *)dev->priv;
664 DMFE_DBUG(0, "dmfe_init_dm9000()", 0);
665
666 spin_lock_init(&db->lock);
667
668 iow(db, DM9KS_GPR, 0); /* GPR (reg_1Fh)bit GPIO0=0 pre-activate PHY */
669 mdelay(20); /* wait for PHY power-on ready */
670
671 /* do a software reset and wait 20us */
672 iow(db, DM9KS_NCR, 3);
673 udelay(20); /* wait 20us at least for software reset ok */
674 iow(db, DM9KS_NCR, 3); /* NCR (reg_00h) bit[0] RST=1 & Loopback=1, reset on */
675 udelay(20); /* wait 20us at least for software reset ok */
676
677 /* I/O mode */
678 db->io_mode = ior(db, DM9KS_ISR) >> 6; /* ISR bit7:6 keeps I/O mode */
679
680 /* Set PHY */
681 db->op_mode = media_mode;
682 set_PHY_mode(db);
683
684 /* Program operating register */
685 iow(db, DM9KS_NCR, 0);
686 iow(db, DM9KS_TCR, 0); /* TX Polling clear */
687 iow(db, DM9KS_BPTR, 0x3f); /* Less 3kb, 600us */
688 iow(db, DM9KS_SMCR, 0); /* Special Mode */
689 iow(db, DM9KS_NSR, 0x2c); /* clear TX status */
690 iow(db, DM9KS_ISR, 0x0f); /* Clear interrupt status */
691 iow(db, DM9KS_TCR2, 0x80); /* Set LED mode 1 */
692 if (db->chip_revision == 0x1A){
693 /* Data bus current driving/sinking capability */
694 iow(db, DM9KS_BUSCR, 0x01); /* default: 2mA */
695 }
696 #ifdef FLOW_CONTROL
697 iow(db, DM9KS_BPTR, 0x37);
698 iow(db, DM9KS_FCTR, 0x38);
699 iow(db, DM9KS_FCR, 0x29);
700 #endif
701
702 #ifdef DM8606
703 iow(db,0x34,1);
704 #endif
705
706 if (dev->features & NETIF_F_HW_CSUM){
707 printk(KERN_INFO "DM9KS:enable TX checksum\n");
708 iow(db, DM9KS_TCCR, 0x07); /* TX UDP/TCP/IP checksum enable */
709 }
710 if (db->rx_csum){
711 printk(KERN_INFO "DM9KS:enable RX checksum\n");
712 iow(db, DM9KS_RCSR, 0x02); /* RX checksum enable */
713 }
714
715 #ifdef ETRANS
716 /*If TX loading is heavy, the driver can try to anbel "early transmit".
717 The programmer can tune the "Early Transmit Threshold" to get
718 the optimization. (DM9KS_ETXCSR.[1-0])
719
720 Side Effect: It will happen "Transmit under-run". When TX under-run
721 always happens, the programmer can increase the value of "Early
722 Transmit Threshold". */
723 iow(db, DM9KS_ETXCSR, 0x83);
724 #endif
725
726 /* Set address filter table */
727 dm9000_hash_table(dev);
728
729 /* Activate DM9000/DM9010 */
730 iow(db, DM9KS_IMR, DM9KS_REGFF); /* Enable TX/RX interrupt mask */
731 iow(db, DM9KS_RXCR, DM9KS_REG05 | 1); /* RX enable */
732
733 /* Init Driver variable */
734 db->tx_pkt_cnt = 0;
735
736 netif_carrier_on(dev);
737
738 }
739
740 /*
741 Hardware start transmission.
742 Send a packet to media from the upper layer.
743 */
744 static int dmfe_start_xmit(struct sk_buff *skb, struct net_device *dev)
745 {
746 board_info_t *db = (board_info_t *)dev->priv;
747 char * data_ptr;
748 int i, tmplen;
749 u16 MDWAH, MDWAL;
750
751 #ifdef TDBUG /* check TX FIFO pointer */
752 u16 MDWAH1, MDWAL1;
753 u16 tx_ptr;
754 #endif
755
756 DMFE_DBUG(0, "dmfe_start_xmit", 0);
757 if (db->chip_revision != 0x1A)
758 {
759 if(db->Speed == 10)
760 {if (db->tx_pkt_cnt >= 1) return 1;}
761 else
762 {if (db->tx_pkt_cnt >= 2) return 1;}
763 }else
764 if (db->tx_pkt_cnt >= 2) return 1;
765
766 /* packet counting */
767 db->tx_pkt_cnt++;
768
769 db->stats.tx_packets++;
770 db->stats.tx_bytes+=skb->len;
771 if (db->chip_revision != 0x1A)
772 {
773 if (db->Speed == 10)
774 {if (db->tx_pkt_cnt >= 1) netif_stop_queue(dev);}
775 else
776 {if (db->tx_pkt_cnt >= 2) netif_stop_queue(dev);}
777 }else
778 if (db->tx_pkt_cnt >= 2) netif_stop_queue(dev);
779
780 /* Disable all interrupt */
781 iow(db, DM9KS_IMR, DM9KS_DISINTR);
782
783 MDWAH = ior(db,DM9KS_MDWAH);
784 MDWAL = ior(db,DM9KS_MDWAL);
785
786 /* Set TX length to reg. 0xfc & 0xfd */
787 iow(db, DM9KS_TXPLL, (skb->len & 0xff));
788 iow(db, DM9KS_TXPLH, (skb->len >> 8) & 0xff);
789
790 /* Move data to TX SRAM */
791 data_ptr = (char *)skb->data;
792
793 outb(DM9KS_MWCMD, db->io_addr); // Write data into SRAM trigger
794 switch(db->io_mode)
795 {
796 case DM9KS_BYTE_MODE:
797 for (i = 0; i < skb->len; i++)
798 outb((data_ptr[i] & 0xff), db->io_data);
799 break;
800 case DM9KS_WORD_MODE:
801 tmplen = (skb->len + 1) / 2;
802 for (i = 0; i < tmplen; i++)
803 outw(((u16 *)data_ptr)[i], db->io_data);
804 break;
805 case DM9KS_DWORD_MODE:
806 tmplen = (skb->len + 3) / 4;
807 for (i = 0; i< tmplen; i++)
808 outl(((u32 *)data_ptr)[i], db->io_data);
809 break;
810 }
811
812 #ifndef ETRANS
813 /* Issue TX polling command */
814 iow(db, DM9KS_TCR, 0x1); /* Cleared after TX complete*/
815 #endif
816
817 #ifdef TDBUG /* check TX FIFO pointer */
818 MDWAH1 = ior(db,DM9KS_MDWAH);
819 MDWAL1 = ior(db,DM9KS_MDWAL);
820 tx_ptr = (MDWAH<<8)|MDWAL;
821 switch (db->io_mode)
822 {
823 case DM9KS_BYTE_MODE:
824 tx_ptr += skb->len;
825 break;
826 case DM9KS_WORD_MODE:
827 tx_ptr += ((skb->len + 1) / 2)*2;
828 break;
829 case DM9KS_DWORD_MODE:
830 tx_ptr += ((skb->len+3)/4)*4;
831 break;
832 }
833 if (tx_ptr > 0x0bff)
834 tx_ptr -= 0x0c00;
835 if (tx_ptr != ((MDWAH1<<8)|MDWAL1))
836 printk("[dm9ks:TX FIFO ERROR\n");
837 #endif
838 /* Saved the time stamp */
839 dev->trans_start = jiffies;
840 db->cont_rx_pkt_cnt =0;
841
842 /* Free this SKB */
843 dev_kfree_skb(skb);
844
845 /* Re-enable interrupt */
846 iow(db, DM9KS_IMR, DM9KS_REGFF);
847
848 return 0;
849 }
850
851 /*
852 Stop the interface.
853 The interface is stopped when it is brought.
854 */
855 static int dmfe_stop(struct net_device *dev)
856 {
857 board_info_t *db = (board_info_t *)dev->priv;
858 DMFE_DBUG(0, "dmfe_stop", 0);
859
860 /* deleted timer */
861 del_timer(&db->timer);
862
863 netif_stop_queue(dev);
864
865 /* free interrupt */
866 free_irq(dev->irq, dev);
867
868 /* RESET devie */
869 phy_write(db, 0x00, 0x8000); /* PHY RESET */
870 //iow(db, DM9KS_GPR, 0x01); /* Power-Down PHY */
871 iow(db, DM9KS_IMR, DM9KS_DISINTR); /* Disable all interrupt */
872 iow(db, DM9KS_RXCR, 0x00); /* Disable RX */
873
874 /* Dump Statistic counter */
875 #if FALSE
876 printk("\nRX FIFO OVERFLOW %lx\n", db->stats.rx_fifo_errors);
877 printk("RX CRC %lx\n", db->stats.rx_crc_errors);
878 printk("RX LEN Err %lx\n", db->stats.rx_length_errors);
879 printk("RESET %x\n", db->reset_counter);
880 printk("RESET: TX Timeout %x\n", db->reset_tx_timeout);
881 printk("g_TX_nsr %x\n", g_TX_nsr);
882 #endif
883
884 return 0;
885 }
886
887 static void dmfe_tx_done(unsigned long unused)
888 {
889 struct net_device *dev = dmfe_dev;
890 board_info_t *db = (board_info_t *)dev->priv;
891 int nsr;
892
893 DMFE_DBUG(0, "dmfe_tx_done()", 0);
894
895 nsr = ior(db, DM9KS_NSR);
896 if (nsr & 0x0c)
897 {
898 if(nsr & 0x04) db->tx_pkt_cnt--;
899 if(nsr & 0x08) db->tx_pkt_cnt--;
900 if(db->tx_pkt_cnt < 0)
901 {
902 printk(KERN_DEBUG "DM9KS:tx_pkt_cnt ERROR!!\n");
903 while(ior(db,DM9KS_TCR) & 0x1){}
904 db->tx_pkt_cnt = 0;
905 }
906
907 }else{
908 while(ior(db,DM9KS_TCR) & 0x1){}
909 db->tx_pkt_cnt = 0;
910 }
911
912 netif_wake_queue(dev);
913
914 return;
915 }
916
917 /*
918 DM9000 insterrupt handler
919 receive the packet to upper layer, free the transmitted packet
920 */
921 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,5,0)
922 static void dmfe_interrupt(int irq, void *dev_id, struct pt_regs *regs)
923 #else
924 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,6,19)
925 static irqreturn_t dmfe_interrupt(int irq, void *dev_id, struct pt_regs *regs)
926 #else
927 static irqreturn_t dmfe_interrupt(int irq, void *dev_id) /* for kernel 2.6.20*/
928 #endif
929 #endif
930 {
931 struct net_device *dev = dev_id;
932 board_info_t *db;
933 int int_status,i;
934 u8 reg_save;
935
936 DMFE_DBUG(0, "dmfe_interrupt()", 0);
937
938 /* A real interrupt coming */
939 db = (board_info_t *)dev->priv;
940 spin_lock(&db->lock);
941
942 /* Save previous register address */
943 reg_save = inb(db->io_addr);
944
945 /* Disable all interrupt */
946 iow(db, DM9KS_IMR, DM9KS_DISINTR);
947
948 /* Got DM9000/DM9010 interrupt status */
949 int_status = ior(db, DM9KS_ISR); /* Got ISR */
950 iow(db, DM9KS_ISR, int_status); /* Clear ISR status */
951
952 /* Link status change */
953 if (int_status & DM9KS_LINK_INTR)
954 {
955 netif_stop_queue(dev);
956 for(i=0; i<500; i++) /*wait link OK, waiting time =0.5s */
957 {
958 phy_read(db,0x1);
959 if(phy_read(db,0x1) & 0x4) /*Link OK*/
960 {
961 /* wait for detected Speed */
962 for(i=0; i<200;i++)
963 udelay(1000);
964 /* set media speed */
965 if(phy_read(db,0)&0x2000) db->Speed =100;
966 else db->Speed =10;
967 break;
968 }
969 udelay(1000);
970 }
971 netif_wake_queue(dev);
972 //printk("[INTR]i=%d speed=%d\n",i, (int)(db->Speed));
973 }
974 /* Received the coming packet */
975 if (int_status & DM9KS_RX_INTR)
976 dmfe_packet_receive(dev);
977
978 /* Trnasmit Interrupt check */
979 if (int_status & DM9KS_TX_INTR)
980 dmfe_tx_done(0);
981
982 if (db->cont_rx_pkt_cnt>=CONT_RX_PKT_CNT)
983 {
984 iow(db, DM9KS_IMR, 0xa2);
985 }
986 else
987 {
988 /* Re-enable interrupt mask */
989 iow(db, DM9KS_IMR, DM9KS_REGFF);
990 }
991
992 /* Restore previous register address */
993 outb(reg_save, db->io_addr);
994
995 spin_unlock(&db->lock);
996 #if LINUX_VERSION_CODE > KERNEL_VERSION(2,5,0)
997 return IRQ_HANDLED;
998 #endif
999 }
1000
1001 /*
1002 Get statistics from driver.
1003 */
1004 static struct net_device_stats * dmfe_get_stats(struct net_device *dev)
1005 {
1006 board_info_t *db = (board_info_t *)dev->priv;
1007 DMFE_DBUG(0, "dmfe_get_stats", 0);
1008 return &db->stats;
1009 }
1010 /*
1011 * Process the ethtool ioctl command
1012 */
1013 static int dmfe_ethtool_ioctl(struct net_device *dev, void *useraddr)
1014 {
1015 //struct dmfe_board_info *db = dev->priv;
1016 struct ethtool_drvinfo info = { ETHTOOL_GDRVINFO };
1017 u32 ethcmd;
1018
1019 if (copy_from_user(ðcmd, useraddr, sizeof(ethcmd)))
1020 return -EFAULT;
1021
1022 switch (ethcmd)
1023 {
1024 case ETHTOOL_GDRVINFO:
1025 strcpy(info.driver, DRV_NAME);
1026 strcpy(info.version, DRV_VERSION);
1027
1028 sprintf(info.bus_info, "ISA 0x%lx %d",dev->base_addr, dev->irq);
1029 if (copy_to_user(useraddr, &info, sizeof(info)))
1030 return -EFAULT;
1031 return 0;
1032 }
1033
1034 return -EOPNOTSUPP;
1035 }
1036 /*
1037 Process the upper socket ioctl command
1038 */
1039 static int dmfe_do_ioctl(struct net_device *dev, struct ifreq *ifr, int cmd)
1040 {
1041 board_info_t *db = (board_info_t *)dev->priv;
1042 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,6,7) /* for kernel 2.6.7 */
1043 struct mii_ioctl_data *data=(struct mii_ioctl_data *)&ifr->ifr_data;
1044 #endif
1045 int rc=0;
1046
1047 DMFE_DBUG(0, "dmfe_do_ioctl()", 0);
1048
1049 if (!netif_running(dev))
1050 return -EINVAL;
1051
1052 if (cmd == SIOCETHTOOL)
1053 rc = dmfe_ethtool_ioctl(dev, (void *) ifr->ifr_data);
1054 else {
1055 spin_lock_irq(&db->lock);
1056 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,6,7) /* for kernel 2.6.7 */
1057 rc = generic_mii_ioctl(&db->mii, data, cmd, NULL);
1058 #else
1059 rc = generic_mii_ioctl(&db->mii, if_mii(ifr), cmd, NULL);
1060 #endif
1061 spin_unlock_irq(&db->lock);
1062 }
1063
1064 return rc;
1065 }
1066
1067 /* Our watchdog timed out. Called by the networking layer */
1068 static void dmfe_timeout(struct net_device *dev)
1069 {
1070 board_info_t *db = (board_info_t *)dev->priv;
1071 int i;
1072
1073 DMFE_DBUG(0, "dmfe_TX_timeout()", 0);
1074 printk("TX time-out -- dmfe_timeout().\n");
1075 db->reset_tx_timeout++;
1076 db->stats.tx_errors++;
1077
1078 #if FALSE
1079 printk("TX packet count = %d\n", db->tx_pkt_cnt);
1080 printk("TX timeout = %d\n", db->reset_tx_timeout);
1081 printk("22H=0x%02x 23H=0x%02x\n",ior(db,0x22),ior(db,0x23));
1082 printk("faH=0x%02x fbH=0x%02x\n",ior(db,0xfa),ior(db,0xfb));
1083 #endif
1084
1085 i=0;
1086
1087 while((i++<100)&&(ior(db,DM9KS_TCR) & 0x01))
1088 {
1089 udelay(30);
1090 }
1091
1092 if(i<100)
1093 {
1094 db->tx_pkt_cnt = 0;
1095 netif_wake_queue(dev);
1096 }
1097 else
1098 {
1099 dmfe_reset(dev);
1100 }
1101
1102 }
1103
1104 static void dmfe_reset(struct net_device * dev)
1105 {
1106 board_info_t *db = (board_info_t *)dev->priv;
1107 u8 reg_save;
1108 int i;
1109 /* Save previous register address */
1110 reg_save = inb(db->io_addr);
1111
1112 netif_stop_queue(dev);
1113 db->reset_counter++;
1114 dmfe_init_dm9000(dev);
1115
1116 db->Speed =10;
1117 for(i=0; i<1000; i++) /*wait link OK, waiting time=1 second */
1118 {
1119 if(phy_read(db,0x1) & 0x4) /*Link OK*/
1120 {
1121 if(phy_read(db,0)&0x2000) db->Speed =100;
1122 else db->Speed =10;
1123 break;
1124 }
1125 udelay(1000);
1126 }
1127
1128 netif_wake_queue(dev);
1129
1130 /* Restore previous register address */
1131 outb(reg_save, db->io_addr);
1132
1133 }
1134 /*
1135 A periodic timer routine
1136 */
1137 static void dmfe_timer(unsigned long data)
1138 {
1139 struct net_device * dev = (struct net_device *)data;
1140 board_info_t *db = (board_info_t *)dev->priv;
1141 DMFE_DBUG(0, "dmfe_timer()", 0);
1142
1143 if (db->cont_rx_pkt_cnt>=CONT_RX_PKT_CNT)
1144 {
1145 db->cont_rx_pkt_cnt=0;
1146 iow(db, DM9KS_IMR, DM9KS_REGFF);
1147 }
1148 /* Set timer again */
1149 db->timer.expires = DMFE_TIMER_WUT;
1150 add_timer(&db->timer);
1151
1152 return;
1153 }
1154
1155
1156 /*
1157 Received a packet and pass to upper layer
1158 */
1159 static void dmfe_packet_receive(struct net_device *dev)
1160 {
1161 board_info_t *db = (board_info_t *)dev->priv;
1162 struct sk_buff *skb;
1163 u8 rxbyte;
1164 u16 i, GoodPacket, tmplen = 0, MDRAH, MDRAL;
1165 u32 tmpdata;
1166
1167 rx_t rx;
1168
1169 u16 * ptr = (u16*)℞
1170 u8* rdptr;
1171
1172 DMFE_DBUG(0, "dmfe_packet_receive()", 0);
1173
1174 db->cont_rx_pkt_cnt=0;
1175
1176 do {
1177 /*store the value of Memory Data Read address register*/
1178 MDRAH=ior(db, DM9KS_MDRAH);
1179 MDRAL=ior(db, DM9KS_MDRAL);
1180
1181 ior(db, DM9KS_MRCMDX); /* Dummy read */
1182 rxbyte = inb(db->io_data); /* Got most updated data */
1183
1184 #ifdef CHECKSUM
1185 if (rxbyte&0x2) /* check RX byte */
1186 {
1187 printk("dm9ks: abnormal!\n");
1188 dmfe_reset(dev);
1189 break;
1190 }else {
1191 if (!(rxbyte&0x1))
1192 break;
1193 }
1194 #else
1195 if (rxbyte==0)
1196 break;
1197
1198 if (rxbyte>1)
1199 {
1200 printk("dm9ks: Rxbyte error!\n");
1201 dmfe_reset(dev);
1202 break;
1203 }
1204 #endif
1205
1206 /* A packet ready now & Get status/length */
1207 GoodPacket = TRUE;
1208 outb(DM9KS_MRCMD, db->io_addr);
1209
1210 /* Read packet status & length */
1211 switch (db->io_mode)
1212 {
1213 case DM9KS_BYTE_MODE:
1214 *ptr = inb(db->io_data) +
1215 (inb(db->io_data) << 8);
1216 *(ptr+1) = inb(db->io_data) +
1217 (inb(db->io_data) << 8);
1218 break;
1219 case DM9KS_WORD_MODE:
1220 *ptr = inw(db->io_data);
1221 *(ptr+1) = inw(db->io_data);
1222 break;
1223 case DM9KS_DWORD_MODE:
1224 tmpdata = inl(db->io_data);
1225 *ptr = tmpdata;
1226 *(ptr+1) = tmpdata >> 16;
1227 break;
1228 default:
1229 break;
1230 }
1231
1232 /* Packet status check */
1233 if (rx.desc.status & 0xbf)
1234 {
1235 GoodPacket = FALSE;
1236 if (rx.desc.status & 0x01)
1237 {
1238 db->stats.rx_fifo_errors++;
1239 printk(KERN_INFO"<RX FIFO error>\n");
1240 }
1241 if (rx.desc.status & 0x02)
1242 {
1243 db->stats.rx_crc_errors++;
1244 printk(KERN_INFO"<RX CRC error>\n");
1245 }
1246 if (rx.desc.status & 0x80)
1247 {
1248 db->stats.rx_length_errors++;
1249 printk(KERN_INFO"<RX Length error>\n");
1250 }
1251 if (rx.desc.status & 0x08)
1252 printk(KERN_INFO"<Physical Layer error>\n");
1253 }
1254
1255 if (!GoodPacket)
1256 {
1257 // drop this packet!!!
1258 switch (db->io_mode)
1259 {
1260 case DM9KS_BYTE_MODE:
1261 for (i=0; i<rx.desc.length; i++)
1262 inb(db->io_data);
1263 break;
1264 case DM9KS_WORD_MODE:
1265 tmplen = (rx.desc.length + 1) / 2;
1266 for (i = 0; i < tmplen; i++)
1267 inw(db->io_data);
1268 break;
1269 case DM9KS_DWORD_MODE:
1270 tmplen = (rx.desc.length + 3) / 4;
1271 for (i = 0; i < tmplen; i++)
1272 inl(db->io_data);
1273 break;
1274 }
1275 continue;/*next the packet*/
1276 }
1277
1278 skb = dev_alloc_skb(rx.desc.length+4);
1279 if (skb == NULL )
1280 {
1281 printk(KERN_INFO "%s: Memory squeeze.\n", dev->name);
1282 /*re-load the value into Memory data read address register*/
1283 iow(db,DM9KS_MDRAH,MDRAH);
1284 iow(db,DM9KS_MDRAL,MDRAL);
1285 return;
1286 }
1287 else
1288 {
1289 /* Move data from DM9000 */
1290 skb->dev = dev;
1291 skb_reserve(skb, 2);
1292 rdptr = (u8*)skb_put(skb, rx.desc.length - 4);
1293
1294 /* Read received packet from RX SARM */
1295 switch (db->io_mode)
1296 {
1297 case DM9KS_BYTE_MODE:
1298 for (i=0; i<rx.desc.length; i++)
1299 rdptr[i]=inb(db->io_data);
1300 break;
1301 case DM9KS_WORD_MODE:
1302 tmplen = (rx.desc.length + 1) / 2;
1303 for (i = 0; i < tmplen; i++)
1304 ((u16 *)rdptr)[i] = inw(db->io_data);
1305 break;
1306 case DM9KS_DWORD_MODE:
1307 tmplen = (rx.desc.length + 3) / 4;
1308 for (i = 0; i < tmplen; i++)
1309 ((u32 *)rdptr)[i] = inl(db->io_data);
1310 break;
1311 }
1312
1313 /* Pass to upper layer */
1314 skb->protocol = eth_type_trans(skb,dev);
1315
1316 #ifdef CHECKSUM
1317 if((rxbyte&0xe0)==0) /* receive packet no checksum fail */
1318 skb->ip_summed = CHECKSUM_UNNECESSARY;
1319 #endif
1320
1321 netif_rx(skb);
1322 dev->last_rx=jiffies;
1323 db->stats.rx_packets++;
1324 db->stats.rx_bytes += rx.desc.length;
1325 db->cont_rx_pkt_cnt++;
1326 #ifdef RDBG /* check RX FIFO pointer */
1327 u16 MDRAH1, MDRAL1;
1328 u16 tmp_ptr;
1329 MDRAH1 = ior(db,DM9KS_MDRAH);
1330 MDRAL1 = ior(db,DM9KS_MDRAL);
1331 tmp_ptr = (MDRAH<<8)|MDRAL;
1332 switch (db->io_mode)
1333 {
1334 case DM9KS_BYTE_MODE:
1335 tmp_ptr += rx.desc.length+4;
1336 break;
1337 case DM9KS_WORD_MODE:
1338 tmp_ptr += ((rx.desc.length+1)/2)*2+4;
1339 break;
1340 case DM9KS_DWORD_MODE:
1341 tmp_ptr += ((rx.desc.length+3)/4)*4+4;
1342 break;
1343 }
1344 if (tmp_ptr >=0x4000)
1345 tmp_ptr = (tmp_ptr - 0x4000) + 0xc00;
1346 if (tmp_ptr != ((MDRAH1<<8)|MDRAL1))
1347 printk("[dm9ks:RX FIFO ERROR\n");
1348 #endif
1349
1350 if (db->cont_rx_pkt_cnt>=CONT_RX_PKT_CNT)
1351 {
1352 dmfe_tx_done(0);
1353 break;
1354 }
1355 }
1356
1357 }while((rxbyte & 0x01) == DM9KS_PKT_RDY);
1358 DMFE_DBUG(0, "[END]dmfe_packet_receive()", 0);
1359
1360 }
1361
1362 /*
1363 Read a word data from SROM
1364 */
1365 static u16 read_srom_word(board_info_t *db, int offset)
1366 {
1367 iow(db, DM9KS_EPAR, offset);
1368 iow(db, DM9KS_EPCR, 0x4);
1369 while(ior(db, DM9KS_EPCR)&0x1); /* Wait read complete */
1370 iow(db, DM9KS_EPCR, 0x0);
1371 return (ior(db, DM9KS_EPDRL) + (ior(db, DM9KS_EPDRH) << 8) );
1372 }
1373
1374 /*
1375 Set DM9000/DM9010 multicast address
1376 */
1377 static void dm9000_hash_table(struct net_device *dev)
1378 {
1379 board_info_t *db = (board_info_t *)dev->priv;
1380 struct dev_mc_list *mcptr = dev->mc_list;
1381 int mc_cnt = dev->mc_count;
1382 u32 hash_val;
1383 u16 i, oft, hash_table[4];
1384
1385 DMFE_DBUG(0, "dm9000_hash_table()", 0);
1386
1387 /* enable promiscuous mode */
1388 if (dev->flags & IFF_PROMISC){
1389 //printk(KERN_INFO "DM9KS:enable promiscuous mode\n");
1390 iow(db, DM9KS_RXCR, ior(db,DM9KS_RXCR)|(1<<1));
1391 return;
1392 }else{
1393 //printk(KERN_INFO "DM9KS:disable promiscuous mode\n");
1394 iow(db, DM9KS_RXCR, ior(db,DM9KS_RXCR)&(~(1<<1)));
1395 }
1396
1397 /* Receive all multicast packets */
1398 if (dev->flags & IFF_ALLMULTI){
1399 //printk(KERN_INFO "DM9KS:Pass all multicast\n");
1400 iow(db, DM9KS_RXCR, ior(db,DM9KS_RXCR)|(1<<3));
1401 }else{
1402 //printk(KERN_INFO "DM9KS:Disable pass all multicast\n");
1403 iow(db, DM9KS_RXCR, ior(db,DM9KS_RXCR)&(~(1<<3)));
1404 }
1405
1406 /* Set Node address */
1407 for (i = 0, oft = 0x10; i < 6; i++, oft++)
1408 iow(db, oft, dev->dev_addr[i]);
1409
1410 /* Clear Hash Table */
1411 for (i = 0; i < 4; i++)
1412 hash_table[i] = 0x0;
1413
1414 /* broadcast address */
1415 hash_table[3] = 0x8000;
1416
1417 /* the multicast address in Hash Table : 64 bits */
1418 for (i = 0; i < mc_cnt; i++, mcptr = mcptr->next) {
1419 hash_val = cal_CRC((char *)mcptr->dmi_addr, 6, 0) & 0x3f;
1420 hash_table[hash_val / 16] |= (u16) 1 << (hash_val % 16);
1421 }
1422
1423 /* Write the hash table to MAC MD table */
1424 for (i = 0, oft = 0x16; i < 4; i++) {
1425 iow(db, oft++, hash_table[i] & 0xff);
1426 iow(db, oft++, (hash_table[i] >> 8) & 0xff);
1427 }
1428 }
1429
1430 /*
1431 Calculate the CRC valude of the Rx packet
1432 flag = 1 : return the reverse CRC (for the received packet CRC)
1433 0 : return the normal CRC (for Hash Table index)
1434 */
1435 static unsigned long cal_CRC(unsigned char * Data, unsigned int Len, u8 flag)
1436 {
1437 u32 crc = ether_crc_le(Len, Data);
1438
1439 if (flag)
1440 return ~crc;
1441
1442 return crc;
1443 }
1444
1445 static int mdio_read(struct net_device *dev, int phy_id, int location)
1446 {
1447 board_info_t *db = (board_info_t *)dev->priv;
1448 return phy_read(db, location);
1449 }
1450
1451 static void mdio_write(struct net_device *dev, int phy_id, int location, int val)
1452 {
1453 board_info_t *db = (board_info_t *)dev->priv;
1454 phy_write(db, location, val);
1455 }
1456
1457 /*
1458 Read a byte from I/O port
1459 */
1460 u8 ior(board_info_t *db, int reg)
1461 {
1462 outb(reg, db->io_addr);
1463 return inb(db->io_data);
1464 }
1465
1466 /*
1467 Write a byte to I/O port
1468 */
1469 void iow(board_info_t *db, int reg, u8 value)
1470 {
1471 outb(reg, db->io_addr);
1472 outb(value, db->io_data);
1473 }
1474
1475 /*
1476 Read a word from phyxcer
1477 */
1478 static u16 phy_read(board_info_t *db, int reg)
1479 {
1480 /* Fill the phyxcer register into REG_0C */
1481 iow(db, DM9KS_EPAR, DM9KS_PHY | reg);
1482
1483 iow(db, DM9KS_EPCR, 0xc); /* Issue phyxcer read command */
1484 while(ior(db, DM9KS_EPCR)&0x1); /* Wait read complete */
1485 iow(db, DM9KS_EPCR, 0x0); /* Clear phyxcer read command */
1486
1487 /* The read data keeps on REG_0D & REG_0E */
1488 return ( ior(db, DM9KS_EPDRH) << 8 ) | ior(db, DM9KS_EPDRL);
1489
1490 }
1491
1492 /*
1493 Write a word to phyxcer
1494 */
1495 static void phy_write(board_info_t *db, int reg, u16 value)
1496 {
1497 /* Fill the phyxcer register into REG_0C */
1498 iow(db, DM9KS_EPAR, DM9KS_PHY | reg);
1499
1500 /* Fill the written data into REG_0D & REG_0E */
1501 iow(db, DM9KS_EPDRL, (value & 0xff));
1502 iow(db, DM9KS_EPDRH, ( (value >> 8) & 0xff));
1503
1504 iow(db, DM9KS_EPCR, 0xa); /* Issue phyxcer write command */
1505 while(ior(db, DM9KS_EPCR)&0x1); /* Wait read complete */
1506 iow(db, DM9KS_EPCR, 0x0); /* Clear phyxcer write command */
1507 }
1508 //====dmfe_ethtool_ops member functions====
1509 static void dmfe_get_drvinfo(struct net_device *dev,
1510 struct ethtool_drvinfo *info)
1511 {
1512 //board_info_t *db = (board_info_t *)dev->priv;
1513 strcpy(info->driver, DRV_NAME);
1514 strcpy(info->version, DRV_VERSION);
1515 sprintf(info->bus_info, "ISA 0x%lx irq=%d",dev->base_addr, dev->irq);
1516 }
1517 static int dmfe_get_settings(struct net_device *dev, struct ethtool_cmd *cmd)
1518 {
1519 board_info_t *db = (board_info_t *)dev->priv;
1520 spin_lock_irq(&db->lock);
1521 mii_ethtool_gset(&db->mii, cmd);
1522 spin_unlock_irq(&db->lock);
1523 return 0;
1524 }
1525 static int dmfe_set_settings(struct net_device *dev, struct ethtool_cmd *cmd)
1526 {
1527 board_info_t *db = (board_info_t *)dev->priv;
1528 int rc;
1529
1530 spin_lock_irq(&db->lock);
1531 rc = mii_ethtool_sset(&db->mii, cmd);
1532 spin_unlock_irq(&db->lock);
1533 return rc;
1534 }
1535 /*
1536 * Check the link state
1537 */
1538 static u32 dmfe_get_link(struct net_device *dev)
1539 {
1540 board_info_t *db = (board_info_t *)dev->priv;
1541 return mii_link_ok(&db->mii);
1542 }
1543
1544 /*
1545 * Reset Auto-negitiation
1546 */
1547 static int dmfe_nway_reset(struct net_device *dev)
1548 {
1549 board_info_t *db = (board_info_t *)dev->priv;
1550 return mii_nway_restart(&db->mii);
1551 }
1552 /*
1553 * Get RX checksum offload state
1554 */
1555 static uint32_t dmfe_get_rx_csum(struct net_device *dev)
1556 {
1557 board_info_t *db = (board_info_t *)dev->priv;
1558 return db->rx_csum;
1559 }
1560 /*
1561 * Get TX checksum offload state
1562 */
1563 static uint32_t dmfe_get_tx_csum(struct net_device *dev)
1564 {
1565 return (dev->features & NETIF_F_HW_CSUM) != 0;
1566 }
1567 /*
1568 * Enable/Disable RX checksum offload
1569 */
1570 static int dmfe_set_rx_csum(struct net_device *dev, uint32_t data)
1571 {
1572 #ifdef CHECKSUM
1573 board_info_t *db = (board_info_t *)dev->priv;
1574 db->rx_csum = data;
1575
1576 if(netif_running(dev)) {
1577 dmfe_stop(dev);
1578 dmfe_open(dev);
1579 } else
1580 dmfe_init_dm9000(dev);
1581 #else
1582 printk(KERN_ERR "DM9:Don't support checksum\n");
1583 #endif
1584 return 0;
1585 }
1586 /*
1587 * Enable/Disable TX checksum offload
1588 */
1589 static int dmfe_set_tx_csum(struct net_device *dev, uint32_t data)
1590 {
1591 #ifdef CHECKSUM
1592 if (data)
1593 dev->features |= NETIF_F_HW_CSUM;
1594 else
1595 dev->features &= ~NETIF_F_HW_CSUM;
1596 #else
1597 printk(KERN_ERR "DM9:Don't support checksum\n");
1598 #endif
1599
1600 return 0;
1601 }
1602 //=========================================
1603 #if LINUX_VERSION_CODE >= KERNEL_VERSION(2,4,28) /* for kernel 2.4.28 */
1604 static struct ethtool_ops dmfe_ethtool_ops = {
1605 .get_drvinfo = dmfe_get_drvinfo,
1606 .get_settings = dmfe_get_settings,
1607 .set_settings = dmfe_set_settings,
1608 .get_link = dmfe_get_link,
1609 .nway_reset = dmfe_nway_reset,
1610 .get_rx_csum = dmfe_get_rx_csum,
1611 .set_rx_csum = dmfe_set_rx_csum,
1612 .get_tx_csum = dmfe_get_tx_csum,
1613 .set_tx_csum = dmfe_set_tx_csum,
1614 };
1615 #endif
1616
1617 //#ifdef MODULE
1618
1619 MODULE_LICENSE("GPL");
1620 MODULE_DESCRIPTION("Davicom DM9000/DM9010 ISA/uP Fast Ethernet Driver");
1621 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,5,0)
1622 MODULE_PARM(mode, "i");
1623 MODULE_PARM(irq, "i");
1624 MODULE_PARM(iobase, "i");
1625 #else
1626 module_param(mode, int, 0);
1627 module_param(irq, int, 0);
1628 module_param(iobase, int, 0);
1629 #endif
1630 MODULE_PARM_DESC(mode,"Media Speed, 0:10MHD, 1:10MFD, 4:100MHD, 5:100MFD");
1631 MODULE_PARM_DESC(irq,"EtherLink IRQ number");
1632 MODULE_PARM_DESC(iobase, "EtherLink I/O base address");
1633
1634 /* Description:
1635 when user used insmod to add module, system invoked init_module()
1636 to initilize and register.
1637 */
1638 int __init dm9000c_init(void)
1639 {
1640 volatile unsigned long *bwscon; // 0x48000000
1641 volatile unsigned long *bankcon4; // 0x48000014
1642 unsigned long val;
1643
1644 iobase = (int)ioremap(0x20000000,1024); /* 添加内存映射 */
1645
1646 //2440使用的中断引脚为外部中断7，此处我们设置中断号
1647 irq = IRQ_EINT7;
1648
1649 /* 设置S3C2440的memory controller */
1650 bwscon = ioremap(0x48000000, 4);
1651 bankcon4 = ioremap(0x48000014, 4);
1652
1653 /* DW4[17:16]: 01-16bit
1654 * WS4[18] : 0-WAIT disable
1655 * ST4[19] : 0 = Not using UB/LB (The pins are dedicated nWBE[3:0])
1656 */
1657 val = *bwscon;
1658 val &= ~(0xf<<16);
1659 val |= (1<<16);
1660 *bwscon = val;
1661
1662 /*
1663 * Tacs[14:13]: 发出片选信号之前,多长时间内要先发出地址信号
1664 * DM9000C的片选信号和CMD信号可以同时发出,
1665 * 所以它设为0
1666 * Tcos[12:11]: 发出片选信号之后,多长时间才能发出读信号nOE
1667 * DM9000C的T1>=0ns,
1668 * 所以它设为0
1669 * Tacc[10:8] : 读写信号的脉冲长度,
1670 * DM9000C的T2>=10ns,
1671 * 所以它设为1, 表示2个hclk周期,hclk=100MHz,就是20ns
1672 * Tcoh[7:6] : 当读信号nOE变为高电平后,片选信号还要维持多长时间
1673 * DM9000C进行写操作时, nWE变为高电平之后, 数据线上的数据还要维持最少3ns
1674 * DM9000C进行读操作时, nOE变为高电平之后, 数据线上的数据在6ns之内会消失
1675 * 我们取一个宽松值: 让片选信号在nOE放为高电平后,再维持10ns,
1676 * 所以设为01
1677 * Tcah[5:4] : 当片选信号变为高电平后, 地址信号还要维持多长时间
1678 * DM9000C的片选信号和CMD信号可以同时出现,同时消失
1679 * 所以设为0
1680 * PMC[1:0] : 00-正常模式
1681 *
1682 */
1683 //*bankcon4 = (1<<8)|(1<<6); /* 对于DM9000C可以设Tacc为1, 对于DM9000E,Tacc要设大一点,比如最大值7 */
1684 *bankcon4 = (7<<8)|(1<<6); /* TQ2440和MINI2440使用DM9000E,Tacc要设大一点 正常来说1也可以 */
1685
1686 iounmap(bwscon);
1687 iounmap(bankcon4);
1688
1689
1690 switch(mode) {
1691 case DM9KS_10MHD:
1692 case DM9KS_100MHD:
1693 case DM9KS_10MFD:
1694 case DM9KS_100MFD:
1695 media_mode = mode;
1696 break;
1697 default:
1698 media_mode = DM9KS_AUTO;
1699 }
1700 dmfe_dev = dmfe_probe();
1701 if(IS_ERR(dmfe_dev))
1702 return PTR_ERR(dmfe_dev);
1703 return 0;
1704 }
1705 /* Description:
1706 when user used rmmod to delete module, system invoked clean_module()
1707 to un-register DEVICE.
1708 */
1709 void __exit dm9000c_exit(void)
1710 {
1711 struct net_device *dev = dmfe_dev;
1712 DMFE_DBUG(0, "clean_module()", 0);
1713
1714 unregister_netdev(dmfe_dev);
1715 release_region(dev->base_addr, 2);
1716 #if LINUX_VERSION_CODE < KERNEL_VERSION(2,5,0)
1717 kfree(dev);
1718 #else
1719 free_netdev(dev);
1720 #endif
1721 iounmap((void *)iobase);
1722 DMFE_DBUG(0, "clean_module() exit", 0);
1723 }
1724
1725 module_init(dm9000c_init);
1726 module_exit(dm9000c_exit);
1727
1728 //#endif
1729
1730
1731 /*
1732
1733 1把文件放入内核的drivers/net目录下
1734 2修改drivers/net/Makefile
1735 3把 obj-$(CONFIG_DM9000) += dm9000.o
1736 改为obj-$(CONFIG_DM9000) += dm9dev9000c.o
1737 4使用网络文件系统启动的话，说明已经能用了
1738
1739 不用网络文件系统的话，
1740 就 ifconfig eth0 xxx.xxx.xxx.xxx
1741 ping xxx.xxx.xxx.xxn
1742
1743 */
308
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
