SpringSecurity短信验证码登录

短信验证码登录

时下另一种非常常见的网站登录方式为手机短信验证码登录，但Spring Security默认只提供了账号密码的登录认证逻辑，所以要实现手机短信验证码登录认证功能，我们需要模仿Spring Security账号密码登录逻辑代码来实现一套自己的认证逻辑。

短信验证码生成

我们先定义一个短信验证码对象SmsCode ：

public class SmsCode {
    private String code;
    private LocalDateTime expireTime;

    public SmsCode(String code, int expireIn) {
        this.code = code;
        this.expireTime = LocalDateTime.now().plusSeconds(expireIn);
    }

    public SmsCode(String code, LocalDateTime expireTime) {
        this.code = code;
        this.expireTime = expireTime;
    }

    boolean isExpire() {
        return LocalDateTime.now().isAfter(expireTime);
    }
    // get,set略
}

接着在ValidateCodeController中加入生成短信验证码相关请求对应的方法：

@RestController
public class ValidateController {

    public final static String SESSION_KEY_SMS_CODE = "SESSION_KEY_SMS_CODE";

    private SessionStrategy sessionStrategy = new HttpSessionSessionStrategy();

    @GetMapping("/code/sms")
    public void createSmsCode(HttpServletRequest request, HttpServletResponse response, String mobile) throws IOException {
        SmsCode smsCode = createSMSCode();
        sessionStrategy.setAttribute(new ServletWebRequest(request), SESSION_KEY_SMS_CODE + mobile, smsCode);
        // 输出验证码到控制台代替短信发送服务
        System.out.println("您的登录验证码为：" + smsCode.getCode() + "，有效时间为60秒");
    }

    private SmsCode createSMSCode() {
        String code = RandomStringUtils.randomNumeric(6);
        return new SmsCode(code, 60);
    }
}

这里我们使用createSMSCode方法生成了一个6位的纯数字随机数，有效时间为60秒。然后通过SessionStrategy对象的setAttribute方法将短信验证码保存到了Session中，对应的key为SESSION_KEY_SMS_CODE。

我们需要在Spring Security中配置/code/sms路径免验证：

@Override
protected void configure(HttpSecurity http) throws Exception {

    http.addFilterBefore(validateCodeFilter, UsernamePasswordAuthenticationFilter.class) // 添加验证码校验过滤器
            .formLogin() // 表单登录
                // http.httpBasic() // HTTP Basic
                .loginPage("/authentication/require") // 登录跳转 URL
                .loginProcessingUrl("/login") // 处理表单登录 URL
                .successHandler(authenticationSucessHandler) // 处理登录成功
                .failureHandler(authenticationFailureHandler) // 处理登录失败
            .and()
                .authorizeRequests() // 授权配置
                .antMatchers("/authentication/require",
                        "/login.html", "/code/image","/code/sms").permitAll() // 无需认证的请求路径
                .anyRequest()  // 所有请求
                .authenticated() // 都需要认证
            .and()
                .csrf().disable();
}

改造登录页

我们在登录页面中加入一个与手机短信验证码认证相关的Form表单：

<form class="login-page" action="/login/mobile" method="post">
    <div class="form">
        <h3>短信验证码登录</h3>
        <input type="text" placeholder="手机号" name="mobile" value="17777777777" required="required"/>
        <span style="display: inline">
            <input type="text" name="smsCode" placeholder="短信验证码" style="width: 50%;"/>
            <a href="/code/sms?mobile=17777777777">发送验证码</a>
        </span>
        <button type="submit">登录</button>
    </div>
</form>

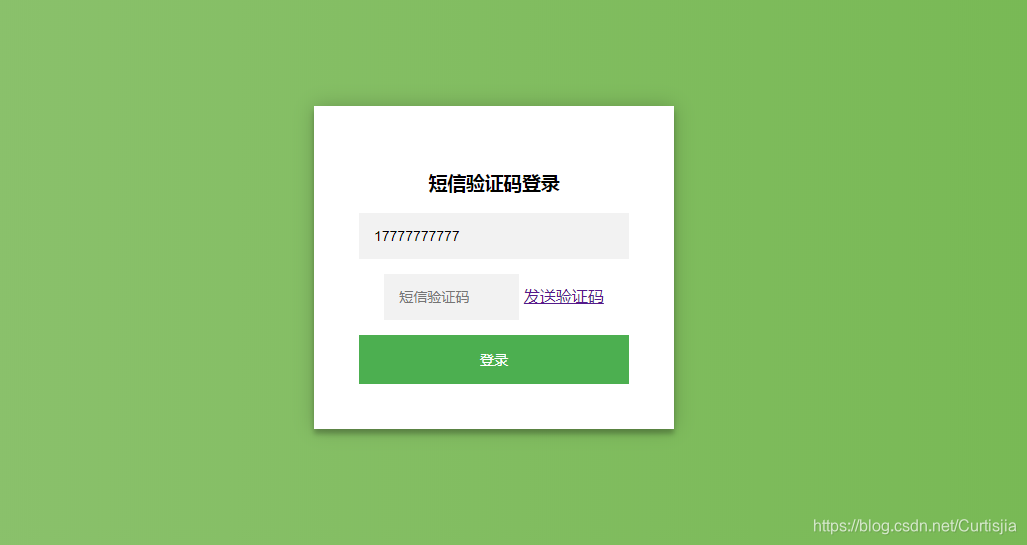

如图：

控制台：

您的登录验证码为：875067，有效时间为60秒

添加短信验证码认证

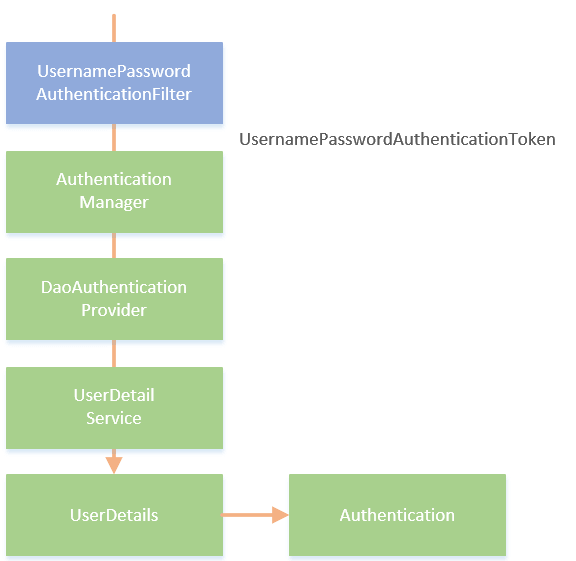

在Spring Security中，使用用户名密码认证的过程大致如下图所示：

Spring Security使用UsernamePasswordAuthenticationFilter过滤器来拦截用户名密码认证请求，将用户名和密码封装成一个UsernamePasswordToken对象交给AuthenticationManager处理。AuthenticationManager将挑出一个支持处理该类型Token的AuthenticationProvider（这里为DaoAuthenticationProvider，AuthenticationProvider的其中一个实现类）来进行认证，认证过程中DaoAuthenticationProvider将调用UserDetailService的loadUserByUsername方法来处理认证，如果认证通过（即UsernamePasswordToken中的用户名和密码相符）则返回一个UserDetails类型对象，并将认证信息保存到Session中，认证后我们便可以通过Authentication对象获取到认证的信息了。

一、定义SmsAuthenticationToken

查看UsernamePasswordAuthenticationToken的源码，将其复制出来重命名为SmsAuthenticationToken，并稍作修改，修改后的代码如下所示：

public class SmsAuthenticationToken extends AbstractAuthenticationToken {

    private static final long serialVersionUID = SpringSecurityCoreVersion.SERIAL_VERSION_UID;

    private final Object principal;

    public SmsAuthenticationToken(String mobile) {
        super(null);
        this.principal = mobile;
        setAuthenticated(false);
    }

    public SmsAuthenticationToken(Object principal, Collection<? extends GrantedAuthority> authorities) {
        super(authorities);
        this.principal = principal;
        super.setAuthenticated(true); // must use super, as we override
    }

    @Override
    public Object getCredentials() {
        return null;
    }

    public Object getPrincipal() {
        return this.principal;
    }

    public void setAuthenticated(boolean isAuthenticated) throws IllegalArgumentException {
        if (isAuthenticated) {
            throw new IllegalArgumentException(
                    "Cannot set this token to trusted - use constructor which takes a GrantedAuthority list instead");
        }
        super.setAuthenticated(false);
    }

    @Override
    public void eraseCredentials() {
        super.eraseCredentials();
    }
}

二、定义SmsAuthenticationFilter

定义完SmsAuthenticationToken后，我们接着定义用于处理短信验证码登录请求的过滤器SmsAuthenticationFilter，同样的复制UsernamePasswordAuthenticationFilter源码并稍作修改：

public class SmsAuthenticationFilter extends AbstractAuthenticationProcessingFilter {

    public static final String MOBILE_KEY = "mobile";

    private String mobileParameter = MOBILE_KEY;
    private boolean postOnly = true;


    public SmsAuthenticationFilter() {
        super(new AntPathRequestMatcher("/login/mobile", "POST"));
    }


    public Authentication attemptAuthentication(HttpServletRequest request,
                                                HttpServletResponse response) throws AuthenticationException {
        if (postOnly && !request.getMethod().equals("POST")) {
            throw new AuthenticationServiceException(
                    "Authentication method not supported: " + request.getMethod());
        }
        String mobile = obtainMobile(request);

        if (mobile == null) {
            mobile = "";
        }

        mobile = mobile.trim();

        SmsAuthenticationToken authRequest = new SmsAuthenticationToken(mobile);

        setDetails(request, authRequest);

        return this.getAuthenticationManager().authenticate(authRequest);
    }

    protected String obtainMobile(HttpServletRequest request) {
        return request.getParameter(mobileParameter);
    }

    protected void setDetails(HttpServletRequest request,
                              SmsAuthenticationToken authRequest) {
        authRequest.setDetails(authenticationDetailsSource.buildDetails(request));
    }

    public void setMobileParameter(String mobileParameter) {
        Assert.hasText(mobileParameter, "mobile parameter must not be empty or null");
        this.mobileParameter = mobileParameter;
    }

    public void setPostOnly(boolean postOnly) {
        this.postOnly = postOnly;
    }

    public final String getMobileParameter() {
        return mobileParameter;
    }
}

构造函数中指定了当请求为/login/mobile，请求方法为POST的时候该过滤器生效。mobileParameter属性值为mobile，对应登录页面手机号输入框的name属性。attemptAuthentication方法从请求中获取到mobile参数值，并调用SmsAuthenticationToken的SmsAuthenticationToken(String mobile)构造方法创建了一个SmsAuthenticationToken。下一步就如流程图中所示的那样，SmsAuthenticationFilter将SmsAuthenticationToken交给AuthenticationManager处理。

三、定义SmsAuthenticationProvider

在创建完SmsAuthenticationFilter后，我们需要创建一个支持处理该类型Token的类，即SmsAuthenticationProvider，该类需要实现AuthenticationProvider的两个抽象方法：

public class SmsAuthenticationProvider implements AuthenticationProvider {

    private UserDetailService userDetailService;

    @Override
    public Authentication authenticate(Authentication authentication) throws AuthenticationException {
        SmsAuthenticationToken authenticationToken = (SmsAuthenticationToken) authentication;
        UserDetails userDetails = userDetailService.loadUserByUsername((String) authenticationToken.getPrincipal());

        if (userDetails == null)
            throw new InternalAuthenticationServiceException("未找到与该手机号对应的用户");

        SmsAuthenticationToken authenticationResult = new SmsAuthenticationToken(userDetails, userDetails.getAuthorities());

        authenticationResult.setDetails(authenticationToken.getDetails());

        return authenticationResult;
    }

    @Override
    public boolean supports(Class<?> aClass) {
        return SmsAuthenticationToken.class.isAssignableFrom(aClass);
    }

    public UserDetailService getUserDetailService() {
        return userDetailService;
    }

    public void setUserDetailService(UserDetailService userDetailService) {
        this.userDetailService = userDetailService;
    }
}

其中supports方法指定了支持处理的Token类型为SmsAuthenticationToken，authenticate方法用于编写具体的身份认证逻辑。在authenticate方法中，我们从SmsAuthenticationToken中取出了手机号信息，并调用了UserDetailService的loadUserByUsername方法。该方法在用户名密码类型的认证中，主要逻辑是通过用户名查询用户信息，如果存在该用户并且密码一致则认证成功；而在短信验证码认证的过程中，该方法需要通过手机号去查询用户，如果存在该用户则认证通过。认证通过后接着调用SmsAuthenticationToken的SmsAuthenticationToken(Object principal, Collection authorities)构造函数构造一个认证通过的Token，包含了用户信息和用户权限。

你可能会问，为什么这一步没有进行短信验证码的校验呢？实际上短信验证码的校验是在SmsAuthenticationFilter之前完成的，即只有当短信验证码正确以后才开始走认证的流程。所以接下来我们需要定一个过滤器来校验短信验证码的正确性。

四、定义SmsCodeFilter

package com.jcl.security.filter;

import com.jcl.security.controller.ValidateController;
import com.jcl.security.domain.SmsCode;
import com.jcl.security.exception.ValidateCodeException;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.web.authentication.AuthenticationFailureHandler;
import org.springframework.social.connect.web.HttpSessionSessionStrategy;
import org.springframework.social.connect.web.SessionStrategy;
import org.springframework.stereotype.Component;
import org.springframework.web.bind.ServletRequestBindingException;
import org.springframework.web.bind.ServletRequestUtils;
import org.springframework.web.context.request.ServletWebRequest;
import org.springframework.web.filter.OncePerRequestFilter;

import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

/**
 * @author 朝花不迟暮
 * @version 1.0
 * @date 2020/10/30 10:03
 */
@Component
public class SmsCodeFilter extends OncePerRequestFilter
{
    @Autowired
    private AuthenticationFailureHandler authenticationFailureHandler;

    private SessionStrategy sessionStrategy = new HttpSessionSessionStrategy();

    @Override
    protected void doFilterInternal(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, FilterChain filterChain) throws ServletException, IOException
    {
        if (StringUtils.equalsIgnoreCase("/login/mobile", httpServletRequest.getRequestURI())
                && StringUtils.equalsIgnoreCase(httpServletRequest.getMethod(), "post")) {
            try {
                validateCode(new ServletWebRequest(httpServletRequest));
            } catch (ValidateCodeException e) {
                authenticationFailureHandler.onAuthenticationFailure(httpServletRequest, httpServletResponse, e);
                return;
            }
        }
        filterChain.doFilter(httpServletRequest, httpServletResponse);
    }

    private void validateCode(ServletWebRequest servletWebRequest) throws ServletRequestBindingException
    {
        String smsCodeInRequest = ServletRequestUtils.getStringParameter(servletWebRequest.getRequest(), "smsCode");
        String mobileInRequest = ServletRequestUtils.getStringParameter(servletWebRequest.getRequest(), "mobile");

        SmsCode codeInSession = (SmsCode) sessionStrategy.getAttribute(servletWebRequest, ValidateController.SESSION_KEY_SMS_CODE + mobileInRequest);

        if (StringUtils.isBlank(smsCodeInRequest)) {
            throw new ValidateCodeException("短信验证码不能为空！");
        }
        if (codeInSession == null) {
            throw new ValidateCodeException("短信验证码不存在！");
        }
        if (codeInSession.isExpire()) {
            sessionStrategy.removeAttribute(servletWebRequest, ValidateController.SESSION_KEY_IMAGE_CODE);
            throw new ValidateCodeException("短信验证码已过期！");
        }
        if (!StringUtils.equalsIgnoreCase(codeInSession.getCode(), smsCodeInRequest)) {
            throw new ValidateCodeException("短信验证码不正确！");
        }
        sessionStrategy.removeAttribute(servletWebRequest, ValidateController.SESSION_KEY_IMAGE_CODE);

    }
}

五、配置生效

在定义完所需的组件后，我们需要进行一些配置，将这些组件组合起来形成一个和上面流程图对应的流程。创建一个配置类SmsAuthenticationConfig：

@Component
public class SmsAuthenticationConfig extends SecurityConfigurerAdapter<DefaultSecurityFilterChain, HttpSecurity> {

    @Autowired
    private AuthenticationSuccessHandler authenticationSuccessHandler;

    @Autowired
    private AuthenticationFailureHandler authenticationFailureHandler;

    @Autowired
    private UserDetailService userDetailService;

    @Override
    public void configure(HttpSecurity http) throws Exception {
        SmsAuthenticationFilter smsAuthenticationFilter = new SmsAuthenticationFilter();
        smsAuthenticationFilter.setAuthenticationManager(http.getSharedObject(AuthenticationManager.class));
        smsAuthenticationFilter.setAuthenticationSuccessHandler(authenticationSuccessHandler);
        smsAuthenticationFilter.setAuthenticationFailureHandler(authenticationFailureHandler);

        SmsAuthenticationProvider smsAuthenticationProvider = new SmsAuthenticationProvider();
        smsAuthenticationProvider.setUserDetailService(userDetailService);

        http.authenticationProvider(smsAuthenticationProvider)
                .addFilterAfter(smsAuthenticationFilter, UsernamePasswordAuthenticationFilter.class);

    }
}

在流程中第一步需要配置SmsAuthenticationFilter，分别设置了AuthenticationManager、AuthenticationSuccessHandler和AuthenticationFailureHandler属性。这些属性都是来自SmsAuthenticationFilter继承的AbstractAuthenticationProcessingFilter类中。

第二步配置SmsAuthenticationProvider，这一步只需要将我们自个的UserDetailService注入进来即可。

最后调用HttpSecurity的authenticationProvider方法指定了AuthenticationProvider为SmsAuthenticationProvider，并将SmsAuthenticationFilter过滤器添加到了UsernamePasswordAuthenticationFilter后面。

到这里我们已经将短信验证码认证的各个组件组合起来了，最后一步需要做的是配置短信验证码校验过滤器，并且将短信验证码认证流程加入到Spring Security中。在BrowserSecurityConfig的configure方法中添加如下配置：

@Configuration
public class BrowserSecurityConfig extends WebSecurityConfigurerAdapter {

    @Autowired
    private MyAuthenticationSucessHandler authenticationSucessHandler;

    @Autowired
    private MyAuthenticationFailureHandler authenticationFailureHandler;

    @Autowired
    private ValidateCodeFilter validateCodeFilter;

    @Autowired
    private SmsCodeFilter smsCodeFilter;

    @Autowired
    private SmsAuthenticationConfig smsAuthenticationConfig;

    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {

        http.addFilterBefore(validateCodeFilter, UsernamePasswordAuthenticationFilter.class) // 添加验证码校验过滤器
            .addFilterBefore(smsCodeFilter, UsernamePasswordAuthenticationFilter.class) // 添加短信验证码校验过滤器
                .formLogin() // 表单登录
                    // http.httpBasic() // HTTP Basic
                    .loginPage("/authentication/require") // 登录跳转 URL
                    .loginProcessingUrl("/login") // 处理表单登录 URL
                    .successHandler(authenticationSucessHandler) // 处理登录成功
                    .failureHandler(authenticationFailureHandler) // 处理登录失败
                .and()
                    .authorizeRequests() // 授权配置
                    .antMatchers("/authentication/require",
                            "/login.html",
                            "/code/image","/code/sms").permitAll() // 无需认证的请求路径
                    .anyRequest()  // 所有请求
                    .authenticated() // 都需要认证
                .and()
                    .csrf().disable()
                .apply(smsAuthenticationConfig); // 将短信验证码认证配置加到 Spring Security 中
    }
}

重启项目，访问http://localhost:8080/login.html，点击发送验证码，控制台输出如下：
