Linux安装gnuplot5.4.2

最新推荐文章于 2025-03-23 11:47:21 发布

已无测试机

最新推荐文章于 2025-03-23 11:47:21 发布

阅读量2.6k

点赞数 2

文章标签： linux

本文链接：https://blog.csdn.net/DDJ_TEST/article/details/120261535

版权

本文档详述了如何在Linux环境下下载、安装gnuplot 5.4.2，并通过配置和编译步骤完成安装。在安装过程中遇到终端类型为'unknown'的问题，通过设置终端为'dumb'解决了问题，最终成功运行并展示了sin(x)的图形。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

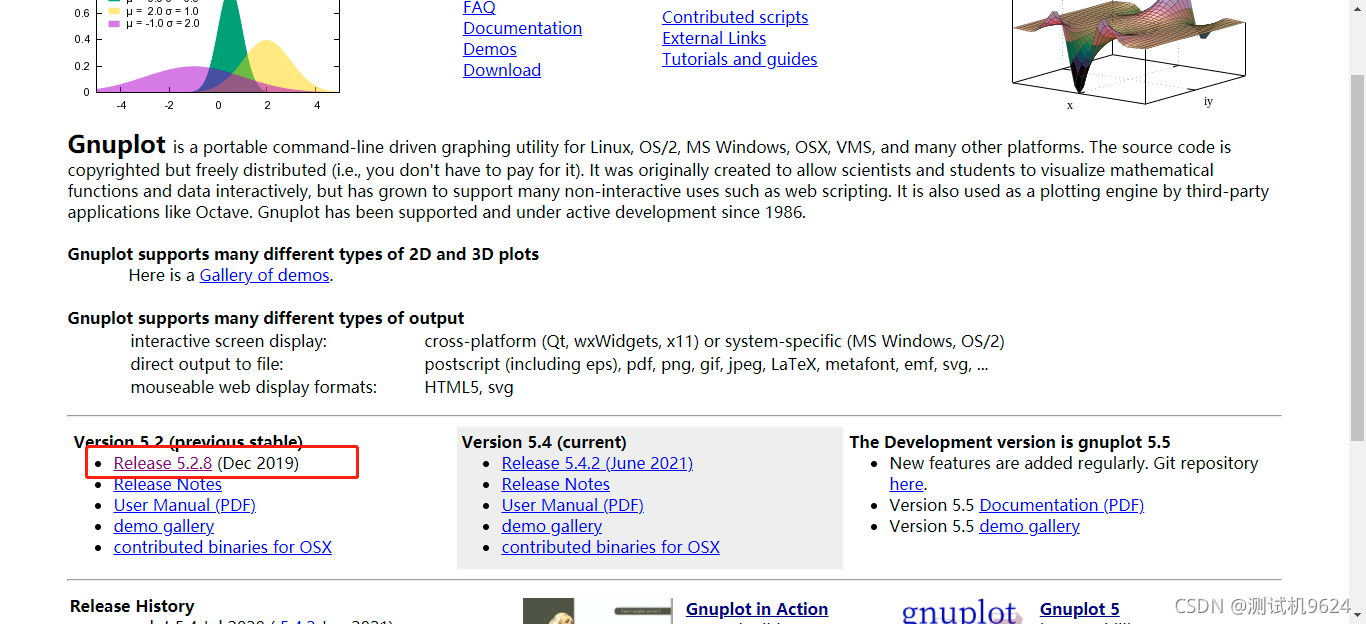

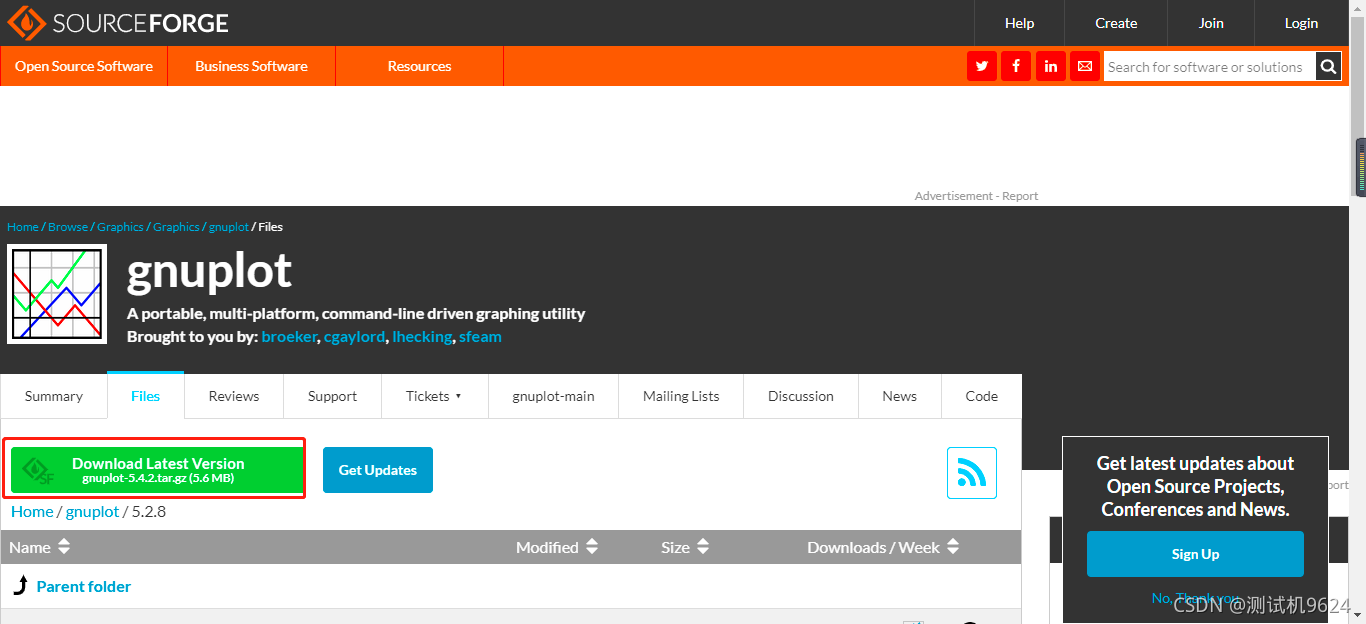

一、下载gnuplot

http://www.gnuplot.info/
在这里插入图片描述

二、将下载完的 gnuplot-5.4.2.tar.gz上传到Linux并解压

[root@WzcWyt wyt]# ll
-rw-r--r--  1 root root    5640202 Sep 13 10:12 gnuplot-5.4.2.tar.gz
[root@WzcWyt wyt]# tar -zxvf gnuplot-5.4.2.tar.gz
[root@WzcWyt wyt]# ll
drwxr-xr-x 11 2505 users      4096 May 29 13:55 gnuplot-5.4.2
-rw-r--r--  1 root root    5640202 Sep 13 10:12 gnuplot-5.4.2.tar.gz

三、进入gnuplot-5.4.2安装

[root@WzcWyt wyt]# cd gnuplot-5.4.2/
# 配置安装路径
[root@WzcWyt gnuplot-5.4.2]# ./configure
# 编译
[root@WzcWyt gnuplot-5.4.2]# make
# 安装
[root@WzcWyt gnuplot-5.4.2]# make install

四、安装成功

[root@WzcWyt ~]# gnuplot -e "set terminal dumb;plot sin(x)"


    1 +--------------------------------------------------------------------+
      |                *  *              +  *  **         +       *  *     |
  0.8 |-+             *   *                 *    *          sin(x* *******-|
      |              *     *                *    *               *    *    |
  0.6 |-+            *      *              *     *               *     * +-|
      |              *      *             *       *             *       *  |
  0.4 |*+            *      *             *       *             *       *+-|
      |*            *        *            *        *           *        *  |
  0.2 |*+           *        *            *        *           *        *+-|
      | *          *          *          *         *          *          * |
    0 |-*          *          *          *         *          *          *-|
      |  *         *          *         *           *         *           *|
 -0.2 |-+*         *          *         *           *         *          +*|
      |  *        *            *       *             *       *            *|
 -0.4 |-+*        *            *       *             *       *           +*|
      |   *      *              *      *             *      *              |
 -0.6 |-+ *     *               *     *              *      *            +-|
      |    *    *               *     *               *     *              |
 -0.8 |-+   *   *                *   *                 *   *             +-|
      |     *  *       +         **  *   +             *  *                |
   -1 +--------------------------------------------------------------------+
     -10              -5                 0                5                10

[root@WzcWyt ~]#

遇见问题

[root@WzcWyt wyt]# gnuplot

        G N U P L O T
        Version 5.4 patchlevel 2    last modified 2021-06-01

        Copyright (C) 1986-1993, 1998, 2004, 2007-2021
        Thomas Williams, Colin Kelley and many others

        gnuplot home:     http://www.gnuplot.info
        faq, bugs, etc:   type "help FAQ"
        immediate help:   type "help"  (plot window: hit 'h')

Terminal type is now 'unknown'
gnuplot> plot sin(x)
WARNING: Plotting with an 'unknown' terminal.
No output will be generated. Please select a terminal with 'set terminal'.

# 解决办法：设置终端dumb
gnuplot> set terminal dumb

Terminal type is now 'dumb'
Options are 'feed  size 79, 24 aspect 2, 1 mono'
gnuplot> plot sin(x)


    1 +--------------------------------------------------------------------+
      |                *  *              +  *  **         +       *  *     |
  0.8 |-+             *   *                 *    *          sin(x* *******-|
      |              *     *                *    *               *    *    |
  0.6 |-+            *      *              *     *               *     * +-|
      |              *      *             *       *             *       *  |
  0.4 |*+            *      *             *       *             *       *+-|
      |*            *        *            *        *           *        *  |
  0.2 |*+           *        *            *        *           *        *+-|
      | *          *          *          *         *          *          * |
    0 |-*          *          *          *         *          *          *-|
      |  *         *          *         *           *         *           *|
 -0.2 |-+*         *          *         *           *         *          +*|
      |  *        *            *       *             *       *            *|
 -0.4 |-+*        *            *       *             *       *           +*|
      |   *      *              *      *             *      *              |
 -0.6 |-+ *     *               *     *              *      *            +-|
      |    *    *               *     *               *     *              |
 -0.8 |-+   *   *                *   *                 *   *             +-|
      |     *  *       +         **  *   +             *  *                |
   -1 +--------------------------------------------------------------------+
     -10              -5                 0                5                10

# 退出
gnuplot> q
[root@WzcWyt wyt]#
