安卓开发
Base on : https://www.bilibili.com/video/BV1Rt411e76H?p=7
1、Android开发概述
2、UI组件
2.1 布局管理器
线性布局(LinearLayout)
常用属性
android:id
id
android:layout_width
宽度
android:layout_height
高度
android:backgroud
背景
android:layout_margin
内边距
android:layout_padding
外边距
android:orientation
方向

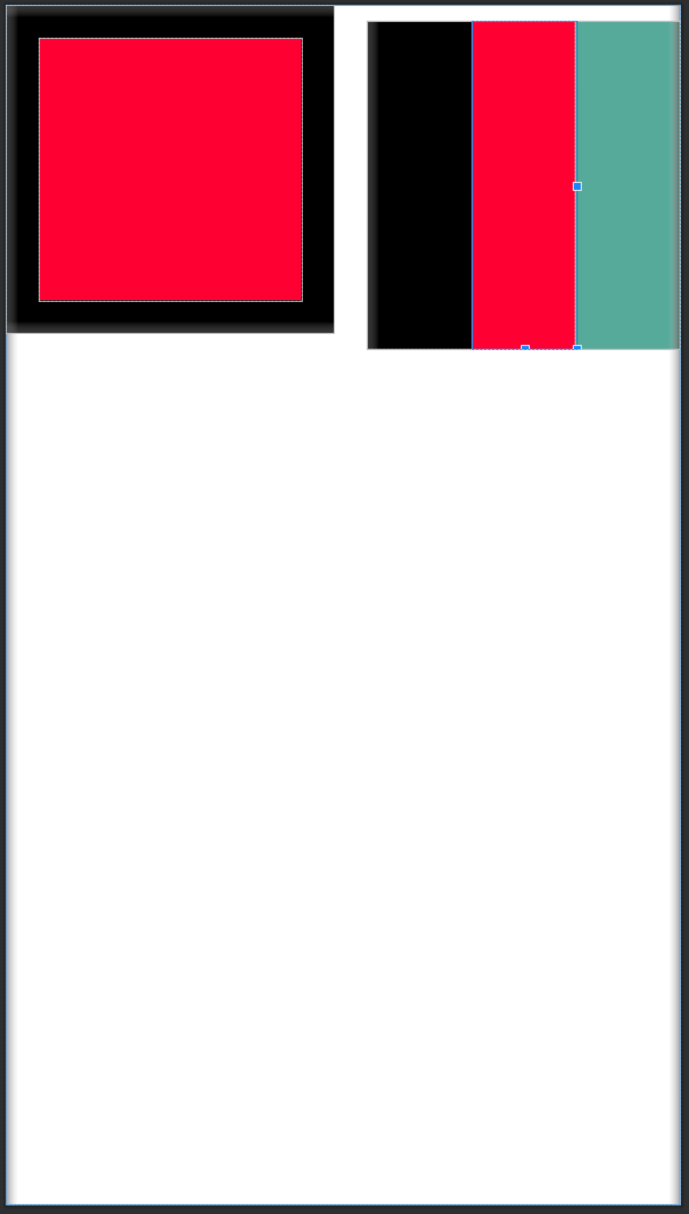

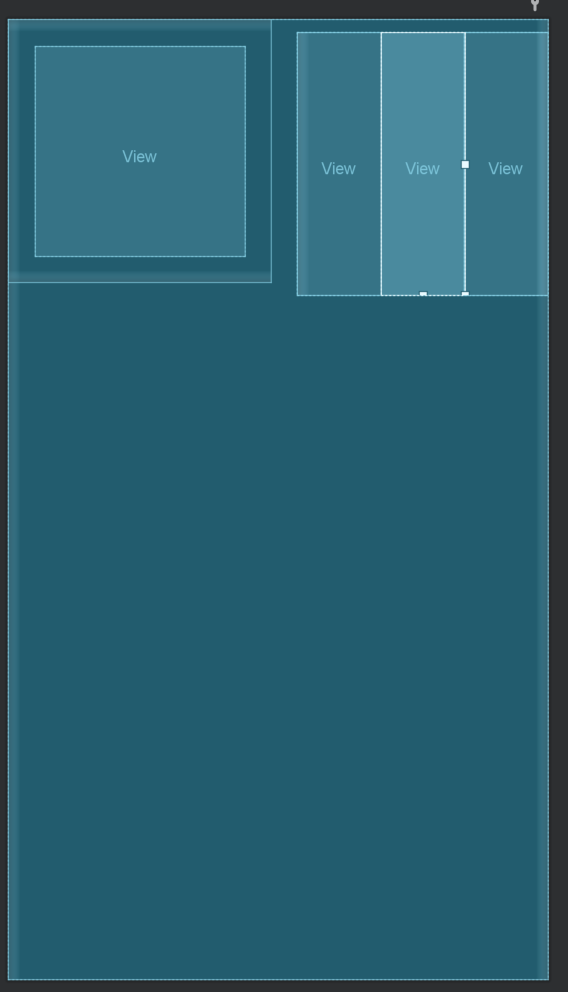

<?xml version="1.0" encoding="utf-8"?>
< LinearLayout xmlns: android= " http://schemas.android.com/apk/res/android"
xmlns: app= " http://schemas.android.com/apk/res-auto"
xmlns: tools= " http://schemas.android.com/tools"
android: layout_width= " match_parent"
android: layout_height= " match_parent"
tools: context= " .MainActivity" >
< LinearLayout
android: id= " @+id/ll_1"
android: layout_width= " 200dp"
android: layout_height= " 200dp"
android: orientation= " vertical"
android: background= " @color/black"
android: padding= " 20dp" >
< View
android: layout_width= " match_parent"
android: layout_height= " match_parent"
android: background= " #FF0033" />
</ LinearLayout>
< LinearLayout
android: layout_width= " match_parent"
android: layout_height= " 200dp"
android: orientation= " horizontal"
android: background= " #0066FF"
android: layout_marginLeft= " 20dp"
android: layout_marginTop= " 10dp"
>
< View
android: layout_width= " 0dp"
android: layout_height= " 200dp"
android: background= " #000000"
android: layout_weight= " 1" />
< View
android: layout_width= " 0dp"
android: layout_height= " 200dp"
android: background= " #FF0033"
android: layout_weight= " 1" />
< View
android: layout_width= " 0dp"
android: layout_height= " 200dp"
android: background= " #55AA99"
android: layout_weight= " 1" />
</ LinearLayout>
</ LinearLayout>
相对布局(RelativeLayout)
最常用的属性
android:layout_toLeftOf
现对布局:在… 左边
android:layout_toRightOf
现对布局:在… 右边
android:layout_alignBottom
和…底部对齐
android:layout_AlignParentBottom
和父控件底部对齐
android:layout_below
在…下面
<?xml version="1.0" encoding="utf-8"?>
< RelativeLayout xmlns: android= " http://schemas.android.com/apk/res/android"
xmlns: app= " http://schemas.android.com/apk/res-auto"
xmlns: tools= " http://schemas.android.com/tools"
android: layout_width= " match_parent"
android: layout_height= " match_parent"
tools: context= " .MainActivity" >
< View
android: id= " @+id/view_1"
android: layout_width= " 100dp"
android: layout_height= " 100dp"
android: background= " #000000"
/>
< View
android: id= " @+id/view_2"
android: layout_width= " 100dp"
android: layout_height= " 100dp"
android: background= " #FF0033"
android: layout_below= " @id/view_1" />
< LinearLayout
android: layout_width= " match_parent"
android: layout_height= " 200dp"
android: layout_below= " @id/view_2"
android: background= " #0066FF"
android: orientation= " horizontal"
android: padding=
