多边形的单边裁剪算法

之前我们讲到直线段的代码裁剪算法，现在来讲讲多边形的单边裁剪算法，其实两者在数学上区别不是很大，只不过多边形的边是首尾相连的，闭合的，其实多边形的每一条边还是一条直线段。
对于多边形的来说，可以用数组来存储多边形的顶点，按照逆时针方向来顺序存储。但是对于裁剪算法来说，由于要删除和添加顶点，显然用数组来存储顶点是及其不方便的，所以我们想到了用链表来存储多边形的顶点，链表的实现如下图

function LinkList() {
			this.length = 0;
			this.head = null;
			//结点的数据结构
			var Node = function(element) {
				this.element = element;
				this.next = null;
			}
			//实现函数的功能
			//添加
			this.append = function(element) {
				var node = new Node(element);
				var current;
				//如果链表头指针为空指针
				if (this.head == null) {
					this.head = node;
				}
				//head point is not null
				else {
					current = this.head;
					while (current.next) {
						current = current.next;
					}
					//now,current is in the last position
					current.next = node;
				}
				this.length += 1;
			};
			//删除
			this.removeAt = function(position) {
				var current = this.head;
				var index = 0;
				var previous;
				if (position > -1 && position < this.length) {
					if (position == 0) {
						this.head = current.next;
					} else {
						//idex correspond previous
						while (index < position) {
							previous = current;
							current = current.next;
							index += 1;
						}
						previous.next = current.next;
					}
					this.length -= 1;
					return current.element;
				} else {
					console.log("the position is inaccurate,remove failed!");
				}
			}
			//插入
			this.insert = function(position, element) {
				var node = new Node(element);
				var current = this.head;
				var index = 0;
				var previous;
				//can insert this front and this rear
				if (position > -1 && position <= this.length) {
					if (position == 0) {
						node.next = this.head;
						this.head = node;
					} else {
						while (index < position) {
							previous = current;
							current = current.next;
							index += 1;
						}
						previous.next = node;
						node.next = current;
					}
					this.length += 1;
					return true;
				} else {
					console.log("the position is inaccurate,insert failed!");
				}
			}
			// look for index
			this.indexOf = function(element) {
				var current = this.head;
				var index = 0;
				while (current) {
					if (current.element["x"] == element["x"] &&
						current.element["y"] == element["y"]) {
						return index;
					} else {
						current = current.next;
						index += 1;
					}
				}
				return -1;
			};
		}

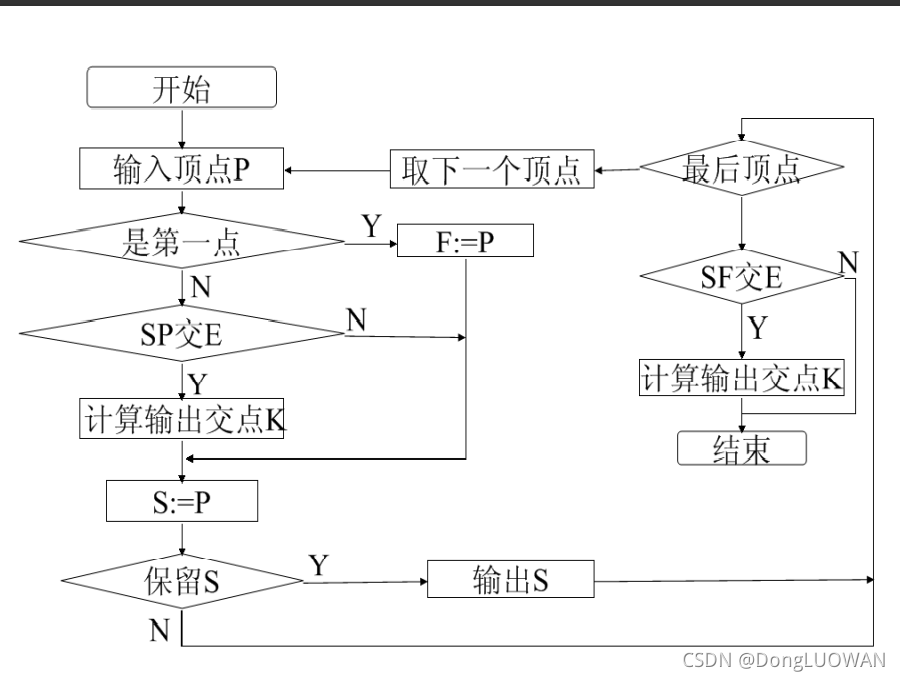

有了链表之后，一切变的轻松起来。按照多边形的代码裁剪算法来裁剪即可，裁剪算法如下图。

剩余的代码块，主要是求交点，求交点就是用参数方程

//the property of the window
		var xl, xr, yb, yt;
		var canvas, context;
		var point = new Array();
		var link = new LinkList();

		function init() {
			canvas = document.getElementById("output");
			context = canvas.getContext("2d");
			canvas.width = window.innerWidth;
			canvas.height = window.innerHeight;

			var controls=new function(){
				this.draw=function(){
					context.clearRect(0, 0, window.innerWidth, window.innerHeight);
					link.head=null;
					drawWindow();
					drawPolygon();
				}
				// x/y=t
				this.Cut=function(){
					sideCut(yt,'y','d');
					sideCut(xr,'x','r');
					sideCut(yb,'y','u');
					sideCut(xl,'x','l');
					context.clearRect(0, 0, window.innerWidth, window.innerHeight);
					drawWindow();
					afterDraw();
				}
			};
			var gui=new dat.GUI();
			gui.add(controls, 'draw');
			gui.add(controls, 'Cut');

			drawWindow();
			drawPolygon();
		}

		function drawWindow() {
			//set the parameter of the window
			xl = window.innerWidth / 4;
			xr = 3 * window.innerWidth / 4;
			yb = window.innerHeight / 4;
			yt = window.innerHeight / 2;

			context.beginPath();
			context.moveTo(xl, yb);
			context.lineTo(xl, yt);
			context.lineTo(xr, yt);
			context.lineTo(xr, yb);
			context.closePath();
			context.stroke();
		}

		function drawPolygon() {

			//先确定各点的坐标
			point[0] = new Array();
			point[0]["x"] = 3 * window.innerWidth / 8;
			point[0]["y"] = 3 * window.innerHeight / 8;

			point[1] = new Array();
			point[1]["x"] = 5 * window.innerWidth / 8;
			point[1]["y"] = 5 * window.innerHeight / 8;

			point[2] = new Array();
			point[2]["x"] = window.innerWidth / 2;
			point[2]["y"] = 3 * window.innerHeight / 8;

			point[3] = new Array();
			point[3]["x"] = 7 * window.innerWidth / 8;
			point[3]["y"] = window.innerHeight / 4;

			point[4] = new Array();
			point[4]["x"] = window.innerWidth / 2;
			point[4]["y"] = window.innerHeight / 8;

			//add these points to my link
			for (var i = 0; i < point.length; i++)
				link.append(point[i]);

			context.beginPath();
			context.moveTo(point[0]["x"], point[0]["y"]);
			for (var i = 1; i < point.length; i++)
				context.lineTo(point[i]["x"], point[i]["y"]);
			context.closePath();
			context.stroke();
		}
		//side cut algorithm
		function sideCut(value, tag, sign) {
			var f, s;
			var current = link.head;
			var flag = 0;
			var tpoint = new Array();
			var sum=0;
			//calculate the node of x coordinate
			if (tag) {
				//traverse every point of my link table
				while (current != null) {
					if (current == link.head) {
						f = current;
					} else {
						if (judgeIntersect(s, current, tag, value) == true) {
							tpoint = getCoor(s, current, tag, value);
							flag = link.indexOf(current.element);
							link.insert(flag, tpoint);
						}
					}
					s = current;
					//remove point
					if (!stayPoint(s.element["x"], s.element["y"], sign)) {
						flag = link.indexOf(s.element);
						link.removeAt(flag);
					}
					//the last point
					if (current.next == null) {
						if (judgeIntersect(s, f, tag, value) == true) {
							tpoint = getCoor(s, f, tag, value);
							link.append(tpoint)
						}
					}
					current = current.next;
					sum++;
				}
			} else {
				console.log("side do not exist!");
			}
		}
		//is stay
		function stayPoint(x, y, sign) {
			if (sign == 'l' && x < xl)
				return false;
			if (sign == 'r' && x > xr)
				return false;
			if (sign == 'u' && y < yb)
				return false;
			if (sign == 'd' && y > yt)
				return false;
			return true;
		}
		//judge whether there is a intersection
		function judgeIntersect(s, current, tag, value) {
			var t = 0;
			//get the line parameter equation
			if (tag == "x")
				t = (value - s.element["x"]) / (current.element["x"] - s.element["x"]);
			else
				t = (value - s.element["y"]) / (current.element["y"] - s.element["y"])
			if (t >= 0 && t <= 1)
				return true;
			return false;
		}
		//get the intersection coordinate
		function getCoor(s, current, tag, value) {
			var t = 0;
			var tpoint = new Array();
			if (tag == "x") {
				t = (value - s.element["x"]) / (current.element["x"] - s.element["x"]);
				tpoint["x"] = value;
				tpoint["y"] = (1 - t) * s.element["y"] + t * current.element["y"]
				return tpoint;
			} else {
				t = (value - s.element["y"]) / (current.element["y"] - s.element["y"]);
				tpoint["y"] = value;
				tpoint["x"] = (1 - t) * s.element["x"] + t * current.element["x"];
				return tpoint;
			}
		}
		function afterDraw(){
			context.beginPath();
			context.moveTo(link.head.element["x"],link.head.element["y"]);
			var point=link.head.next;
			while(point){
				context.lineTo(point.element["x"],point.element["y"]);
				point=point.next;
			}
			context.closePath();
			context.stroke();
		}

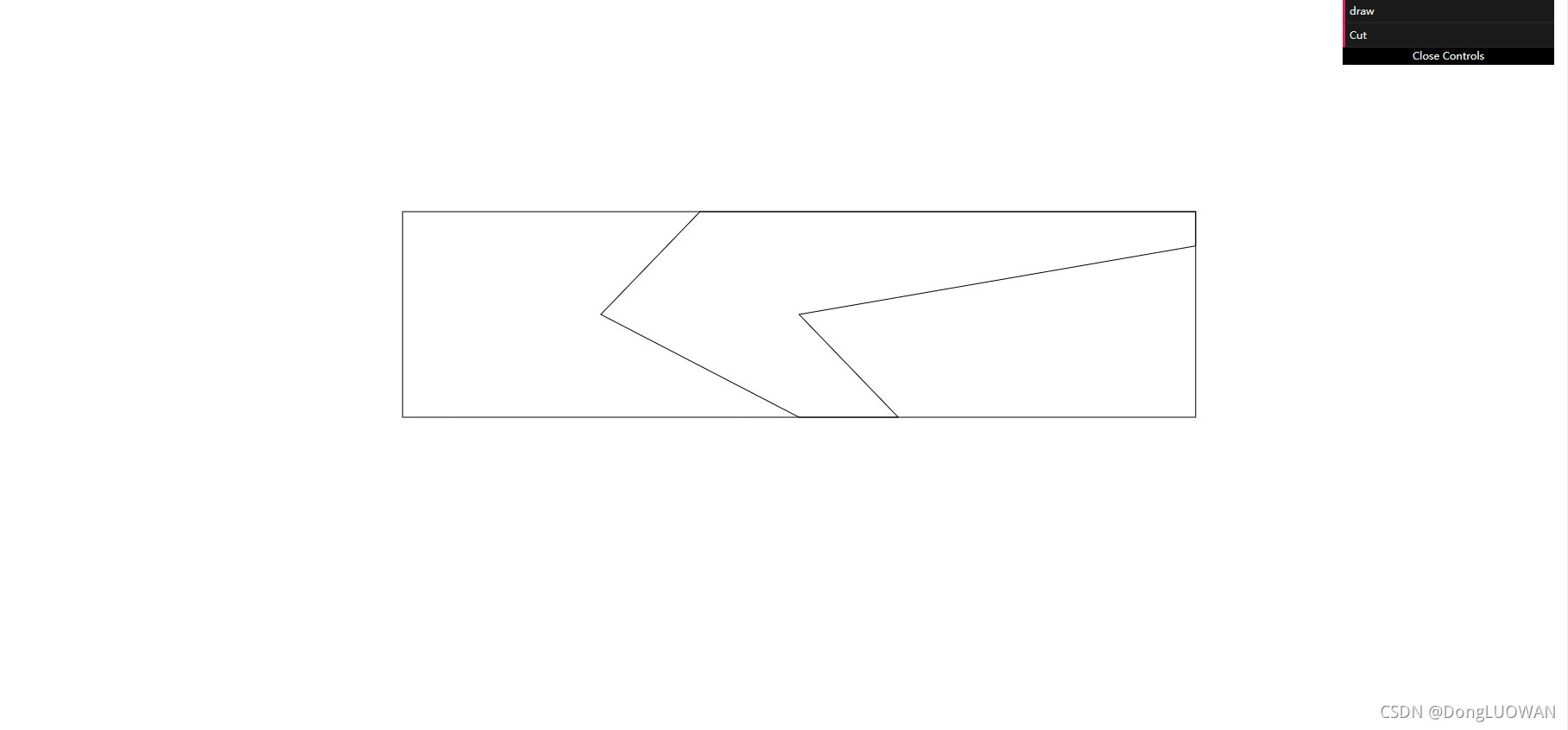

代码实现效果截图
初始状态

点击右上角cut之后的状态

可以看出对于样例中的多边形来说，裁剪的结果是正确的。
