洛谷B3643 - 图的存储
题目描述
给定一个 n n n 个顶点 m m m 条边的无向图。请以邻接矩阵和邻接表的形式输出这一张图。
输入格式
第一行输入两个正整数 n n n 和 m m m,表示图的顶点数和边数。
第二行开始,往后 m m m 行,每行输入两个以空格隔开的正整数 u , v u,v u,v,表示 u , v u,v u,v 顶点之间有一条边直接相连。
输出格式
首先输出 n n n 行 n n n 列的矩阵,以空格隔开每一行之间的数表示邻接矩阵。第 i i i 行第 j j j 列的数为 1 1 1 则表示顶点 i , j i,j i,j 之间有一条边直接相连;若为 0 0 0 则表示没有直接相连的边。
再往后输出 n n n 行。第 i i i 行首先先输出一个整数 d i d_i di,表示这个顶点的度数,再按照从小到大的顺序,依次输出与顶点 i i i 直接相连的所有顶点。
样例 #1
样例输入 #1
5 5
1 2
2 3
3 5
1 3
3 4
样例输出 #1
0 1 1 0 0
1 0 1 0 0
1 1 0 1 1
0 0 1 0 0
0 0 1 0 0
2 2 3
2 1 3
4 1 2 4 5
1 3
1 3
提示

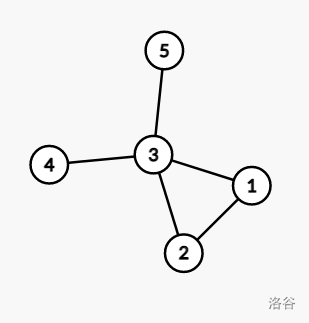

样例的图如图所示:
数据保证,对于所有数据, 1 ≤ n ≤ 1000 1 \leq n \leq 1000 1≤n≤1000, 1 ≤ m ≤ 1 0 5 1 \leq m \leq 10^5 1≤m≤105,且图无重边无自环。
拿到这题,我本来想快刀斩乱麻直接套模板做,结果老老实实打了很久图的邻接矩阵存储和邻接表存储,最后过了样例但是全
W
A
WA
WA,给我气晕了。各种抠细节之后,也只对了三个点,麻了。
(洛谷的
B
B
B题库不给看样例,标程也不给看代码的,因为要卖课……)
知识点链接:图的存储与基本操作
总之先放出这段代码吧,希望有缘人看到能指点一下我。
2024 / 06 / 01 3 : 50 : 49 2024/06/01\ 3:50:49 2024/06/01 3:50:49更新:三点半的时候灵机一动想到了怎么改代码,已经AC。错误代码放在这里警示后人,更正的满分代码放在文末。
以下是30pts
的代码:
//30pts(WA)
#define _CRT_SECURE_NO_WARNINGS 1
#include<cmath>
#include<cstdio>
#include<cstdlib>
#include<cstring>
#include<iostream>
#include<algorithm>
using namespace std;
#define MaxVertexNum 1007
#define MaxMGSize 500007
typedef char VertexType;
typedef int EdgeType;
/*
typedef struct {
VertexType Vex[MaxVertexNum];
EdgeType Edge[MaxVertexNum][MaxVertexNum];
}MGraph;
*/
typedef struct ArcNode {
int adjvex;
struct ArcNode* nextarc;
}ArcNode,* ArcList;
typedef struct VNode {
VertexType data;
ArcNode* firstarc;
}VNode, AdjList[MaxVertexNum];
typedef struct {
AdjList vertices;
}ALGraph;
int vexnum, arcnum;
int MGraph[MaxMGSize] = { 0 };
inline void Init(ALGraph &G) {
// memset(MGraph, 0, sizeof(MGraph));
for (int i = 1; i <= vexnum; ++i) {
ArcList h = (ArcList)malloc(sizeof(ArcList));
h->adjvex = 0;
h->nextarc = NULL;
G.vertices[i].data = 0;
G.vertices[i].firstarc = h;
}
return;
}
inline int Get_K(int i, int j) {
if (i < j)swap(i, j);
return i * (i - 1) / 2 + j - 1;//对称矩阵压缩存储(下三角)
}
inline void MG_Insert(int i, int j) {
if (i < j)swap(i, j);
MGraph[Get_K(i, j)] = 1;
return;
}
inline void MG_Print() {
for (int i = 1; i <= vexnum; ++i) {
for (int j = 1; j <= vexnum; ++j) {
printf("%d", MGraph[Get_K(i, j)]);
if (j != vexnum)printf(" ");
}
printf("\n");
}
return;
}
inline void AG_Insert(ALGraph& G, int i, int j) {
ArcNode* p = (ArcNode*)malloc(sizeof(ArcNode));
p->adjvex = j;
p->nextarc = NULL;
G.vertices[i].data++;
ArcNode* head = G.vertices[i].firstarc;
ArcNode* tail = G.vertices[i].firstarc->nextarc;
if (tail == NULL) {
G.vertices[i].firstarc->nextarc = p;
}
else {
while (tail != NULL) {
if (tail->adjvex > p->adjvex) {
p->nextarc = tail;
head->nextarc = p;
break;
}
else {
head = head->nextarc;
tail = tail->nextarc;
continue;
}
}
if (tail == NULL)head->nextarc = p;
}
ArcNode* q = (ArcNode*)malloc(sizeof(ArcNode));
q->adjvex = i;
q->nextarc = NULL;
G.vertices[j].data++;
head = G.vertices[j].firstarc;
tail = G.vertices[j].firstarc->nextarc;
if (tail == NULL) {
G.vertices[j].firstarc->nextarc = q;
}
else {
while (tail != NULL) {
if (tail->adjvex > q->adjvex) {
q->nextarc = tail;
head->nextarc = q;
break;
}
else {
head = head->nextarc;
tail = tail->nextarc;
continue;
}
}
if (tail == NULL)head->nextarc = q;
}
return;
}
inline void AG_Print(ALGraph& G) {
for (int i = 1; i <= vexnum; ++i) {
if (!G.vertices[i].data) {
printf("0\n");
continue;
}
printf("%d ", G.vertices[i].data);
ArcList Arc = G.vertices[i].firstarc->nextarc;
while (Arc != NULL) {
printf("%d", Arc->adjvex);
Arc = Arc->nextarc;
if (Arc != NULL)printf(" ");
}printf("\n");
}
return;
}
int main() {
ALGraph Ag;
int i, j;
scanf("%d %d", &vexnum, &arcnum);
Init(Ag);
for (int k = 1; k <= arcnum; ++k) {
scanf("%d %d", &i, &j);
MG_Insert(i, j);
AG_Insert(Ag, i, j);
}
MG_Print();
AG_Print(Ag);
return 0;
}
反复修改调试后都没能解决这题,甚至我自己造了几个数据,还是不行,明明输出看起来没有任何问题,也许是
s
c
a
n
f
scanf
scanf和
p
r
i
n
t
f
printf
printf的问题吧,以前打
O
I
OI
OI的时候也经常遇到各种玄学问题。(其实结构体定义里就出了问题
总之之后我就急了,直接花不到十分钟打了个暴力程序,然后
A
C
AC
AC。思路很简单,用bool类型存邻接矩阵,输出的时候直接遍历就完事了。输出邻接表时多遍历一次统计信息即可。
男人,哈哈哈,什么罐头我说,曼巴出去。
以下是100pts
的代码:
//AC
#define _CRT_SECURE_NO_WARNINGS 1
#include<cstdio>
#include<cstring>
#include<iostream>
using namespace std;
int n, m;
bool g[1001][1001];
int main() {
memset(g, false, sizeof(g));
cin >> n >> m;
int u, v;
for (int i = 1; i <= m; ++i) {
cin >> u >> v;
g[u][v] = true, g[v][u] = true;
}
for (int i = 1; i <= n; ++i) {
for (int j = 1; j <= n; ++j) {
if (g[i][j])cout << "1";
else cout << "0";
if (j != n)cout << " ";
}
cout << endl;
}
for (int i = 1; i <= n; ++i) {
int ans = 0;
for (int j = 1; j <= n; ++j)
if (g[i][j])ans++;
if (!ans)cout << ans;
else {
cout << ans << " ";
for (int j = 1; j <= n; ++j)
if (g[i][j])cout << j << " ";
}
cout << endl;
}
return 0;
}
但是!!
我凌晨写日记复盘今天的时候,突然想到了这题要怎么改。首先把所有的 s c a n f scanf scanf和 p r i n t f printf printf换回了 c i n cin cin和 c o u t cout cout的输入输出流,然后再通读了一下代码,发现一个致命错误——
typedef struct VNode {
VertexType data;//问题行
ArcNode* firstarc;
}VNode, AdjList[MaxVertexNum];
我怎么也没想到是结构体里面出了问题,本题中我使用了顶点结点的
d
a
t
a
data
data域记录每个顶点的度,但是偷懒直接用了自己之前写的模板,导致
d
a
t
a
data
data的数据类型实际上是
c
h
a
r
char
char,而非
i
n
t
int
int,属实是低级错误了。所以能过三个点真的是运气好吧。(警钟撅烂
改完代码后再对代码整体进行了一点优化,提交,一遍
A
C
AC
AC,完美。
以下是100pts
的代码:(无需开启
O
2
O2
O2加速)
//AC 100pts
#define _CRT_SECURE_NO_WARNINGS 1
#include<cmath>
#include<cstdio>
#include<cstdlib>
#include<cstring>
#include<iostream>
#include<algorithm>
using namespace std;
#define MaxVertexNum 1007
#define MaxMGSize 500007
/*
typedef char VertexType;
typedef int EdgeType;
typedef struct {
VertexType Vex[MaxVertexNum];
EdgeType Edge[MaxVertexNum][MaxVertexNum];
}MGraph;
*/
typedef struct ArcNode {
int adjvex;
struct ArcNode* nextarc;
}ArcNode,* ArcList;
typedef struct VNode {
int data;//已更正data的数据类型
ArcNode* firstarc;
}VNode, AdjList[MaxVertexNum];
typedef struct {
AdjList vertices;
}ALGraph;
int vexnum, arcnum;
int MGraph[MaxMGSize] = { 0 };
inline void Init(ALGraph &G) {
// memset(MGraph, 0, sizeof(MGraph));
for (int i = 1; i <= vexnum; ++i) {
ArcList h = (ArcList)malloc(sizeof(ArcList));
h->adjvex = 0;
h->nextarc = NULL;
G.vertices[i].data = 0;
G.vertices[i].firstarc = h;
}
return;
}
inline int Get_K(int i, int j) {
if (i < j)swap(i, j);
return i * (i - 1) / 2 + j - 1;//对称矩阵压缩存储(下三角)
}
inline void MG_Insert(int i, int j) {
if (i < j)swap(i, j);
MGraph[Get_K(i, j)] = 1;
return;
}
inline void MG_Print() {
for (int i = 1; i <= vexnum; ++i) {
for (int j = 1; j <= vexnum; ++j) {
cout << MGraph[Get_K(i, j)];
if (j != vexnum)cout << " ";
}
cout << endl;
}
return;
}
inline void AG_Insert(ALGraph& G, int i, int j) {//简化了邻接表的插入函数
ArcNode* p = (ArcNode*)malloc(sizeof(ArcNode));
p->adjvex = j;
p->nextarc = NULL;
G.vertices[i].data++;
ArcNode* head = G.vertices[i].firstarc;
ArcNode* tail = G.vertices[i].firstarc->nextarc;
if (tail == NULL) {
G.vertices[i].firstarc->nextarc = p;
}
else {
while (tail != NULL) {
if (tail->adjvex > p->adjvex) {
p->nextarc = tail;
head->nextarc = p;
break;
}
else {
head = head->nextarc;
tail = tail->nextarc;
continue;
}
}
if (tail == NULL)head->nextarc = p;
}
return;
}
inline void AG_Print(ALGraph& G) {//改用了更简洁的cin,cout流
for (int i = 1; i <= vexnum; ++i) {
if (!G.vertices[i].data) {
cout << "0" << endl;
continue;
}
cout << G.vertices[i].data << " ";
ArcNode* Arc = G.vertices[i].firstarc->nextarc;
while (Arc != NULL) {
cout << Arc->adjvex;
Arc = Arc->nextarc;
if (Arc != NULL)cout << " ";
}
cout << endl;
}
return;
}
int main() {
ALGraph Ag;
int i, j;
cin >> vexnum >> arcnum;
Init(Ag);
for (int k = 1; k <= arcnum; ++k) {
cin >> i >> j;
MG_Insert(i, j);
AG_Insert(Ag, i, j);
AG_Insert(Ag, j, i);
}
MG_Print();
AG_Print(Ag);
return 0;
}
但!是! 我还是不能接受暴力碾压标程,虽说直接开
b
o
o
l
bool
bool也不能算完全暴力吧……
完整代码也可参看我的Github:标准模板写法传送门,暴力写法传送门

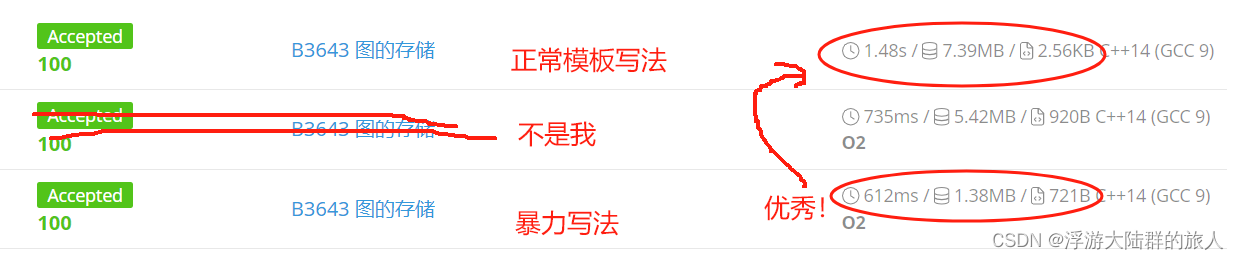

令人感叹,暴力代码
A
C
AC
AC,标准模板代码 WA也
A
C
AC
AC但是更慢 ,这就是
O
I
OI
OI的魅力啊!(大嘘
以上。
