前言
1：知识回顾
DelegatingFilterProxy 它的作用就是：实现把 servlet容器中的 Filter 同 Spring 容器中的 bean 关联起来，DelegatingFilterProxy实现了Filter接口，Servlet容器启动就会加载好这个类。借助他可以实现普通的Filter拦截到的Http请求交由FilterChainProxy
FilterChainProxy把 SecurityFilterChain 嵌入到 Web项目的原生过滤器链中DelegatingFilterProxy 把 FilterChainProxy 整合到原生的过滤器链中
FilterChainProxy 是顶层管理者，统一管理 Security Filter和 SecurityFllterChain过滤器链
当请求到达 FilterChainProxy 时，会根据当前请求匹配SecurityFilterChain，然后将请求依次转发给 SecurityFilterChain 中的 Security Filter
2：运行图回顾
一： Security Filters
1：概述
Spring Security 中最终对请求进行处理的就是某个 SecurityFilterChain 中的 Security Filter，这些Filter都设置为 Bean并且注入到 Spring容器中，且会按照先后顺序执行。
下面展示 Spring Security 中给我们提供的过滤器，以及默认情况下会被加载的过滤器
2：Spring Security默认过滤器
FilterOrderRegistration这个在构造函数中按照顺序，put了一个又一个的BeanFilter或者叫Security Filter
FilterOrderRegistration() {
Step order = new Step(100, 100);
this.put(DisableEncodeUrlFilter.class, order.next());
this.put(ForceEagerSessionCreationFilter.class, order.next());
this.put(ChannelProcessingFilter.class, order.next());
order.next();
this.put(WebAsyncManagerIntegrationFilter.class, order.next());
this.put(SecurityContextHolderFilter.class, order.next());
this.put(SecurityContextPersistenceFilter.class, order.next());
this.put(HeaderWriterFilter.class, order.next());
this.put(CorsFilter.class, order.next());
this.put(CsrfFilter.class, order.next());
this.put(LogoutFilter.class, order.next());
this.filterToOrder.put("org.springframework.security.oauth2.client.web.OAuth2AuthorizationRequestRedirectFilter", order.next());
this.filterToOrder.put("org.springframework.security.saml2.provider.service.web.Saml2WebSsoAuthenticationRequestFilter", order.next());
this.put(X509AuthenticationFilter.class, order.next());
this.put(AbstractPreAuthenticatedProcessingFilter.class, order.next());
this.filterToOrder.put("org.springframework.security.cas.web.CasAuthenticationFilter", order.next());
this.filterToOrder.put("org.springframework.security.oauth2.client.web.OAuth2LoginAuthenticationFilter", order.next());
this.filterToOrder.put("org.springframework.security.saml2.provider.service.web.authentication.Saml2WebSsoAuthenticationFilter", order.next());
this.put(UsernamePasswordAuthenticationFilter.class, order.next());
order.next();
this.put(DefaultLoginPageGeneratingFilter.class, order.next());
this.put(DefaultLogoutPageGeneratingFilter.class, order.next());
this.put(ConcurrentSessionFilter.class, order.next());
this.put(DigestAuthenticationFilter.class, order.next());
this.filterToOrder.put("org.springframework.security.oauth2.server.resource.web.authentication.BearerTokenAuthenticationFilter", order.next());
this.put(BasicAuthenticationFilter.class, order.next());
this.put(RequestCacheAwareFilter.class, order.next());
this.put(SecurityContextHolderAwareRequestFilter.class, order.next());
this.put(JaasApiIntegrationFilter.class, order.next());
this.put(RememberMeAuthenticationFilter.class, order.next());
this.put(AnonymousAuthenticationFilter.class, order.next());
this.filterToOrder.put("org.springframework.security.oauth2.client.web.OAuth2AuthorizationCodeGrantFilter", order.next());
this.put(SessionManagementFilter.class, order.next());
this.put(ExceptionTranslationFilter.class, order.next());
this.put(FilterSecurityInterceptor.class, order.next());
this.put(AuthorizationFilter.class, order.next());
this.put(SwitchUserFilter.class, order.next());
}在SpringSecurity中默认的这些默认过滤器有很多，我们接下来找关键的一起看一下。
二：关键BeanFilter
接下来我们介绍的这几款Bean Filter都是默认程序启动就加载的。
1：DisableEncoderUrlFilter
禁止URL重新编码，默认程序启动就会加载。
2：WebAsynManagerIntegrationFilter
将WebAsyncManager与SpringSecurity上下文进行集成。默认程序启动就会加载。
将web的异步处理管理器与SpringSecurity上下文进行集成
3：SecurityContextHolderFilter
获取安全上下文，默认程序启动就会加载。
4：HeaderWriterFilter
处理头信息加入响应中，默认程序启动就会加载。
5：CsrfFilter
处理CSRF攻击，默认程序启动就会加载。
6：LogoutFilter
处理注销登录，默认程序启动就会加载。
7：UsernamePasswordAuthenticationFilter
处理表单登录，默认程序启动就会加载。
8：DefaultLoginPageGeneratingFilter
配置默认登录页面，默认程序启动就会加载。
9：DefaultLogoutPageGeneratingFilter
配置默认注销页面，默认程序启动就会加载。
10：BasicAuthenticationFilter
处理 HttpBasic登录，默认程序启动就会加载。
11：RequestCacheAwareFilter
处理请求缓存，默认程序启动就会加载。
12：SecurityContextHolderAwareRequestFilter
包装原始请求，默认程序启动就会加载。
13：AnonymousAuthenticationFilter
配置匿名认证，默认程序启动就会加载。
14：ExceptionTranslationFilter
处理认证/授权中的异常，默认程序启动就会加载。
15：AuthorizationFilter
处理当前用户是否有权限访问目标资源，默认程序启动就会加载。
Spring Security 提供了30 多个过滤器。默认情况下Spring Boot 在对 Spring Security 进入自动化配置时，会创建一个名为 SpringSecurityFilerChain 的过滤器，并注入到 Spring 容器中，这个过滤器将负责所有的安全管理，包括用户认证、授权、重定向到登录页面等。具体可以参考WebSecurityConfiguration的源码：
public final class DefaultSecurityFilterChain implements SecurityFilterChain {
private static final Log logger = LogFactory.getLog(DefaultSecurityFilterChain.class);
private final RequestMatcher requestMatcher;
private final List<Filter> filters;
public DefaultSecurityFilterChain(RequestMatcher requestMatcher, Filter... filters) {
this(requestMatcher, Arrays.asList(filters));
}
public DefaultSecurityFilterChain(RequestMatcher requestMatcher, List<Filter> filters) {
if (filters.isEmpty()) {
logger.info(LogMessage.format("Will not secure %s", requestMatcher));
} else {
logger.info(LogMessage.format("Will secure %s with %s", requestMatcher, filters));
}
this.requestMatcher = requestMatcher;
this.filters = new ArrayList(filters);
}
public RequestMatcher getRequestMatcher() {
return this.requestMatcher;
}
public List<Filter> getFilters() {
return this.filters;
}
public boolean matches(HttpServletRequest request) {
return this.requestMatcher.matches(request);
}
public String toString() {
String var10000 = this.getClass().getSimpleName();
return var10000 + " [RequestMatcher=" + this.requestMatcher + ", Filters=" + this.filters + "]";
}
}
@Configuration(proxyBeanMethods = false)
public class WebSecurityConfiguration implements ImportAware, BeanClassLoaderAware {
private WebSecurity webSecurity;
private Boolean debugEnabled;
private List<SecurityConfigurer<Filter, WebSecurity>> webSecurityConfigurers;
private List<SecurityFilterChain> securityFilterChains = Collections.emptyList();
private List<WebSecurityCustomizer> webSecurityCustomizers = Collections.emptyList();
private ClassLoader beanClassLoader;
@Autowired(required = false)
private ObjectPostProcessor<Object> objectObjectPostProcessor;
@Autowired(required = false)
private HttpSecurity httpSecurity;
@Bean
public static DelegatingApplicationListener delegatingApplicationListener() {
return new DelegatingApplicationListener();
}
@Bean
@DependsOn(AbstractSecurityWebApplicationInitializer.DEFAULT_FILTER_NAME)
public SecurityExpressionHandler<FilterInvocation> webSecurityExpressionHandler() {
return this.webSecurity.getExpressionHandler();
}
/**
* Creates the Spring Security Filter Chain
* @return the {@link Filter} that represents the security filter chain
* @throws Exception
*/

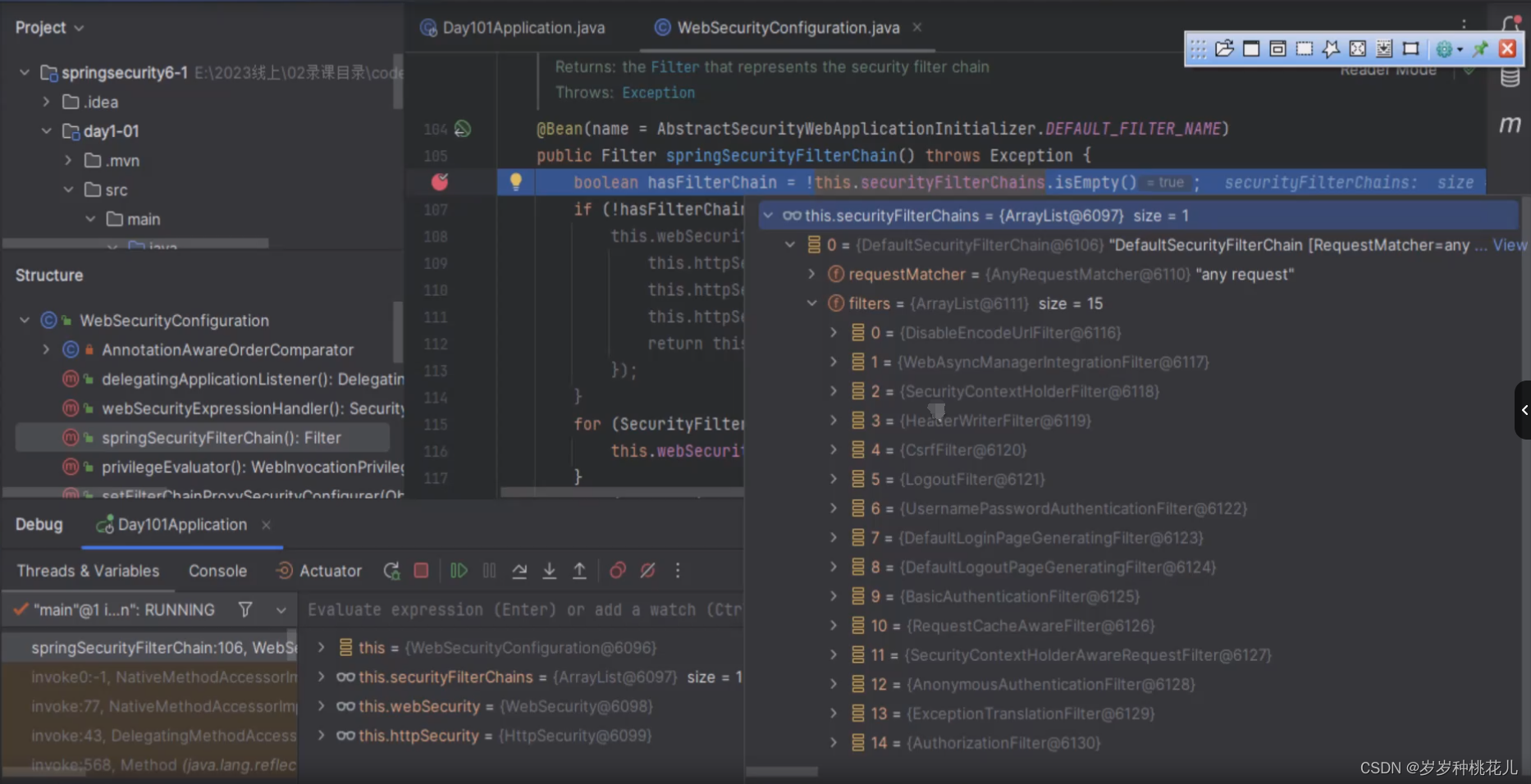

@Bean(name = AbstractSecurityWebApplicationInitializer.DEFAULT_FILTER_NAME)
public Filter springSecurityFilterChain() throws Exception {
boolean hasFilterChain = !this.securityFilterChains.isEmpty();
if (!hasFilterChain) {
this.webSecurity.addSecurityFilterChainBuilder(() -> {
this.httpSecurity.authorizeHttpRequests((authorize) -> authorize.anyRequest().authenticated());
this.httpSecurity.formLogin(Customizer.withDefaults());
this.httpSecurity.httpBasic(Customizer.withDefaults());
return this.httpSecurity.build();
});
}
for (SecurityFilterChain securityFilterChain : this.securityFilterChains) {
this.webSecurity.addSecurityFilterChainBuilder(() -> securityFilterChain);
}
for (WebSecurityCustomizer customizer : this.webSecurityCustomizers) {
customizer.customize(this.webSecurity);
}
return this.webSecurity.build();
}
/**
* Creates the {@link WebInvocationPrivilegeEvaluator} that is necessary to evaluate
* privileges for a given web URI
* @return the {@link WebInvocationPrivilegeEvaluator}
*/
@Bean
@DependsOn(AbstractSecurityWebApplicationInitializer.DEFAULT_FILTER_NAME)
public WebInvocationPrivilegeEvaluator privilegeEvaluator() {
return this.webSecurity.getPrivilegeEvaluator();
}
/**
* Sets the {@code <SecurityConfigurer<FilterChainProxy, WebSecurityBuilder>}
* instances used to create the web configuration.
* @param objectPostProcessor the {@link ObjectPostProcessor} used to create a
* {@link WebSecurity} instance
* @param beanFactory the bean factory to use to retrieve the relevant
* {@code <SecurityConfigurer<FilterChainProxy, WebSecurityBuilder>} instances used to
* create the web configuration
* @throws Exception
*/
@Autowired(required = false)
public void setFilterChainProxySecurityConfigurer(ObjectPostProcessor<Object> objectPostProcessor,
ConfigurableListableBeanFactory beanFactory) throws Exception {
this.webSecurity = objectPostProcessor.postProcess(new WebSecurity(objectPostProcessor));
if (this.debugEnabled != null) {
this.webSecurity.debug(this.debugEnabled);
}
List<SecurityConfigurer<Filter, WebSecurity>> webSecurityConfigurers = new AutowiredWebSecurityConfigurersIgnoreParents(
beanFactory)
.getWebSecurityConfigurers();
webSecurityConfigurers.sort(AnnotationAwareOrderComparator.INSTANCE);
Integer previousOrder = null;
Object previousConfig = null;
for (SecurityConfigurer<Filter, WebSecurity> config : webSecurityConfigurers) {
Integer order = AnnotationAwareOrderComparator.lookupOrder(config);
if (previousOrder != null && previousOrder.equals(order)) {
throw new IllegalStateException("@Order on WebSecurityConfigurers must be unique. Order of " + order
+ " was already used on " + previousConfig + ", so it cannot be used on " + config + " too.");
}
previousOrder = order;
previousConfig = config;
}
for (SecurityConfigurer<Filter, WebSecurity> webSecurityConfigurer : webSecurityConfigurers) {
this.webSecurity.apply(webSecurityConfigurer);
}
this.webSecurityConfigurers = webSecurityConfigurers;
}
@Autowired(required = false)
void setFilterChains(List<SecurityFilterChain> securityFilterChains) {
this.securityFilterChains = securityFilterChains;
}
@Autowired(required = false)
void setWebSecurityCustomizers(List<WebSecurityCustomizer> webSecurityCustomizers) {
this.webSecurityCustomizers = webSecurityCustomizers;
}
@Bean
public static BeanFactoryPostProcessor conversionServicePostProcessor() {
return new RsaKeyConversionServicePostProcessor();
}
@Override
public void setImportMetadata(AnnotationMetadata importMetadata) {
Map<String, Object> enableWebSecurityAttrMap = importMetadata
.getAnnotationAttributes(EnableWebSecurity.class.getName());
AnnotationAttributes enableWebSecurityAttrs = AnnotationAttributes.fromMap(enableWebSecurityAttrMap);
this.debugEnabled = enableWebSecurityAttrs.getBoolean("debug");
if (this.webSecurity != null) {
this.webSecurity.debug(this.debugEnabled);
}
}
@Override
public void setBeanClassLoader(ClassLoader classLoader) {
this.beanClassLoader = classLoader;
}
/**
* A custom version of the Spring provided AnnotationAwareOrderComparator that uses
* {@link AnnotationUtils#findAnnotation(Class, Class)} to look on super class
* instances for the {@link Order} annotation.
*
* @author Rob Winch
* @since 3.2
*/
private static class AnnotationAwareOrderComparator extends OrderComparator {
private static final AnnotationAwareOrderComparator INSTANCE = new AnnotationAwareOrderComparator();
@Override
protected int getOrder(Object obj) {
return lookupOrder(obj);
}
private static int lookupOrder(Object obj) {
if (obj instanceof Ordered) {
return ((Ordered) obj).getOrder();
}
if (obj != null) {
Class<?> clazz = ((obj instanceof Class) ? (Class<?>) obj : obj.getClass());
Order order = AnnotationUtils.findAnnotation(clazz, Order.class);
if (order != null) {
return order.value();
}
}
return Ordered.LOWEST_PRECEDENCE;
}
}
}
