思科4331通过临时许可证license升级吞吐量

在做一些项目的时候发现吞吐量不够需要购买license,但着急使用的情况下怎么办呢,最终在国外网站发现竟然支持临时许可证license,并且成功实现,以下是教程。

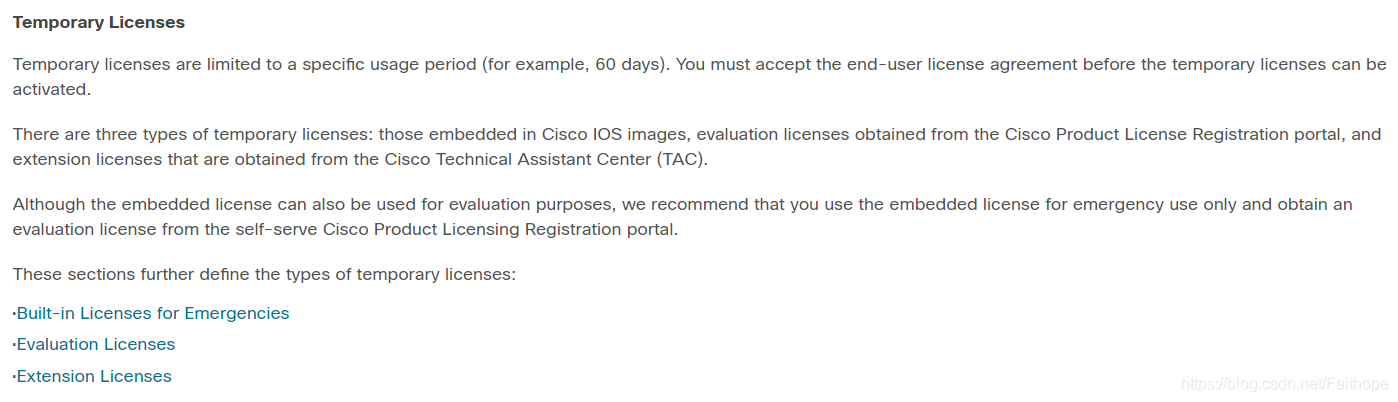

官方对临时许可证的介绍

#首先做查询操作,看当前的吞吐量

ISR4331#show platform hardware throughput level
The current throughput level is 100000 kb/s

#看当前license的状态,throughput吞吐量的enabled是no的状态

ISR4331#sh license feature
Feature name             Enforcement  Evaluation  Subscription   Enabled  RightToUse
!
!output omitted for brevity
!
throughput               yes          yes         no             no       yes
ISR4331#show license
!
!output omitted for brevity
!
Index 1 Feature: throughput
        Period left: Not Activated
        Period Used: 0  minute  0  second
        License Type: EvalRightToUse
        License State: Active, Not in Use, EULA not accepted
        License Count: Non-Counted
        License Priority: None

#现在临时增加吞吐量,有效期60天

ISR4331(config)#platform hardware throughput level 300000
         Feature Name:throughput

PLEASE  READ THE  FOLLOWING TERMS  CAREFULLY. INSTALLING THE LICENSE OR
LICENSE  KEY  PROVIDED FOR  ANY CISCO  PRODUCT  FEATURE  OR  USING SUCH
PRODUCT  FEATURE  CONSTITUTES  YOUR  FULL ACCEPTANCE  OF  THE FOLLOWING
TERMS. YOU MUST NOT PROCEED FURTHER IF YOU ARE NOT WILLING TO  BE BOUND
BY ALL THE TERMS SET FORTH HEREIN.

Use of this product feature requires  an additional license from Cisco,
together with an additional  payment.  You may use this product feature
on an evaluation basis, without payment to Cisco, for 60 days. Your use
of the  product,  including  during the 60 day  evaluation  period,  is
subject to the Cisco end user license agreement
http://www.cisco.com/en/US/docs/general/warranty/English/EU1KEN_.html
If you use the product feature beyond the 60 day evaluation period, you
must submit the appropriate payment to Cisco for the license. After the
60 day  evaluation  period,  your  use of the  product  feature will be
governed  solely by the Cisco  end user license agreement (link above),
together  with any supplements  relating to such product  feature.  The
above  applies  even if the evaluation  license  is  not  automatically
terminated  and you do  not receive any notice of the expiration of the
evaluation  period.  It is your  responsibility  to  determine when the
evaluation  period is complete and you are required to make  payment to
Cisco for your use of the product feature beyond the evaluation period.

Your  acceptance  of  this agreement  for the software  features on one
product  shall be deemed  your  acceptance  with  respect  to all  such
software  on all Cisco  products  you purchase  which includes the same
software.  (The foregoing  notwithstanding, you must purchase a license
for each software  feature you use past the 60 days evaluation  period,
so  that  if you enable a software  feature on  1000  devices, you must
purchase 1000 licenses for use past  the 60 day evaluation period.)

Activation  of the  software command line interface will be evidence of
your acceptance of this agreement.

ACCEPT? (yes/[no]): yes

#一定要保存和重启后再次查看license状态

ISR4331#show license feature
Feature name             Enforcement  Evaluation  Subscription   Enabled  RightToUse
!
!output omitted for brevity
!
throughput               yes          yes         no             yes      yes
ISR4331#show license
!
!output omitted for brevity
!
Index 1 Feature: throughput
        Period left: 8  weeks 4  days
        Period Used: 0  day  0 hours
        License Type: EvalRightToUse
        License State: Active, In Use
        License Count: Non-Counted
        License Priority: Low
