首先需要了解一下 H5 的画布:
一、H5的画布:canvas
1、创建画布:在html页面中使用<canvas>
标签
<canvas id="cvs" width="800" height="600">
浏览器不支持
</canvas>
2、获取画布:在javascript中来获取
let cvs = getElementById('cvs')
3、获取画布的上下文环境:画布的环境(获取画笔)
let context = cvs.getContext('2d')
4、绘制线条:
(1)确定初始端点:moveTo(x,y)
(2)确定连接端点:lineTo(x,y)
(3)描边(设置线条的颜色):stroke() —- 默认颜色为黑色
strokeStyle属性:描边的颜色
lineWidth属性:表示线条宽度
练习一下绘制正方形
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>画布</title>
</head>
<body>
<canvas id="cvs" width="600" height="400">
浏览器不支持
</canvas>
<script>
// 获取画布
let cvs = document.getElementById('cvs')
// 获取画笔
let context = cvs.getContext('2d')
// 绘制直线
context.moveTo(100, 100)
context.lineTo(300, 100)
context.strokeStyle = 'blue'
context.lineWidth = 5
context.stroke()
context.moveTo(100, 100)
context.lineTo(100, 300)
context.stroke()
context.moveTo(100, 300)
context.lineTo(300, 300)
context.stroke()
context.moveTo(300, 100)
context.lineTo(300, 300)
context.stroke()
</script>
</body>
</html>
验证码
<template>
<div class="s-canvas">
<canvas
id="s-canvas"
:width="contentWidth"
:height="contentHeight"
></canvas>
</div>
</template>
<script>
export default {
name: "YanZhengMa",
props: {
identifyCode: {
type: String,
default: "1234",
},
fontSizeMin: {
type: Number,
default: 18,
},
fontSizeMax: {
type: Number,
default: 30,
},
backgroundColorMin: {
//画布背景色
type: Number,
default: 180,
},
backgroundColorMax: {
type: Number,
default: 240,
},
colorMin: {
//验证码字体颜色
type: Number,
default: 50,
},
colorMax: {
type: Number,
default: 160,
},
lineColorMin: {
//干扰线
type: Number,
default: 40,
},
lineColorMax: {
type: Number,
default: 180,
},
dotColorMin: {
type: Number,
default: 0,
},
dotColorMax: {
type: Number,
default: 255,
},
contentWidth: {
//画布宽度
type: Number,
default: 140,
},
contentHeight: {
type: Number,
default: 35,
},
},
methods: {
//生成一个随机数
randomNum(min, max) {
return Math.floor(Math.random() * (max - min) + min);
},
//生成一个随机的颜色
randomColor(min, max) {
let r = this.randomNum(min, max);
let g = this.randomNum(min, max);
let b = this.randomNum(min, max);
// 通过 rgb 函数生成随机颜色
return "rgb(" + r + "," + g + "," + b + ")";
},
//画图
drawPic() {
// 获取画布
let canvas = document.getElementById("s-canvas");
// 获取画笔
let ctx = canvas.getContext("2d");
// 文本基准线
ctx.textBaseline = "bottom";
//绘制背景,fillStyle填充
ctx.fillStyle = this.randomColor(
this.backgroundColorMin,
this.backgroundColorMax
);
// 绘制矩形
ctx.fillRect(0, 0, this.contentWidth, this.contentHeight);
//绘制文字
for (let i = 0; i < this.identifyCode.length; i++) {
this.drawText(ctx, this.identifyCode[i], i);
}
this.drawLine(ctx); //绘制干扰线
this.drawDot(ctx); //绘制干扰点
},
drawText(ctx, txt, i) {
//绘制文本
// 画笔颜色
ctx.fillStyle = this.randomColor(this.colorMin, this.colorMax);
// 字体
ctx.font =
this.randomNum(this.fontSizeMin, this.fontSizeMax) + "px SimHei";
// 文字坐标
let x = (i + 1) * (this.contentWidth / (this.identifyCode.length + 1));
let y = this.randomNum(this.fontSizeMax, this.contentHeight - 5);
// 旋转角度
var deg = this.randomNum(-45, 45);
//修改坐标原点和旋转角度
ctx.translate(x, y);
// 旋转角度
ctx.rotate((deg * Math.PI) / 180);
ctx.fillText(txt, 0, 0);
//恢复坐标原点和旋转角度
ctx.rotate((-deg * Math.PI) / 180);
ctx.translate(-x, -y);
},
// 设置干扰线
drawLine(ctx) {
//绘制干扰线
for (let i = 0; i < 8; i++) {
ctx.strokeStyle = this.randomColor(
this.lineColorMin,
this.lineColorMax
);
ctx.beginPath();
ctx.moveTo(
this.randomNum(0, this.contentWidth),
this.randomNum(0, this.contentHeight)
);
ctx.lineTo(
this.randomNum(0, this.contentWidth),
this.randomNum(0, this.contentHeight)
);
ctx.stroke();
}
},
//绘制干扰点
drawDot(ctx) {
for (let i = 0; i < 100; i++) {
ctx.fillStyle = this.randomColor(0, 255);
ctx.beginPath();
// 绘制弧线
ctx.arc(
this.randomNum(0, this.contentWidth),
this.randomNum(0, this.contentHeight),
1,
0,
2 * Math.PI
);
ctx.fill();
}
},
},
// 监视验证码变化,
watch: {
identifyCode() {
this.drawPic();
},
},
//
mounted() {
this.drawPic();
},
};
</script>
<style lang="less" scoped>
.s-canvas {
height: 35px;
canvas {
margin-top: 5px;
}
}
</style>
验证码的使用
<template>
<div>
<div class="container">
<div class="login-wrapper">
<div class="header">登录</div>
<div class="form-wrapper">
<input
type="text"
name="username"
placeholder="请输入您的账号"
class="input-item"
v-model.trim="username"
@blur="checkname()"
/>
<span class="color"> {{ msgname }}</span>
<input
type="password"
name="password"
placeholder="请输入您的密码"
class="input-item"
v-model.trim="password"
@blur="checkpassword()"
/>
<span class="color"> {{ msgpassword }}</span>
<div class="flex">
<input
type="text"
name="password"
placeholder="请输入验证码"
class="input-yanzhengma"
v-model="yzm"
@blur="check"
/>
<div @click="refreshCode">
<YanZhengMa :identifyCode="identifyCode"></YanZhengMa>
</div>
</div>
<span class="color"> {{ msgyzm }}</span>
<button class="btn" @click="denglu">登录</button>
<button class="btn" @click="cancel">取消</button>
</div>
<div class="msg">
<a href="#">注册</a>
</div>
</div>
</div>
</div>
</template>
逻辑部分
<script>
import YanZhengMa from "@/untils/YanZhengMa.vue";
export default {
name: "DengLu",
components: {
YanZhengMa,
},
data() {
return {
identifyCode: "",
identifyCodes: "1234567890ABCDEFGHIJKLMNOPQRSTUVWXYZ",
yzm: "",
username: "",
password: "",
msgname: "",
msgpassword: "",
msgyzm: "",
};
},
methods: {
// 验证码
randomMum(min, max) {
return Math.floor(Math.random() * (max - min) + min);
},
refreshCode() {
this.identifyCode = "";
this.makeCode(this.identifyCodes, 4);
// 打印验证码
console.log(this.identifyCode);
},
makeCode(a, l) {
for (let i = 0; i < l; i++) {
this.identifyCode +=
this.identifyCodes[this.randomMum(0, this.identifyCodes.length)];
}
},
// 验证验证码
check() {
if (this.yzm === "") {
this.msgname = "验证码不能为空";
return false;
} else if (this.identifyCode === this.yzm) {
this.msgyzm = "验证通过";
return true;
} else {
this.msgyzm = "请输入正确的验证码";
return false;
}
},
mounted() {
const self = this;
self.identifyCode = "";
self.makeCode(this.identifyCodes, 4);
},
created() {
this.refreshCode();
},
// 验证用户名
checkname() {
let re = /^(?![0-9]+$)(?![a-zA-Z]+$)[0-9A-Za-z]{6,16}$/;
if (this.username === "") {
this.msgname = "用户名不能为空";
return false;
} else if (re.test(this.username)) {
this.msgname = "用户名验证通过";
return true;
} else {
this.msgname = "请输入6~16位用户名,数字、字母";
return false;
}
},
//验证密码
checkpassword() {
// 定义正则
let re = /^(?![0-9]+$)(?![a-zA-Z]+$)[0-9A-Za-z]{6,16}$/;
if (this.password === "") {
this.msgpassword = "密码不能为空";
return false;
} else if (re.test(this.password)) {
this.msgpassword = "密码验证通过";
return true;
} else {
this.msgpassword = "请输入6~16位密码,数字、字母";
return false;
}
},
// 点击登录
denglu() {
if (this.checkname() && this.checkpassword() && this.check()) {
// 登录成功存 token
localStorage.setItem("token", "Bearer xxx");
// 跳转
this.$router.replace("/MyHome");
} else {
// 登录失败
localStorage.removeItem("token");
}
},
// 点击取消
cancel() {
// 清空输入框
this.yzm = "";
this.username = "";
this.password = "";
// 清空提示
this.msgname = "";
this.msgpassword = "";
this.msgyzm = "";
},
},
};
</script>
css 样式部分
<style scoped>
.container {
height: 100%;
}
.login-wrapper {
background-image: radial-gradient(
circle,
rgb(243, 240, 240),
rgb(240, 240, 236),
rgb(238, 241, 238)
);
width: 400px;
border-radius: 15px;
padding: 0 50px;
position: relative;
left: 50%;
top: 50%;
transform: translate(-50%, 10%);
}
.header {
font-size: 30px;
font-weight: bold;
text-align: center;
line-height: 100px;
}
.input-item {
display: block;
width: 100%;
margin-bottom: 20px;
border: 0;
padding: 10px;
border-bottom: 1px solid rgb(128, 125, 125);
font-size: 15px;
outline: none;
}
.input-yanzhengma {
display: block;
width: 40%;
margin-bottom: 20px;
border: 0;
padding: 10px;
border-bottom: 1px solid rgb(128, 125, 125);
font-size: 15px;
outline: none;
}
.input-item:placeholder {
text-transform: uppercase;
}
.flex {
display: flex;
justify-content: space-around;
}
.btn {
text-align: center;
padding: 10px;
width: 100%;
margin-top: 40px;
background-image: linear-gradient(
to bottom,
rgb(194, 198, 194),
rgb(238, 241, 238)
);
border: none;
font-size: 20px;
}
.msg {
text-align: center;
line-height: 88px;
}
a {
text-decoration-line: none;
color: #abc1ee;
}
.color {
font-size: 14px;
color: red;
}
</style>

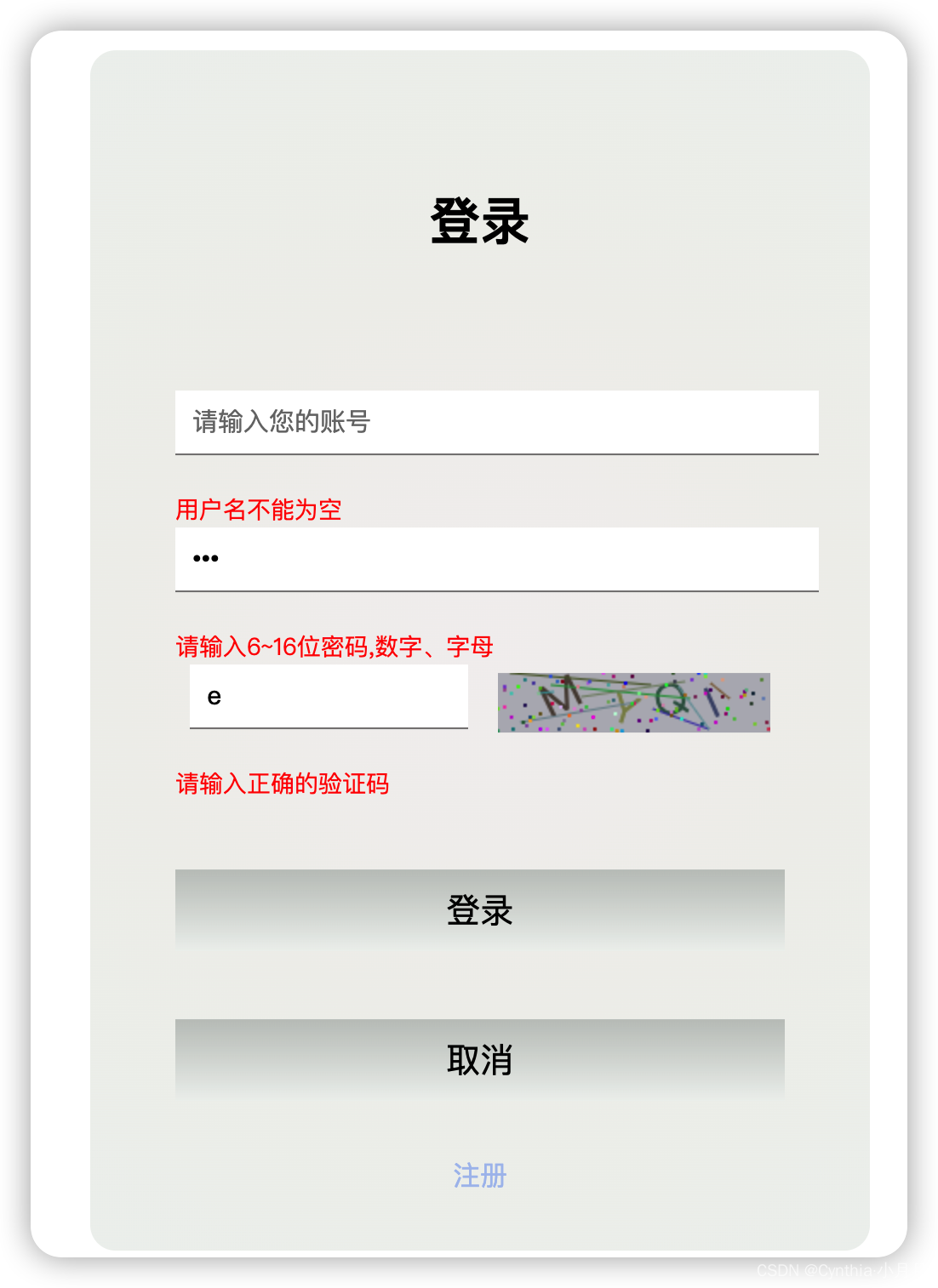

以上就是一个简单的验证登录过程,效果如下图
