概述
Spring Data JPA 是 Spring 基于 ORM 框架、JPA 规范的基础上封装的一套JPA应用框架,可使开发者用极简的代码即可实现对数据库的访问和操作。它提供了包括增删改查等在内的常用功能,且易于扩展!学习并使用 Spring Data JPA 可以极大提高开发效率!

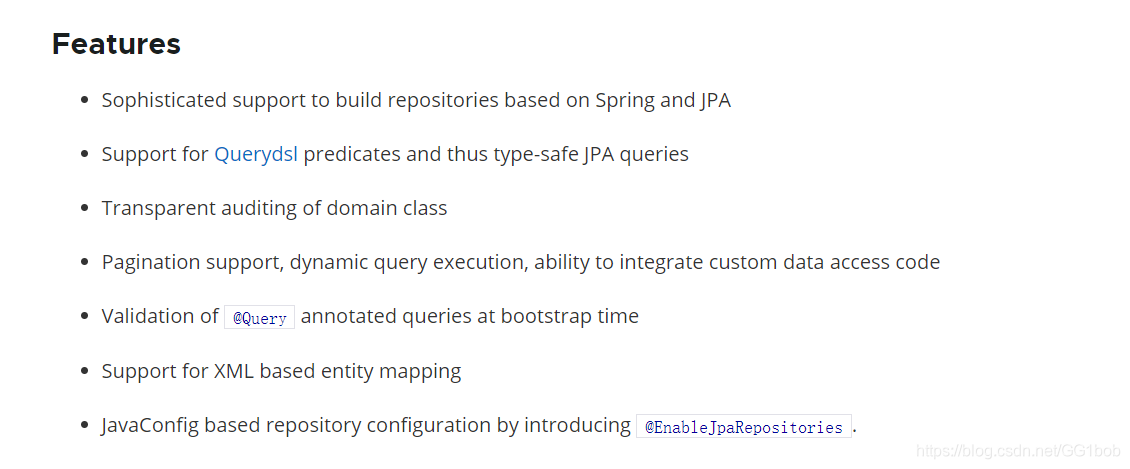

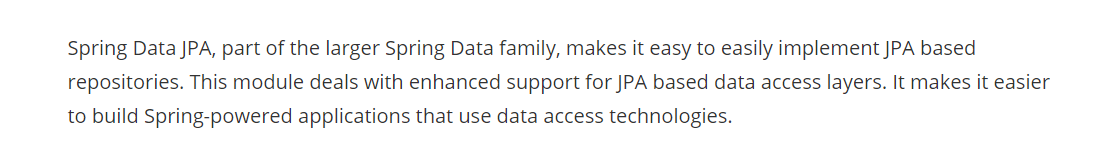

Spring 官网对于 Spring Data JPA 的一段简介。
Spring Data JPA 与 JPA 和Hibernate的关系
JPA 是一套规范,内部是有接口和抽象类组成的。Hibernate 是一套成熟的 ORM 框架,而且 Hibernate 实现了 JPA 规范,所以也可以称Hibernate 为 JPA 的一种实现方式,我们使用 JPA 的 API 编程,意味着站在更高的角度上看待问题(面向接口编程)。Spring Data JPA 是 Spring 提供的一套对 JPA 操作更加高级的封装,是在 JPA 规范下的专门用来进行数据持久化的解决方案。
快速入门
导入依赖坐标
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.cqkgkj</groupId>
<artifactId>spring-data-jpa</artifactId>
<version>1.0-SNAPSHOT</version>
<properties>
<spring.version>5.0.2.RELEASE</spring.version>
<hibernate.version>5.0.7.Final</hibernate.version>
<slf4j.version>1.6.6</slf4j.version>
<log4j.version>1.2.12</log4j.version>
<c3p0.version>0.9.1.2</c3p0.version>
<mysql.version>5.1.6</mysql.version>
</properties>
<dependencies>
<!-- junit单元测试 -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
<scope>test</scope>
</dependency>
<!-- spring beg -->
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>1.6.8</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-aop</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context-support</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- spring对orm框架的支持包-->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-orm</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-beans</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-core</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- spring end -->
<!-- hibernate beg -->
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-core</artifactId>
<version>${hibernate.version}</version>
</dependency>
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-entitymanager</artifactId>
<version>${hibernate.version}</version>
</dependency>
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-validator</artifactId>
<version>5.2.1.Final</version>
</dependency>
<!-- hibernate end -->
<!-- c3p0 beg -->
<dependency>
<groupId>c3p0</groupId>
<artifactId>c3p0</artifactId>
<version>${c3p0.version}</version>
</dependency>
<!-- c3p0 end -->
<!-- log end -->
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>${log4j.version}</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-api</artifactId>
<version>${slf4j.version}</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-log4j12</artifactId>
<version>${slf4j.version}</version>
</dependency>
<!-- log end -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>${mysql.version}</version>
</dependency>
<!-- spring data jpa 的坐标-->
<dependency>
<groupId>org.springframework.data</groupId>
<artifactId>spring-data-jpa</artifactId>
<version>1.9.0.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- el beg 使用spring data jpa 必须引入 -->
<dependency>
<groupId>javax.el</groupId>
<artifactId>javax.el-api</artifactId>
<version>2.2.4</version>
</dependency>
<dependency>
<groupId>org.glassfish.web</groupId>
<artifactId>javax.el</artifactId>
<version>2.2.4</version>
</dependency>
<!-- el end -->
</dependencies>
</project>
Spring 和 Spring Data JPA 整合配置文件
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:jdbc="http://www.springframework.org/schema/jdbc"
xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:jpa="http://www.springframework.org/schema/data/jpa"
xmlns:task="http://www.springframework.org/schema/task"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/jdbc
http://www.springframework.org/schema/jdbc/spring-jdbc.xs
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx.xsd
http://www.springframework.org/schema/data/jpa
http://www.springframework.org/schema/data/jpa/spring-jpa.xsd">
<!-- 1.dataSource 配置数据库连接池-->
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
<property name="driverClass" value="com.mysql.jdbc.Driver" />
<property name="jdbcUrl" value="jdbc:mysql://localhost:3306/study" />
<property name="user" value="root" />
<property name="password" value="4444" />
</bean>
<!-- 2.配置entityManagerFactory -->
<bean id="entityManagerFactory"
class="org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean">
<property name="dataSource" ref="dataSource" />
<property name="packagesToScan" value="com.cqkgkj.entity" />
<property name="persistenceProvider">
<bean class="org.hibernate.jpa.HibernatePersistenceProvider" />
</property>
<!--JPA的供应商适配器-->
<property name="jpaVendorAdapter">
<bean class="org.springframework.orm.jpa.vendor.HibernateJpaVendorAdapter">
<property name="generateDdl" value="false" />
<property name="database" value="MYSQL" />
<property name="databasePlatform" value="org.hibernate.dialect.MySQLDialect" />
<property name="showSql" value="true" />
</bean>
</property>
<property name="jpaDialect">
<bean class="org.springframework.orm.jpa.vendor.HibernateJpaDialect" />
</property>
</bean>
<!-- 3.事务管理器-->
<!-- JPA事务管理器 -->
<bean id="transactionManager" class="org.springframework.orm.jpa.JpaTransactionManager">
<property name="entityManagerFactory" ref="entityManagerFactory" />
</bean>
<!-- 整合spring data jpa-->
<jpa:repositories base-package="com.cqkgkj.dao" transaction-manager-ref="transactionManager"
entity-manager-factory-ref="entityManagerFactory"></jpa:repositories>
<!-- 4.txAdvice-->
<tx:advice id="txAdvice" transaction-manager="transactionManager">
<tx:attributes>
<tx:method name="save*" propagation="REQUIRED"/>
<tx:method name="insert*" propagation="REQUIRED"/>
<tx:method name="update*" propagation="REQUIRED"/>
<tx:method name="delete*" propagation="REQUIRED"/>
<tx:method name="get*" read-only="true"/>
<tx:method name="find*" read-only="true"/>
<tx:method name="*" propagation="REQUIRED"/>
</tx:attributes>
</tx:advice>
<!-- 5.aop-->
<aop:config>
<aop:pointcut id="pointcut" expression="execution(* com.cqkgkj.service.*.*(..))" />
<aop:advisor advice-ref="txAdvice" pointcut-ref="pointcut" />
</aop:config>
<context:component-scan base-package="com.cqkgkj"></context:component-scan>
<!--组装其它 配置文件-->
</beans>
实体类,配置映射关系
package com.cqkgkj.domain;
import javax.persistence.*;
/**
* 1.实体类和表的映射关系
* @Eitity: 声明实体类
* @Table: 配置实体类和表的映射关系
* 2.类中属性和表中字段的映射关系
* @Id:声明主键的配置
* @GeneratedValue:
* GenerationType.IDENTITY : 自增,mysql
* * 底层数据库必须支持自动增长(底层数据库支持的自动增长方式,对id自增)
* GenerationType.SEQUENCE : 序列,oracle
* * 底层数据库必须支持序列
* GenerationType.TABLE : jpa提供的一种机制,通过一张数据库表的形式帮助我们完成主键自增
* GenerationType.AUTO : 由程序自动的帮助我们选择主键生成策略
* @Column: 配置属性和字段的映射关系
*/
@Data
@Entity
@Table(name="cst_customer")
public class Customer {
@Id
@GeneratedValue(strategy = GenerationType.IDENTITY)
@Column(name="cust_id")
private Long custId;
@Column(name="cust_address")
private String custAddress;
@Column(name="cust_industry")
private String custIndustry;
@Column(name="cust_level")
private String custLevel;
@Column(name="cust_name")
private String custName;
@Column(name="cust_phone")
private String custPhone;
@Column(name="cust_source")
private String custSource;
}
使用 Lombok 插件自动生成 setter 和 getter 方法,避免繁琐的编码。配置实体类和数据库表的映射以及各属性与字段的映射。
Dao层接口
package com.cqkgkj.dao;
import com.cqkgkj.domain.Customer;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.data.jpa.repository.JpaSpecificationExecutor;
import org.springframework.data.jpa.repository.Modifying;
import org.springframework.data.jpa.repository.Query;
import java.util.List;
/**
* 符合SpringDataJpa的dao层接口规范
* JpaRepository<操作的实体类类型,实体类中主键属性的类型>
* * 封装了基本CRUD操作
* JpaSpecificationExecutor<操作的实体类类型>
* * 封装了复杂查询(分页)
*/
public interface CustomerDao extends JpaRepository<Customer,Long> ,JpaSpecificationExecutor<Customer> {
}
使用 Spring Data JPA,只需要按照框架的规范提供 dao 接口,不需要实现类就可以完成数据库的增删改查、分页查询等方法的定义。
基本CRUD操作
package com.cqkgkj.test;
import com.cqkgkj.dao.CustomerDao;
import com.cqkgkj.domain.Customer;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
import org.springframework.transaction.annotation.Transactional;
import java.util.List;
@RunWith(SpringJUnit4ClassRunner.class) //声明spring提供的单元测试环境
@ContextConfiguration(locations = "classpath:applicationContext.xml")//指定spring容器的配置信息
public class CustomerDaoTest {
@Autowired
private CustomerDao customerDao;
/**
* 根据id从数据库查询
* @Transactional : 保证getOne正常运行
*
* findOne:
* em.find() :立即加载
* getOne:
* em.getReference :延迟加载
* * 返回的是一个客户的动态代理对象
* * 什么时候用,什么时候查询
*/
@Test
public void testFindOne() {
Customer customer = customerDao.findOne(4l);
System.out.println(customer);
}
@Test
@Transactional
public void testGetOne() {
Customer customer = customerDao.getOne(4l);
System.out.println(customer);
}
/**
* save : 保存或者更新
* 根据传递的对象是否存在主键id,
* 如果没有id主键属性:保存
* 存在id主键属性,根据id查询数据,更新数据
*/
@Test
public void testSave() {
Customer customer = new Customer();
customer.setCustName("张三");
customer.setCustLevel("vip");
customer.setCustIndustry("it教育");
customerDao.save(customer);
}
@Test
public void testUpdate() {
Customer customer = new Customer();
customer.setCustId(1L);
customer.setCustName("李四");
customerDao.save(customer);
}
@Test
public void testDelete () {
customerDao.delete(3l);
}
/**
* 查询所有
*/
@Test
public void testFindAll() {
List<Customer> list = customerDao.findAll();
for(Customer customer : list) {
System.out.println(customer);
}
}
/**
* 测试统计查询:查询客户的总数量
* count:统计总条数
*/
@Test
public void testCount() {
long count = customerDao.count();//查询全部的客户数量
System.out.println(count);
}
/**
* 测试:判断id为4的客户是否存在
* 1. 可以查询以下id为4的客户
* 如果值为空,代表不存在,如果不为空,代表存在
* 2. 判断数据库中id为4的客户的数量
* 如果数量为0,代表不存在,如果大于0,代表存在
*/
@Test
public void testExists() {
boolean exists = customerDao.exists(4l);
System.out.println("id为4的客户 是否存在:"+exists);
}
}
使用 JPQL 的方式查询
使用 @Query 注解,在 Dao 的方法上面标注该注解,同时提供一个JPQL查询语句即可。
public interface CustomerDao extends JpaRepository<Customer, Long>,JpaSpecificationExecutor<Customer> {
//@Query 使用jpql的方式查询。
@Query(value="from Customer")
List<Customer> findAllCustomer();
//@Query 使用jpql的方式查询。?1代表参数的占位符,其中1对应方法中的参数索引
@Query(value="from Customer where custName = ?1")
Customer findCustomer(String custName);
@Query(value = "from Customer where custName = ?2 and custId = ?1")
Customer findCustNameAndId(Long id,String name);
}
执行更新操作时,需要加上 @Modifying 注解
@Query(value = " update Customer set custName = ?2 where custId = ?1 ")
@Modifying
void updateCustomer(long custId, String custName);
测试方法:
package com.cqkgkj.test;
import com.cqkgkj.dao.CustomerDao;
import com.cqkgkj.domain.Customer;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.annotation.Rollback;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
import org.springframework.transaction.annotation.Transactional;
import java.util.Arrays;
import java.util.List;
@RunWith(SpringJUnit4ClassRunner.class) //声明spring提供的单元测试环境
@ContextConfiguration(locations = "classpath:applicationContext.xml")//指定spring容器的配置信息
public class JpqlTest {
@Autowired
private CustomerDao customerDao;
@Test
public void testFindAll(){
List<Customer> customers = customerDao.findAllCustomer();
for(Customer c : customers){
System.out.println(c);
}
}
@Test
public void testFindJPQL() {
List<Customer> customers = customerDao.findJpql("Java程序员");
for(Customer c : customers){
System.out.println(c);
}
}
@Test
public void testFindCustNameAndId() {
Customer customer = customerDao.findCustNameAndId(1l,"Java程序员");
System.out.println(customer);
}
/**
* 测试jpql的更新操作
* * spring Data Jpa中使用jpql完成 更新/删除操作
* * 需要手动添加事务的支持
* * 默认会执行结束之后,回滚事务
* @Rollback : 设置是否自动回滚
* false | true
*/
@Test
@Transactional //添加事务的支持
@Rollback(value = false)
public void testUpdateCustomer() {
customerDao.updateCustomer(2l,"Java程序员");
}
}
使用 SQL 语句查询
Spring Data JPA 同样也支持 sql 语句的查询,如下:
/**
* 使用sql的形式查询:
* Query : 配置sql查询
* value : sql语句
* nativeQuery : 查询方式
* true : sql查询
* false: jpql查询
*/
@Query(value="select * from cst_customer where cust_name like ?1", nativeQuery = true)
List<Object [] > findSql(String name);
@RunWith(SpringJUnit4ClassRunner.class) //声明spring提供的单元测试环境
@ContextConfiguration(locations = "classpath:applicationContext.xml")//指定spring容器的配置信息
public class JpqlTest {
@Autowired
private CustomerDao customerDao;
//测试sql查询
@Test
public void testFindSql() {
List<Object[]> list = customerDao.findSql("Java%");
for(Object [] obj : list) {
System.out.println(Arrays.toString(obj));
}
}
}
方法命名规则查询
当 Dao 的方法按照 Spring Data JPA 提供的方法命名规则定义名称时,就可以完成相应的查询工作。由于方法规则需要记忆,这里我就不一一列举了,实际使用中我们可能记不住这些规则,但我们使用注解编写 JPQL 或 SQL 也能完成。
Specifications 动态查询
有时我们查询的条件不是固定不变的,需要动态构建查询语句。Spring Data JPA 中 Dao层的对象还继承了 JpaSpecificationExecutor 接口,可用于动态查询,由于其具有泛型,故比 JPQL 方式类型更安全,更加面向对象。
JpaSpecificationExecutor 接口里的方法:
package org.springframework.data.jpa.repository;
import java.util.List;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.Pageable;
import org.springframework.data.domain.Sort;
import org.springframework.data.jpa.domain.Specification;
public interface JpaSpecificationExecutor<T> {
//根据条件查询一个对象
T findOne(Specification<T> var1);
//根据条件查询集合
List<T> findAll(Specification<T> var1);
//根据条件分页查询
Page<T> findAll(Specification<T> var1, Pageable var2);
//排序查询
List<T> findAll(Specification<T> var1, Sort var2);
//统计查询
long count(Specification<T> var1);
}
Specification 就是用来构造条件的接口,其内部方法定义只有一个:
package org.springframework.data.jpa.domain;
import javax.persistence.criteria.CriteriaBuilder;
import javax.persistence.criteria.CriteriaQuery;
import javax.persistence.criteria.Predicate;
import javax.persistence.criteria.Root;
public interface Specification<T> {
//构造查询条件
/**
* root :Root接口,代表查询的根对象,可以通过root获取实体中的属性
* query :代表一个顶层查询对象,用来自定义查询
* cb :用来构建查询,此对象里有很多条件方法
**/
Predicate toPredicate(Root<T> root, CriteriaQuery<?> query, CriteriaBuilder cb);
}
使用 Specifications 条件查询
package com.cqkgkj.test;
import com.cqkgkj.dao.CustomerDao;
import com.cqkgkj.domain.Customer;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageRequest;
import org.springframework.data.domain.Pageable;
import org.springframework.data.domain.Sort;
import org.springframework.data.jpa.domain.Specification;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
import javax.persistence.criteria.*;
import java.util.List;
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = "classpath:applicationContext.xml")
public class SpecTest {
@Autowired
private CustomerDao customerDao;
/**
* 根据条件,查询单个对象
*/
@Test
public void testSpec() {
//匿名内部类
/*
* 自定义查询条件
* 1.实现Specification接口(提供泛型:查询的对象类型)
* 2.实现toPredicate方法(构造查询条件)
* 3.需要借助方法参数中的两个参数(
* root:获取需要查询的对象属性
* CriteriaBuilder:构造查询条件的,内部封装了很多的查询条件(模糊匹配,精准匹配)
* )
* 案例:根据用户名称查询,查询用户名为张三的用户
* 查询条件
* 1.查询方式
* cb对象
* 2.比较的属性名称
* root对象
*
*/
Specification<Customer> spec = new Specification<Customer>() {
@Override
public Predicate toPredicate(Root<Customer> root, CriteriaQuery<?> query, CriteriaBuilder cb) {
//1.获取比较的属性
Path<Object> custName = root.get("custName");
//2.构造查询条件:select * from cst_customer where cust_name = '张三'
/*
* 第一个参数:需要比较的属性(path对象)
* 第二个参数:当前需要比较的取值
*/
Predicate predicate = cb.equal(custName, "张三");//进行精准的匹配 (比较的属性,比较的属性的取值)
return predicate;
}
};
Customer customer = customerDao.findOne(spec);
System.out.println(customer);
}
/**
* 多条件查询
* 案例:根据用户名(张三)和用户所属行业查询(IT)
*/
@Test
public void testSpec1() {
/*
* root:获取属性
* 用户名
* 所属行业
* cb:构造查询
* 1.构造用户名的精准匹配查询
* 2.构造所属行业的精准匹配查询
* 3.将以上两个查询联系起来
*/
Specification<Customer> spec = new Specification<Customer>() {
@Override
public Predicate toPredicate(Root<Customer> root, CriteriaQuery<?> query, CriteriaBuilder cb) {
Path<Object> custName = root.get("custName"); //用户名
Path<Object> custIndustry = root.get("custIndustry");//所属行业
//构造查询
//1.构造客户名的精准匹配查询
Predicate p1 = cb.equal(custName, "张三");//第一个参数,path(属性),第二个参数,属性的取值
//2.构造所属行业的精准匹配查询
Predicate p2 = cb.equal(custIndustry, "IT");
//3.将多个查询条件组合到一起:组合(满足条件一并且满足条件二:与关系,满足条件一或满足条件二即可:或关系)
Predicate and = cb.and(p1, p2);//以与的形式拼接多个查询条件
// cb.or();//以或的形式拼接多个查询条件
return and;
}
};
Customer customer = customerDao.findOne(spec);
System.out.println(customer);
}
/**
* 案例:完成根据用户名称的模糊匹配,返回用户列表
* 用户名称以 ‘张’ 开头,且以id升序排序
* equal:直接得到path对象(属性),然后进行比较即可
* gt,lt,ge,le,like : 得到path对象,根据path指定比较的参数类型,再去进行比较
* 指定参数类型:path.as(类型的字节码对象)
*/
@Test
public void testSpec3() {
//构造查询条件
Specification<Customer> spec = new Specification<Customer>() {
@Override
public Predicate toPredicate(Root<Customer> root, CriteriaQuery<?> query, CriteriaBuilder cb) {
//查询属性:用户名
Path<Object> custName = root.get("custName");
//查询方式:模糊匹配
Predicate like = cb.like(custName.as(String.class), "张%");
return like;
}
};
//添加排序
//创建排序对象,需要调用构造方法实例化sort对象
//Sort sort = new Sort(排序的顺序,排序的属性名称);
// 排序的顺序(倒序,正序)
// Sort.Direction.DESC:倒序
// Sort.Direction.ASC :升序
Sort sort = new Sort(Sort.Direction.DESC,"custId");
List<Customer> list = customerDao.findAll(spec, sort);
for (Customer customer : list) {
System.out.println(customer);
}
}
}
Specifications 分页查询
@Test
public void testSpec4() {
Specification spec = null;
//PageRequest对象是Pageable接口的实现类
/*
* 创建PageRequest的过程中,需要调用他的构造方法传入两个参数
* 第一个参数:当前查询的页数(从0开始)
* 第二个参数:每页查询的数量
*/
Pageable pageable = new PageRequest(0,2);
//分页查询
Page<Customer> page = customerDao.findAll(null, pageable);
System.out.println(page.getContent()); //得到数据集合列表
System.out.println(page.getTotalElements()); //得到总条数
System.out.println(page.getTotalPages()); //得到总页数
}
