【数据安全】敏感字过滤方案总结

1.Trie 树实现方案

Trie 树 也称为字典树、单词查找树，哈希树的一种变种，通常被用于字符串匹配，用来解决在一组字符串集合中快速查找某个字符串的问题

当我们要查找对应的字符串“东京热”的话，我们会把这个字符串切割成单个的字符“东”、“京”、“热”，然后我们从 Trie 树的根节点开始匹配。

Trie 树的核心原理其实很简单，就是通过公共前缀来提高字符串匹配效率

Trie<String, String> trie = new PatriciaTrie<>();
trie.put("Abigail", "student");
trie.put("Abi", "doctor");
trie.put("Annabel", "teacher");
trie.put("Christina", "student");
trie.put("Chris", "doctor");
Assertions.assertTrue(trie.containsKey("Abigail"));
assertEquals("{Abi=doctor, Abigail=student}", trie.prefixMap("Abi").toString());
assertEquals("{Chris=doctor, Christina=student}", trie.prefixMap("Chr").toString());

Trie 树是一种利用空间换时间的数据结构，占用的内存会比较大。也正是因为这个原因，实际工程项目中都是使用的改进版 Trie 树例如双数组 Trie 树。相比较于 Trie 树，DAT 的内存占用极低，可以达到 Trie 树内存的 1%左右。DAT 在中文分词、自然语言处理、信息检索等领域有广泛的应用，是一种非常优秀的数据结构

代码如下：

/**
 * DoubleArrayTrie: Java implementation of Darts (Double-ARray Trie System)
 *
 * <p>
 * Copyright(C) 2001-2007 Taku Kudo &lt;taku@chasen.org&gt;

 * Copyright(C) 2009 MURAWAKI Yugo &lt;murawaki@nlp.kuee.kyoto-u.ac.jp&gt;
 * Copyright(C) 2012 KOMIYA Atsushi &lt;komiya.atsushi@gmail.com&gt;
 * </p>
 *
 * <p>
 * The contents of this file may be used under the terms of either of the GNU
 * Lesser General Public License Version 2.1 or later (the "LGPL"), or the BSD
 * License (the "BSD").
 * </p>
 */
package darts;

import java.io.BufferedInputStream;
import java.io.BufferedOutputStream;
import java.io.DataInputStream;
import java.io.DataOutputStream;
import java.io.File;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;

public class DoubleArrayTrie {
	private final static int BUF_SIZE = 16384;
	private final static int UNIT_SIZE = 8; // size of int + int

	private static class Node {
		int code;
		int depth;
		int left;
		int right;
	};

	private int check[];
	private int base[];

	private boolean used[];
	private int size;
	private int allocSize;
	private List<String> key;
	private int keySize;
	private int length[];
	private int value[];
	private int progress;
	private int nextCheckPos;
	// boolean no_delete_;
	int error_;

	// int (*progressfunc_) (size_t, size_t);

	// inline _resize expanded
	private int resize(int newSize) {
		int[] base2 = new int[newSize];
		int[] check2 = new int[newSize];
		boolean used2[] = new boolean[newSize];
		if (allocSize > 0) {
			System.arraycopy(base, 0, base2, 0, allocSize);
			System.arraycopy(check, 0, check2, 0, allocSize);
			System.arraycopy(used2, 0, used2, 0, allocSize);
		}

		base = base2;
		check = check2;
		used = used2;

		return allocSize = newSize;
	}

	private int fetch(Node parent, List<Node> siblings) {
		if (error_ < 0)
			return 0;

		int prev = 0;

		for (int i = parent.left; i < parent.right; i++) {
			if ((length != null ? length[i] : key.get(i).length()) < parent.depth)
				continue;

			String tmp = key.get(i);

			int cur = 0;
			if ((length != null ? length[i] : tmp.length()) != parent.depth)
				cur = (int) tmp.charAt(parent.depth) + 1;

			if (prev > cur) {
				error_ = -3;
				return 0;
			}

			if (cur != prev || siblings.size() == 0) {
				Node tmp_node = new Node();
				tmp_node.depth = parent.depth + 1;
				tmp_node.code = cur;
				tmp_node.left = i;
				if (siblings.size() != 0)
					siblings.get(siblings.size() - 1).right = i;

				siblings.add(tmp_node);
			}

			prev = cur;
		}

		if (siblings.size() != 0)
			siblings.get(siblings.size() - 1).right = parent.right;

		return siblings.size();
	}

	private int insert(List<Node> siblings) {
		if (error_ < 0)
			return 0;

		int begin = 0;
		int pos = ((siblings.get(0).code + 1 > nextCheckPos) ? siblings.get(0).code + 1
				: nextCheckPos) - 1;
		int nonzero_num = 0;
		int first = 0;

		if (allocSize <= pos)
			resize(pos + 1);

		outer: while (true) {
			pos++;

			if (allocSize <= pos)
				resize(pos + 1);

			if (check[pos] != 0) {
				nonzero_num++;
				continue;
			} else if (first == 0) {
				nextCheckPos = pos;
				first = 1;
			}

			begin = pos - siblings.get(0).code;
			if (allocSize <= (begin + siblings.get(siblings.size() - 1).code)) {
				// progress can be zero
				double l = (1.05 > 1.0 * keySize / (progress + 1)) ? 1.05 : 1.0
						* keySize / (progress + 1);
				resize((int) (allocSize * l));
			}

			if (used[begin])
				continue;

			for (int i = 1; i < siblings.size(); i++)
				if (check[begin + siblings.get(i).code] != 0)
					continue outer;

			break;
		}

		// -- Simple heuristics --
		// if the percentage of non-empty contents in check between the
		// index
		// 'next_check_pos' and 'check' is greater than some constant value
		// (e.g. 0.9),
		// new 'next_check_pos' index is written by 'check'.
		if (1.0 * nonzero_num / (pos - nextCheckPos + 1) >= 0.95)
			nextCheckPos = pos;

		used[begin] = true;
		size = (size > begin + siblings.get(siblings.size() - 1).code + 1) ? size
				: begin + siblings.get(siblings.size() - 1).code + 1;

		for (int i = 0; i < siblings.size(); i++)
			check[begin + siblings.get(i).code] = begin;

		for (int i = 0; i < siblings.size(); i++) {
			List<Node> new_siblings = new ArrayList<Node>();

			if (fetch(siblings.get(i), new_siblings) == 0) {
				base[begin + siblings.get(i).code] = (value != null) ? (-value[siblings
						.get(i).left] - 1) : (-siblings.get(i).left - 1);

				if (value != null && (-value[siblings.get(i).left] - 1) >= 0) {
					error_ = -2;
					return 0;
				}

				progress++;
				// if (progress_func_) (*progress_func_) (progress,
				// keySize);
			} else {
				int h = insert(new_siblings);
				base[begin + siblings.get(i).code] = h;
			}
		}
		return begin;
	}

	public DoubleArrayTrie() {
		check = null;
		base = null;
		used = null;
		size = 0;
		allocSize = 0;
		// no_delete_ = false;
		error_ = 0;
	}

	// no deconstructor

	// set_result omitted
	// the search methods returns (the list of) the value(s) instead
	// of (the list of) the pair(s) of value(s) and length(s)

	// set_array omitted
	// array omitted

	void clear() {
		// if (! no_delete_)
		check = null;
		base = null;
		used = null;
		allocSize = 0;
		size = 0;
		// no_delete_ = false;
	}

	public int getUnitSize() {
		return UNIT_SIZE;
	}

	public int getSize() {
		return size;
	}

	public int getTotalSize() {
		return size * UNIT_SIZE;
	}

	public int getNonzeroSize() {
		int result = 0;
		for (int i = 0; i < size; i++)
			if (check[i] != 0)
				result++;
		return result;
	}

	public int build(List<String> key) {
		return build(key, null, null, key.size());
	}

	public int build(List<String> _key, int _length[], int _value[],
			int _keySize) {
		if (_keySize > _key.size() || _key == null)
			return 0;

		// progress_func_ = progress_func;
		key = _key;
		length = _length;
		keySize = _keySize;
		value = _value;
		progress = 0;

		resize(65536 * 32);

		base[0] = 1;
		nextCheckPos = 0;

		Node root_node = new Node();
		root_node.left = 0;
		root_node.right = keySize;
		root_node.depth = 0;

		List<Node> siblings = new ArrayList<Node>();
		fetch(root_node, siblings);
		insert(siblings);

		// size += (1 << 8 * 2) + 1; // ???
		// if (size >= allocSize) resize (size);

		used = null;
		key = null;

		return error_;
	}

	public void open(String fileName) throws IOException {
		File file = new File(fileName);
		size = (int) file.length() / UNIT_SIZE;
		check = new int[size];
		base = new int[size];

		DataInputStream is = null;
		try {
			is = new DataInputStream(new BufferedInputStream(
					new FileInputStream(file), BUF_SIZE));
			for (int i = 0; i < size; i++) {
				base[i] = is.readInt();
				check[i] = is.readInt();
			}
		} finally {
			if (is != null)
				is.close();
		}
	}

	public void save(String fileName) throws IOException {
		DataOutputStream out = null;
		try {
			out = new DataOutputStream(new BufferedOutputStream(
					new FileOutputStream(fileName)));
			for (int i = 0; i < size; i++) {
				out.writeInt(base[i]);
				out.writeInt(check[i]);
			}
			out.close();
		} finally {
			if (out != null)
				out.close();
		}
	}

	public int exactMatchSearch(String key) {
		return exactMatchSearch(key, 0, 0, 0);
	}

	public int exactMatchSearch(String key, int pos, int len, int nodePos) {
		if (len <= 0)
			len = key.length();
		if (nodePos <= 0)
			nodePos = 0;

		int result = -1;

		char[] keyChars = key.toCharArray();

		int b = base[nodePos];
		int p;

		for (int i = pos; i < len; i++) {
			p = b + (int) (keyChars[i]) + 1;
			if (b == check[p])
				b = base[p];
			else
				return result;
		}

		p = b;
		int n = base[p];
		if (b == check[p] && n < 0) {
			result = -n - 1;
		}
		return result;
	}

	public List<Integer> commonPrefixSearch(String key) {
		return commonPrefixSearch(key, 0, 0, 0);
	}

	public List<Integer> commonPrefixSearch(String key, int pos, int len,
			int nodePos) {
		if (len <= 0)
			len = key.length();
		if (nodePos <= 0)
			nodePos = 0;

		List<Integer> result = new ArrayList<Integer>();

		char[] keyChars = key.toCharArray();

		int b = base[nodePos];
		int n;
		int p;

		for (int i = pos; i < len; i++) {
			p = b;
			n = base[p];

			if (b == check[p] && n < 0) {
				result.add(-n - 1);
			}

			p = b + (int) (keyChars[i]) + 1;
			if (b == check[p])
				b = base[p];
			else
				return result;
		}

		p = b;
		n = base[p];

		if (b == check[p] && n < 0) {
			result.add(-n - 1);
		}

		return result;
	}

	// debug
	public void dump() {
		for (int i = 0; i < size; i++) {
			System.err.println("i: " + i + " [" + base[i] + ", " + check[i]
					+ "]");
		}
	}
}

---

2.AC自动机方案

Aho-Corasick（AC）自动机是一种建立在 Trie 树上的一种改进算法，是一种多模式匹配算法
AC 自动机算法使用 Trie 树来存放模式串的前缀，通过失败匹配指针（失配指针）来处理匹配失败的跳转

如果使用上面提到的 DAT 来表示 AC 自动机 ，就可以兼顾两者的优点，得到一种高效的多模式匹配算法

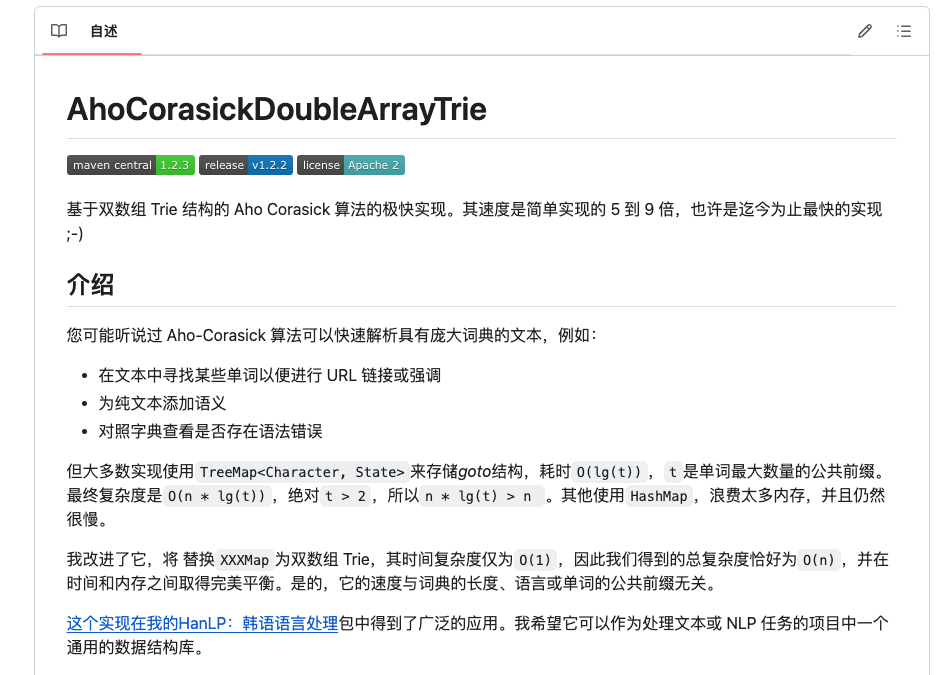

https://github.com/hankcs/AhoCorasickDoubleArrayTrie

---

3.DFA算法方案

DFA即确定有穷自动机，与之对应的是 NFA（不确定有穷自动机)

hutool代码仓中提供了 DFA 算法的实现：

https://github.com/dromara/hutool/tree/v5-master/hutool-dfa/src/main/java/cn/hutool/dfa

使用案例：

WordTree wordTree = new WordTree();
wordTree.addWord("大");
wordTree.addWord("大憨憨");
wordTree.addWord("憨憨");
String text = "那人真是个大憨憨！";
// 获得第一个匹配的关键字
String matchStr = wordTree.match(text);
System.out.println(matchStr);
// 标准匹配，匹配到最短关键词，并跳过已经匹配的关键词
List<String> matchStrList = wordTree.matchAll(text, -1, false, false);
System.out.println(matchStrList);
//匹配到最长关键词，跳过已经匹配的关键词
List<String> matchStrList2 = wordTree.matchAll(text, -1, false, true);
System.out.println(matchStrList2);

---

4.开源方案

1、https://github.com/toolgood/ToolGood.Words

一款高性能敏感词(非法词/脏字)检测过滤组件，附带繁体简体互换，支持全角半角互换，汉字转拼音，模糊搜索等功能

2、https://github.com/hooj0/sensitive-words-filter

敏感词过滤项目，提供 TTMP、DFA、DAT、hash bucket、Tire 算法支持过滤。可以支持文本的高亮、过滤、判词、替换的接口支持

3、敏感词数据（涉黄政黑）

https://github.com/LDNOOBW/List-of-Dirty-Naughty-Obscene-and-Otherwise-Bad-Words
