Python脚本：SMT与SAT solver相互转换（.cnf ＜-＞.smt2）

---

---

1 背景：

针对 SMT（Satisfiability Modulo Theories）和SAT （Boolean Satisfiability Problem）中，经常需要使用不同 的SAT和SMT solver (求解器)，这时候会经常有需求将SAT与SMT case文件互转。

所以写了python脚本自动化实现该功能。

需要注意的是， SAT只能与Bit-Vector的SMT相互转换，而针对int等则不能正确转换，这也是为什么有SMT的原因

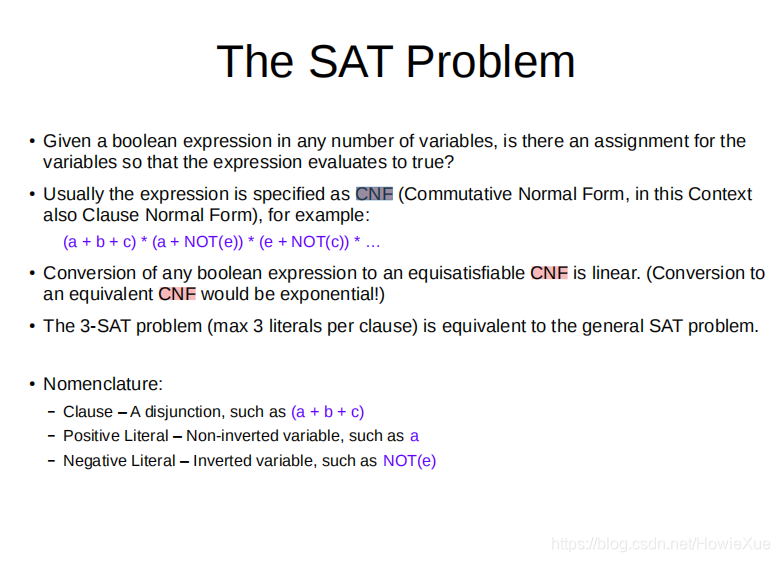

1.1 SAT /.cnf

SAT 通过使用CNF（Commutative Normal Form，format: DIMACS) 来表示，既.cnf文件：

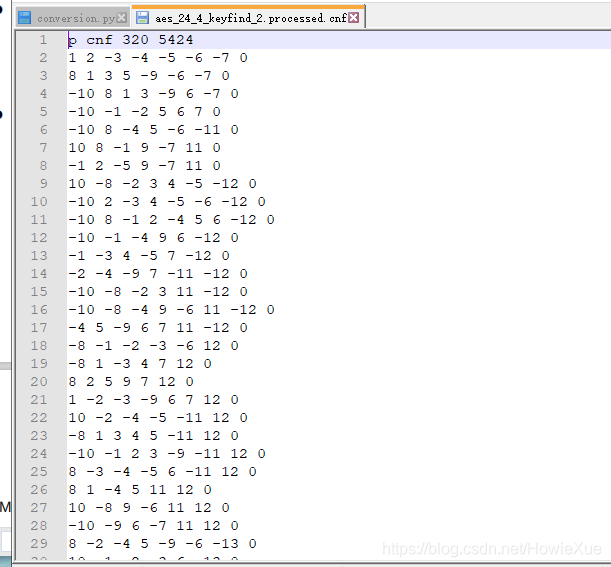

来看下cnf 是这个样子：

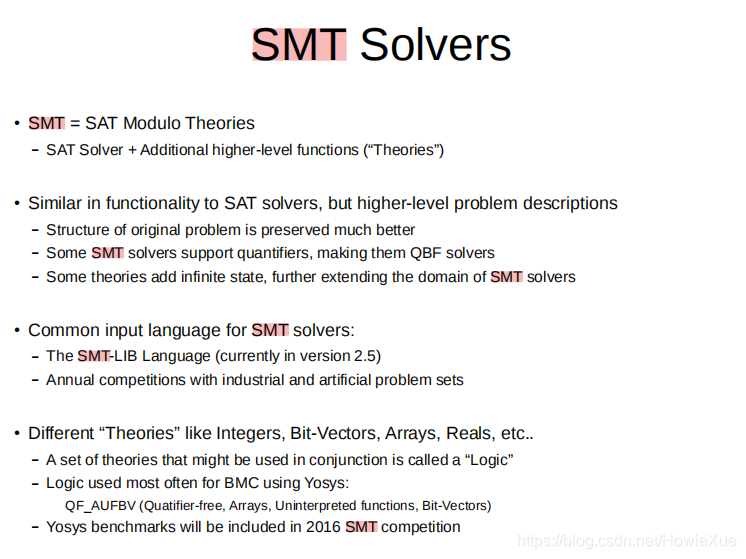

1.2 SMT / .smt2

SMT是SAT更high-level的一种，文件格式为.smt2

好，背景不多说，本文就是实现的.cnf与.smt2文件相互转换，直接上脚本：

2 SAT --> SMT 脚本

既.cnf 转换为.smt2文件

convertSAT2SMT.py:

#coding: utf-8
import sys

def Convert_decl(line, ous):
    decls = line.split()
    nvars = int(decls[2])
    for i in range(nvars):
        ous.write("(declare-const p%d Bool)\n" % (i + 1))

def Convert_clause(line, ous):
    literals = line.split()
    assert (literals[-1] == '0')
    ous.write("(assert (or ")
    for p in literals:
        if p == '0':
           break
        if p[0] == '-':
           ous.write("(not p")
           ous.write(p[1:])
           ous.write(") ")
        else:
           ous.write("p")
           ous.write(p)
           ous.write(" ")
    ous.write("))\n")

def ConvertSATFile(file):
    ins = open(file)
    ous = open("%s.smt2" % file, 'w')
    ous.write("(set-logic QF_BV)\n")
    line = ''
    while True:
      line = ins.readline()
      if line.startswith('p'): break
    Convert_decl(line, ous)
    line = ins.readline()
    while line:
      Convert_clause(line, ous)
      line = ins.readline()
    ous.write("(check-sat)")
    ins.close()
    ous.close()


if __name__ == "__main__":
    ConvertSATFile((sys.argv[1]))

使用示例如下：

python convertSAT2SMT.py test.cnf

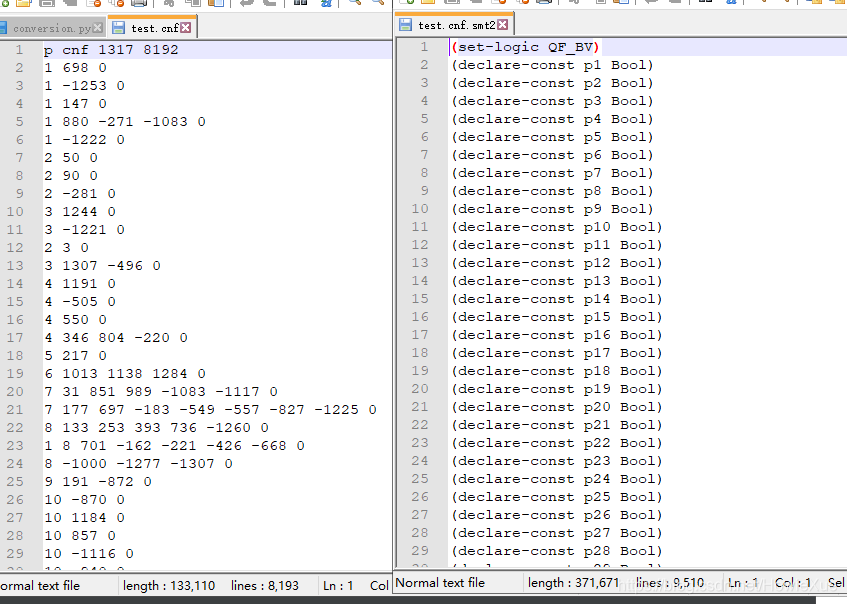

转换成功后，在该目录下，就会创建一个.smt2文件如下：

转换后的内容：

3 SMT --> SAT 脚本

既.smt2转换为.cnf文件

convertSMT2SAT.py:

#coding: utf-8
import sys
import re


def Convert_Assert(line,ous):
    if line.startswith("(assert"):
        notconv = re.sub(r"not ", "-", line)
        #print(notconv)
        findrst = re.sub(r"[a-z()]", "", notconv)
        cvtrst = findrst.strip() + " 0\n"
        #print(cvtrst)
        ous.write(cvtrst)



def ConvertSMTFile(file):
    ins = open(file, 'r+')
    insrB = open(file, 'rb')
    ous = open("%s.cnf" % file, 'w')

    line = ''
    while True:
        prevLine = line
        line = ins.readline()
        if line.startswith("(assert"):break

    #print(line)
    maxnum = prevLine.split()[1]
    maxnumrst = re.sub(r"[p]", "", maxnum)
    # ous.write("p cnf "+maxnumrst +'\n')

    linNum = 0
    while line:
        Convert_Assert(line, ous)
        line = ins.readline()
        linNum += 1

    linNum -= 1

    with open("%s.cnf" % file, 'r+') as f:
        content = f.read()
        f.seek(0,0)
        # f.write("Generated by SMTGenerator\n")
        f.write("p cnf "+maxnumrst + " "+str(linNum) +'\n' + content)


    ins.close()
    ous.close()


if __name__ == "__main__":
    ConvertSMTFile((sys.argv[1]))

使用示例如下：

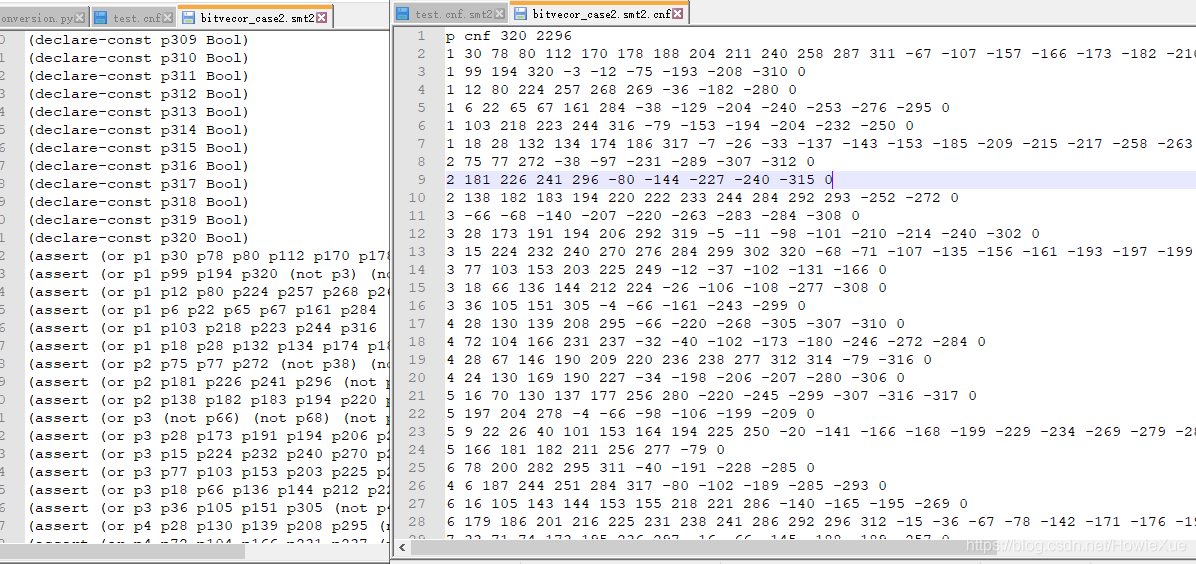

python convertSMT2SAT.py bitvecor_case2.smt2

同理，转换后同目录生成xxx.smt2
