【强化学习实战-04】DQN和Double DQN保姆级教程（2）：以MountainCar-v0

作者： 刘兴禄，清华大学，清华-伯克利深圳学院，博士在读

实战：用Double DQN求解MountainCar问题

MountainCar问题详解

MountainCar问题是开源环境模块OpenAI gym中的一个问题。

网址：https://gym.openai.com/envs/MountainCar-v0/

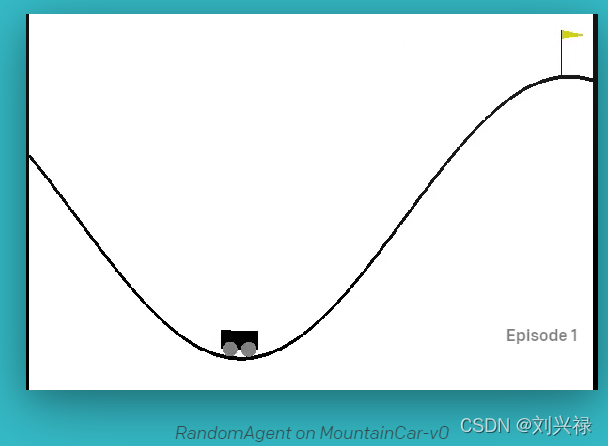

该问题的目的，是想通过控制小车的动作，使得小车爬上右边的坡。如上图所示。

MountainCar问题的源代码解释

OpenAI gym中给出了MountainCar环境的源代码。其源代码如下：

cartpole.py

"""
http://incompleteideas.net/MountainCar/MountainCar1.cp
permalink: https://perma.cc/6Z2N-PFWC
"""
import math
from typing import Optional

import numpy as np
import pygame
from pygame import gfxdraw

import gym
from gym import spaces
from gym.utils import seeding


class MountainCarEnv(gym.Env):
    """
    The agent (a car) is started at the bottom of a valley. For any given state
    the agent may choose to accelerate to the left, right or cease any
    acceleration. The code is originally based on [this code](http://incompleteideas.net/MountainCar/MountainCar1.cp)
    and the environment appeared first in Andrew Moore's PhD Thesis (1990):
    ```
    @TECHREPORT{Moore90efficientmemory-based,
        author = {Andrew William Moore},
        title = {Efficient Memory-based Learning for Robot Control},
        institution = {},
        year = {1990}
    }
    ```
    Observation space is a 2-dim vector, where the 1st element represents the "car position" and the 2nd element represents the "car velocity".
    There are 3 discrete deterministic actions:
    - 0: Accelerate to the Left
    - 1: Don't accelerate
    - 2: Accelerate to the Right
    Reward: Reward of 0 is awarded if the agent reached the flag
    (position = 0.5) on top of the mountain. Reward of -1 is awarded if the position of the agent is less than 0.5.
    Starting State: The position of the car is assigned a uniform random value in [-0.6 , -0.4]. The starting velocity of the car is always assigned to 0.
    Episode Termination: The car position is more than 0.5. Episode length is greater than 200
    ### Arguments
    ```
    gym.make('MountainCar-v0')
    ```
    ### Version History
    * v0: Initial versions release (1.0.0)
    """

    metadata = {"render.modes": ["human", "rgb_array"], "video.frames_per_second": 30}

    def __init__(self, goal_velocity=0):
        self.min_position = -1.2
        self.max_position = 0.6
        self.max_speed = 0.07
        self.goal_position = 0.5
        self.goal_velocity = goal_velocity

        self.force = 0.001
        self.gravity = 0.0025

        self.low = np.array([self.min_position, -self.max_speed], dtype=np.float32)
        self.high = np.array([self.max_position, self.max_speed], dtype=np.float32)

        self.screen = None
        self.isopen = True

        self.action_space = spaces.Discrete(3)
        self.observation_space = spaces.Box(self.low, self.high, dtype=np.float32)

    def step(self, action):
        assert self.action_space.contains(
            action
        ), f"{action!r} ({type(action)}) invalid"

        position, velocity = self.state
        velocity += (action - 1) * self.force + math.cos(3 * position) * (-self.gravity)
        velocity = np.clip(velocity, -self.max_speed, self.max_speed)
        position += velocity
        position = np.clip(position, self.min_position, self.max_position)
        if position == self.min_position and velocity < 0:
            velocity = 0

        done = bool(position >= self.goal_position and velocity >= self.goal_velocity)
        reward = -1.0

        self.state = (position, velocity)
        return np.array(self.state, dtype=np.float32), reward, done, {}

    def reset(
        self,
        *,
        seed: Optional[int] = None,
        return_info: bool = False,
        options: Optional[dict] = None,
    ):
        super().reset(seed=seed)
        self.state = np.array([self.np_random.uniform(low=-0.6, high=-0.4), 0])
        if not return_info:
            return np.array(self.state, dtype=np.float32)
        else:
            return np.array(self.state, dtype=np.float32), {}

    def _height(self, xs):
        return np.sin(3 * xs) * 0.45 + 0.55

    def render(self, mode="human"):
        screen_width = 600
        screen_height = 400

        world_width = self.max_position - self.min_position
        scale = screen_width / world_width
        carwidth = 40
        carheight = 20
        if self.screen is None:
            pygame.init()
            self.screen = pygame.display.set_mode((screen_width, screen_height))
        self.surf = pygame.Surface((screen_width, screen_height))
        self.surf.fill((255, 255, 255))

        pos = self.state[0]

        xs = np.linspace(self.min_position, self.max_position, 100)
        ys = self._height(xs)
        xys = list(zip((xs - self.min_position) * scale, ys * scale))

        pygame.draw.aalines(self.surf, points=xys, closed=False, color=(0, 0, 0))

        clearance = 10

        l, r, t, b = -carwidth / 2, carwidth / 2, carheight, 0
        coords = []
        for c in [(l, b), (l, t), (r, t), (r, b)]:
            c = pygame.math.Vector2(c).rotate_rad(math.cos(3 * pos))
            coords.append(
                (
                    c[0] + (pos - self.min_position) * scale,
                    c[1] + clearance + self._height(pos) * scale,
                )
            )

        gfxdraw.aapolygon(self.surf, coords, (0, 0, 0))
        gfxdraw.filled_polygon(self.surf, coords, (0, 0, 0))

        for c in [(carwidth / 4, 0), (-carwidth / 4, 0)]:
            c = pygame.math.Vector2(c).rotate_rad(math.cos(3 * pos))
            wheel = (
                int(c[0] + (pos - self.min_position) * scale),
                int(c[1] + clearance + self._height(pos) * scale),
            )

            gfxdraw.aacircle(
                self.surf, wheel[0], wheel[1], int(carheight / 2.5), (128, 128, 128)
            )
            gfxdraw.filled_circle(
                self.surf, wheel[0], wheel[1], int(carheight / 2.5), (128, 128, 128)
            )

        flagx = int((self.goal_position - self.min_position) * scale)
        flagy1 = int(self._height(self.goal_position) * scale)
        flagy2 = flagy1 + 50
        gfxdraw.vline(self.surf, flagx, flagy1, flagy2, (0, 0, 0))

        gfxdraw.aapolygon(
            self.surf,
            [(flagx, flagy2), (flagx, flagy2 - 10), (flagx + 25, flagy2 - 5)],
            (204, 204, 0),
        )
        gfxdraw.filled_polygon(
            self.surf,
            [(flagx, flagy2), (flagx, flagy2 - 10), (flagx + 25, flagy2 - 5)],
            (204, 204, 0),
        )

        self.surf = pygame.transform.flip(self.surf, False, True)
        self.screen.blit(self.surf, (0, 0))
        if mode == "human":
            pygame.display.flip()

        if mode == "rgb_array":
            return np.transpose(
                np.array(pygame.surfarray.pixels3d(self.screen)), axes=(1, 0, 2)
            )
        else:
            return self.isopen

    def get_keys_to_action(self):
        # Control with left and right arrow keys.
        return {(): 1, (276,): 0, (275,): 2, (275, 276): 1}

    def close(self):
        if self.screen is not None:
            pygame.quit()
            self.isopen = False

MountainCar的状态(Observation)

在任意时刻，我们给环境一个动作，环境会返回MountainCar的状态(Observation)。从中我们可以看出，任意时刻，MountainCar的状态包括2个量，即car position和car velocity：

Observation space is a 2-dim vector,
where the 1st element represents the "car position"
and the 2nd element represents the "car velocity".

    def __init__(self, goal_velocity=0):
        self.min_position = -1.2
        self.max_position = 0.6
        self.max_speed = 0.07
        self.goal_position = 0.5
        self.goal_velocity = goal_velocity

        self.force = 0.001
        self.gravity = 0.0025

即：

1. Car的位置$x$： 范围是$[-1.2,0.6]$
2. Car的速度$v$: 范围是$[0,0.07]$

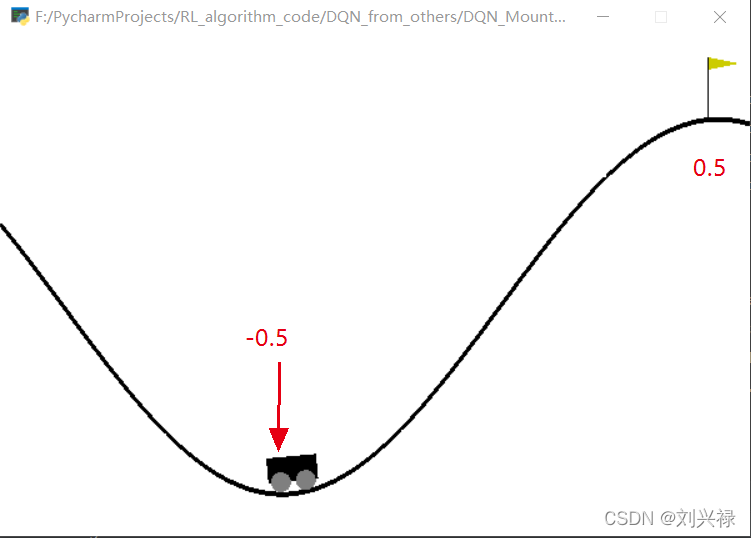

下图标出了几个重要的点的坐标。

MountainCar的动作

即 MountainCar的动作，即：向左加速、不加速、向右加速，只有3个可选动作。

    There are 3 discrete deterministic actions:
    - 0: Accelerate to the Left
    - 1: Don't accelerate
    - 2: Accelerate to the Right

MountainCar的目的

就是在状态$s_t=(x_t,v_t)$的时候，我们为Car提供

• $a_t=\text{Accelerate to the Left}$还是
• $a_t=\text{Don’t accelerate}$，或者是
• $a_t=\text{Accelerate to the Right}$

的决策，使其爬上右边的坡的指定位置$0.5$，也就是源码中的self.goal_position = 0.5。

    def __init__(self, goal_velocity=0):
        self.min_position = -1.2
        self.max_position = 0.6
        self.max_speed = 0.07
        self.goal_position = 0.5
        self.goal_velocity = goal_velocity

        self.force = 0.001
        self.gravity = 0.0025

DQN 求解MountainCar问题：完整代码详解

定义神经网络$Q(\mathbf{w})$

• 输入层：由于Car有2个状态$s_t=(x_t,v_t)$，因此，神经网络的输入层有2个神经元。
• 输出层：由于Car可选的动作只有3个，即向左加速、不加速或者向右加速。因此输出层为3个神经元。
• 隐藏层：隐藏层我们采用全连接即可。神经元数量和层数可以自己调整。

定义神经网络结构的代码如下。

class Network(nn.Module):
    def __init__(self):
        super(Network, self).__init__()
        self.fc = nn.Sequential(
            nn.Linear(2, 24),
            nn.ReLU(),
            nn.Linear(24, 24),
            nn.ReLU(),
            nn.Linear(24, 3)
        )
        self.MSELoss = nn.MSELoss()
        self.optimizer = torch.optim.Adam(self.parameters(), lr = 0.001)

    def forward(self, inputs):
        return self.fc(inputs)

神经网络可视化：tensorbard

我们用tensorbard来查看网络结构的可视化：

env = gym.envs.make('CartPole-v1')
env = env.unwrapped
DQN = Network()   # DQN network, 需要训练的网络
Target_net = Network()  # Target network
.......
.......
            # 用tensorboard可视化神经网络
            if(graph_added == False):
                writer.add_graph(model=DQN, input_to_model=batch_state)
                writer.add_graph(model=Target_net, input_to_model=batch_state)
                graph_added = True
.......
writer.close()

然后我们打开Pycharm的terminal, cd进入到"logs_DQN_MountainCar"所在的文件夹下，输入命令：

tensorboard --logdir=logs_DQN_MountainCar

• 注意： 一定要给神经网络喂了数据，导出才会成功。只建立网络是不会成功的。

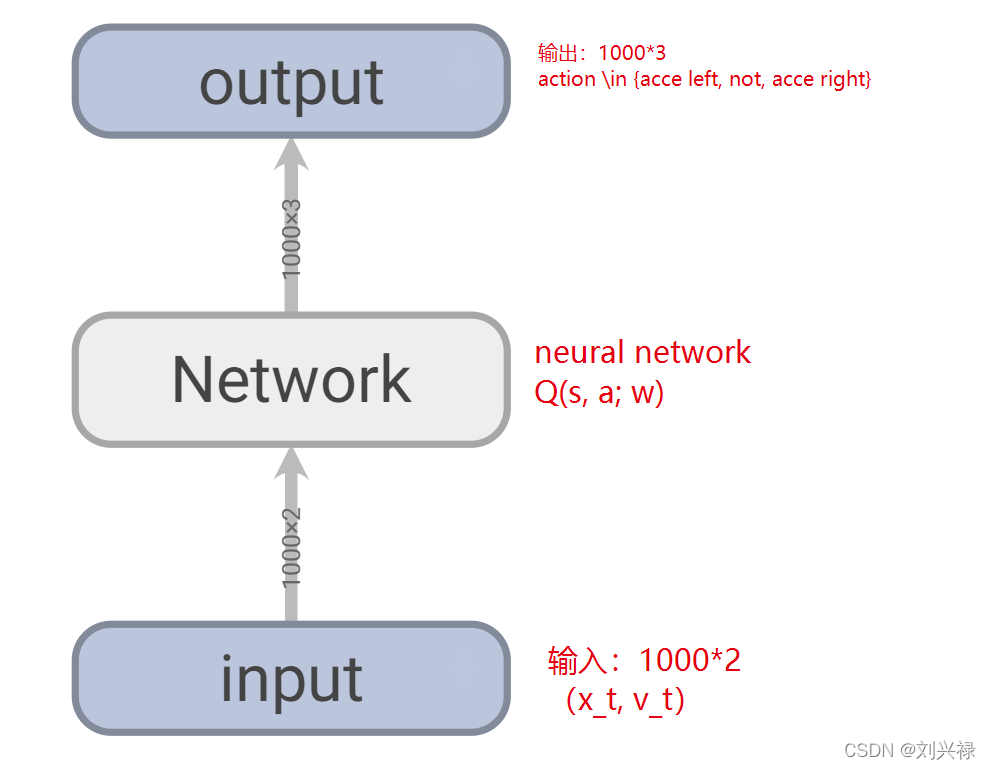

即可查看可视化的神经网络。我们可视化后，神经网络如下。可见

• 输入层为batch_size * state_dim = 1000 * 2
• 输出层为batch_size * action_dim = 1000 * 3

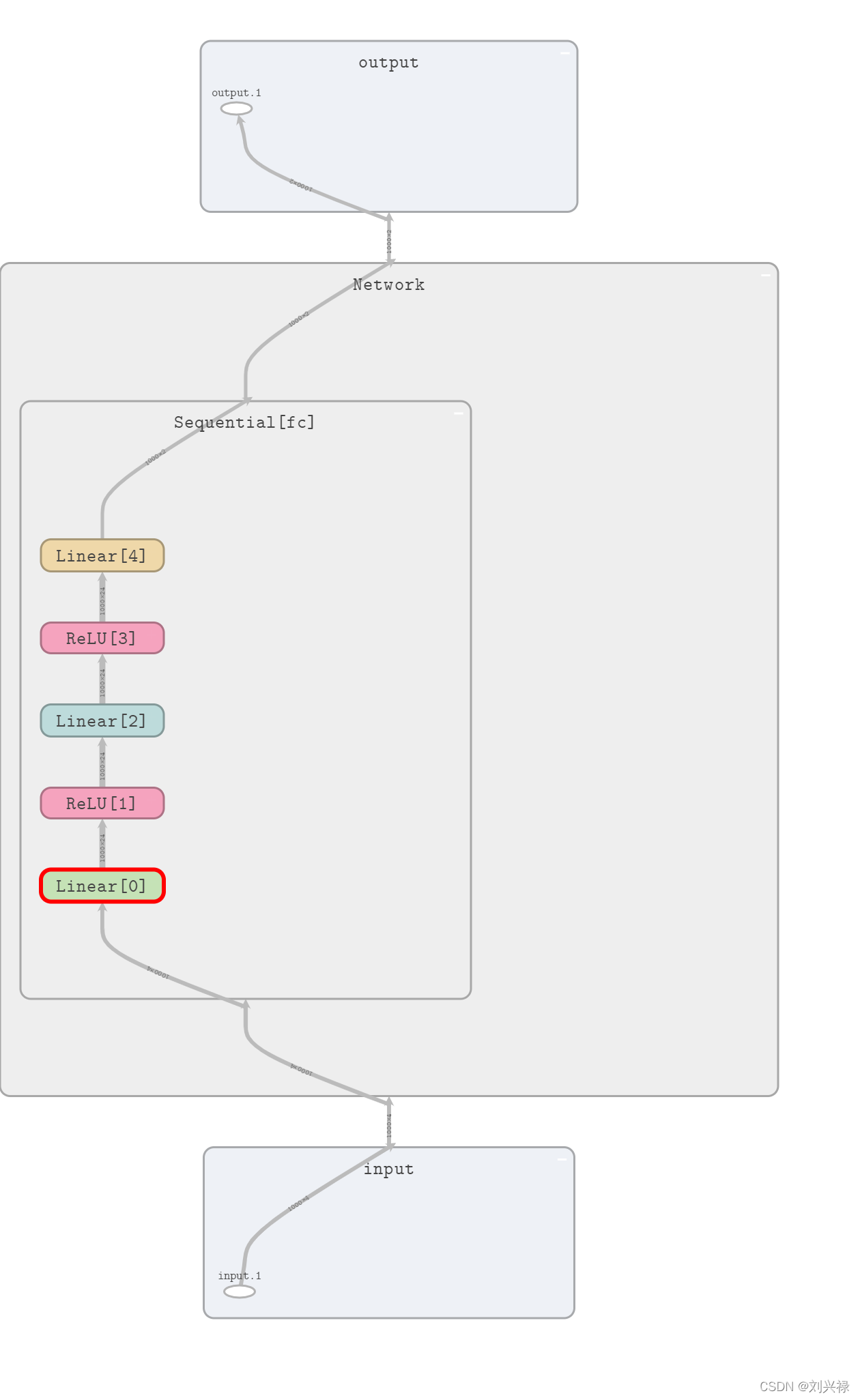

我们仔细看network的结构，如下图：

由于该问题比较简单，我们并没有引入卷积层(Conv2d)以及池化(maxpool)操作等。

TD-learning + experience replay更新

• 我们在replay buffer中存储的transitions的形式均为$(s_t,a_t,r_t,s_{t+1})$，因此，我们可以用一个数组或者DataFrame来存储这些transitions。但是需要注意，$s_t$是一个2元组，即$s_t=(x_t,v_t)$, 所以，一个transition是1行6列的，也就是
  $$(\underline{x_t,v_t},a_t,\underline{x_{t+1},v_{t+1}},r_t)$$,因此，replay buffer的形式是
  $$\begin{array}{rlrl}& t:& & (\underline{x_t,v_t},a_t,\underline{x_{t+1},v_{t+1}},r_t)\\ & t+1:& & (\underline{x_{t+1},v_{t+1}},a_{t+1},\underline{x_{t+2},v_{t+2}},r_{t+1})\\ & t+2:& & (\underline{x_{t+2},v_{t+2}},a_{t+2},\underline{x_{t+3},v_{t+3}},r_{t+2})\\ & \cdots & & \end{array}$$
  代码中定义replay buffer为：

replay_buffer = np.zeros((replay_buffer_size, 6))  # 初始化buffer 列中储存 s, a, s_, r

实现TD learning的部分为

            # 我们用Target_net来计算TD-target
            q = DQN(batch_state).gather(1, batch_action)      # predict q-value by old network
            q_next = Target_net(batch_state_).detach().max(1)[0].reshape(batch_size, 1)  # predict q(s_t+1)
            q_target = batch_reward + gamma * q_next   # 用Target_net来计算TD-target
            loss = DQN.MSELoss(q, q_target)            # 计算loss

相应的数学公式为：
$$y_{\text{target}}=r_t+\gamma \underset{a}{\max }Q(s_{t+1},a;{\mathbf{w}}_t)$$

Double DQN的实现

另外，为了实现Double DQN，我们我们定义两个网络DQN和Target_net。我们只训练更新DQN，然后每学习一定次数后(代码中为update_interval)，我们就把最新的DQN网络的参数，load到Target_net里面去，并且，我们用Target_net计算TD target，用DQN选择下一步将要做的动作。

代码中的实现为：

DQN = Network()   # DQN network, 需要训练的网络
Target_net = Network()  # Target network
......
......
        if stored_transition_cnt > replay_buffer_size:
            # 如果到达update_interval，则将net的参数load到net2中
            if transition_cnt % update_interval == 0:
                Target_net.load_state_dict(DQN.state_dict())

另外，刚开始的时候，我们以较大概率随机给动作，以较小概率用DQN给动作。随着时间推移，我们以较大概率DQN给动作，较小概率随机探索(也就是随机给动作)。

        if (random.randint(0,100) < 100*(discount_factor**transition_cnt)):  # act greedy, 就是随机探索，刚开始所及探索多，后面变少
            action = random.randint(0, 2)
        else:
            # 超过100次，我们用DQN，也就是训练的神经网络来选动作
            # 我们用DQN，也就是训练的神经网络来选动作
            output = DQN(torch.Tensor(state)).detach()  # output中是[左走累计奖励, 右走累计奖励]
            action = torch.argmax(output).data.item()   # 用argmax选取动作

设计reward：方法1–只考虑小车的位置

我们设计reward函数为
$$r_t=\{\begin{array}{ll}10,& \text{if}{x}_t⩾0.5\\ 2^{3(x_t+0.5)},& \text{if}-0.5<x_t<0.5\\ 0,& \text{if}{x}_t⩽-0.5\end{array}$$

主要想就是：小车位置越往右，奖励越高。达到$0.5$的位置处，奖励最高为10.如果小车走到了$<0.5$的部分，我们不鼓励，所以奖励为0。

这种奖励设计，就是鼓励小车可以往右走爬坡。

代码中为

        reward = state_[0] + 0.5
        if(state_[0] > -0.5):
            # reward = state_[0] + 0.5
            reward = math.pow(2, 3*(state_[0] + 0.5))
            if(state_[0] > 0.5):
                reward = 10
        else:
            reward = 0

这种方法有个缺陷，就是收敛比较慢。是因为，如果目标是让小车爬坡，就不能只关心位置，小车的速度越快，也可以使得小车尽快爬上坡。因此，reward设置中应当考虑速度。因此我们提供第二种reward的设置方式。

设计reward：方法2–同时考虑小车位置和小车速度

设计reward的逻辑是：

1. 小车坐标$x<-0.5$时，虽然位置不好，但是为了加速往右冲，还是需要鼓励：速度绝对值大(注意是速度的绝对值)，奖励也大。
2. 小车坐标$x>-0.5$时，此时，位置越向右，reward越大，并且速度绝对值越大，奖励要陡增。

基于此，我们设计第二种reward函数为
$$r_t=\{\begin{array}{ll}1000,& \text{if}{x}_t⩾0.5\\ 2^{5(x_t+1)}+(100|v_t|{)}^2,& \text{if}-0.5<x_t<0.5\\ 0+100|v_t|,& \text{if}{x}_t⩽-0.5\end{array}$$

代码中为

        reward = state_[0] + 0.5
        if (state_[0] <= -0.5):
            reward = 100 * abs(state_[1])
            # print('速度：', state_[1])
        elif(state_[0] > -0.5 and  state_[0] < 0.5):
            reward = math.pow(2, 5*(state_[0] + 1)) + (100 * abs(state_[1])) ** 2
        elif(state_[0] >= 0.5):
            reward = 1000

batch操作

我们令batch_size=1000，并且在每一步学习的时候，我们首先从replay buffer中选取一个batch的transitions并将其转化成tensor，并且这个batch是随机选的，这样可以消除样本序列之间(尤其是相邻样本)的相关性。代码如下：

            index = random.randint(0, replay_buffer_size - batch_size -1)
            batch_state  = torch.Tensor(replay_buffer[index:index + batch_size, 0:4])
            batch_action  = torch.Tensor(replay_buffer[index:index + batch_size, 4:5]).long()
            batch_state_ = torch.Tensor(replay_buffer[index:index + batch_size, 5:9])
            batch_reward  = torch.Tensor(replay_buffer[index:index + batch_size, 9:10])

使用Adam优化器，基于gradient descent 更新网络参数

            # 训练-更新网络：gradient descent updates
            # 我们用Target_net来计算TD-target
            q = DQN(batch_state).gather(1, batch_action)      # predict q-value by old network
            q_next = Target_net(batch_state_).detach().max(1)[0].reshape(batch_size, 1)  # predict q(s_t+1)
            q_target = batch_reward + gamma * q_next   # 用Target_net来计算TD-target
            loss = DQN.MSELoss(q, q_target)            # 计算loss
            DQN.optimizer.zero_grad()                  # 将DQN上步的梯度清零
            loss.backward()                             # DQN反向传播，更新参数
            DQN.optimizer.step()                        # DQN更新参数

Double DQN求解MountainCar-v0问题的完整代码

代码参考自(有改动)：https://www.bilibili.com/video/BV1Ab411w7Yd?t=3359

训练网络的代码

• 训练好的网络保存为'DQN_MountainCar-v0.pth'

# gym安装：pip install gym matplotlib -i  https://pypi.tuna.tsinghua.edu.cn/simple
import random
import torch
import torch.nn as nn
import numpy as np
import gym
from torch.utils.tensorboard import SummaryWriter


class Network(nn.Module):
    def __init__(self):
        super(Network, self).__init__()
        self.fc = nn.Sequential(
            nn.Linear(2, 24),
            nn.ReLU(),
            nn.Linear(24, 24),
            nn.ReLU(),
            nn.Linear(24, 3)
        )
        self.MSELoss = nn.MSELoss()
        self.optimizer = torch.optim.Adam(self.parameters(), lr = 0.001)

    def forward(self, inputs):
        return self.fc(inputs)


env = gym.envs.make('MountainCar-v0')
env = env.unwrapped
DQN = Network()   # DQN network, 需要训练的网络
Target_net = Network()  # Target network

writer = SummaryWriter("logs_DQN_MountainCar")   # 注意tensorboard的部分


stored_transition_cnt = 0  # 记录transition_cnt的次数
replay_buffer_size = 2000  # buffer size
discount_factor = 0.6      # 衰减系数
transition_cnt = 0         # 记录发生的transition的总次数
update_interval = 20       # 将net的参数load到net2的间隔
gamma = 0.9                # 折扣因子
batch_size = 1000          # batch size
replay_buffer = np.zeros((replay_buffer_size, 6))    # 初始化buffer 列中储存 s, a, state_, r
start_learning = False    # 标记是否开始学习
Max_epoch = 50000         # 学习的回合数
epsilon = 0.1

graph_added = False
for i in range(Max_epoch):
    state = env.reset()  # 重置环境
    while True:
        if (random.randint(0,100) < 100*(discount_factor**transition_cnt)):  # act greedy, 就是随机探索，刚开始所及探索多，后面变少
            action = random.randint(0, 2)
        else:
            # 超过100次，我们用DQN，也就是训练的神经网络来选动作
            # 我们用DQN，也就是训练的神经网络来选动作
            output = DQN(torch.Tensor(state)).detach()  # output中是[左走累计奖励, 右走累计奖励]
            action = torch.argmax(output).data.item()   # 用argmax选取动作

        state_, reward, done, info = env.step(action)    # 执行动作，获得env的反馈
        # 自己定义一个reward
        # 只根据小车的位置给reward
        reward = state_[0] + 0.5
        if (state_[0] <= -0.5):
            reward = 100 * abs(state_[1])
            # print('速度：', state_[1])
        elif(state_[0] > -0.5 and  state_[0] < 0.5):
            reward = math.pow(2, 5*(state_[0] + 1)) + (100 * abs(state_[1])) ** 2
        elif(state_[0] >= 0.5):
            reward = 1000

        replay_buffer[stored_transition_cnt % replay_buffer_size][0:2] = state
        replay_buffer[stored_transition_cnt % replay_buffer_size][2:3] = action
        replay_buffer[stored_transition_cnt % replay_buffer_size][3:5] = state_
        replay_buffer[stored_transition_cnt % replay_buffer_size][5:6] = reward
        stored_transition_cnt += 1
        state = state_

        if stored_transition_cnt > replay_buffer_size:
            # 如果到达update_interval，则将net的参数load到net2中
            if transition_cnt % update_interval == 0:
                Target_net.load_state_dict(DQN.state_dict())

            # 从replay buffer中提取一个batch，注意可以是随机提取.
            # 提取之后将其转成tensor数据类型，以便输入给神经网络
            index = random.randint(0, replay_buffer_size - batch_size -1)
            batch_state  = torch.Tensor(replay_buffer[index:index + batch_size, 0:2])
            batch_action  = torch.Tensor(replay_buffer[index:index + batch_size, 2:3]).long()
            batch_state_ = torch.Tensor(replay_buffer[index:index + batch_size, 3:5])
            batch_reward  = torch.Tensor(replay_buffer[index:index + batch_size, 5:6])

            # 用tensorboard可视化神经网络
            if(graph_added == False):
                writer.add_graph(model=DQN, input_to_model=batch_state)
                writer.add_graph(model=Target_net, input_to_model=batch_state)
                graph_added = True

            # 训练-更新网络：gradient descent updates
            # 我们用Target_net来计算TD-target
            q = DQN(batch_state).gather(1, batch_action)      # predict q-value by old network
            q_next = Target_net(batch_state_).detach().max(1)[0].reshape(batch_size, 1)  # predict q(s_t+1)
            q_target = batch_reward + gamma * q_next   # 用Target_net来计算TD-target
            loss = DQN.MSELoss(q, q_target)            # 计算loss
            DQN.optimizer.zero_grad()                  # 将DQN上步的梯度清零
            loss.backward()                             # DQN反向传播，更新参数
            DQN.optimizer.step()                        # DQN更新参数

            transition_cnt += 1
            if not start_learning:
                print('start learning')
                start_learning= True
                break
        if done:
            break

        env.render()

torch.save(DQN.state_dict(), 'DQN_MountainCar-v0.pth')

writer.close()

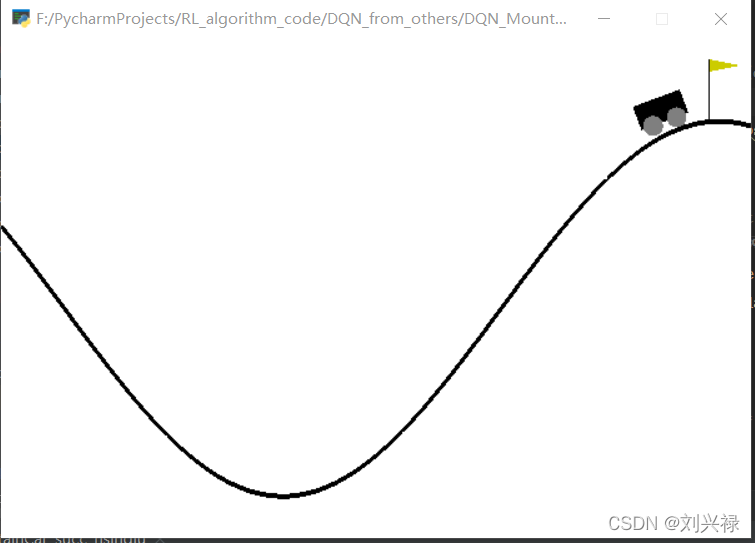

训练一分钟左右，小车即可爬到goal position，如下图。

测试网络的代码

• 我们加载（load）训好的网络'DQN_MountainCar-v0.pth'，用它来测试
• 代码如下

https://pypi.tuna.tsinghua.edu.cn/simple
import random
import torch
import torch.nn as nn
import numpy as np
import gym
from torch.utils.tensorboard import SummaryWriter


class Network(nn.Module):
    def __init__(self):
        super(Network, self).__init__()
        self.fc = nn.Sequential(
            nn.Linear(2, 24),
            nn.ReLU(),
            nn.Linear(24, 24),
            nn.ReLU(),
            nn.Linear(24, 3)
        )
        self.MSELoss = nn.MSELoss()
        self.optimizer = torch.optim.Adam(self.parameters(), lr = 0.001)

    def forward(self, inputs):
        return self.fc(inputs)


env = gym.envs.make('MountainCar-v0')
env = env.unwrapped
DQN = Network()   # DQN network, 需要训练的网络
DQN.load_state_dict(torch.load('DQN_MountainCar-v0.pth'))

state = env.reset()                                                     # 重置环境
episode_reward_sum = 0                                              # 初始化该循环对应的episode的总奖励
while True:                                                         # 开始一个episode (每一个循环代表一步)
    env.render()                                                    # 显示实验动画
    output = DQN.forward(torch.Tensor(state)).detach()  # output中是[左走累计奖励, 右走累计奖励]
    action = torch.argmax(output).data.item()  # 用argmax选取动作

    state_, reward, done, info = env.step(action)  # 执行动作，获得env的反馈
    if done:
      print(f'finished')
      break

运行代码，发现Car在一段时间后就会爬上坡，如下图所示。

小结

1. DQN可以处理状态-动作二元组爆炸的情况，同时也可以处理状态-动作二元组较少的情况。
2. DQN是用一个神经网络去近似最优状态-动作函数。
3. DQN存在过高评估的现象。处理方法是：(A) 为了解决取最大化带来的过高估计，可以Double DQN的方法。（B）为了解决自提升(bootstrapping)带来的过高估计，我们可以使用一个Target network来计算TD target，而不是用训练网络来计算TD target。
4. Double DQN中，我们用DQN $Q(s,a;\mathbf{w})$选择下一步要做的动作，即$a^{\ast }=\underset{a}{\mathrm{argmax}}Q(s_{t+1},a;\mathbf{w})$; 用Target Network计算TD target，即$y_{\text{target}}=r_t+\gamma \cdot Q(s_{t+1},a^{\ast };{\mathbf{w}}^{-})$.
5. 为了消除transition序列的相关性以及经验的浪费，我们可以使用经验回放(Experience replay)。

这些笔记是小编查阅众多资料，仔细总结和推导得来的，我自己觉得写的非常之详细了，对小白也是非常友好。希望可以帮到大家。如果推文中有纰漏指出，请多多指教。

参考文献

1. Mnih, V., Kavukcuoglu, K., Silver, D., Rusu, A. A., Veness, J., Bellemare, M. G., … & Hassabis, D. (2015). Human-level control through deep reinforcement learning. nature, 518(7540), 529-533.
2. Van Hasselt, Hado, Arthur Guez, and David Silver. “Deep reinforcement learning with double q-learning.” Proceedings of the AAAI conference on artificial intelligence. Vol. 30. No. 1. 2016.
3. Wang Shusen的教学视频,网址：https://www.bilibili.com/video/BV1rv41167yx?from=search&seid=18272266068137655483&spm_id_from=333.337.0.0

作者： 刘兴禄，清华大学，清华-伯克利深圳学院，博士在读
