DeepC 实用教程（七）后处理

一、前言

  SESAM （Super Element Structure Analysis Module）是由挪威船级社（DNV-GL）开发的一款有限元分析（FEA）系统，主要用于海洋工程结构的极限强度评估、波浪荷载计算和系泊系统分析等。它由一系列模块/程序组成，以 GeniE、HydroD 和 DeepC 等模块为核心，是海工结构分析领域的标准软件。GeniE、HydroD 和 DeepC 分别是 SESAM 系统的建模及前处理模块、水动力计算模块和深水耦合分析模块。

SESAM 2017 Overview

  DeepC 是 Sesam 系统中的深水耦合分析工具，由 DNV（挪威船级社）和 Marintek（挪威海洋技术研究所）联合开发，主要用于 SPARs、FPSOs、TLPs 或类似类型的含有系泊/立管系统的浮式结构的分析。DeepC 包含三个独立的程序模块：DeepC Concept Modeller、Riflex 和 Simo，它们形成了一个建模、分析与后处理的集成环境。DeepC Concept Modeller 用于创建模型输入、结果后处理等。Riflex 和 Simo 由 Marintek 拥有、开发和维护，它们是 DeepC 的两个分析引擎（求解器），用于执行非线性时域有限元分析。

二、数据构成

  在 Deepc 中，计算分析的结果数据存储在 Results 文件夹下，这些结果数据包括：Time series、distributions、range curves、spectra、line plots 等。Results 文件夹由 Combined Loading Results、Dynamic Results、Fatigue Results 和 Static Results 等子文件夹构成，分别用于存储组合负载结果、动力结果、疲劳结果和静力结果。Dynamic Results 文件夹下又包含了 6 个子文件夹，分别为：Distributions、Filtered Time Series、Line Time Series、Range Curves、Spectra 和 Vessel Time Series。

Dynamic Results

序号	文件夹名称	存储数据内容
01	Distributions	Contains cumulative distributions generated from line time series.
02	Filtered Time Series	Contains the low and high frequency time series of line and vessel time series that have been filtered on frequency.
03	Line Time Series	Contains time series of displacement, forces, curvature, decomposed line end forces etc.
04	Range Curves	Contains curves showing statistical characteristics (min/max/mean/std/skewness etc) of selected result types along the lines.
05	Spectra	Contains spectra computed from selected time series.
06	Vessel Time Series	Contains time series of vessels, viscous force elements on vessels, wind velocity, wave elevation etc.

三、静力结果

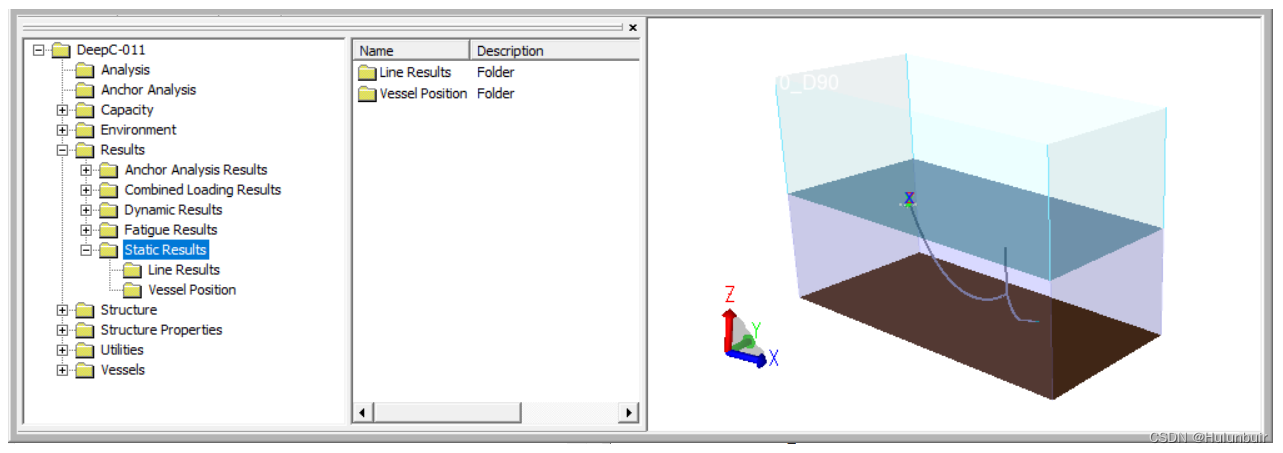

Static Results

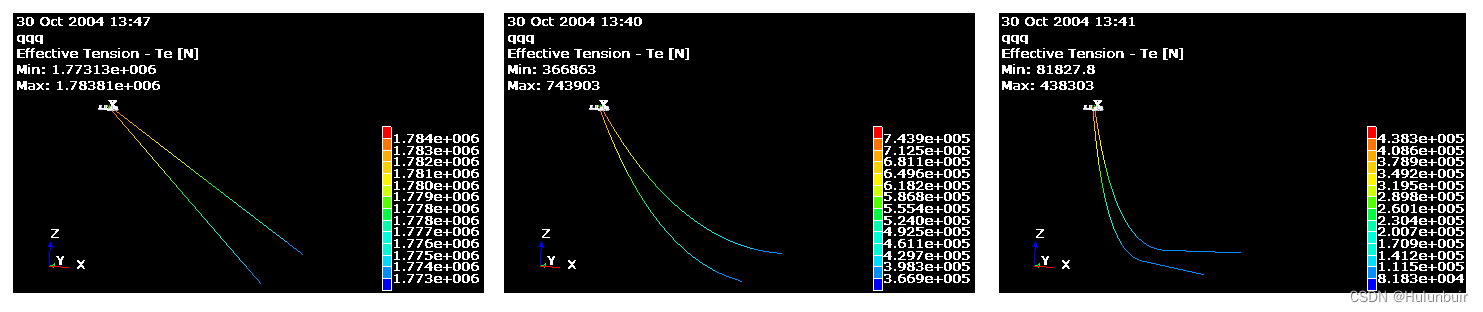

Static Analysis Results

四、动力结果

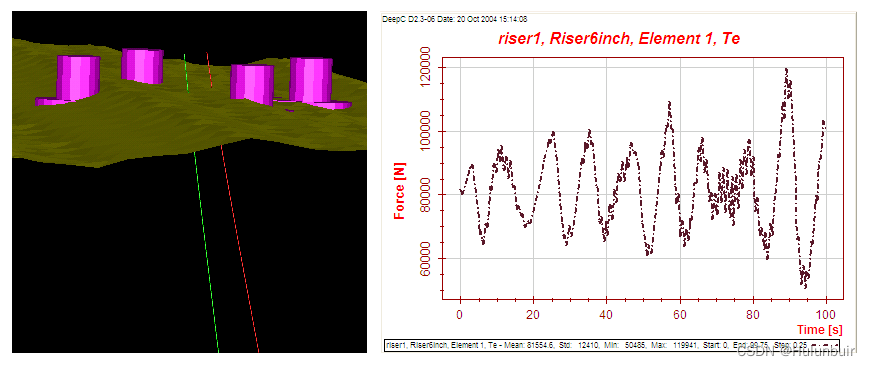

3D animations of vessels and lines displacement（Sesam Xtract）

4.1 累积概率分布

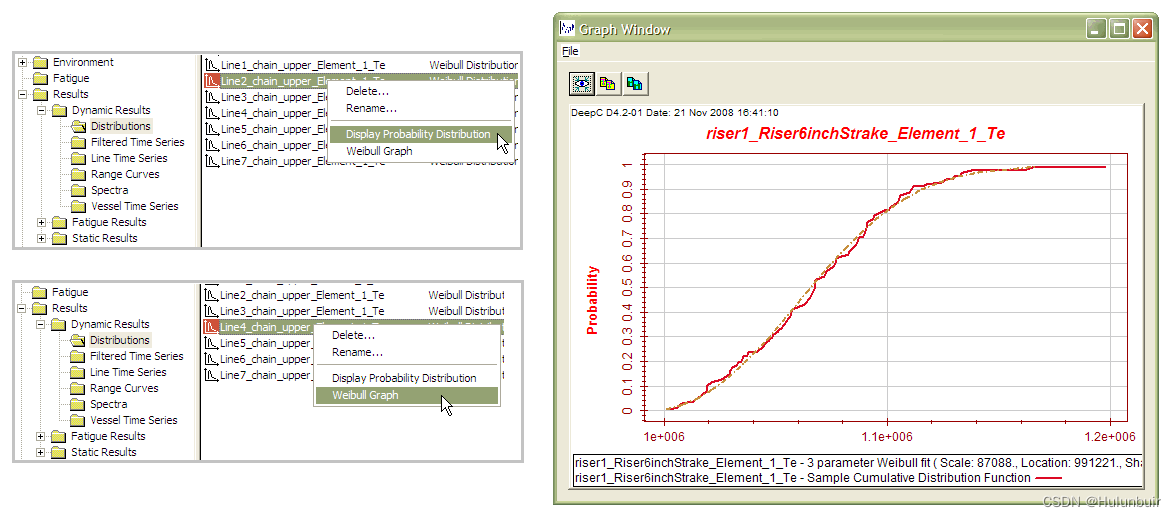

Display Probability Distributions

4.2 滤波时间序列

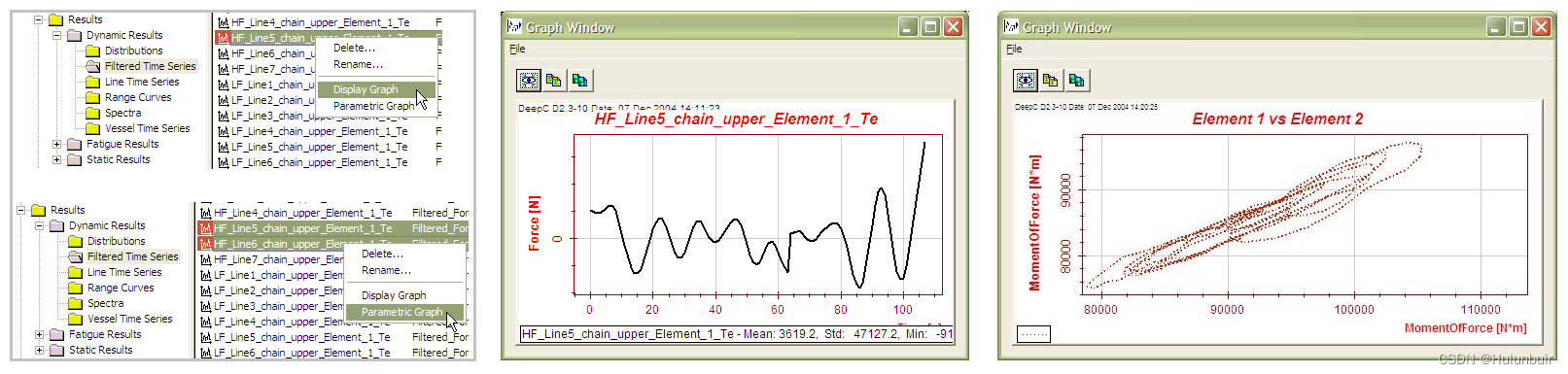

  Display graph is a general command that will show the graph of the selected object. Two time series must be selected to create a parametric graph. For each step in the time series, the value of the first time series determines the x-axis value and the value of the second time series the y axis value.（单个时序滤波/两个时序滤波）

滤波时间序列

4.3 线对象时序

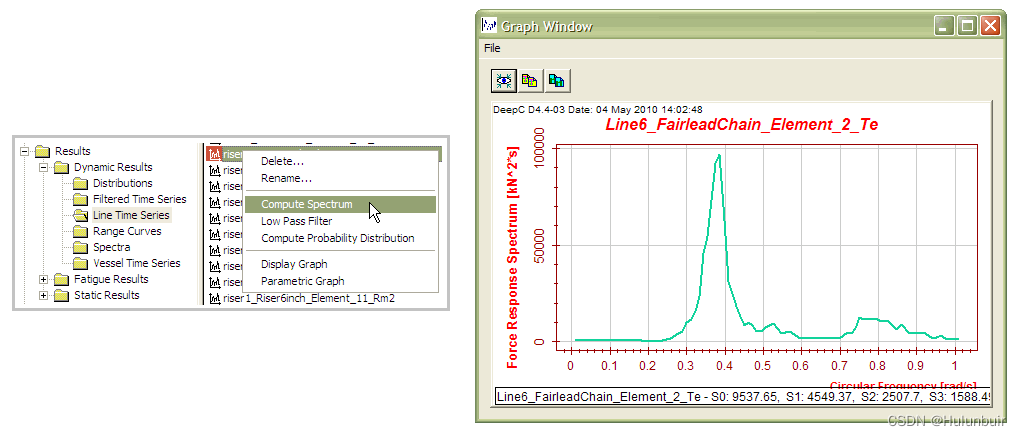

Compute Spectrum Spectra can be computed from time series A spectrum shows the energy density as a function of frequency

Low Pass Filter Low pass filtering separates the high frequency response from the low frequency response The resulting time series end up in the "Filtered Time Series" folder

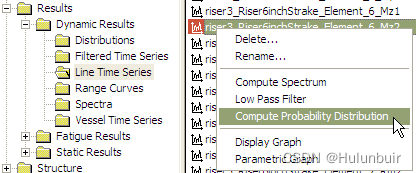

Compute Probability Distribution A cumulative distribution function is generated from the selected time series when "Compute Probability Distribution" is chosen. The result ends up in the "Distributions" folder

4.4 范围曲线

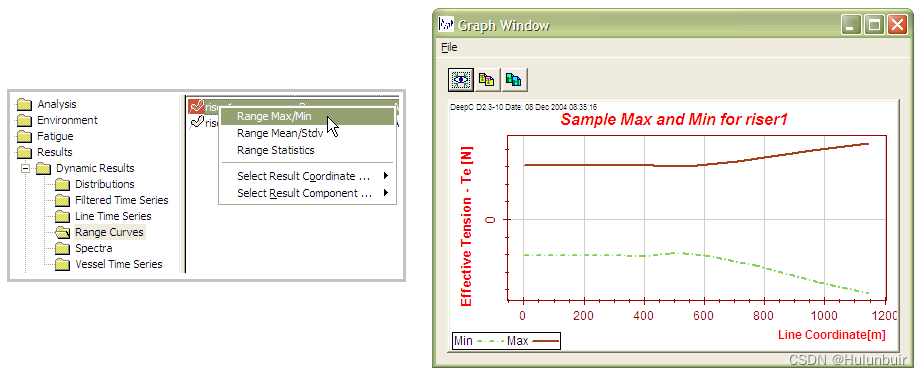

Range Max/Min（最大值与最小值） The maximum/minimum value of all timesteps is plotted along the line

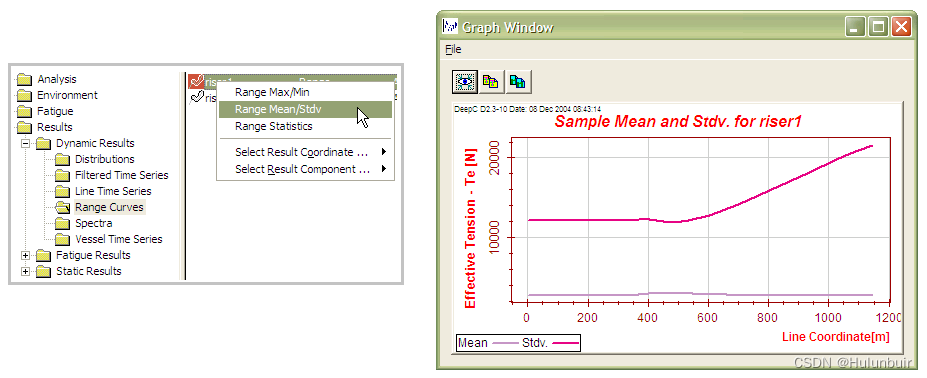

Range Mean/Stdv（均值与标准差） The mean/standard deviation is plotted along the line

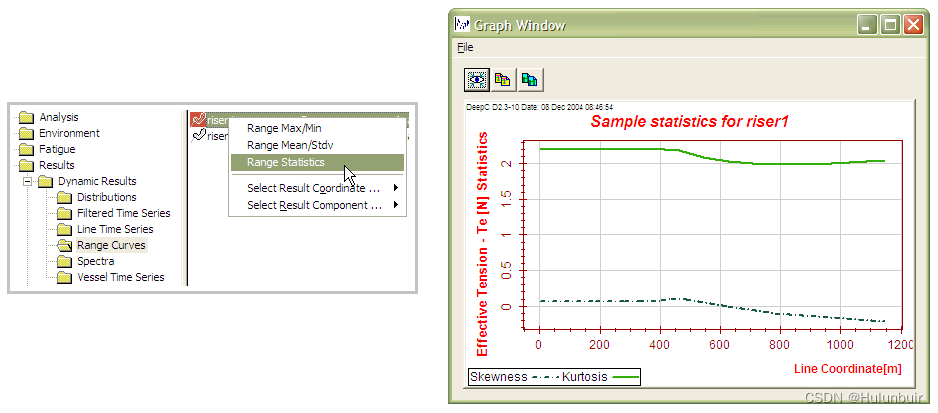

Range Statistics Skewness and kurtosis（偏度与峰度）

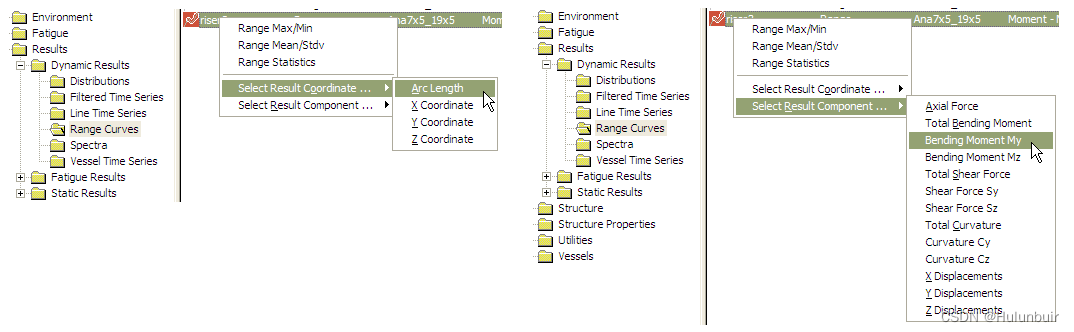

Select Result Coordinate/Component

五、参考文献

[1]. Sesam User Manual - DeepC (Deep water coupled floater motion analysis).

[2]. Sesam Theory Manual - DeepC (Deep water coupled floater motion analysis).

[3]. DeepC – Deep Water Coupled Analysis Tool, A White Paper.
