HCIA综合实验(DHCP + OSPF + ACL + VLAN + NAT)

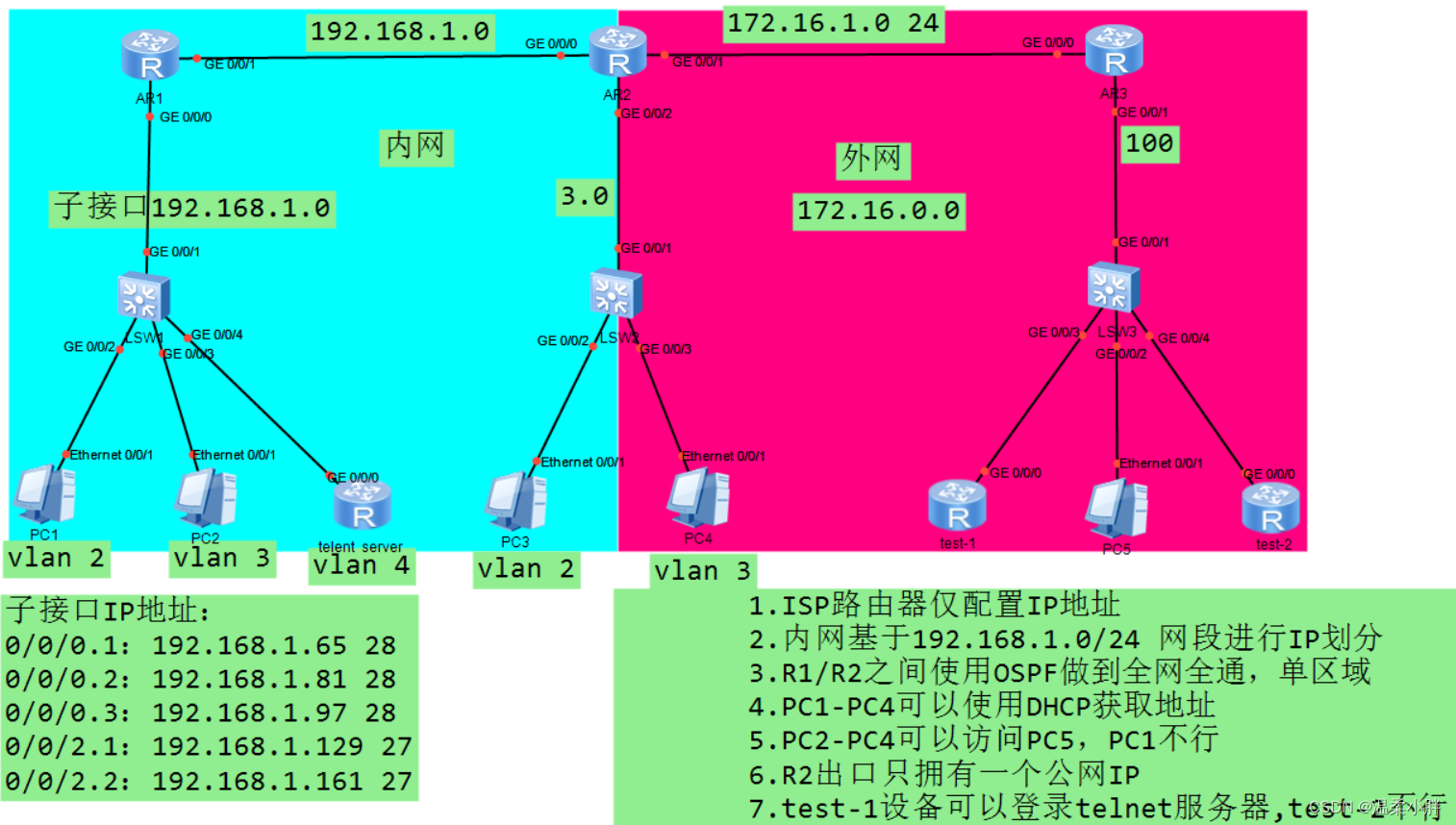

一.实验拓扑

二.实验要求

  1.ISP路由器仅配置IP地址
  2.内网基于192.168.1.0/24 网段进行IP划分
  3.R1/R2之间使用OSPF做到全网全通，单区域
  4.PC1-PC4可以使用DHCP获取地址
  5.PC2-PC4可以访问PC5，PC1不行
  6.R2出口只拥有一个公网IP
  7.test-1设备可以登录telnet服务器,test-2不行

三.网段划分

内网：
       192.168.1.0/24
       192.168.1.64/28
       192.168.1.80/28
       192.168.1.96/28
       192.168.1.128/27
       192.168.1.160/27
外网：
       172.16.1.0/30
       172.16.1.0/24

四.实验配置

r1:

r1:

# 配置IP地址
[Huawei]sys r1
[r1]interface GigabitEthernet 0/0/1
[r1-GigabitEthernet0/0/1]ip address 192.168.1.1 24
[r1]interface GigabitEthernet 0/0/0.1
[r1-GigabitEthernet0/0/0.1]ip address 192.168.1.65 28
[r1]interface GigabitEthernet 0/0/0.2
[r1-GigabitEthernet0/0/0.2]ip address 192.168.1.81 28
[r1]interface GigabitEthernet 0/0/0.3
[r1-GigabitEthernet0/0/0.3]ip address 192.168.1.97 28

# 开启ospf服务进程保证内网的全网通(采用精准宣告)
[r1]ospf 1 router-id 1.1.1.1
[r1-ospf-1]area 0
[r1-ospf-1-area-0.0.0.0]network 192.168.1.1 0.0.0.0
[r1-ospf-1-area-0.0.0.0]network 192.168.1.65 0.0.0.0
[r1-ospf-1-area-0.0.0.0]network 192.168.1.81 0.0.0.0
[r1-ospf-1-area-0.0.0.0]network 192.168.1.97 0.0.0.0

#开启DHCP下发网关以及IP地址服务
[r1]ip pool aaa
[r1-ip-pool-aaa]network 192.168.1.64 mask 28
[r1-ip-pool-aaa]gateway-list 192.168.1.65
[r1]ip pool bbb
[r1-ip-pool-bbb]network 192.168.1.80 mask 28
[r1-ip-pool-bbb]gateway-list 192.168.1.81
[r1]ip pool ccc
[r1-ip-pool-ccc]network 192.168.1.96 mask 28
[r1-ip-pool-ccc]gateway-list 192.168.1.97

# 子接口开启ARP广播
[r1-GigabitEthernet0/0/0.1]dhcp  select global
[r1-GigabitEthernet0/0/0.1]dot1q termination vid 2
[r1-GigabitEthernet0/0/0.1]arp broadcast enable
[r1-GigabitEthernet0/0/0.2]dhcp select global
[r1-GigabitEthernet0/0/0.2]dot1q termination vid 3
[r1-GigabitEthernet0/0/0.2]arp broadcast enable
[r1-GigabitEthernet0/0/0.3]dot1q termination vid 4
[r1-GigabitEthernet0/0/0.3]arp broadcast enable
[r1-GigabitEthernet0/0/0.3]dhcp select global

# R1上配置ACL，使得PC1不能访问PC5
[r1]acl 3000
[r1-acl-adv-3000]rule deny ip source 192.168.1.64 0.0.0.15 destination 172.16.1.1 0.0.0.0
[r1]interface GigabitEthernet 0/0/0.1
[r1-GigabitEthernet0/0/0.1]traffic-filter inbound acl 3000

r2:

r2:
    # 配置IP地址
    [HUAWEI]sys r2
    [r2]interface GigabitEthernet 0/0/0
    [r2-GigabitEthernet0/0/0]ip address 192.168.1.2 24
    [r2]interface GigabitEthernet 0/0/2.1
    [r2-GigabitEthernet0/0/2.1]ip address 192.168.1.129 27
    [r2]interface GigabitEthernet 0/0/2.2
    [r2-GigabitEthernet0/0/2.2]ip address 192.168.1.161 27
    [r2]interface GigabitEthernet 0/0/1
    [r2-GigabitEthernet0/0/1]ip address 172.16.1.1 30

    # 开启ospf服务进程保证内网的全网通
    [r2]ospf 1 router-id 2.2.2.2
    [r2-ospf-1]area 0
    [r2-ospf-1-area-0.0.0.0]network 192.168.1.2 0.0.0.0
    [r2-ospf-1-area-0.0.0.0]network 192.168.1.129 0.0.0.0
    [r2-ospf-1-area-0.0.0.0]network 192.168.1.161 0.0.0.0

    #开启DHCP下发网关以及IP地址服务
    [r2]ip pool aaa
    [r2-ip-pool-aaa]network 192.168.1.128 mask 27
    [r2-ip-pool-aaa]gateway-list 192.168.1.129
    [r2]ip pool bbb
    [r2-ip-pool-bbb]network 192.168.1.160 mask 27
    [r2-ip-pool-bbb]gateway-list 192.168.1.161

    # 子接口开启ARP广播
    [r2]interface GigabitEthernet 0/0/2.1
    [r2-GigabitEthernet0/0/2.1]dot1q termination vid 2
    [r2-GigabitEthernet0/0/2.1]arp broadcast enable
    [r2-GigabitEthernet0/0/2.1]dhcp select global
    [r2]interface GigabitEthernet 0/0/2.2
    [r2-GigabitEthernet0/0/2.2]dhcp select global
    [r2-GigabitEthernet0/0/2.2]dot1q termination vid 3
    [r2-GigabitEthernet0/0/2.2]arp broadcast enable

    # 进行路由策略的配置
    [r2]acl 2000
    [r2-acl-basic-2000]rule permit source 192.168.1.0 0.0.0.255
    [r2]interface GigabitEthernet 0/0/1
    [r2-GigabitEthernet0/0/1]nat outbound 2000  # 建立映射关系
    [r2]ip route-static 0.0.0.0 0 172.16.1.2    # 写静态路由指向运营商
    [r2-ospf-1]default-route-advertise          # 进入ospf下发路由


SW1:

SW1:
    # 划分vlan
    [Huawei]sys SW1
    [SW1]vlan batch 2 3 4
    [SW1]interface GigabitEthernet 0/0/2
    [SW1-GigabitEthernet0/0/2]port link-type access
    [SW1-GigabitEthernet0/0/2]port default vlan 2
    [SW1]interface GigabitEthernet 0/0/3
    [SW1-GigabitEthernet0/0/3]port link-type access
    [SW1-GigabitEthernet0/0/3]port default vlan 3
    [SW1]interface GigabitEthernet 0/0/4
    [SW1-GigabitEthernet0/0/4]port link-type access
    [SW1-GigabitEthernet0/0/4]port default vlan 4
    [SW1]interface GigabitEthernet 0/0/1
    [SW1-GigabitEthernet0/0/1]port link-type trunk
    [SW1-GigabitEthernet0/0/1]port trunk allow-pass vlan all

SW2:

SW2:
    # 划分vlan
    [Huawei]sys SW2
    [SW2]vlan batch  2 3
    [SW2]interface GigabitEthernet 0/0/2
    [SW2-GigabitEthernet0/0/2]port link-type access
    [SW2-GigabitEthernet0/0/2]port default vlan 2
    [SW2]interface GigabitEthernet 0/0/3
    [SW2-GigabitEthernet0/0/3]port link-type access
    [SW2-GigabitEthernet0/0/3]port default vlan 3
    [SW2]interface GigabitEthernet 0/0/1
    [SW2-GigabitEthernet0/0/1]port link-type trunk
    [SW2-GigabitEthernet0/0/1]port trunk allow-pass vlan all

 此时内网已经达到了全网通；进行测试可得

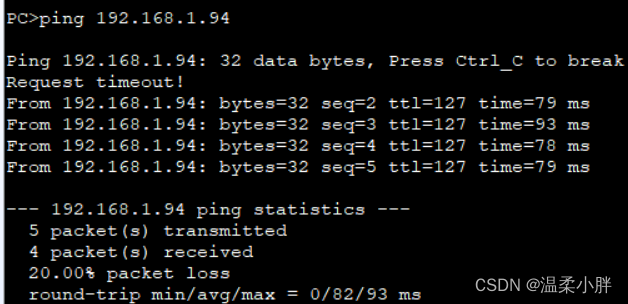

PC1 ping PC2

PC1ping PC3

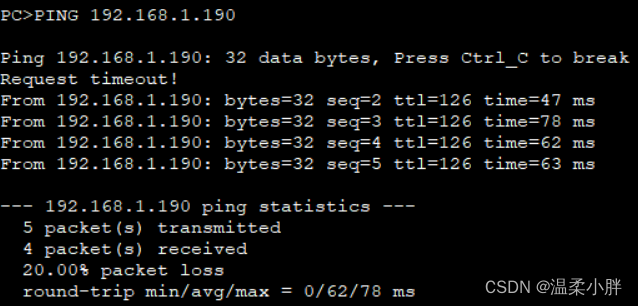

PC1pingPC4



外网进行配置：

[Huawei]sys ISP
[ISP]interface GigabitEthernet 0/0/0
[ISP-GigabitEthernet0/0/0]ip address 172.16.1.2 30
[ISP]interface GigabitEthernet 0/0/1
[ISP-GigabitEthernet0/0/1]ip address 172.16.1.1 24

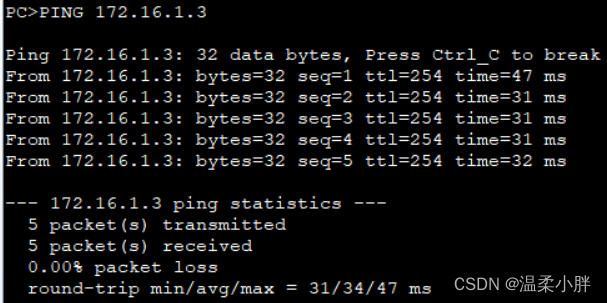

PC1pingPC5



telent登陆测试：

telent-service：
    [telent-service]user-interface vty 0 4
    [telent-service-ui-vty0-4]authentication-mode aaa
    [telent-service]aaa
    [telent-service-aaa]local-user huawei password cipher admin
    [telent-service-aaa]local-user huawei privilege level 15
    [telent-service-aaa]local-user huawei service-type telnet

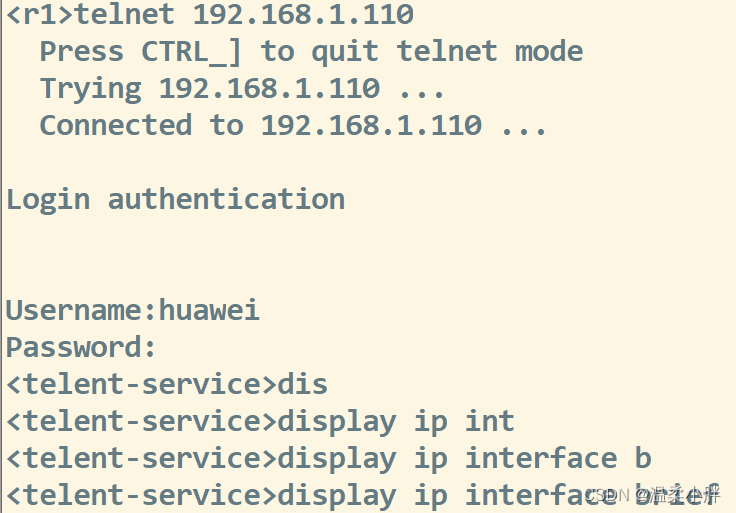

内网r1进行验证：

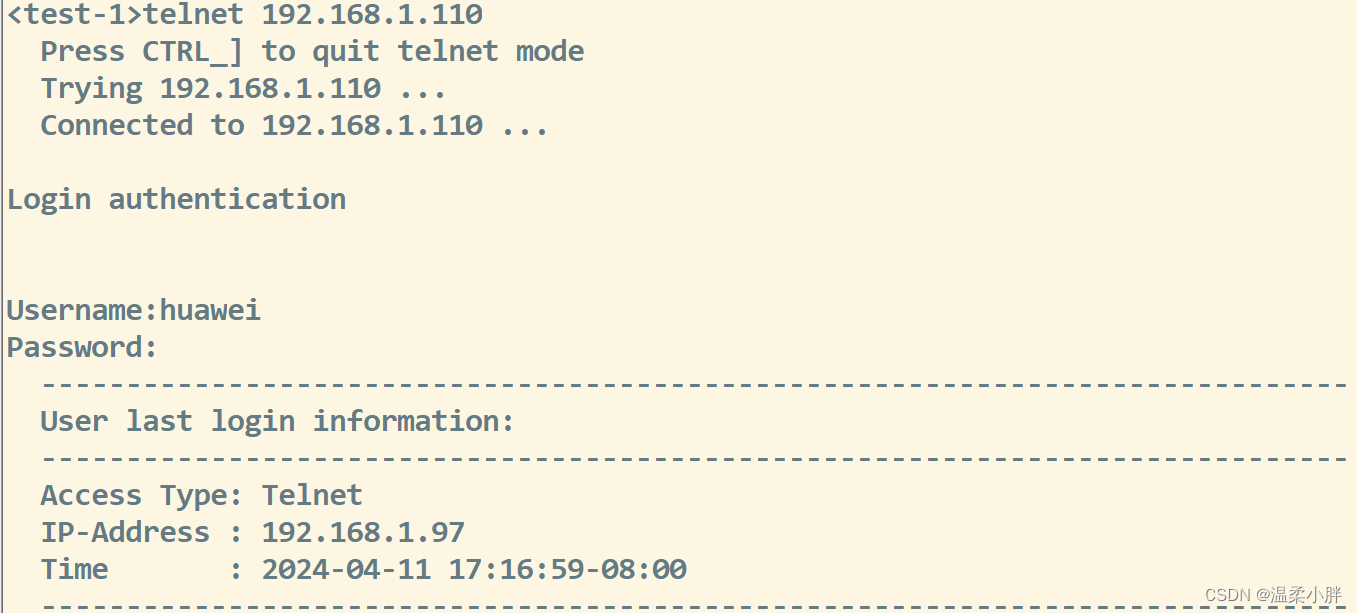

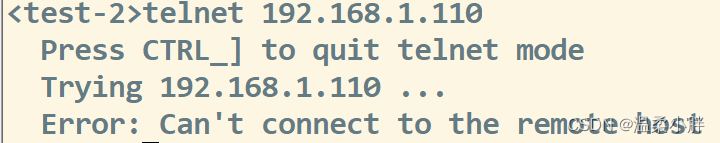

实验要求：test-1设备可以登录telnet服务器,test-2不行

[r2]interface GigabitEthernet 0/0/1
[r2-GigabitEthernet0/0/1]nat server protocol tcp global current-interface telnet inside          192.168.1.110 telnet

test认识202网段的方法：

[test-2]ip route-static 192.168.1.0 28 172.16.1.0

[test-1]ip route-static 192.168.1.0 28 172.16.1.0

实验完成
