前言
今天的主要内容包括:创建所需要的数据库表和后端基础代码、设置用户角色之间的关系、用户角色关系的后端功能实现以及前端页面设计、实现一对一关联查询、实现一对多关联查询、实现多对多关联查询等。今天的内容也比较多,都是数据库的一些基本操作,也有一定难度,还请坚持住。下面就开始今天的学习!
一、创建所需要的数据库表和后端基础代码

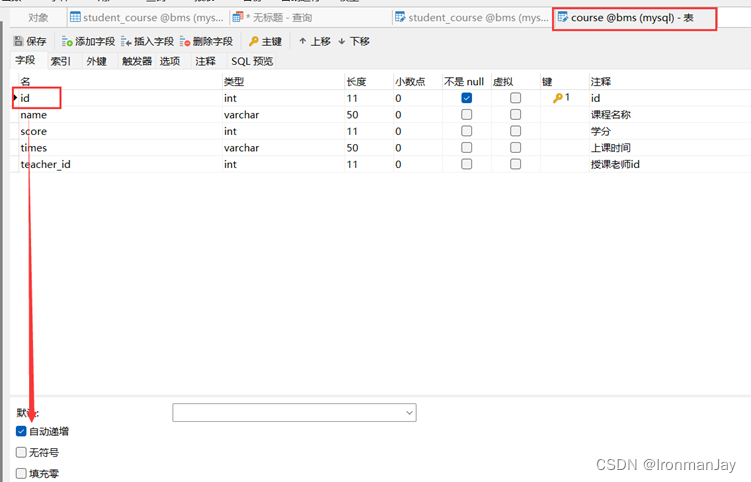

- 按照如下内容输入数据表
- 然后保存并命名为“course”
- 然后resources/templates/controller.java.vm全部替换为如下内容
package ${package.Controller};
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import org.springframework.web.bind.annotation.*;
import javax.annotation.Resource;
import java.util.List;
import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.ironmanjay.springboot.common.Result;
import ${package.Service}.${table.serviceName};
import ${package.Entity}.${entity};
#if(${restControllerStyle})
import org.springframework.web.bind.annotation.RestController;
#else
import org.springframework.stereotype.Controller;
#end
#if(${superControllerClassPackage})
import ${superControllerClassPackage};
#end
/**
* <p>
* $!{table.comment} 前端控制器
* </p>
*
* @author ${author}
* @since ${date}
*/
#if(${restControllerStyle})
@RestController
#else
@Controller
#end
@RequestMapping("#if(${package.ModuleName})/${package.ModuleName}#end/#if(${controllerMappingHyphenStyle})${controllerMappingHyphen}#else${table.entityPath}#end")
#if(${kotlin})
class ${table.controllerName}#if(${superControllerClass}) : ${superControllerClass}()#end
#else
#if(${superControllerClass})
public class ${table.controllerName} extends ${superControllerClass} {
#else
public class ${table.controllerName} {
#end
@Resource
private ${table.serviceName} ${table.entityPath}Service;
// 新增或者更新
@PostMapping
public Result save(@RequestBody ${entity} ${table.entityPath}) {
${table.entityPath}Service.saveOrUpdate(${table.entityPath});
return Result.success();
}
@DeleteMapping("/{id}")
public Result delete(@PathVariable Integer id) {
${table.entityPath}Service.removeById(id);
return Result.success();
}
@PostMapping("/del/batch")
public Result deleteBatch(@RequestBody List<Integer> ids) {
${table.entityPath}Service.removeByIds(ids);
return Result.success();
}
@GetMapping
public Result findAll() {
return Result.success(${table.entityPath}Service.list());
}
@GetMapping("/{id}")
public Result findOne(@PathVariable Integer id) {
return Result.success(${table.entityPath}Service.getById(id));
}
@GetMapping("/page")
public Result findPage(@RequestParam Integer pageNum,
@RequestParam Integer pageSize) {
QueryWrapper<${entity}> queryWrapper = new QueryWrapper<>();
queryWrapper.orderByDesc("id");
return Result.success(${table.entityPath}Service.page(new Page<>(pageNum, pageSize), queryWrapper));
}
}
#end

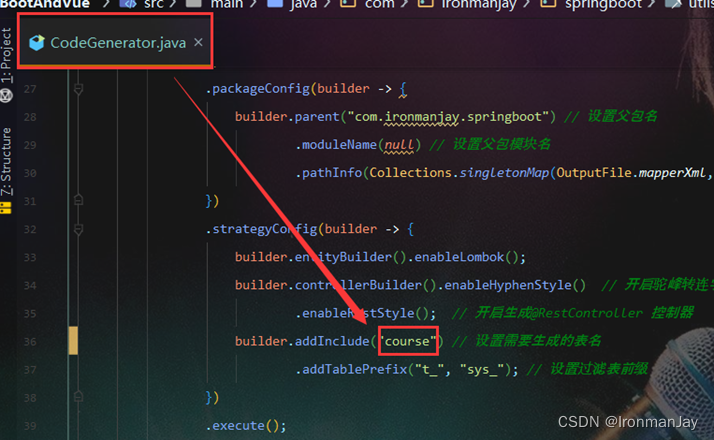

- 然后将CodeGenerator.java中生成的表名(course)输入进去

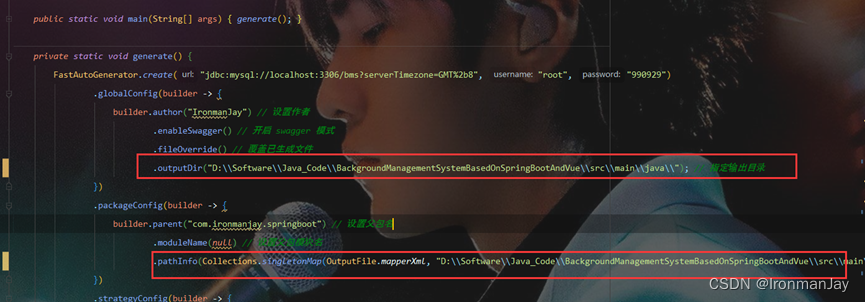

- 还要注意代码生成器自己的输出路径

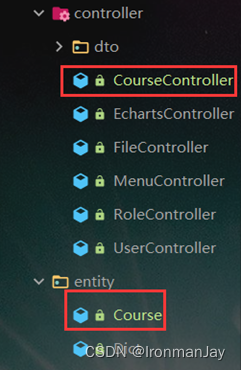

- 然后使用代码生成器生成代码,发现已经成功生成代码了
二、设置用户角色之间的关系

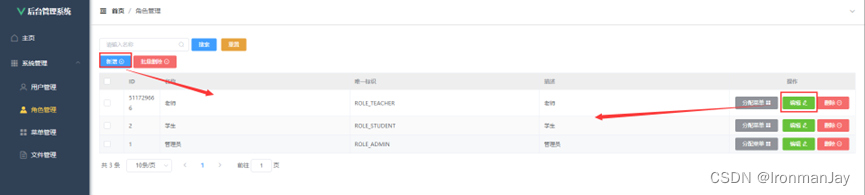

- 然后在后台中编辑和新增角色

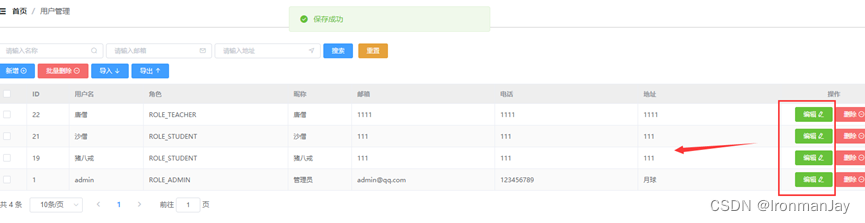

- 然后设置每个用户的角色,当然这个完全可以根据用户自己的喜好创建
三、用户角色关系的后端功能实现以及前端页面设计

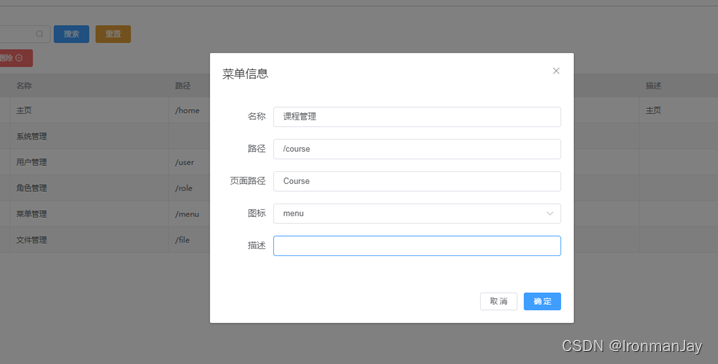

- 新建关于“课程管理”页面的路由

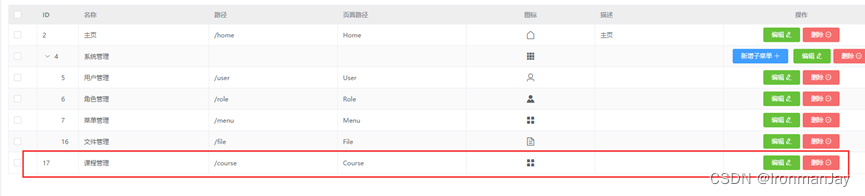

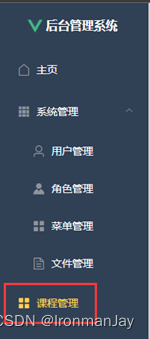

- 最后生成新的菜单如下所示

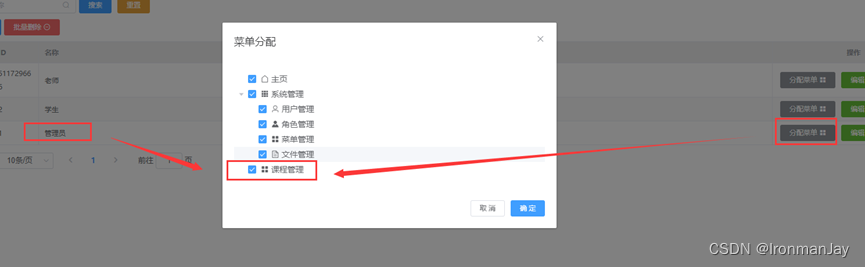

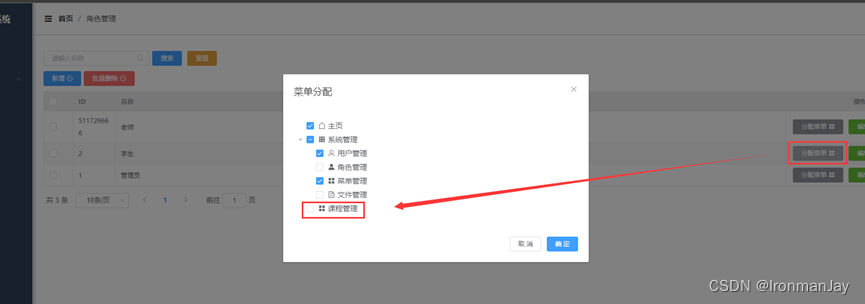

- 然后给管理员添加“课程管理”的页面权限

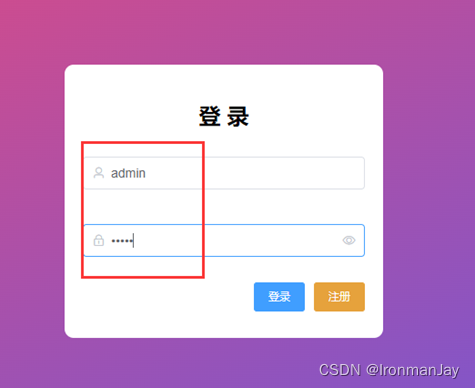

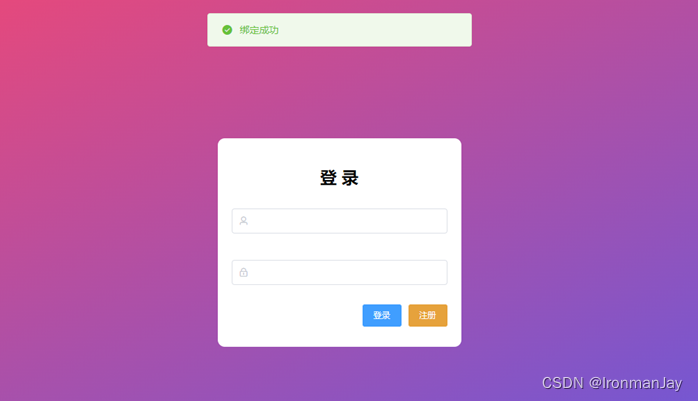

- 绑定之后需要重新登陆
- 重新登陆后我们发现已经成功将“课程管理”页面授权了,但是还没有页面内容,下面的工作就是完成“课程管理”的页面内容

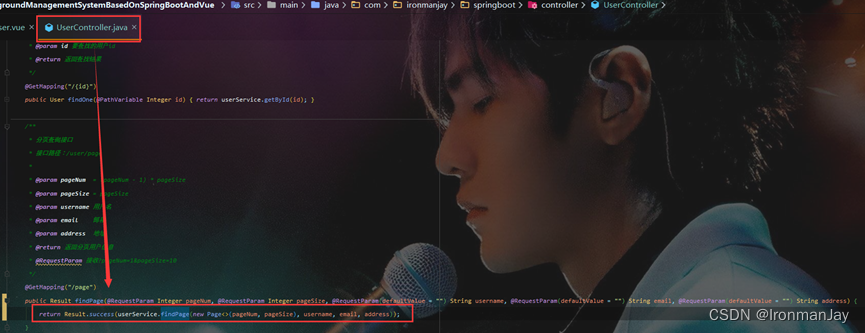

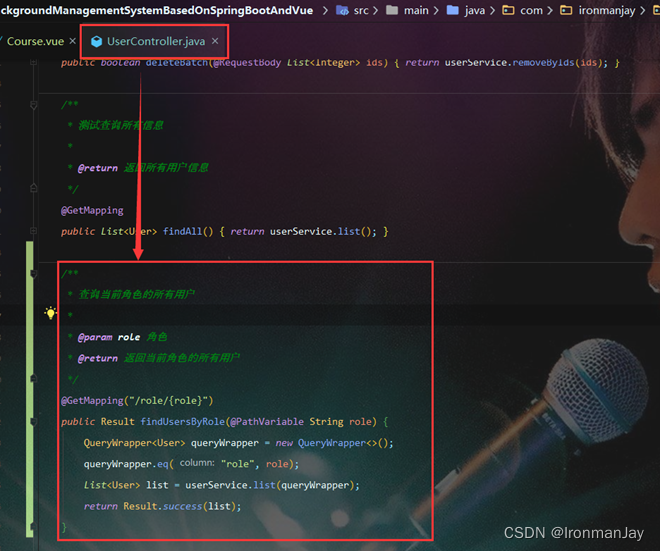

- 在UserController.java中新增查询当前角色的所有用户的功能函数
- 然后将Course.vue中的内容全部替换为如下内容
<template>
<div>
<div style="margin: 10px 0">
<el-input style="width: 200px" placeholder="请输入名称" suffix-icon="el-icon-search" v-model="name"></el-input>
<el-button class="ml-5" type="primary" @click="load">搜索</el-button>
<el-button type="warning" @click="reset">重置</el-button>
</div>
<div style="margin: 10px 0">
<el-button type="primary" @click="handleAdd">新增 <i class="el-icon-circle-plus-outline"></i></el-button>
<el-popconfirm
class="ml-5"
confirm-button-text='确定'
cancel-button-text='我再想想'
icon="el-icon-info"
icon-color="red"
title="您确定批量删除这些数据吗?"
@confirm="delBatch"
>
<el-button type="danger" slot="reference">批量删除 <i class="el-icon-remove-outline"></i></el-button>
</el-popconfirm>
</div>
<el-table :data="tableData" border stripe :header-cell-class-name="'headerBg'"
@selection-change="handleSelectionChange">
<el-table-column type="selection" width="55"></el-table-column>
<el-table-column prop="id" label="ID" width="80"></el-table-column>
<el-table-column prop="name" label="课程名称"></el-table-column>
<el-table-column prop="score" label="分数"></el-table-column>
<el-table-column prop="times" label="课时"></el-table-column>
<el-table-column prop="teacher" label="授课老师"></el-table-column>
<el-table-column label="启用">
<template slot-scope="scope">
<el-switch v-model="scope.row.state" active-color="#13ce66" inactive-color="#ccc"
@change="changeEnable(scope.row)"></el-switch>
</template>
</el-table-column>
<el-table-column label="操作" width="200" align="center">
<template slot-scope="scope">
<el-button type="success" @click="handleEdit(scope.row)">编辑 <i class="el-icon-edit"></i></el-button>
<el-popconfirm
class="ml-5"
confirm-button-text='确定'
cancel-button-text='我再想想'
icon="el-icon-info"
icon-color="red"
title="您确定删除吗?"
@confirm="del(scope.row.id)">
<el-button type="danger" slot="reference">删除 <i class="el-icon-remove-outline"></i></el-button>
</el-popconfirm>
</template>
</el-table-column>
</el-table>
<div style="padding: 10px 0">
<el-pagination
@size-change="handleSizeChange"
@current-change="handleCurrentChange"
:current-page="pageNum"
:page-sizes="[2, 5, 10, 20]"
:page-size="pageSize"
layout="total, sizes, prev, pager, next, jumper"
:total="total">
</el-pagination>
</div>
<el-dialog title="课程信息" :visible.sync="dialogFormVisible" width="30%">
<el-form label-width="80px" size="small">
<el-form-item label="名称">
<el-input v-model="form.name" autocomplete="off"></el-input>
</el-form-item>
<el-form-item label="学分">
<el-input v-model="form.score" autocomplete="off"></el-input>
</el-form-item>
<el-form-item label="课时">
<el-input v-model="form.times" autocomplete="off"></el-input>
</el-form-item>
<el-form-item label="老师">
<el-select clearable v-model="form.teacherId" placeholder="请选择">
<el-option v-for="item in teachers" :key="item.id" :label="item.nickname"
:value="item.id"></el-option>
</el-select>
</el-form-item>
</el-form>
<div slot="footer" class="dialog-footer">
<el-button @click="dialogFormVisible = false">取 消</el-button>
<el-button type="primary" @click="save">确 定</el-button>
</div>
</el-dialog>
</div>
</template>
<script>
export default {
name: "Course",
data() {
return {
form: {},
tableData: [],
name: '',
multipleSelection: [],
pageNum: 1,
pageSize: 10,
total: 0,
dialogFormVisible: false,
teachers: [],
user: localStorage.getItem("user") ? JSON.parse(localStorage.getItem("user")) : {},
}
},
created() {
this.load()
},
methods: {
load() {
this.request.get("/course/page", {
params: {
pageNum: this.pageNum,
pageSize: this.pageSize,
name: this.name,
}
}).then(res => {
this.tableData = res.data.records
this.total = res.data.total
});
this.request.get("/user/role/ROLE_TEACHER").then(res => {
this.teachers = res.data
})
},
changeEnable(row) {
this.request.post("/course/update", row).then(res => {
if (res.code === '200') {
this.$message.success("操作成功")
}
})
},
del(id) {
this.request.delete("/course/" + id).then(res => {
if (res.code === '200') {
this.$message.success("删除成功")
this.load()
} else {
this.$message.error("删除失败")
}
})
},
handleSelectionChange(val) {
console.log(val)
this.multipleSelection = val
},
delBatch() {
let ids = this.multipleSelection.map(v => v.id) // [{}, {}, {}] => [1,2,3]
this.request.post("/course/del/batch", ids).then(res => {
if (res.code === '200') {
this.$message.success("批量删除成功")
this.load()
} else {
this.$message.error("批量删除失败")
}
})
},
save() {
this.request.post("/course", this.form).then(res => {
if (res) {
this.$message.success("保存成功")
this.dialogFormVisible = false
this.load()
} else {
this.$message.error("保存失败")
}
})
},
reset() {
this.name = ""
this.load()
},
handleAdd() {
this.dialogFormVisible = true
this.form = {}
},
handleEdit(row) {
this.form = row
this.dialogFormVisible = true
},
handleSizeChange(pageSize) {
console.log(pageSize)
this.pageSize = pageSize
this.load()
},
handleCurrentChange(pageNum) {
console.log(pageNum)
this.pageNum = pageNum
this.load()
},
download(url) {
window.open(url)
}
}
}
</script>
<style scoped>
</style>

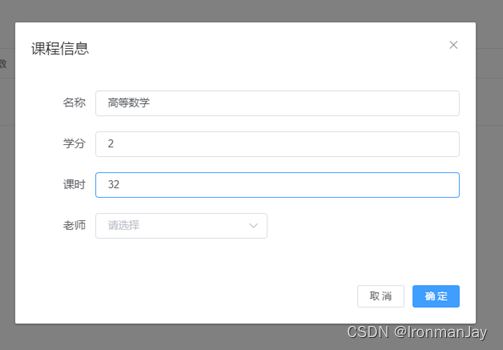

- 然后来到前端发现已经成功显示“课程管理”界面了,我们在里面新增数据,这个数据可以随意新增

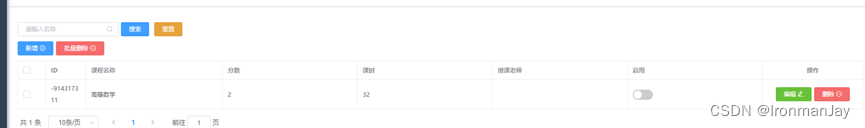

- 然后我们发现已经成功新增课程信息了

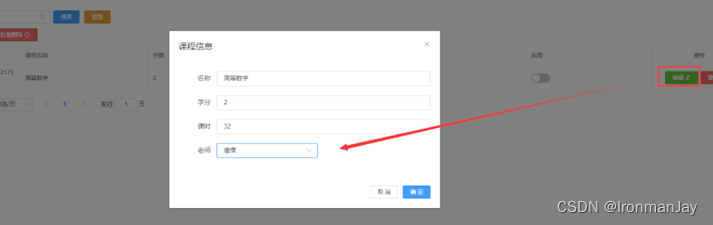

- 接下来我们还要给本门课程分配授课老师

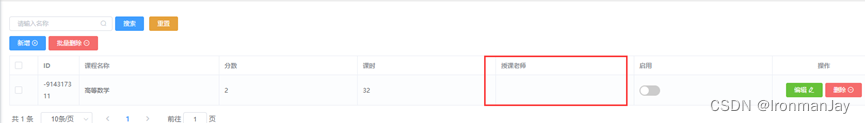

- 分配之后页面并没有显示

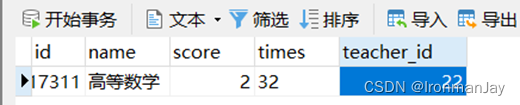

- 但是数据库已经存进数据了

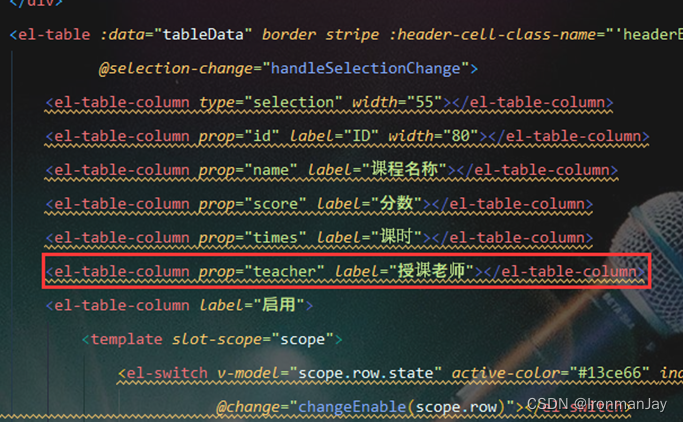

- 因为我们在数据库中存储的是授课老师的id,而在页面要展示授课老师的名称,如下所示。那么接下来的任务就是实现关联查询,可以根据授课老师的id显示授课老师的名称
四、实现一对一关联查询

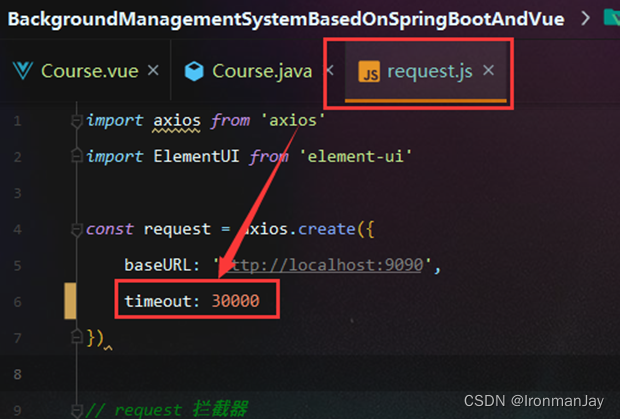

- 在前端的request.js中修改超时时间为30s

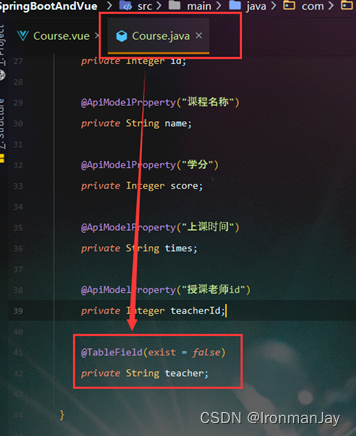

- 然后在Course.java中新增teacher字段,要注意注解要和我保持一样,因为这个是默认不存在的,如果不加这个注解就会报错

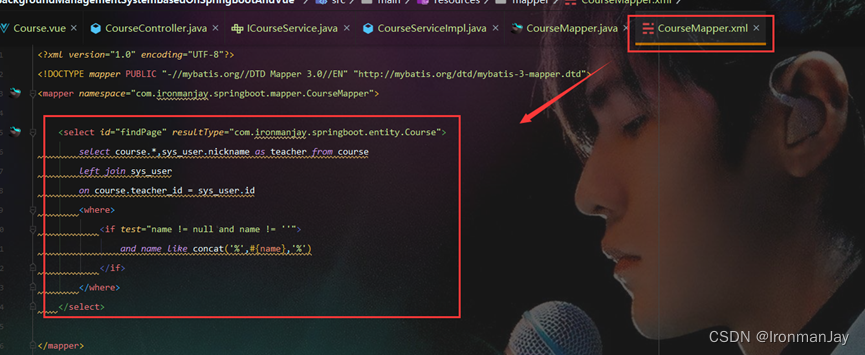

- 然后在CourseMapper.xml中新建关联查询的sql语句

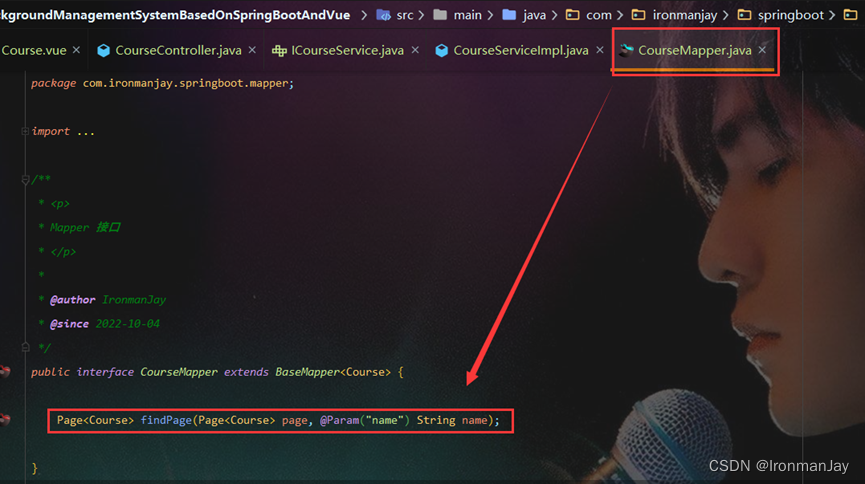

- 然后在CourseMapper.java中新建如下mapper

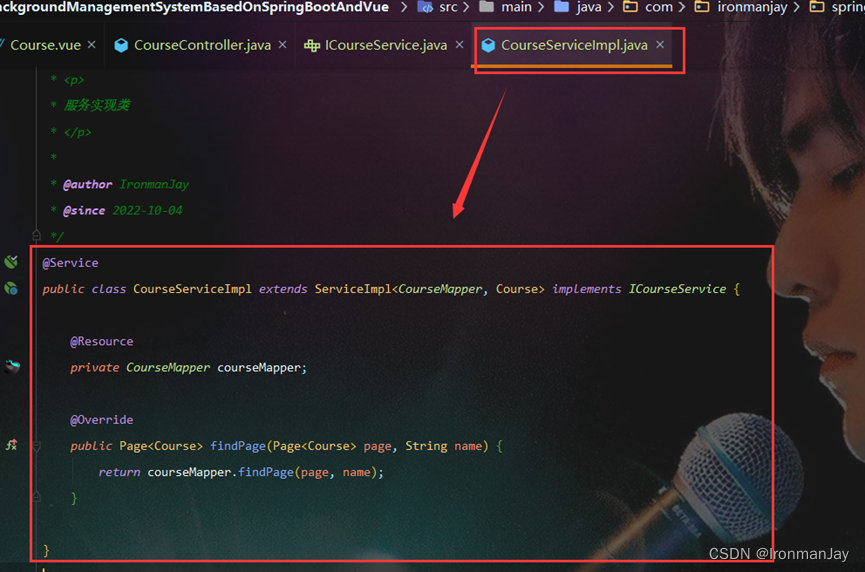

- 然后在CourseServiceImpl.java加入如下代码

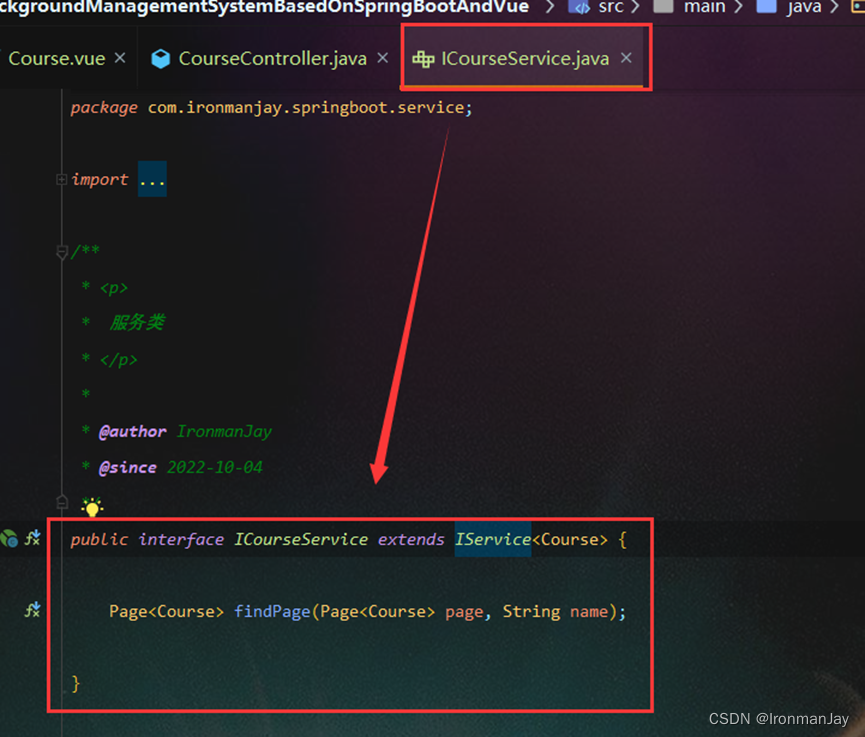

- 然后在ICourseService.java中加入如下代码

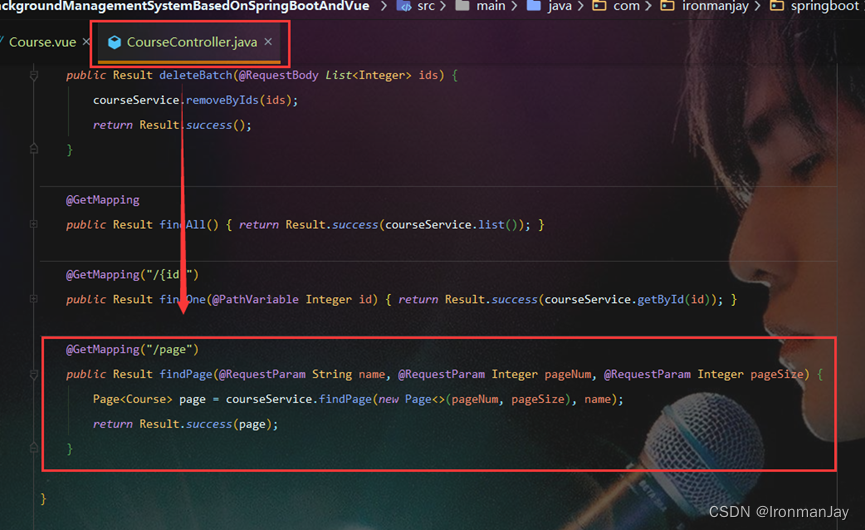

- 然后修改CourseController.java中的findPage函数,返回所需的数据

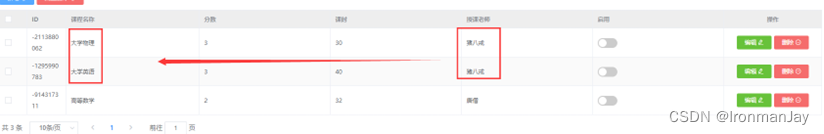

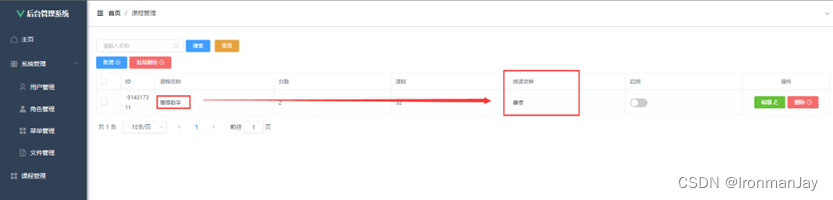

- 然后此时我们来到前端发现,我们刚才分配的授课老师已经成功显示了,这样我们就实现了关联查询
五、实现一对多关联查询

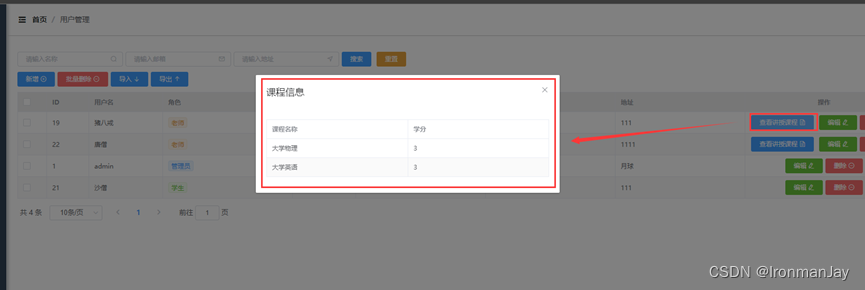

- 当我们授课老师讲授多门课的时候,就要建立授课老师和课程名称的多对一关系,所以接下来的任务就是如何实现查看老师所讲授的所有课程

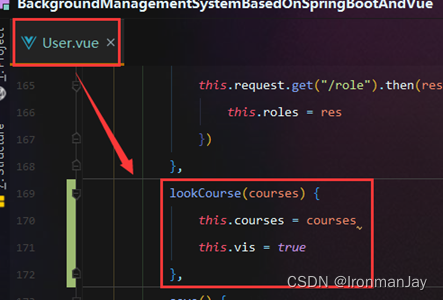

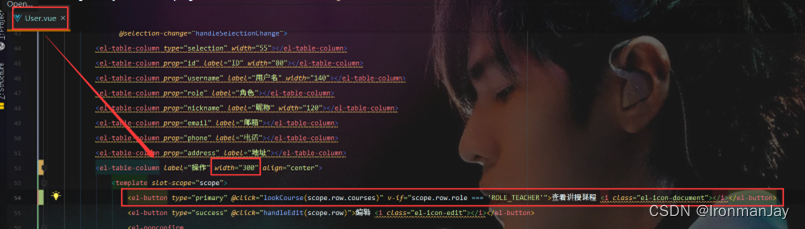

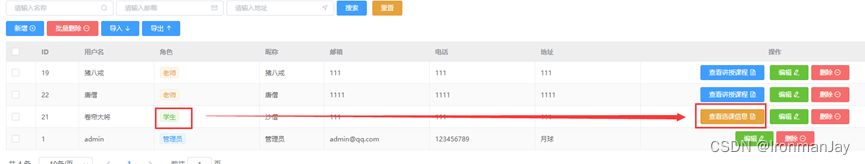

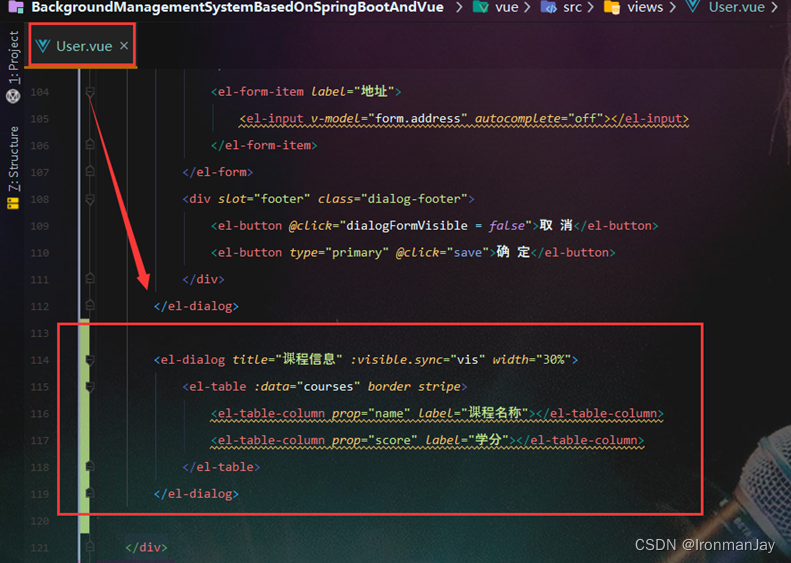

- 我们首先修改User.vue中的如下几个部分,给老师角色新增查看所有教授课程和课程学分的点击表格

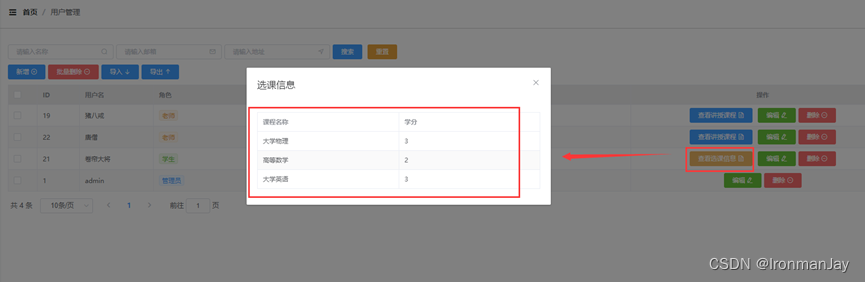

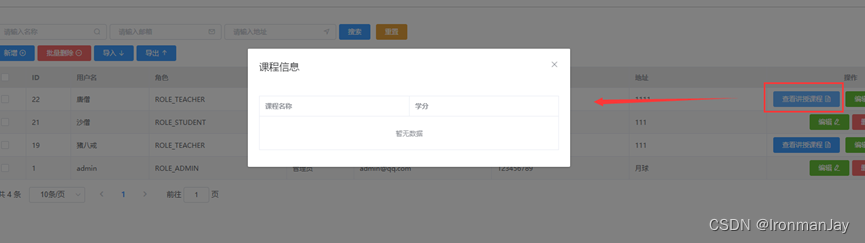

- 然后我们来到前端测试发现已经成功显示了,当然现在还没有数据,那么接下来的任务就是成功显示数据

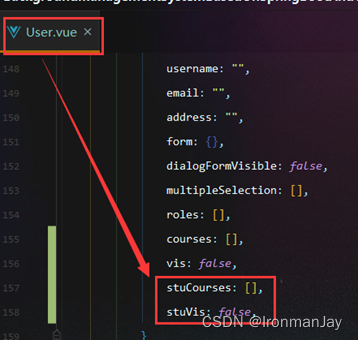

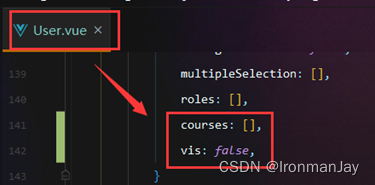

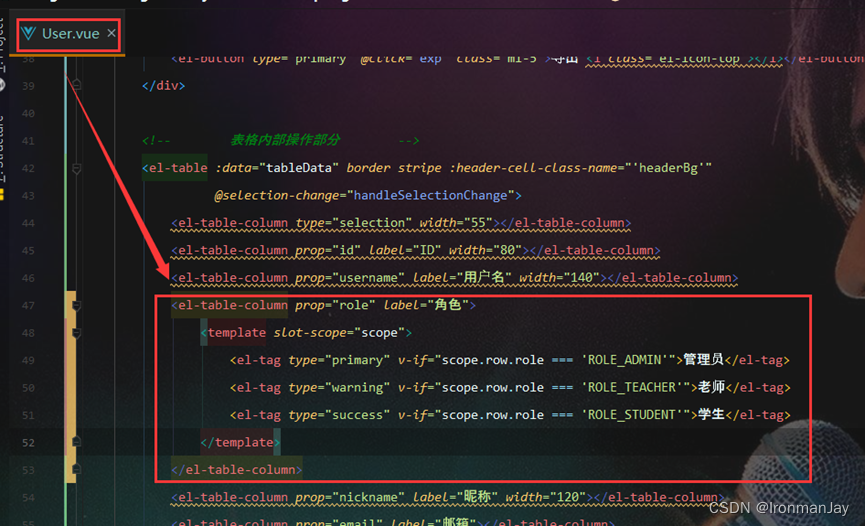

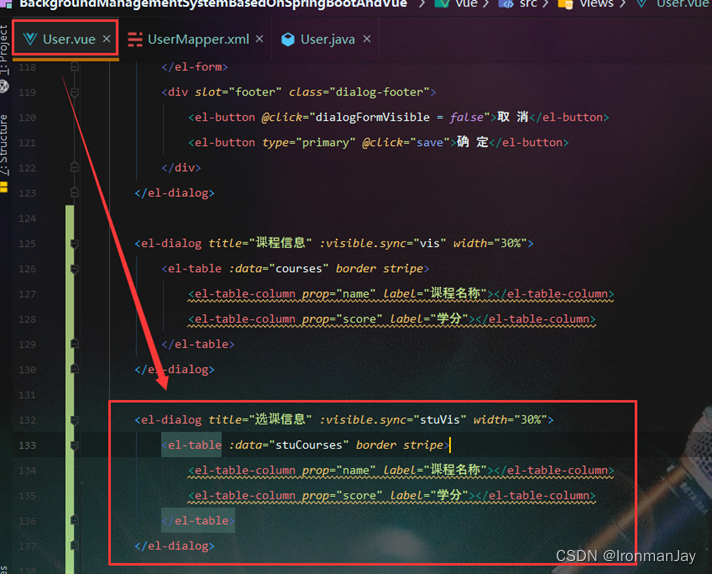

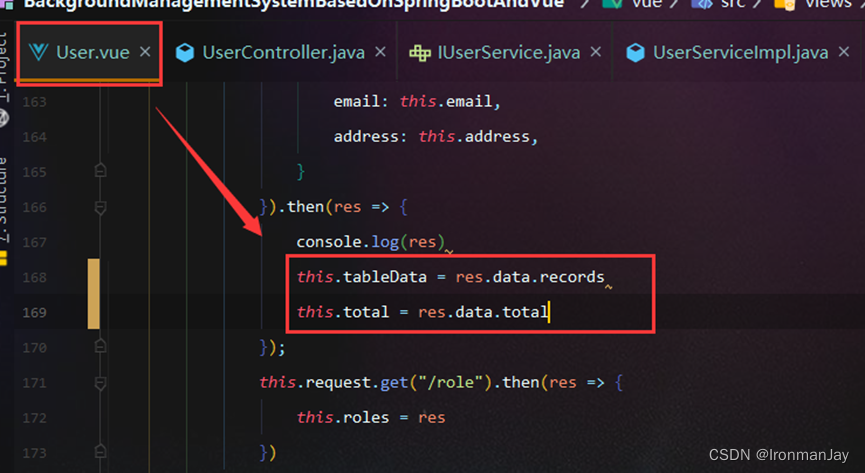

- 然后我们再修改User.vue中的如下部分

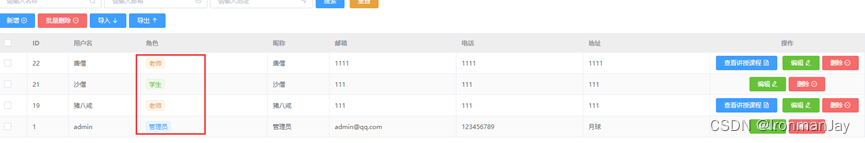

- 然后来到前端测试,发现角色一栏已经不是英文标记了,而是英文标记对应的中文标签,这样好看一些

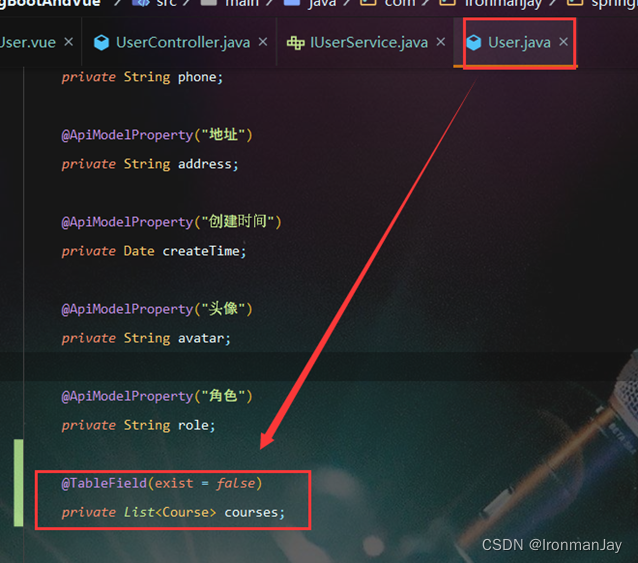

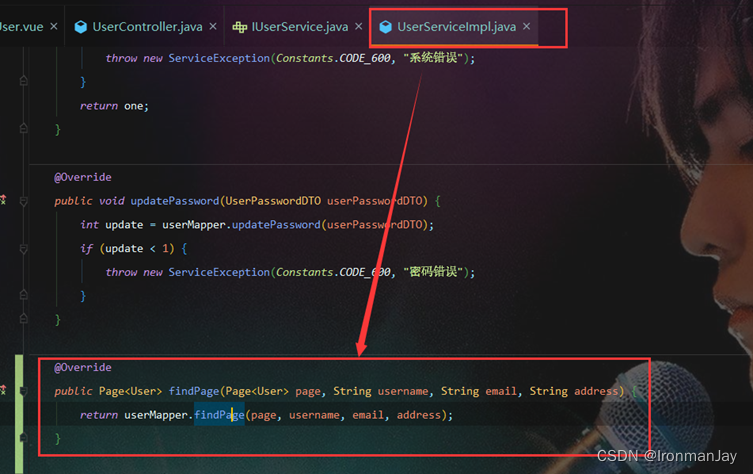

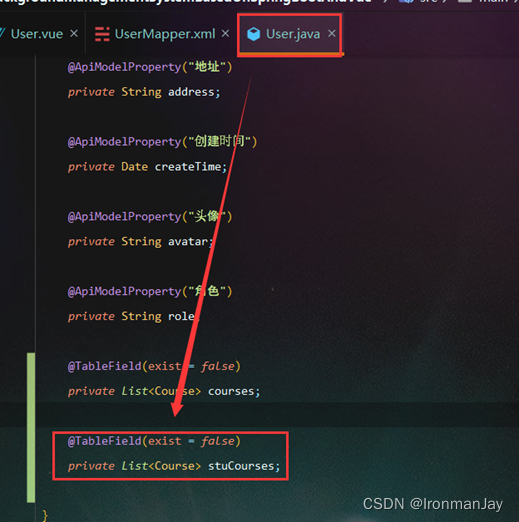

- 接下来就要实现我们授课老师和课程名称的多对一关系了,首先在User.java实体类中新增如下字段,为了保存当前老师教授的所有课程

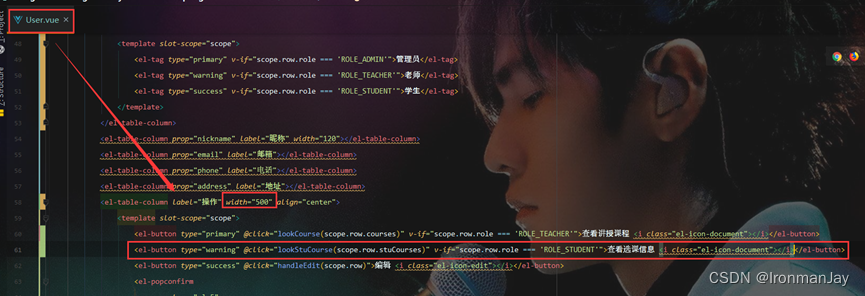

- 然后修改User.vue中此部分内容
- 然后将UserMapper.xml全部修改为如下内容
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.ironmanjay.springboot.mapper.UserMapper">
<update id="updatePassword">
update sys_user set `password` = #{userPasswordDTO.newPassword} where `username` = #{userPasswordDTO.username};
</update>
<resultMap id="pageUser" type="com.ironmanjay.springboot.entity.User">
<result column="id" property="id"></result>
<result column="username" property="username"></result>
<result column="nickname" property="nickname"></result>
<result column="email" property="email"></result>
<result column="phone" property="phone"></result>
<result column="address" property="address"></result>
<result column="create_time" property="createTime"></result>
<result column="avatar" property="avatar"></result>
<result column="role" property="role"></result>
<collection property="courses" javaType="java.util.ArrayList" ofType="com.ironmanjay.springboot.entity.Course">
<result column="name" property="name"></result>
<result column="score" property="score"></result>
</collection>
</resultMap>
<select id="findPage" resultMap="pageUser">
select sys_user.*,course.* from sys_user
left join course
on sys_user.id = course.teacher_id
<where>
<if test="username != null and username != ''">
and sys_user.username like concat('%',#{username},'%')
</if>
<if test="email != null and email != ''">
and sys_user.email like concat('%',#{email},'%')
</if>
<if test="address != null and address != ''">
and sys_user.address like concat('%',#{address},'%')
</if>
</where>
</select>
</mapper>

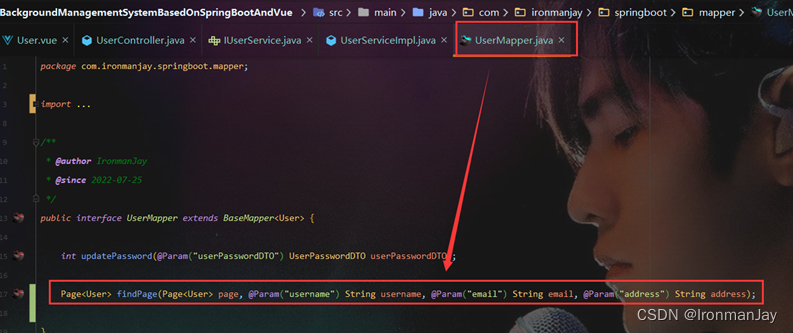

- 然后在UserMapper.java中加入如下内容
- 然后在UserServiceImpl.java中加入如下内容

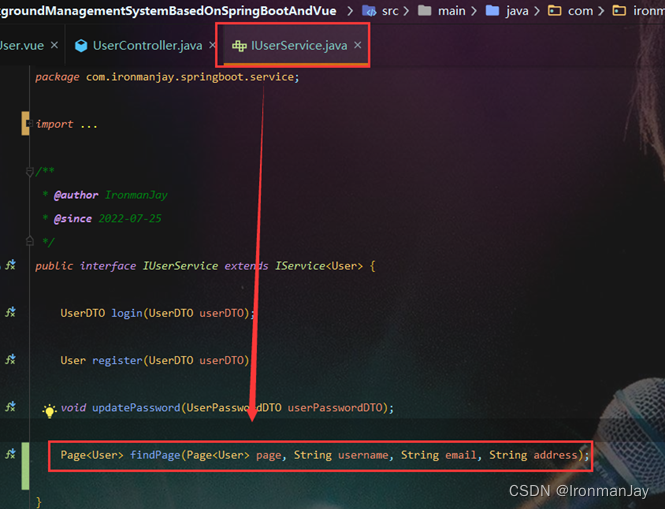

- 然后在IUserService.java中加入如下内容
- 然后修改UserController.java中的如下部分
- 最后来到前端测试,发现已经成功建立起了授课老师和课程名称的一对多关系
六、实现多对多关联查询
- 首先新建一个关系数据表,如下配置

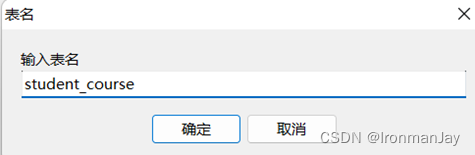

- 名称为student_course
- 为了让学生可以看到课程信息,给学生角色分配课程管理菜单

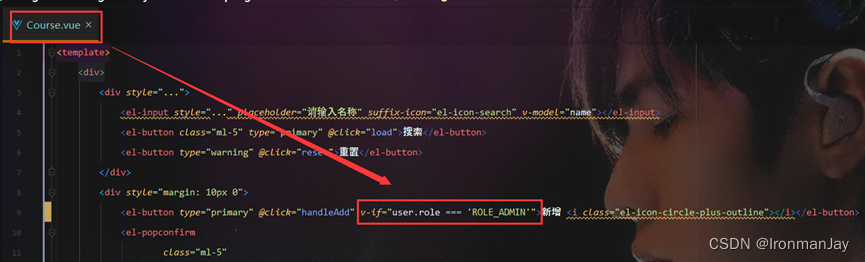

- 为了避免学生角色新增、删除和编辑课程,在Course.vue中添加如下代码

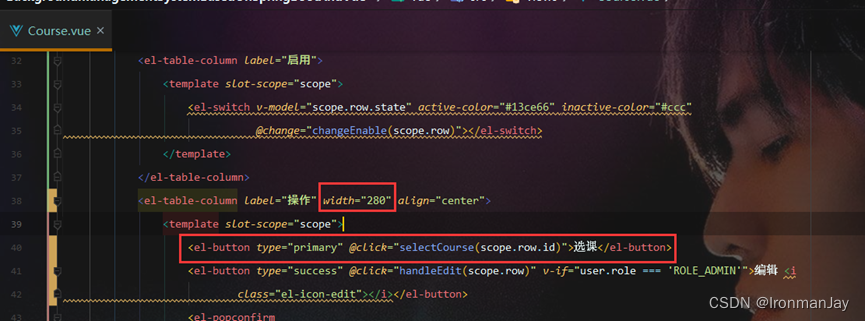

- 然后在Course.vue中新增学生选课的按钮,并修改按钮间距
- 然后在CourseMapper.xml中新增如下内容
- 然后在CourseMapper.java中加入如下内容
- 然后在CourseServiceImpl.java中加入如下内容
- 然后在ICourseService.java中加入如下内容
- 然后在CourseController.java中加入如下内容

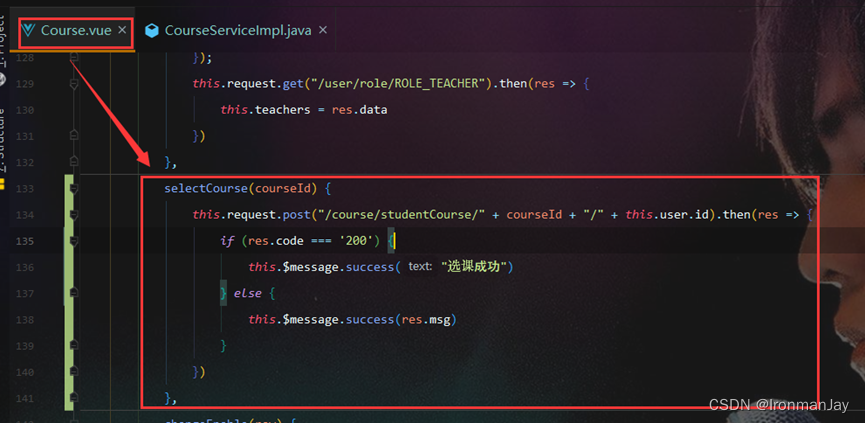

- 然后在Course.vue中加入如下函数
- 然后此时前端界面已经有了选课按钮

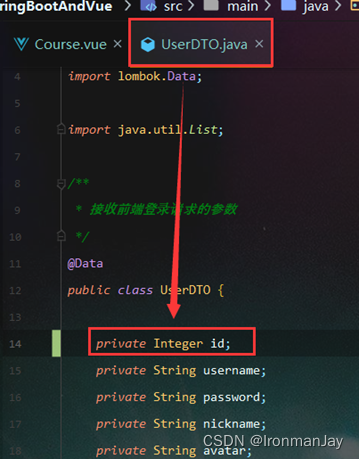

- 为了后面可以成功以学生角色选课,我们还需要保存当前学生角色的id,我么我们需要在UserDTO.java中新增一个字段,这样在学生角色登录的时候我们就可以获取到他的id了

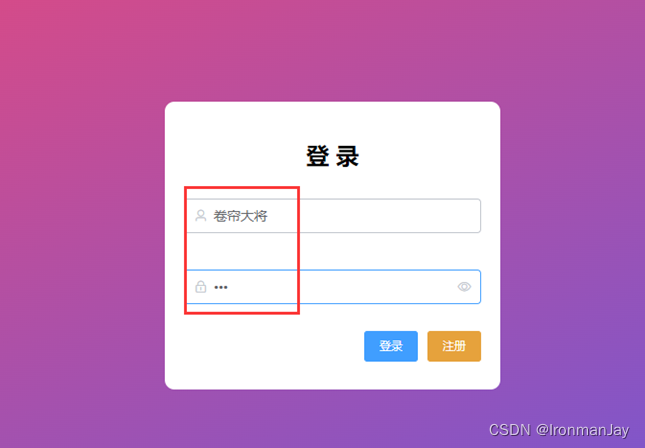

- 然后我们使用学生角色重新登陆
- 然后我们使用登录的学生角色选课,发现已经成功选课了

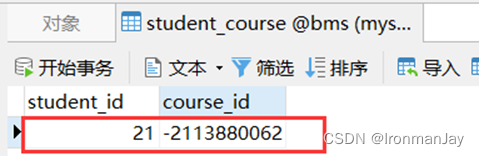

- 然后查看数据表,发现数据也已经成功保存了
- 为了让管理员可以看到学生选了哪些课程,我们首先以管理员角色登录
- 然后在User.vue中新增查看选课信息的按钮

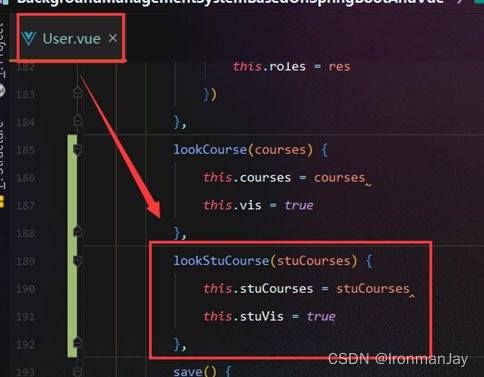

- 然后修改User.vue中如下几处内容
- 此时已经可以在前端看见查看学生的选课记录按钮了,现在我们只需要获取到相应数据即可
- 然后来到User.java中新增学生选课字段
- 为了查到学生的选课记录,将UserMapper.xml全部替换为如下内容,各位读者要注意和自己的包名相匹配
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.ironmanjay.springboot.mapper.UserMapper">
<update id="updatePassword">
update sys_user set `password` = #{userPasswordDTO.newPassword} where `username` = #{userPasswordDTO.username};
</update>
<resultMap id="pageUser" type="com.ironmanjay.springboot.entity.User">
<result column="id" property="id"></result>
<result column="username" property="username"></result>
<result column="nickname" property="nickname"></result>
<result column="email" property="email"></result>
<result column="phone" property="phone"></result>
<result column="address" property="address"></result>
<result column="create_time" property="createTime"></result>
<result column="avatar" property="avatar"></result>
<result column="role" property="role"></result>
<collection property="courses" javaType="java.util.ArrayList" ofType="com.ironmanjay.springboot.entity.Course">
<result column="teacherCourseName" property="name" />
<result column="teacherScore" property="score" />
</collection>
<collection property="stuCourses" javaType="java.util.ArrayList" ofType="com.ironmanjay.springboot.entity.Course">
<result column="stuCourseName" property="name" />
<result column="stuScore" property="score" />
</collection>
</resultMap>
<select id="findPage" resultMap="pageUser">
select sys_user.*, sc.name as stuCourseName, tc.name as teacherCourseName, tc.score as teacherScore, sc.score as stuScore from sys_user
left join student_course
on sys_user.id = student_course.student_id
left join course sc
on student_course.course_id = sc.id
left join course tc
on sys_user.id = tc.teacher_id
<where>
<if test="username != null and username != ''">
and sys_user.username like concat('%',#{username},'%')
</if>
<if test="email != null and email != ''">
and sys_user.email like concat('%',#{email},'%')
</if>
<if test="address != null and address != ''">
and sys_user.address like concat('%',#{address},'%')
</if>
</where>
</select>
</mapper>
- 然后来到前端测试,发现已经成功显示了学生的选课信息,我们也就完成了学生与课程信息的多对多关联关系
总结
以上就是今天学习的全部内容了,内容虽然比昨天的少了一些,但还是不少啊,继续加油!明天将会带来用户前台页面设计与实现的相关内容。明天见!
