SAP EPIC 银企直连余额查询（建设银行）

小飞猪猪猪猪猪猪猪

已于 2022-07-18 16:50:41 修改

阅读量3.1k

点赞数

分类专栏： SAP银企直连文章标签： sap abap

于 2022-01-02 18:33:15 首次发布

本文链接：https://blog.csdn.net/JYH1999/article/details/122278647

版权

SAP银企直连专栏收录该内容

7 篇文章

订阅专栏

导语：余额查询接口相对比较独立，也比较简单，EPIC_PROC中付款查询是不做存储的，查一次展示一次，每次都要重新查询，本次接口建行的XML跟标准的一致，所以没有做任何改动，直接就可以用，注意客户号等参数赋值正确即可。

👉【EPIC_PROC银企直连建设银行】

在这里插入图片描述

标准类：CL_EPIC_EXAMPLE_CN_CCB_GAB

一、创建类

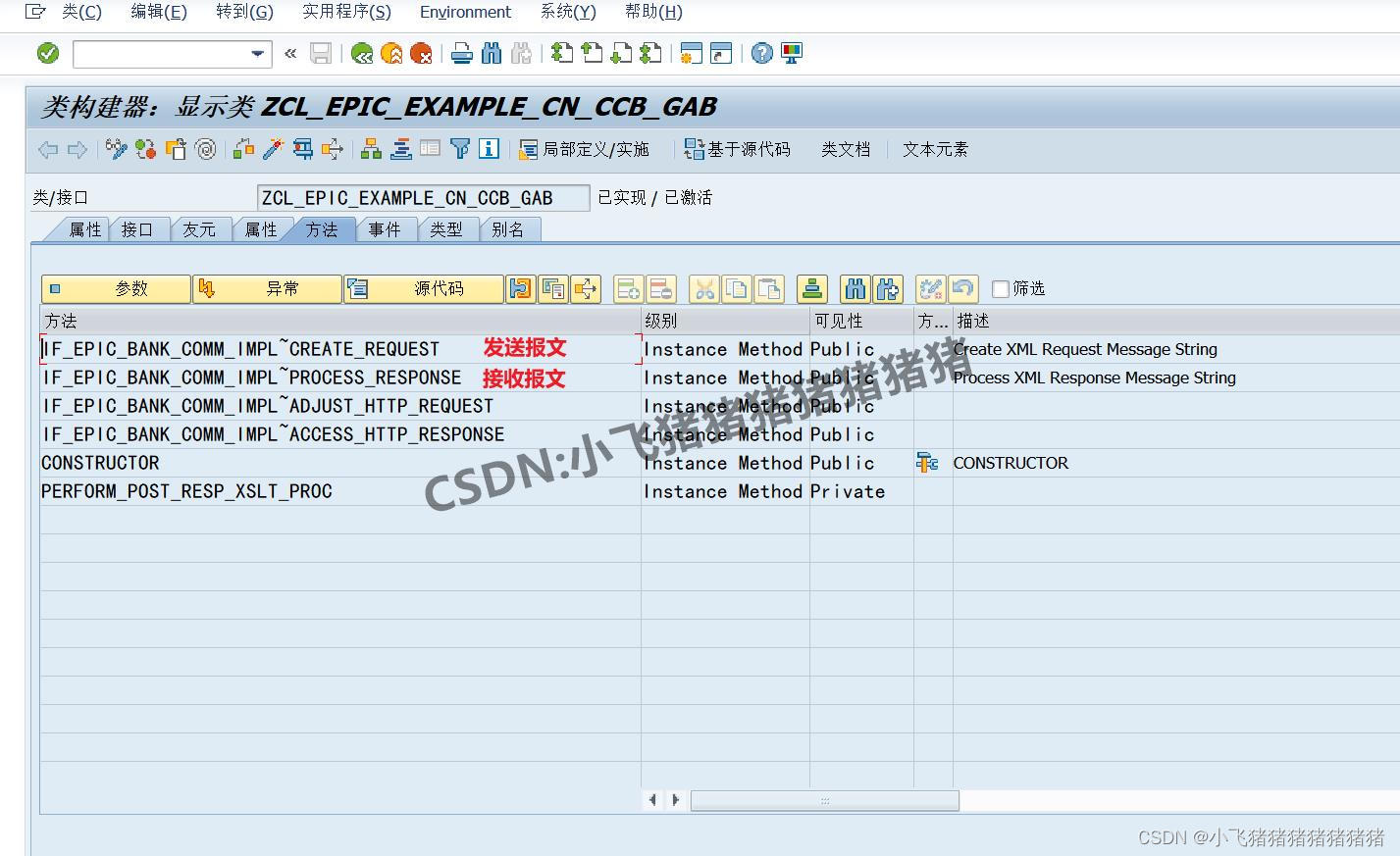

复制SAP标准类：CL_EPIC_EXAMPLE_CN_CCB_GAB

在这里插入图片描述
方法：CREATE_REQUEST

  METHOD if_epic_bank_comm_impl~create_request.
**************************************************************
**   Example only - NOT FOR USE IN PRODUCTION SYSTEMS.      **
**   See the class documentation for more information.      **
**************************************************************

    " DATA ls_t012k                    TYPE t012k.
    DATA ls_message                  LIKE LINE OF et_messages.
    DATA lv_message_dummy.
    DATA lr_logon_error              TYPE REF TO cx_root.
    DATA ls_requ_mapping_source      TYPE ty_requ_mapping_source.
    DATA lr_transformation_error     TYPE REF TO cx_root.
    DATA lv_timestamp                TYPE timestamp.
    DATA lv_commuser                 TYPE epic_bc_ud-commuser.
    DATA lv_pwd                      TYPE rsecdata.

    CLEAR ev_request_message_string.
    CLEAR ev_request_message_xstring.
    CLEAR ef_another_segment_required.
    CLEAR ls_requ_mapping_source.
    CLEAR et_messages.

    CHECK is_bank_comm_key IS NOT INITIAL.
    CHECK iv_bank_comm_step IS NOT INITIAL.

    GET TIME STAMP FIELD lv_timestamp.
    ls_requ_mapping_source-request_sn = lv_timestamp.

    TRY.
        mo_ccb_service->s_get_logon_data(
          EXPORTING
            iv_bank_comm_step = iv_bank_comm_step
            is_bank_comm_key  =  is_bank_comm_key
          IMPORTING
            ev_commuser       =  lv_commuser
            ev_pwd            =  lv_pwd
            et_messages       =  et_messages
        ).
        "begin note  2116270
        DATA lo_bank_comm_service TYPE REF TO if_epic_bank_comm_service.

        CREATE OBJECT lo_bank_comm_service TYPE cl_epic_cn_bank_comm_service.
        lo_bank_comm_service->get_housebank_account_info(
                  EXPORTING
                    is_bank_comm_key = is_bank_comm_key
                  IMPORTING
            ev_account_num   = ls_requ_mapping_source-tx_info-acc_no
        ).

        "end note 2116270
      CATCH cx_epic_bank_comm_impl.

        RAISE EXCEPTION TYPE cx_epic_bank_comm_impl
          EXPORTING
            impl_messages = et_messages.
    ENDTRY.

    mo_ccb_service->get_request_sn( IMPORTING ev_reqsn = ls_requ_mapping_source-request_sn ).

    ls_requ_mapping_source-user_id   = lv_commuser.
    ls_requ_mapping_source-password  = lv_pwd.
*    ls_requ_mapping_source-cust_id   = gv_cust_id.

*通过用户名 获取 CUST ID, 作为替换
    DATA: lv_custid TYPE epic_bc_ud-descr.
    CLEAR lv_custid.
    SELECT SINGLE descr
      INTO lv_custid
      FROM epic_bc_ud
      WHERE commuser = lv_commuser.
    IF sy-subrc = 0.
**'无法通过USER_ID获取 CUST_ID' TYPE 'E'
*      MESSAGE  e002(zfi)   INTO lv_message_dummy.
*      me->append_message( CHANGING ct_messages = et_messages ).
*      EXIT.

    ENDIF.

    ls_requ_mapping_source-cust_id   = lv_custid.
    ls_requ_mapping_source-tx_code   = '6W0100'.
    ls_requ_mapping_source-language  = 'CN'.

*    IF ls_t012k-bnkn2 IS NOT INITIAL.
*      ls_requ_mapping_source-tx_info-acc_no  = ls_t012k-bnkn2.
*    ELSEIF ls_t012k-bankn IS NOT INITIAL.
*      ls_requ_mapping_source-tx_info-acc_no  = ls_t012k-bankn.
*    ENDIF.

    TRY.
        CALL TRANSFORMATION epic_example_cn_ccb_gab01_rqt
          SOURCE parameters = ls_requ_mapping_source
          RESULT XML ev_request_message_xstring.
      CATCH cx_transformation_error INTO lr_transformation_error.

        MESSAGE e008(epic_example_cn_impl) WITH 'CCB_GAB=>CREATE_REQUEST' INTO lv_message_dummy.
        CLEAR ls_message.
        MOVE-CORRESPONDING sy TO ls_message.
        APPEND ls_message TO et_messages.

        RAISE EXCEPTION TYPE cx_epic_bank_comm_impl
          EXPORTING
            impl_messages = et_messages
            previous      = lr_transformation_error.
    ENDTRY.
  ENDMETHOD.                    "if_epic_bank_comm_impl~create_request

方法：PROCESS_RESPONSE

  METHOD IF_EPIC_BANK_COMM_IMPL~PROCESS_RESPONSE.
**************************************************************
**   Example only - NOT FOR USE IN PRODUCTION SYSTEMS.      **
**   See the class documentation for more information.      **
**************************************************************

    DATA lr_transformation_error        TYPE REF TO cx_transformation_error.
    DATA ls_resp_mapping_result_data    TYPE ty_resp_mapping_result.
    DATA lt_list_result                 TYPE tty_list_result.
    DATA ls_message                     LIKE LINE OF et_messages.
    DATA lv_message_dummy.

    CLEAR et_list_result.
    CLEAR es_other_results.
    CLEAR et_messages.

    CHECK is_bank_comm_key IS NOT INITIAL.

    IF  iv_response_message_xstring IS INITIAL.
      MESSAGE e005(epic_example_cn_impl) INTO lv_message_dummy.
      CLEAR ls_message.
      MOVE-CORRESPONDING sy TO ls_message.
      APPEND ls_message TO et_messages.

      RAISE EXCEPTION TYPE cx_epic_bank_comm_impl
        EXPORTING
          impl_messages = et_messages.
    ENDIF.

    CLEAR et_messages.

    TRY.
        CALL TRANSFORMATION epic_example_cn_ccb_gab01_rsp
          SOURCE XML iv_response_message_xstring
          RESULT tx = ls_resp_mapping_result_data.
      CATCH cx_transformation_error INTO lr_transformation_error.

        MESSAGE e008(epic_example_cn_impl) WITH 'CCB_GAB=>PROCESSS_RESPONSE'  INTO lv_message_dummy.
        CLEAR ls_message.
        MOVE-CORRESPONDING sy TO ls_message.
        APPEND ls_message TO et_messages.

        RAISE EXCEPTION TYPE cx_epic_bank_comm_impl
          EXPORTING
            impl_messages = et_messages
            previous      = lr_transformation_error.
    ENDTRY.

    me->perform_post_resp_xslt_proc(
      EXPORTING
        is_bank_comm_key            = is_bank_comm_key
        is_resp_mapping_result_data = ls_resp_mapping_result_data
      IMPORTING
        et_list_result              = lt_list_result
        et_messages                 = et_messages ).

    IF et_list_result IS SUPPLIED.
      et_list_result = lt_list_result.
    ENDIF.

  ENDMETHOD.                    "if_epic_bank_comm_impl~process_response
