Netty 源码分析之 一 客户端代码分析

没有创新，或者拾人牙慧，知识本来就是这样搬运着传播的。

客户端核心代码如下：

public static void start(){
        ClientChannelHandler channelHandler = new ClientChannelHandler();
        EventLoopGroup bossGroup = new NioEventLoopGroup();
        try{
            Bootstrap b = new Bootstrap();
            b.group(bossGroup).channel(NioSocketChannel.class)
                    .remoteAddress(new InetSocketAddress("127.0.0.1",8000))
                    .handler(new ChannelInitializer<Channel>() {
                        protected void initChannel(Channel ch) throws Exception {
                            ch.pipeline().addLast(channelHandler);

                        };
                    });
            ChannelFuture f = b.connect().sync();
            f.channel().closeFuture().sync();

        }catch (Exception e){
            e.printStackTrace();
        }finally {
            bossGroup.shutdownGracefully();
        }
    }

ClientChannelHandler是自定义的channelHandler；后面会介绍如何绑定该实例；

   第一句：EventLoopGroup bossGroup = new NioEventLoopGroup();

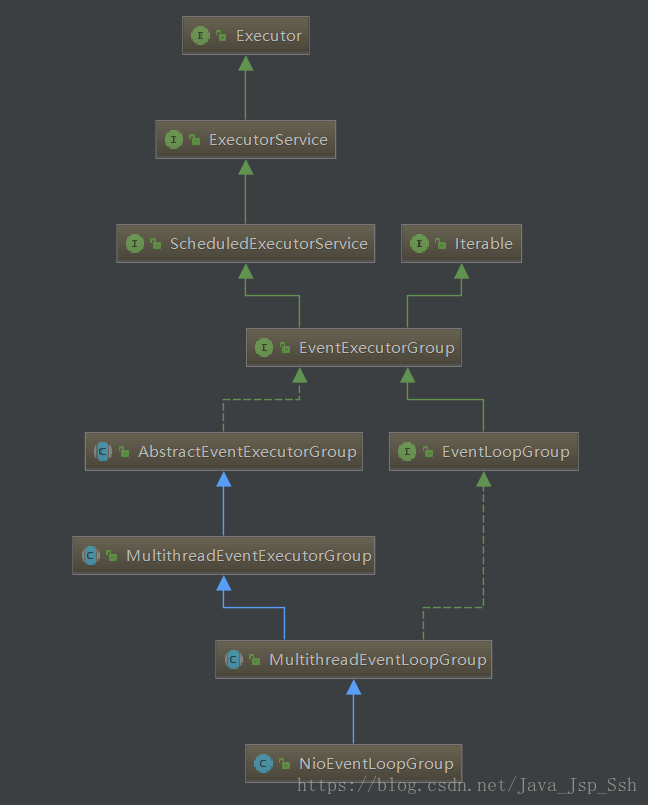

第一步：创建处理客户端接连、I/O读写的Reactor（Reactor模式详解：https://www.cnblogs.com/winner-0715/p/8733787.html）线程组NioEventLoopGroup。该构造函数支持指定线程组个数，默认为CPU内核的2倍。来看一下 NioEventLoopGroup 的类继承层次:

NioEventLoopGroup就是内部维护着维护一个类型为 EventExecutor children 数组，构成多个Reactor模式的线程池；每个线程对像SingleThreadEventExecutor类型；都用于监听客户端channel事件；

protected MultithreadEventExecutorGroup(int nThreads, ThreadFactory threadFactory, Object... args) {
        if (nThreads <= 0) {
            throw new IllegalArgumentException(String.format("nThreads: %d (expected: > 0)", nThreads));
        }

        if (threadFactory == null) {
            threadFactory = newDefaultThreadFactory();
        }

        children = new SingleThreadEventExecutor[nThreads];
        for (int i = 0; i < nThreads; i ++) {
            boolean success = false;
            try {
                children[i] = newChild(threadFactory, args);
                success = true;
            } catch (Exception e) {
                // TODO: Think about if this is a good exception type
                throw new IllegalStateException("failed to create a child event loop", e);
            } finally {
                if (!success) {
                    for (int j = 0; j < i; j ++) {
                        children[j].shutdownGracefully();
                    }

                    for (int j = 0; j < i; j ++) {
                        EventExecutor e = children[j];
                        try {
                            while (!e.isTerminated()) {
                                e.awaitTermination(Integer.MAX_VALUE, TimeUnit.SECONDS);
                            }
                        } catch (InterruptedException interrupted) {
                            Thread.currentThread().interrupt();
                            break;
                        }
                    }
                }
            }
        }

        final FutureListener<Object> terminationListener = new FutureListener<Object>() {
            @Override
            public void operationComplete(Future<Object> future) throws Exception {
                if (terminatedChildren.incrementAndGet() == children.length) {
                    terminationFuture.setSuccess(null);
                }
            }
        };

        for (EventExecutor e: children) {
            e.terminationFuture().addListener(terminationListener);
        }
    }

newChild方法初始化线程池，底层调用还是SingleThreadEventExecutor类构造器方法，将给定数量的线程启动起来；

protected SingleThreadEventExecutor(
            EventExecutorGroup parent, ThreadFactory threadFactory, boolean addTaskWakesUp) {

        if (threadFactory == null) {
            throw new NullPointerException("threadFactory");
        }

        this.parent = parent;
        this.addTaskWakesUp = addTaskWakesUp;

        thread = threadFactory.newThread(new Runnable() {
            @Override
            public void run() {
                boolean success = false;
                updateLastExecutionTime();
                try {
                    SingleThreadEventExecutor.this.run();
                    success = true;
                } catch (Throwable t) {
                    logger.warn("Unexpected exception from an event executor: ", t);
                } finally {
                    if (state < ST_SHUTTING_DOWN) {
                        state = ST_SHUTTING_DOWN;
                    }

                    // Check if confirmShutdown() was called at the end of the loop.
                    if (success && gracefulShutdownStartTime == 0) {
                        logger.error(
                                "Buggy " + EventExecutor.class.getSimpleName() + " implementation; " +
                                SingleThreadEventExecutor.class.getSimpleName() + ".confirmShutdown() must be called " +
                                "before run() implementation terminates.");
                    }

                    try {
                        // Run all remaining tasks and shutdown hooks.
                        for (;;) {
                            if (confirmShutdown()) {
                                break;
                            }
                        }
                    } finally {
                        try {
                            cleanup();
                        } finally {
                            synchronized (stateLock) {
                                state = ST_TERMINATED;
                            }
                            threadLock.release();
                            if (!taskQueue.isEmpty()) {
                                logger.warn(
                                        "An event executor terminated with " +
                                        "non-empty task queue (" + taskQueue.size() + ')');
                            }

                            terminationFutu
