nmap脚本详解(非常详细)零基础入门到精通,收藏这一篇就够了

nmap --script

前言

我们通过nmap script来大幅扩展nmap的功能,nmap具有强大的脚本引擎NSE(Nmap Scripting Engine),它允许用户编写(和共享)简单的脚本(使用lua编程语言)自动化各种网络任务

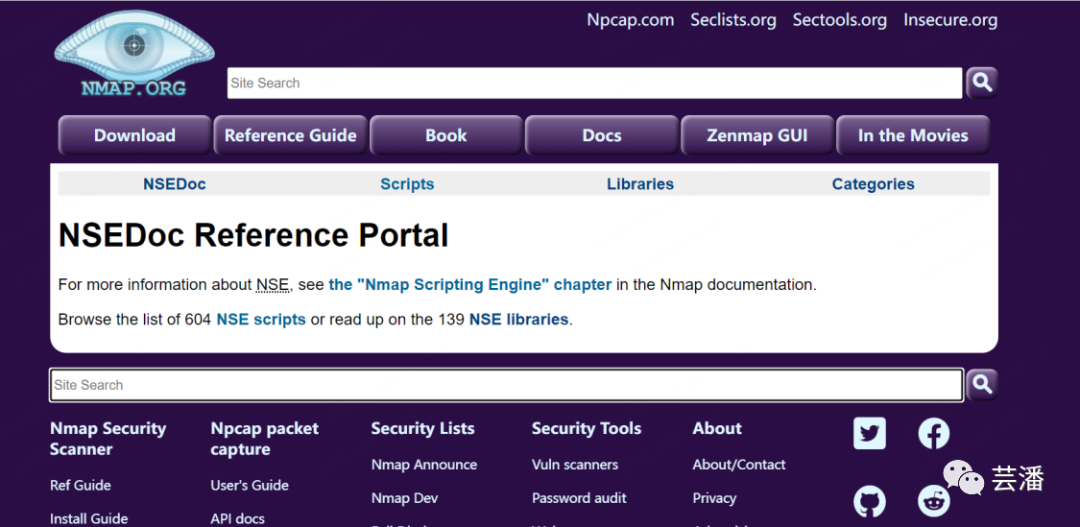

官方文档

NSEDoc Reference Portal — Nmap Scripting Engine documentation

目前nmap官方有604个NSE脚本,安装nmap后存储在script文件夹下,这些都是Nmap特有的,是基于lua语言编写的

nmap脚本分类

nmap脚本主要分为以下几类,在扫描时可根据需要设置–script=类别这种方式进行比较笼统的扫描:

auth: 负责处理鉴权证书(绕开鉴权)的脚本     broadcast: 在局域网内探查更多服务开启状况,如dhcp/dns/sqlserver等服务     brute: 提供暴力破解方式,针对常见的应用如http/snmp等     default: 使用-sC或-A选项扫描时候默认的脚本,提供基本脚本扫描能力     discovery: 对网络进行更多的信息,如SMB枚举、SNMP查询等     dos: 用于进行拒绝服务攻击     exploit: 利用已知的漏洞入侵系统     external: 利用第三方的数据库或资源,例如进行whois解析     fuzzer: 模糊测试的脚本,发送异常的包到目标机,探测出潜在漏洞 intrusive: 入侵性的脚本,此类脚本可能引发对方的IDS/IPS的记录或屏蔽     malware: 探测目标机是否感染了病毒、开启了后门等信息     safe: 此类与intrusive相反,属于安全性脚本     version: 负责增强服务与版本扫描(Version Detection)功能的脚本     vuln: 负责检查目标机是否有常见的漏洞(Vulnerability),如是否有MS08_067

使用方式

  • 指定运行脚本

当我们使用Nmap并添加参数-sC或者--script时,Nmap会执行NSE脚本

例如,在script目录下有http-title.nsehttp-trace.nse脚本,执行如下命令:

nmap --script http-title scanme.nmap.org
  • 传递参数
`--script-args=key1=value1,key2=value2...`
  • 从文件中读取参数
–script-args-file=filename
  • 显示全部发送和收到的数据
--script-trace
  • 更新数据库

在Nmap的scripts目录里有一个script.db,该文件中保存了当前Nmap可用的脚本,类似于一个小型数据库,如果我们开启nmap并且调用了此参数,则nmap会自行扫描scripts目录中的扩展脚本,进行数据库更新

--script-updatedb
  • 脚本帮助

指定对应的脚本信息,Nmap会输出该脚本名称对应的脚本使用参数,以及详细介绍信息。

--script-help=脚本名称

nmap脚本简介

一个NSE脚本的书写一般分为四步:

  • 导入脚本编写所需库

  • 编写脚本描述信息

  • 确定Rule类型

  • 编写Action

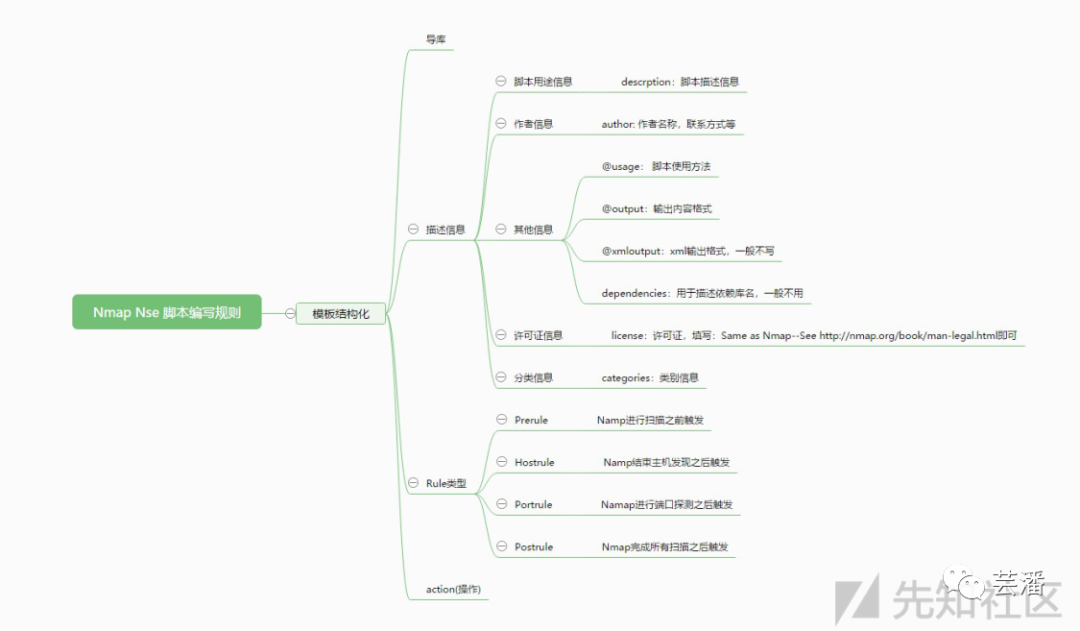

Nmap nse脚本模板结构图

其中Rule存在四种类型:

  • Prerule 在Nmap没有扫描之前进行触发

  • Hostrule 在Nmap执行主机发现或探测时进行触发

  • Protrule 在Nmap执行端口扫描的时候触发

  • Postrule 在Nmap结束的时候触发脚本,通常用于扫描结果的数据提取和整理

用于描述脚本的触发规则,返回值只有true和false两种。返回值决定了后面的action对应的函数是否执行

  • true - 执行

  • false - 不执行

在我看来

Rule描述脚本的触发规则,定义了脚本在nmap生命周期的啥时候来执行

我们选择 http-php-version.nse脚本来跟进分析一下,这个脚本的主要作用是检测PHP服务器的版本

查看API手册 https://nmap.org/nsedoc/lib/ 来导入你要导入的lua脚本 - nmap内置模块

local http = require "http"   local nmap = require "nmap"   local shortport = require "shortport"   local stdnse = require "stdnse"   local string = require "string"   local table = require "table"      local openssl = stdnse.silent_require "openssl"

description对脚本进行概述

description = [[   Attempts to retrieve the PHP version from a web server. PHP has a number   of magic queries that return images or text that can vary with the PHP   version. This script uses the following queries:   * <code>/?=PHPE9568F36-D428-11d2-A769-00AA001ACF42</code>: gets a GIF logo, which changes on April Fool's Day.   * <code>/?=PHPB8B5F2A0-3C92-11d3-A3A9-4C7B08C10000</code>: gets an HTML credits page.      A list of magic queries is at http://www.0php.com/php_easter_egg.php.   The script also checks if any header field value starts with   <code>"PHP"</code> and reports that value if found.      PHP versions after 5.5.0 do not respond to these queries.      Link:   * http://phpsadness.com/sad/11   ]]

作者和脚本分类

author = {"Ange Gutek", "Rob Nicholls"}   license = "Same as Nmap--See https://nmap.org/book/man-legal.html"   categories = {"discovery", "safe"}

在端口扫描的时候运行判断函数,这里直接调用了shortport提供的判断

portrule = shortport.http

然后定义了访问的接口和PHP对应关系

-- These are the magic queries that return fingerprintable data.   local LOGO_QUERY = "/?=PHPE9568F36-D428-11d2-A769-00AA001ACF42"   local CREDITS_QUERY = "/?=PHPB8B5F2A0-3C92-11d3-A3A9-4C7B08C10000"      -- For PHP 5.x hashes up to 5.2.14 and 5.3.3 see:   -- http://seclists.org/nmap-dev/2010/q4/518      local LOGO_HASHES = {     -- Bunny (Carmella)     ["37e194b799d4aaff10e39c4e3b2679a2"] = {"5.0.0 - 5.0.3"},     -- Black Scottish Terrier (Scotch)     ["4b2c92409cf0bcf465d199e93a15ac3f"] = {"4.3.11", "4.4.0 - 4.4.9", "5.0.4 - 5.0.5", "5.1.0 - 5.1.2"},     -- Colored     ["50caaf268b4f3d260d720a1a29c5fe21"] = {"5.1.3 - 5.1.6", "5.2.0 - 5.2.17"},     -- PHP Code Guy With Breadsticks (Thies C. Arntzen)     ["85be3b4be7bfe839cbb3b4f2d30ff983"] = {"4.0.0 - 4.2.3"},     -- Brown Dog In Grass (Nadia)     ["a57bd73e27be03a62dd6b3e1b537a72c"] = {"4.3.0 - 4.3.11"},     -- Elephant     ["fb3bbd9ccc4b3d9e0b3be89c5ff98a14"] = {"5.3.0 - 5.3.29", "5.4.0 - 5.4.45"},   }      local CREDITS_HASHES = {     ["744aecef04f9ed1bc39ae773c40017d1"] = {"4.0.1pl2", "4.1.0 - 4.1.2", "4.2.2"},     ["4ba58b973ecde12dafbbd40b54afac43"] = {"4.1.1 OpenVMS"},     ["8bc001f58bf6c17a67e1ca288cb459cc"] = {"4.2.0 - 4.2.2"},     ["3422eded2fcceb3c89cabb5156b5d4e2"] = {"4.2.3"},     ["1e04761e912831dd29b7a98785e7ac61"] = {"4.3.0"},     ["1e04761e912831dd29b7a98785e7ac61"] = {"4.3.1"},     ["65eaaaa6c5fdc950e820f9addd514b8b"] = {"4.3.1 Mandrake Linux"},     ["8a8b4a419103078d82707cf68226a482"] = {"4.3.2"},     ["22d03c3c0a9cff6d760a4ba63909faea"] = {"4.3.2"}, -- entity encoded "'"     ["8a4a61f60025b43f11a7c998f02b1902"] = {"4.3.3 - 4.3.5"},     ["39eda6dfead77a33cc6c63b5eaeda244"] = {"4.3.3 - 4.3.5"}, -- entity encoded "'"     ["913ec921cf487109084a518f91e70859"] = {"4.3.6 - 4.3.8"},     ["884ba1f11e0e956c7c3ba64e5e33ee9f"] = {"4.3.6 - 4.3.8"}, -- entity encoded     ["c5fa6aec2cf0172a5a1df7082335cf9e"] = {"4.3.8 Mandrake Linux"},     ["8fbf48d5a2a64065fc26db3e890b9871"] = {"4.3.9 - 4.3.11"},     ["f9b56b361fafd28b668cc3498425a23b"] = {"4.3.9 - 4.3.11"}, -- entity encoded "'"     ["ddf16ec67e070ec6247ec1908c52377e"] = {"4.4.0"},     ["3d7612c9927b4c5cfff43efd27b44124"] = {"4.4.0"}, -- entity encoded "'"     ["55bc081f2d460b8e6eb326a953c0e71e"] = {"4.4.1"},     ["bed7ceff09e9666d96fdf3518af78e0e"] = {"4.4.2 - 4.4.4"},     ["692a87ca2c51523c17f597253653c777"] = {"4.4.5 - 4.4.7"},     ["50ac182f03fc56a719a41fc1786d937d"] = {"4.4.8 - 4.4.9"},     ["3c31e4674f42a49108b5300f8e73be26"] = {"5.0.0 - 5.0.5"},     ["e54dbf41d985bfbfa316dba207ad6bce"] = {"5.0.0"},     ["6be3565cdd38e717e4eb96868d9be141"] = {"5.0.5"},     ["b7cf53972b35b5d57f12c9d857b6b507"] = {"5.0.5 ActiveScript"},     ["5518a02af41478cfc492c930ace45ae5"] = {"5.1.0 - 5.1.1"},     ["6cb0a5ba2d88f9d6c5c9e144dd5941a6"] = {"5.1.2"},     ["82fa2d6aa15f971f7dadefe4f2ac20e3"] = {"5.1.3 - 5.1.6"},     ["6a1c211f27330f1ab602c7c574f3a279"] = {"5.2.0"},     ["d3894e19233d979db07d623f608b6ece"] = {"5.2.1"},     ["56f9383587ebcc94558e11ec08584f05"] = {"5.2.2"},     ["c37c96e8728dc959c55219d47f2d543f"] = {"5.2.3 - 5.2.5", "5.2.6RC3"},     ["1776a7c1b3255b07c6b9f43b9f50f05e"] = {"5.2.6"},     ["1ffc970c5eae684bebc0e0133c4e1f01"] = {"5.2.7 - 5.2.8"},     ["54f426521bf61f2d95c8bfaa13857c51"] = {"5.2.9 - 5.2.14"},     ["adb361b9255c1e5275e5bd6e2907c5fb"] = {"5.2.15 - 5.2.17"},     ["db23b07a9b426d0d033565b878b1e384"] = {"5.3.0"},     ["a4c057b11fa0fba98c8e26cd7bb762a8"] = {"5.3.1 - 5.3.2"},     ["b34501471d51cebafacdd45bf2cd545d"] = {"5.3.3"},     ["e3b18899d0ffdf8322ed18d7bce3c9a0"] = {"5.3.4 - 5.3.5"},     ["2e7f5372931a7f6f86786e95871ac947"] = {"5.3.6"},     ["f1f1f60ac0dcd700a1ad30aa81175d34"] = {"5.3.7 - 5.3.8"},     ["23f183b78eb4e3ba8b3df13f0a15e5de"] = {"5.3.9 - 5.3.29"},     ["85da0a620fabe694dab1d55cbf1e24c3"] = {"5.4.0 - 5.4.14"},     ["ebf6d0333d67af5f80077438c45c8eaa"] = {"5.4.15 - 5.4.45"},   }

最后就是判定的主要逻辑了,虽然我们不懂Lua,但是我们还是能大概看懂这里做的事情

action = function(host, port)     local response     local logo_versions, credits_versions     local logo_hash, credits_hash     local header_name, header_value     local lines        -- 1st pass : the "special" PHP-logo test     response = http.get(host, port, LOGO_QUERY)     if response.body and response.status == 200 then       logo_hash = stdnse.tohex(openssl.md5(response.body))       logo_versions = LOGO_HASHES[logo_hash]     end        -- 2nd pass : the PHP-credits test     response = http.get(host, port, CREDITS_QUERY)     if response.body and response.status == 200 then       credits_hash = stdnse.tohex(openssl.md5(response.body))       credits_versions = CREDITS_HASHES[credits_hash]     end        for name, value in pairs(response.header) do       if string.match(value, "^PHP/") then         header_name = name         header_value = value         break       end     end        lines = {}     if logo_versions then       lines[#lines + 1] = "Versions from logo query (less accurate): " .. table.concat(logo_versions, ", ")     elseif logo_hash and nmap.verbosity() >= 2 then       lines[#lines + 1] = "Logo query returned unknown hash " .. logo_hash     end     if credits_versions then       lines[#lines + 1] = "Versions from credits query (more accurate): " .. table.concat(credits_versions, ", ")     elseif credits_hash and nmap.verbosity() >= 2 then       lines[#lines + 1] = "Credits query returned unknown hash " .. credits_hash     end     if header_name and header_value then       lines[#lines + 1] = "Version from header " .. header_name .. ": " .. header_value     end        if #lines > 0 then       return table.concat(lines, "\n")     end   end

访问可能存在泄露PHP版本的接口,并将返回值进行md5计算,检查字典里是否有对应值,如果有的话就说明存在PHP的版本泄露,最后返回结果。

事实上只是实现的语言不一样,核心的检测原理都是一致的

按照应用服务扫描

nmap脚本的完整文档可以看官方文档 https://nmap.org/nsedoc/scripts/

下面是常用的一些应用扫描

VNC扫描

VNC (Virtual Network Console)是虚拟网络控制台的缩写。它 是一款优秀的远程控制工具软件

  • 检查vnc bypass
nmap  --script=realvnc-auth-bypass 192.168.137.4
  • 检查vnc认证方式
`nmap  --script=vnc-auth  192.168.137.4`
  • 获取vnc信息
`nmap  --script=vnc-info  192.168.137.4`

smb扫描

SMB(全称是Server Message Block)是一个网络协议名,它能被用于Web连接和客户端与服务器之间的信息沟通

  • smb破解
`nmap  --script=smb-brute.nse 192.168.137.4`
  • smb字典破解
nmap --script=smb-brute.nse --script-args=userdb=/var/passwd,passdb=/var/passwd 192.168.137.4
  • smb漏洞检测
nmap  --script=smb-check-vulns.nse --script-args=unsafe=1 192.168.137.4

Mssql扫描

  • 暴力破解用户名密码
`nmap -p1433 --script=ms-sql-brute --script-args=userdb=/var/passwd,passdb=/var/passwd 192.168.137.4`
  • 有密码后xp_cmdshell执行命令
`nmap -p 1433 --script ms-sql-xp-cmdshell --script-args mssql.username=sa,mssql.password=sa,ms-sql-xp-cmdshell.cmd="net user" 192.168.137.4`
  • 有密码后dymphash
`nmap -p 1433 --script ms-sql-dump-hashes.nse --script-args mssql.username=sa,mssql.password=sa  192.168.137.4`

Mysql扫描

  • 扫描root空口令
`nmap -p3306 --script=mysql-empty-password.nse 192.168.137.4`
  • 列举所有mysql用户
`nmap -p3306 --script=mysql-users.nse --script-args=mysqluser=root 192.168.137.4`
  • 扫描mysql相关的脚本
`nmap --script=mysql-* 192.168.137.4`

Oracle扫描

  • oracle sid 扫描
`nmap --script=oracle-sid-brute -p 1521-1560 192.168.137.5`
  • oracle弱口令破解
`nmap --script oracle-brute -p 1521 --script-args oracle-brute.sid=ORCL,userdb=/var/passwd,passdb=/var/passwd 192.168.137.5`

如果想要了解更多的脚本内容,移步官方文档 -> https://nmap.org/nsedoc/scripts/

参考链接

  • Nmap脚本使用指南

  • Introduction · 精通Nmap脚本引擎

  • Nmap 不老的神器

  • Writing

  • Nmap脚本引擎原理 - 随风浪子的博客 - 博客园

  • HrPapers|Nmap渗透测试指南 - 先知社区

  • nmap脚本使用总结 - clzzy
