一、背景
本文主要内容包括如何使用
Java-JFrame
可视化开发,实现一棵动态的圣诞树。好文章 记得 收藏+点赞+关注 !!!

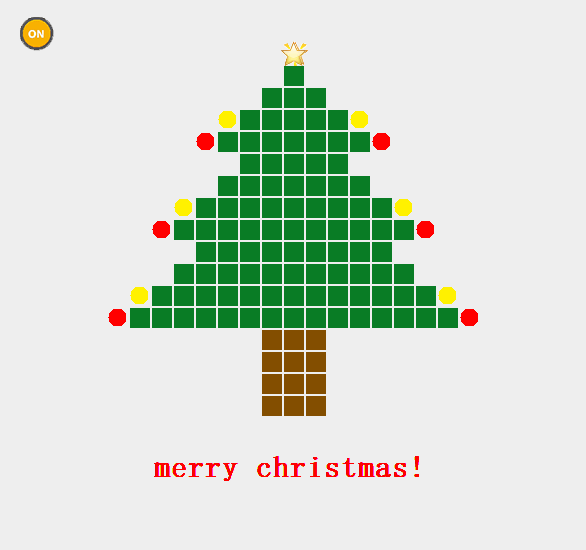

二、效果预览
通过左上角的按钮打开动态效果!
话不多说,直接上代码!
三、完整代码
/**
* @author JiaMing
* @since 2021/12/17/0017 下午 13:47
**/
public class MyPanel extends JPanel implements ActionListener {
/**
* 坐标
*/
public int x, y;
/**
* 开关按钮
*/
public JButton onOff;
/**
* 触发时间事件
*/
public Timer time;
/**
* 判断开关
*/
public boolean flag;
/**
* 控制动画
*/
public boolean color;
//获取本地音乐
File file = new File("E:\\christmasTree\\music.wav");
URL url = null;
URI uri = null;
AudioClip clip;
MyPanel() {
setLayout(null);
//获取本地关闭按钮
ImageIcon icon = new ImageIcon("E:\\christmasTree\\OFF.png");
icon.setImage(icon.getImage().getScaledInstance(50, 50, 0));
onOff = new JButton();
onOff.addActionListener(this);
//添加按钮图片
onOff.setIcon(icon);
//设置 取消边框
onOff.setBorder(null);
//设置 取消默认背景颜色
onOff.setContentAreaFilled(false);
onOff.setBounds(0, 0, 50, 50);
add(onOff);
flag = true;
color = true;
time = new Timer(300, this);
time.stop();
try {
uri = file.toURI();
url = uri.toURL();
} catch (MalformedURLException e1) {
e1.printStackTrace();
}
clip = Applet.newAudioClip(url);
}
public void paintComponent(Graphics g) {
x = 380;
y = 100;
if (color) {
ImageIcon image1 = new ImageIcon("E:\\christmasTree\\2.png");
g.drawImage(image1.getImage(), x - 3, y - 25, 25, 25, null);
} else {
ImageIcon image1 = new ImageIcon("E:\\christmasTree\\1.png");
g.drawImage(image1.getImage(), x - 2, y - 24, 26, 26, null);
}
Color red = new Color(255, 0, 0);
Color yellow = new Color(255, 241, 0);
//画第一个三角形(第一层圣诞树)
drawTree(1, 4, g);
if (color) {
//画第一个三角形的黄色装饰
drawDecoration(x + 22, y - 44, 6, yellow, g);
//画第一个三角形的红色装饰
drawDecoration(x, y - 22, 8, red, g);
} else {
//画第一个三角形的红色装饰
drawDecoration(x + 22, y - 44, 6, red, g);
//画第一个三角形的黄色装饰
drawDecoration(x, y - 22, 8, yellow, g);
}
x = 380 - 2 * 22;
//画第二个三角形(中间层)
drawTree(3, 6, g);
if (color) {
//画第二个三角形的黄色装饰
drawDecoration(x + 22, y - 44, 10, yellow, g);
//画第二个三角形的红色装饰
drawDecoration(x, y - 22, 12, red, g);
} else {
//画第二个三角形的红色装饰
drawDecoration(x + 22, y - 44, 10, red, g);
//画第二个三角形的黄色装饰
drawDecoration(x, y - 22, 12, yellow, g);
}
x = 380 - 4 * 22;
//画第三个三角形(最底层)
drawTree(5, 8, g);
if (color) {
//画第三个三角形的黄色装饰
drawDecoration(x + 22, y - 44, 14, yellow, g);
//画第三个三角形的红色装饰
drawDecoration(x, y - 22, 16, red, g);
} else {
//画第三个三角形的红色装饰
drawDecoration(x + 22, y - 44, 14, red, g);
//画第三个三角形的黄色装饰
drawDecoration(x, y - 22, 16, yellow, g);
}
x = 380 - 22;
//画出树根
drawRoot(g);
}
//画树
void drawTree(int from, int to, Graphics g) {
//设置树的颜色
g.setColor(new Color(9, 124, 37));
for (int i = from; i <= to; i++) {
for (int j = 0; j < (i * 2 - 1); j++) {
g.fillRect(x, y, 20, 20);
x += 22;
}
x = 380 - i * 22;
y += 22;
}
}
//画装饰
void drawDecoration(int tx, int ty, int num, Color c, Graphics g) {
g.setColor(c);
g.fillRoundRect(tx, ty, 18, 18, 18, 18);
g.fillRoundRect(tx + num * 22, ty, 18, 18, 18, 18);
}
//画树根
void drawRoot(Graphics g) {
//设置树根颜色
g.setColor(new Color(131, 78, 0));
for (int i = 0; i < 4; i++) {
for (int j = 0; j < 3; j++) {
g.fillRect(x, y, 20, 20);
x += 22;
}
x = 380 - 22;
y += 22;
}
}
public void actionPerformed(ActionEvent e) {
//按钮事件
if (e.getSource() == onOff) {
//开关打开
if (flag) {
ImageIcon icon = new ImageIcon("E:\\christmasTree\\ON.png");
icon.setImage(icon.getImage().getScaledInstance(50, 50, 0));
onOff.setIcon(icon);
flag = false;
clip.loop();
time.restart();
} else {
//开关关闭
ImageIcon icon = new ImageIcon("E:\\christmasTree\\OFF.png");
icon.setImage(icon.getImage().getScaledInstance(50, 50, 0));
onOff.setIcon(icon);
flag = true;
time.stop();
clip.stop();
}
} else if (e.getSource() == time) {
repaint();
color = !color;
}
}
}
/**
* @author JiaMing
* @since 2021/12/17/0017 下午 13:43
**/
public class MyFrame extends JFrame {
MyPanel p;
MyFrame() {
p = new MyPanel();
add(p);
//设置布局
setBounds(400, 200, 800, 800);
setVisible(true);
validate();
setDefaultCloseOperation(MyFrame.EXIT_ON_CLOSE);
//添加文字标签 可以添加你想发给的人的名字哦
JLabel label1 = new JLabel("merry christmas!");
//设置字体,格式(斜体,粗细),尺寸
label1.setFont(new Font("宋体", Font.BOLD, 30));
//设置标签颜色
label1.setForeground(Color.red);
label1.setBounds(250, 300, 500, 400);
p.add(label1);
p.setVisible(true);
}
}
接下来是主函数,用这个来运行!
/**
* @author JiaMing
* @since 2021/12/17/0017 下午 14:13
**/
public class Main {
public static void main(String[] args) {
new MyFrame();
}
}
推荐阅读:
参考博客:https://blog.csdn.net/weixin_44689154/article/details/103690144
写在最后:
我的女朋友说这个圣诞树极其丑陋,建议发给女朋友之前三思!

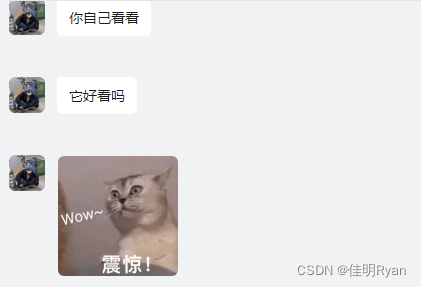

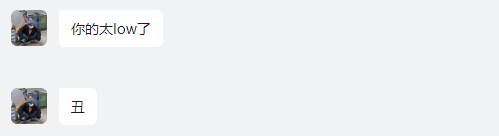

以下是她的评价:
ok,我话说完…
