openstack用bosh部署cloudfoundry（五）---用bosh部署cloudfoundry

利用bosh部署cloudfoundry的过程和部署bosh的过程基本一样，准备三样东西，stemcell-用来生成镜像并创建虚拟机以及编译release，release里面包含所有要部署的组件的包，清单文件的作用就是操作的步骤及配置。

下面是部署cloudfoundry的具体步骤：

1. target到bosh的director

root@bosh-cli:~/src/cloudfoundry/cf-release# bosh target https://10.10.110.118:25555

root@bosh-cli:~/src/cloudfoundry/cf-release# bosh login

用户名和密码都是admin

2. 上传stemcell

root@bosh-cli:~/bosh-workspace/stemcells# bosh upload stemcell bosh-stemcell-2427-openstack-kvm-ubuntu.tgz

上传的过程和之前的一样的。

3. 上传release

root@bosh-cli:~/src/cloudfoundry/cf-release# bosh upload release bosh-release170.tgz

4. 验证之前已经上传的stemcell和release

root@bosh-cli:~# bosh releases

+------------+------------+-------------+
| Name       | Versions   | Commit Hash |
+------------+------------+-------------+
| cf-release | 170        | 27784f08    |
+------------+------------+-------------+
(*) Currently deployed
(+) Uncommitted changes

Releases total: 1

root@bosh-cli:~# bosh stemcells

+---------------------------+---------+--------------------------------------+
| Name                      | Version | CID                                  |
+---------------------------+---------+--------------------------------------+
| bosh-openstack-kvm-ubuntu | 2427    | 316501e1-482d-472d-9fd9-b71a7b1223ee |
+---------------------------+---------+--------------------------------------+

Stemcells total: 1

5. 创建cloudfoundry的清单文件

root@bosh-cli:~/src/cloudfoundry/cf-release# cd ~/bosh-workspace/deployments/
root@bosh-cli:~/bosh-workspace/deployments# vi cf-170.yml

cf-170.yml的内容为（标为change的是需要修改的）：

<%
director_uuid = "f629b16b-c190-4cdc-a0b8-e39550ddb061"  #change uuid为bosh director的uuid，用bosh status来查看
static_ip = "10.10.110.191"                             #分配给haproxy的浮动ip
root_domain ="vsc.com"<span style="white-space:pre">					</span>#域名，可随便选择，但不要是已经存在的域名
deployment_name = 'cf'
cf_release = '170'
protocol = 'http'
common_password = 'c1oudc0w'  <span style="white-space:pre">				</span>#密码也可以随便设，但密码里面千万不要带@符号，否则部署时会出错
%>

---
name: <%= deployment_name %>
director_uuid: <%= director_uuid %>

releases:
 - name: cf
   version: <%= cf_release %>

compilation:
  workers: 3
  network: default
  reuse_compilation_vms: true
  cloud_properties:
    instance_type: m1.medium

update:
  canaries: 0
  canary_watch_time: 30000-600000
  update_watch_time: 30000-600000
  max_in_flight: 32
  serial: false


networks:
  - name: default
    type: dynamic
    cloud_properties:
      security_groups:
        - default


  - name: external
    type: dynamic
    cloud_properties:
      security_groups:
        - default


  - name: floating
    type: vip
    cloud_properties: {}

resource_pools:
  - name: common
    network: default
    size: 14
    stemcell:
      name: bosh-openstack-kvm-ubuntu
      version: 2427
    cloud_properties:
      instance_type: m1.micro

  - name: large
    network: default
    size: 2
    stemcell:
      name: bosh-openstack-kvm-ubuntu
      version: 2427  <span style="white-space:pre">					</span>#change  就是刚才上传的stemcell
    cloud_properties:
      instance_type: v1.small

jobs:
  - name: nats
    templates:
      - name: nats
      - name: nats_stream_forwarder
    instances: 1
    resource_pool: common
    networks:
      - name: default
        default: [dns, gateway]

  - name: syslog_aggregator
    templates:
      - name: syslog_aggregator
    instances: 1
    resource_pool: common
    persistent_disk: 51200
    networks:
      - name: default
        default: [dns, gateway]

  - name: nfs_server
    templates:
      - name: debian_nfs_server
    instances: 1
    resource_pool: common
    persistent_disk: 51200
    networks:
      - name: default
        default: [dns, gateway]

  - name: postgres
    templates:
      - name: postgres
    instances: 1
    resource_pool: common
    persistent_disk: 51200
    networks:
      - name: default
        default: [dns, gateway]
    properties:
      db: databases

  - name: uaa
    templates:
      - name: uaa
    instances: 1
    resource_pool: common
    networks:
      - name: default
        default: [dns, gateway]

  - name: loggregator
    templates:
      - name: loggregator
    instances: 1
    resource_pool: common
    networks:
      - name: default
        default: [dns, gateway]

  - name: trafficcontroller
    templates:
      - name: loggregator_trafficcontroller
    instances: 1
    resource_pool: common
    networks:
      - name: default
        default: [dns, gateway]

  - name: cloud_controller
    templates:
      - name: cloud_controller_ng
    instances: 1
    resource_pool: common
    networks:
      - name: default
        default: [dns, gateway]
    properties:
      db: ccdb

  - name: cloud_controller_worker
    templates:
      - name: cloud_controller_worker
    instances: 1
    resource_pool: common
    networks:
      - name: default
        default: [dns, gateway]
    properties:
      db: ccdb

  - name: clock_global
    templates:
      - name: cloud_controller_clock
    instances: 1
    resource_pool: common
    networks:
      - name: default
        default: [dns, gateway]
    properties:
      db: ccdb

  - name: etcd
    templates:
      - name: etcd
    instances: 1
    resource_pool: common
    persistent_disk: 10024
    networks:
      - name: default
        default: [dns, gateway]

  - name: health_manager
    templates:
      - name: hm9000
    instances: 1
    resource_pool: common
    networks:
      - name: default
        default: [dns, gateway]

  - name: dea
    templates:
      - name: dea_logging_agent
      - name: dea_next
    instances: 2
    resource_pool: large
    networks:
      - name: default
        default: [dns, gateway]

  - name: router
    templates:
      - name: gorouter
    instances: 1
    resource_pool: common
    networks:
      - name: default
        default: [dns, gateway]

  - name: haproxy
    templates:
      - name: haproxy
    instances: 1
    resource_pool: common
    networks:
      - name: external
        default: [dns, gateway]
      - name: floating
        static_ips:
          - <%= static_ip %>
    properties:
      networks:
        apps: external

properties:
  domain: <%= root_domain %>
  system_domain: <%= root_domain %>
  system_domain_organization: 'admin'
  app_domains:
    - <%= root_domain %>

  haproxy: {}

  networks:
    apps: default

  nats:
    user: nats
    password: <%= common_password %>
    address: 0.nats.default.<%= deployment_name %>.bosh
    port: 4222
    machines:
      - 0.nats.default.<%= deployment_name %>.bosh

  syslog_aggregator:
    address: 0.syslog-aggregator.default.<%= deployment_name %>.bosh
    port: 54321

  nfs_server:
    address: 0.nfs-server.default.<%= deployment_name %>.bosh
    network: "*.<%= deployment_name %>.bosh"
    #allow_from_entries:
    #  - 10.0.0.0/24
    idmapd_domain: vsc.com

  debian_nfs_server:
    no_root_squash: true

  loggregator_endpoint:
    shared_secret: <%= common_password %>
    host: 0.trafficcontroller.default.<%= deployment_name %>.bosh

  loggregator:
    servers:
      zone:
        -  0.loggregator.default.<%= deployment_name %>.bosh

  traffic_controller:
    zone: 'zone'

  logger_endpoint:
    use_ssl: <%= protocol == 'https' %>
    port: 80

  ssl:
    skip_cert_verify: true

  router:
    endpoint_timeout: 60
    status:
      port: 8080
      user: gorouter
      password: <%= common_password %>
    servers:
      z1:
        - 0.router.default.<%= deployment_name %>.bosh
      z2: []


  etcd:
    machines:
      - 0.etcd.default.<%= deployment_name %>.bosh

  dea: &dea
    disk_mb: 102400
    disk_overcommit_factor: 2
    memory_mb: 15000
    memory_overcommit_factor: 3
    directory_server_protocol: <%= protocol %>
    mtu: 1460
    deny_networks:
      - 169.254.0.0/16 # Google Metadata endpoint

  dea_next: *dea

  disk_quota_enabled: false

  dea_logging_agent:
    status:
      user: admin
      password: <%= common_password %>

  databases: &databases
    db_scheme: postgres
    address: 0.postgres.default.<%= deployment_name %>.bosh
    port: 5524
    roles:
      - tag: admin
        name: ccadmin
        password: <%= common_password %>
      - tag: admin
        name: uaaadmin
        password: <%= common_password %>
    databases:
      - tag: cc
        name: ccdb
        citext: true
      - tag: uaa
        name: uaadb
        citext: true

  ccdb: &ccdb
    db_scheme: postgres
    address: 0.postgres.default.<%= deployment_name %>.bosh
    port: 5524
    roles:
      - tag: admin
        name: ccadmin
        password: <%= common_password %>
    databases:
      - tag: cc
        name: ccdb
        citext: true

  ccdb_ng: *ccdb

  uaadb:
    db_scheme: postgresql
    address: 0.postgres.default.<%= deployment_name %>.bosh
    port: 5524
    roles:
      - tag: admin
        name: uaaadmin
        password: <%= common_password %>
    databases:
      - tag: uaa
        name: uaadb
        citext: true

  cc: &cc
    srv_api_uri: <%= protocol %>://api.<%= root_domain %>
    jobs:
      local:
        number_of_workers: 2
      generic:
        number_of_workers: 2
      global:
        timeout_in_seconds: 14400
      app_bits_packer:
        timeout_in_seconds: null
      app_events_cleanup:
        timeout_in_seconds: null
      app_usage_events_cleanup:
        timeout_in_seconds: null
      blobstore_delete:
        timeout_in_seconds: null
      blobstore_upload:
        timeout_in_seconds: null
      droplet_deletion:
        timeout_in_seconds: null
      droplet_upload:
        timeout_in_seconds: null
      model_deletion:
        timeout_in_seconds: null
    bulk_api_password: <%= common_password %>
    staging_upload_user: upload
    staging_upload_password: <%= common_password %>
    quota_definitions:
      default:
        memory_limit: 10240
        total_services: 100
        non_basic_services_allowed: true
        total_routes: 1000
        trial_db_allowed: true
    resource_pool:
      resource_directory_key: cloudfoundry-resources
      fog_connection:
        provider: Local
        local_root: /var/vcap/nfs/shared
    packages:
      app_package_directory_key: cloudfoundry-packages
      fog_connection:
        provider: Local
        local_root: /var/vcap/nfs/shared
    droplets:
      droplet_directory_key: cloudfoundry-droplets
      fog_connection:
        provider: Local
        local_root: /var/vcap/nfs/shared
    buildpacks:
      buildpack_directory_key: cloudfoundry-buildpacks
      fog_connection:
        provider: Local
        local_root: /var/vcap/nfs/shared
    install_buildpacks:
      - name: java_buildpack
        package: buildpack_java
      - name: ruby_buildpack
        package: buildpack_ruby
      - name: nodejs_buildpack
        package: buildpack_nodejs
      - name: go_buildpack
        package: buildpack_go
    db_encryption_key: <%= common_password %>
    hm9000_noop: false
    diego: false
    newrelic:
      license_key: null
      environment_name: <%= deployment_name %>

  ccng: *cc

  login:
    enabled: false

  uaa:
    url: <%= protocol %>://uaa.<%= root_domain %>
    no_ssl: <%= protocol == 'http' %>
    cc:
      client_secret: <%= common_password %>
    admin:
      client_secret: <%= common_password %>
    batch:
      username: batch
      password: <%= common_password %>
    clients:
      cf:
        override: true
        authorized-grant-types: password,implicit,refresh_token
        authorities: uaa.none
        scope: cloud_controller.read,cloud_controller.write,openid,password.write,cloud_controller.admin,scim.read,scim.write
        access-token-validity: 7200
        refresh-token-validity: 1209600
      admin:
        secret: <%= common_password %>
        authorized-grant-types: client_credentials
        authorities: clients.read,clients.write,clients.secret,password.write,scim.read,uaa.admin
    scim:
      users:
      - admin|<%= common_password %>|scim.write,scim.read,openid,cloud_controller.admin,uaa.admin,password.write
      - services|<%= common_password %>|scim.write,scim.read,openid,cloud_controller.admin
    jwt:
      signing_key: |
        -----BEGIN RSA PRIVATE KEY-----
        MIICXAIBAAKBgQDHFr+KICms+tuT1OXJwhCUmR2dKVy7psa8xzElSyzqx7oJyfJ1
        JZyOzToj9T5SfTIq396agbHJWVfYphNahvZ/7uMXqHxf+ZH9BL1gk9Y6kCnbM5R6
        0gfwjyW1/dQPjOzn9N394zd2FJoFHwdq9Qs0wBugspULZVNRxq7veq/fzwIDAQAB
        AoGBAJ8dRTQFhIllbHx4GLbpTQsWXJ6w4hZvskJKCLM/o8R4n+0W45pQ1xEiYKdA
        Z/DRcnjltylRImBD8XuLL8iYOQSZXNMb1h3g5/UGbUXLmCgQLOUUlnYt34QOQm+0
        KvUqfMSFBbKMsYBAoQmNdTHBaz3dZa8ON9hh/f5TT8u0OWNRAkEA5opzsIXv+52J
        duc1VGyX3SwlxiE2dStW8wZqGiuLH142n6MKnkLU4ctNLiclw6BZePXFZYIK+AkE
        xQ+k16je5QJBAN0TIKMPWIbbHVr5rkdUqOyezlFFWYOwnMmw/BKa1d3zp54VP/P8
        +5aQ2d4sMoKEOfdWH7UqMe3FszfYFvSu5KMCQFMYeFaaEEP7Jn8rGzfQ5HQd44ek
        lQJqmq6CE2BXbY/i34FuvPcKU70HEEygY6Y9d8J3o6zQ0K9SYNu+pcXt4lkCQA3h
        jJQQe5uEGJTExqed7jllQ0khFJzLMx0K6tj0NeeIzAaGCQz13oo2sCdeGRHO4aDh
        HH6Qlq/6UOV5wP8+GAcCQFgRCcB+hrje8hfEEefHcFpyKH+5g1Eu1k0mLrxK2zd+
        4SlotYRHgPCEubokb2S1zfZDWIXW3HmggnGgM949TlY=
        -----END RSA PRIVATE KEY-----
      verification_key: |
        -----BEGIN PUBLIC KEY-----
        MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQDHFr+KICms+tuT1OXJwhCUmR2d
        KVy7psa8xzElSyzqx7oJyfJ1JZyOzToj9T5SfTIq396agbHJWVfYphNahvZ/7uMX
        qHxf+ZH9BL1gk9Y6kCnbM5R60gfwjyW1/dQPjOzn9N394zd2FJoFHwdq9Qs0wBug
        spULZVNRxq7veq/fzwIDAQAB
        -----END PUBLIC KEY-----

说明：上面的signing_key和verification_key的内容不用改变

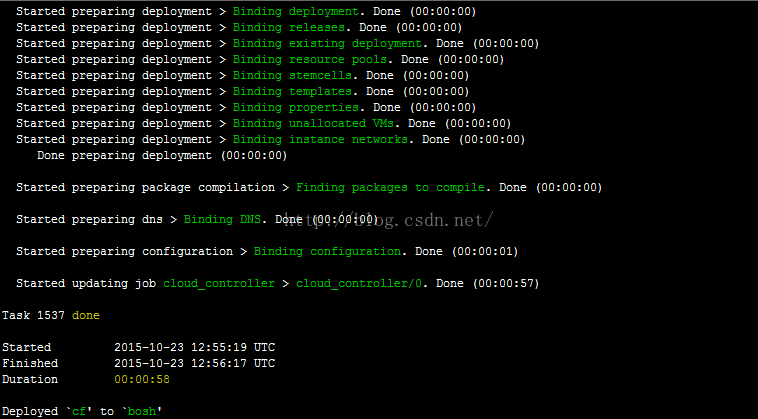

6. 部署cf

root@bosh-cli:~/bosh-workspace/deployments# bosh deployment cf-170.yml

root@bosh-cli:~/bosh-workspace/deployments# bosh deploy

如果要删除部署的话，命令是：

root@bosh-cli:~/bosh-workspace/deployments# bosh delete deployment cf（cf是部署名，就是清单文件中的name属性）

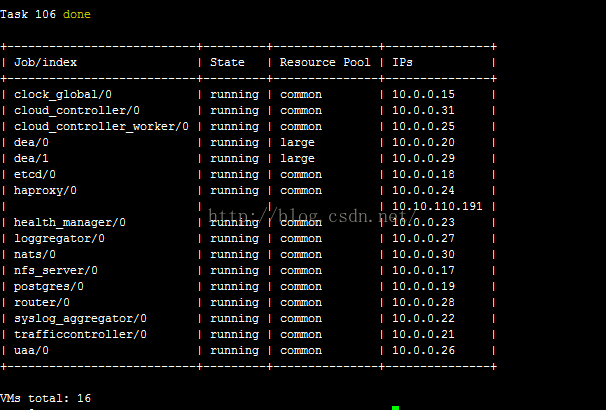

6. 验证部署是否成功

root@bosh-cli:~/bosh-workspace/deployments# bosh vms
Deployment `cf'

如果所有虚拟机都正常运行说明部署成功。
