fio 测试zfs

最新推荐文章于 2024-07-30 19:26:47 发布
最新推荐文章于 2024-07-30 19:26:47 发布
阅读量173 收藏 6
点赞数 5
文章标签： 数据库 linux
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.csdn.net/Jon_c/article/details/140526788
版权


# sudo arc_summary -s arc

------------------------------------------------------------------------
ZFS Subsystem Report                            Thu Jul 18 14:10:53 2024
Linux 6.8.8-2-pve                                             2.2.4-pve1
Machine: pve (x86_64)                                         2.2.4-pve1

ARC status:                                                      HEALTHY
        Memory throttle count:                                         0

ARC size (current):                                    99.9 %    2.0 GiB
        Target size (adaptive):                       100.0 %    2.0 GiB
        Min size (hard limit):                         34.9 %  714.3 MiB
        Max size (high water):                            2:1    2.0 GiB
        Anonymous data size:                            0.0 %    0 Bytes
        Anonymous metadata size:                        0.0 %    0 Bytes
        MFU data target:                               37.5 %  765.4 MiB
        MFU data size:                                  2.5 %   51.1 MiB
        MFU ghost data size:                                     0 Bytes
        MFU metadata target:                           12.5 %  255.1 MiB
        MFU metadata size:                              0.4 %    7.6 MiB
        MFU ghost metadata size:                                 0 Bytes
        MRU data target:                               37.5 %  765.4 MiB
        MRU data size:                                 96.2 %    1.9 GiB
        MRU ghost data size:                                    38.2 MiB
        MRU metadata target:                           12.5 %  255.1 MiB
        MRU metadata size:                              0.9 %   17.8 MiB
        MRU ghost metadata size:                                 0 Bytes
        Uncached data size:                             0.0 %    0 Bytes
        Uncached metadata size:                         0.0 %    0 Bytes
        Bonus size:                                   < 0.1 %   31.6 KiB
        Dnode cache target:                            10.0 %  204.8 MiB
        Dnode cache size:                               0.1 %  252.7 KiB
        Dbuf size:                                    < 0.1 %  232.4 KiB
        Header size:                                    0.2 %    3.8 MiB
        L2 header size:                                 0.0 %    0 Bytes
        ABD chunk waste size:                         < 0.1 %   22.5 KiB

ARC hash breakdown:
        Elements max:                                              41.1k
        Elements current:                              40.6 %      16.7k
        Collisions:                                                 3.5k
        Chain max:                                                     2
        Chains:                                                       41

ARC misc:
        Deleted:                                                    1.1M
        Mutex misses:                                                392
        Eviction skips:                                           520.1k
        Eviction skips due to L2 writes:                               0
        L2 cached evictions:                                     0 Bytes
        L2 eligible evictions:                                 128.7 GiB
        L2 eligible MFU evictions:                    < 0.1 %   10.4 MiB
        L2 eligible MRU evictions:                    100.0 %  128.7 GiB
        L2 ineligible evictions:                                 1.4 GiB

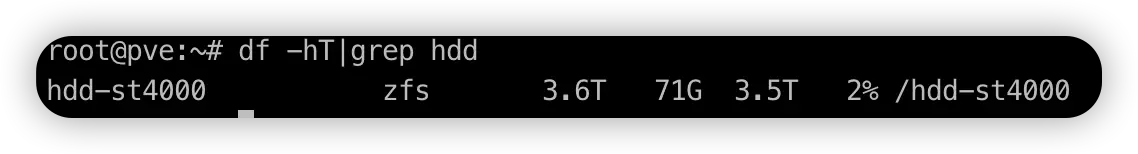

cd /hdd-st400/

下面是顺序写测试

fio --name=seqwrite --rw=write --direct=1 --ioengine=psync --bs=128k --iodepth=32 --numjobs=10 --size=10G --group_reporting

4M

 fio --name=seqwrite --rw=write --direct=1 --ioengine=psync --bs=4m --iodepth=32 --numjobs=5 --size=10G --group_reporting

seqwrite: (g=0): rw=write, bs=(R) 4096KiB-4096KiB, (W) 4096KiB-4096KiB, (T) 4096KiB-4096KiB, ioengine=psync, iodepth=32
...
fio-3.33
Starting 5 processes
seqwrite: Laying out IO file (1 file / 10240MiB)
seqwrite: Laying out IO file (1 file / 10240MiB)
seqwrite: Laying out IO file (1 file / 10240MiB)
seqwrite: Laying out IO file (1 file / 10240MiB)
seqwrite: Laying out IO file (1 file / 10240MiB)
note: both iodepth >= 1 and synchronous I/O engine are selected, queue depth will be capped at 1
note: both iodepth >= 1 and synchronous I/O engine are selected, queue depth will be capped at 1
note: both iodepth >= 1 and synchronous I/O engine are selected, queue depth will be capped at 1
note: both iodepth >= 1 and synchronous I/O engine are selected, queue depth will be capped at 1
note: both iodepth >= 1 and synchronous I/O engine are selected, queue depth will be capped at 1
Jobs: 2 (f=2): [W(1),_(2),W(1),_(1)][97.4%][eta 00m:08s]
seqwrite: (groupid=0, jobs=5): err= 0: pid=23831: Thu Jul 18 13:58:52 2024
  write: IOPS=42, BW=170MiB/s (178MB/s)(50.0GiB/301831msec); 0 zone resets
    clat (usec): min=450, max=3485.8k, avg=116870.67, stdev=577125.36
     lat (usec): min=495, max=3485.8k, avg=117138.97, stdev=577112.00
    clat percentiles (usec):
     |  1.00th=[    652],  5.00th=[    947], 10.00th=[   1106],
     | 20.00th=[   1221], 30.00th=[   1303], 40.00th=[   1385],
     | 50.00th=[   1483], 60.00th=[   1680], 70.00th=[   2147],
     | 80.00th=[   3818], 90.00th=[   6259], 95.00th=[  10683],
     | 99.00th=[3204449], 99.50th=[3271558], 99.90th=[3405775],
     | 99.95th=[3405775], 99.99th=[3472884]
   bw (  KiB/s): min=49103, max=2549616, per=100.00%, avg=926222.34, stdev=83890.32, samples=559
   iops        : min=   11, max=  622, avg=225.79, stdev=20.51, samples=559
  lat (usec)   : 500=0.13%, 750=1.84%, 1000=4.27%
  lat (msec)   : 2=61.92%, 4=12.63%, 10=13.78%, 20=1.38%, 50=0.19%
  lat (msec)   : 100=0.05%, >=2000=3.80%
  cpu          : usr=0.18%, sys=1.11%, ctx=34749, majf=0, minf=51
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=0,12800,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=32

Run status group 0 (all jobs):
  WRITE: bw=170MiB/s (178MB/s), 170MiB/s-170MiB/s (178MB/s-178MB/s), io=50.0GiB (53.7GB), run=301831-301831msec

16K

 fio --name=seqwrite --rw=write --direct=1 --ioengine=psync --bs=16k --iodepth=32 --numjobs=5 --size=1G --group_reporting

seqwrite: (g=0): rw=write, bs=(R) 16.0KiB-16.0KiB, (W) 16.0KiB-16.0KiB, (T) 16.0KiB-16.0KiB, ioengine=psync, iodepth=32
...
fio-3.33
Starting 5 processes
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
note: both iodepth >= 1 and synchronous I/O engine are selected, queue depth will be capped at 1
note: both iodepth >= 1 and synchronous I/O engine are selected, queue depth will be capped at 1
note: both iodepth >= 1 and synchronous I/O engine are selected, queue depth will be capped at 1
note: both iodepth >= 1 and synchronous I/O engine are selected, queue depth will be capped at 1
note: both iodepth >= 1 and synchronous I/O engine are selected, queue depth will be capped at 1
Jobs: 3 (f=3): [W(3),_(1),E(1)][88.9%][w=751MiB/s][w=48.1k IOPS][eta 00m:01s]
seqwrite: (groupid=0, jobs=5): err= 0: pid=23380: Thu Jul 18 13:50:50 2024
  write: IOPS=47.0k, BW=735MiB/s (770MB/s)(5120MiB/6969msec); 0 zone resets
    clat (usec): min=2, max=965387, avg=102.46, stdev=8861.43
     lat (usec): min=2, max=965387, avg=102.54, stdev=8861.44
    clat percentiles (usec):
     |  1.00th=[     3],  5.00th=[     3], 10.00th=[     3], 20.00th=[     3],
     | 30.00th=[     3], 40.00th=[     4], 50.00th=[     4], 60.00th=[     4],
     | 70.00th=[     4], 80.00th=[     5], 90.00th=[    14], 95.00th=[    24],
     | 99.00th=[    35], 99.50th=[   123], 99.90th=[  2040], 99.95th=[  3556],
     | 99.99th=[708838]
   bw (  KiB/s): min=17120, max=2345824, per=100.00%, avg=868363.35, stdev=129742.76, samples=54
   iops        : min= 1070, max=146614, avg=54272.71, stdev=8108.92, samples=54
  lat (usec)   : 4=75.13%, 10=12.87%, 20=4.99%, 50=6.30%, 100=0.07%
  lat (usec)   : 250=0.25%, 500=0.08%, 750=0.04%, 1000=0.03%
  lat (msec)   : 2=0.13%, 4=0.07%, 10=0.02%, 20=0.01%, 50=0.01%
  lat (msec)   : 750=0.01%, 1000=0.01%
  cpu          : usr=0.43%, sys=5.29%, ctx=15129, majf=0, minf=57
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=0,327680,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=32

Run status group 0 (all jobs):
  WRITE: bw=735MiB/s (770MB/s), 735MiB/s-735MiB/s (770MB/s-770MB/s), io=5120MiB (5369MB), run=6969-6969msec

##下面是顺序读测试

fio --name=seqread --rw=read --direct=1 --ioengine=psync --bs=128k --iodepth=32 --numjobs=10 --size=10G --group_reporting

16K

 fio --name=seqread --rw=read --direct=1 --ioengine=psync --bs=16k --iodepth=32 --numjobs=2 --size=10G --group_reporting

seqread: (g=0): rw=read, bs=(R) 16.0KiB-16.0KiB, (W) 16.0KiB-16.0KiB, (T) 16.0KiB-16.0KiB, ioengine=psync, iodepth=32
...
fio-3.33
Starting 2 processes
seqread: Laying out IO file (1 file / 10240MiB)
note: both iodepth >= 1 and synchronous I/O engine are selected, queue depth will be capped at 1
note: both iodepth >= 1 and synchronous I/O engine are selected, queue depth will be capped at 1
Jobs: 2 (f=2): [R(2)][100.0%][r=190MiB/s][r=12.2k IOPS][eta 00m:00s]
seqread: (groupid=0, jobs=2): err= 0: pid=25102: Thu Jul 18 14:04:59 2024
  read: IOPS=11.3k, BW=177MiB/s (186MB/s)(20.0GiB/115683msec)
    clat (nsec): min=1123, max=690700k, avg=175961.90, stdev=6918531.78
     lat (nsec): min=1138, max=690700k, avg=175979.81, stdev=6918531.72
    clat percentiles (nsec):
     |  1.00th=[     1160],  5.00th=[     1176], 10.00th=[     1176],
     | 20.00th=[     1192], 30.00th=[     1208], 40.00th=[     1224],
     | 50.00th=[     1256], 60.00th=[     1288], 70.00th=[     1384],
     | 80.00th=[     1576], 90.00th=[    23680], 95.00th=[    26240],
     | 99.00th=[  4751360], 99.50th=[  5406720], 99.90th=[  5996544],
     | 99.95th=[  6127616], 99.99th=[541065216]
   bw (  KiB/s): min= 2560, max=401408, per=100.00%, avg=188417.45, stdev=58829.57, samples=444
   iops        : min=  160, max=25088, avg=11776.07, stdev=3676.85, samples=444
  lat (usec)   : 2=84.80%, 4=1.26%, 10=1.41%, 20=0.46%, 50=10.45%
  lat (usec)   : 100=0.05%, 250=0.02%, 500=0.01%, 1000=0.01%
  lat (msec)   : 2=0.01%, 4=0.02%, 10=1.50%, 20=0.02%, 50=0.01%
  lat (msec)   : 100=0.01%, 250=0.01%, 500=0.01%, 750=0.01%
  cpu          : usr=0.14%, sys=2.46%, ctx=21676, majf=0, minf=32
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=1310720,0,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=32

Run status group 0 (all jobs):
   READ: bw=177MiB/s (186MB/s), 177MiB/s-177MiB/s (186MB/s-186MB/s), io=20.0GiB (21.5GB), run=115683-115683msec

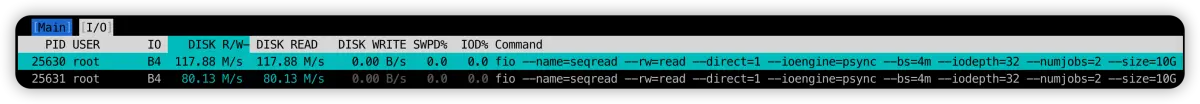

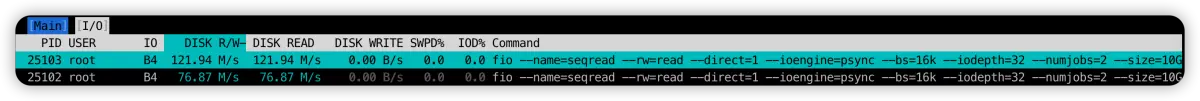

disk io

4M

 fio --name=seqread --rw=read --direct=1 --ioengine=psync --bs=4m --iodepth=32 --numjobs=2 --size=10G --group_reporting

seqread: (g=0): rw=read, bs=(R) 4096KiB-4096KiB, (W) 4096KiB-4096KiB, (T) 4096KiB-4096KiB, ioengine=psync, iodepth=32
...
fio-3.33
Starting 2 processes
note: both iodepth >= 1 and synchronous I/O engine are selected, queue depth will be capped at 1
note: both iodepth >= 1 and synchronous I/O engine are selected, queue depth will be capped at 1
Jobs: 2 (f=2): [R(2)][100.0%][r=188MiB/s][r=47 IOPS][eta 00m:00s]
seqread: (groupid=0, jobs=2): err= 0: pid=25630: Thu Jul 18 14:08:55 2024
  read: IOPS=45, BW=182MiB/s (191MB/s)(20.0GiB/112281msec)
    clat (usec): min=1168, max=898933, avg=43839.87, stdev=105450.26
     lat (usec): min=1168, max=898934, avg=43840.13, stdev=105450.26
    clat percentiles (msec):
     |  1.00th=[   16],  5.00th=[   20], 10.00th=[   20], 20.00th=[   21],
     | 30.00th=[   21], 40.00th=[   21], 50.00th=[   21], 60.00th=[   22],
     | 70.00th=[   23], 80.00th=[   23], 90.00th=[   26], 95.00th=[   67],
     | 99.00th=[  575], 99.50th=[  584], 99.90th=[  609], 99.95th=[  659],
     | 99.99th=[  902]
   bw (  KiB/s): min=16384, max=409600, per=100.00%, avg=197422.59, stdev=55594.06, samples=424
   iops        : min=    4, max=  100, avg=48.20, stdev=13.57, samples=424
  lat (msec)   : 2=0.37%, 20=16.78%, 50=77.01%, 100=1.64%, 250=0.12%
  lat (msec)   : 500=0.41%, 750=3.65%, 1000=0.02%
  cpu          : usr=0.01%, sys=2.20%, ctx=20665, majf=0, minf=2068
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=5120,0,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=32

Run status group 0 (all jobs):
   READ: bw=182MiB/s (191MB/s), 182MiB/s-182MiB/s (191MB/s-191MB/s), io=20.0GiB (21.5GB), run=112281-112281msec


随机读

16k 不带的buffer
fio --name=randread --rw=randread --direct=1 --ioengine=psync --bs=16k --iodepth=1 --numjobs=1 --size=10G --runtime=60 --group_reporting

fio --name=randread --rw=randread --direct=1 --ioengine=psync --bs=16k --iodepth=1 --numjobs=1 --size=10G --runtime=60  --group_reporting

randread: (g=0): rw=randread, bs=(R) 16.0KiB-16.0KiB, (W) 16.0KiB-16.0KiB, (T) 16.0KiB-16.0KiB, ioengine=psync, iodepth=1
fio-3.33
Starting 1 process
randread: Laying out IO file (1 file / 10240MiB)
Jobs: 1 (f=1): [r(1)][100.0%][r=1793KiB/s][r=112 IOPS][eta 00m:00s]
randread: (groupid=0, jobs=1): err= 0: pid=27798: Thu Jul 18 14:24:22 2024
  read: IOPS=114, BW=1833KiB/s (1876kB/s)(107MiB/60001msec)
    clat (usec): min=2, max=606991, avg=8728.82, stdev=12293.03
     lat (usec): min=2, max=606991, avg=8729.02, stdev=12293.03
    clat percentiles (usec):
     |  1.00th=[    15],  5.00th=[    20], 10.00th=[    21], 20.00th=[  3949],
     | 30.00th=[  5866], 40.00th=[  7308], 50.00th=[  8717], 60.00th=[ 10159],
     | 70.00th=[ 11600], 80.00th=[ 12911], 90.00th=[ 14353], 95.00th=[ 15139],
     | 99.00th=[ 29492], 99.50th=[ 41157], 99.90th=[103285], 99.95th=[149947],
     | 99.99th=[608175]
   bw (  KiB/s): min=   32, max= 2368, per=100.00%, avg=1834.49, stdev=475.55, samples=119
   iops        : min=    2, max=  148, avg=114.66, stdev=29.72, samples=119
  lat (usec)   : 4=0.13%, 10=0.41%, 20=9.39%, 50=7.35%, 750=0.23%
  lat (usec)   : 1000=0.92%
  lat (msec)   : 2=0.01%, 4=1.73%, 10=38.31%, 20=39.81%, 50=1.56%
  lat (msec)   : 100=0.04%, 250=0.07%, 750=0.03%
  cpu          : usr=0.06%, sys=0.47%, ctx=5685, majf=0, minf=14
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=6872,0,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=1

Run status group 0 (all jobs):
   READ: bw=1833KiB/s (1876kB/s), 1833KiB/s-1833KiB/s (1876kB/s-1876kB/s), io=107MiB (113MB), run=60001-60001msec

16K 带的buffer

 fio --name=randread --rw=randread  --ioengine=psync --bs=16k --iodepth=1 --numjobs=1 --size=10G --runtime=60  --group_reporting

randread: (g=0): rw=randread, bs=(R) 16.0KiB-16.0KiB, (W) 16.0KiB-16.0KiB, (T) 16.0KiB-16.0KiB, ioengine=psync, iodepth=1
fio-3.33
Starting 1 process
Jobs: 1 (f=1): [r(1)][100.0%][r=1905KiB/s][r=119 IOPS][eta 00m:00s]
randread: (groupid=0, jobs=1): err= 0: pid=28177: Thu Jul 18 14:27:05 2024
  read: IOPS=239, BW=3826KiB/s (3917kB/s)(224MiB/60008msec)
    clat (nsec): min=1824, max=22827k, avg=4180855.14, stdev=5360433.23
     lat (nsec): min=1839, max=22827k, avg=4181042.51, stdev=5360445.07
    clat percentiles (usec):
     |  1.00th=[   13],  5.00th=[   14], 10.00th=[   15], 20.00th=[   15],
     | 30.00th=[   16], 40.00th=[   17], 50.00th=[   20], 60.00th=[ 4621],
     | 70.00th=[ 7570], 80.00th=[10159], 90.00th=[12911], 95.00th=[14222],
     | 99.00th=[15795], 99.50th=[16319], 99.90th=[17171], 99.95th=[17695],
     | 99.99th=[21365]
   bw (  KiB/s): min= 1600, max=221504, per=100.00%, avg=3844.57, stdev=20122.64, samples=119
   iops        : min=  100, max=13844, avg=240.29, stdev=1257.67, samples=119
  lat (usec)   : 2=0.01%, 4=0.22%, 10=0.20%, 20=51.94%, 50=5.16%
  lat (usec)   : 750=0.17%, 1000=0.46%
  lat (msec)   : 4=0.84%, 10=20.18%, 20=20.79%, 50=0.01%
  cpu          : usr=0.09%, sys=0.83%, ctx=6095, majf=0, minf=14
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=14348,0,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=1

Run status group 0 (all jobs):
   READ: bw=3826KiB/s (3917kB/s), 3826KiB/s-3826KiB/s (3917kB/s-3917kB/s), io=224MiB (235MB), run=60008-60008msec

16K 2 job 带的buffer

 fio --name=randread --rw=randread  --ioengine=psync --bs=16k --iodepth=1 --numjobs=2 --size=10G --runtime=60  --group_reporting

randread: (g=0): rw=randread, bs=(R) 16.0KiB-16.0KiB, (W) 16.0KiB-16.0KiB, (T) 16.0KiB-16.0KiB, ioengine=psync, iodepth=1
...
fio-3.33
Starting 2 processes
randread: Laying out IO file (1 file / 10240MiB)
Jobs: 2 (f=2): [r(2)][0.5%][r=1953KiB/s][r=122 IOPS][eta 03h:40m:33s]
randread: (groupid=0, jobs=2): err= 0: pid=28496: Thu Jul 18 14:29:31 2024
  read: IOPS=189, BW=3033KiB/s (3106kB/s)(178MiB/60021msec)
    clat (usec): min=2, max=666725, avg=10546.56, stdev=17530.18
     lat (usec): min=2, max=666725, avg=10546.77, stdev=17530.19
    clat percentiles (usec):
     |  1.00th=[    13],  5.00th=[    15], 10.00th=[    15], 20.00th=[    16],
     | 30.00th=[    16], 40.00th=[    18], 50.00th=[    22], 60.00th=[ 16057],
     | 70.00th=[ 19268], 80.00th=[ 21890], 90.00th=[ 25035], 95.00th=[ 27132],
     | 99.00th=[ 30278], 99.50th=[ 32113], 99.90th=[177210], 99.95th=[189793],
     | 99.99th=[658506]
   bw (  KiB/s): min=  160, max=141408, per=100.00%, avg=3059.92, stdev=9017.09, samples=238
   iops        : min=   10, max= 8838, avg=191.21, stdev=563.57, samples=238
  lat (usec)   : 4=0.28%, 10=0.17%, 20=46.06%, 50=5.69%, 100=0.07%
  lat (msec)   : 10=0.25%, 20=20.04%, 50=27.12%, 100=0.09%, 250=0.21%
  lat (msec)   : 750=0.04%
  cpu          : usr=0.03%, sys=0.35%, ctx=5433, majf=0, minf=26
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=11379,0,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=1

Run status group 0 (all jobs):
   READ: bw=3033KiB/s (3106kB/s), 3033KiB/s-3033KiB/s (3106kB/s-3106kB/s), io=178MiB (186MB), run=60021-60021msec

随机写

16K 1 job 不带buffer

 fio --name=randread --rw=randwrite --direct=1 --ioengine=psync --bs=16k --iodepth=1 --numjobs=1 --size=10G --runtime=60  --group_reporting

randread: (g=0): rw=randwrite, bs=(R) 16.0KiB-16.0KiB, (W) 16.0KiB-16.0KiB, (T) 16.0KiB-16.0KiB, ioengine=psync, iodepth=1
fio-3.33
Starting 1 process
Jobs: 1 (f=1): [w(1)][100.0%][w=1809KiB/s][w=113 IOPS][eta 00m:00s]
randread: (groupid=0, jobs=1): err= 0: pid=29806: Thu Jul 18 14:39:43 2024
  write: IOPS=242, BW=3881KiB/s (3974kB/s)(227MiB/60004msec); 0 zone resets
    clat (usec): min=2, max=2481.2k, avg=4121.94, stdev=26385.64
     lat (usec): min=2, max=2481.2k, avg=4122.10, stdev=26385.64
    clat percentiles (usec):
     |  1.00th=[     5],  5.00th=[    14], 10.00th=[    15], 20.00th=[    16],
     | 30.00th=[    17], 40.00th=[    19], 50.00th=[    22], 60.00th=[    40],
     | 70.00th=[  4621], 80.00th=[  8586], 90.00th=[ 12256], 95.00th=[ 14222],
     | 99.00th=[ 27657], 99.50th=[ 43254], 99.90th=[139461], 99.95th=[549454],
     | 99.99th=[641729]
   bw (  KiB/s): min=   32, max=192736, per=100.00%, avg=4071.58, stdev=19130.79, samples=114
   iops        : min=    2, max=12046, avg=254.47, stdev=1195.67, samples=114
  lat (usec)   : 4=0.54%, 10=1.14%, 20=43.73%, 50=17.37%, 100=2.69%
  lat (usec)   : 250=2.68%, 500=0.02%, 750=0.09%, 1000=0.36%
  lat (msec)   : 2=0.01%, 4=0.58%, 10=14.48%, 20=14.72%, 50=1.31%
  lat (msec)   : 100=0.16%, 250=0.03%, 500=0.01%, 750=0.07%, >=2000=0.01%
  cpu          : usr=0.04%, sys=0.74%, ctx=5329, majf=0, minf=13
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=0,14554,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=1

Run status group 0 (all jobs):
  WRITE: bw=3881KiB/s (3974kB/s), 3881KiB/s-3881KiB/s (3974kB/s-3974kB/s), io=227MiB (238MB), run=60004-60004msec

 fio --name=randread --rw=randwrite  --ioengine=psync --bs=16k --iodepth=1 --numjobs=1 --size=10G --runtime=60  --group_reporting

randread: (g=0): rw=randwrite, bs=(R) 16.0KiB-16.0KiB, (W) 16.0KiB-16.0KiB, (T) 16.0KiB-16.0KiB, ioengine=psync, iodepth=1
fio-3.33
Starting 1 process
Jobs: 1 (f=1): [w(1)][100.0%][w=1969KiB/s][w=123 IOPS][eta 00m:00s]
randread: (groupid=0, jobs=1): err= 0: pid=30336: Thu Jul 18 14:43:35 2024
  write: IOPS=277, BW=4436KiB/s (4543kB/s)(260MiB/60013msec); 0 zone resets
    clat (usec): min=2, max=646309, avg=3605.52, stdev=14920.22
     lat (usec): min=2, max=646309, avg=3605.70, stdev=14920.23
    clat percentiles (usec):
     |  1.00th=[     6],  5.00th=[    14], 10.00th=[    16], 20.00th=[    18],
     | 30.00th=[    19], 40.00th=[    21], 50.00th=[    27], 60.00th=[   553],
     | 70.00th=[   889], 80.00th=[  7046], 90.00th=[ 11469], 95.00th=[ 13829],
     | 99.00th=[ 26870], 99.50th=[ 34866], 99.90th=[147850], 99.95th=[417334],
     | 99.99th=[641729]
   bw (  KiB/s): min=   64, max=68160, per=100.00%, avg=4459.56, stdev=7850.88, samples=119
   iops        : min=    4, max= 4260, avg=278.72, stdev=490.68, samples=119
  lat (usec)   : 4=0.52%, 10=1.17%, 20=36.78%, 50=13.89%, 100=0.22%
  lat (usec)   : 250=2.06%, 500=3.90%, 750=8.19%, 1000=3.79%
  lat (msec)   : 2=0.25%, 4=2.96%, 10=13.00%, 20=11.38%, 50=1.51%
  lat (msec)   : 100=0.20%, 250=0.10%, 500=0.04%, 750=0.03%
  cpu          : usr=0.05%, sys=0.97%, ctx=7931, majf=0, minf=11
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=0,16640,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=1

Run status group 0 (all jobs):
  WRITE: bw=4436KiB/s (4543kB/s), 4436KiB/s-4436KiB/s (4543kB/s-4543kB/s), io=260MiB (273MB), run=60013-60013msec

16K 3 job

# fio --name=randwrite --rw=randwrite --direct=1 --ioengine=psync --bs=16k --iodepth=1 --numjobs=3 --size=10G --runtime=60  --group_reporting

randwrite: (g=0): rw=randwrite, bs=(R) 16.0KiB-16.0KiB, (W) 16.0KiB-16.0KiB, (T) 16.0KiB-16.0KiB, ioengine=psync, iodepth=1
...
fio-3.33
Starting 3 processes
randwrite: Laying out IO file (1 file / 10240MiB)
randwrite: Laying out IO file (1 file / 10240MiB)
randwrite: Laying out IO file (1 file / 10240MiB)
Jobs: 3 (f=3): [w(3)][100.0%][w=17.3MiB/s][w=1109 IOPS][eta 00m:00s]
randwrite: (groupid=0, jobs=3): err= 0: pid=30909: Thu Jul 18 14:47:47 2024
  write: IOPS=2747, BW=42.9MiB/s (45.0MB/s)(2576MiB/60016msec); 0 zone resets
    clat (usec): min=2, max=917962, avg=1091.21, stdev=17215.38
     lat (usec): min=2, max=917962, avg=1091.36, stdev=17215.38
    clat percentiles (usec):
     |  1.00th=[     9],  5.00th=[    12], 10.00th=[    13], 20.00th=[    14],
     | 30.00th=[    15], 40.00th=[    17], 50.00th=[    20], 60.00th=[    22],
     | 70.00th=[    25], 80.00th=[    28], 90.00th=[    39], 95.00th=[    79],
     | 99.00th=[ 22414], 99.50th=[ 37487], 99.90th=[102237], 99.95th=[541066],
     | 99.99th=[725615]
   bw (  KiB/s): min=  384, max=345472, per=100.00%, avg=49161.27, stdev=21402.32, samples=321
   iops        : min=   24, max=21592, avg=3072.58, stdev=1337.65, samples=321
  lat (usec)   : 4=0.24%, 10=2.48%, 20=50.49%, 50=39.53%, 100=2.57%
  lat (usec)   : 250=0.33%, 500=0.32%, 750=0.34%, 1000=0.13%
  lat (msec)   : 2=0.31%, 4=0.48%, 10=0.75%, 20=0.86%, 50=0.85%
  lat (msec)   : 100=0.21%, 250=0.03%, 500=0.01%, 750=0.06%, 1000=0.01%
  cpu          : usr=0.06%, sys=1.99%, ctx=16937, majf=0, minf=30
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=0,164894,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=1

Run status group 0 (all jobs):
  WRITE: bw=42.9MiB/s (45.0MB/s), 42.9MiB/s-42.9MiB/s (45.0MB/s-45.0MB/s), io=2576MiB (2702MB), run=60016-60016msec
Jon_c
关注
  • 5
    点赞
  • 踩
  • 6
    收藏
    觉得还不错? 一键收藏
  • 0
    评论
mysql fio测试_压力测试工具之FIO
weixin_35917339的博客
01-27 419
针对磁盘的压力性能测试工具有很多，简单的测试可以通过dd命令实现，而比较专业和强大的磁盘IO测试工具，当然首推FIO了。这里针对FIO工具使用做个简单的介绍。介绍前，首先说明下两个概念，顺序读写和随机读写。随机读取、写入是根据磁盘数据分布进行随机读写，可能数据的读、写并不在连续的磁盘空间上，因此磁头寻址时间长、负荷大，每段数据都有地址码，通过地址码进行数据段读取。顺序读取、写入是根据磁盘数据分布进...
Ubuntu硬盘FIO测试操作规范
03-20
Ubuntu 硬盘 FIO 测试操作规范 本文将介绍 FIO 在 Ubuntu 操作系统下进行硬盘 FIO 测试环境的搭建和使用方法。硬盘 FIO 测试是衡量硬盘性能的重要指标，本文将详细介绍测试前的准备工作、安装测试程序、对硬盘进行...
FIO 测试磁盘读写
热门推荐
那又怎样？的博客
04-08 1万+
转载来自：https://www.cnblogs.com/lpfuture/p/6054882.html 纯姐测试如下： 随机混合读写（一般线上测试） fio -filename=/dev/sdb1 -direct=1 -iodepth 1 -thread -rw=randrw -rwmixread=70 -ioengine=psync -bs=16k -size=200G -numjob...
mysql fio测试_fio_飞哥最爱白菜_新浪博客
weixin_28718793的博客
01-27 254
#yum install git#yum install gtk*#git clone git://git.kernel.dk/fio.git# cd fio# ./configure --enable-gfio#make fio#make gfiofio --filename=/dev/sdb --direct=1 --rw=write --bs=4k --size=15G--numjobs=6...
linux使用FIO测试磁盘的iops
qq_15821725的博客
01-13 550
linux使用FIO测试磁盘的iops   FIO是测试IOPS的非常好的工具，用来对硬件进行压力测试和验证，支持13种不同的I/O引擎，包括:sync,mmap, libaio, posixaio, SG v3, splice, null, network, syslet, guasi, solarisaio 等等。 fio 官网地址：http://freshmeat.ne
fio服务器磁盘测试结果-样例
07-25
使用fio工具对服务器的磁盘做性能测试，通常会使用到fio工具，该资源就是fio结果的一个样例，主要是搭配我的博客使用
fio测试磁盘io性能
06-18
fio rpm安装包
fio测试工具说明1
08-08
Fio 是一款强大的 I/O 负载测试工具，用于模拟多种存储工作负载，以便评估存储系统的性能。本文档详细介绍了如何使用一个基于 Fio 的测试工具，该工具旨在帮助测试人员在多节点环境中进行压力测试，并分析结果。 ...
FIO 测试软件
11-06
FIO 测试软件 测试工具 硬盘测试 系统IO测试
图数据库查询与操作指南-以Nebula图数据库为例
DZSpace，专注于计算机科学与技术领域的技术博主，致力于分享实用知识与技巧，帮助读者快速掌握技术要点，共同探索计算机世界的无限可能。欢迎访问DZSpace的博客，一起学习进步！
07-26 325
图数据库查询与操作指南-以Nebula图数据库为例
二进制部署k8s集群之master节点和etcd数据库集群（上）
zx52306的博客
07-30 684
【代码】二进制部署k8s集群之master节点和etcd数据库集群（上）
互联网医院系统源码与医保购药APP开发的完整技术指南
meihusdk的博客
07-30 107
开发过程中需注重数据安全、系统性能、用户体验等多个方面，确保系统的高效稳定运行和良好用户体验。希望这篇技术指南能为开发者提供有益的参考，助力互联网医疗健康行业的发展。
【iOS】——持久化
最新发布
m0_73974920的博客
07-30 836
因为plist文件不能够保存自定义对象。如果一个字典中保存有自定义对象，如果把这个对象写入到文件当中，它是不会生成 plist文件的。如果对象是NSString、NSDictionary、NSArray、NSData、NSNumber等类型，可以直接用NSKeyedArchiver进行归档和恢复。
已经10岁的K8S，在很多方面仍需努力
u012516914的专栏
07-28 290
/ K8S 已经 10 岁了，但仍然有许多方面要继续努力 /Kubernetes 于 2014 年 6 月推出，自那时起，它在推广云原生应用设计和支持更多微服务部署方面发挥了巨大作用。容器部署的增长非常迅速，而 Kubernetes 对于企业管理这些部署至关重要——根据 CNCF 上一份报告的调查结果，84% 的组织正在使用或评估 Kubernetes，而 66% 的潜在和实际消费者在生产中使用 ...
MySQL-数据操作语言
一直走的很慢的鸭子
07-27 664
DML英文全称是Data Manipulation Language（数据操作语言），用来对数据库中表的数据记录进行增删改操作。
添加索引导致微服务异常
07-29 944
执行DDL时，最好使用ONLINE选项，随着oracle版本升级，online状态下可执行的DDL逐步增加，大部分普通DDL上，可以使用ONLINE选项，例如。而在新增索引的时候会有TM锁，而该表又有大量的insert、update等，因此会对这些dml语句造成阻塞。1、对大表新增索引尽量停业务，就算加上online不会造成阻塞，但对性能也有影响，特别是这种性能敏感的系统。2、在新增索引的时候加online参数，而online产生的TM锁时间比较短。加了online后，可以以非独占的方式创建和删除索引。
教务管理平台/高校教务管理系统的设计与实现/教务网站/学生成绩管理系统/学生课程管理系统
weixin_47958760的博客
07-27 791
本毕业设计的内容是设计并且实现一个基于JSP技术的教务管理平台。采用MYSQL为数据库开发平台，SSM框架，Tomcat网络信息服务作为应用服务器。教务管理平台的功能已基本实现，主要有学生、教师、课程信息、课程选择、教师课表、学生成绩、图书信息、考试等管理功能。 论文主要从系统的分析与设计 、数据库设计和系统的详细设计等几个方面来进行论述，系统分析与设计部分主要论述了系统的功能分析、系统的设计思路，数据库设计主要论述了数据库的设计，系统的详细设计部分主要论述了几个主要模块的详细设计过程。
【MySQL进阶之路 | 高级篇】简述Bin Log日志
2301_80912559的博客
07-27 879
binlog即binary log，二进制日志文件，也叫作变更日志(update log)。二进制日志可以通过数据库的全量备份和二进制日志中保存的增量信息，完成数据库的无损失恢复I但是，如果遇到数据量大、数据库和数据表很多(比如分库分表的应用)的场景，用二进制日志进行数据恢复，是很有挑战性的，因为起止位置不容易管理。在这种情况下，一个有效的解决办法是配置主从数据库服务器，甚至是一主多从的架构，把二进制日志文件的内容通过中继日志，同步到从数据库服务器中，这样就可以有效避免数据库故障导致的数据异常等问题。
fio测试iops
06-02
Fio测试可以用来测量IOPS（每秒输入/输出操作数）。要进行Fio测试，需要安装Fio工具并编写测试脚本。以下是一个Fio测试脚本的示例： ``` [global] ioengine=libaio direct=1 rw=randwrite bs=4k size=1G numjobs=1 time_based runtime=60 [job1] ``` 在这个脚本中，我们使用libaio引擎，并进行随机写操作（rw=randwrite），使用4k的块大小（bs=4k），测试文件大小为1G（size=1G），使用1个作业（numjobs=1），时间为60秒（runtime=60）。 要运行这个脚本，可以使用以下命令： ``` fio test.fio ``` 在测试结束后，Fio会输出IOPS的结果。
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
