openssl3.2 - exp - 选择最好的内建椭圆曲线

概述

在openssl中使用椭圆曲线, 只允许选择椭圆曲线的名字, 无法给定椭圆曲线的位数.
估计每种椭圆曲线都有固定的位数(bit prime field)
openssl.exe有命令可以列出全部的椭圆曲线列表

openssl ecparam -list_curves


D:\my_tmp>openssl ecparam -list_curves
  secp112r1 : SECG/WTLS curve over a 112 bit prime field
  secp112r2 : SECG curve over a 112 bit prime field
  secp128r1 : SECG curve over a 128 bit prime field
  secp128r2 : SECG curve over a 128 bit prime field
  secp160k1 : SECG curve over a 160 bit prime field
  secp160r1 : SECG curve over a 160 bit prime field
  secp160r2 : SECG/WTLS curve over a 160 bit prime field
  secp192k1 : SECG curve over a 192 bit prime field
  secp224k1 : SECG curve over a 224 bit prime field
  secp224r1 : NIST/SECG curve over a 224 bit prime field
  secp256k1 : SECG curve over a 256 bit prime field
  secp384r1 : NIST/SECG curve over a 384 bit prime field
  secp521r1 : NIST/SECG curve over a 521 bit prime field
  prime192v1: NIST/X9.62/SECG curve over a 192 bit prime field
  prime192v2: X9.62 curve over a 192 bit prime field
  prime192v3: X9.62 curve over a 192 bit prime field
  prime239v1: X9.62 curve over a 239 bit prime field
  prime239v2: X9.62 curve over a 239 bit prime field
  prime239v3: X9.62 curve over a 239 bit prime field
  prime256v1: X9.62/SECG curve over a 256 bit prime field
  sect113r1 : SECG curve over a 113 bit binary field
  sect113r2 : SECG curve over a 113 bit binary field
  sect131r1 : SECG/WTLS curve over a 131 bit binary field
  sect131r2 : SECG curve over a 131 bit binary field
  sect163k1 : NIST/SECG/WTLS curve over a 163 bit binary field
  sect163r1 : SECG curve over a 163 bit binary field
  sect163r2 : NIST/SECG curve over a 163 bit binary field
  sect193r1 : SECG curve over a 193 bit binary field
  sect193r2 : SECG curve over a 193 bit binary field
  sect233k1 : NIST/SECG/WTLS curve over a 233 bit binary field
  sect233r1 : NIST/SECG/WTLS curve over a 233 bit binary field
  sect239k1 : SECG curve over a 239 bit binary field
  sect283k1 : NIST/SECG curve over a 283 bit binary field
  sect283r1 : NIST/SECG curve over a 283 bit binary field
  sect409k1 : NIST/SECG curve over a 409 bit binary field
  sect409r1 : NIST/SECG curve over a 409 bit binary field
  sect571k1 : NIST/SECG curve over a 571 bit binary field
  sect571r1 : NIST/SECG curve over a 571 bit binary field
  c2pnb163v1: X9.62 curve over a 163 bit binary field
  c2pnb163v2: X9.62 curve over a 163 bit binary field
  c2pnb163v3: X9.62 curve over a 163 bit binary field
  c2pnb176v1: X9.62 curve over a 176 bit binary field
  c2tnb191v1: X9.62 curve over a 191 bit binary field
  c2tnb191v2: X9.62 curve over a 191 bit binary field
  c2tnb191v3: X9.62 curve over a 191 bit binary field
  c2pnb208w1: X9.62 curve over a 208 bit binary field
  c2tnb239v1: X9.62 curve over a 239 bit binary field
  c2tnb239v2: X9.62 curve over a 239 bit binary field
  c2tnb239v3: X9.62 curve over a 239 bit binary field
  c2pnb272w1: X9.62 curve over a 272 bit binary field
  c2pnb304w1: X9.62 curve over a 304 bit binary field
  c2tnb359v1: X9.62 curve over a 359 bit binary field
  c2pnb368w1: X9.62 curve over a 368 bit binary field
  c2tnb431r1: X9.62 curve over a 431 bit binary field
  wap-wsg-idm-ecid-wtls1: WTLS curve over a 113 bit binary field
  wap-wsg-idm-ecid-wtls3: NIST/SECG/WTLS curve over a 163 bit binary field
  wap-wsg-idm-ecid-wtls4: SECG curve over a 113 bit binary field
  wap-wsg-idm-ecid-wtls5: X9.62 curve over a 163 bit binary field
  wap-wsg-idm-ecid-wtls6: SECG/WTLS curve over a 112 bit prime field
  wap-wsg-idm-ecid-wtls7: SECG/WTLS curve over a 160 bit prime field
  wap-wsg-idm-ecid-wtls8: WTLS curve over a 112 bit prime field
  wap-wsg-idm-ecid-wtls9: WTLS curve over a 160 bit prime field
  wap-wsg-idm-ecid-wtls10: NIST/SECG/WTLS curve over a 233 bit binary field
  wap-wsg-idm-ecid-wtls11: NIST/SECG/WTLS curve over a 233 bit binary field
  wap-wsg-idm-ecid-wtls12: WTLS curve over a 224 bit prime field
  Oakley-EC2N-3:
        IPSec/IKE/Oakley curve #3 over a 155 bit binary field.
        Not suitable for ECDSA.
        Questionable extension field!
  Oakley-EC2N-4:
        IPSec/IKE/Oakley curve #4 over a 185 bit binary field.
        Not suitable for ECDSA.
        Questionable extension field!
  brainpoolP160r1: RFC 5639 curve over a 160 bit prime field
  brainpoolP160t1: RFC 5639 curve over a 160 bit prime field
  brainpoolP192r1: RFC 5639 curve over a 192 bit prime field
  brainpoolP192t1: RFC 5639 curve over a 192 bit prime field
  brainpoolP224r1: RFC 5639 curve over a 224 bit prime field
  brainpoolP224t1: RFC 5639 curve over a 224 bit prime field
  brainpoolP256r1: RFC 5639 curve over a 256 bit prime field
  brainpoolP256t1: RFC 5639 curve over a 256 bit prime field
  brainpoolP320r1: RFC 5639 curve over a 320 bit prime field
  brainpoolP320t1: RFC 5639 curve over a 320 bit prime field
  brainpoolP384r1: RFC 5639 curve over a 384 bit prime field
  brainpoolP384t1: RFC 5639 curve over a 384 bit prime field
  brainpoolP512r1: RFC 5639 curve over a 512 bit prime field
  brainpoolP512t1: RFC 5639 curve over a 512 bit prime field
  SM2       : SM2 curve over a 256 bit prime field

比较每种椭圆曲线的质数域位数, 挑出最大的那个.

sect571k1 : NIST/SECG curve over a 571 bit binary field
sect571r1 : NIST/SECG curve over a 571 bit binary field

可知, 质数域位数最大的椭圆曲线有2个 : sect571k1 或者 sect571r1, 位数都是571位.

笔记

将 openssl ecparam -list_curves 实现迁移到自己的demo工程

想看看官方怎么实现的这个命令.

/*!
* \file exp017_ecparam_list_curves.cpp
* \note 看看openssl如何实现命令 openssl ecparam -list_curves
*/

#include "my_openSSL_lib.h"
#include <openssl/crypto.h>
#include <openssl/bio.h>
#include <openssl/ec.h>
#include <openssl/objects.h>

#include <stdlib.h>
#include <stdio.h>
#include <assert.h>

#include "CMemHookRec.h"

void my_openssl_app();
int list_builtin_curves(BIO* out);

int main(int argc, char** argv)
{
	setvbuf(stdout, NULL, _IONBF, 0); // 清掉stdout缓存, 防止调用printf时阻塞
	mem_hook();

	my_openssl_app();

	mem_unhook();

    /*! run result
    list_builtin_curves, cnt = 82
    --------------------
    secp112r1           : -20SECG/WTLS curve over a 112 bit prime field
    secp112r2           : -20SECG curve over a 112 bit prime field
    secp128r1           : -20SECG curve over a 128 bit prime field
    secp128r2           : -20SECG curve over a 128 bit prime field
    secp160k1           : -20SECG curve over a 160 bit prime field
    secp160r1           : -20SECG curve over a 160 bit prime field
    secp160r2           : -20SECG/WTLS curve over a 160 bit prime field
    secp192k1           : -20SECG curve over a 192 bit prime field
    secp224k1           : -20SECG curve over a 224 bit prime field
    secp224r1           : -20NIST/SECG curve over a 224 bit prime field
    secp256k1           : -20SECG curve over a 256 bit prime field
    secp384r1           : -20NIST/SECG curve over a 384 bit prime field
    secp521r1           : -20NIST/SECG curve over a 521 bit prime field
    prime192v1          : -20NIST/X9.62/SECG curve over a 192 bit prime field
    prime192v2          : -20X9.62 curve over a 192 bit prime field
    prime192v3          : -20X9.62 curve over a 192 bit prime field
    prime239v1          : -20X9.62 curve over a 239 bit prime field
    prime239v2          : -20X9.62 curve over a 239 bit prime field
    prime239v3          : -20X9.62 curve over a 239 bit prime field
    prime256v1          : -20X9.62/SECG curve over a 256 bit prime field
    sect113r1           : -20SECG curve over a 113 bit binary field
    sect113r2           : -20SECG curve over a 113 bit binary field
    sect131r1           : -20SECG/WTLS curve over a 131 bit binary field
    sect131r2           : -20SECG curve over a 131 bit binary field
    sect163k1           : -20NIST/SECG/WTLS curve over a 163 bit binary field
    sect163r1           : -20SECG curve over a 163 bit binary field
    sect163r2           : -20NIST/SECG curve over a 163 bit binary field
    sect193r1           : -20SECG curve over a 193 bit binary field
    sect193r2           : -20SECG curve over a 193 bit binary field
    sect233k1           : -20NIST/SECG/WTLS curve over a 233 bit binary field
    sect233r1           : -20NIST/SECG/WTLS curve over a 233 bit binary field
    sect239k1           : -20SECG curve over a 239 bit binary field
    sect283k1           : -20NIST/SECG curve over a 283 bit binary field
    sect283r1           : -20NIST/SECG curve over a 283 bit binary field
    sect409k1           : -20NIST/SECG curve over a 409 bit binary field
    sect409r1           : -20NIST/SECG curve over a 409 bit binary field
    sect571k1           : -20NIST/SECG curve over a 571 bit binary field // !!! best one
    sect571r1           : -20NIST/SECG curve over a 571 bit binary field // !!! best one
    c2pnb163v1          : -20X9.62 curve over a 163 bit binary field
    c2pnb163v2          : -20X9.62 curve over a 163 bit binary field
    c2pnb163v3          : -20X9.62 curve over a 163 bit binary field
    c2pnb176v1          : -20X9.62 curve over a 176 bit binary field
    c2tnb191v1          : -20X9.62 curve over a 191 bit binary field
    c2tnb191v2          : -20X9.62 curve over a 191 bit binary field
    c2tnb191v3          : -20X9.62 curve over a 191 bit binary field
    c2pnb208w1          : -20X9.62 curve over a 208 bit binary field
    c2tnb239v1          : -20X9.62 curve over a 239 bit binary field
    c2tnb239v2          : -20X9.62 curve over a 239 bit binary field
    c2tnb239v3          : -20X9.62 curve over a 239 bit binary field
    c2pnb272w1          : -20X9.62 curve over a 272 bit binary field
    c2pnb304w1          : -20X9.62 curve over a 304 bit binary field
    c2tnb359v1          : -20X9.62 curve over a 359 bit binary field
    c2pnb368w1          : -20X9.62 curve over a 368 bit binary field
    c2tnb431r1          : -20X9.62 curve over a 431 bit binary field
    wap-wsg-idm-ecid-wtls1: -20WTLS curve over a 113 bit binary field
    wap-wsg-idm-ecid-wtls3: -20NIST/SECG/WTLS curve over a 163 bit binary field
    wap-wsg-idm-ecid-wtls4: -20SECG curve over a 113 bit binary field
    wap-wsg-idm-ecid-wtls5: -20X9.62 curve over a 163 bit binary field
    wap-wsg-idm-ecid-wtls6: -20SECG/WTLS curve over a 112 bit prime field
    wap-wsg-idm-ecid-wtls7: -20SECG/WTLS curve over a 160 bit prime field
    wap-wsg-idm-ecid-wtls8: -20WTLS curve over a 112 bit prime field
    wap-wsg-idm-ecid-wtls9: -20WTLS curve over a 160 bit prime field
    wap-wsg-idm-ecid-wtls10: -20NIST/SECG/WTLS curve over a 233 bit binary field
    wap-wsg-idm-ecid-wtls11: -20NIST/SECG/WTLS curve over a 233 bit binary field
    wap-wsg-idm-ecid-wtls12: -20WTLS curve over a 224 bit prime field
    Oakley-EC2N-3       : -20
        IPSec/IKE/Oakley curve #3 over a 155 bit binary field.
        Not suitable for ECDSA.
        Questionable extension field!
    Oakley-EC2N-4       : -20
        IPSec/IKE/Oakley curve #4 over a 185 bit binary field.
        Not suitable for ECDSA.
        Questionable extension field!
    brainpoolP160r1     : -20RFC 5639 curve over a 160 bit prime field
    brainpoolP160t1     : -20RFC 5639 curve over a 160 bit prime field
    brainpoolP192r1     : -20RFC 5639 curve over a 192 bit prime field
    brainpoolP192t1     : -20RFC 5639 curve over a 192 bit prime field
    brainpoolP224r1     : -20RFC 5639 curve over a 224 bit prime field
    brainpoolP224t1     : -20RFC 5639 curve over a 224 bit prime field
    brainpoolP256r1     : -20RFC 5639 curve over a 256 bit prime field
    brainpoolP256t1     : -20RFC 5639 curve over a 256 bit prime field
    brainpoolP320r1     : -20RFC 5639 curve over a 320 bit prime field
    brainpoolP320t1     : -20RFC 5639 curve over a 320 bit prime field
    brainpoolP384r1     : -20RFC 5639 curve over a 384 bit prime field
    brainpoolP384t1     : -20RFC 5639 curve over a 384 bit prime field
    brainpoolP512r1     : -20RFC 5639 curve over a 512 bit prime field
    brainpoolP512t1     : -20RFC 5639 curve over a 512 bit prime field
    SM2                 : -20SM2 curve over a 256 bit prime field
    --------------------
    free map, g_mem_hook_map.size() = 0
    */

	return 0;
}

void my_openssl_app()
{
    BIO* bio_out = NULL;

    do {
        bio_out = BIO_new_fp(stdout, 0);
        if (NULL == bio_out)
        {
            break;
        }

        list_builtin_curves(bio_out);

    } while (false);

    if (NULL != bio_out)
    {
        BIO_free(bio_out);
        bio_out = NULL;
    }
}

int list_builtin_curves(BIO* out)
{
    int ret = 0;
    EC_builtin_curve* curves = NULL;
    size_t n, crv_len = EC_get_builtin_curves(NULL, 0);

    BIO_printf(out, "list_builtin_curves, cnt = %d\n", crv_len);

    curves = (EC_builtin_curve*)OPENSSL_malloc(sizeof(*curves) * crv_len);
    if (!EC_get_builtin_curves(curves, crv_len))
    {
        BIO_printf(out, "err\n");
        goto end;
    }


    BIO_printf(out, "--------------------\n");

    for (n = 0; n < crv_len; n++) {
        const char* comment = curves[n].comment;
        const char* sname = OBJ_nid2sn(curves[n].nid);

        if (comment == NULL)
            comment = "CURVE DESCRIPTION NOT AVAILABLE";
        if (sname == NULL)
            sname = "";

        BIO_printf(out, "  %-20s: -20%s\n", sname, comment);
    }

    BIO_printf(out, "--------------------\n");

    ret = 1;
end:
    OPENSSL_free(curves);
    return ret;
}

备注

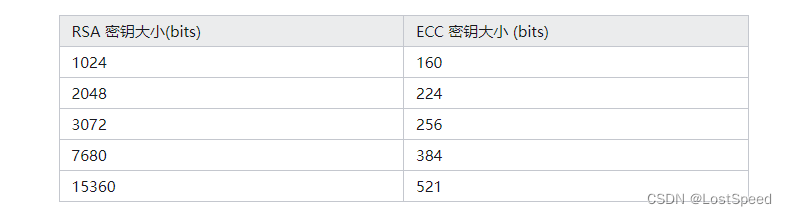

在这里插入图片描述
从查到的资料看, ECC521就比普通的RSA位数强多了.
现在主流网站用的RSA证书位数都是4096(e.g. MS主站)
sect571k1, sect571r1的位数是571位, 强度应该更高吧.

END

LostSpeed
关注
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
