MyBatis-Plus
1. 什么是MyBatis-Plus
官网链接:https://mybatis.plus/
版本发布历史:https://github.com/baomidou/mybatis-plus/blob/3.0/CHANGELOG.md
1.1 简介
MyBatis-Plus(简称 MP)是一个 MyBatis 的增强工具,在 MyBatis 的基础上只做增强不做改变,为简化开发、提高效率而生。
愿景是成为 MyBatis 最好的搭档,就像 魂斗罗 中的 1P、2P,基友搭配,效率翻倍。
1.2 特性
- 无侵入:只做增强不做改变,引入它不会对现有工程产生影响,如丝般顺滑
- 损耗小:启动即会自动注入基本 CURD,性能基本无损耗,直接面向对象操作
- 强大的 CRUD 操作:内置通用 Mapper、通用 Service,仅仅通过少量配置即可实现单表大部分 CRUD 操作,更有强大的条件构造器,满足各类使用需求
- 支持 Lambda 形式调用:通过 Lambda 表达式,方便的编写各类查询条件,无需再担心字段写错
- 支持主键自动生成:支持多达 4 种主键策略(内含分布式唯一 ID 生成器 - Sequence),可自由配置,完美解决主键问题
- 支持 ActiveRecord 模式:支持 ActiveRecord 形式调用,实体类只需继承 Model 类即可进行强大的 CRUD 操作
- 支持自定义全局通用操作:支持全局通用方法注入( Write once, use anywhere )
- 内置代码生成器:采用代码或者 Maven 插件可快速生成 Mapper 、 Model 、 Service 、 Controller 层代码,支持模板引擎,更有超多自定义配置等您来使用
- 内置分页插件:基于 MyBatis 物理分页,开发者无需关心具体操作,配置好插件之后,写分页等同于普通 List 查询
- 分页插件支持多种数据库:支持 MySQL、MariaDB、Oracle、DB2、H2、HSQL、SQLite、Postgre、SQLServer 等多种数据库
- 内置性能分析插件:可输出 Sql 语句以及其执行时间,建议开发测试时启用该功能,能快速揪出慢查询
- 内置全局拦截插件:提供全表 delete 、 update 操作智能分析阻断,也可自定义拦截规则,预防误操作
1.3 支持数据库
任何能使用
mybatis
进行 crud, 并且支持标准 sql 的数据库

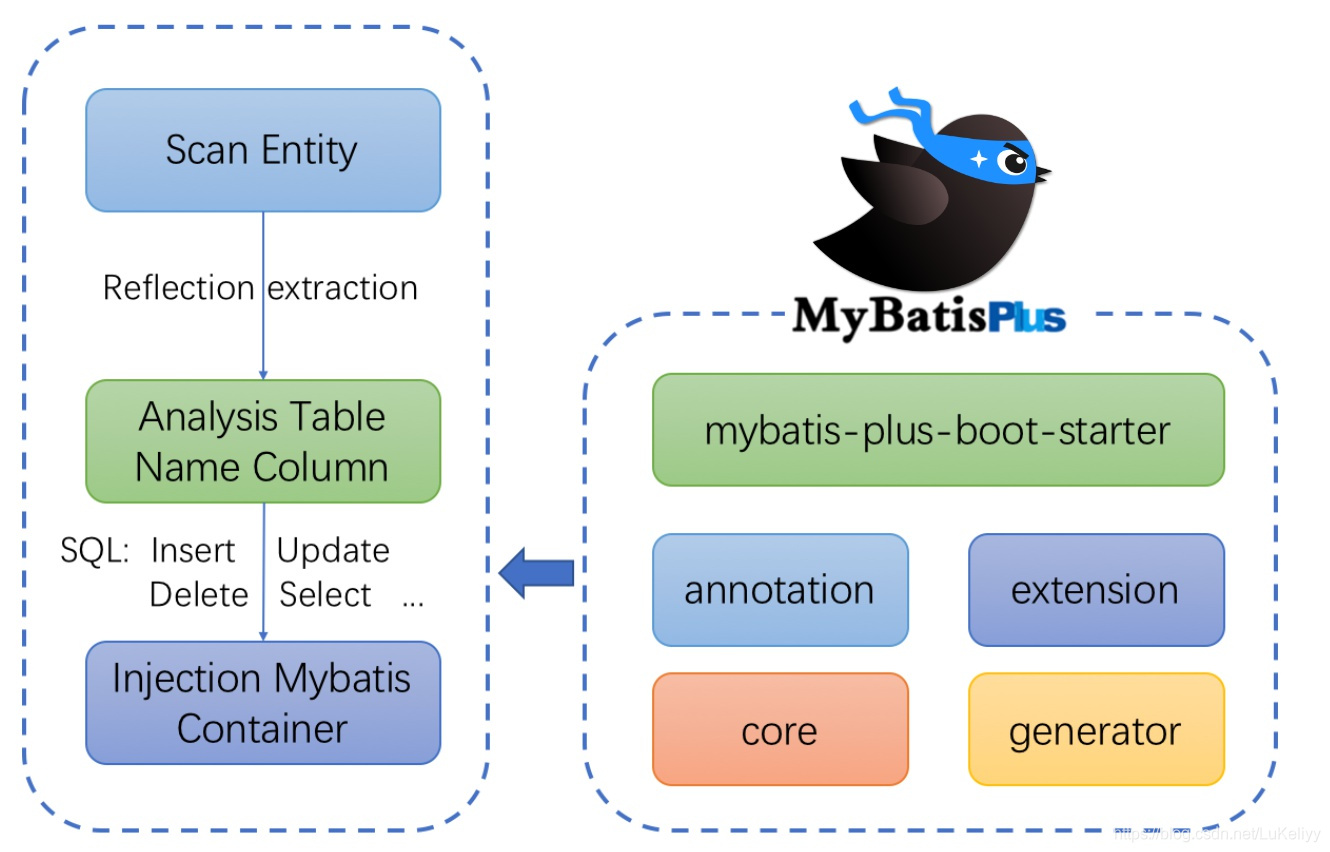

1.4 框架结构
2. 快速应用
2.1 准备数据库表
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user` (
`id` int(0) NOT NULL AUTO_INCREMENT COMMENT '系统主键',
`account` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '账号',
`password` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '密码',
`name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '用户名',
`head` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '头像',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8 COLLATE = utf8_general_ci COMMENT = '管理员用户表';
INSERT INTO `user` VALUES (1, 'admin', '123456', '张三', '0.gif');
INSERT INTO `user` VALUES (2, 'test', 'test', '测试用户', '');
INSERT INTO `user` VALUES (3, 'demo', 'demo01', '示例用户', NULL);
INSERT INTO `user` VALUES (4, 'zhangsan', '123456', '张三', NULL);
INSERT INTO `user` VALUES (5, 'lisi', 'lisi123', '李四', NULL);
INSERT INTO `user` VALUES (6, 't16admin', 'abcdef', '管理员', NULL);
INSERT INTO `user` VALUES (7, 'adminn', '111111', '欧阳', NULL);
2.2 搭建环境
2.2.1 创建项目添加依赖
配置父模块
<!--管理spring-boot的版本-->
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.2.5.RELEASE</version>
</parent>
添加依赖的jar包
<dependencies>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
</dependency>
<!--web启动器-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<!--JDBC驱动依赖-->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
</dependency>
<!--mybatis-plus启动器-->
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-boot-starter</artifactId>
<version>3.4.0</version>
</dependency>
<!--代码生成器依赖-->
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-generator</artifactId>
<version>3.4.0</version>
</dependency>
<!--单元测试启动器-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<exclusions>
<exclusion>
<groupId>org.junit.vintage</groupId>
<artifactId>junit-vintage-engine</artifactId>
</exclusion>
</exclusions>
</dependency>
</dependencies>
2.2.2 配置数据源
# 配置数据源
spring:
datasource:
driver-class-name: com.mysql.cj.jdbc.Driver
url: jdbc:mysql://www.xxx.com:13307/forum?serverTimezone=Asia/Shanghai
username: customer
password: customer
2.2.3 添加Mapper扫描注解
在 Spring Boot 启动类中添加
@MapperScan
注解,扫描 Mapper 文件夹
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
@MapperScan("com.luke.frame.mybatis.plus.mapper")
public class App {
public static void main(String[] args) {
SpringApplication.run(App.class, args);
}
}
2.3 完成MyBatis-Plus的使用
2.3.1 编写数据库实体类
package com.luke.frame.mybatis.plus.domain.entity;
import lombok.Data;
import java.io.Serializable;
@Data
public class User implements Serializable {
private Integer id;
private String account;
private String password;
private String name;
private String head;
}
2.3.2 编写Mapper
需要继承BaseMapper
package com.luke.frame.mybatis.plus.mapper;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.xuetang9.frame.mybatis.plus.domain.entity.User;
public interface UserMapper extends BaseMapper<User> {
}
2.3.2 测试Mapper
package com.luke.frame.mybatis.plus.mapper;
import com.luke.frame.mybatis.plus.domain.entity.User;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import static org.junit.jupiter.api.Assertions.*;
@SpringBootTest
class UserMapperTest {
@Autowired
private UserMapper userMapper;
@Test
public void testUserMapper(){
User user = userMapper.selectById(1);
System.out.println(user);
assertNotEquals(null,user);
}
}

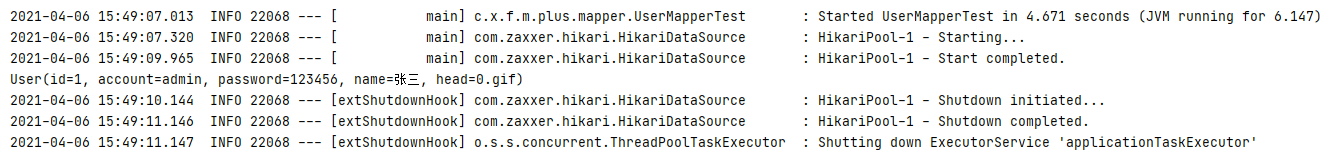

运行测试结果如下图
3. MVC项目中引入
前面演示了在Spring Boot项目中的引入,同样MP也支持在MVC中引用
3.1 引入jar包
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus</artifactId>
<version>3.4.0</version>
</dependency>
3.2 配置
配置 MapperScan
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<property name="basePackage" value="com.baomidou.mybatisplus.samples.quickstart.mapper"/>
</bean>
调整 SqlSessionFactory 为 MyBatis-Plus 的 SqlSessionFactory
<bean id="sqlSessionFactory" class="com.baomidou.mybatisplus.extension.spring.MybatisSqlSessionFactoryBean">
<property name="dataSource" ref="dataSource"/>
</bean>
示例参考地址:https://github.com/baomidou/mybatis-plus-samples/tree/master/mybatis-plus-sample-quickstart-springmvc
4. 常用配置
官网地址:https://mybatis.plus/config/#%E5%9F%BA%E6%9C%AC%E9%85%8D%E7%BD%AE
5. 实体类常用注解
官网地址:https://mybatis.plus/guide/annotation.html
6. 代码生成器
AutoGenerator 是 MyBatis-Plus 的代码生成器,通过 AutoGenerator 可以快速生成 Entity、Mapper、Mapper XML、Service、Controller 等各个模块的代码,极大的提升了开发效率。
这里介绍两种方式,第一种自己使用AutoGenerator构建代码生成器,第二种使用开源UI框架,首先来看第一种。
6.1 控制台构建代码生成器

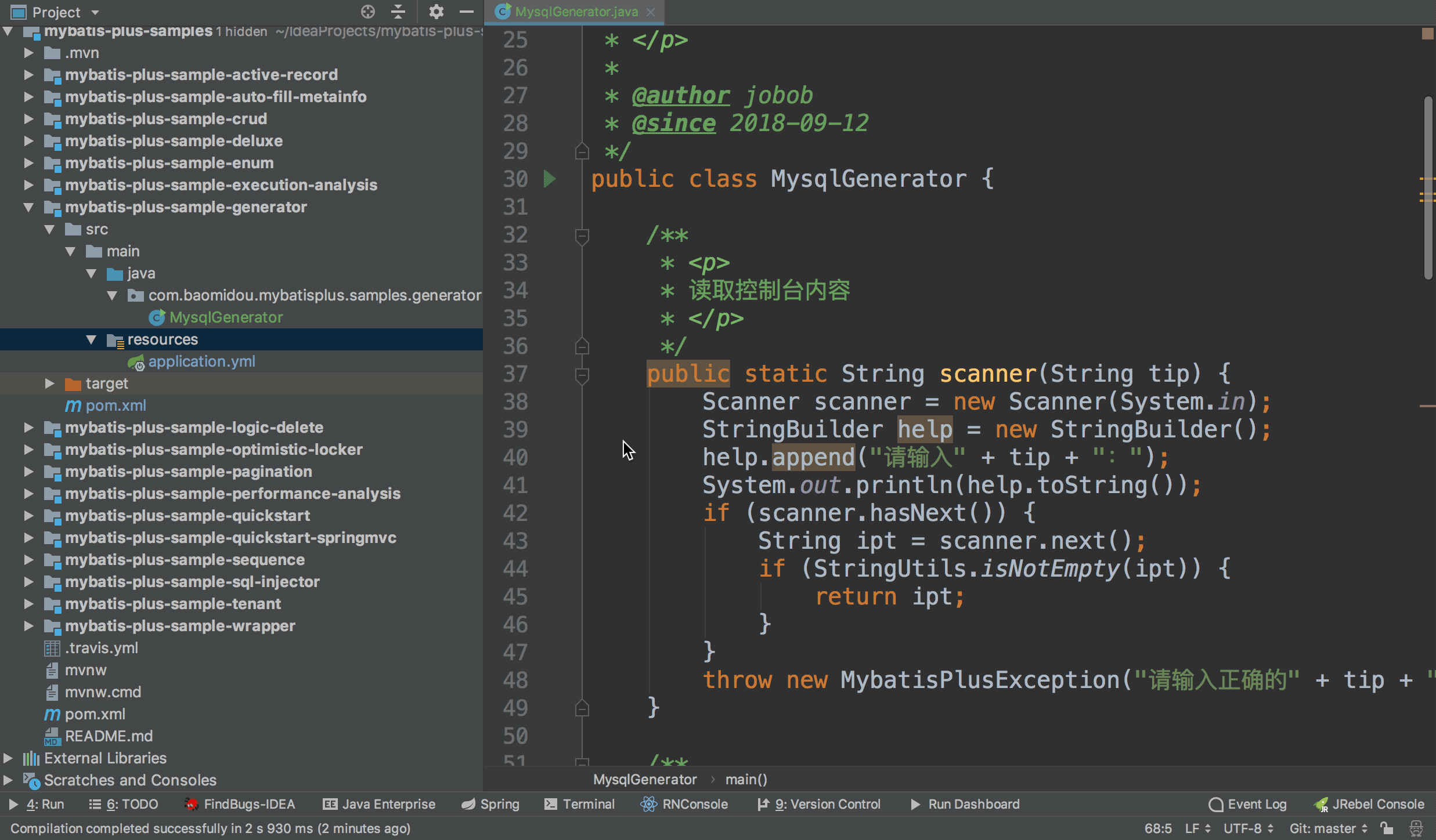

官网演示效果
下面是引入步骤
6.1.1 添加依赖
MyBatis-Plus 从 3.0.3
之后移除了代码生成器与模板引擎的默认依赖,需要手动添加相关依赖:
-
添加
代码生成器
依赖<dependency> <groupId>com.baomidou</groupId> <artifactId>mybatis-plus-generator</artifactId> <version>3.4.0</version> </dependency>
-
添加
模板引擎
依赖,MyBatis-Plus 支持 Velocity(默认)、Freemarker、Beetl,用户可以选择自己熟悉的模板引擎,如果都不满足您的要求,可以采用自定义模板引擎。Velocity(默认):
<dependency> <groupId>org.apache.velocity</groupId> <artifactId>velocity-engine-core</artifactId> <version>2.2</version> </dependency>
Freemarker:
<dependency> <groupId>org.freemarker</groupId> <artifactId>freemarker</artifactId> <version>2.3.30</version> </dependency>
Beetl:
<dependency> <groupId>com.ibeetl</groupId> <artifactId>beetl</artifactId> <version>3.2.4.RELEASE</version> </dependency>
注意!如果您选择了非默认引擎,需要在 AutoGenerator 中 设置模板引擎。
AutoGenerator generator = new AutoGenerator(); // set freemarker engine generator.setTemplateEngine(new FreemarkerTemplateEngine()); // set beetl engine generator.setTemplateEngine(new BeetlTemplateEngine()); // set custom engine (reference class is your custom engine class) generator.setTemplateEngine(new CustomTemplateEngine());
6.1.2 编写配置
MyBatis-Plus 的代码生成器提供了大量的自定义参数供用户选择,能够满足绝大部分人的使用需求。
-
配置 GlobalConfig
GlobalConfig globalConfig = new GlobalConfig(); globalConfig.setOutputDir(System.getProperty("user.dir") + "/src/main/java"); globalConfig.setAuthor("luke"); globalConfig.setOpen(false);
-
配置 DataSourceConfig
DataSourceConfig dataSourceConfig = new DataSourceConfig(); dataSourceConfig.setUrl("jdbc:mysql://localhost:3306/ant?useUnicode=true&useSSL=false&characterEncoding=utf8"); dataSourceConfig.setDriverName("com.mysql.cj.jdbc.Driver"); dataSourceConfig.setUsername("root"); dataSourceConfig.setPassword("password");
更多详细配置,请参考代码生成器配置一文。
6.1.3 完整示例
package com.luke.frame.mybatis.plus.generator;
import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.generator.AutoGenerator;
import com.baomidou.mybatisplus.generator.config.DataSourceConfig;
import com.baomidou.mybatisplus.generator.config.GlobalConfig;
import com.baomidou.mybatisplus.generator.config.PackageConfig;
import com.baomidou.mybatisplus.generator.config.StrategyConfig;
import com.baomidou.mybatisplus.generator.config.rules.NamingStrategy;
public class MySqlGenerator {
public static void main(String[] args) {
// 创建自动生成器对象
AutoGenerator autoGenerator = new AutoGenerator();
// 1. 创建数据源配置对象
DataSourceConfig dataSourceConfig = new DataSourceConfig();
dataSourceConfig.setDriverName("com.mysql.cj.jdbc.Driver");
dataSourceConfig.setUrl("jdbc:mysql://www.xxx.com:13307/forum?serverTimezone=Asia/Shanghai");
dataSourceConfig.setUsername("customer");
dataSourceConfig.setPassword("customer");
autoGenerator.setDataSource(dataSourceConfig);
// 2. 创建全局配置对象
GlobalConfig globalConfig = new GlobalConfig();
// 设置输出路径
String root = System.getProperty("user.dir");
globalConfig.setOutputDir(root + "/src/main/java");
// 设置作者
globalConfig.setAuthor("luke");
// 设置是否打开输出目录
globalConfig.setOpen(false);
// 覆盖现有的文件
globalConfig.setFileOverride(true);
// 启用Swagger注解
globalConfig.setSwagger2(true);
// 数据库主键自增
globalConfig.setIdType(IdType.AUTO);
// 设置全局配置
autoGenerator.setGlobalConfig(globalConfig);
// 3. 创建包配置
PackageConfig packageConfig = new PackageConfig();
// 设置父包名
packageConfig.setParent("com.xuetang9.frame.mybatis.plus");
// 设置实体类所在的包
packageConfig.setEntity("domain.entity");
// 设置Mapper接口所在的包
packageConfig.setMapper("mapper");
// 设置xml文件所在的包
packageConfig.setXml("mapper");
autoGenerator.setPackageInfo(packageConfig);
// 4. 生成策略配置
StrategyConfig strategyConfig = new StrategyConfig();
// 实体类启用字段注解
strategyConfig.setEntityTableFieldAnnotationEnable(true);
// 设置下划线转驼峰
strategyConfig.setColumnNaming(NamingStrategy.underline_to_camel);
autoGenerator.setStrategy(strategyConfig);
// 5. 执行生成器
autoGenerator.execute();
}
}
6.1.4 自定模板
参考官方说明:https://mybatis.plus/guide/generator.html#%E8%87%AA%E5%AE%9A%E4%B9%89%E6%A8%A1%E6%9D%BF%E5%BC%95%E6%93%8E
6.2 开源UI代码生成器
开源地址:https://github.com/davidfantasy/mybatis-plus-generator-ui
提供交互式的Web UI用于生成兼容mybatis-plus框架的相关功能代码,包括Entity,Mapper,Mapper.xml,Service,Controller等 ,可以自定义模板以及各类输出参数,也可通过SQL查询语句直接生成代码。
6.2.1 添加依赖
<dependency>
<groupId>com.github.davidfantasy</groupId>
<artifactId>mybatis-plus-generator-ui</artifactId>
<version>1.4.0</version>
<scope>test</scope>
</dependency>
6.2.2 代码资源生成服务器
package com.luke.frame.mybatis.plus;
import com.github.davidfantasy.mybatisplus.generatorui.GeneratorConfig;
import com.github.davidfantasy.mybatisplus.generatorui.MybatisPlusToolsApplication;
public class MyBatisPlusGeneratorUIServer {
public static void main(String[] args) {
GeneratorConfig config = GeneratorConfig.builder()
.driverClassName("com.mysql.cj.jdbc.Driver")
.jdbcUrl("jdbc:mysql://www.xxx.com:13307/forum?serverTimezone=Asia/Shanghai")
.userName("customer")
.password("customer")
.basePackage("com.luke.frame.mybatis.plus")
.port(8888)
.build();
MybatisPlusToolsApplication.run(config);
}
}

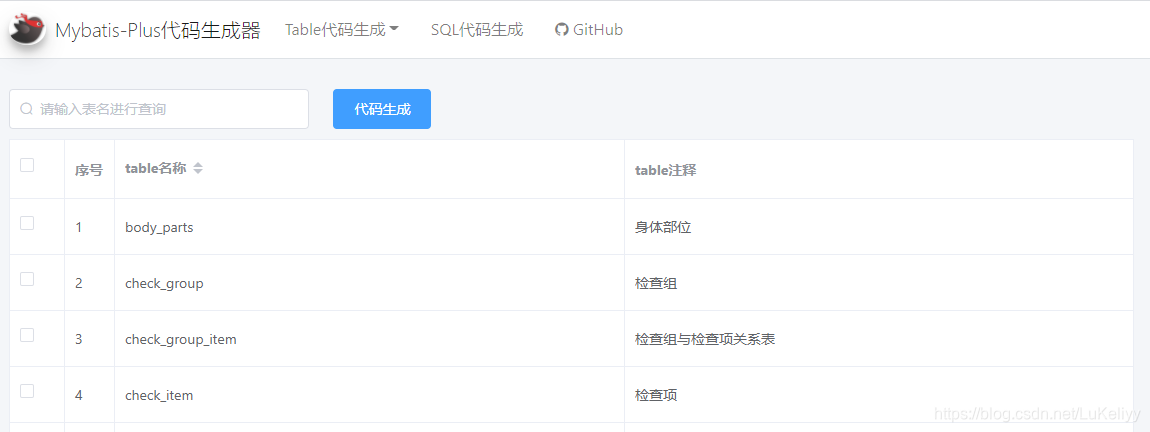

启动服务,访问http://localhost:8888,就可以看到类似下图的UI界面。

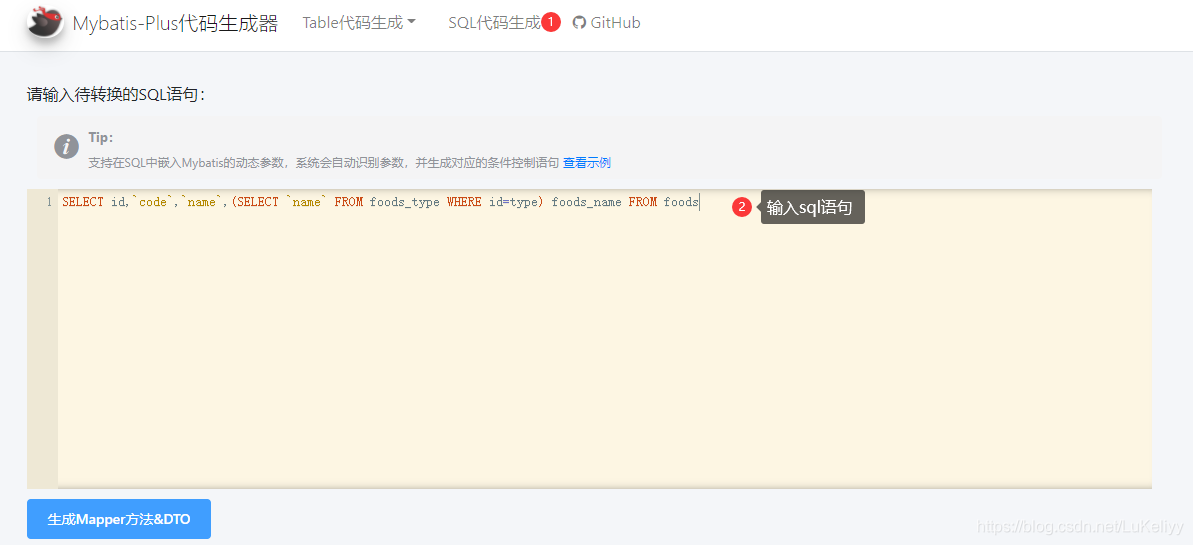

下面来演示以下链表查询
SELECT id,`code`,`name`,(SELECT `name` FROM foods_type WHERE id=type) foods_name FROM foods
生成后示例代码
<mapper namespace="com.luke.quickstartmp.health.mapper.PartsMapper">
<resultMap id="SelectAllResultDtoMap" type="com.luke.quickstartmp.health.dto.SelectAllResultDto">
<result column="id" property="id"/>
<result column="code" property="code"/>
<result column="name" property="name"/>
<result column="foods_name" property="foodsName"/>
</resultMap>
<!--Date:2020-11-10,由mybatis-plus-generator-ui自动生成-->
<select id="selectAll" resultMap="SelectAllResultDtoMap">SELECT id,`code`,`name`,(SELECT `name` FROM foods_type WHERE id=type) foods_name FROM foods</select>
</mapper>
7. CRUD接口
7.1 Service CRUD 接口
说明:
- 通用 Service CRUD 封装
IService
接口,进一步封装 CRUD 采用get 查询单行
remove 删除
list 查询集合
page 分页
前缀命名方式区分Mapper
层避免混淆- 泛型
T
为任意实体对象- 建议如果存在自定义通用 Service 方法的可能,请创建自己的
IBaseService
继承Mybatis-Plus
提供的基类- 对象
Wrapper
为 条件构造器
Save
// 插入一条记录(选择字段,策略插入)
boolean save(T entity);
// 插入(批量)
boolean saveBatch(Collection<T> entityList);
// 插入(批量)
boolean saveBatch(Collection<T> entityList, int batchSize);
参数说明
类型 | 参数名 | 描述 |
---|---|---|
T | entity | 实体对象 |
Collection | entityList | 实体对象集合 |
int | batchSize | 插入批次数量 |
SaveOrUpdate
// TableId 注解存在更新记录,否插入一条记录
boolean saveOrUpdate(T entity);
// 根据updateWrapper尝试更新,否继续执行saveOrUpdate(T)方法
boolean saveOrUpdate(T entity, Wrapper<T> updateWrapper);
// 批量修改插入
boolean saveOrUpdateBatch(Collection<T> entityList);
// 批量修改插入
boolean saveOrUpdateBatch(Collection<T> entityList, int batchSize);
参数说明
类型 | 参数名 | 描述 |
---|---|---|
T | entity | 实体对象 |
Wrapper | updateWrapper | 实体对象封装操作类 UpdateWrapper |
Collection | entityList | 实体对象集合 |
int | batchSize | 插入批次数量 |
Remove
// 根据 entity 条件,删除记录
boolean remove(Wrapper<T> queryWrapper);
// 根据 ID 删除
boolean removeById(Serializable id);
// 根据 columnMap 条件,删除记录
boolean removeByMap(Map<String, Object> columnMap);
// 删除(根据ID 批量删除)
boolean removeByIds(Collection<? extends Serializable> idList);
参数说明
类型 | 参数名 | 描述 |
---|---|---|
Wrapper | queryWrapper | 实体包装类 QueryWrapper |
Serializable | id | 主键ID |
Map<String, Object> | columnMap | 表字段 map 对象 |
Collection<? extends Serializable> | idList | 主键ID列表 |
Update
// 根据 UpdateWrapper 条件,更新记录 需要设置sqlset
boolean update(Wrapper<T> updateWrapper);
// 根据 whereEntity 条件,更新记录
boolean update(T entity, Wrapper<T> updateWrapper);
// 根据 ID 选择修改
boolean updateById(T entity);
// 根据ID 批量更新
boolean updateBatchById(Collection<T> entityList);
// 根据ID 批量更新
boolean updateBatchById(Collection<T> entityList, int batchSize);
参数说明
类型 | 参数名 | 描述 |
---|---|---|
Wrapper | updateWrapper | 实体对象封装操作类 UpdateWrapper |
T | entity | 实体对象 |
Collection | entityList | 实体对象集合 |
int | batchSize | 更新批次数量 |
Get
// 根据 ID 查询
T getById(Serializable id);
// 根据 Wrapper,查询一条记录。结果集,如果是多个会抛出异常,随机取一条加上限制条件 wrapper.last("LIMIT 1")
T getOne(Wrapper<T> queryWrapper);
// 根据 Wrapper,查询一条记录
T getOne(Wrapper<T> queryWrapper, boolean throwEx);
// 根据 Wrapper,查询一条记录
Map<String, Object> getMap(Wrapper<T> queryWrapper);
// 根据 Wrapper,查询一条记录
<V> V getObj(Wrapper<T> queryWrapper, Function<? super Object, V> mapper);
参数说明
类型 | 参数名 | 描述 |
---|---|---|
Serializable | id | 主键ID |
Wrapper | queryWrapper | 实体对象封装操作类 QueryWrapper |
boolean | throwEx | 有多个 result 是否抛出异常 |
T | entity | 实体对象 |
Function<? super Object, V> | mapper | 转换函数 |
List
// 查询所有
List<T> list();
// 查询列表
List<T> list(Wrapper<T> queryWrapper);
// 查询(根据ID 批量查询)
Collection<T> listByIds(Collection<? extends Serializable> idList);
// 查询(根据 columnMap 条件)
Collection<T> listByMap(Map<String, Object> columnMap);
// 查询所有列表
List<Map<String, Object>> listMaps();
// 查询列表
List<Map<String, Object>> listMaps(Wrapper<T> queryWrapper);
// 查询全部记录
List<Object> listObjs();
// 查询全部记录
<V> List<V> listObjs(Function<? super Object, V> mapper);
// 根据 Wrapper 条件,查询全部记录
List<Object> listObjs(Wrapper<T> queryWrapper);
// 根据 Wrapper 条件,查询全部记录
<V> List<V> listObjs(Wrapper<T> queryWrapper, Function<? super Object, V> mapper);
参数说明
类型 | 参数名 | 描述 |
---|---|---|
Wrapper | queryWrapper | 实体对象封装操作类 QueryWrapper |
Collection<? extends Serializable> | idList | 主键ID列表 |
Map<?String, Object> | columnMap | 表字段 map 对象 |
Function<? super Object, V> | mapper | 转换函数 |
Page
// 无条件分页查询
IPage<T> page(IPage<T> page);
// 条件分页查询
IPage<T> page(IPage<T> page, Wrapper<T> queryWrapper);
// 无条件分页查询
IPage<Map<String, Object>> pageMaps(IPage<T> page);
// 条件分页查询
IPage<Map<String, Object>> pageMaps(IPage<T> page, Wrapper<T> queryWrapper);
参数说明
类型 | 参数名 | 描述 |
---|---|---|
IPage | page | 分页对象 |
Wrapper | queryWrapper | 实体对象封装操作类 QueryWrapper |
Count
// 查询总记录数
int count();
// 根据 Wrapper 条件,查询总记录数
int count(Wrapper<T> queryWrapper);
参数说明
类型 | 参数名 | 描述 |
---|---|---|
Wrapper | queryWrapper | 实体对象封装操作类 QueryWrapper |
7.2 Mapper CRUD 接口
说明:
- 通用 CRUD 封装BaseMapper接口,为
Mybatis-Plus
启动时自动解析实体表关系映射转换为Mybatis
内部对象注入容器- 泛型
T
为任意实体对象- 参数
Serializable
为任意类型主键Mybatis-Plus
不推荐使用复合主键约定每一张表都有自己的唯一id
主键- 对象
Wrapper
为 条件构造器
Insert
// 插入一条记录
int insert(T entity);
参数说明
类型 | 参数名 | 描述 |
---|---|---|
T | entity | 实体对象 |
Delete
// 根据 entity 条件,删除记录
int delete(@Param(Constants.WRAPPER) Wrapper<T> wrapper);
// 删除(根据ID 批量删除)
int deleteBatchIds(@Param(Constants.COLLECTION) Collection<? extends Serializable> idList);
// 根据 ID 删除
int deleteById(Serializable id);
// 根据 columnMap 条件,删除记录
int deleteByMap(@Param(Constants.COLUMN_MAP) Map<String, Object> columnMap);
参数说明
类型 | 参数名 | 描述 |
---|---|---|
Wrapper | wrapper | 实体对象封装操作类(可以为 null) |
Collection<? extends Serializable> | idList | 主键ID列表(不能为 null 以及 empty) |
Serializable | id | 主键ID |
Map<String, Object> | columnMap | 表字段 map 对象 |
Update
// 根据 whereEntity 条件,更新记录
int update(@Param(Constants.ENTITY) T entity, @Param(Constants.WRAPPER) Wrapper<T> updateWrapper);
// 根据 ID 修改
int updateById(@Param(Constants.ENTITY) T entity);
参数说明
类型 | 参数名 | 描述 |
---|---|---|
T | entity | 实体对象 (set 条件值,可为 null) |
Wrapper | updateWrapper | 实体对象封装操作类(可以为 null,里面的 entity 用于生成 where 语句) |
Select
// 根据 ID 查询
T selectById(Serializable id);
// 根据 entity 条件,查询一条记录
T selectOne(@Param(Constants.WRAPPER) Wrapper<T> queryWrapper);
// 查询(根据ID 批量查询)
List<T> selectBatchIds(@Param(Constants.COLLECTION) Collection<? extends Serializable> idList);
// 根据 entity 条件,查询全部记录
List<T> selectList(@Param(Constants.WRAPPER) Wrapper<T> queryWrapper);
// 查询(根据 columnMap 条件)
List<T> selectByMap(@Param(Constants.COLUMN_MAP) Map<String, Object> columnMap);
// 根据 Wrapper 条件,查询全部记录
List<Map<String, Object>> selectMaps(@Param(Constants.WRAPPER) Wrapper<T> queryWrapper);
// 根据 Wrapper 条件,查询全部记录。注意: 只返回第一个字段的值
List<Object> selectObjs(@Param(Constants.WRAPPER) Wrapper<T> queryWrapper);
// 根据 entity 条件,查询全部记录(并翻页)
IPage<T> selectPage(IPage<T> page, @Param(Constants.WRAPPER) Wrapper<T> queryWrapper);
// 根据 Wrapper 条件,查询全部记录(并翻页)
IPage<Map<String, Object>> selectMapsPage(IPage<T> page, @Param(Constants.WRAPPER) Wrapper<T> queryWrapper);
// 根据 Wrapper 条件,查询总记录数
Integer selectCount(@Param(Constants.WRAPPER) Wrapper<T> queryWrapper);
参数说明
类型 | 参数名 | 描述 |
---|---|---|
Serializable | id | 主键ID |
Wrapper | queryWrapper | 实体对象封装操作类(可以为 null) |
Collection<? extends Serializable> | idList | 主键ID列表(不能为 null 以及 empty) |
Map<String, Object> | columnMap | 表字段 map 对象 |
IPage | page | 分页查询条件(可以为 RowBounds.DEFAULT) |
7.3 条件构造器
说明:
- 以下出现的第一个入参
boolean condition
表示该条件是否加入最后生成的sql中- 以下代码块内的多个方法均为从上往下补全个别
boolean
类型的入参,默认为true
- 以下出现的泛型
Param
均为Wrapper
的子类实例(均具有AbstractWrapper
的所有方法)- 以下方法在入参中出现的
R
为泛型,在普通wrapper中是String
,在LambdaWrapper中是函数(例:Entity::getId
,Entity
为实体类,getId
为字段id
的getMethod)- 以下方法入参中的
R column
均表示数据库字段,当R
具体类型为String
时则为数据库字段名(字段名是数据库关键字的自己用转义符包裹!)!而不是实体类数据字段名!!!,另当R
具体类型为SFunction
时项目runtime不支持eclipse自家的编译器!!!- 以下举例均为使用普通wrapper,入参为
Map
和List
的均以json
形式表现!- 使用中如果入参的
Map
或者List
为空,则不会加入最后生成的sql中!!!- 有任何疑问就点开源码看,看不懂函数的点击我学习新知识
警告:
不支持以及不赞成在 RPC 调用中把 Wrapper 进行传输
- wrapper 很重
- 传输 wrapper 可以类比为你的 controller 用 map 接收值(开发一时爽,维护火葬场)
- 正确的 RPC 调用姿势是写一个 DTO 进行传输,被调用方再根据 DTO 执行相应的操作
- 我们拒绝接受任何关于 RPC 传输 Wrapper 报错相关的 issue 甚至 pr
7.3.1 AbstractWrapper
说明:
QueryWrapper(LambdaQueryWrapper) 和 UpdateWrapper(LambdaUpdateWrapper) 的父类
用于生成 sql 的 where 条件, entity 属性也用于生成 sql 的 where 条件
注意: entity 生成的 where 条件与 使用各个 api 生成的 where 条件没有任何关联行为
参考链接:https://baomidou.com/guide/wrapper.html#abstractwrapper
7.3.2 QueryWrapper
说明:
继承自 AbstractWrapper ,自身的内部属性 entity 也用于生成 where 条件
及 LambdaQueryWrapper, 可以通过 new QueryWrapper().lambda() 方法获取
参考链接:https://baomidou.com/guide/wrapper.html#querywrapper
简单使用:
package com.luke.frame.mybatis.plus.mapper;
import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.xuetang9.frame.mybatis.plus.domain.entity.User;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import static org.junit.jupiter.api.Assertions.*;
@SpringBootTest
class UserMapperTest {
@Autowired
private UserMapper userMapper;
@Test
public void testQueryWrapper() {
QueryWrapper<User> queryWrapper = new QueryWrapper<>();
queryWrapper.eq(true, "name", "admin");
queryWrapper.lambda().select(User::getAccount, User::getName);
userMapper.selectList(queryWrapper);
}
}
7.3.3 UpdateWrapper
说明:
继承自
AbstractWrapper
,自身的内部属性entity
也用于生成 where 条件及
LambdaUpdateWrapper
, 可以通过new UpdateWrapper().lambda()
方法获取!
参考链接:https://baomidou.com/guide/wrapper.html#updatewrapper
7.3.4 使用 Wrapper 自定义SQL
需求来源:
在使用了
mybatis-plus
之后, 自定义SQL的同时也想使用Wrapper
的便利应该怎么办?在
mybatis-plus
版本3.0.7
得到了完美解决 版本需要大于或等于3.0.7
, 以下两种方案取其一即可
Service.java
mysqlMapper.getAll(Wrappers.<MysqlData>lambdaQuery().eq(MysqlData::getGroup, 1));
方案一:注解方式 Mapper.java
@Select("select * from mysql_data ${ew.customSqlSegment}")
List<MysqlData> getAll(@Param(Constants.WRAPPER) Wrapper wrapper);
方案二:XML形式 Mapper.xml
<select id="getAll" resultType="MysqlData">
SELECT * FROM mysql_data ${ew.customSqlSegment}
</select>
7.4 分页插件
7.4.1 配置分页拦截器
7.4.1.1 V3.4.0以前使用
@Configuration
@MapperScan("com.baomidou.cloud.service.*.mapper*")
public class MybatisPlusConfig {
@Bean
public PaginationInterceptor paginationInterceptor() {
PaginationInterceptor paginationInterceptor = new PaginationInterceptor();
// 设置请求的页面大于最大页后操作, true调回到首页,false 继续请求 默认false
// paginationInterceptor.setOverflow(false);
// 设置最大单页限制数量,默认 500 条,-1 不受限制
// paginationInterceptor.setLimit(500);
// 开启 count 的 join 优化,只针对部分 left join
paginationInterceptor.setCountSqlParser(new JsqlParserCountOptimize(true));
return paginationInterceptor;
}
}
7.4.1.2 V3.4.0版本使用
package com.luke.frame.mybatis.plus.config;
import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.autoconfigure.ConfigurationCustomizer;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.PaginationInnerInterceptor;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
/**
* @author 老九学堂
* @copyright 老九学堂
*/
@Configuration
@MapperScan("com.xuetang9.frame.mybatis.plus.mapper")
public class MyBatisPlusConfig {
/**
* 新的分页插件,一缓和二缓遵循mybatis的规则,
* 需要设置 MybatisConfiguration#useDeprecatedExecutor = false
* 避免缓存出现问题(该属性会在旧插件移除后一同移除)
*/
@Bean
public MybatisPlusInterceptor mybatisPlusInterceptor() {
MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
interceptor.addInnerInterceptor(new PaginationInnerInterceptor(DbType.MYSQL));
return interceptor;
}
@Bean
public ConfigurationCustomizer configurationCustomizer() {
return configuration -> configuration.setUseDeprecatedExecutor(false);
}
}
7.4.2 使用示例
这里没有条件,所以赋值为空
package com.luke.frame.mybatis.plus.mapper;
import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.xuetang9.frame.mybatis.plus.domain.entity.User;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import static org.junit.jupiter.api.Assertions.*;
@SpringBootTest
class UserMapperTest {
@Autowired
private UserMapper userMapper;
@Test
public void testPage() {
Page<User> userPage = new Page<>();
userPage.setCurrent(2);
userPage.setSize(3);
userMapper.selectPage(userPage,null);
}
}
7.4.3 拦截器参数说明
属性名 | 类型 | 默认值 | 描述 |
---|---|---|---|
overflow | boolean | false | 溢出总页数后是否进行处理(默认不处理,参见 插件#continuePage 方法) |
maxLimit | Long | 单页分页条数限制(默认无限制,参见 插件#handlerLimit 方法) | |
dbType | DbType | 数据库类型(根据类型获取应使用的分页方言,参见 插件#findIDialect 方法) | |
dialect | IDialect | 方言实现类(参见 插件#findIDialect 方法) |
建议单一数据库类型的均设置 dbType
8. 其他使用说明
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import static org.junit.jupiter.api.Assertions.*;
@SpringBootTest
class UserMapperTest {
@Autowired
private UserMapper userMapper;
@Test
public void testPage() {
Page<User> userPage = new Page<>();
userPage.setCurrent(2);
userPage.setSize(3);
userMapper.selectPage(userPage,null);
}
}
### 7.4.3 拦截器参数说明
| 属性名 | 类型 | 默认值 | 描述 |
| :------: | :------: | :----: | :----------------------------------------------------------: |
| overflow | boolean | false | 溢出总页数后是否进行处理(默认不处理,参见 `插件#continuePage` 方法) |
| maxLimit | Long | | 单页分页条数限制(默认无限制,参见 `插件#handlerLimit` 方法) |
| dbType | DbType | | 数据库类型(根据类型获取应使用的分页方言,参见 `插件#findIDialect` 方法) |
| dialect | IDialect | | 方言实现类(参见 `插件#findIDialect` 方法) |
> 建议单一数据库类型的均设置 dbType
# 8. 其他使用说明
查看链接:https://baomidou.com/guide/
