mybatis操作数据库流程
一、MyBatis操作数据库过程

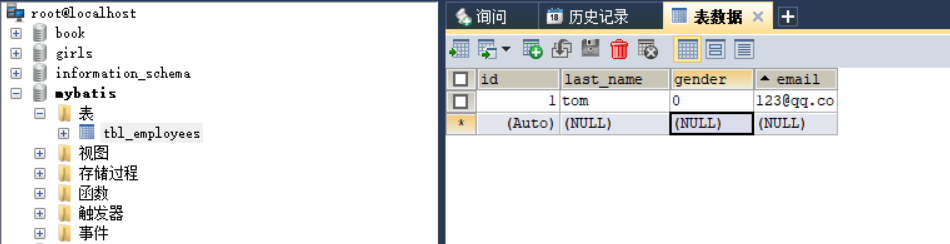

1、创建一张测试表
在mybatis数据库中创建tbl_employees数据表
2、创建对应的javaBean
创建一个javabean类,Employee,用来映射数据表中的数据,数据表中的数据是以对象的形式输出的
package bean;
public class Employee {
private Integer id;
private String lastname;
private String email;
private String gender;
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getLastname() {
return lastname;
}
public void setLastname(String lastname) {
this.lastname = lastname;
}
public String getEmail() {
return email;
}
public void setEmail(String email) {
this.email = email;
}
public String getGender() {
return gender;
}
public void setGender(String gender) {
this.gender = gender;
}
public Employee(Integer id, String lastname, String email, String gender) {
this.id = id;
this.lastname = lastname;
this.email = email;
this.gender = gender;
}
public Employee() {
}
@Override
public String toString() {
return "Employee{" +
"id=" + id +
", lastname='" + lastname + '\'' +
", email='" + email + '\'' +
", gender='" + gender + '\'' +
'}';
}
}
3、创建mybatis配置文件,sql映射文件
mybatis配置文件:
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<!-- 配置 mybatis 的环境 -->
<environments default="mysql">
<!-- 配置 mysql 的环境 -->
<environment id="mysql">
<!-- 配置事务的类型 -->
<transactionManager type="JDBC"/>
<!-- 配置连接数据库的信息:用的是数据源(连接池) -->
<dataSource type="POOLED">
<property name="driver" value="com.mysql.jdbc.Driver"/>
<property name="url" value="jdbc:mysql://localhost:3306/mybatis"/>
<property name="username" value="root"/>
<property name="password" value="730136"/>
</dataSource>
</environment>
</environments>
<!--将我们写好的sql映射文件(EM.xml)一定要注册到全局配置文件中-->
<mappers>
<mapper resource="EM.xml"/>
</mappers>
</configuration>
sql映射文件:
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="mybatis.EM">
<!--
namespace:名称空间,命名规则没有要求
id:sql语句的唯一标识
resultType:返回值类型,返回的是employee类对象,里面的值是全类名
#{id}:从前面java类传递过来的参数中取出id值,相当于占位符
-->
<select id="selectEmp" resultType="bean.Employee">
select id, last_name lastname, email, gender from tbl_employees where id = #{id}
</select>
</mapper>
4、测试
package test;
import bean.Employee;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.Test;
import java.io.IOException;
import java.io.InputStream;
public class MybatisTest {
@Test
/**
* 1、根据xml配置文件(全局配置文件)创建一个 SqlSessionFactory对象
* SqlSessionFactory对象是一个工厂类,其目的是为了创建SqlSession对象
* 2、sql映射文件;配置了每一个sql,以及sql的封装规则等。
* 3、将sql映射文件注册在全局配置文件中
* 4、写代码:
* 1)、根据全局配置文件得到SqlSessionFactory;
* 2)、使用sqlSession工厂,获取到sqlSession对象使用他来执行增删改查
* 一个sqlSession就是代表和数据库的一次会话,用完关闭
* 3)、使用sql的唯一标志来告诉MyBatis执行哪个sql。sql都是保存在sql映射文件中的。
*/
public void test() throws IOException {
//1.读取配置文件
String resource = "mybatis_config.xml";
InputStream inputStream = Resources.getResourceAsStream(resource);
// 2、根据xml配置文件(全局配置文件)创建一个 SqlSessionFactory对象,是一个工厂类,其目的是为了创建SqlSession对象
SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
//3、获取sqlSession实例,能直接执行已经映射的sql语句
SqlSession openSession = sqlSessionFactory.openSession();
try {
//传进来的两个参数,第一个是sql语句的唯一标识符,推荐用namespace+id这种写法,第二个是执行sql语句要用的参数
Employee employee = openSession.selectOne("mybatis.EM.selectEmp", 1);
System.out.println(employee);
}finally {
openSession.close();
inputStream.close();
}
}
}
二、使用接口进行数据库操作
1、创建接口
package bean;
public interface EM {
public Employee getEmpById(Integer id);
}
2、修改sql映射文件信息
主要是namespace和id,要改成接口类对应的信息
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="bean.EM">
<!--
要求:
名称:必须以持久层接口名称命名文件名,扩展名是.xml
namespace:名称空间,指定为接口的全类名
id:sql语句的唯一标识
resultType:返回值类型,返回的是employee类对象,里面的值是全类名
#{id}:从前面java类传递过来的参数中取出id值,相当于占位符
-->
<select id="getEmpById" resultType="bean.Employee">
select id, last_name lastname, email, gender from tbl_employees where id = #{id}
</select>
</mapper>
3、测试
创建出sqlsession对象后,通过它为接口自动的创建一个代理对象,代理对象去执行增删改查方法,而不是直接去增删改查。
EmployeeMapper empMapper = sqlSession.getMapper(EmployeeMapper.class);
注意:
(1)SqlSession 的实例不是线程安全的,因此是不能被共享的。
(2)SqlSession每次使用完成后需要正确关闭,这个关闭操作是必须的。
(3)SqlSession可以直接调用方法的id进行数据库操作,但是我们一般还是推荐使用SqlSession获取到Dao接口的代理类,执行代理对象的方法,可以更安全的进行类型检查操作。
package test1;
import bean.EM;
import bean.Employee;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.Test;
import java.io.IOException;
import java.io.InputStream;
/**
* 1、接口式编程
* 原生: Dao ====> DaoImpl
* mybatis: Mapper ====> xxMapper.xml
*
* 2、SqlSession代表和数据库的一次会话;用完必须关闭;
* 3、SqlSession和connection一样她都是非线程安全。每次使用都应该去获取新的对象。
* 4、mapper接口没有实现类,但是mybatis会为这个接口生成一个代理对象。
* (将接口和xml进行绑定)
* EmployeeMapper empMapper = sqlSession.getMapper(EmployeeMapper.class);
* 5、两个重要的配置文件:
* mybatis的全局配置文件:包含数据库连接池信息,事务管理器信息等...系统运行环境信息
* sql映射文件:保存了每一个sql语句的映射信息:
* 将sql抽取出来。
*/
public class MybatisTest {
@Test
/*
* 1、根据xml配置文件(全局配置文件)创建一个 SqlSessionFactory对象
* SqlSessionFactory对象是一个工厂类,其目的是为了创建SqlSession对象
* 2、sql映射文件;配置了每一个sql,以及sql的封装规则等。
* 3、将sql映射文件注册在全局配置文件中
* 4、写代码:
* 1)、根据全局配置文件得到SqlSessionFactory;
* 2)、使用sqlSession工厂,获取到sqlSession对象使用他来执行增删改查
* 一个sqlSession就是代表和数据库的一次会话,用完关闭
* 3)、使用sql的唯一标志来告诉MyBatis执行哪个sql。sql都是保存在sql映射文件中的。
*/
public void test() throws IOException {
String resource = "mybatis_config.xml";
InputStream inputStream = Resources.getResourceAsStream(resource);
SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
//获取sqlSession实例,能直接执行已经映射的sql语句
SqlSession openSession = sqlSessionFactory.openSession();
try {
//传进来的两个参数,第一个是sql语句的唯一标识符,推荐用namespace+id这种写法,第二个是执行sql语句要用的参数
Employee employee = openSession.selectOne("bean.EM.getEmpById", 1);
System.out.println(employee);
}finally {
openSession.close();
inputStream.close();
}
}
@Test
public void test1() throws IOException {
//1、读取全局配置文件
String resource1 = "mybatis_config.xml";
InputStream is = Resources.getResourceAsStream(resource1);
//2、创建SqlSessionFactory工厂对象
SqlSessionFactory sessionFactory = new SqlSessionFactoryBuilder().build(is);
//3、获取session对象
SqlSession sqlSession = sessionFactory.openSession();
try {
//4、通过session对象获取接口的实现类对象
//会为接口创建一个代理对象,通过代理对象去实现增删改查
EM mapper = sqlSession.getMapper(EM.class);
//5、查找数据库
Employee emp1 = mapper.getEmpById(1);
System.out.println(emp1);
}finally {
sqlSession.close();
is.close();
}
}
}
4、结果
DEBUG 06-06 13:20:25,433 ==> Preparing: select id, last_name lastname, email, gender from tbl_employees where id = ? (BaseJdbcLogger.java:137)
DEBUG 06-06 13:20:25,455 ==> Parameters: 1(Integer) (BaseJdbcLogger.java:137)
DEBUG 06-06 13:20:25,467 <== Total: 1 (BaseJdbcLogger.java:137)
Employee{id=1, lastname='tom', email='123@qq.com', gender='0'}
DEBUG 06-06 13:20:25,505 ==> Preparing: select id, last_name lastname, email, gender from tbl_employees where id = ? (BaseJdbcLogger.java:137)
DEBUG 06-06 13:20:25,505 ==> Parameters: 1(Integer) (BaseJdbcLogger.java:137)
DEBUG 06-06 13:20:25,508 <== Total: 1 (BaseJdbcLogger.java:137)
Employee{id=1, lastname='tom', email='123@qq.com', gender='0'}
Process finished with exit code 0
三、MyBatis-全局配置文件
1、properties属性
(1)创建一个properties文件,将数据库相关信息存放到里面
jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/mybatis
jdbc.username=root
jdbc.password=123456
(2)在全局配置文件中设置如下:
<!--
1、mybatis可以使用properties来引入外部properties配置文件的内容;
resource:引入类路径下的资源
url:引入网络路径或者磁盘路径下的资源
-->
<properties resource="dbconfig.properties"></properties>
<dataSource type="POOLED">
<property name="driver" value="${jdbc.driver}" />
<property name="url" value="${jdbc.url}" />
<property name="username" value="${jdbc.username}" />
<property name="password" value="${jdbc.password}" />
</dataSource>

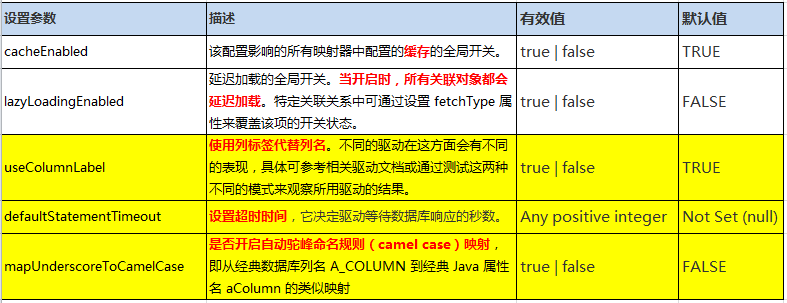

2、settings设置
这是 MyBatis 中极为重要的调整设置,它们会改变MyBatis 的运行时行为。
<!--
2、settings包含很多重要的设置项
setting:用来设置每一个设置项
name:设置项名
value:设置项取值
-->
<settings>
<setting name="mapUnderscoreToCamelCase" value="true"/>
</settings>
3、typeAliases 别名处理器
(1)类型别名是为 Java 类型设置一个短的名字,可以方便我们引用某个类。
(2)类很多的情况下,可以批量设置别名这个包下的每一个类。创建一个默认的别名,就是简单类名小写。
(3)也可以使用@Alias注解为其指定一个别名
注意:值得注意的是,MyBatis已经为许多常见的 Java 类型内建了相应的类型别名。它们都是大小写不敏感的,我们在起别名的时候千万不要占用已有的别名。
<!-- 3、typeAliases:别名处理器:可以为我们的java类型起别名
别名不区分大小写
-->
<typeAliases>
<!-- 1、typeAlias:为某个java类型起别名
type:指定要起别名的类型全类名;默认别名就是类名小写;employee
alias:指定新的别名
-->
<!-- <typeAlias type="com.atguigu.mybatis.bean.Employee" alias="emp"/> -->
<!-- 2、package:为某个包下的所有类批量起别名
name:指定包名(为当前包以及下面所有的后代包的每一个类都起一个默认别名(类名小写),)
-->
<package name="com.atguigu.mybatis.bean"/>
<!-- 3、批量起别名的情况下,使用@Alias注解为某个类型指定新的别名 -->
</typeAliases>
@Alias("emp")
public class Employee {
4、environments
(1)MyBatis可以配置多种环境,比如开发、测试和生产环境需要有不同的配置。
(2)每种环境使用一个environment标签进行配置并指定唯一标识符
(3)可以通过environments标签中的default属性指定一个环境的标识符来快速的切换环境
(4)id:指定当前环境的唯一标识。transactionManager、和dataSource都必须有
<!--
4、environments:环境们,mybatis可以配置多种环境 ,default指定使用某种环境。可以达到快速切换环境。
environment:配置一个具体的环境信息;必须有两个标签;id代表当前环境的唯一标识
transactionManager:事务管理器;
type:事务管理器的类型;JDBC(JdbcTransactionFactory)|MANAGED(ManagedTransactionFactory)
自定义事务管理器:实现TransactionFactory接口.type指定为全类名
dataSource:数据源;
type:数据源类型;UNPOOLED(UnpooledDataSourceFactory)
|POOLED(PooledDataSourceFactory)
|JNDI(JndiDataSourceFactory)
自定义数据源:实现DataSourceFactory接口,type是全类名
-->
<environments default="dev_mysql">
<environment id="dev_mysql">
<transactionManager type="JDBC"></transactionManager>
<dataSource type="POOLED">
<property name="driver" value="${jdbc.driver}" />
<property name="url" value="${jdbc.url}" />
<property name="username" value="${jdbc.username}" />
<property name="password" value="${jdbc.password}" />
</dataSource>
</environment>
<environment id="dev_oracle">
<transactionManager type="JDBC" />
<dataSource type="POOLED">
<property name="driver" value="${orcl.driver}" />
<property name="url" value="${orcl.url}" />
<property name="username" value="${orcl.username}" />
<property name="password" value="${orcl.password}" />
</dataSource>
</environment>
</environments>
5、databaseIdProvider
可以为不同的数据库厂商起别名
<environments default="dev_mysql">
<environment id="dev_mysql">
<transactionManager type="JDBC"></transactionManager>
<dataSource type="POOLED">
<property name="driver" value="${jdbc.driver}" />
<property name="url" value="${jdbc.url}" />
<property name="username" value="${jdbc.username}" />
<property name="password" value="${jdbc.password}" />
</dataSource>
</environment>
<environment id="dev_oracle">
<transactionManager type="JDBC" />
<dataSource type="POOLED">
<property name="driver" value="${orcl.driver}" />
<property name="url" value="${orcl.url}" />
<property name="username" value="${orcl.username}" />
<property name="password" value="${orcl.password}" />
</dataSource>
</environment>
</environments>
<!-- 5、databaseIdProvider:支持多数据库厂商的;
type="DB_VENDOR":VendorDatabaseIdProvider
作用就是得到数据库厂商的标识(驱动getDatabaseProductName()),mybatis就能根据数据库厂商标识来执行不同的sql;
MySQL,Oracle,SQL Server,xxxx
-->
<databaseIdProvider type="DB_VENDOR">
<!-- 为不同的数据库厂商起别名 -->
<property name="MySQL" value="mysql"/>
<property name="Oracle" value="oracle"/>
<property name="SQL Server" value="sqlserver"/>
</databaseIdProvider>
第一个默认加载mysql数据库,因为上面环境设置的是mysql,第二个加载mysql数据库,因为databaseIdProvider指定了不同数据库的别名
<select id="getEmpById" resultType="com.atguigu.mybatis.bean.Employee">
select * from tbl_employee where id = #{id}
</select>
<select id="getEmpById" resultType="com.atguigu.mybatis.bean.Employee"
databaseId="mysql">
select * from tbl_employee where id = #{id}
</select>
<select id="getEmpById" resultType="com.atguigu.mybatis.bean.Employee"
databaseId="oracle">
select EMPLOYEE_ID id,LAST_NAME lastName,EMAIL email
from employees where EMPLOYEE_ID=#{id}
</select>
6、mappers
将我们写好的sql映射文件(EmployeeMapper.xml)注册到全局配置文件(mybatis-config.xml),一共有四种注册方式,一种是注册配置文件,一种是注册接口(两种方式),一种是批量注册。
注册一个sql映射 :
(1)注册配置文件
resource:引用类路径下的sql映射文件
mybatis/mapper/EmployeeMapper.xml
url:引用网路路径或者磁盘路径下的sql映射文件
file:///var/mappers/AuthorMapper.xml
(2)注册接口
class:引用(注册)接口
1、有sql映射文件,映射文件名必须和接口同名,并且放在与接口同一目录下;也可以在config包下建一个与接口同名包,将映射文件放在该包下
2、没有sql映射文件,所有的sql都是利用注解写在接口上;
推荐:
比较重要的,复杂的Dao接口我们来写sql映射文件
不重要,简单的Dao接口为了开发快速可以使用注解;
<!-- 将我们写好的sql映射文件(EmployeeMapper.xml)一定要注册到全局配置文件(mybatis-config.xml)中 -->
<!-- 6、mappers:将sql映射注册到全局配置中 -->
<mappers>
<!-- 注册配置文件: -->
<mapper resource="mybatis/mapper/EmployeeMapper.xml"/>
<!-- 注册接口(注解方式)com.atguigu.mybatis.dao.EmployeeMapperAnnotation为接口全类名: -->
<mapper class="com.atguigu.mybatis.dao.EmployeeMapperAnnotation"/>
<!-- 批量注册: -->
<package name="com.atguigu.mybatis.dao"/>
</mappers>
注意:标签都是有顺序的
四、mybatis映射文件
1、增删改
增删改查接口:
public Employee getEmpById(Integer id);
public Long addEmp(Employee employee);
public boolean updateEmp(Employee employee);
public void deleteEmpById(Integer id);
增加:
<insert id="addEmp" parameterType="com.atguigu.mybatis.bean.Employee"
insert into tbl_employee(last_name,email,gender)
values(#{lastName},#{email},#{gender})
修改:
<!-- public void updateEmp(Employee employee); -->
<update id="updateEmp">
update tbl_employee
set last_name=#{lastName},email=#{email},gender=#{gender}
where id=#{id}
</update>
删除:
<!-- public void deleteEmpById(Integer id); -->
<delete id="deleteEmpById">
delete from tbl_employee where id=#{id}
</delete>
测试:
public SqlSessionFactory getSqlSessionFactory() throws IOException {
String resource = "mybatis-config.xml";
InputStream inputStream = Resources.getResourceAsStream(resource);
return new SqlSessionFactoryBuilder().build(inputStream);
}
/**
* 测试增删改
* 1、mybatis允许增删改直接定义以下类型返回值
* Integer、Long、Boolean、void
* 2、我们需要手动提交数据
* sqlSessionFactory.openSession();===》手动提交
* sqlSessionFactory.openSession(true);===》自动提交
* @throws IOException
*/
@Test
public void test03() throws IOException{
SqlSessionFactory sqlSessionFactory = getSqlSessionFactory();
//1、获取到的SqlSession不会自动提交数据
SqlSession openSession = sqlSessionFactory.openSession();
try{
EmployeeMapper mapper = openSession.getMapper(EmployeeMapper.class);
//测试添加
Employee employee = new Employee(null, "jerry4",null, "1");
mapper.addEmp(employee);
//测试修改,返回值可以是boolean类型
Employee employee = new Employee(1, "Tom", "jerry@atguigu.com", "0");
boolean updateEmp = mapper.updateEmp(employee);
System.out.println(updateEmp);
//测试删除
mapper.deleteEmpById(2);
//2、手动提交数据
openSession.commit();
}finally{
openSession.close();
}
}
2、获取自增主键的值
mysql获取自增主键的值:
mysql支持自增主键,自增主键值的获取,mybatis也是利用statement.getGenreatedKeys();
useGeneratedKeys=“true”;使用自增主键获取主键值策略
keyProperty;指定对应的主键属性,也就是mybatis获取到主键值以后,将这个值封装给javaBean的哪个属性
<!-- public void addEmp(Employee employee); -->
<!-- parameterType:参数类型,可以省略,
将获得的自增主键的值传给Employee对象的id这个参数
-->
<insert id="addEmp" parameterType="com.atguigu.mybatis.bean.Employee"
useGeneratedKeys="true" keyProperty="id" databaseId="mysql">
insert into tbl_employee(last_name,email,gender)
values(#{lastName},#{email},#{gender})
</insert>
//测试添加
Employee employee = new Employee(null, "jerry4",null, "1");
mapper.addEmp(employee);
//获取自增主键的值
System.out.println(employee.getId());
oracle获取主键的值:
注意:要把全局配置文件中的数据库环境切换为oracle
有两种方式,一种是before,一种是after
BEFORE运行顺序:
先运行selectKey查询id的sql;查出id值封装给javaBean的id属性
在运行插入的sql;就可以取出id属性对应的值
AFTER运行顺序:
先运行插入的sql(从序列中取出新值作为id);
再运行selectKey查询id的sql;
keyProperty: 查出的主键值封装给javaBean的哪个属性
order=
“BEFORE”: 当前sql在插入sql之前运行
"AFTER": 当前sql在插入sql之后运行
resultType: 查出的数据的返回值类型
BEFORE:
<!--
获取非自增主键的值:
Oracle不支持自增;Oracle使用序列来模拟自增;
每次插入的数据的主键是从序列中拿到的值;如何获取到这个值;
-->
<insert id="addEmp" databaseId="oracle">
<selectKey keyProperty="id" order="BEFORE" resultType="Integer">
<!-- 编写查询主键的sql语句 -->
select EMPLOYEES_SEQ.nextval from dual
</selectKey>
<!-- 插入时的主键是从序列中拿到的 -->
insert into employees(EMPLOYEE_ID,LAST_NAME,EMAIL)
values(#{id},#{lastName},#{email<!-- ,jdbcType=NULL -->})
</insert>
AFTER:
<insert id="addEmp" databaseId="oracle">
<selectKey keyProperty="id" order="AFTER" resultType="Integer">
<!-- 编写查询主键的sql语句 -->
select EMPLOYEES_SEQ.currval from dual
</selectKey>
<!-- 插入时的主键是从序列中拿到的 -->
insert into employees(EMPLOYEE_ID,LAST_NAME,EMAIL)
values(employees_seq.nextval,#{lastName},#{email})
</insert>
3、参数处理
(1)单个参数: mybatis不会做特殊处理。
#{参数名/任意名}:取出参数值。
values(#{lastName},#{email},#{gender})
(2)多个参数: mybatis会做特殊处理。
多个参数会被封装成 一个map,
key:param1...paramN,或者参数的索引也可以
value:传入的参数值
#{}就是从map中获取指定的key的值;
异常:
org.apache.ibatis.binding.BindingException:
Parameter ‘id’ not found.
Available parameters are [1, 0, param1, param2]
操作:
接口方法:
public Employee getEmpByIdAndLastName(Integer id, String lastName);
取值:
<!-- public Employee getEmpByIdAndLastName(Integer id,String lastName);-->
<select id="getEmpByIdAndLastName" resultType="com.atguigu.mybatis.bean.Employee">
select * from tbl_employee where id = #{param1} and last_name=#{param2}
</select>
测试:
EmployeeMapper mapper = openSession.getMapper(EmployeeMapper.class);
Employee employee = mapper.getEmpByIdAndLastName(1, "tom");
System.out.println(employee);
【命名参数】:明确指定封装参数时map的key;@Param(“id”)
多个参数会被封装成 一个map,
key:使用@Param注解指定的值
value:参数值
#{指定的key}取出对应的参数值
接口方法:
public Employee getEmpByIdAndLastName(@Param("id")Integer id,@Param("lastName")String lastName);
取值:
<!-- public Employee getEmpByIdAndLastName(Integer id,String lastName);-->
<select id="getEmpByIdAndLastName" resultType="com.atguigu.mybatis.bean.Employee">
select * from tbl_employee where id = #{id} and last_name=#{lastName}
</select>
POJO: 如果多个参数正好是我们业务逻辑的数据模型,我们就可以直接传入pojo;
#{属性名}:取出传入的pojo的属性值
Map: 如果多个参数不是业务模型中的数据,没有对应的pojo,不经常使用,为了方便,我们也可以传入map
#{key}:取出map中对应的值
TO: 如果多个参数不是业务模型中的数据,但是经常要使用,推荐来编写一个TO(Transfer Object)数据传输对象
Page{
int index;
int size;
}
MAP:
接口方法:
public Employee getEmpByMap(Map<String, Object> map);
取值:
<!-- public Employee getEmpByMap(Map<String, Object> map); -->
<select id="getEmpByMap" resultType="com.atguigu.mybatis.bean.Employee">
select * from ${tableName} where id=#{id} and last_name=#{lastName}
</select>
测试:
EmployeeMapper mapper = openSession.getMapper(EmployeeMapper.class);
Map<String, Object> map = new HashMap<>();
map.put("id", 1);
map.put("lastName", "Tom");
map.put("tableName", "tbl_employee");
Employee employee = mapper.getEmpByMap(map);
System.out.println(employee);
(3)几种处理多参数的方法及源码分析
public Employee getEmp(@Param("id")Integer id,String lastName);
取值:id==>#{id/param1} lastName==>#{param2}
public Employee getEmp(Integer id,@Param("e")Employee emp);
取值:id==>#{param1} lastName===>#{param2.lastName/e.lastName}
特别注意:
-
如果是Collection(List、Set)类型或者是数组,也会特殊处理。也是把传入的list或者数组封装在map中。
key:Collection(collection),如果是List还可以使用这个key(list) 数组(array)
public Employee getEmpById(List<Integer> ids);
取值:取出第一个id的值: #{list[0]}
源码分析——mybatis如何处理参数:
总结:参数多时会封装map,为了不混乱,我们可以使用@Param来指定封装时使用的key;
#{key}就可以取出map中的值;
ParamNameResolver解析参数封装map;
(@Param("id")Integer id,@Param("lastName")String lastName);
names:{0=id, 1=lastName};构造器的时候就确定好了
确定流程:
1.获取每个标了param注解的参数的@Param的值:id,lastName; 赋值给name;
2.每次解析一个参数给map中保存信息:(key:参数索引,value:name的值)
name的值:
标注了param注解:注解的值
没有标注:
1.全局配置:useActualParamName(jdk1.8):name=参数名
2.name=map.size();相当于当前元素的索引
{0=id, 1=lastName,2=2}
//args【1,"Tom",'hello'】:
public Object getNamedParams(Object[] args) {
final int paramCount = names.size();
//1、参数为null直接返回
if (args == null || paramCount == 0) {
return null;
//2、如果只有一个元素,并且没有Param注解;args[0]:单个参数直接返回
} else if (!hasParamAnnotation && paramCount == 1) {
return args[names.firstKey()];
//3、多个元素或者有Param标注
} else {
final Map<String, Object> param = new ParamMap<Object>();
int i = 0;
//4、遍历names集合;{0=id, 1=lastName,2=2}
for (Map.Entry<Integer, String> entry : names.entrySet()) {
//names集合的value作为key; names集合的key又作为取值的参考args[0]:args【1,"Tom"】:
//eg:{id=args[0]:1,lastName=args[1]:Tom,2=args[2]}
param.put(entry.getValue(), args[entry.getKey()]);
// add generic param names (param1, param2, ...)param
//额外的将每一个参数也保存到map中,使用新的key:param1...paramN
//效果:有Param注解可以#{指定的key},或者#{param1}
final String genericParamName = GENERIC_NAME_PREFIX + String.valueOf(i + 1);
// ensure not to overwrite parameter named with @Param
if (!names.containsValue(genericParamName)) {
param.put(genericParamName, args[entry.getKey()]);
}
i++;
}
return param;
}
}
}
(4)参数值的获取
#{}:可以获取map中的值或者pojo对象属性的值;
${}:可以获取map中的值或者pojo对象属性的值;
select * from tbl_employee where id=${id} and last_name=#{lastName}
Preparing: select * from tbl_employee where id=2 and last_name=?
区别:
#{}:是以预编译的形式,将参数设置到sql语句中;PreparedStatement;防止sql注入
${}:取出的值直接拼装在sql语句中;会有安全问题;
大多情况下,我们去参数的值都应该去使用#{};
原生jdbc不支持占位符的地方我们就可以使用${}进行取值
比如分表、排序。。。;按照年份分表拆分
select * from ${year}_salary where xxx;
select * from tbl_employee order by ${f_name} ${order}
#{}:更丰富的用法:
规定参数的一些规则:
javaType、 jdbcType、 mode(存储过程)、 numericScale、
resultMap、 typeHandler、 jdbcTypeName、 expression(未来准备支持的功能);
jdbcType通常需要在某种特定的条件下被设置:
在我们数据为null的时候,有些数据库可能不能识别mybatis对null的默认处理。比如Oracle(报错);
JdbcType OTHER:无效的类型;因为mybatis对所有的null都映射的是原生Jdbc的OTHER类型,oracle不能正确处理;
由于全局配置中:jdbcTypeForNull=OTHER;oracle不支持;两种办法
1、#{email,jdbcType=OTHER};
2、jdbcTypeForNull=NULL
<setting name="jdbcTypeForNull" value="NULL"/>
4、查询
(1)查询LastName中含有e的员工的所有信息
接口方法:
public List<Employee> getEmpsByLastNameLike(String lastName);
取值:
注意:如果返回的是一个集合,resultType要写集合中元素的类型
<!-- public List<Employee> getEmpsByLastNameLike(String lastName); -->
<!--resultType:如果返回的是一个集合,要写集合中元素的类型 -->
<select id="getEmpsByLastNameLike" resultType="com.atguigu.mybatis.bean.Employee">
select * from tbl_employee where last_name like #{lastName}
</select>
测试:
EmployeeMapper mapper = openSession.getMapper(EmployeeMapper.class);
List<Employee> like = mapper.getEmpsByLastNameLike("%e%");
for (Employee employee : like) {
System.out.println(employee);
}
(2)返回一条记录的map;key就是列名,值就是对应的值
接口方法:
public Map<String, Object> getEmpByIdReturnMap(Integer id);
sql映射文件:
<!--public Map<String, Object> getEmpByIdReturnMap(Integer id); -->
<select id="getEmpByIdReturnMap" resultType="map">
select * from tbl_employee where id=#{id}
</select>
测试:
Map<String, Object> map = mapper.getEmpByIdReturnMap(1);
System.out.println(map);
(3)多条记录封装一个map
接口方法:
Map<Integer,Employee>:键是这条记录的主键,值是记录封装后的javaBean
@MapKey:告诉mybatis封装这个map的时候使用哪个属性作为map的key
@MapKey("lastName")
public Map<String, Employee> getEmpByLastNameLikeReturnMap(String lastName);
取值:
<!--public Map<Integer, Employee> getEmpByLastNameLikeReturnMap(String lastName); -->
<select id="getEmpByLastNameLikeReturnMap" resultType="com.atguigu.mybatis.bean.Employee">
select * from tbl_employee where last_name like #{lastName}
</select>
测试:
Map<String, Employee> map = mapper.getEmpByLastNameLikeReturnMap("%r%");
System.out.println(map);
五、自动映射
当数据库中字段的名字与Javabean中对象的属性名不同时,前面的解决方法是起别名和设置驼峰命名规则,下面这种方法可以自定义自动映射,使用resultMap。
<setting name="mapUnderscoreToCamelCase" value="true"/>
接口方法:
public Employee getEmpById(Integer id);
取值:
<!--自定义某个javaBean的封装规则
type:自定义规则的Java类型
id:唯一id方便引用
-->
<resultMap type="com.atguigu.mybatis.bean.Employee" id="MySimpleEmp">
<!--指定主键列的封装规则
id定义主键会底层有优化;
column:指定哪一列,数据库中的列
property:指定对应的javaBean属性
-->
<id column="id" property="id"/>
<!-- 定义普通列封装规则 -->
<result column="last_name" property="lastName"/>
<!-- 其他不指定的列会自动封装:我们只要写resultMap就把全部的映射规则都写上。 -->
<result column="email" property="email"/>
<result column="gender" property="gender"/>
</resultMap>
<!-- resultMap:自定义结果集映射规则; -->
<!-- public Employee getEmpById(Integer id); -->
<select id="getEmpById" resultMap="MySimpleEmp">
select * from tbl_employee where id=#{id}
</select>
1、联合查询:查询Employee的同时查询员工对应的部门
public class Employee {
private Integer id;
private String lastName;
private String email;
private String gender;
private Department dept;
package com.atguigu.mybatis.bean;
import java.util.List;
public class Department {
private Integer id;
private String departmentName;
private List<Employee> emps;
public List<Employee> getEmps() {
return emps;
}
public void setEmps(List<Employee> emps) {
this.emps = emps;
}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getDepartmentName() {
return departmentName;
}
public void setDepartmentName(String departmentName) {
this.departmentName = departmentName;
}
@Override
public String toString() {
return "Department [id=" + id + ", departmentName=" + departmentName
+ "]";
}
}
接口方法:
public Employee getEmpAndDept(Integer id);
取值:
第一种方式:
<!--
场景一:
查询Employee的同时查询员工对应的部门
Employee===Department
一个员工有与之对应的部门信息;
id last_name gender d_id did dept_name (private Department dept;)
-->
<!--
联合查询:级联属性封装结果集
-->
<resultMap type="com.atguigu.mybatis.bean.Employee" id="MyDifEmp">
<id column="id" property="id"/>
<result column="last_name" property="lastName"/>
<result column="gender" property="gender"/>
<result column="did" property="dept.id"/>
<result column="dept_name" property="dept.departmentName"/>
</resultMap>
<select id="getEmpAndDept" resultMap="MyDifEmp">
SELECT e.id id,e.last_name last_name,e.gender gender,e.d_id d_id,
d.id did,d.dept_name dept_name FROM tbl_employee e,tbl_dept d
WHERE e.d_id=d.id AND e.id=#{id}
</select>
第二种方式:
<!--
使用association定义关联的单个对象的封装规则;
-->
<resultMap type="com.atguigu.mybatis.bean.Employee" id="MyDifEmp2">
<id column="id" property="id"/>
<result column="last_name" property="lastName"/>
<result column="gender" property="gender"/>
<!-- association可以指定联合的javaBean对象
property="dept":指定哪个属性是联合的对象
javaType:指定这个属性对象的类型[不能省略]
-->
<association property="dept" javaType="com.atguigu.mybatis.bean.Department">
<id column="did" property="id"/>
<result column="dept_name" property="departmentName"/>
</association>
</resultMap>
<select id="getEmpAndDept" resultMap="MyDifEmp">
SELECT e.id id,e.last_name last_name,e.gender gender,e.d_id d_id,
d.id did,d.dept_name dept_name FROM tbl_employee e,tbl_dept d
WHERE e.d_id=d.id AND e.id=#{id}
</select>
测试:
Employee empAndDept = mapper.getEmpAndDept(1);
System.out.println(empAndDept);
System.out.println(empAndDept.getDept());
2、分步查询
准备工作:
DepartmentMapper接口:
package com.atguigu.mybatis.dao;
import com.atguigu.mybatis.bean.Department;
public interface DepartmentMapper {
public Department getDeptById(Integer id);
}
DepartmentMapper.xml文件:
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.atguigu.mybatis.dao.DepartmentMapper">
<!--public Department getDeptById(Integer id); -->
<select id="getDeptById" resultType="com.atguigu.mybatis.bean.Department">
select id,dept_name departmentName from tbl_dept where id=#{id}
</select>
接口方法:
public Employee getEmpByIdStep(Integer id);
取值:
<!-- 使用association进行分步查询:
1、先按照员工id查询员工信息
2、根据查询员工信息中的d_id值去部门表查出部门信息
3、部门设置到员工中;
-->
<!-- id last_name email gender d_id -->
<resultMap type="com.atguigu.mybatis.bean.Employee" id="MyEmpByStep">
<id column="id" property="id"/>
<result column="last_name" property="lastName"/>
<result column="email" property="email"/>
<result column="gender" property="gender"/>
<!-- association定义关联对象的封装规则
select:表明当前属性是调用select指定的方法查出的结果
column:指定将哪一列的值传给这个方法
流程:使用select指定的方法(传入column指定的这列参数的值)查出对象,并封装给property指定的属性
-->
<association property="dept"
select="com.atguigu.mybatis.dao.DepartmentMapper.getDeptById"
column="d_id">
</association>
</resultMap>
3、延时查询
不想在查询的时候把所有字段都查询一遍Dept对象,可以使用延时查询。
全局配置文件设置:
<!--显示的指定每个我们需要更改的配置的值,即使他是默认的。防止版本更新带来的问题 -->
<setting name="lazyLoadingEnabled" value="true"/>
<setting name="aggressiveLazyLoading" value="false"/>
<!-- 可以使用延迟加载(懒加载);(按需加载)
Employee==>Dept:
我们每次查询Employee对象的时候,都将一起查询出来。
部门信息在我们使用的时候再去查询;
分段查询的基础之上加上两个配置:
-->
测试:
System.out.println(employee.getDept());
4、连接查询(多表查询)
查询部门,同时查询该部门的所有员工信息
准备工作:
先在department对象中添加一个员工的集合属性
public class Department {
private Integer id;
private String departmentName;
private List<Employee> emps;
departmentmapper.xml配置信息:
<!--
public class Department {
private Integer id;
private String departmentName;
private List<Employee> emps;
did dept_name || eid last_name email gender
-->
<!--嵌套结果集的方式,使用collection标签定义关联的集合类型的属性封装规则 -->
<resultMap type="com.atguigu.mybatis.bean.Department" id="MyDept">
<id column="did" property="id"/>
<result column="dept_name" property="departmentName"/>
<!--
collection定义关联集合类型的属性的封装规则
ofType:指定集合里面元素的类型
-->
<collection property="emps" ofType="com.atguigu.mybatis.bean.Employee">
<!-- 定义这个集合中元素的封装规则 -->
<id column="eid" property="id"/>
<result column="last_name" property="lastName"/>
<result column="email" property="email"/>
<result column="gender" property="gender"/>
</collection>
</resultMap>
<!-- public Department getDeptByIdPlus(Integer id); -->
<select id="getDeptByIdPlus" resultMap="MyDept">
SELECT d.id did,d.dept_name dept_name,
e.id eid,e.last_name last_name,e.email email,e.gender gender
FROM tbl_dept d
LEFT JOIN tbl_employee e
ON d.id=e.d_id
WHERE d.id=#{id}
</select>
测试:
@Test
public void test06() throws IOException{
SqlSessionFactory sqlSessionFactory = getSqlSessionFactory();
SqlSession openSession = sqlSessionFactory.openSession();
try{
DepartmentMapper mapper = openSession.getMapper(DepartmentMapper.class);
Department department = mapper.getDeptByIdPlus(1);
System.out.println(department);
System.out.println(department.getEmps());
}finally{
openSession.close();
}
}
5、分步查询
准备工作:
public List<Employee> getEmpsByDeptId(Integer deptId);
<!--
场景二:
查询部门的时候将部门对应的所有员工信息也查询出来:注释在DepartmentMapper.xml中
-->
<!-- public List<Employee> getEmpsByDeptId(Integer deptId); -->
<select id="getEmpsByDeptId" resultType="com.atguigu.mybatis.bean.Employee">
select * from tbl_employee where d_id=#{deptId}
</select>
接口方法:
public Department getDeptByIdStep(Integer id);
取值:
<!-- collection:分段查询 -->
<resultMap type="com.atguigu.mybatis.bean.Department" id="MyDeptStep">
<id column="id" property="id"/>
<id column="dept_name" property="departmentName"/>
<collection property="emps"
select="com.atguigu.mybatis.dao.EmployeeMapperPlus.getEmpsByDeptId"
column="{deptId=id}" fetchType="lazy"></collection>
</resultMap>
<!-- public Department getDeptByIdStep(Integer id); -->
<select id="getDeptByIdStep" resultMap="MyDeptStep">
select id,dept_name from tbl_dept where id=#{id}
</select>
测试:
@Test
public void test06() throws IOException{
SqlSessionFactory sqlSessionFactory = getSqlSessionFactory();
SqlSession openSession = sqlSessionFactory.openSession();
try{
DepartmentMapper mapper = openSession.getMapper(DepartmentMapper.class);
Department deptByIdStep = mapper.getDeptByIdStep(1);
System.out.println(deptByIdStep.getDepartmentName());
System.out.println(deptByIdStep.getEmps());
}finally{
openSession.close();
}
}
扩展:collection中根据多个column查询
扩展:多列的值传递过去:
将多列的值封装map传递;
column="{key1=column1,key2=column2}"
fetchType=“lazy”:表示使用延迟加载;
- lazy:延迟
- eager:立即
column="{deptId=id}" fetchType="lazy"></collection>
6、discriminator鉴别器
<!-- =======================鉴别器============================ -->
<!-- <discriminator javaType=""></discriminator>
鉴别器:mybatis可以使用discriminator判断某列的值,然后根据某列的值改变封装行为
封装Employee:
如果查出的是女生:就把部门信息查询出来,否则不查询;
如果是男生,把last_name这一列的值赋值给email;
-->
<resultMap type="com.atguigu.mybatis.bean.Employee" id="MyEmpDis">
<id column="id" property="id"/>
<result column="last_name" property="lastName"/>
<result column="email" property="email"/>
<result column="gender" property="gender"/>
<!--
column:指定判定的列名
javaType:列值对应的java类型 -->
<discriminator javaType="string" column="gender">
<!--女生 resultType:指定封装的结果类型;不能缺少。/resultMap-->
<case value="0" resultType="com.atguigu.mybatis.bean.Employee">
<association property="dept"
select="com.atguigu.mybatis.dao.DepartmentMapper.getDeptById"
column="d_id">
</association>
</case>
<!--男生 ;如果是男生,把last_name这一列的值赋值给email; -->
<case value="1" resultType="com.atguigu.mybatis.bean.Employee">
<id column="id" property="id"/>
<result column="last_name" property="lastName"/>
<result column="last_name" property="email"/>
<result column="gender" property="gender"/>
</case>
</discriminator>
</resultMap>
六、动态sql
(1)动态 SQL是MyBatis强大特性之一。极大的简化我们拼装SQL的操作。
(2)动态 SQL 元素和使用 JSTL 或其他类似基于 XML 的文本处理器相似。
(3)MyBatis 采用功能强大的基于 OGNL 的表达式来简化操作。
1、if/where
接口方法:
//携带了哪个字段查询条件就带上这个字段的值
public List<Employee> getEmpsByConditionIf(Employee employee);
xml文件:
<!-- 查询员工,要求,携带了哪个字段查询条件就带上这个字段的值 -->
<!-- public List<Employee> getEmpsByConditionIf(Employee employee); -->
<select id="getEmpsByConditionIf" resultType="com.atguigu.mybatis.bean.Employee">
select * from tbl_employee
<!-- where -->
<where>
<!-- test:判断表达式(OGNL)
OGNL参照PPT或者官方文档。
c:if test
从参数中取值进行判断
遇见特殊符号应该去写转义字符:
&&:
-->
<if test="id!=null">
id=#{id}
</if>
<if test="lastName!=null && lastName!=""">
and last_name like #{lastName}
</if>
<if test="email!=null and email.trim()!=''">
and email=#{email}
</if>
<!-- ognl会进行字符串与数字的转换判断 "0"==0 -->
<if test="gender==0 or gender==1">
and gender=#{gender}
</if>
</where>
</select>
测试:
传进去哪些参数,就根据哪些参数查找
查询的时候如果某些条件没带可能sql拼装会有问题:
1、给where后面加上1=1,以后的条件都and xxx.
2、mybatis使用where标签来将所有的查询条件包括在内。mybatis就会将where标签中拼装的sql,多出来的and或者or去掉。where只会去掉第一个多出来的and或者or。
@Test
public void testDynamicSql() throws IOException{
SqlSessionFactory sqlSessionFactory = getSqlSessionFactory();
SqlSession openSession = sqlSessionFactory.openSession();
try{
EmployeeMapperDynamicSQL mapper = openSession.getMapper(EmployeeMapperDynamicSQL.class);
//select * from tbl_employee where id=? and last_name like ?
//测试if\where
Employee employee = new Employee(1, "Admin", null, null);
List<Employee> emps = mapper.getEmpsByConditionIf(employee);
for (Employee emp : emps) {
System.out.println(emp);
}
}finally{
openSession.close();
}
}
2、trim
后面多出的and或者or where标签不能解决,可以通过trim标签解决,下面是trim标签中的参数
prefix="":前缀:trim标签体中是整个字符串拼串 后的结果。
prefix给拼串后的整个字符串加一个前缀
prefixOverrides="":
前缀覆盖: 去掉整个字符串前面多余的字符
suffix="":后缀
suffix给拼串后的整个字符串加一个后缀
suffixOverrides=""
后缀覆盖:去掉整个字符串后面多余的字符
接口方法:
public List<Employee> getEmpsByConditionTrim(Employee employee);
xml文件:
<!--public List<Employee> getEmpsByConditionTrim(Employee employee); -->
<select id="getEmpsByConditionTrim" resultType="com.atguigu.mybatis.bean.Employee">
select * from tbl_employee
<!-- 自定义字符串的截取规则 -->
<trim prefix="where" suffixOverrides="and">
<if test="id!=null">
id=#{id} and
</if>
<if test="lastName!=null && lastName!=""">
last_name like #{lastName} and
</if>
<if test="email!=null and email.trim()!=""">
email=#{email} and
</if>
<!-- ognl会进行字符串与数字的转换判断 "0"==0 -->
<if test="gender==0 or gender==1">
gender=#{gender}
</if>
</trim>
</select>
测试:
@Test
public void testDynamicSql() throws IOException{
SqlSessionFactory sqlSessionFactory = getSqlSessionFactory();
SqlSession openSession = sqlSessionFactory.openSession();
try{
EmployeeMapperDynamicSQL mapper = openSession.getMapper(EmployeeMapperDynamicSQL.class);
//select * from tbl_employee where id=? and last_name like ?
Employee employee = new Employee(1, "Admin", null, null);
//测试Trim
List<Employee> emps2 = mapper.getEmpsByConditionTrim(employee);
for (Employee emp : emps2) {
System.out.println(emp);
}
}finally{
openSession.close();
}
}
3、choose
choose (when, otherwise):分支选择;带了break的swtich-case
如果带了id就用id查,如果带了lastName就用lastName查;只会进入其中一个
接口方法:
public List<Employee> getEmpsByConditionChoose(Employee employee);
xml文件:
<!-- public List<Employee> getEmpsByConditionChoose(Employee employee); -->
<select id="getEmpsByConditionChoose" resultType="com.atguigu.mybatis.bean.Employee">
select * from tbl_employee
<where>
<!-- 如果带了id就用id查,如果带了lastName就用lastName查;只会进入其中一个 -->
<choose>
<when test="id!=null">
id=#{id}
</when>
<when test="lastName!=null">
last_name like #{lastName}
</when>
<when test="email!=null">
email = #{email}
</when>
<otherwise>
gender = 0
</otherwise>
</choose>
</where>
</select>
测试:
//测试choose
List<Employee> list = mapper.getEmpsByConditionChoose(employee);
for (Employee emp : list) {
System.out.println(emp);
}
4、set
接口方法:
public void updateEmp(Employee employee);
xml文件:
<!--public void updateEmp(Employee employee); -->
<update id="updateEmp">
<!-- Set标签的使用 -->
update tbl_employee
<set>
<if test="lastName!=null">
last_name=#{lastName},
</if>
<if test="email!=null">
email=#{email},
</if>
<if test="gender!=null">
gender=#{gender}
</if>
</set>
where id=#{id}
<!--
Trim:更新拼串
update tbl_employee
<trim prefix="set" suffixOverrides=",">
<if test="lastName!=null">
last_name=#{lastName},
</if>
<if test="email!=null">
email=#{email},
</if>
<if test="gender!=null">
gender=#{gender}
</if>
</trim>
where id=#{id} -->
</update>
测试:
//测试set标签
mapper.updateEmp(employee);
openSession.commit();
5、foreach
动态 SQL 的另外一个常用的必要操作是需要对一个集合进行遍历,通常是在构建 IN 条件语句的时候。
(1)查询
接口方法:
public List<Employee> getEmpsByConditionForeach(@Param("ids")List<Integer> ids);
xml文件:
<!--public List<Employee> getEmpsByConditionForeach(List<Integer> ids); -->
<select id="getEmpsByConditionForeach" resultType="com.atguigu.mybatis.bean.Employee">
select * from tbl_employee
<!--
collection:指定要遍历的集合:
list类型的参数会特殊处理封装在map中,map的key就叫list
item:将当前遍历出的元素赋值给指定的变量
separator:每个元素之间的分隔符
open:遍历出所有结果拼接一个开始的字符
close:遍历出所有结果拼接一个结束的字符
index:索引。遍历list的时候是index就是索引,item就是当前值
遍历map的时候index表示的就是map的key,item就是map的值
#{变量名}就能取出变量的值也就是当前遍历出的元素
-->
<foreach collection="ids" item="item_id" separator=","
open="where id in(" close=")">
#{item_id}
</foreach>
</select>
测试:
List<Employee> list = mapper.getEmpsByConditionForeach(Arrays.asList(1,2));
for (Employee emp : list) {
System.out.println(emp);
}
(2)批量保存
mysql数据库下:
接口方法:
public void addEmps(@Param("emps")List<Employee> emps);
xml配置文件:
第一种方式:
<!-- 批量保存 -->
<!--public void addEmps(@Param("emps")List<Employee> emps); -->
<!--MySQL下批量保存:可以foreach遍历 mysql支持values(),(),()语法-->
<insert id="addEmps">
insert into tbl_employee(
<include refid="insertColumn"></include>
)
values
<foreach collection="emps" item="emp" separator=",">
(#{emp.lastName},#{emp.email},#{emp.gender},#{emp.dept.id})
</foreach>
</insert>
第二种方式:
<!-- 这种方式需要数据库连接属性allowMultiQueries=true;
jdbc.url=jdbc:mysql://localhost:3306/mybatis?allowMultiQueries=true
这种分号分隔多个sql可以用于其他的批量操作(删除,修改) -->
<insert id="addEmps">
<foreach collection="emps" item="emp" separator=";">
insert into tbl_employee(last_name,email,gender,d_id)
values(#{emp.lastName},#{emp.email},#{emp.gender},#{emp.dept.id})
</foreach>
</insert>
测试:
@Test
public void testBatchSave() throws IOException{
SqlSessionFactory sqlSessionFactory = getSqlSessionFactory();
SqlSession openSession = sqlSessionFactory.openSession();
try{
EmployeeMapperDynamicSQL mapper = openSession.getMapper(EmployeeMapperDynamicSQL.class);
List<Employee> emps = new ArrayList<>();
emps.add(new Employee(null, "smith0x1", "smith0x1@atguigu.com", "1",new Department(1)));
emps.add(new Employee(null, "allen0x1", "allen0x1@atguigu.com", "0",new Department(1)));
mapper.addEmps(emps);
openSession.commit();
}finally{
openSession.close();
}
}
oracle数据库下:
xml文件:
<!-- Oracle数据库批量保存:
Oracle不支持values(),(),()
Oracle支持的批量方式
1、多个insert放在begin - end里面
begin
insert into employees(employee_id,last_name,email)
values(employees_seq.nextval,'test_001','test_001@atguigu.com');
insert into employees(employee_id,last_name,email)
values(employees_seq.nextval,'test_002','test_002@atguigu.com');
end;
2、利用中间表:
insert into employees(employee_id,last_name,email)
select employees_seq.nextval,lastName,email from(
select 'test_a_01' lastName,'test_a_e01' email from dual
union
select 'test_a_02' lastName,'test_a_e02' email from dual
union
select 'test_a_03' lastName,'test_a_e03' email from dual
)
-->
<insert id="addEmps" databaseId="oracle">
<!-- oracle第一种批量方式 -->
<!-- <foreach collection="emps" item="emp" open="begin" close="end;">
insert into employees(employee_id,last_name,email)
values(employees_seq.nextval,#{emp.lastName},#{emp.email});
</foreach> -->
<!-- oracle第二种批量方式 -->
insert into employees(
<!-- 引用外部定义的sql -->
<include refid="insertColumn">
<property name="testColomn" value="abc"/>
</include>
)
<foreach collection="emps" item="emp" separator="union"
open="select employees_seq.nextval,lastName,email from("
close=")">
select #{emp.lastName} lastName,#{emp.email} email from dual
</foreach>
</insert>
6、两个内置参数
接口方法:
public List<Employee> getEmpsTestInnerParameter(Employee employee);
xml文件:
<!-- 两个内置参数:
不只是方法传递过来的参数可以被用来判断,取值。。。
mybatis默认还有两个内置参数:
_parameter:代表整个参数
单个参数:_parameter就是这个参数
多个参数:参数会被封装为一个map;_parameter就是代表这个map
_databaseId:如果配置了databaseIdProvider标签。
_databaseId就是代表当前数据库的别名oracle
-->
<!--public List<Employee> getEmpsTestInnerParameter(Employee employee); -->
<select id="getEmpsTestInnerParameter" resultType="com.atguigu.mybatis.bean.Employee">
<if test="_databaseId=='mysql'">
select * from tbl_employee
<if test="_parameter!=null">
where last_name like #{lastName}
</if>
</if>
<if test="_databaseId=='oracle'">
select * from employees
<if test="_parameter!=null">
where last_name like #{_parameter.lastName}
</if>
</if>
</select>
测试:
@Test
public void testInnerParam() throws IOException{
SqlSessionFactory sqlSessionFactory = getSqlSessionFactory();
SqlSession openSession = sqlSessionFactory.openSession();
try{
EmployeeMapperDynamicSQL mapper = openSession.getMapper(EmployeeMapperDynamicSQL.class);
Employee employee2 = new Employee();
employee2.setLastName("%e%");
List<Employee> list = mapper.getEmpsTestInnerParameter(employee2);
for (Employee employee : list) {
System.out.println(employee);
}
}finally{
openSession.close();
}
}
7、bind
查询名字中含有e的员工
<select id="getEmpsTestInnerParameter" resultType="com.atguigu.mybatis.bean.Employee">
<!-- bind:可以将OGNL表达式的值绑定到一个变量中,方便后来引用这个变量的值 -->
<bind name="_lastName" value="'%'+lastName+'%'"/>
<if test="_databaseId=='mysql'">
select * from tbl_employee
<if test="_parameter!=null">
where last_name like #{_lastName}
</if>
</if>
<if test="_databaseId=='oracle'">
select * from employees
<if test="_parameter!=null">
where last_name like #{_parameter._lastName}
</if>
</if>
</select>
测试:
@Test
public void testInnerParam() throws IOException{
SqlSessionFactory sqlSessionFactory = getSqlSessionFactory();
SqlSession openSession = sqlSessionFactory.openSession();
try{
EmployeeMapperDynamicSQL mapper = openSession.getMapper(EmployeeMapperDynamicSQL.class);
Employee employee2 = new Employee();
employee2.setLastName("e");
List<Employee> list = mapper.getEmpsTestInnerParameter(employee2);
for (Employee employee : list) {
System.out.println(employee);
}
}finally{
openSession.close();
}
}
8、sql
<!--
抽取可重用的sql片段。方便后面引用
1、sql抽取:经常将要查询的列名,或者插入用的列名抽取出来方便引用
2、include来引用已经抽取的sql:
3、include还可以自定义一些property,sql标签内部就能使用自定义的属性
include-property:取值的正确方式${prop},
#{不能使用这种方式}
-->
<sql id="insertColumn">
<if test="_databaseId=='oracle'">
employee_id,last_name,email
</if>
<if test="_databaseId=='mysql'">
last_name,email,gender,d_id
</if>
</sql>
mysql:
<insert id="addEmps">
insert into tbl_employee(
<include refid="insertColumn"></include>
)
values
<foreach collection="emps" item="emp" separator=",">
(#{emp.lastName},#{emp.email},#{emp.gender},#{emp.dept.id})
</foreach>
</insert>
oracle:
insert into employees(
<!-- 引用外部定义的sql -->
<include refid="insertColumn">
<property name="testColomn" value="abc"/>
</include>
)
<foreach collection="emps" item="emp" separator="union"
open="select employees_seq.nextval,lastName,email from("
close=")">
select #{emp.lastName} lastName,#{emp.email} email, ${emp.abc} abc from dual
</foreach>
</insert>

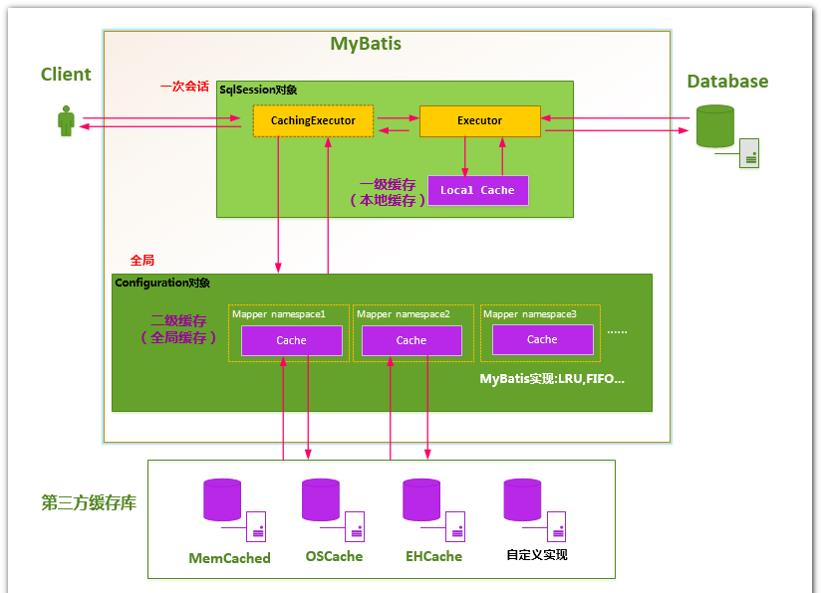

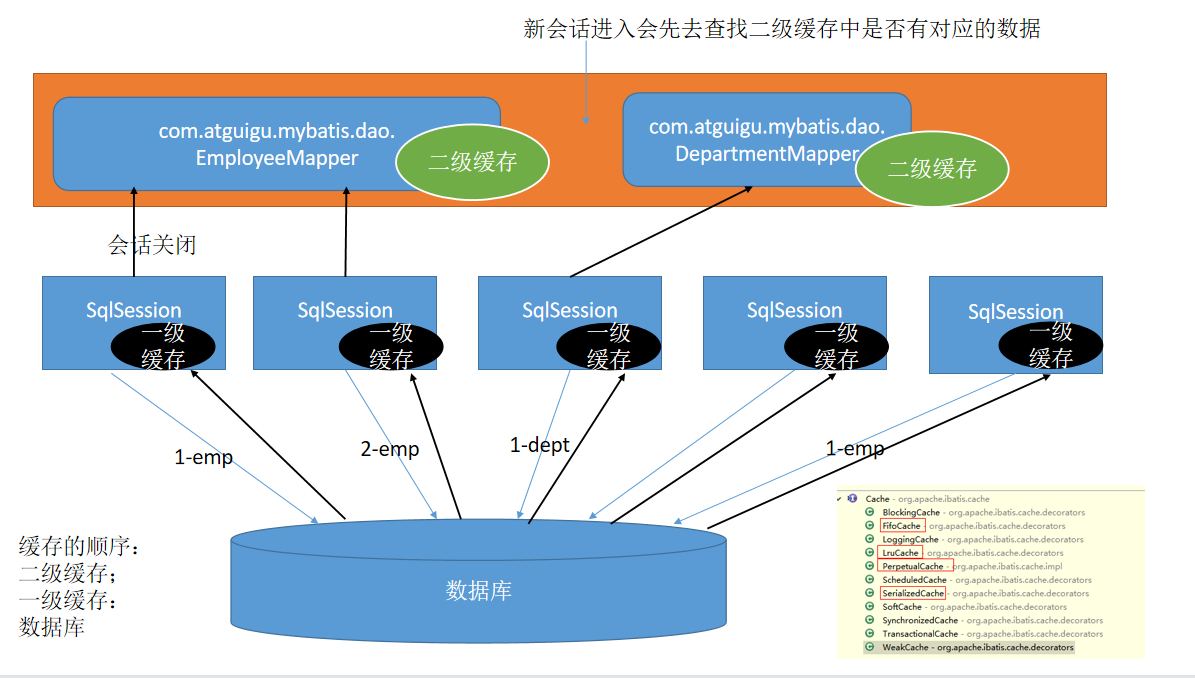

七、缓存机制
1、缓存的实现
<!--显式的指定每个我们需要更改的配置的值,即使他是默认的。防止版本更新带来的问题 -->
<setting name="cacheEnabled" value="true"/>
<cache type="org.mybatis.caches.ehcache.EhcacheCache"></cache>
<!-- <cache eviction="FIFO" flushInterval="60000" readOnly="false" size="1024"></cache> -->
<!--
eviction:缓存的回收策略:
• LRU – 最近最少使用的:移除最长时间不被使用的对象。
• FIFO – 先进先出:按对象进入缓存的顺序来移除它们。
• SOFT – 软引用:移除基于垃圾回收器状态和软引用规则的对象。
• WEAK – 弱引用:更积极地移除基于垃圾收集器状态和弱引用规则的对象。
• 默认的是 LRU。
flushInterval:缓存刷新间隔
缓存多长时间清空一次,默认不清空,设置一个毫秒值
readOnly:是否只读:
true:只读;mybatis认为所有从缓存中获取数据的操作都是只读操作,不会修改数据。
mybatis为了加快获取速度,直接就会将数据在缓存中的引用交给用户。不安全,速度快
false:非只读:mybatis觉得获取的数据可能会被修改。
mybatis会利用序列化&反序列的技术克隆一份新的数据给你。安全,速度慢
size:缓存存放多少元素;
type="":指定自定义缓存的全类名;
实现Cache接口即可;
-->
/**
* 两级缓存:
* 一级缓存:(本地缓存):sqlSession级别的缓存。一级缓存是一直开启的;SqlSession级别的一个Map
* 与数据库同一次会话期间查询到的数据会放在本地缓存中。
* 以后如果需要获取相同的数据,直接从缓存中拿,没必要再去查询数据库;
*
* 一级缓存失效情况(没有使用到当前一级缓存的情况,效果就是,还需要再向数据库发出查询):
* 1、sqlSession不同。
* 2、sqlSession相同,查询条件不同.(当前一级缓存中还没有这个数据)
* 3、sqlSession相同,两次查询之间执行了增删改操作(这次增删改可能对当前数据有影响)
* 4、sqlSession相同,手动清除了一级缓存(缓存清空)
*
* 二级缓存:(全局缓存):基于namespace级别的缓存:一个namespace对应一个二级缓存:
* 工作机制:
* 1、一个会话,查询一条数据,这个数据就会被放在当前会话的一级缓存中;
* 2、如果会话关闭;一级缓存中的数据会被保存到二级缓存中;新的会话查询信息,就可以参照二级缓存中的内容;
* 3、sqlSession===EmployeeMapper==>Employee
* DepartmentMapper===>Department
* 不同namespace查出的数据会放在自己对应的缓存中(map)
* 效果:数据会从二级缓存中获取
* 查出的数据都会被默认先放在一级缓存中。
* 只有会话提交或者关闭以后,一级缓存中的数据才会转移到二级缓存中
* 使用:
* 1)、开启全局二级缓存配置:<setting name="cacheEnabled" value="true"/>
* 2)、去mapper.xml中配置使用二级缓存:
* <cache></cache>
* 3)、我们的POJO需要实现序列化接口
*
* 和缓存有关的设置/属性:
* 1)、cacheEnabled=true:false:关闭缓存(二级缓存关闭)(一级缓存一直可用的)
* 2)、每个select标签都有useCache="true":
* false:不使用缓存(一级缓存依然使用,二级缓存不使用)
* 3)、【每个增删改标签的:flushCache="true":(一级二级都会清除)】
* 增删改执行完成后就会清楚缓存;
* 测试:flushCache="true":一级缓存就清空了;二级也会被清除;
* 查询标签:flushCache="false":
* 如果flushCache=true;每次查询之后都会清空缓存;缓存是没有被使用的;
* 4)、sqlSession.clearCache();只是清楚当前session的一级缓存;
* 5)、localCacheScope:本地缓存作用域:(一级缓存SESSION);当前会话的所有数据保存在会话缓存中;
* STATEMENT:可以禁用一级缓存;
*
*第三方缓存整合:
* 1)、导入第三方缓存包即可;
* 2)、导入与第三方缓存整合的适配包;官方有;
* 3)、mapper.xml中使用自定义缓存
* <cache type="org.mybatis.caches.ehcache.EhcacheCache"></cache>
*
* @throws IOException
*
*/
@Test
public void testSecondLevelCache02() throws IOException{
SqlSessionFactory sqlSessionFactory = getSqlSessionFactory();
SqlSession openSession = sqlSessionFactory.openSession();
SqlSession openSession2 = sqlSessionFactory.openSession();
try{
DepartmentMapper mapper = openSession.getMapper(DepartmentMapper.class);
DepartmentMapper mapper2 = openSession2.getMapper(DepartmentMapper.class);
Department deptById = mapper.getDeptById(1);
System.out.println(deptById);
openSession.close();
Department deptById2 = mapper2.getDeptById(1);
System.out.println(deptById2);
openSession2.close();
//第二次查询是从二级缓存中拿到的数据,并没有发送新的sql
}finally{
}
}
2、缓存的原理
3、第三方缓存整合原理
EhCache 是一个纯Java的进程内缓存框架,具有快速、精干等特点,是Hibernate中默认的CacheProvider。
MyBatis定义了Cache接口方便我们进行自定义扩展。
• 步骤:
– 1、导入ehcache包,以及整合包,日志包
ehcache-core-2.6.8.jar、mybatis-ehcache-1.0.3.jar
slf4j-api-1.6.1.jar、slf4j-log4j12-1.6.2.jar
– 2、编写ehcache.xml配置文件
– 3、配置cache标签
– <cache type="org.mybatis.caches.ehcache.EhcacheCache"></cache>
**• 参照缓存:**若想在命名空间中共享相同的缓存配置和实例。
可以使用 cache-ref 元素来引用另外一个缓存。
<?xml version="1.0" encoding="UTF-8"?>
<ehcache xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:noNamespaceSchemaLocation="../config/ehcache.xsd">
<!-- 磁盘保存路径 -->
<diskStore path="D:\44\ehcache" />
<defaultCache
maxElementsInMemory="10000"
maxElementsOnDisk="10000000"
eternal="false"
overflowToDisk="true"
timeToIdleSeconds="120"
timeToLiveSeconds="120"
diskExpiryThreadIntervalSeconds="120"
memoryStoreEvictionPolicy="LRU">
</defaultCache>
</ehcache>
<!--
属性说明:
l diskStore:指定数据在磁盘中的存储位置。
l defaultCache:当借助CacheManager.add("demoCache")创建Cache时,EhCache便会采用<defalutCache/>指定的的管理策略
以下属性是必须的:
l maxElementsInMemory - 在内存中缓存的element的最大数目
l maxElementsOnDisk - 在磁盘上缓存的element的最大数目,若是0表示无穷大
l eternal - 设定缓存的elements是否永远不过期。如果为true,则缓存的数据始终有效,如果为false那么还要根据timeToIdleSeconds,timeToLiveSeconds判断
l overflowToDisk - 设定当内存缓存溢出的时候是否将过期的element缓存到磁盘上
以下属性是可选的:
l timeToIdleSeconds - 当缓存在EhCache中的数据前后两次访问的时间超过timeToIdleSeconds的属性取值时,这些数据便会删除,默认值是0,也就是可闲置时间无穷大
l timeToLiveSeconds - 缓存element的有效生命期,默认是0.,也就是element存活时间无穷大
diskSpoolBufferSizeMB 这个参数设置DiskStore(磁盘缓存)的缓存区大小.默认是30MB.每个Cache都应该有自己的一个缓冲区.
l diskPersistent - 在VM重启的时候是否启用磁盘保存EhCache中的数据,默认是false。
l diskExpiryThreadIntervalSeconds - 磁盘缓存的清理线程运行间隔,默认是120秒。每个120s,相应的线程会进行一次EhCache中数据的清理工作
l memoryStoreEvictionPolicy - 当内存缓存达到最大,有新的element加入的时候, 移除缓存中element的策略。默认是LRU(最近最少使用),可选的有LFU(最不常使用)和FIFO(先进先出)
-->
<!-- 引用缓存:namespace:指定和哪个名称空间下的缓存一样 -->
<cache-ref namespace="com.atguigu.mybatis.dao.EmployeeMapper"/>
八、MyBatis-Spring整合
九、逆向工程
工程路径下创建mbg.xml文件
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
"http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
<!--
targetRuntime="MyBatis3Simple":生成简单版的CRUD
MyBatis3:豪华版
-->
<context id="DB2Tables" targetRuntime="MyBatis3">
<!-- jdbcConnection:指定如何连接到目标数据库 -->
<jdbcConnection driverClass="com.mysql.jdbc.Driver"
connectionURL="jdbc:mysql://localhost:3306/mybatis?allowMultiQueries=true"
userId="root"
password="123456">
</jdbcConnection>
<!-- -->
<javaTypeResolver >
<property name="forceBigDecimals" value="false" />
</javaTypeResolver>
<!-- javaModelGenerator:指定javaBean的生成策略
targetPackage="test.model":目标包名
targetProject="\MBGTestProject\src":目标工程
-->
<javaModelGenerator targetPackage="com.atguigu.mybatis.bean"
targetProject=".\src">
<property name="enableSubPackages" value="true" />
<property name="trimStrings" value="true" />
</javaModelGenerator>
<!-- sqlMapGenerator:sql映射生成策略: -->
<sqlMapGenerator targetPackage="com.atguigu.mybatis.dao"
targetProject=".\conf">
<property name="enableSubPackages" value="true" />
</sqlMapGenerator>
<!-- javaClientGenerator:指定mapper接口所在的位置 -->
<javaClientGenerator type="XMLMAPPER" targetPackage="com.atguigu.mybatis.dao"
targetProject=".\src">
<property name="enableSubPackages" value="true" />
</javaClientGenerator>
<!-- 指定要逆向分析哪些表:根据表要创建javaBean -->
<table tableName="tbl_dept" domainObjectName="Department"></table>
<table tableName="tbl_employee" domainObjectName="Employee"></table>
</context>
</generatorConfiguration>
测试:
package com.atguigu.mybatis.test;
import java.io.File;
import java.io.IOException;
import java.io.InputStream;
import java.util.ArrayList;
import java.util.List;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.Test;
import org.mybatis.generator.api.MyBatisGenerator;
import org.mybatis.generator.config.Configuration;
import org.mybatis.generator.config.xml.ConfigurationParser;
import org.mybatis.generator.internal.DefaultShellCallback;
import com.atguigu.mybatis.bean.Employee;
import com.atguigu.mybatis.bean.EmployeeExample;
import com.atguigu.mybatis.bean.EmployeeExample.Criteria;
import com.atguigu.mybatis.dao.EmployeeMapper;
/*import com.atguigu.mybatis.bean.Employee;
import com.atguigu.mybatis.dao.EmployeeMapper;*/
public class MyBatisTest {
public SqlSessionFactory getSqlSessionFactory() throws IOException {
String resource = "mybatis-config.xml";
InputStream inputStream = Resources.getResourceAsStream(resource);
return new SqlSessionFactoryBuilder().build(inputStream);
}
@Test
public void testMbg() throws Exception {
List<String> warnings = new ArrayList<String>();
boolean overwrite = true;
File configFile = new File("mbg.xml");
ConfigurationParser cp = new ConfigurationParser(warnings);
Configuration config = cp.parseConfiguration(configFile);
DefaultShellCallback callback = new DefaultShellCallback(overwrite);
MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config,
callback, warnings);
myBatisGenerator.generate(null);
}
@Test
public void testMyBatis3Simple() throws IOException{
SqlSessionFactory sqlSessionFactory = getSqlSessionFactory();
SqlSession openSession = sqlSessionFactory.openSession();
try{
EmployeeMapper mapper = openSession.getMapper(EmployeeMapper.class);
List<Employee> list = mapper.selectByExample(null);
for (Employee employee : list) {
System.out.println(employee.getId());
}
}finally{
openSession.close();
}
}
@Test
public void testMyBatis3() throws IOException{
SqlSessionFactory sqlSessionFactory = getSqlSessionFactory();
SqlSession openSession = sqlSessionFactory.openSession();
try{
EmployeeMapper mapper = openSession.getMapper(EmployeeMapper.class);
//xxxExample就是封装查询条件的
//1、查询所有
//List<Employee> emps = mapper.selectByExample(null);
//2、查询员工名字中有e字母的,和员工性别是1的
//封装员工查询条件的example
EmployeeExample example = new EmployeeExample();
//创建一个Criteria,这个Criteria就是拼装查询条件
//select id, last_name, email, gender, d_id from tbl_employee
//WHERE ( last_name like ? and gender = ? ) or email like "%e%"
Criteria criteria = example.createCriteria();
criteria.andLastNameLike("%e%");
criteria.andGenderEqualTo("1");
Criteria criteria2 = example.createCriteria();
criteria2.andEmailLike("%e%");
example.or(criteria2);
List<Employee> list = mapper.selectByExample(example);
for (Employee employee : list) {
System.out.println(employee.getId());
}
}finally{
openSession.close();
}
}
}
