创建虚拟网络环境

使用命令

$ ip netns add net0

可以创建一个完全隔离的新网络环境，这个环境包括一个独立的网卡空间，路由表，ARP表，ip地址表，iptables，ebtables，等等。总之，与网络有关的组件都是独立的。

ip命令需要root权限的，但是由于本文大量使用ip命令，于是笔者给ip命令添加了capability，使普通用户也能使用ip命令

使用命令

$ ip netns list
net0

可以看到我们刚才创建的网络环境

进入虚拟网络环境

使用命令

$ ip netns exec net0 `command`

我们可以在 net0 虚拟环境中运行任何命令

$ ip netns exec net0 bash
$ ip ad
1: lo: <LOOPBACK> mtu 65536 qdisc noop state DOWN
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00

这样我们可以在新的网络环境中打开一个shell，可以看到，新的网络环境里面只有一个lo设备，并且这个lo设备与外面的lo设备是不同的，之间不能互相通讯。

连接两个网络环境

新的网络环境里面没有任何网络设备，并且也无法和外部通讯，就是一个孤岛，通过下面介绍的这个方法可以把两个网络环境连起来，简单的说，就是在两个网络环境之间拉一根网线

$ ip netns add net1

先创建另一个网络环境net1，我们的目标是把net0与net1连起来

$ ip link add type veth
$ ip ad
1: lo: <LOOPBACK> mtu 65536 qdisc noop state DOWN
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
81: veth0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000
    link/ether 12:39:09:81:3a:dd brd ff:ff:ff:ff:ff:ff
82: veth1: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000
    link/ether 32:4f:fd:cc:79:1b brd ff:ff:ff:ff:ff:ff

这里创建连一对veth虚拟网卡，类似pipe，发给veth0的数据包veth1那边会收到，发给veth1的数据包veth0会收到。就相当于给机器安装了两个网卡，并且之间用网线连接起来了

$ ip link set veth0 netns net0
$ ip link set veth1 netns net1

这两条命令的意思就是把veth0移动到net0环境里面，把veth1移动到net1环境里面，我们看看结果

$ ip ad
1: lo: <LOOPBACK> mtu 65536 qdisc noop state DOWN
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
$ ip netns exec net0 ip ad
1: lo: <LOOPBACK> mtu 65536 qdisc noop state DOWN
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
81: veth0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000
    link/ether 12:39:09:81:3a:dd brd ff:ff:ff:ff:ff:ff
$ ip netns exec net1 ip ad
1: lo: <LOOPBACK> mtu 65536 qdisc noop state DOWN
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
82: veth1: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000
    link/ether 32:4f:fd:cc:79:1b brd ff:ff:ff:ff:ff:ff

veth0 veth1已经在我们的环境里面消失了，并且分别出现在net0与net1里面。下面我们简单测试一下net0与net1的联通性

$ ip netns exec net0 ip link set veth0 up
$ ip netns exec net0 ip address add 10.0.1.1/24 dev veth0
$ ip netns exec net1 ip link set veth1 up
$ ip netns exec net1 ip address add 10.0.1.2/24 dev veth1

分别配置好两个设备，然后用ping测试一下联通性：

$ ip netns exec net0 ping -c 3 10.0.1.2
PING 10.0.1.2 (10.0.1.2) 56(84) bytes of data.
64 bytes from 10.0.1.2: icmp_req=1 ttl=64 time=0.101 ms
64 bytes from 10.0.1.2: icmp_req=2 ttl=64 time=0.057 ms
64 bytes from 10.0.1.2: icmp_req=3 ttl=64 time=0.048 ms

--- 10.0.1.2 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 1999ms
rtt min/avg/max/mdev = 0.048/0.068/0.101/0.025 ms

创建虚拟网络环境并且连接网线

ip netns add net0
ip netns add net1
ip netns add bridge
ip link add type veth
ip link set dev veth0 name net0-bridge netns net0
ip link set dev veth1 name bridge-net0 netns bridge
ip link add type veth
ip link set dev veth0 name net1-bridge netns net1
ip link set dev veth1 name bridge-net1 netns bridge

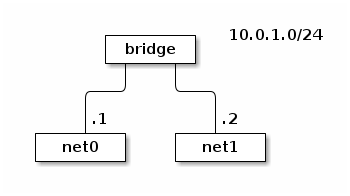

在bridge中创建并且设置br设备

ip netns exec bridge brctl addbr br
ip netns exec bridge ip link set dev br up
ip netns exec bridge ip link set dev bridge-net0 up
ip netns exec bridge ip link set dev bridge-net1 up
ip netns exec bridge brctl addif br bridge-net0
ip netns exec bridge brctl addif br bridge-net1

然后配置两个虚拟环境的网卡

ip netns exec net0 ip link set dev net0-bridge up
ip netns exec net0 ip address add 10.0.1.1/24 dev net0-bridge

ip netns exec net1 ip link set dev net1-bridge up
ip netns exec net1 ip address add 10.0.1.2/24 dev net1-bridge

测试

$ ip netns exec net0 ping -c 3 10.0.1.2
PING 10.0.1.2 (10.0.1.2) 56(84) bytes of data.
64 bytes from 10.0.1.2: icmp_req=1 ttl=64 time=0.121 ms
64 bytes from 10.0.1.2: icmp_req=2 ttl=64 time=0.072 ms
64 bytes from 10.0.1.2: icmp_req=3 ttl=64 time=0.069 ms

--- 10.0.1.2 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 1999ms
rtt min/avg/max/mdev = 0.069/0.087/0.121/0.025 ms

配置lldpd检查线路链接情况

随着虚拟网络环境增加，环境中网卡数量也在不断增加，经常会忘记环境中哪些网卡连接到哪里，通过 lldp [2] 协议，我们可以清楚看到每个网卡连接到了哪些环境中的哪个网卡。

github 上有一个 lldp 在 linux 下的开源实现 [3]，通过在每个环境中起一个 lldp daemon，我们就可以实时查看每个网卡的连接情况

Bridge 上 lldp 的数据

$ lldpcli show neighbors

LLDP neighbors:

Interface:    bridge-net0, via: LLDP, RID: 2, Time: 0 day, 00:06:53
  Chassis:
    ChassisID:    mac 82:be:2a:ec:70:69
    SysName:      localhost
    SysDescr:     net0
    Capability:   Bridge, off
    Capability:   Router, off
    Capability:   Wlan, off
  Port:
    PortID:       mac 82:be:2a:ec:70:69
    PortDescr:    net0-bridge

Interface:    bridge-net1, via: LLDP, RID: 1, Time: 0 day, 00:06:53
  Chassis:
    ChassisID:    mac b2:34:28:b1:be:49
    SysName:      localhost
    SysDescr:     net1
    Capability:   Bridge, off
    Capability:   Router, off
    Capability:   Wlan, off
  Port:
    PortID:       mac b2:34:28:b1:be:49
    PortDescr:    net1-bridge

1. LXC内核命门空间

2. Link Layer Discovery Protocol

3. implementation of IEEE 802.1ab (LLDP)

============================================

ip netns 命令用来管理 network namespace。它可以创建命名的 network namespace，然后通过名字来引用 network namespace，所以使用起来很方便。

ip netns 命令格式如下：
ip [ OPTIONS ] netns { COMMAND | help }

可以通过 help 命令查看 ip netns 所有操作的帮助信息：

技术分享图片

network namespace

network namespace 在逻辑上是网络堆栈的一个副本，它有自己的路由、防火墙规则和网络设备。
默认情况下，子进程继承其父进程的 network namespace。也就是说，如果不显式创建新的 network namespace，所有进程都从 init 进程继承相同的默认 network namespace。
根据约定，命名的 network namespace 是可以打开的 /var/run/netns/ 目录下的一个对象。比如有一个名称为 net1 的 network namespace 对象，则可以由打开 /var/run/netns/net1 对象产生的文件描述符引用 network namespace net1。通过引用该文件描述符，可以修改进程的 network namespace。

显示所有命名的 network namespace

ip netns list 命令显示所有命名的 network namesapce，其实就是显示 /var/run/netns 目录下的所有 network namespace 对象：

技术分享图片

创建命名的 network namespace

ip netns add NAME 命令创建一个命名的 network namespace：

技术分享图片

删除命名的 network namespace

ip [-all] netns del [ NAME ] 命令删除指定名称的 network namespace。如果指定了 -all 选项，则尝试删除所有的 network namespace。

注意，如果我们把网卡设置到了某个 network namespace 中，并在该 network namespace 中启动了进程：

$ sudo ip netns add net0
$ sudo ip link set dev eth0 netns net0
$ sudo ip netns exec net0 bash

在另一个 bash 进程中删除 network namespace net0：

$ sudo ip netns del net0

此时虽然可以删除 netowrk namespace，但是在进程退出之前，网卡一直会保持在你已经删除了的那个 network namespace 中。

查看进程的 network namespace

ip netns identify [PID] 命令用来查看进程的 network namespace。如果不指定 PID 就显示当前进程的 network namespace：

技术分享图片

下面的命令指定了 PID：

技术分享图片

查看 network namespace 中进程的 PID

ip netns pids NAME 命令用来查看指定的 network namespace 中的进程的 PID。这个命令其实就是去检查 /proc 下的所有进程，看进程的 network namespace 是不是指定的 network namespace：

技术分享图片

在指定的 network namespace 中执行命令

ip [-all] netns exec [ NAME ] cmd 命令用来在指定的 network namespace 中执行命令。比如我们要看一下某个 network namespace 中有哪些网卡：

技术分享图片

ip netns exec 后面跟着 namespace 的名字，比如这里的 neta，然后是要执行的命令，只要是合法的 shell 命令都能运行，比如上面的 ip addr 或者 bash。
更棒的是，执行的可以是任何命令，不只是和网络相关的(当然，和网络无关命令执行的结果和在外部执行没有区别)。比如下面例子中，执行 bash 命令之后，后面所有的命令都是在这个 network namespace 中执行的，好处是不用每次执行命令都要把 ip netns exec NAME 补全，缺点是你无法清楚知道自己当前所在的 shell，容易混淆：

技术分享图片

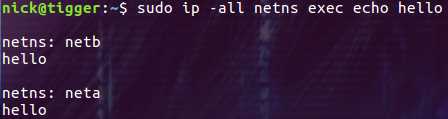

通过 -all 参数我们可以同时在所有的 network namespace 执行命令：

技术分享图片

输出中的 netns: 指示在某个 network namespace 中执行的结果。

监控对 network namespace 的操作

ip netns monitor 命令用来监控对 network namespace 的操作。比如我们删除一个 network namespace 时就会收到相应的通知：

技术分享图片

理解 ip netns add 命令

我们通过下面的演示来理解 ip netns add 命令的本质。
查看默认 network namespace 的 ID：

$ readlink /proc/$$/ns/net

在 /var/run/netns 目录下创建一个用于绑定 network namespace 的文件，名为 mynet：

$ sudo mkdir -p /var/run/netns
$ sudo touch /var/run/netns/mynet

技术分享图片

通过 unshare 命令创建新的 network namespace，并在新的 namespace 中启动新的 bash：

$ sudo unshare --net bash

查看新的 network namespace ID：

# readlink /proc/$$/ns/net

技术分享图片

通过绑定挂载把当前 bash 进程的 network namespace 文件挂载到前面创建的 mynet 文件上：

# mount --bind /proc/$$/ns/net /var/run/netns/mynet
# ls -I /var/run/netns/mynet

技术分享图片

可以看出 mynet 文件的 inode 没有发生变化，说明我们使用了绑定挂载后，虽然新的 network namespace 中已经没有进程了，但这个新的 network namespace 还继续存在。

上面的一系列操作其实等同于执行了命令：sudo ip netns add mynet
下面的 nsenter 命令则等同于执行了命令： sudo ip netns exec mynet bash

$ sudo nsenter --net=/var/run/netns/mynet bash
# readlink /proc/$$/ns/net

技术分享图片

通过 nsenter 命令新建了一个 bash 进程，并把它加入 mynet 所关联的 network namespace(net:[4026532616])。

从上面的示例可以看出，创建命名的 network namespace 其实就是创建一个文件，然后通过绑定挂载的方式将新创建的 network namespace 文件(/proc/$$/ns/net)和该文件绑定，就算该 network namespace 里的所有进程都退出了，内核还是会保留该 network namespace，以后我们还可以通过这个绑定的文件来加入该 network namespace。

参考：
ip netns man page
Linux Namespace系列（06）：network namespace

原文地址：https://www.cnblogs.com/sparkdev/p/9253409.html

https://www.cnblogs.com/-xuan/p/10838052.html

ip命令
linux 的强大的网络配置命令‘ip’。

[root@localhost ~]# ip
Usage: ip [ OPTIONS ] OBJECT { COMMAND | help }
       ip [ -force ] -batch filename
where  OBJECT := { link | address | addrlabel | route | rule | neigh | ntable |
                   tunnel | tuntap | maddress | mroute | mrule | monitor | xfrm |
                   netns | l2tp | fou | macsec | tcp_metrics | token | netconf | ila |
                   vrf }
       OPTIONS := { -V[ersion] | -s[tatistics] | -d[etails] | -r[esolve] |
                    -h[uman-readable] | -iec |
                    -f[amily] { inet | inet6 | ipx | dnet | mpls | bridge | link } |
                    -4 | -6 | -I | -D | -B | -0 |
                    -l[oops] { maximum-addr-flush-attempts } | -br[ief] |
                    -o[neline] | -t[imestamp] | -ts[hort] | -b[atch] [filename] |
                    -rc[vbuf] [size] | -n[etns] name | -a[ll] | -c[olor]}
[root@localhost ~]#

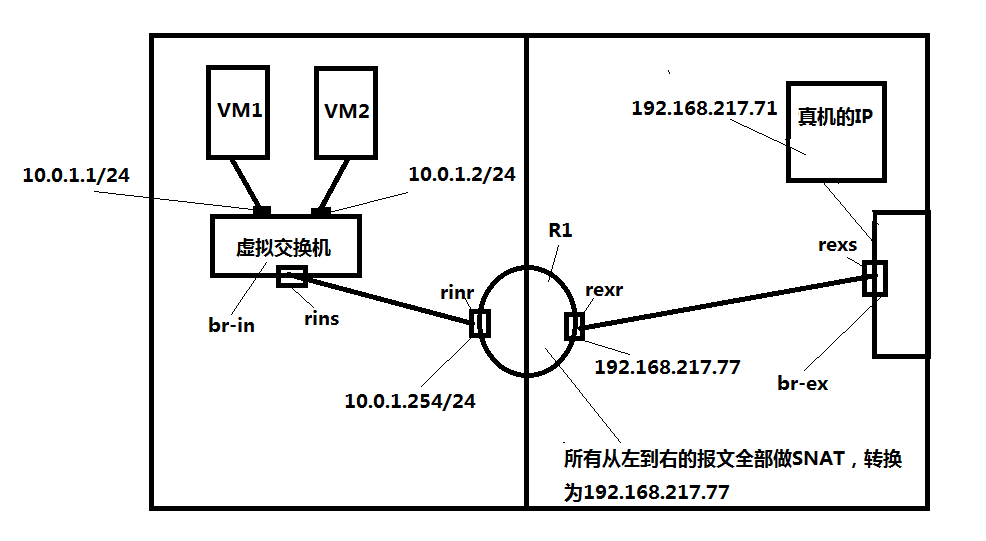

netns可以让一台机器上模拟多个网络设备，是网络虚拟化的重要组成，将不同类型的网络应用隔离。

一个net namespace有自己独立的路由表，iptables策略，设备管理。说来说去，它就是用来隔离的。比如将eth0加入了netns 1，那么netns 2中的应用程序就找不到eth0了。netns 1中的iptables策略，不会去影响netns 2中的iptables策略。

netns的用法

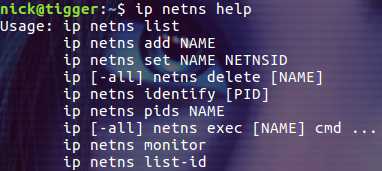

[root@localhost ~]# ip netns help
Usage: ip netns list
       ip netns add NAME
       ip netns set NAME NETNSID
       ip [-all] netns delete [NAME]
       ip netns identify [PID]
       ip netns pids NAME
       ip [-all] netns exec [NAME] cmd ...
       ip netns monitor
       ip netns list-id

先打开内核的网络转发功能。

[root@localhost ~]# vim /etc/sysctl.conf
[root@localhost ~]# sysctl -p
net.ipv4.ip_forward = 1

添加两个namespace

[root@monitor ~]# ip netns add r1
[root@monitor ~]# ip netns add r2
[root@monitor ~]# ip netns list
r2
r1

查看r1的网络。

[root@monitor ~]# ip netns exec r1 ifconfig -a
lo: flags=8<LOOPBACK> mtu 65536
loop txqueuelen 0 (Local Loopback)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

为r1的回环接口添加一个ip地址。

[root@monitor ~]# ip netns exec r1 ifconfig lo 127.0.0.1 up
[root@monitor ~]# ip netns exec r1 ifconfig -a
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 0 (Local Loopback)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

此时的r2并没有地址，因为他们是被隔离的

在网络名称空间上添加一对网卡，一个在r1，一个在r2.

[root@localhost ~]# ip link add veth1.1 type veth peer name veth1.2
[root@localhost ~]# ip link show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: eno16777736: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast master br-ex state UP mode DEFAULT qlen 1000
link/ether 00:0c:29:4b:bb:d0 brd ff:ff:ff:ff:ff:ff
3: br-ex: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DEFAULT
link/ether 00:0c:29:4b:bb:d0 brd ff:ff:ff:ff:ff:ff
4: br-in: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN mode DEFAULT
link/ether 56:8d:9f:d2:96:21 brd ff:ff:ff:ff:ff:ff
5: veth1.2@veth1.1: <BROADCAST,MULTICAST,M-DOWN> mtu 1500 qdisc noop state DOWN mode DEFAULT qlen 1000
link/ether 7e:ea:fe:98:30:cd brd ff:ff:ff:ff:ff:ff
6: veth1.1@veth1.2: <BROADCAST,MULTICAST,M-DOWN> mtu 1500 qdisc noop state DOWN mode DEFAULT qlen 1000
link/ether a2:48:54:92:c2:ed brd ff:ff:ff:ff:ff:ff

将一对网卡分别添加给2个名称空间。

[root@localhost ~]# ip link set veth1.1 netns r1
[root@localhost ~]# ip link set veth1.2 netns r2

查看r1的网络信息

[root@localhost ~]# ip netns exec r1 ifconfig -a
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 0 (Local Loopback)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

veth1.1: flags=4098<BROADCAST,MULTICAST> mtu 1500
ether a2:48:54:92:c2:ed txqueuelen 1000 (Ethernet)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

给r1的veth1.1改个名字，为eth0

[root@localhost ~]# ip netns exec r1 ip link set veth1.1 name eth0

为两个网卡添加ip地址。

[root@localhost ~]# ip netns exec r1 ifconfig eth0 10.10.1.20/24 up
[root@localhost ~]# ip netns exec r2 ifconfig eth0 10.10.1.21/24 up

ping功能

[root@localhost ~]# ip netns exec r1 ping 10.10.1.21
PING 10.10.1.21 (10.10.1.21) 56(84) bytes of data.
64 bytes from 10.10.1.21: icmp_seq=1 ttl=64 time=0.042 ms
64 bytes from 10.10.1.21: icmp_seq=2 ttl=64 time=0.036 ms
64 bytes from 10.10.1.21: icmp_seq=3 ttl=64 time=0.043 ms
^C
--- 10.10.1.21 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 1999ms
rtt min/avg/max/mdev = 0.036/0.040/0.043/0.006 ms

到目前为止，看吧，此时就好像创建了两个虚拟机一样。两个网络是互相独立的。但是在一个网段内的时候，又可以互相联通。

现在利用netns来创建1个虚拟网络空间。大致内容如下图。

删除上面创建的ip netns 和veth虚拟网络，安装上面的图重新规划但是IP 不是上面的我重新规划了IP 。虚机网络vm1：192.168.1.20和vm2:192.168.1.21，网关是192.168.1.1在r3的网络空间中，r3还有一个虚拟网卡IP是10.10.1.20。所谓的外网ip也就是物理机的（enp49s0f1）ip或桥（br-ex）的ip是10.10.1.3 (10.10.1.3 是可以链接外网的)

ip netns delete r1
ip netns delete r2
ip link del dev veth1.1
ip link del dev veth1.2

目前我的网络情况，2个网卡。拿enp49s0f1网卡做实验，不影响enp49s0f0.

[root@localhost ~]# ip link show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: enp49s0f0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP mode DEFAULT group default qlen 1000
    link/ether d4:5d:64:07:a8:ea brd ff:ff:ff:ff:ff:ff
3: enp49s0f1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP mode DEFAULT group default qlen 1000
    link/ether d4:5d:64:07:a8:eb brd ff:ff:ff:ff:ff:ff
[root@localhost ~]# ip a s
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: enp49s0f0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether d4:5d:64:07:a8:ea brd ff:ff:ff:ff:ff:ff
    inet 10.10.1.2/24 brd 10.10.1.255 scope global enp49s0f0
       valid_lft forever preferred_lft forever
    inet6 fe80::d65d:64ff:fe07:a8ea/64 scope link
       valid_lft forever preferred_lft forever
3: enp49s0f1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether d4:5d:64:07:a8:eb brd ff:ff:ff:ff:ff:ff
    inet 10.10.1.3/24 brd 10.10.1.255 scope global enp49s0f1
       valid_lft forever preferred_lft forever
    inet6 fe80::d65d:64ff:fe07:a8eb/64 scope link
       valid_lft forever preferred_lft forever

vm1和vm2两个虚机，我用ip netns add r1 和r2 2个网络空间来代替，（此处是3个后面要用到我就创建了。）其实是一样的，每一个网络空间代表一个虚机。然后在创建2对虚拟网络，共4个网络，每一对都是一头放入各自的网络空间中，另一头放入交接（交换机）中。

r1为路由器R1添加一对网卡并且启动。用过网关192.168.1.1 其实最后r1网络是双网卡

[root@localhost ~]# ip netns add r1
[root@localhost ~]# ip netns add r2
[root@localhost ~]# ip netns add r3
[root@localhost ~]# ip netns list
r3
r2
r1

然后在创建2对虚拟网络，（此处是3对后面要用，我就直接创建了）

[root@localhost ~]# ip link add veth1.1 type veth peer name veth1.2
[root@localhost ~]# ip link add veth2.1 type veth peer name veth2.2
[root@localhost ~]# ip link add veth3.1 type veth peer name veth3.2
[root@localhost ~]# ip link set dev veth1.2 up
[root@localhost ~]# ip link set dev veth2.2 up
[root@localhost ~]# ip link set dev veth3.2 up
[root@localhost ~]# ip link show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: enp49s0f0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP mode DEFAULT group default qlen 1000
    link/ether d4:5d:64:07:a8:ea brd ff:ff:ff:ff:ff:ff
3: enp49s0f1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP mode DEFAULT group default qlen 1000
    link/ether d4:5d:64:07:a8:eb brd ff:ff:ff:ff:ff:ff
33: veth1.2@veth1.1: <NO-CARRIER,BROADCAST,MULTICAST,UP,M-DOWN> mtu 1500 qdisc noqueue state LOWERLAYERDOWN mode DEFAULT group default qlen 1000
    link/ether 0a:85:cc:42:57:4f brd ff:ff:ff:ff:ff:ff
34: veth1.1@veth1.2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
    link/ether 0a:54:87:03:1c:8f brd ff:ff:ff:ff:ff:ff
35: veth2.2@veth2.1: <NO-CARRIER,BROADCAST,MULTICAST,UP,M-DOWN> mtu 1500 qdisc noqueue state LOWERLAYERDOWN mode DEFAULT group default qlen 1000
    link/ether 0a:e4:37:41:e3:c6 brd ff:ff:ff:ff:ff:ff
36: veth2.1@veth2.2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
    link/ether fe:74:70:bc:fe:cd brd ff:ff:ff:ff:ff:ff
37: veth3.2@veth3.1: <NO-CARRIER,BROADCAST,MULTICAST,UP,M-DOWN> mtu 1500 qdisc noqueue state LOWERLAYERDOWN mode DEFAULT group default qlen 1000
    link/ether ba:5a:ea:11:1e:e2 brd ff:ff:ff:ff:ff:ff
38: veth3.1@veth3.2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
    link/ether 22:47:55:1e:37:49 brd ff:ff:ff:ff:ff:ff
[root@localhost ~]# ip a s
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: enp49s0f0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether d4:5d:64:07:a8:ea brd ff:ff:ff:ff:ff:ff
    inet 10.10.1.2/24 brd 10.10.1.255 scope global enp49s0f0
       valid_lft forever preferred_lft forever
    inet6 fe80::d65d:64ff:fe07:a8ea/64 scope link
       valid_lft forever preferred_lft forever
3: enp49s0f1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether d4:5d:64:07:a8:eb brd ff:ff:ff:ff:ff:ff
    inet 10.10.1.3/24 brd 10.10.1.255 scope global enp49s0f1
       valid_lft forever preferred_lft forever
    inet6 fe80::d65d:64ff:fe07:a8eb/64 scope link
       valid_lft forever preferred_lft forever
33: veth1.2@veth1.1: <NO-CARRIER,BROADCAST,MULTICAST,UP,M-DOWN> mtu 1500 qdisc noqueue state LOWERLAYERDOWN group default qlen 1000
    link/ether 0a:85:cc:42:57:4f brd ff:ff:ff:ff:ff:ff
34: veth1.1@veth1.2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether 0a:54:87:03:1c:8f brd ff:ff:ff:ff:ff:ff
35: veth2.2@veth2.1: <NO-CARRIER,BROADCAST,MULTICAST,UP,M-DOWN> mtu 1500 qdisc noqueue state LOWERLAYERDOWN group default qlen 1000
    link/ether 0a:e4:37:41:e3:c6 brd ff:ff:ff:ff:ff:ff
36: veth2.1@veth2.2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether fe:74:70:bc:fe:cd brd ff:ff:ff:ff:ff:ff
37: veth3.2@veth3.1: <NO-CARRIER,BROADCAST,MULTICAST,UP,M-DOWN> mtu 1500 qdisc noqueue state LOWERLAYERDOWN group default qlen 1000
    link/ether ba:5a:ea:11:1e:e2 brd ff:ff:ff:ff:ff:ff
38: veth3.1@veth3.2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether 22:47:55:1e:37:49 brd ff:ff:ff:ff:ff:ff

为r1，r2,r3的回环接口添加一个ip地址。

[root@localhost ~]# ip netns exec r1 ifconfig lo 127.0.0.1 up
[root@localhost ~]# ip netns exec r2 ifconfig lo 127.0.0.1 up
[root@localhost ~]# ip netns exec r3 ifconfig lo 127.0.0.1 up
[root@localhost ~]# ip netns exec r1 ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
[root@localhost ~]# ip netns exec r2 ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
[root@localhost ~]# ip netns exec r3 ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever

创建桥接

[root@localhost ~]# brctl addbr br-ex
[root@localhost ~]# ip link set br-ex up
[root@localhost ~]# ifconfig
br-ex: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
ether 1e:d6:fd:9b:2a:fc txqueuelen 0 (Ethernet)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

给桥设备添加IP地址。

# ip addr del 10.10.1.3/24 dev enp49s0f1
# ip addr add 10.10.1.3/24 dev br-ex
# brctl addif br-ex enp49s0f1

[root@localhost ~]# ip a s
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: enp49s0f0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether d4:5d:64:07:a8:ea brd ff:ff:ff:ff:ff:ff
    inet 10.10.1.2/24 brd 10.10.1.255 scope global enp49s0f0
       valid_lft forever preferred_lft forever
    inet6 fe80::d65d:64ff:fe07:a8ea/64 scope link
       valid_lft forever preferred_lft forever
3: enp49s0f1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq master br-ex state UP group default qlen 1000
    link/ether d4:5d:64:07:a8:eb brd ff:ff:ff:ff:ff:ff
    inet6 fe80::d65d:64ff:fe07:a8eb/64 scope link
       valid_lft forever preferred_lft forever
33: veth1.2@veth1.1: <NO-CARRIER,BROADCAST,MULTICAST,UP,M-DOWN> mtu 1500 qdisc noqueue state LOWERLAYERDOWN group default qlen 1000
    link/ether 0a:85:cc:42:57:4f brd ff:ff:ff:ff:ff:ff
34: veth1.1@veth1.2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether 0a:54:87:03:1c:8f brd ff:ff:ff:ff:ff:ff
35: veth2.2@veth2.1: <NO-CARRIER,BROADCAST,MULTICAST,UP,M-DOWN> mtu 1500 qdisc noqueue state LOWERLAYERDOWN group default qlen 1000
    link/ether 0a:e4:37:41:e3:c6 brd ff:ff:ff:ff:ff:ff
36: veth2.1@veth2.2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether fe:74:70:bc:fe:cd brd ff:ff:ff:ff:ff:ff
37: veth3.2@veth3.1: <NO-CARRIER,BROADCAST,MULTICAST,UP,M-DOWN> mtu 1500 qdisc noqueue state LOWERLAYERDOWN group default qlen 1000
    link/ether ba:5a:ea:11:1e:e2 brd ff:ff:ff:ff:ff:ff
38: veth3.1@veth3.2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether 22:47:55:1e:37:49 brd ff:ff:ff:ff:ff:ff
39: br-ex: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether d4:5d:64:07:a8:eb brd ff:ff:ff:ff:ff:ff
    inet 10.10.1.3/24 scope global br-ex
       valid_lft forever preferred_lft forever
    inet6 fe80::b82c:97ff:fe7e:8562/64 scope link
       valid_lft forever preferred_lft forever
[root@localhost ~]# brctl show
bridge name	bridge id		STP enabled	interfaces
br-ex		8000.d45d6407a8eb	no		enp49s0f1

再添加一个桥

[root@localhost ~]# brctl addbr br-in
[root@localhost ~]# ip link set br-in up

将3对网卡分别添加给3个名称空间和网桥br-in中

#r1 <- veth1.1 ;veth1.2>br-in
#ip link set veth1.1 netns r1
#ip link set veth1.2 up
#brctl addif br-in veth1.2

#r2 <- veth2.1 ;veth2.2>br-in
#ip link set veth2.1 netns r2
#ip link set veth2.2 up
#brctl addif br-in veth2.2


#r3 <- veth3.1 ;veth3.2>br-in
#ip link set veth3.1 netns r3
#ip link set veth3.2 up
#brctl addif br-in veth3.2



[root@localhost ~]# ip link show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: enp49s0f0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP mode DEFAULT group default qlen 1000
    link/ether d4:5d:64:07:a8:ea brd ff:ff:ff:ff:ff:ff
3: enp49s0f1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq master br-ex state UP mode DEFAULT group default qlen 1000
    link/ether d4:5d:64:07:a8:eb brd ff:ff:ff:ff:ff:ff
33: veth1.2@if34: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue master br-in state LOWERLAYERDOWN mode DEFAULT group default qlen 1000
    link/ether 0a:85:cc:42:57:4f brd ff:ff:ff:ff:ff:ff link-netnsid 1
35: veth2.2@if36: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue master br-in state LOWERLAYERDOWN mode DEFAULT group default qlen 1000
    link/ether 0a:e4:37:41:e3:c6 brd ff:ff:ff:ff:ff:ff link-netnsid 2
37: veth3.2@veth3.1: <NO-CARRIER,BROADCAST,MULTICAST,UP,M-DOWN> mtu 1500 qdisc noqueue state LOWERLAYERDOWN mode DEFAULT group default qlen 1000
    link/ether ba:5a:ea:11:1e:e2 brd ff:ff:ff:ff:ff:ff
39: br-ex: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DEFAULT group default qlen 1000
    link/ether d4:5d:64:07:a8:eb brd ff:ff:ff:ff:ff:ff
40: br-in: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN mode DEFAULT group default qlen 1000
    link/ether 0a:85:cc:42:57:4f brd ff:ff:ff:ff:ff:ff
[root@localhost ~]# brctl show
bridge name	bridge id		STP enabled	interfaces
br-ex		8000.d45d6407a8eb	no		enp49s0f1
br-in		8000.0a85cc42574f	no		veth1.2
							            veth2.2
                                        veth3.2

给每个r2 r3 网络空间ip

先重命名

[root@localhost ~]# ip netns exec r2 ip link set dev veth2.1 name eth0
[root@localhost ~]# ip netns exec r3 ip link set dev veth3.1 name eth0
[root@localhost ~]# ip netns exec r1 ip link set dev veth1.1 name eth0
[root@localhost ~]# ip netns exec r2 ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
36: eth0@if35: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether fe:74:70:bc:fe:cd brd ff:ff:ff:ff:ff:ff link-netnsid 0
[root@localhost ~]#

分配ip

[root@localhost ~]# ip netns exec r1 ifconfig eth0 192.168.1.1/24 up
[root@localhost ~]# ip netns exec r2 ifconfig eth0 192.168.1.2/24 up
[root@localhost ~]# ip netns exec r3 ifconfig eth0 192.168.1.3/24 up
[root@localhost ~]# ip netns exec r2 ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
36: eth0@if35: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether fe:74:70:bc:fe:cd brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 192.168.1.2/24 brd 192.168.1.255 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::fc74:70ff:febc:fecd/64 scope link
       valid_lft forever preferred_lft forever
[root@localhost ~]# ip netns exec r3 ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
38: eth0@if37: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 22:47:55:1e:37:49 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 192.168.1.3/24 brd 192.168.1.255 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::2047:55ff:fe1e:3749/64 scope link
       valid_lft forever preferred_lft forever
[root@localhost ~]# ip netns exec r1 ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
34: eth0@if33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 0a:54:87:03:1c:8f brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 192.168.1.1/24 brd 192.168.1.255 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::854:87ff:fe03:1c8f/64 scope link
       valid_lft forever preferred_lft forever

[root@localhost ~]# ip netns exec r2 ip link set dev eth0 up
[root@localhost ~]# ip netns exec r1 ip link set dev eth0 up
[root@localhost ~]# ip netns exec r3 ip link set dev eth0 up
[root@localhost ~]# ip netns exec r2 ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
36: eth0@if35: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether fe:74:70:bc:fe:cd brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet6 fe80::fc74:70ff:febc:fecd/64 scope link
       valid_lft forever preferred_lft forever
[root@localhost ~]#

veth2.2 和veth3.2都是桥接在br-in上了。

好了，现在的情况相当于是vm1，vm2在一个交换机上。这个交换机就是br-in。为了这两个vm虚拟机可以和外界通信，必须要再创建一个虚拟的路由器

以下已经在上面操作过了无需在操作。 start

[root@localhost ~]# ip netns add r1

为路由器R1添加一对网卡并且启动。

[root@localhost ~]# ip link add veth1.1 type veth peer name veth1.2
[root@localhost ~]# ip link set veth1.1 up
[root@localhost ~]# ip link set veth1.2 up

将网卡添加到桥上去。

[root@localhost ~]# brctl addif br-in veth1.2
[root@localhost ~]# brctl show
bridge name	bridge id		STP enabled	interfaces
br-ex		8000.d45d6407a8eb	no		enp49s0f1
br-in		8000.0a85cc42574f	no		veth1.2
							            veth2.2
							            veth3.2

给veth1.1改个名字，并且启动

[root@localhost ~]# ip link set veth1.1 netns r1 #将网卡rinr添加至r1
[root@localhost ~]# ip netns exec r1 ip link set veth1.1 name eth0
[root@localhost ~]# ip netns exec r1 ip link set eth0 up

添加一个IP，作为网关。

ip netns exec r1 ifconfig eth0 192.168.1.1/24 up
[root@localhost ~]# ip netns exec r1 ifconfig -a
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.1.1  netmask 255.255.255.0  broadcast 192.168.1.255
        inet6 fe80::854:87ff:fe03:1c8f  prefixlen 64  scopeid 0x20<link>
        ether 0a:54:87:03:1c:8f  txqueuelen 1000  (Ethernet)
        RX packets 30  bytes 2292 (2.2 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 12  bytes 936 (936.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

以下已经在上面操作过了无需在操作。 end

以下需要操作了

两个虚拟机的网关都指向192.168.1.1 此处的虚机我用ip netns r2和r3代替

[root@localhost ~]# ip netns exec r2 route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
192.168.1.0     0.0.0.0         255.255.255.0   U     0      0        0 eth0
[root@localhost ~]# ip netns exec r2 route add default gw 192.168.1.1
[root@localhost ~]# ip netns exec r2 route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         192.168.1.1     0.0.0.0   UG    0      0              0 eth0
192.168.1.0     0.0.0.0         255.255.255.0   U     0      0        0 eth0
[root@localhost ~]# ip netns exec r3 route add default gw 192.168.1.1
[root@localhost ~]# ip netns exec r3 route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         192.168.1.1     0.0.0.0   UG    0      0              0 eth0
192.168.1.0     0.0.0.0         255.255.255.0   U     0      0        0 eth0

目前来说整幅图的左半边完全好了。
开始右半边。

添加一对网卡，再把其中一个桥接

[root@localhost ~]# ip link add veth4.1 type veth peer name veth4.2
[root@localhost ~]# ip link set veth4.1 up
[root@localhost ~]# ip link set veth4.2 up
[root@localhost ~]# brctl show
bridge name	bridge id		STP enabled	interfaces
br-ex		8000.d45d6407a8eb	no		enp49s0f1
br-in		8000.0a85cc42574f	no		veth1.2
							            veth2.2
							            veth3.2
[root@localhost ~]#  brctl addif br-ex veth4.2
[root@localhost ~]# brctl show
bridge name	bridge id		STP enabled	interfaces
br-ex		8000.8aa7e4e58374	no		enp49s0f1
							            veth4.2
br-in		8000.0a85cc42574f	no		veth1.2
							            veth2.2
							            veth3.2

将另一个网卡添加到路由器的另一边，且给个另一个网络的地址

[root@localhost ~]# ip link set veth4.1 netns r1
[root@localhost ~]# ip netns exec r1 ip link set veth4.1 name eth1
[root@localhost ~]# ip netns exec r1 ifconfig eth1 10.10.1.20/24 up

[root@localhost ~]# ip netns exec r1 ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
34: eth0@if33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 0a:54:87:03:1c:8f brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 192.168.1.1/24 brd 192.168.1.255 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::854:87ff:fe03:1c8f/64 scope link
       valid_lft forever preferred_lft forever
46: eth1@if45: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 36:69:14:6b:a8:9c brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 10.10.1.20/24 brd 10.10.1.255 scope global eth1
       valid_lft forever preferred_lft forever
    inet6 fe80::3469:14ff:fe6b:a89c/64 scope link
       valid_lft forever preferred_lft forever

利用防火墙的源地址转换，实现将内网中的地址转换就是r1中的2个网卡(eth0和eth1)地址转换

[root@localhost ~]# ip netns exec r1 iptables -t nat -A POSTROUTING -s 192.168.1.0/24 ! -d 192.168.1.0/24 -j SNAT --to-source 10.10.1.20

测试。vm1可以ping同vm2.vm1可以访问真机所在局域网的主机。

[root@localhost ~]# ip netns exec  r3 ping 10.10.1.20
PING 10.10.1.20 (10.10.1.20) 56(84) bytes of data.
64 bytes from 10.10.1.20: icmp_seq=1 ttl=64 time=0.055 ms
64 bytes from 10.10.1.20: icmp_seq=2 ttl=64 time=0.030 ms
^C
--- 10.10.1.20 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1038ms
rtt min/avg/max/mdev = 0.030/0.042/0.055/0.014 ms
[root@localhost ~]#
[root@localhost ~]# ip netns exec  r3 ping 10.10.1.20
PING 10.10.1.20 (10.10.1.20) 56(84) bytes of data.
64 bytes from 10.10.1.20: icmp_seq=1 ttl=64 time=0.072 ms
^C
--- 10.10.1.20 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.072/0.072/0.072/0.000 ms
[root@localhost ~]# ip netns exec  r3 ping 10.10.1.2
PING 10.10.1.2 (10.10.1.2) 56(84) bytes of data.
64 bytes from 10.10.1.2: icmp_seq=1 ttl=63 time=0.248 ms
^C
--- 10.10.1.2 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.248/0.248/0.248/0.000 ms
[root@localhost ~]# ip netns exec  r3 ping 10.10.1.3
PING 10.10.1.3 (10.10.1.3) 56(84) bytes of data.
64 bytes from 10.10.1.3: icmp_seq=1 ttl=63 time=0.194 ms
^C
--- 10.10.1.3 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.194/0.194/0.194/0.000 ms
[root@localhost ~]# ip netns exec  r3 ping 10.10.3.160
PING 10.10.3.160 (10.10.3.160) 56(84) bytes of data.
From 192.168.1.1 icmp_seq=1 Destination Net Unreachable
^C
--- 10.10.3.160 ping statistics ---
1 packets transmitted, 0 received, +1 errors, 100% packet loss, time 0ms

[root@localhost ~]# ip netns exec  r3 ping 10.10.1.5
PING 10.10.1.5 (10.10.1.5) 56(84) bytes of data.
64 bytes from 10.10.1.5: icmp_seq=1 ttl=63 time=0.433 ms
^C
--- 10.10.1.5 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.433/0.433/0.433/0.000 ms
[root@localhost ~]# ip netns exec  r3 ping 10.10.1.6
PING 10.10.1.6 (10.10.1.6) 56(84) bytes of data.
64 bytes from 10.10.1.6: icmp_seq=1 ttl=63 time=0.426 ms
^C
--- 10.10.1.6 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.426/0.426/0.426/0.000 ms
[root@localhost ~]# ip netns exec  r3 ping 192.168.1.2
PING 192.168.1.2 (192.168.1.2) 56(84) bytes of data.
64 bytes from 192.168.1.2: icmp_seq=1 ttl=64 time=0.054 ms
^C
--- 192.168.1.2 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.054/0.054/0.054/0.000 ms
[root@localhost ~]# ip netns exec  r3 ping 192.168.1.3
PING 192.168.1.3 (192.168.1.3) 56(84) bytes of data.
64 bytes from 192.168.1.3: icmp_seq=1 ttl=64 time=0.031 ms
^C
--- 192.168.1.3 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.031/0.031/0.031/0.000 ms
[root@localhost ~]# ip netns exec  r3 ping 192.168.1.1
PING 192.168.1.1 (192.168.1.1) 56(84) bytes of data.
64 bytes from 192.168.1.1: icmp_seq=1 ttl=64 time=0.054 ms
^C
--- 192.168.1.1 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.054/0.054/0.054/0.000 ms
[root@localhost ~]# ^C
[root@localhost ~]#
[root@localhost ~]# ip netns exec  r3 ping 192.168.1.1
PING 192.168.1.1 (192.168.1.1) 56(84) bytes of data.
64 bytes from 192.168.1.1: icmp_seq=1 ttl=64 time=0.070 ms
^C
--- 192.168.1.1 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.070/0.070/0.070/0.000 ms
[root@localhost ~]# ip netns exec  r3 ping 192.168.1.2
PING 192.168.1.2 (192.168.1.2) 56(84) bytes of data.
64 bytes from 192.168.1.2: icmp_seq=1 ttl=64 time=0.045 ms
^C
--- 192.168.1.2 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.045/0.045/0.045/0.000 ms
[root@localhost ~]# ip netns exec  r3 ping 192.168.1.3
PING 192.168.1.3 (192.168.1.3) 56(84) bytes of data.
64 bytes from 192.168.1.3: icmp_seq=1 ttl=64 time=0.027 ms
^C
--- 192.168.1.3 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.027/0.027/0.027/0.000 ms
[root@localhost ~]# ip netns exec  r3 ping 192.168.1.4
PING 192.168.1.4 (192.168.1.4) 56(84) bytes of data.
^C
--- 192.168.1.4 ping statistics ---
1 packets transmitted, 0 received, 100% packet loss, time 0ms

[root@localhost ~]# ip netns exec  r3 ping 10.10.1.1
PING 10.10.1.1 (10.10.1.1) 56(84) bytes of data.
64 bytes from 10.10.1.1: icmp_seq=1 ttl=254 time=4.49 ms
^C
--- 10.10.1.1 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 4.494/4.494/4.494/0.000 ms
[root@localhost ~]# ip netns exec  r3 ping 10.10.1.2
PING 10.10.1.2 (10.10.1.2) 56(84) bytes of data.
64 bytes from 10.10.1.2: icmp_seq=1 ttl=63 time=0.169 ms
^C
--- 10.10.1.2 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.169/0.169/0.169/0.000 ms
[root@localhost ~]# ip netns exec  r3 ping 10.10.1.3
PING 10.10.1.3 (10.10.1.3) 56(84) bytes of data.
64 bytes from 10.10.1.3: icmp_seq=1 ttl=63 time=0.133 ms
^C
--- 10.10.1.3 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.133/0.133/0.133/0.000 ms
[root@localhost ~]# ip netns exec  r3 ping 10.10.1.4
PING 10.10.1.4 (10.10.1.4) 56(84) bytes of data.
64 bytes from 10.10.1.4: icmp_seq=1 ttl=63 time=0.260 ms
^C
--- 10.10.1.4 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.260/0.260/0.260/0.000 ms
[root@localhost ~]# ip netns exec  r3 ping 10.10.1.5
PING 10.10.1.5 (10.10.1.5) 56(84) bytes of data.
64 bytes from 10.10.1.5: icmp_seq=1 ttl=63 time=0.272 ms
^C
--- 10.10.1.5 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.272/0.272/0.272/0.000 ms
[root@localhost ~]# ip netns exec  r3 ping 10.10.1.6
PING 10.10.1.6 (10.10.1.6) 56(84) bytes of data.
64 bytes from 10.10.1.6: icmp_seq=1 ttl=63 time=0.257 ms
^C
--- 10.10.1.6 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.257/0.257/0.257/0.000 ms
[root@localhost ~]# ip netns exec  r3 ping 10.10.1.20
PING 10.10.1.20 (10.10.1.20) 56(84) bytes of data.
64 bytes from 10.10.1.20: icmp_seq=1 ttl=64 time=0.054 ms
^C
--- 10.10.1.20 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.054/0.054/0.054/0.000 ms

此时在br-ex交换机（隐藏一个虚拟网卡）去ping r1网络空间的eth1 ip10.10.1.20也应该是通的，但是不同，需要修改参数

[root@localhost ~]# ping -I br-ex 10.10.1.20
PING 10.10.1.20 (10.10.1.20) from 10.10.1.3 br-ex: 56(84) bytes of data.

[root@localhost ~]#  echo 1 > /proc/sys/net/ipv4/conf/br-ex/accept_local
[root@localhost ~]#  echo 0 > /proc/sys/net/ipv4/conf/all/rp_filter
[root@localhost ~]#  echo 0 > /proc/sys/net/ipv4/conf/br-ex/rp_filter

此时在ping就可以了

[root@localhost ~]# ping -I br-ex 10.10.1.20
PING 10.10.1.20 (10.10.1.20) from 10.10.1.3 br-ex: 56(84) bytes of data.
64 bytes from 10.10.1.20: icmp_seq=1 ttl=64 time=0.076 ms
64 bytes from 10.10.1.20: icmp_seq=2 ttl=64 time=0.027 ms
64 bytes from 10.10.1.20: icmp_seq=3 ttl=64 time=0.023 ms
64 bytes from 10.10.1.20: icmp_seq=4 ttl=64 time=0.021 ms

此时不可以外网10.10.1网段的直接ping通192.168.1网段的内网。如果想需要，应该在 br-ex 网卡上面做iptable nat 这个是我猜测的。iptables -t nat -A POSTROUTING -s 10.10.1.0/24 ! -d 10.10.1.0/24 -o br-ex -j SNAT --to-source 192.168.1.1 测试不通

当然。在左边那个网络中，还可以运行一个dhcp服务器，并且将网关自动指向192.168.1.1。

[root@localhost ~]# yum -y install dnsmasq

[root@localhost ~]# ip netns exec r1 dnsmasq -F 192.168.1.3,192.168.1.200 --dhcp-option=option:router,192.168.1.1

参考https://www.cnblogs.com/-xuan/p/10838052.html
