【Spring Boot 2.0学习之旅-05】SpringBoot部署war项目到tomcat9和启动原理讲解

第五章 SpringBoot部署war项目到tomcat9和启动原理讲解

05-1 SpringBoot启动方式讲解和部署war项目到tomcat

1、ide启动
2、jar包方式启动
			maven插件:
			<build>
			<plugins>
				<plugin>
					<groupId>org.springframework.boot</groupId>
					<artifactId>spring-boot-maven-plugin</artifactId>
				</plugin>
			</plugins>
			</build>
			如果没有加，则执行jar包 ，报错如下
				java -jar spring-boot-demo-0.0.1-SNAPSHOT.jar
				no main manifest attribute, in spring-boot-demo-0.0.1-SNAPSHOT.jar
			如果有安装maven 用 mvn spring-boot:run
	项目结构
		example.jar
				 |
				 +-META-INF
				 |  +-MANIFEST.MF
				 +-org
				 |  +-springframework
				 |     +-boot
				 |        +-loader
				 |           +-<spring boot loader classes>
				 +-BOOT-INF
				    +-classes
				    |  +-mycompany
				    |     +-project
				    |        +-YourClasses.class
				    +-lib
				       +-dependency1.jar
				       +-dependency2.jar
目录结构讲解
https://docs.spring.io/spring-boot/docs/2.1.0.BUILD-SNAPSHOT/reference/htmlsingle/#executable-jar-jar-file-structure

3、war包方式启动
	1)在pom.xml中将打包形式 jar 修改为war  <packaging>war</packaging>

	构建项目名称 <finalName>xdclass_springboot</finalName>

	2)tocmat下载 https://tomcat.apache.org/download-90.cgi

	3)修改启动类
		public class XdclassApplication extends SpringBootServletInitializer {

		    @Override
		    protected SpringApplicationBuilder configure(SpringApplicationBuilder application) {
		        return application.sources(XdclassApplication.class);
		    }

		    public static void main(String[] args) throws Exception {
		        SpringApplication.run(XdclassApplication.class, args);
		    }

		}

	4)打包项目，启动tomcat

4、启动容器介绍和第三方测试数据讲解

使用Jmter测试工具测试性能，QPS,TPS，RT

https://examples.javacodegeeks.com/enterprise-java/spring/tomcat-vs-jetty-vs-undertow-comparison-of-spring-boot-embedded-servlet-containers/

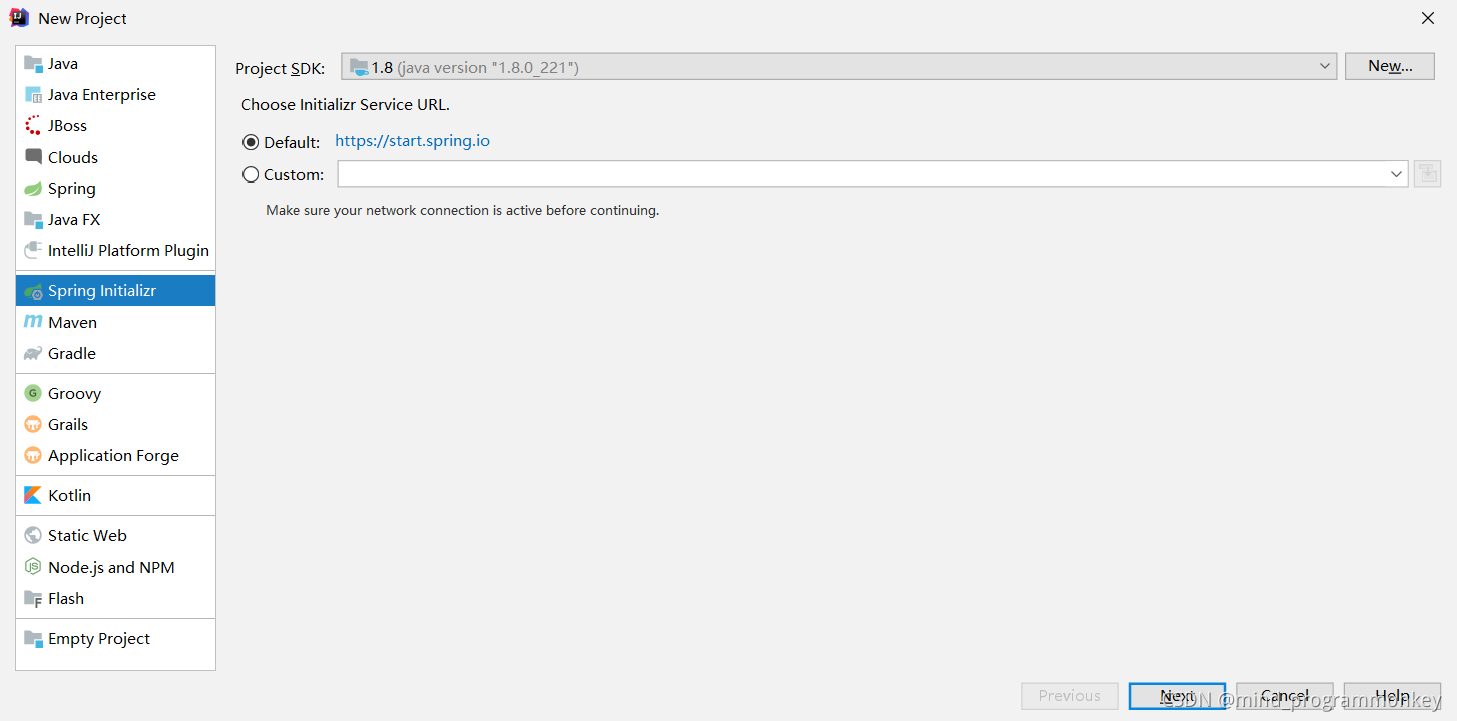

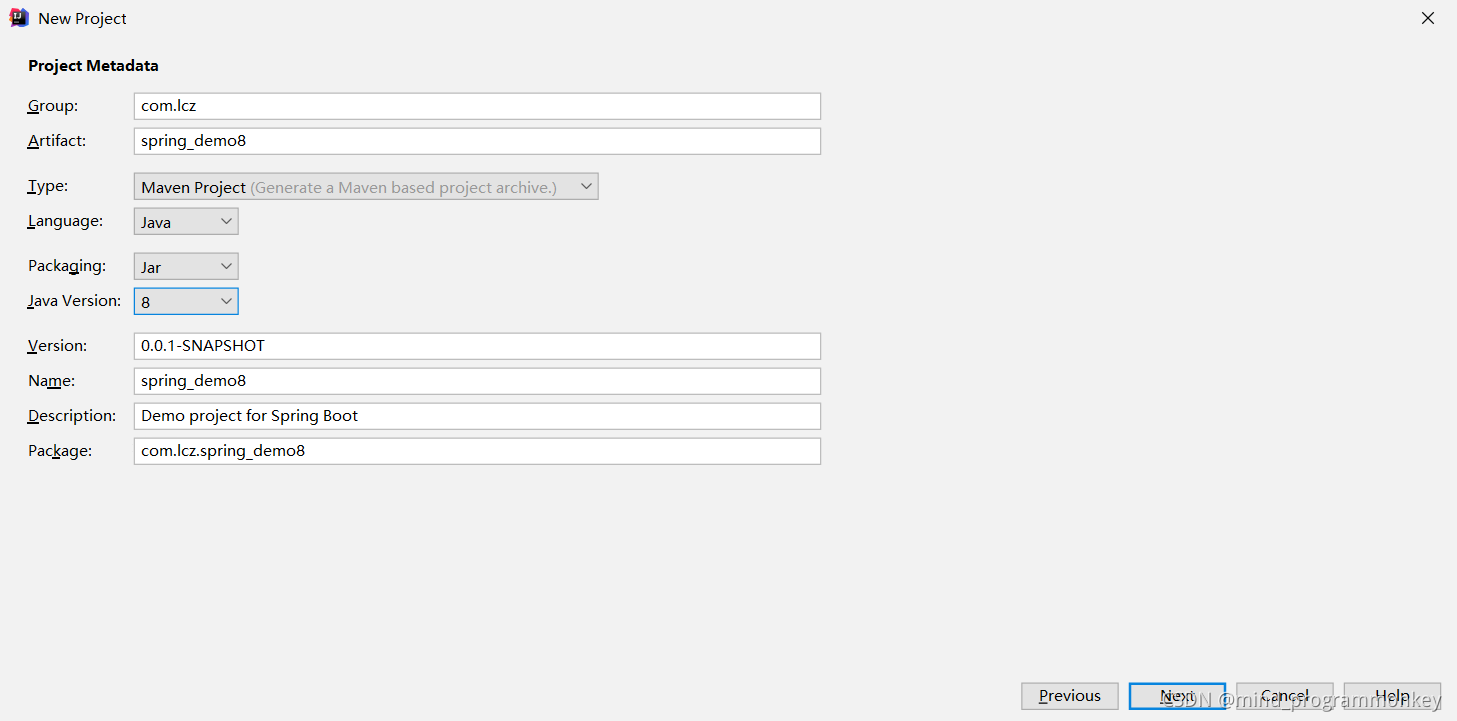

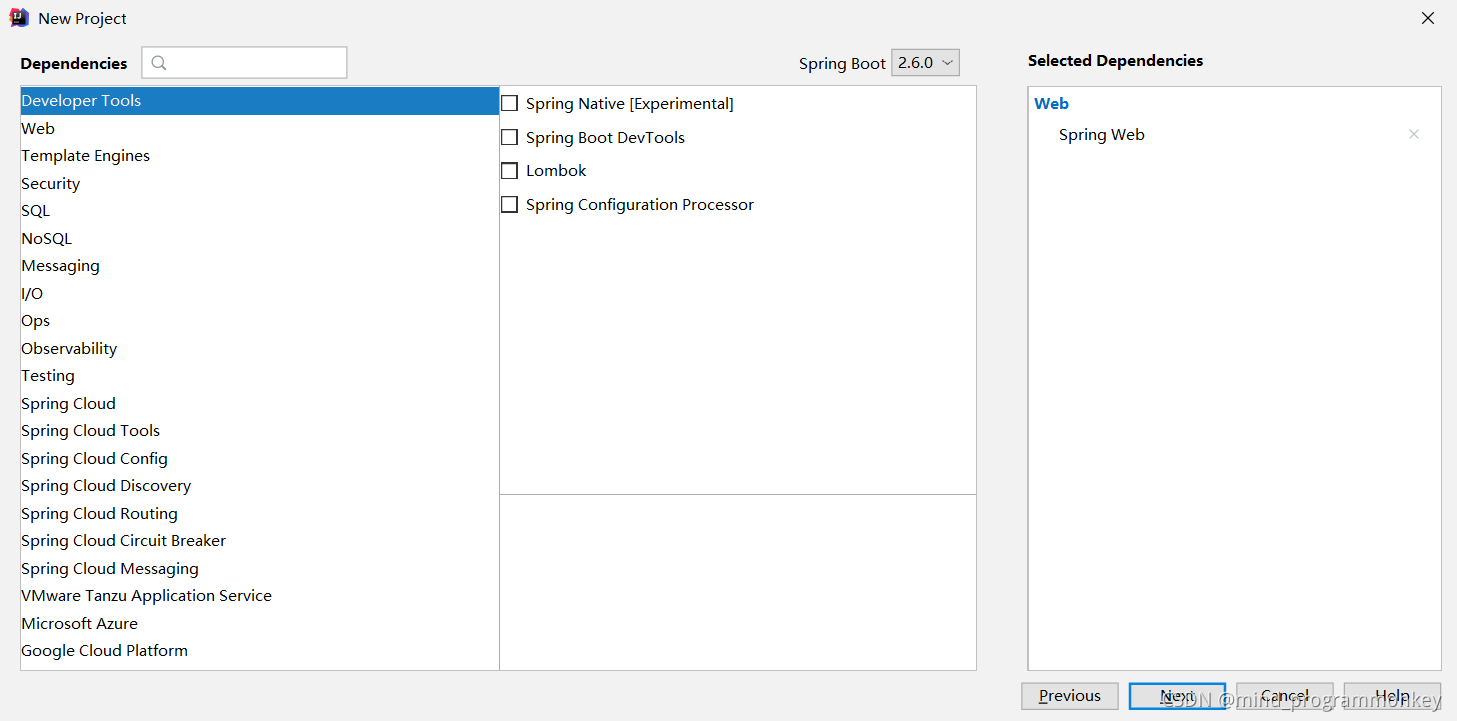

1.SpringBoot搭建本次测试

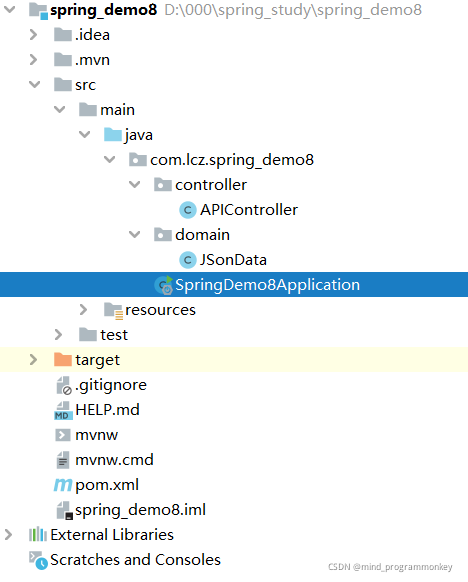

目录结构

JSonData.java

package com.lcz.spring_demo8.domain;

import java.io.Serializable;

/**
 * @author : codingchao
 * @date : 2021-11-21 12:50
 * @Description:
 **/
public class JSonData implements Serializable {
    private int code;
    private String msg;

    public JSonData(int code, String msg) {
        this.code = code;
        this.msg = msg;
    }

    public int getCode() {
        return code;
    }

    public void setCode(int code) {
        this.code = code;
    }

    public String getMsg() {
        return msg;
    }

    public void setMsg(String msg) {
        this.msg = msg;
    }
}

APIController

package com.lcz.spring_demo8.controller;

import com.lcz.spring_demo8.domain.JSonData;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author : codingchao
 * @date : 2021-11-21 12:50
 * @Description:
 **/
@RestController
public class APIController {

    @GetMapping(value = "/api/data")
    public Object getData(){
        return new JSonData(200,"success");
    }
}

2.Spring项目打包成war包并在tomcat中运行

在springboot项目的pom.xml文件中修改打包方式为war以及添加项目名称这一选项。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.6.0</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.lcz</groupId>
    <artifactId>spring_demo8</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>spring_demo8</name>
    <packaging>war</packaging>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <finalName>mindprogrammoneky_springboot</finalName>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

修改启动类

package com.lcz.spring_demo8;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.boot.web.servlet.support.SpringBootServletInitializer;

@SpringBootApplication
public class SpringDemo8Application extends SpringBootServletInitializer {
    @Override
    protected SpringApplicationBuilder configure(SpringApplicationBuilder application) {
        return application.sources(SpringDemo8Application.class);
    }

    public static void main(String[] args) throws Exception {
        SpringApplication.run(SpringDemo8Application.class, args);
    }

}

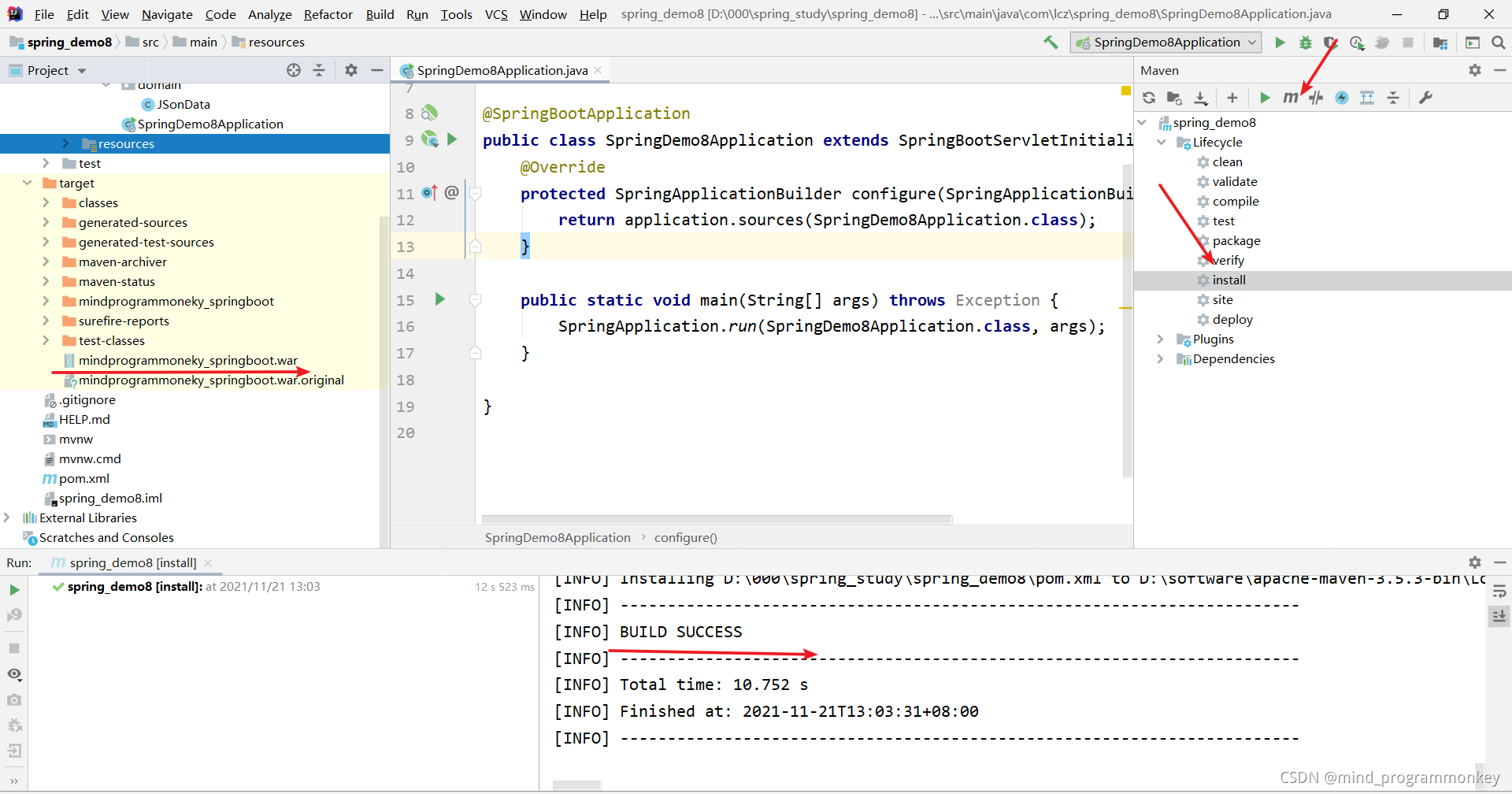

生成war包

放到webapps下启动

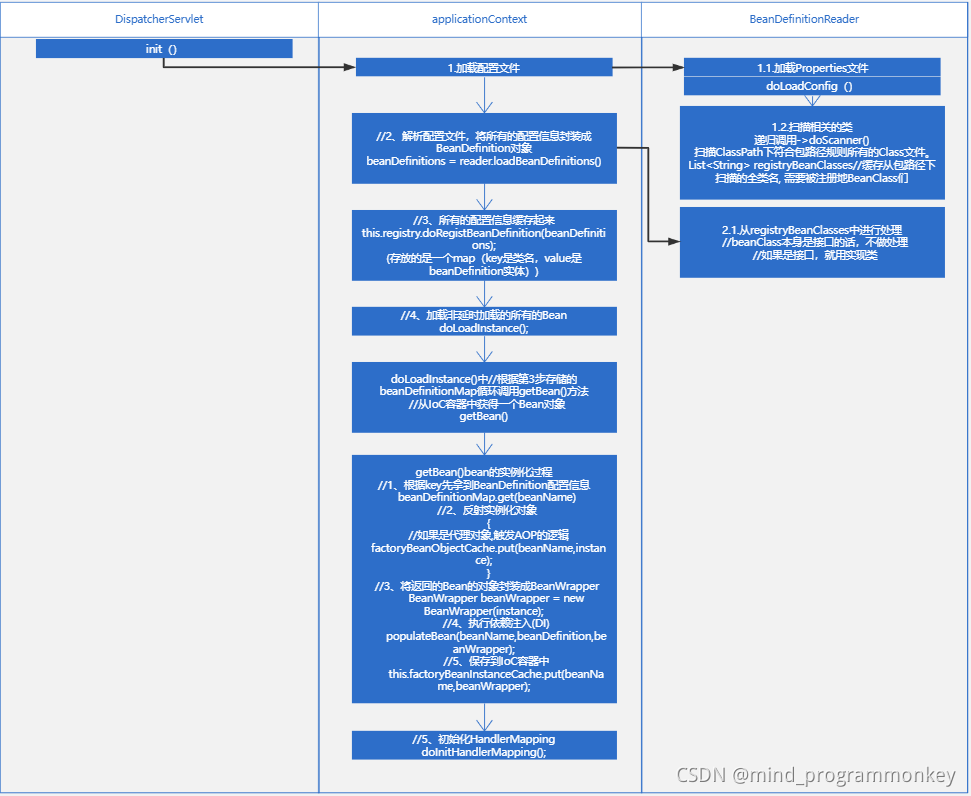

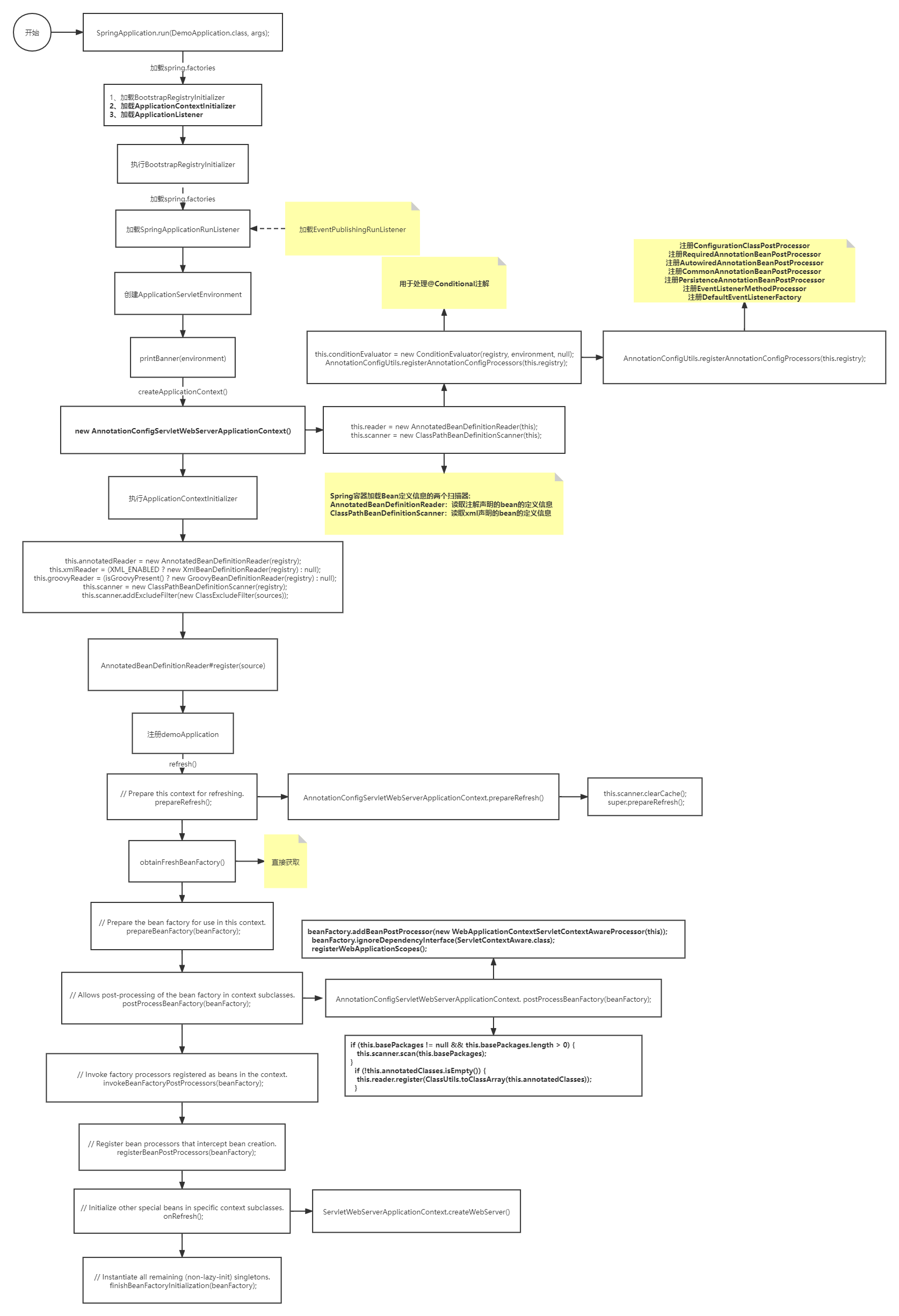

05-2 SpringBoot2.x启动原理概述
