ElementUi Steps 步骤条的使用

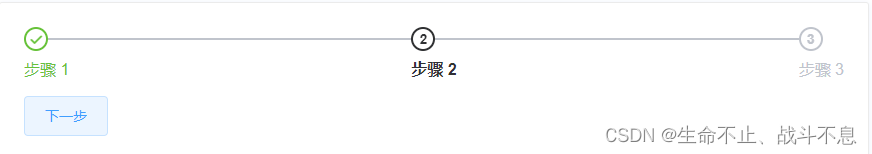

效果：

实现：

<el-steps :active="active" finish-status="success">
  <el-step title="步骤 1"></el-step>
  <el-step title="步骤 2"></el-step>
  <el-step title="步骤 3"></el-step>
</el-steps>

<el-button style="margin-top: 12px;" @click="next">下一步</el-button>

<script>
  export default {
    data() {
      return {
        active: 0
      };
    },

    methods: {
      next() {
        if (this.active++ > 2) this.active = 0;
      }
    }
  }
</script>

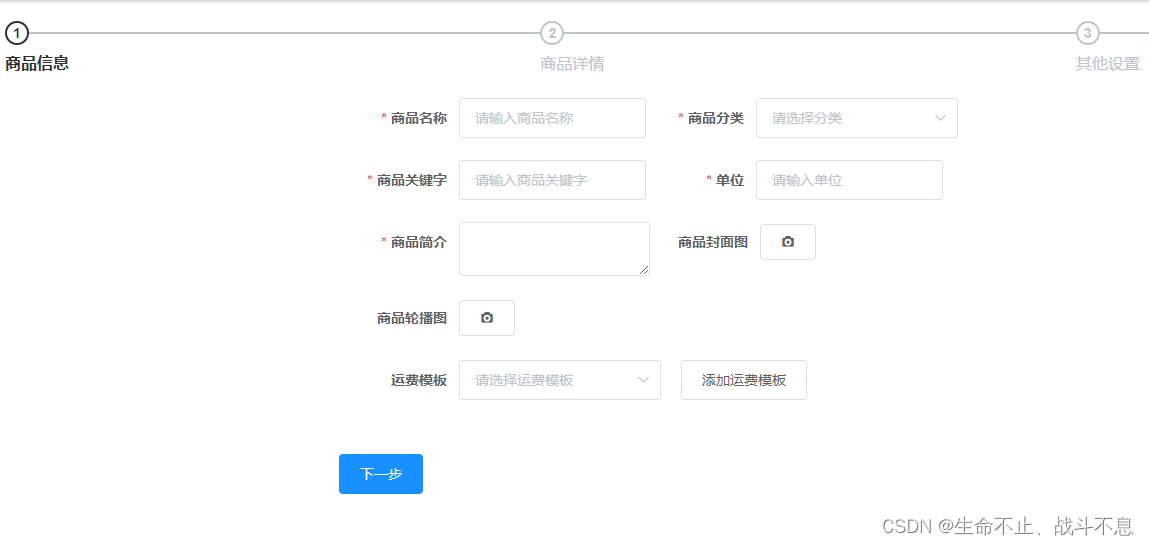

步骤条内容添加表单效果图：

 实现代码：

<template>
  <div class="app-container">
    <el-steps :active="active" finish-status="success">
      <el-step title="商品信息"></el-step>
      <el-step title="商品详情"></el-step>
      <el-step title="其他设置"></el-step>
      <el-step title="规格设置"></el-step>
    </el-steps>
    <div v-if="active==0">

        <div style="width: 60%;margin-left: 20%" class="app-container">

          <template>
            <el-form :model="ruleForm" :rules="rules" ref="ruleForm" label-width="100px" :inline="true" class="demo-form-inline">

              <el-form-item label="商品名称" prop="store_name">
                <el-input type="text" v-model="ruleForm.store_name" placeholder="请输入商品名称"></el-input>
              </el-form-item>

              <el-form-item label="商品分类" prop="cate_id">
                <el-select v-model="ruleForm.cate_id" placeholder="请选择分类">
                  <el-option label="数码产品" value="1"></el-option>
                  <el-option label="美妆" value="2"></el-option>
                  <el-option label="医药" value="3"></el-option>
                </el-select>
              </el-form-item>
              <br/>
              <el-form-item label="商品关键字" prop="keyword">
                <el-input  v-model="ruleForm.keyword" placeholder="请输入商品关键字"></el-input>
              </el-form-item>

              <el-form-item label="单位" prop="unit_name">
                <el-input  v-model="ruleForm.unit_name" placeholder="请输入单位"></el-input>
              </el-form-item>
              <br/>
              <el-form-item label="商品简介" prop="store_info">
                <el-input type="textarea" v-model="ruleForm.store_info" placehoder="请输入商品简介"></el-input>
              </el-form-item>

              <el-form-item label="商品封面图" prop="image">
                <el-upload
                  class="upload-demo"
                  action="https://jsonplaceholder.typicode.com/posts/"
                  :on-preview="handlePreview"
                  :on-remove="handleRemove"
                  :before-remove="beforeRemove"
                  multiple
                  :limit="3"
                  :on-exceed="handleExceed"
                  :file-list="fileList"
                  v-model="ruleForm.image"
                  >
                  <el-button size="medium"  icon="el-icon-camera-solid"></el-button>
                </el-upload>
              </el-form-item>

              <br/>

              <el-form-item label="商品轮播图" prop="slider_image">
                <el-upload
                  class="upload-demo"
                  action="https://jsonplaceholder.typicode.com/posts/"
                  :on-preview="handlePreview"
                  :on-remove="handleRemove"
                  :before-remove="beforeRemove"
                  multiple
                  :limit="3"
                  :on-exceed="handleExceed"
                  :file-list="fileList"
                  v-model="ruleForm.slider_image"
                >
                  <el-button size="medium"  icon="el-icon-camera-solid"></el-button>
                </el-upload>
              </el-form-item>

              <br/>
              <el-form-item label="运费模板" prop="temp_id">
                <el-select v-model="ruleForm.temp_id" placeholder="请选择运费模板">
                  <el-option label="包邮" value="1"></el-option>
                  <el-option label="不包邮" value="2"></el-option>
                </el-select>
                <el-button style="margin-left: 20px" @click="addTemplate">添加运费模板</el-button>
              </el-form-item>

              <el-dialog
                title="提示"
                :visible.sync="dialogVisible"
                width="30%"
                >
                <el-form :inline="true" :model="formInline" class="demo-form-inline">
                  <el-form-item label="规格名称">
                    <el-input v-model="formInline.user" placeholder="请输入规格名称"></el-input>
                  </el-form-item>
                  <br/>
                  <el-form-item label="规格">
                    <el-input v-model="formInline.user" placeholder="请输入规格"></el-input>
                  </el-form-item>
                  <el-form-item label="规格值">
                    <el-input v-model="formInline.user" placeholder="请输入规格值"></el-input>
                  </el-form-item>
                  <el-button @click="dialogVisible = false">取 消</el-button>
                  <el-button type="primary" @click="dialogVisible = false">确 定</el-button>
                </el-form>

              </el-dialog>

            </el-form>
          </template>
        </div>
      <el-button style="margin-top: 12px;margin-left: 20%" type="primary"  @click="next">下一步</el-button>
    </div>
    <div v-if="active==1">

      <h1>商品详情</h1>
      <el-button style="margin-top:12px;" type="primary" @click="prev">上一步</el-button>
      <el-button style="margin-top: 12px;" type="primary" @click="next">下一步</el-button>
    </div>
    <div v-if="active==2">

      <h1>其他设置</h1>
      <el-button style="margin-top:12px;" type="primary" @click="prev">上一步</el-button>
      <el-button style="margin-top: 12px;" type="primary" @click="next">下一步</el-button>
    </div>
    <div v-if="active==3">
      <h1>规格设置</h1>
      <el-button style="margin-top:12px;" type="primary" @click="prev">上一步</el-button>
      <el-button style="margin-top: 12px;" type="primary" @click="submit">提交</el-button>
    </div>

  </div>
</template>


<script>
export default {
  data() {
    return {
      dialogVisible: false,//弹出层
      fileList:[],//图片上传
      active: 0,//步骤条初始化
      formInline: {
        user: '',
        region: ''
      },
      ruleForm: {
        store_name: '',
        cate_id: '',
        keyword: '',
        unit_name: '',
        store_info:'',
        type: [],
        resource: '',
        desc: ''
      },
      rules: {
        store_name: [
          { required: true, message: '请输入商品名称', trigger: 'blur' },
          { min: 3, max: 20, message: '长度在 3 到 20 个字符', trigger: 'blur' }
        ],
        cate_id: [
          { required: true, message: '请选择商品分类', trigger: 'change' }
        ],
        keyword: [
          { required: true, message: '请输入单位', trigger: 'blur' },
          { min: 3, max: 20, message: '长度在 3 到 20 个字符', trigger: 'blur' }
        ],
        unit_name: [
          { required: true, message: '请输入商品关键字', trigger: 'blur' },
          { min: 3, max: 20, message: '长度在 3 到 20 个字符', trigger: 'blur' }
        ],
        store_info: [
          { required: true, message: '请输入商品简介', trigger: 'blur' }
        ],
        resource: [
          { required: true, message: '请选择活动资源', trigger: 'change' }
        ],
        desc: [
          { required: true, message: '请填写活动形式', trigger: 'blur' }
        ]
      }

    };
  },

  methods: {
    //下一页
    next() {
      if (this.active++ > 3) this.active = 0;
    },
    //上一页
    prev() {
      if (this.active > 0) this.active--;
    },
    //文件上传
    handleRemove(file, fileList) {
      console.log(file, fileList);
    },
    handlePreview(file) {
      console.log(file);
    },
    handleExceed(files, fileList) {
      this.$message.warning(`当前限制选择 3 个文件，本次选择了 ${files.length} 个文件，共选择了 ${files.length + fileList.length} 个文件`);
    },
    beforeRemove(file, fileList) {
      return this.$confirm(`确定移除 ${ file.name }？`);
    },

    //弹出层
    addTemplate(){
      this.dialogVisible=true//弹出层
    }

  }
}
</script>
