前端例程20211122：盐酸与氢氧化钠溶液中和pH计算工具

本文链接：https://blog.csdn.net/Naisu_kun/article/details/121469511

该博客记录了如何使用HTML和JavaScript实现一个计算盐酸与氢氧化钠溶液中和滴定过程中pH值的网页应用。用户可以通过滑动条调整溶液体积和浓度，实时查看混合后的pH值、H+和OH-浓度。代码中修复了体积单位错误，并详细说明了计算逻辑。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

文章目录

前言
功能演示
代码实现

前言

偶然的一个同事的工作需要计算盐酸与氢氧化钠溶液中和滴定过程的pH值，这里稍微对这个计算功能的实现做下记录。

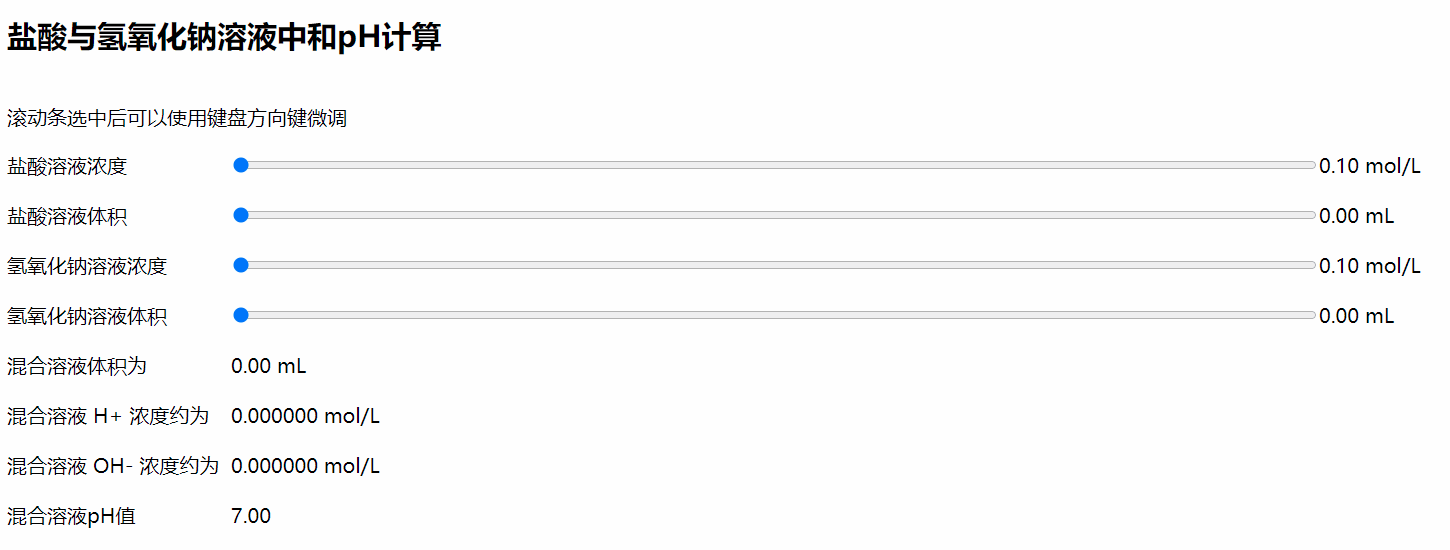

功能演示

在这里插入图片描述
上图两个溶液体积滑动条变动后单位有误，下面代码中已修正

代码实现

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta name="author" content="Naisu">
    <title>盐酸与氢氧化钠溶液中和pH计算</title>
    <style>
        body {
            font-size: 1.25rem;
            display: grid;
            grid-template-columns: 14rem 1fr 8rem;
        }

        span {
            height: 1.5rem;
            grid-column: 1 / 5;
        }

        h2 {
            grid-column: 1 / 5;
        }
    </style>
    <script>
        function getEl(selectors) {
            return document.querySelector(selectors);
        }

        let rgehc;
        let rgehv;
        let rgeohc;
        let rgeohv;
        let lblhc;
        let lblhv;
        let lblohc;
        let lblohv;
        let lblnewv;
        let lblnewhc;
        let lblnewnohc;
        let lblph;

        let hc = 0.10;
        let hv = 0.00;
        let ohc = 0.10;
        let ohv = 0.00;

        let newv = 0.00;
        let newhc = 0.000000;
        let newohc = 0.000000;
        let ph = 7.00;

        function cal() {
            let newv = hv + ohv;

            let oldhc = hc * hv;
            let oldohc = ohc * ohv;

            let dvalu = oldhc - oldohc;

            if (Math.abs(dvalu) < Number.EPSILON) { // 完全中和
                newhc = 0.000000;
                newohc = 0.000000;
                ph = 7.00;
            } else if (dvalu > Number.EPSILON) { // H+ 多
                newhc = dvalu / newv;
                newohc = 0.000000;
                ph = -Math.log10(newhc);
            } else if (dvalu < -Number.EPSILON) { // OH+ 多
                newhc = 0.000000;
                newohc = (-dvalu) / newv;
                ph = 14 + Math.log10(newohc);
            }

            lblnewv.innerText = `${newv.toFixed(2)} mL`;
            lblnewhc.innerText = `${newhc.toFixed(6)} mol/L`;
            lblnewnohc.innerText = `${newohc.toFixed(6)} mol/L`;
            lblph.innerText = `${ph.toFixed(2)}`;
        }

        onload = () => {
            rgehc = getEl('#rgehc');
            rgehv = getEl('#rgehv');
            rgeohc = getEl('#rgeohc');
            rgeohv = getEl('#rgeohv');
            lblhc = getEl('#lblhc');
            lblhv = getEl('#lblhv');
            lblohc = getEl('#lblohc');
            lblohv = getEl('#lblohv');
            lblnewv = getEl('#lblnewv');
            lblnewhc = getEl('#lblnewhc');
            lblnewnohc = getEl('#lblnewnohc');
            lblph = getEl('#lblph');

            rgehc.oninput = () => {
                hc = Number(rgehc.value);
                lblhc.innerText = ` ${hc.toFixed(2)} mol/L`;
                cal();
            }

            rgehv.oninput = () => {
                hv = Number(rgehv.value);
                lblhv.innerText = ` ${hv.toFixed(2)} ml/L`;
                cal();
            }

            rgeohc.oninput = () => {
                ohc = Number(rgeohc.value);
                lblohc.innerText = ` ${ohc.toFixed(2)} mol/L`;
                cal();
            }

            rgeohv.oninput = () => {
                ohv = Number(rgeohv.value);
                lblohv.innerText = ` ${ohv.toFixed(2)} ml/L`;
                cal();
            }
        }

    </script>
</head>

<body>
    <h2>盐酸与氢氧化钠溶液中和pH计算</h2>
    <span></span>
    <span>滚动条选中后可以使用键盘方向键微调</span>
    <span></span>
    <div>盐酸溶液浓度</div>
    <input type="range" min="0.10" max="12.00" step="0.10" value="0.10" id="rgehc">
    <div id="lblhc"> 0.10 mol/L</div>
    <span></span>
    <div>盐酸溶液体积</div>
    <input type="range" min="0.00" max="100.00" step="0.05" value="0.00" id="rgehv">
    <div id="lblhv"> 0.00 mL</div>
    <span></span>
    <div>氢氧化钠溶液浓度</div>
    <input type="range" min="0.10" max="20.00" step="0.10" value="0.10" id="rgeohc">
    <div id="lblohc"> 0.10 mol/L</div>
    <span></span>
    <div>氢氧化钠溶液体积</div>
    <input type="range" min="0.00" max="100.00" step="0.05" value="0.00" id="rgeohv">
    <div id="lblohv"> 0.00 mL</div>
    <span></span>
    <div>混合溶液体积为</div>
    <div id="lblnewv">0.00 mL</div>
    <span></span>
    <div>混合溶液 H+ 浓度约为</div>
    <div id="lblnewhc">0.000000 mol/L</div>
    <span></span>
    <div>混合溶液 OH- 浓度约为</div>
    <div id="lblnewnohc">0.000000 mol/L</div>
    <span></span>
    <div>混合溶液pH值</div>
    <div id="lblph">7.00</div>
</body>

</html>
