docker-compose 部署 mosquitto 集群

mosquitto 高可用通过桥接（bridge）模式实现。（这次只是实现简单版本，没有配置用户认证等复杂场景，只实现客户端无论连接哪个broker，都可以消费到消息）

环境：vmware 虚拟机系统centos7，Docker Compose version v2.7.0， mosquitto 1.6.9

docker-compose.yaml

version: '3'
services:
  mosquitto-nginx:
    container_name: mosquitto-nginx
    restart: unless-stopped
    volumes:
    - ./nginx:/etc/nginx/
    - ./nginx/log:/var/log/nginx/
    - /etc/localtime:/etc/localtime:ro
    image: nginx
    ports:
    - 11080:11080
    depends_on:
      - mosquitto1
  mosquitto1:
    image: eclipse-mosquitto:1.6.9
    container_name: mosquitto1
    ports:
      - 8883:8883
      - 9001:9001
    environment:
      TZ: Asia/Shanghai
    volumes:
      - ./mosquitto1/config:/mosquitto/config
      - ./mosquitto1/data:/mosquitto/data
      - ./mosquitto1/log:/mosquitto/log
    restart: unless-stopped
    depends_on:
      - mosquitto2
      - mosquitto3
  mosquitto2:
    image: eclipse-mosquitto:1.6.9
    container_name: mosquitto2
    ports:
      - 8884:8884
      - 9002:9002
    environment:
      TZ: Asia/Shanghai
    volumes:
      - ./mosquitto2/config:/mosquitto/config
      - ./mosquitto2/data:/mosquitto/data
      - ./mosquitto2/log:/mosquitto/log
    restart: unless-stopped
  mosquitto3:
    image: eclipse-mosquitto:1.6.9
    container_name: mosquitto3
    ports:
      - 8885:8885
      - 9003:9003
    environment:
      TZ: Asia/Shanghai
    volumes:
      - ./mosquitto3/config:/mosquitto/config
      - ./mosquitto3/data:/mosquitto/data
      - ./mosquitto3/log:/mosquitto/log
    restart: unless-stopped

ps：volumes 目录权限调大chmod 777， 不然写文件失败

nginx配置项复制：

1. 启动一个默认实例
   docker run --name nginx -p 11080:80 -d nginx
2. 把文件拷出来
   docker cp nginx:/etc/nginx/ .
3. 删除默认实例
   docker stop nginx && docker rm nginx

mosquitto-nginx （用于tcp负载均衡mosquitto2 和 mosquitto 3），配置文件：

#nginx tcp loadbalance config, 在http的上面增加代码如下
stream {
	upstream MosquittoServer{
		server 192.168.229.140:8884;
		server 192.168.229.140:8885;
	}
	server {
		proxy_connect_timeout 1s;
		listen 11080;
		proxy_pass MosquittoServer;
		tcp_nodelay on;
	}

}

mosquitto1（Bridge 节点）配置文件，路径./mosquitto1/config/mosquitto.conf

port 8883
listener 9001

connection mosquitto2
address 192.168.229.140:8884
topic # both 1

connection mosquitto3
address 192.168.229.140:8885
topic # both 1

bridge_protocol_version mqttv311
notifications true
cleansession true
try_private true
start_type automatic

connection_messages true
log_dest file /mosquitto/log/mosquitto.log
log_dest stdout

log_timestamp true
log_timestamp_format %Y-%m-%d %H:%M:%S

persistence true
persistence_file /mosquitto/data/mosquitto.db

mosquitto2（Broker节点）配置文件，路径./mosquitto2/config/mosquitto.conf

port 8884

listener 9002

connection_messages true
log_dest file /mosquitto/log/mosquitto.log
log_dest stdout

log_timestamp true
log_timestamp_format %Y-%m-%d %H:%M:%S

persistence true
persistence_file /mosquitto/data/mosquitto.db

mosquitto3（Broker 节点）配置文件，路径./mosquitto3/config/mosquitto.conf

port 8885

listener 9003

connection_messages true
log_dest file /mosquitto/log/mosquitto.log
log_dest stdout

log_timestamp true
log_timestamp_format %Y-%m-%d %H:%M:%S

persistence true
persistence_file /mosquitto/data/mosquitto.db

docker-compose up -d 启动部署

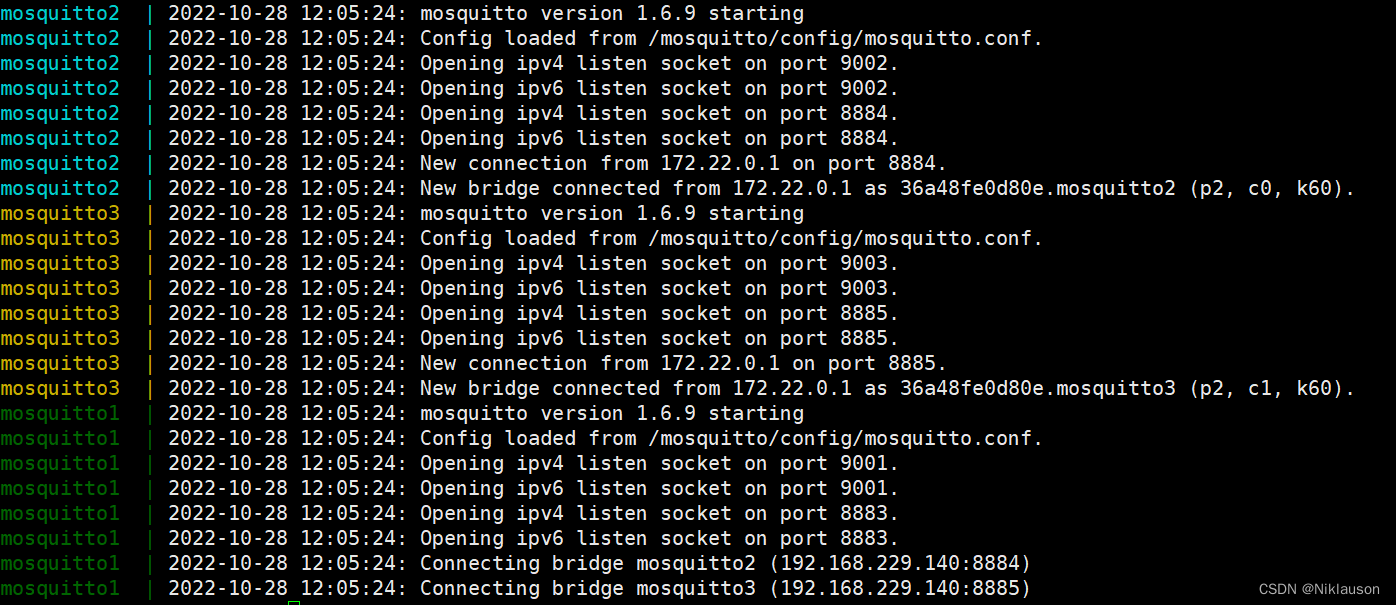

docker-compose logs 查看部署日志

mosquitto配置原理讲解： mosquitto-bridge-configuration

mosquitto 配置文件详解：https://blog.51cto.com/u_10624715/3235140

k8s 高可用部署：

1. How to run high availability Mosquitto on Kubernetes
2. https://github.com/roobytwo/mosquitto-HA

moquitto bridge 配置SSL认证： Configure a Mosquitto Bridge With SSL Encryption

MQTT Broker监控 ： monitoring-mqtt-brokers

MQTT Broker 压测：mqtt-benchmark

还有其他压测工具：
https://github.com/inovex/mqtt-stresser
https://github.com/daoshenzzg/mqtt-mock
https://github.com/takanorig/mqtt-bench
https://testerhome.com/topics/27632
https://blog.csdn.net/qq_39214101/article/details/107997414

参考连接：steves-internet-guide

主题名和主题过滤器:

Topic Names and Topic Filters

主题通配符 Topic wildcards

主题层级(topic level)分隔符用于将结构化引入主题名。如果存在分隔符，它将主题名分割为多个主题层级 topic level。

订阅的主题过滤器可以包含特殊的通配符，允许一次订阅多个主题，主题过滤器中可以使用通配符，但是主题名不能使用通配符。

- 主题层级分隔符 ：斜杠(‘/’ U+002F)用于分割主题的每个层级，为主题名提供一个分层结构

- 多层通配符：数字标志(‘#’ U+0023)是用于匹配主题中任意层级的通配符

- 单层通配符：加号 (‘+’ U+002B) 是只能用于单个主题层级匹配的通配符

- 以$开头的主题：服务端不能将 $ 字符开头的主题名匹配通配符 (#或+)开头的主题过滤器

mqttv5 共享主题：
在共享的MQTT订阅中，订阅相同共享主题的所有客户端将会轮流收到消息，这种机制有时称为客户机负载平衡，因为单个主题的消息负载分布在所有订阅者之间。
http://www.steves-internet-guide.com/mqttv5-shared-subscriptions/

ps：压测工具大全：https://www.iamle.com/archives/2173.html
