映射文件
RocketMQ 使用MappedFile 、MappedFileQueue 来封装存储文件
MappedFileQueue 映射文件队列
字段属性
//存储目录
private final String storePath;
//单个文件的存储大小。
private final int mappedFileSize;
//mappedFiles文件集合。
private final CopyOnWriteArrayList<MappedFile> mappedFiles = new CopyOnWriteArrayList<MappedFile>();
//创建MmappedFiles服务类。
private final AllocateMappedFileService allocateMappedFileService;
//当前刷盘指针, 表示该指针之前的所有数据全部持久化到磁盘
private long flushedWhere = 0;
//当前数据提交指针,内存中ByteBuffer 当前的写指针,该值大于等于flushedWhere 。
private long committedWhere = 0;
常用方法
//根据消息存储时间戳来查找MappdFile
public MappedFile getMappedFileByTime(final long timestamp) {
Object[] mfs = this.copyMappedFiles(0);
if (null == mfs)
return null;
//遍历MappedFile
for (int i = 0; i < mfs.length; i++) {
MappedFile mappedFile = (MappedFile) mfs[i];
//找到第一个最后一次更新时间大于待查找时间戳的文件
if (mappedFile.getLastModifiedTimestamp() >= timestamp) {
return mappedFile;
}
}
//没找到,则返回最后一个文件
return (MappedFile) mfs[mfs.length - 1];
}
//删除offset 之后的所有文件
public void truncateDirtyFiles(long offset) {
List<MappedFile> willRemoveFiles = new ArrayList<MappedFile>();
//遍历目录下文件
for (MappedFile file : this.mappedFiles) {
//获取文件尾部偏移
long fileTailOffset = file.getFileFromOffset() + this.mappedFileSize;
//若文件尾部偏移>offset
if (fileTailOffset > offset) {
//文件开始偏移>=offset
//说明当前文件包含了有效偏移
if (offset >= file.getFileFromOffset()) {
file.setWrotePosition((int) (offset % this.mappedFileSize));
file.setCommittedPosition((int) (offset % this.mappedFileSize));
file.setFlushedPosition((int) (offset % this.mappedFileSize));
} else {
//说明该文件是有效文件后面创建的
//释放MappedFile 占用的内存资源(内存映射与内存通道等)
file.destroy(1000);
//加入待删除集合
willRemoveFiles.add(file);
}
}
}
//删除文件
this.deleteExpiredFile(willRemoveFiles);
}
public boolean load() {
//加载$ { ROCKET_HOME }/store/commitlog 目录下所有文件
File dir = new File(this.storePath);
File[] files = dir.listFiles();
if (files != null) {
// ascending order
//按照文件名排序
Arrays.sort(files);
for (File file : files) {
//如果文件大小与配置文件的单个文件大小不一致,将忽略该目录下所有文件,
if (file.length() != this.mappedFileSize) {
log.warn(file + "\t" + file.length()
+ " length not matched message store config value, please check it manually");
return false;
}
try {
//创建MappedFile 对象
MappedFile mappedFile = new MappedFile(file.getPath(), mappedFileSize);
//将wrotePosition 、flushedPosition ,
//committedPosition 三个指针都设置为文件大小。
mappedFile.setWrotePosition(this.mappedFileSize);
mappedFile.setFlushedPosition(this.mappedFileSize);
mappedFile.setCommittedPosition(this.mappedFileSize);
this.mappedFiles.add(mappedFile);
log.info("load " + file.getPath() + " OK");
} catch (IOException e) {
log.error("load file " + file + " error", e);
return false;
}
}
}
return true;
}
/**
* 查找最后一个文件
* @param startOffset
* @param needCreate 如果找不到是否需要创建新文件
* @return
*/
public MappedFile getLastMappedFile(final long startOffset, boolean needCreate) {
long createOffset = -1;
MappedFile mappedFileLast = getLastMappedFile();
//创建的偏移必须是mappedFileSize设置的倍数
if (mappedFileLast == null) {
createOffset = startOffset - (startOffset % this.mappedFileSize);
}
if (mappedFileLast != null && mappedFileLast.isFull()) {
createOffset = mappedFileLast.getFileFromOffset() + this.mappedFileSize;
}
if (createOffset != -1 && needCreate) {
//利用偏移为文件名
String nextFilePath = this.storePath + File.separator + UtilAll.offset2FileName(createOffset);
String nextNextFilePath = this.storePath + File.separator
+ UtilAll.offset2FileName(createOffset + this.mappedFileSize);
MappedFile mappedFile = null;
if (this.allocateMappedFileService != null) {
//分别异步创建2个文件
mappedFile = this.allocateMappedFileService.putRequestAndReturnMappedFile(nextFilePath,
nextNextFilePath, this.mappedFileSize);
} else {
try {
mappedFile = new MappedFile(nextFilePath, this.mappedFileSize);
} catch (IOException e) {
log.error("create mappedFile exception", e);
}
}
if (mappedFile != null) {
//若mappedFiles队列为空
if (this.mappedFiles.isEmpty()) {
//设置是MappedFileQueue 队列中第一个文件
mappedFile.setFirstCreateInQueue(true);
}
//添加mapppedFiles集合
this.mappedFiles.add(mappedFile);
}
return mappedFile;
}
return mappedFileLast;
}
/**
* 获取最后一个文件,找不到则创建
*/
public MappedFile getLastMappedFile(final long startOffset) {
return getLastMappedFile(startOffset, true);
}
/**
* 获取最后一个文件
*/
public MappedFile getLastMappedFile() {
MappedFile mappedFileLast = null;
while (!this.mappedFiles.isEmpty()) {
try {
///获取尾端文件
mappedFileLast = this.mappedFiles.get(this.mappedFiles.size() - 1);
break;
} catch (IndexOutOfBoundsException e) {
//continue;
} catch (Exception e) {
log.error("getLastMappedFile has exception.", e);
break;
}
}
return mappedFileLast;
}
//获取存储文件最小偏移量
public long getMinOffset() {
if (!this.mappedFiles.isEmpty()) {
try {
//返回第一个映射文件的起始偏移.
return this.mappedFiles.get(0).getFileFromOffset();
} catch (IndexOutOfBoundsException e) {
//continue;
} catch (Exception e) {
log.error("getMinOffset has exception.", e);
}
}
return -1;
}
//获取存储文件的最大偏移量
public long getMaxOffset() {
MappedFile mappedFile = getLastMappedFile();
if (mappedFile != null) {
//返回当前文件起始偏移+可读偏移
return mappedFile.getFileFromOffset() + mappedFile.getReadPosition();
}
return 0;
}
//返回存储文件当前的写指针。
public long getMaxWrotePosition() {
MappedFile mappedFile = getLastMappedFile();
if (mappedFile != null) {
//返回最后一个文件的fil eF rom Offset 加上当前写指针位置。
return mappedFile.getFileFromOffset() + mappedFile.getWrotePosition();
}
return 0;
}
/**
* 执行文件销毁与删除
*/
public int deleteExpiredFileByTime(final long expiredTime,
final int deleteFilesInterval,
final long intervalForcibly,
final boolean cleanImmediately) {
Object[] mfs = this.copyMappedFiles(0);
if (null == mfs)
return 0;
int mfsLength = mfs.length - 1;
int deleteCount = 0;
List<MappedFile> files = new ArrayList<MappedFile>();
if (null != mfs) {
//从倒数第二个文件开始遍历
for (int i = 0; i < mfsLength; i++) {
MappedFile mappedFile = (MappedFile) mfs[i];
//计算文件的最大存活时间( = 文件的最后一次更新时间+文件存活时间(默认72 小时)) ,
long liveMaxTimestamp = mappedFile.getLastModifiedTimestamp() + expiredTime;
if (//当前时间大于文件的最大存活
System.currentTimeMillis() >= liveMaxTimestamp ||
//需要强制删除文件(当磁盘使用超过设定的阔值)
cleanImmediately) {
//清除MappedFile 占有的相关资源
if (mappedFile.destroy(intervalForcibly)) {
//若执行成,将该文件加入到待删除文件列表中
files.add(mappedFile);
deleteCount++;
if (files.size() >= DELETE_FILES_BATCH_MAX) {
break;
}
if (deleteFilesInterval > 0 && (i + 1) < mfsLength) {
try {
Thread.sleep(deleteFilesInterval);
} catch (InterruptedException e) {
}
}
} else {
break;
}
} else {
//avoid deleting files in the middle
break;
}
}
}
//将文件从物理磁盘中删除。
deleteExpiredFile(files);
return deleteCount;
}
/**
* Finds a mapped file by offset.
* 根据消息偏移量offset 查找MappedFile
* @param offset Offset.
* @param returnFirstOnNotFound If the mapped file is not found, then return the first one.
* @return Mapped file or null (when not found and returnFirstOnNotFound is <code>false</code>).
*/
public MappedFile findMappedFileByOffset(final long offset, final boolean returnFirstOnNotFound) {
try {
MappedFile firstMappedFile = this.getFirstMappedFile();
MappedFile lastMappedFile = this.getLastMappedFile();
if (firstMappedFile != null && lastMappedFile != null) {
//偏移不在起始和结束文件中,说明越界.
if (offset < firstMappedFile.getFileFromOffset() || offset >= lastMappedFile.getFileFromOffset() + this.mappedFileSize) {
LOG_ERROR.warn("Offset not matched. Request offset: {}, firstOffset: {}, lastOffset: {}, mappedFileSize: {}, mappedFiles count: {}",
offset,
firstMappedFile.getFileFromOffset(),
lastMappedFile.getFileFromOffset() + this.mappedFileSize,
this.mappedFileSize,
this.mappedFiles.size());
} else {
//因为RocketMQ定时删除存储文件
//所以第一个文件偏移开始并不一定是000000.
//同理可得offset / this.mappedFileSize并不能定位到具体文件
//所以还需要减去第一个文件的偏移/文件大小,算出磁盘中起始第几个文件
int index = (int) ((offset / this.mappedFileSize) - (firstMappedFile.getFileFromOffset() / this.mappedFileSize));
MappedFile targetFile = null;
try {
//获取映射文件
targetFile = this.mappedFiles.get(index);
} catch (Exception ignored) {
}
//再次检测是否在文件范围内
if (targetFile != null && offset >= targetFile.getFileFromOffset()
&& offset < targetFile.getFileFromOffset() + this.mappedFileSize) {
return targetFile;
}
//遍历所有文件查找
for (MappedFile tmpMappedFile : this.mappedFiles) {
if (offset >= tmpMappedFile.getFileFromOffset()
&& offset < tmpMappedFile.getFileFromOffset() + this.mappedFileSize) {
return tmpMappedFile;
}
}
}
//如果配置了没找到返回第一个,就返回第一个文件
if (returnFirstOnNotFound) {
return firstMappedFile;
}
}
} catch (Exception e) {
log.error("findMappedFileByOffset Exception", e);
}
return null;
}
MappedFile 内存映射文件
字段属性
//操作系统每页大小,默认4k 。
public static final int OS_PAGE_SIZE = 1024 * 4;
protected static final InternalLogger log = InternalLoggerFactory.getLogger(LoggerName.STORE_LOGGER_NAME);
//当前JVM 实例中MappedFile虚拟内存。
private static final AtomicLong TOTAL_MAPPED_VIRTUAL_MEMORY = new AtomicLong(0);
//当前JVM 实例中MappedFile 对象个数。
private static final AtomicInteger TOTAL_MAPPED_FILES = new AtomicInteger(0);
//当前该文件的写指针,从0 开始(内存映射文件中的写指针) 。
protected final AtomicInteger wrotePosition = new AtomicInteger(0);
//当前文件的提交指针,如果开启transientStore PoolEnable,则数据会存储在TransientStorePool 中,
// 然后提交到内存映射ByteBuffer中,再刷写到磁盘。
protected final AtomicInteger committedPosition = new AtomicInteger(0);
//刷写到磁盘指针,该指针之前的数据持久化到磁盘中。
private final AtomicInteger flushedPosition = new AtomicInteger(0);
protected int fileSize;
protected FileChannel fileChannel;
/**
* Message will put to here first, and then reput to FileChannel if writeBuffer is not null.
*/
//堆内存ByteBuffer , 如果不为空,数据首先将存储在该Buffer 中,
// 然后提交到MappedFile 对应的内存映射文件Buffer 。
// transientStorePoolEnable为true 时不为空。
protected ByteBuffer writeBuffer = null;
//堆内存池, transientStorePoolEnable 为true时启用。
protected TransientStorePool transientStorePool = null;
private String fileName;
//该文件的初始偏移量。
private long fileFromOffset;
private File file;
//物理文件对应的内存映射Buffer 。
private MappedByteBuffer mappedByteBuffer;
//文件最后一次内容写入时间。
private volatile long storeTimestamp = 0;
//是否是MappedFileQueue 队列中第一个文件。
private boolean firstCreateInQueue = false;
初始化
若transientStorePoolEnable 为true ,则初始化MappedFile 的writeBuffer .内存先存储堆外内存,然后通过Commit线程将数据提交到内存映射Buffer中,再通过Flush线程将内存映射Buffer 中的数据持久化到磁盘中.否则则将数据提交到文件映射通道中,然后在刷入磁盘
public void init(final String fileName, final int fileSize,
final TransientStorePool transientStorePool) throws IOException {
init(fileName, fileSize);
//如果transientStorePoolEnable 为true ,则初始化MappedFile 的writeBuffer ,
this.writeBuffer = transientStorePool.borrowBuffer();
this.transientStorePool = transientStorePool;
}
private void init(final String fileName, final int fileSize) throws IOException {
this.fileName = fileName;
this.fileSize = fileSize;
this.file = new File(fileName);
//fileFromOffset为文件名
this.fileFromOffset = Long.parseLong(this.file.getName());
boolean ok = false;
ensureDirOK(this.file.getParent());
try {
//创建文件读写通道
this.fileChannel = new RandomAccessFile(this.file, "rw").getChannel();
//将文件映射内存中
this.mappedByteBuffer = this.fileChannel.map(MapMode.READ_WRITE, 0, fileSize);
//重新计算MappedFile虚拟内存。
TOTAL_MAPPED_VIRTUAL_MEMORY.addAndGet(fileSize);
//计算文件个数
TOTAL_MAPPED_FILES.incrementAndGet();
ok = true;
} catch (FileNotFoundException e) {
log.error("Failed to create file " + this.fileName, e);
throw e;
} catch (IOException e) {
log.error("Failed to map file " + this.fileName, e);
throw e;
} finally {
//执行失败,但通道创建成功,则关闭通道
if (!ok && this.fileChannel != null) {
this.fileChannel.close();
}
}
}
提交
也就是将堆外数据写入channel
/**
* 执行提交操作
* @param commitLeastPages 本次提交最小的页数
* @return
*/
public int commit(final int commitLeastPages) {
/*
writeBuffer如果为空,直接返回wrotePosition 指针,无须执行commit 操作,
表明commit 操作的实际是writeBuffer堆外内存
*/
if (writeBuffer == null) {
//no need to commit data to file channel, so just regard wrotePosition as committedPosition.
return this.wrotePosition.get();
}
//判断是否执行commit 操作,主要判断页是否满足
if (this.isAbleToCommit(commitLeastPages)) {
//添加引用
if (this.hold()) {
//具体的提交实现
commit0(commitLeastPages);
//释放引用
this.release();
} else {
log.warn("in commit, hold failed, commit offset = " + this.committedPosition.get());
}
}
// All dirty data has been committed to FileChannel.
///所有脏数据已经写入channel,且该文件已经提交满了.
if (writeBuffer != null && this.transientStorePool != null && this.fileSize == this.committedPosition.get()) {
//归还堆外内存给堆内存池
this.transientStorePool.returnBuffer(writeBuffer);
//释放GC
this.writeBuffer = null;
}
//返回最新提交位置
return this.committedPosition.get();
}
是否执行commit 操作
//判断是否执行commit 操作
protected boolean isAbleToCommit(final int commitLeastPages) {
int flush = this.committedPosition.get();
int write = this.wrotePosition.get();
//若文件已满,返回true
if (this.isFull()) {
return true;
}
if (commitLeastPages > 0) {
//当前writeBuffe 的写指针与上一次提交的指针(committedPosition)的差值
// 除以OS_ PAGE_ SIZE 得到当前脏页的数量
//如果大于commitLeastPages 则返回true
return ((write / OS_PAGE_SIZE) - (flush / OS_PAGE_SIZE)) >= commitLeastPages;
}
//如果commitLeastPages 小于0 表示只要存在脏页就提交。
return write > flush;
}
具体的提交实现
protected void commit0(final int commitLeastPages) {
int writePos = this.wrotePosition.get();
int lastCommittedPosition = this.committedPosition.get();
//说明有最新数据写,将writeBuffer中的数据提交到文件通道FileChannel 中。
if (writePos - this.committedPosition.get() > 0) {
try {
ByteBuffer byteBuffer = writeBuffer.slice();
byteBuffer.position(lastCommittedPosition);
byteBuffer.limit(writePos);
//设置当前文件提交指针位移
this.fileChannel.position(lastCommittedPosition);
//将writeBuffer数据提交到文件通道FileChannel 中。
this.fileChannel.write(byteBuffer);
//更新当前文件提交指针位移
this.committedPosition.set(writePos);
} catch (Throwable e) {
log.error("Error occurred when commit data to FileChannel.", e);
}
}
}
刷盘
将内存数据刷入磁盘
/**
* @return The current flushed position
* 将内存中的数据刷写到磁盘
*/
public int flush(final int flushLeastPages) {
if (this.isAbleToFlush(flushLeastPages)) {
if (this.hold()) {
//获取该文件内存映射写指针
//如果开启了堆内存池,则是堆内存写指针
int value = getReadPosition();
try {
//We only append data to fileChannel or mappedByteBuffer, never both.
//说明使用了堆内存,执行到这里堆内存已经写入fileChannel中了,重新刷入磁盘就行了
if (writeBuffer != null || this.fileChannel.position() != 0) {
//文件的所有待定修改立即同步到磁盘,布尔型参数表示在方法返回值前文件的元数据(metadata)是否也要被同步更新到磁盘
this.fileChannel.force(false);
} else {
//说明没用堆内存ByteBuffer,直接使用内存映射刷入即可.
this.mappedByteBuffer.force();
}
} catch (Throwable e) {
log.error("Error occurred when force data to disk.", e);
}
//记录刷入磁盘最新指针
this.flushedPosition.set(value);
this.release();
} else {
log.warn("in flush, hold failed, flush offset = " + this.flushedPosition.get());
this.flushedPosition.set(getReadPosition());
}
}
//返回刷入磁盘最新指针
return this.getFlushedPosition();
}
获取最大可读的位置
public int getReadPosition() {
//若没开启堆内存临时存储
return this.writeBuffer == null ?
//返回该文件的写位置
this.wrotePosition.get() :
//返回上次堆内存写入通道的位置
this.committedPosition.get();
}
销毁
/**
* MappedFile文件销毁
*
* @param intervalForcibly 拒绝被销毁的最大存活时间。
* @return
*/
public boolean destroy(final long intervalForcibly) {
//关闭MappedFile
this.shutdown(intervalForcibly);
//判断是否清理完成
if (this.isCleanupOver()) {
try {
//关闭通道
this.fileChannel.close();
log.info("close file channel " + this.fileName + " OK");
long beginTime = System.currentTimeMillis();
//删除整个物理文件
boolean result = this.file.delete();
log.info("delete file[REF:" + this.getRefCount() + "] " + this.fileName
+ (result ? " OK, " : " Failed, ") + "W:" + this.getWrotePosition() + " M:"
+ this.getFlushedPosition() + ", "
+ UtilAll.computeElapsedTimeMilliseconds(beginTime));
} catch (Exception e) {
log.warn("close file channel " + this.fileName + " Failed. ", e);
}
return true;
} else {
log.warn("destroy mapped file[REF:" + this.getRefCount() + "] " + this.fileName
+ " Failed. cleanupOver: " + this.cleanupOver);
}
return false;
}
关闭MappedFile
/**
* 关闭MappedFile
* @param intervalForcibly 拒绝被销毁的最大存活时间。
*/
public void shutdown(final long intervalForcibly) {
//默认true
if (this.available) {
//初次调用时available 为true ,设置available为fal se
this.available = false;
//设置初次关闭的时间戳
this.firstShutdownTimestamp = System.currentTimeMillis();
//释放资源,引用次数小于1 的情况下才会释放资源
this.release();
} else if (this.getRefCount() > 0) {
//如果引用次数大于0
//对比当前时间与firstShutdownTimestamp ,如果已经超过了其最大拒绝存活期,每执行
//一次,将引用数减少1000 ,直到引用数小于0 时通过执行release方法释放资源。
if ((System.currentTimeMillis() - this.firstShutdownTimestamp) >= intervalForcibly) {
this.refCount.set(-1000 - this.getRefCount());
this.release();
}
}
}
减少引用并释放资源
public void release() {
//引用减1
long value = this.refCount.decrementAndGet();
if (value > 0)
return;
synchronized (this) {
//释放堆外内存
this.cleanupOver = this.cleanup(value);
}
}
释放堆外内存
/**
* 释放堆外内存
*/
public boolean cleanup(final long currentRef) {
//如果available为true ,表示MappedFile当前可用,无须清理,
if (this.isAvailable()) {
log.error("this file[REF:" + currentRef + "] " + this.fileName
+ " have not shutdown, stop unmapping.");
return false;
}
//如果资源已经被清除,返回true
if (this.isCleanupOver()) {
log.error("this file[REF:" + currentRef + "] " + this.fileName
+ " have cleanup, do not do it again.");
return true;
}
//如果是堆外内存,调用堆外内存的cleanup 方法清除
clean(this.mappedByteBuffer);
//维护虚拟内存
TOTAL_MAPPED_VIRTUAL_MEMORY.addAndGet(this.fileSize * (-1));
//对象个数-1
TOTAL_MAPPED_FILES.decrementAndGet();
log.info("unmap file[REF:" + currentRef + "] " + this.fileName + " OK");
return true;
}
判断是否清理完成
/**
* 判断是否清理完成
* @return
*/
public boolean isCleanupOver() {
return
//引用次数小于等于0
this.refCount.get() <= 0
//release 成功将MappedByteBuffer资源释放
&& this.cleanupOver;
}
其他方法
/**
* 查找pos 到当前最大可读之间的数据
* @param pos
* @return
*/
public SelectMappedBufferResult selectMappedBuffer(int pos) {
//获取最大可读数据位置
int readPosition = getReadPosition();
//若有数据可读
if (pos < readPosition && pos >= 0) {
if (this.hold()) {
/*
操作ByteBuffer 时如果使用了slice () 方法,对其ByteBuffer 进行读取时一般手动指定
position 与limit 指针,而不是调用flip 方法来切换读写状态。
*/
//由于在整个写入期间都未曾改变MappedByteBuffer的指针
//所以mappedByteBuffer.slice()方法返回的共享缓存区空间为整个MappedFile
ByteBuffer byteBuffer = this.mappedByteBuffer.slice();
byteBuffer.position(pos);
int size = readPosition - pos;
ByteBuffer byteBufferNew = byteBuffer.slice();
byteBufferNew.limit(size);
return new SelectMappedBufferResult(this.fileFromOffset + pos, byteBufferNew, size, this);
}
}
return null;
}
TransientStorePool 临时堆外内存存储池
RocketMQ 单独创建一个MappedByteBuffer 内存缓存池
RokcetMQ 引人该机制主要的原因:提供一种内存锁定,将当前堆外内存一直锁定在内存中,避免被进程将内存交换到磁盘。
字段
//avaliableBuffers个数,可通过在broker 中配置文件中设置transientStorePoolSize, 默认为5 。
private final int poolSize;
//每个ByteBuffer 大小, 默认为mapedFileSizeCommitLog ,表明TransientStorePool 为commitlog 文件服务。
private final int fileSize;
//ByteBuffer 容器,双端队列。
private final Deque<ByteBuffer> availableBuffers;
//消息存储配置
private final MessageStoreConfig storeConfig;
初始化
public void init() {
//创建poolSize个堆外内存
for (int i = 0; i < poolSize; i++) {
//每个堆外内存大小fileSize
ByteBuffer byteBuffer = ByteBuffer.allocateDirect(fileSize);
final long address = ((DirectBuffer) byteBuffer).address();
Pointer pointer = new Pointer(address);
//利用com.sun.jna.Library 类库将该批内存锁定,避免被置换到交换区,提高存储性能。
LibC.INSTANCE.mlock(pointer, new NativeLong(fileSize));
//添加双端队列
availableBuffers.offer(byteBuffer);
}
}
RocketMQ 存储文件
RocketMQ 存储路径为${ RocketMQ _HOME} / store
- commitlog :消息存储目录。
- config :运行期间一些配置信息,主要包括下列信息。
consumerFilter.json : 主题消息过滤信息。
consumerOffset.json : 集群消费模式消息消费进度。
delayOffset.json:延时消息队列拉取进度。
subscriptionGroup.json : 消息消费组配置信息。
topics.json:topic 配置属性。 - consumequeue :消息消费队列存储目录。
- index :消息索引文件存储目录。
- abort :如果存在abort 文件说明Broker 非正常关闭,该文件默认启动时创建,正常退出之前删除。

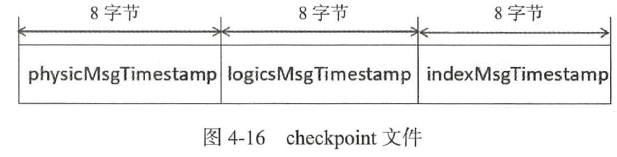

- checkpoint :文件检测点,存储commitlog 文件最后一次刷盘时间戳、consumequeue最后一次刷盘时间、index
索引文件最后一次刷盘时间戳。
Commitlog 文件
每条消息的前面4 个字节存储该条消息的总长度。
获取当前Commitlog 目录最小偏移量
//获取当前Commitlog 目录最小偏移量
public long getMinOffset() {
//获取第一个文件
MappedFile mappedFile = this.mappedFileQueue.getFirstMappedFile();
if (mappedFile != null) {
//第一个文件可用
if (mappedFile.isAvailable()) {
//返回该文件起始偏移量
return mappedFile.getFileFromOffset();
} else {
//返回下个文件的起始偏移量
return this.rollNextFile(mappedFile.getFileFromOffset());
}
}
return -1;
}
根据该offset返回下一个文件的起始偏移量
public long rollNextFile(final long offset) {
//获取一个文件大小,可配置,默认1G.
int mappedFileSize = this.defaultMessageStore.getMessageStoreConfig().getMappedFileSizeCommitLog();
//offset必须是mappedFileSize倍数
//回到下个文件的起始偏移量
return offset + mappedFileSize - offset % mappedFileSize;
}
根据偏移量与消息长度查找消息
public SelectMappedBufferResult getMessage(final long offset, final int size) {
//获取默认文件大小
int mappedFileSize = this.defaultMessageStore.getMessageStoreConfig().getMappedFileSizeCommitLog();
//首先根据偏移找到所在的物理偏移量
MappedFile mappedFile = this.mappedFileQueue.findMappedFileByOffset(offset, offset == 0);
if (mappedFile != null) {
//得到在文件内的偏移量
int pos = (int) (offset % mappedFileSize);
//从该偏移量读取size长度的内容返回
return mappedFile.selectMappedBuffer(pos, size);
}
return null;
}
ConsumeQueue文件
同一主题的消息不连续地存储在commitlog 文件中,如果消息消费者直接从消息存储文件(commitlog)中去遍历查找订阅主题下的消息,效率将极其低下,RocketMQ 为了适应消息消费的检索需求,设计了消息消费队列文件(Consumequeue),该文件可以看成是Commitlog 关于消息消费的“索引”文件
单个ConsumeQueue 文件中默认包含30 万个条目,单个文件的长度为30w × 20 字节
根据startIndex获取消息消费队列条目
/**
*
* @param startIndex 消息条目索引
* @return
*/
public SelectMappedBufferResult getIndexBuffer(final long startIndex) {
int mappedFileSize = this.mappedFileSize;
//得到在consumequeue中的物理偏移,每个队列条目占用20字节内存
long offset = startIndex * CQ_STORE_UNIT_SIZE;
//说明消息还存在
if (offset >= this.getMinLogicOffset()) {
//根据偏移量定位到具体的物理文件
MappedFile mappedFile = this.mappedFileQueue.findMappedFileByOffset(offset);
if (mappedFile != null) {
//读取在文件中的偏移数据
SelectMappedBufferResult result = mappedFile.selectMappedBuffer((int) (offset % mappedFileSize));
return result;
}
}
//说明消息已被删除
return null;
}
根据消息存储时间来查找该消息条目索引
/**
*
* @param timestamp
* @return
*/
public long getOffsetInQueueByTime(final long timestamp) {
//根据时间戳定位到物理文件
MappedFile mappedFile = this.mappedFileQueue.getMappedFileByTime(timestamp);
if (mappedFile != null) {
long offset = 0;
//计算最低位索引
int low = minLogicOffset > mappedFile.getFileFromOffset() ? (int) (minLogicOffset - mappedFile.getFileFromOffset()) : 0;
int high = 0;
int midOffset = -1, targetOffset = -1, leftOffset = -1, rightOffset = -1;
long leftIndexValue = -1L, rightIndexValue = -1L;
//获取当前存储commitLog文件中有效的最小消息物理偏移量minPhysicOffset ,
long minPhysicOffset = this.defaultMessageStore.getMinPhyOffset();
SelectMappedBufferResult sbr = mappedFile.selectMappedBuffer(0);
if (null != sbr) {
ByteBuffer byteBuffer = sbr.getByteBuffer();
//设置hign为文件最后一个元素
high = byteBuffer.limit() - CQ_STORE_UNIT_SIZE;
try {
while (high >= low) {
//获取中间偏移
midOffset = (low + high) / (2 * CQ_STORE_UNIT_SIZE) * CQ_STORE_UNIT_SIZE;
byteBuffer.position(midOffset);
//获取8字节该消息的物理偏移量
long phyOffset = byteBuffer.getLong();
//获取4字节该消息长度
int size = byteBuffer.getInt();
//小于当前的最小物理偏移量,说明消息无效,继续二分查找
if (phyOffset < minPhysicOffset) {
//从下一个消息条目开始二分查找
low = midOffset + CQ_STORE_UNIT_SIZE;
leftOffset = midOffset;
continue;
}
//根据消息偏移量和消息长度获取消息的存储时间戳。
long storeTime =
this.defaultMessageStore.getCommitLog().pickupStoreTimestamp(phyOffset, size);
//存储时间小于0
if (storeTime < 0) {
//消息为无效消息,直接返回0 。
return 0;
} else if (storeTime == timestamp) {
//如果存储时间戳等于待查找时间戳,说明查找到匹配消息,设置targetOffset 并跳 出循环。
targetOffset = midOffset;
break;
} else if (storeTime > timestamp) {
/*
//如果存储时间戳大于待查找时间戳,说明待查找信息小于midOffset ,则设置high
//为尾端消息-1个消息条目, 并设置rightlndexValue 等于midOffset 。
*/
high = midOffset - CQ_STORE_UNIT_SIZE;
rightOffset = midOffset;
rightIndexValue = storeTime;
} else {
/*
如果存储时间小于待查找时间戳,说明待查找消息在大于midOffset ,则设置low
为midOffset ,并设置leftlndexYalu巳等于mid Offset。
*/
low = midOffset + CQ_STORE_UNIT_SIZE;
leftOffset = midOffset;
leftIndexValue = storeTime;
}
}
//找到了存储时间戳等于待查找时间戳的消息
if (targetOffset != -1) {
offset = targetOffset;
} else {
//返回当前时间戳大并且最接近待查找的偏移量
if (leftIndexValue == -1) {
offset = rightOffset;
} else if (rightIndexValue == -1) {
//返回的消息比待查找时间戳小并且最接近查找的偏移量。
offset = leftOffset;
} else {
//比较2者,选择最靠近时间的偏移量
offset =
Math.abs(timestamp - leftIndexValue) > Math.abs(timestamp
- rightIndexValue) ? rightOffset : leftOffset;
}
}
//返回该消息条目索引
return (mappedFile.getFileFromOffset() + offset) / CQ_STORE_UNIT_SIZE;
} finally {
//释放引用
sbr.release();
}
}
}
//说明找到的消息偏移小于该物理偏移量,字节返回
return 0;
}
根据当前偏移量获取下一个文件的起始偏移量
//
public long rollNextFile(final long index) {
int mappedFileSize = this.mappedFileSize;
//获取一个文件包含多少个消息消费队列条目
int totalUnitsInFile = mappedFileSize / CQ_STORE_UNIT_SIZE;
//获取下一个文件的起始偏移量。
return index + totalUnitsInFile - index % totalUnitsInFile;
}
Index
Hash 索引机制为消息建立索引,提高根据主题与消息队列检索消息的速度,
- IndexHeader 头部,包含40 个字节,记录该IndexFile 的统计信息,其结构如下。
beginTimestamp: 该索引文件中包含消息的最小存储时间。
endTimestamp : 该索引文件中包含消息的最大存储时间。
beginPhyoffset : 该索引文件中包含消息的最小物理偏移量( commitlog 文件偏移量) 。
endPhyoffset :该索引文件中包含消息的最大物理偏移量( commitlog 文件偏移量) 。
hashslotCount:hashslot 个数,并不是hash 槽使用的个数,在这里意义不大。
indexCount: Index 条目列表当前已使用的个数, Index 条目在Index 条目列表中按顺序存储。 - Hash 槽, 一个IndexFile 默认包含500 万个Hash 槽,每个Hash 槽存储的是落在该 Hash槽的hashcode 最新的In dex 的索引。
- Index 条目列表,默认一个索引文件包含2000 万个条目,每一个Index 条目结构如下。
hashcode: key的hashcode 。
phyoffset : 消息对应的物理偏移量。
timedif:该消息存储时间与第一条消息的时间戳的差值,小于0该消息无效。
prelndexNo :该条目的前一条记录的Index 索引, 当出现hash 冲突时, 构建的链表结构。
字段
//每个槽的大小,4字节
private static int hashSlotSize = 4;
//每个Index 条目大小,20字节
private static int indexSize = 20;
//主要用来判断槽有没有被占用,0表没有
private static int invalidIndex = 0;
//一个IndexFile 默认包含500 万个Hash 槽,每个Hash 槽存储的是落在该Hash槽的hashcode 最新的Index 的索引。
private final int hashSlotNum;
//允许最大条目数
private final int indexNum;
//内存映射文件
private final MappedFile mappedFile;
//文件通道
private final FileChannel fileChannel;
//物理文件对应的内存映射Buffer 。
private final MappedByteBuffer mappedByteBuffer;
//IndexHeader头部
private final IndexHeader indexHeader;
IndexHeader字段属性
//包含40个字节
public static final int INDEX_HEADER_SIZE = 40;
//该索引文件中包含消息的最小存储时间。
private static int beginTimestampIndex = 0;
// 该索引文件中包含消息的最大存储时间。
private static int endTimestampIndex = 8;
// 该索引文件中包含消息的最小物理偏移量( commitlog 文件偏移量) 。
private static int beginPhyoffsetIndex = 16;
//该索引文件中包含消息的最大物理偏移量( commitlog 文件偏移量)
private static int endPhyoffsetIndex = 24;
//hashslot 个数,并不是hash 槽使用的个数
private static int hashSlotcountIndex = 32;
private static int indexCountIndex = 36;
private final ByteBuffer byteBuffer;
private AtomicLong beginTimestamp = new AtomicLong(0);
private AtomicLong endTimestamp = new AtomicLong(0);
private AtomicLong beginPhyOffset = new AtomicLong(0);
private AtomicLong endPhyOffset = new AtomicLong(0);
//槽的使用个数
private AtomicInteger hashSlotCount = new AtomicInteger(0);
//Index 条目列表当前已使用的个数, Index 条目在Index 条目列表中按顺序存储。
private AtomicInteger indexCount = new AtomicInteger(1);
将消息索引键与消息偏移量映射关系写入到IndexFile
/**
* 将消息索引键与消息偏移量映射关系写入到IndexFile
* @param key 消息索引
* @param phyOffset 消息物理偏移量
* @param storeTimestamp 消息存储时间
* @return
*/
public boolean putKey(final String key, final long phyOffset, final long storeTimestamp) {
//如果当前已使用条目大于等于允许最大条目数时,则返回fasle ,表示当前索引文件已写满
if (this.indexHeader.getIndexCount() < this.indexNum) {
//根据key算出key 的hashcode
int keyHash = indexKeyHashMethod(key);
//定位hasbcode对应的hash槽下标
int slotPos = keyHash % this.hashSlotNum;
//hashcode对应的hash槽的物理地址=头部40字节+对应hash槽下标*槽大小
int absSlotPos = IndexHeader.INDEX_HEADER_SIZE + slotPos * hashSlotSize;
FileLock fileLock = null;
try {
// fileLock = this.fileChannel.lock(absSlotPos, hashSlotSize,
// false);
//读取hash 槽中存储的数据,每个槽占用4字节,也就是getInt就可以了
int slotValue = this.mappedByteBuffer.getInt(absSlotPos);
//如果hash 槽存储的数据小于等于0 或大于当前索引文件中的索引条目格式,则将slotValue 设置为0
//说明槽尚未占用
if (slotValue <= invalidIndex || slotValue > this.indexHeader.getIndexCount()) {
slotValue = invalidIndex;
}
//计算待存储消息的时间戳与第一条消息时间戳的差值,并转换成秒。
long timeDiff = storeTimestamp - this.indexHeader.getBeginTimestamp();
timeDiff = timeDiff / 1000;
if (this.indexHeader.getBeginTimestamp() <= 0) {
timeDiff = 0;
} else if (timeDiff > Integer.MAX_VALUE) {
timeDiff = Integer.MAX_VALUE;
} else if (timeDiff < 0) {
timeDiff = 0;
}
//计算新添加条目起始偏移量
int absIndexPos =
//头部字节长度
IndexHeader.INDEX_HEADER_SIZE +
//hash槽数量*单个槽大小
this.hashSlotNum * hashSlotSize
//当前index条目个数*单个条目大小
+ this.indexHeader.getIndexCount() * indexSize;
//之所以只存储HashCode 而不存储具体的key , 是为
//了将Index 条目设计为定长结构,才能方便地检索与定位条目。
this.mappedByteBuffer.putInt(absIndexPos, keyHash);
//消息对应的物理偏移量。
this.mappedByteBuffer.putLong(absIndexPos + 4, phyOffset);
//该消息存储时间与第一条消息的时间戳的差值,小于0 该消息无效
this.mappedByteBuffer.putInt(absIndexPos + 4 + 8, (int) timeDiff);
//当产生hash槽冲突时,Hash 槽中存储的是该Hash Code 所对应的最新的Index 条目的下标,
// 新的Index 条目的最后4 个字节存储该Hash Code 上一个条目的Index 下标。
//如果Hash 槽中存储的值为0 或大于当前lndexFile 最大条目数或小于- 1,表示该Hash 槽当前并没有与之对应的Index 条目。
this.mappedByteBuffer.putInt(absIndexPos + 4 + 8 + 4, slotValue);
//当前hash槽的值存入MappedByteBuffer 中。将覆盖原先Hash 槽的值。
this.mappedByteBuffer.putInt(absSlotPos, this.indexHeader.getIndexCount());
//如果当前文件只包含一个条目,默认值为1
if (this.indexHeader.getIndexCount() <= 1) {
//更新BeginPhyOffset和BeginTimestamp
this.indexHeader.setBeginPhyOffset(phyOffset);
this.indexHeader.setBeginTimestamp(storeTimestamp);
}
//slotValue为0,说明新增hash槽使用
if (invalidIndex == slotValue) {
this.indexHeader.incHashSlotCount();
}
//记录新的索引个数
this.indexHeader.incIndexCount();
this.indexHeader.setEndPhyOffset(phyOffset);
this.indexHeader.setEndTimestamp(storeTimestamp);
return true;
} catch (Exception e) {
log.error("putKey exception, Key: " + key + " KeyHashCode: " + key.hashCode(), e);
} finally {
if (fileLock != null) {
try {
fileLock.release();
} catch (IOException e) {
log.error("Failed to release the lock", e);
}
}
}
} else {
log.warn("Over index file capacity: index count = " + this.indexHeader.getIndexCount()
+ "; index max num = " + this.indexNum);
}
return false;
}
根据索引key 查找消息
/**
* 根据索引key 查找消息的实现方法
* @param phyOffsets 查找到的消息物理偏移量。
* @param key 索引key 。
* @param maxNum 本次查找最大消息条数。
* @param begin 开始时间戳。
* @param end 结束时间戳。
* @param lock
*/
public void selectPhyOffset(final List<Long> phyOffsets, final String key, final int maxNum,
final long begin, final long end, boolean lock) {
if (this.mappedFile.hold()) {
//根据key算出hash
int keyHash = indexKeyHashMethod(key);
//根据hash获得hash槽下标
int slotPos = keyHash % this.hashSlotNum;
//根据槽+索引头大小获得hash槽地址
int absSlotPos = IndexHeader.INDEX_HEADER_SIZE + slotPos * hashSlotSize;
FileLock fileLock = null;
try {
if (lock) {
// fileLock = this.fileChannel.lock(absSlotPos,
// hashSlotSize, true);
}
//获取槽记录的对应item条目下标
int slotValue = this.mappedByteBuffer.getInt(absSlotPos);
// if (fileLock != null) {
// fileLock.release();
// fileLock = null;
// }
//如果对应的Hash 槽中存储的数据小于1 或大于当前索引条目个数则表示该
//Hash Code 没有对应的条目, 直接返回。
if (slotValue <= invalidIndex || slotValue > this.indexHeader.getIndexCount()
|| this.indexHeader.getIndexCount() <= 1) {
} else {
for (int nextIndexToRead = slotValue; ; ) {
//查找到的消息条目数量达到,则结束
if (phyOffsets.size() >= maxNum) {
break;
}
//获得item条目下标
int absIndexPos =
IndexHeader.INDEX_HEADER_SIZE + this.hashSlotNum * hashSlotSize
+ nextIndexToRead * indexSize;
int keyHashRead = this.mappedByteBuffer.getInt(absIndexPos);
long phyOffsetRead = this.mappedByteBuffer.getLong(absIndexPos + 4);
long timeDiff = (long) this.mappedByteBuffer.getInt(absIndexPos + 4 + 8);
//上一个条目的Index 下标
int prevIndexRead = this.mappedByteBuffer.getInt(absIndexPos + 4 + 8 + 4);
//如果存储的时间差小于0,该消息无效.则直接结束;
if (timeDiff < 0) {
break;
}
timeDiff *= 1000L;
//算出存储的时间
long timeRead = this.indexHeader.getBeginTimestamp() + timeDiff;
boolean timeMatched = (timeRead >= begin) && (timeRead <= end);
//如果hashcode 匹配并且
// 消息存储时间介于待查找时间start 、end 之间则将消息物理偏移量加入到phyOffsets ,
if (keyHash == keyHashRead && timeMatched) {
phyOffsets.add(phyOffsetRead);
}
//若上一个条目下标没有对应条目
if (prevIndexRead <= invalidIndex
|| prevIndexRead > this.indexHeader.getIndexCount()
//与当前遍历的位置一样
|| prevIndexRead == nextIndexToRead ||
//不满足时间范围
timeRead < begin) {
//则查找结束
break;
}
//索引大于等于l并且小于Index 条目数,继续查找
//下一个查找的条目地址
nextIndexToRead = prevIndexRead;
}
}
} catch (Exception e) {
log.error("selectPhyOffset exception ", e);
} finally {
if (fileLock != null) {
try {
fileLock.release();
} catch (IOException e) {
log.error("Failed to release the lock", e);
}
}
this.mappedFile.release();
}
}
}
checkpoint
记录Comitlog 、ConsumeQueue 、Index 文件的刷盘时间点, 文件
固定长度为4k ,其中只用该文件的前面24 个字节
![在这里插入图片描述](https://img-blog.csdnimg.cn/20200828225958846.png#pic_center
public class StoreCheckpoint {
private static final InternalLogger log = InternalLoggerFactory.getLogger(LoggerName.STORE_LOGGER_NAME);
private final RandomAccessFile randomAccessFile;
private final FileChannel fileChannel;
private final MappedByteBuffer mappedByteBuffer;
//commitlog 文件刷盘时间点。
private volatile long physicMsgTimestamp = 0;
//消息消费队列文件刷盘时间点。
private volatile long logicsMsgTimestamp = 0;
//索引文件刷盘时间点。
private volatile long indexMsgTimestamp = 0;
}
