seate-server 2.1在windows环境启动并且以nacos2.3.2为注册中心db模式mysql8.0

seate-server 2.1在windows环境启动并且以nacos2.3.2为注册中心db模式mysql8.0

1.首先在官网下载 seata-server 2.1

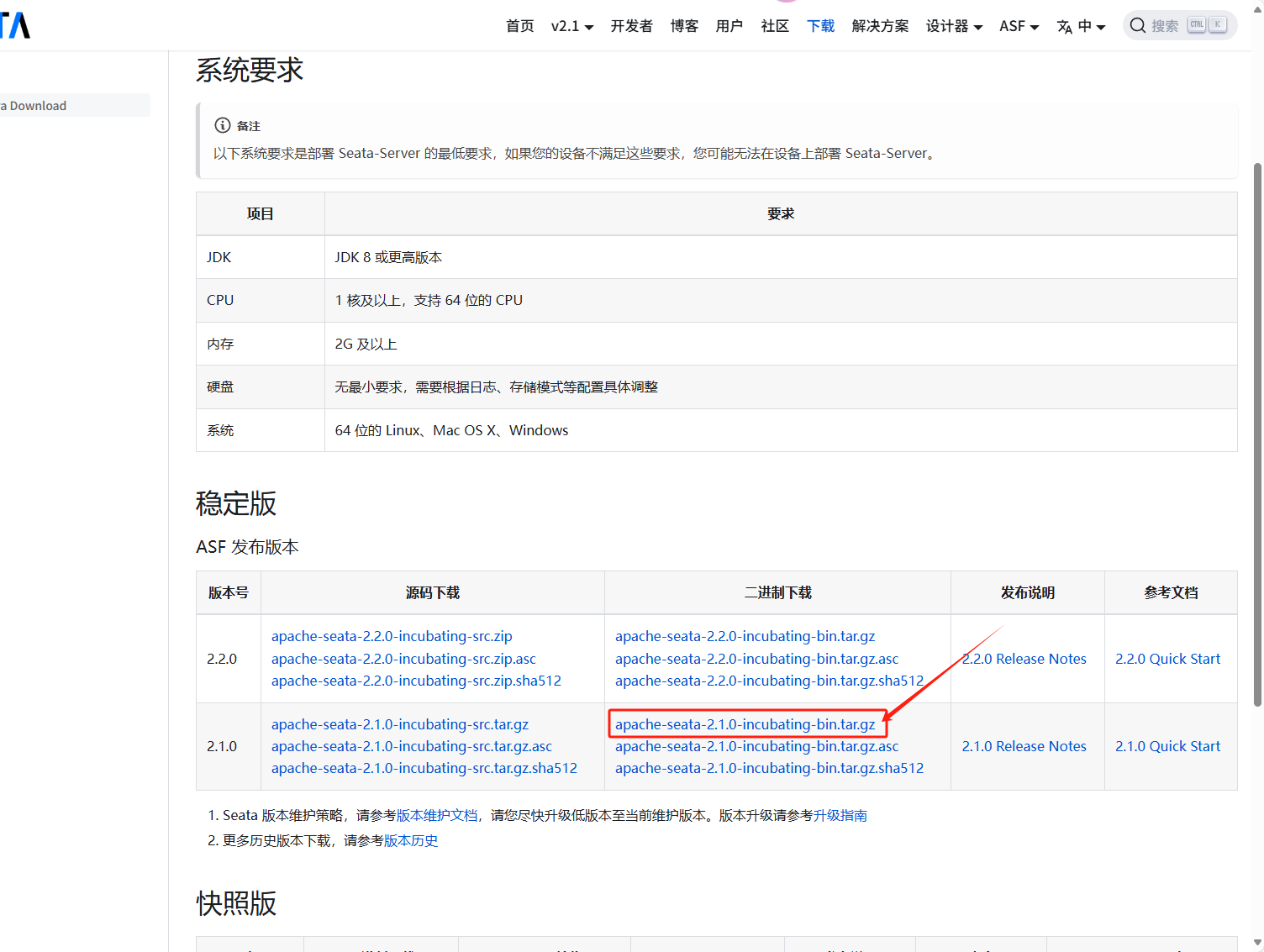

1.下载地址：[https://seata.apache.org/zh-cn/unversioned/download/seata-server/]

下载二进制文件

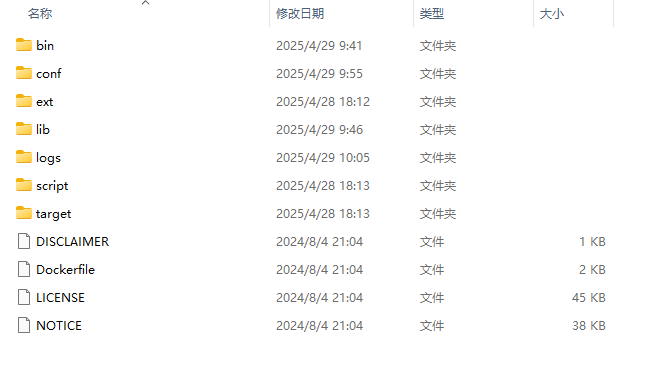

下载后解压到本地

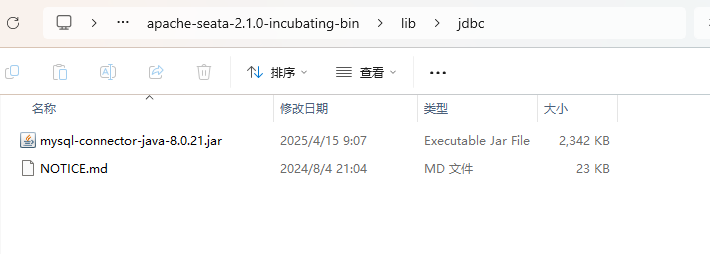

如果是mysql8.0以上需要在lib目录里的jdbc添加mysql的数据库连接的jar包

2.创建数据库seate_server

1.执行官方的初始化表结构和数据

--
-- Licensed to the Apache Software Foundation (ASF) under one or more
-- contributor license agreements.  See the NOTICE file distributed with
-- this work for additional information regarding copyright ownership.
-- The ASF licenses this file to You under the Apache License, Version 2.0
-- (the "License"); you may not use this file except in compliance with
-- the License.  You may obtain a copy of the License at
--
--     http://www.apache.org/licenses/LICENSE-2.0
--
-- Unless required by applicable law or agreed to in writing, software
-- distributed under the License is distributed on an "AS IS" BASIS,
-- WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
-- See the License for the specific language governing permissions and
-- limitations under the License.
--

-- -------------------------------- The script used when storeMode is 'db' --------------------------------
-- the table to store GlobalSession data
CREATE TABLE IF NOT EXISTS `global_table`
(
    `xid`                       VARCHAR(128) NOT NULL,
    `transaction_id`            BIGINT,
    `status`                    TINYINT      NOT NULL,
    `application_id`            VARCHAR(32),
    `transaction_service_group` VARCHAR(32),
    `transaction_name`          VARCHAR(128),
    `timeout`                   INT,
    `begin_time`                BIGINT,
    `application_data`          VARCHAR(2000),
    `gmt_create`                DATETIME,
    `gmt_modified`              DATETIME,
    PRIMARY KEY (`xid`),
    KEY `idx_status_gmt_modified` (`status` , `gmt_modified`),
    KEY `idx_transaction_id` (`transaction_id`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8mb4;

-- the table to store BranchSession data
CREATE TABLE IF NOT EXISTS `branch_table`
(
    `branch_id`         BIGINT       NOT NULL,
    `xid`               VARCHAR(128) NOT NULL,
    `transaction_id`    BIGINT,
    `resource_group_id` VARCHAR(32),
    `resource_id`       VARCHAR(256),
    `branch_type`       VARCHAR(8),
    `status`            TINYINT,
    `client_id`         VARCHAR(64),
    `application_data`  VARCHAR(2000),
    `gmt_create`        DATETIME(6),
    `gmt_modified`      DATETIME(6),
    PRIMARY KEY (`branch_id`),
    KEY `idx_xid` (`xid`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8mb4;

-- the table to store lock data
CREATE TABLE IF NOT EXISTS `lock_table`
(
    `row_key`        VARCHAR(128) NOT NULL,
    `xid`            VARCHAR(128),
    `transaction_id` BIGINT,
    `branch_id`      BIGINT       NOT NULL,
    `resource_id`    VARCHAR(256),
    `table_name`     VARCHAR(32),
    `pk`             VARCHAR(36),
    `status`         TINYINT      NOT NULL DEFAULT '0' COMMENT '0:locked ,1:rollbacking',
    `gmt_create`     DATETIME,
    `gmt_modified`   DATETIME,
    PRIMARY KEY (`row_key`),
    KEY `idx_status` (`status`),
    KEY `idx_branch_id` (`branch_id`),
    KEY `idx_xid` (`xid`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8mb4;

CREATE TABLE IF NOT EXISTS `distributed_lock`
(
    `lock_key`       CHAR(20) NOT NULL,
    `lock_value`     VARCHAR(20) NOT NULL,
    `expire`         BIGINT,
    primary key (`lock_key`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8mb4;

INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('AsyncCommitting', ' ', 0);
INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('RetryCommitting', ' ', 0);
INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('RetryRollbacking', ' ', 0);
INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('TxTimeoutCheck', ' ', 0);

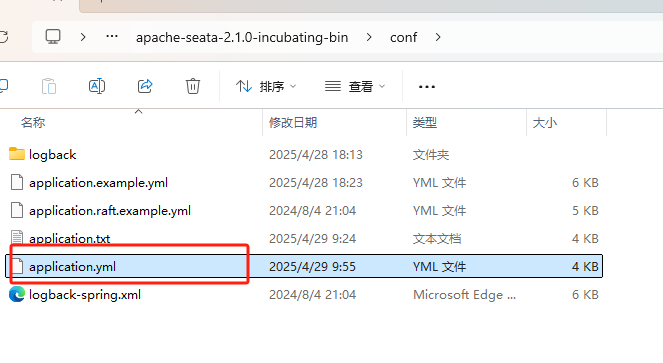

3.修改seate_server的yml配置文件

这里有个坑就是nacos的配置一定要放在mysql数据库配置的后面不然nacos就会连接不上

#
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#

server:
  port: 7091

spring:
  application:
    name: seata-server

logging:
  config: classpath:logback-spring.xml
  file:
    path: ${log.home:${user.home}/logs/seata}
#  extend:
#    logstash-appender:
#      destination: 127.0.0.1:4560
#    kafka-appender:
#      bootstrap-servers: 127.0.0.1:9092
#      topic: logback_to_logstash

console:
  user:
    username: seata
    password: seata
seata:
  store:
    # support: file 、 db 、 redis 、 raft
    mode: db
    session:
      mode: db
    lock:
      mode: db
    db:
      datasource: druid
      db-type: mysql
      driver-class-name: com.mysql.cj.jdbc.Driver
      url: jdbc:mysql://127.0.0.1:3306/seata_server?useSSL=false&serverTimezone=Asia/Shanghai
      user: root
      password: root
      min-conn: 10
      max-conn: 100
      global-table: global_table
      branch-table: branch_table
      lock-table: lock_table
      distributed-lock-table: distributed_lock
      query-limit: 1000
      max-wait: 5000
    server:
      service-port: 8091 #If not configured, the default is '${server.port} + 1000'
      max-commit-retry-timeout: -1
      max-rollback-retry-timeout: -1
      rollback-retry-timeout-unlock-enable: false
      enable-check-auth: true
      enable-parallel-request-handle: true
      enable-parallel-handle-branch: false
      retry-dead-threshold: 130000
      xaer-nota-retry-timeout: 60000
      enableParallelRequestHandle: true
      applicationDataLimitCheck: true
      applicationDataLimit: 64000
      recovery:
        committing-retry-period: 1000
        async-committing-retry-period: 1000
        rollbacking-retry-period: 1000
        timeout-retry-period: 1000
      undo:
        log-save-days: 7
        log-delete-period: 86400000
      session:
        branch-async-queue-size: 5000 #branch async remove queue size
        enable-branch-async-remove: false #enable to asynchronous remove branchSession
      config:
        # support: nacos, consul, apollo, zk, etcd3
        type: nacos
        nacos:
          server-addr: 127.0.0.1:8848
          namespace: # 配置为你自己的命名名空间
          group: # 配置为你自己的组
          username: nacos
          password: nacos
          data-id: seata-server.yaml
    registry:
      # support: nacos, eureka, redis, zk, consul, etcd3, sofa
      type: nacos
      #    preferred-networks: 30.240.*
      nacos:
        application: seata-server
        server-addr: http://127.0.0.1:8848
        namespace: # 配置为你自己的命名名空间
        group: # 配置为你自己的组
        #      cluster: default
        #      context-path:
        ##1.The following configuration is for the open source version of Nacos
        username: nacos
        password: nacos
  security:
    secretKey: SeataSecretKey0c382ef121d778043159209298fd40bf3850a017
    tokenValidityInMilliseconds: 1800000
    ignore:
      urls: /,/**/*.css,/**/*.js,/**/*.html,/**/*.map,/**/*.svg,/**/*.png,/**/*.jpeg,/**/*.ico,/api/v1/auth/login,/version.json,/health,/error

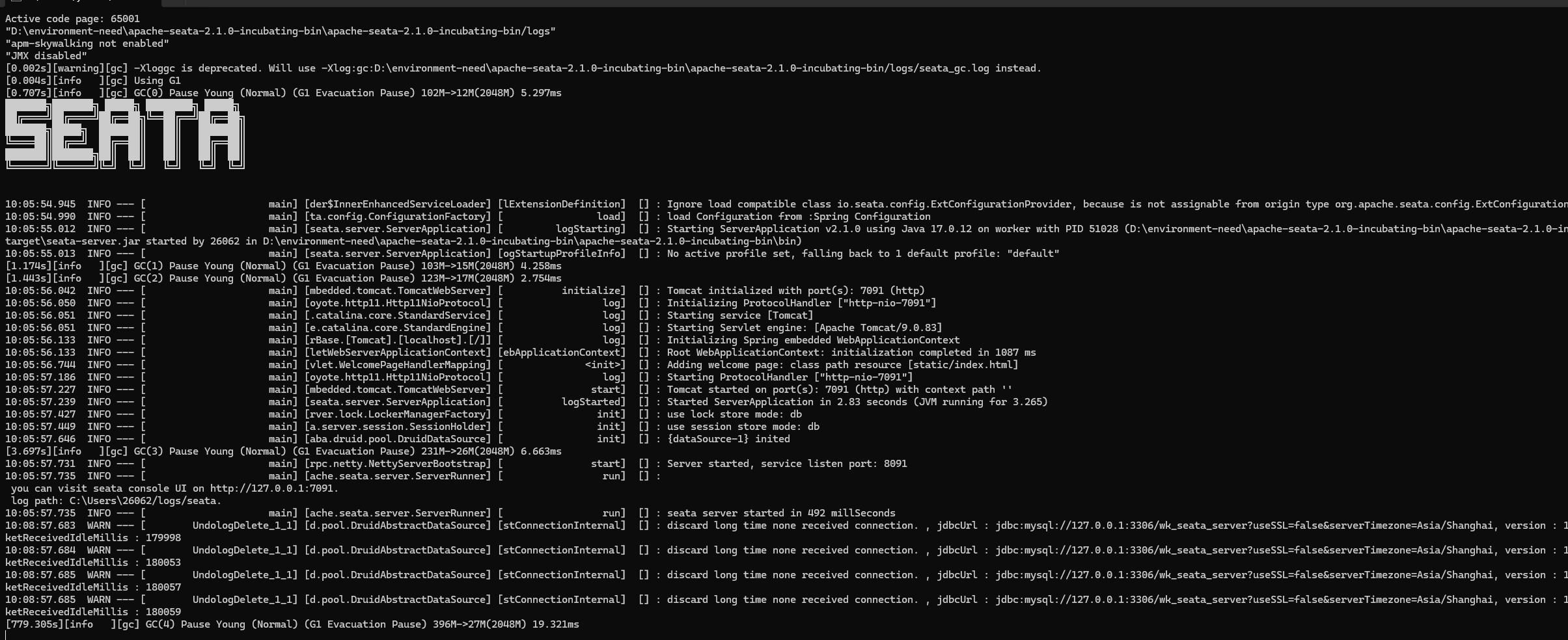

4.启动seate_server

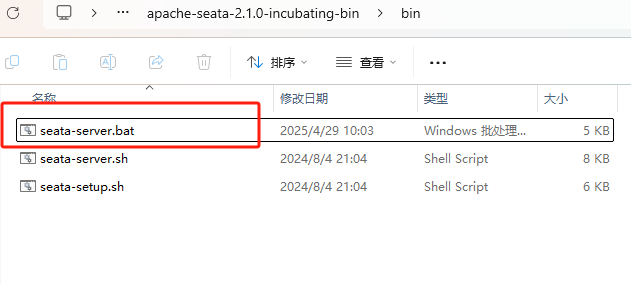

点击seata-server.bat进行启动
