TDH（Transwarp Data Hub）社区版安装教程

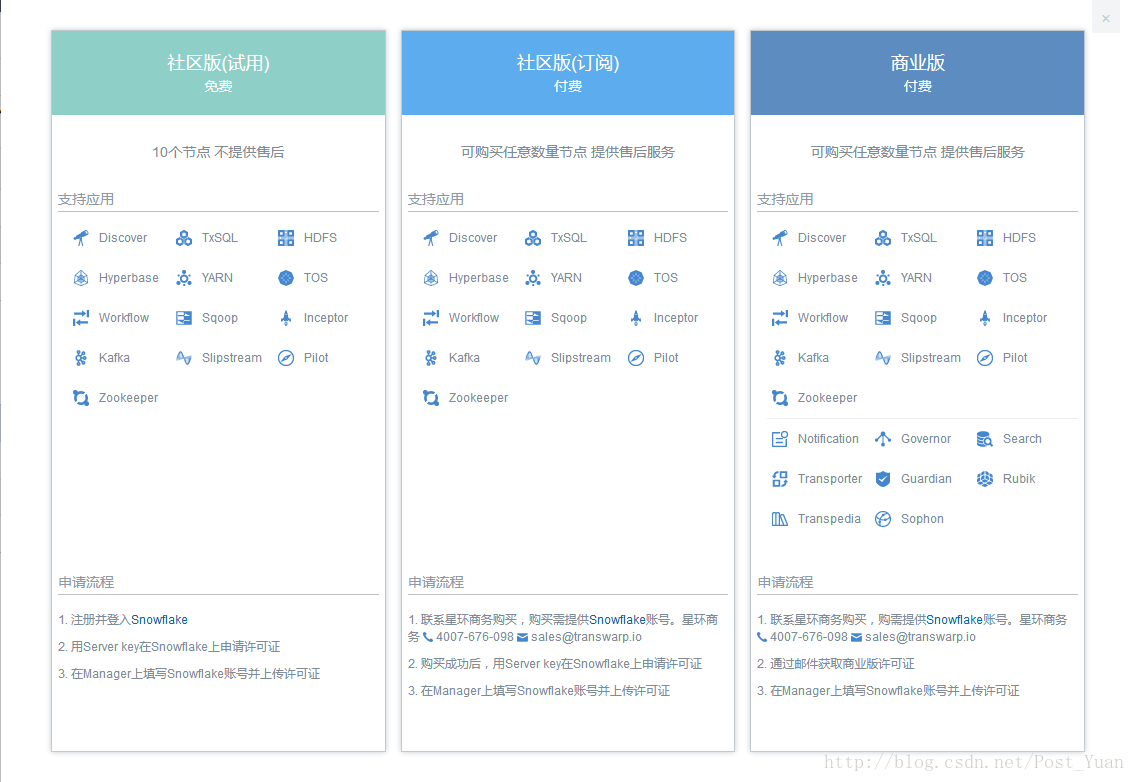

众所周知，星环(Transwarp)于2017年10月底正式对外公开社区版可供社区用户自行下载试用，社区版本与商业版本的主要区别如下图，

下面通过实际步骤与截图介绍如何一步一步搭建TDH集群，仅供参考。关于TDH的系列组件的相关教程，可至Transwarp官网查看详细文档，https://docs.transwarp.io/5.0/ ，不过目前好像未能找到TxSQL相关的文档（可能还未完善）
主要步骤如下，

1 许可证申请

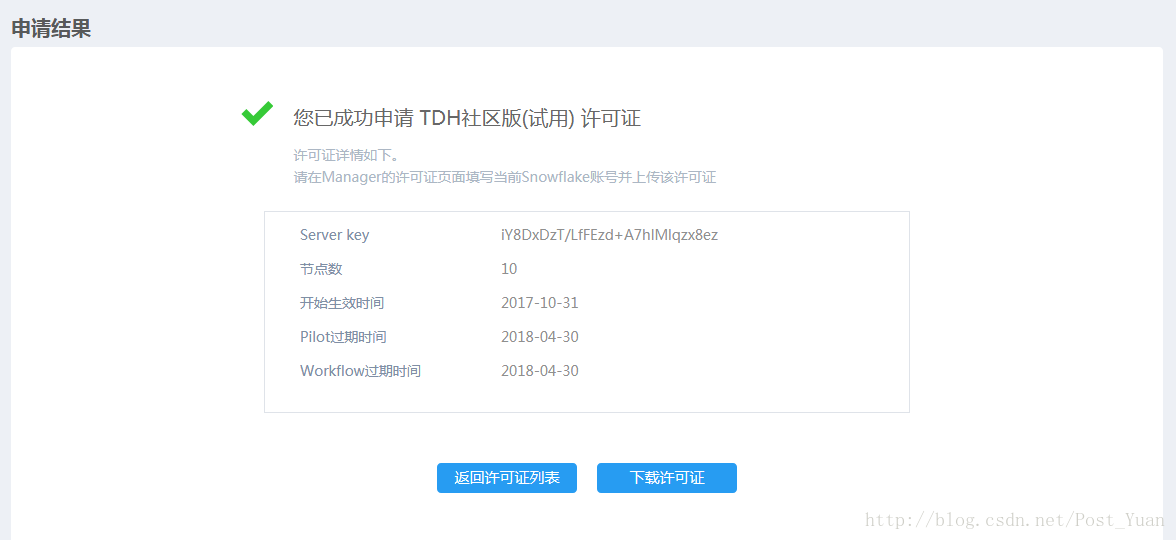

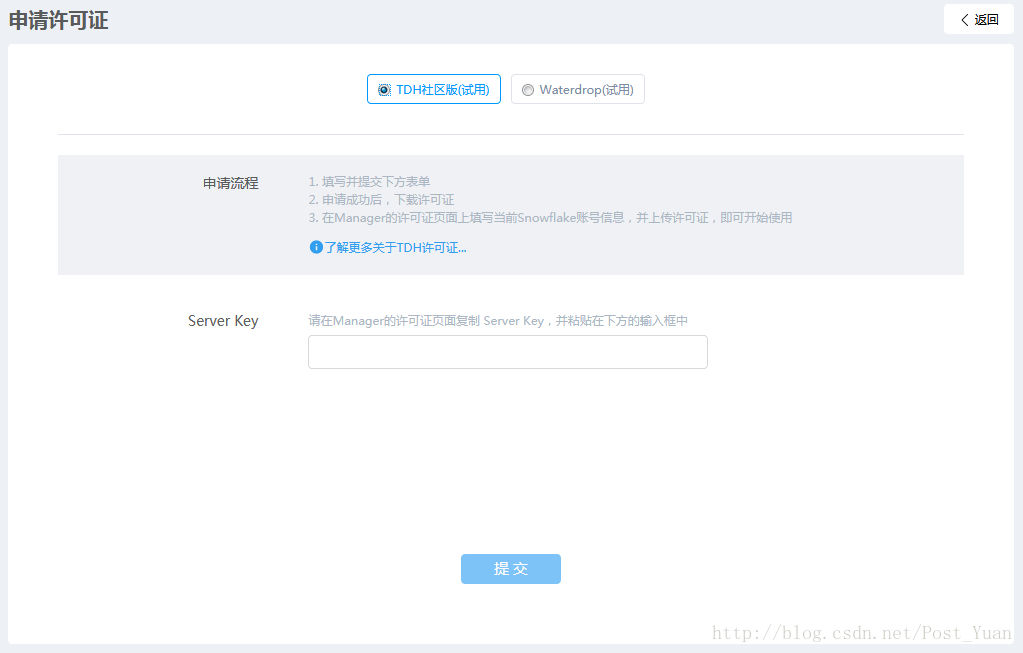

登陆https://snowflake.transwarp.io 并注册用户，之后申请许可证，申请许可证需要提供Server Key，Server Key可在安装完TDH Manager并开始配置集群时获取。获取到许可证后可将许可证另存为本地文件供后续安装集群使用。

2 下载TDH社区版本（TDH-CE）

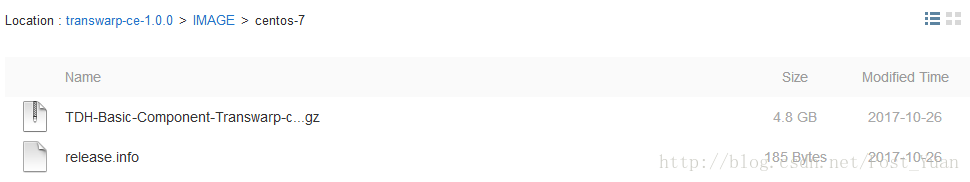

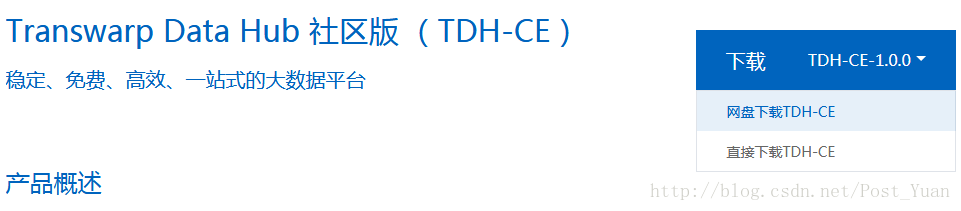

访问http://transwarp.io/product/tdh_ce 并点击下载，下载可通过网盘下载方式或直接下载方式，网盘下载方式速度较快，建议使用网盘下载方式，下载完的压缩包约5GB。

3 Linux常规配置

包括配置/etc/hosts、关闭iptables、禁用Selinux等，这些步骤也可以在后续通过TDH Manager配置集群时配置。本实验使用4节点虚拟机环境作为测试环境，节点如下。

10.10.22.151    esggy-del-n001.esgyncn.local    esggy-del-n001
10.10.22.152    esggy-del-n002.esgyncn.local    esggy-del-n002
10.10.22.153    esggy-del-n003.esgyncn.local    esggy-del-n003
10.10.22.154    esggy-del-n004.esgyncn.local    esggy-del-n004

4 开始安装

通过运行install脚本进行安装，安装首先会下载Oracle JDK1.7，之后会打开8179端口，后续安装便可从http://esggy-del-n001.esgyncn.local:8179/网页进行后续安装。

[root@esggy-del-n001 ~]# tar -xzvf TDH-Basic-Component-Transwarp-ce-1.0.0.tar.gz
[root@esggy-del-n001 ~]# cd transwarp
[root@esggy-del-n001 transwarp]# ./install
current directory: /root/transwarp
preparing Web Installer ...
Loaded plugins: fastestmirror
Examining /root/transwarp/transwarp/hadoop_related/common/jdk-7u71-linux-x64.rpm: 2000:jdk-1.7.0_71-fcs.x86_64
Marking /root/transwarp/transwarp/hadoop_related/common/jdk-7u71-linux-x64.rpm to be installed
Resolving Dependencies
--> Running transaction check
---> Package jdk.x86_64 2000:1.7.0_71-fcs will be installed
--> Finished Dependency Resolution

Dependencies Resolved

===============================================================================================================================================================================================================
 Package                                  Arch                                        Version                                                   Repository                                                Size
===============================================================================================================================================================================================================
Installing:
 jdk                                      x86_64                                      2000:1.7.0_71-fcs                                         /jdk-7u71-linux-x64                                      197 M

Transaction Summary
===============================================================================================================================================================================================================
Install  1 Package

Total size: 197 M
Installed size: 197 M
Downloading packages:
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
  Installing : 2000:jdk-1.7.0_71-fcs.x86_64                                                                                                                                                                1/1
Unpacking JAR files...
        rt.jar...
        jsse.jar...
        charsets.jar...
        tools.jar...
        localedata.jar...
        jfxrt.jar...
  Verifying  : 2000:jdk-1.7.0_71-fcs.x86_64                                                                                                                                                                1/1

Installed:
  jdk.x86_64 2000:1.7.0_71-fcs

Complete!
executing Web Installer ...
09:22:43.716 [main] DEBUG i.t.manager.installer.util.Shell - cmd: [id, -u] with exit code 0 stdout: 0
 stderr:
09:22:43.722 [main] INFO  i.t.manager.installer.WebInstaller - staring Web Installer server ...
[I 09:22:45:670] this OS version distro is: CentOS/RHEL 7.x
[I 09:22:45:677] OS release: 7.2
[I 09:22:45:678] prepare result of os-check was NEXT
[I 09:22:45:680] processing os-check
[I 09:22:45:680] process result of os-check was NEXT
[I 09:22:45:684] prepare result of java-license was NEXT
[I 09:22:45:686]
[I 09:22:45:686] The Web Installer is running at http://esggy-del-n001.esgyncn.local:8179/
[I 09:22:45:686] Control-C will stop this server.
[I 09:22:45:686] It is highly recommended that all hosts in the cluster can be visited by FQDN/hostname from the browser. To achieve that, configure proper DNS and/or Hosts file on your browser machine
[I 09:22:45:686]

        Copy/paste this URL into your browser when you connect for the first time:
                http://esggy-del-n001.esgyncn.local:8179/
……

5 安装TDH Manager

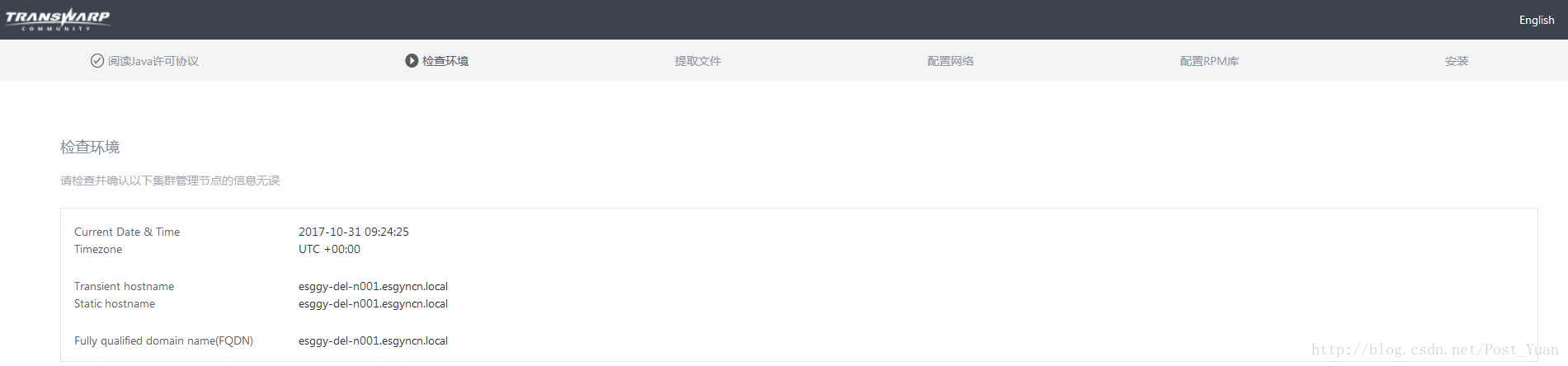

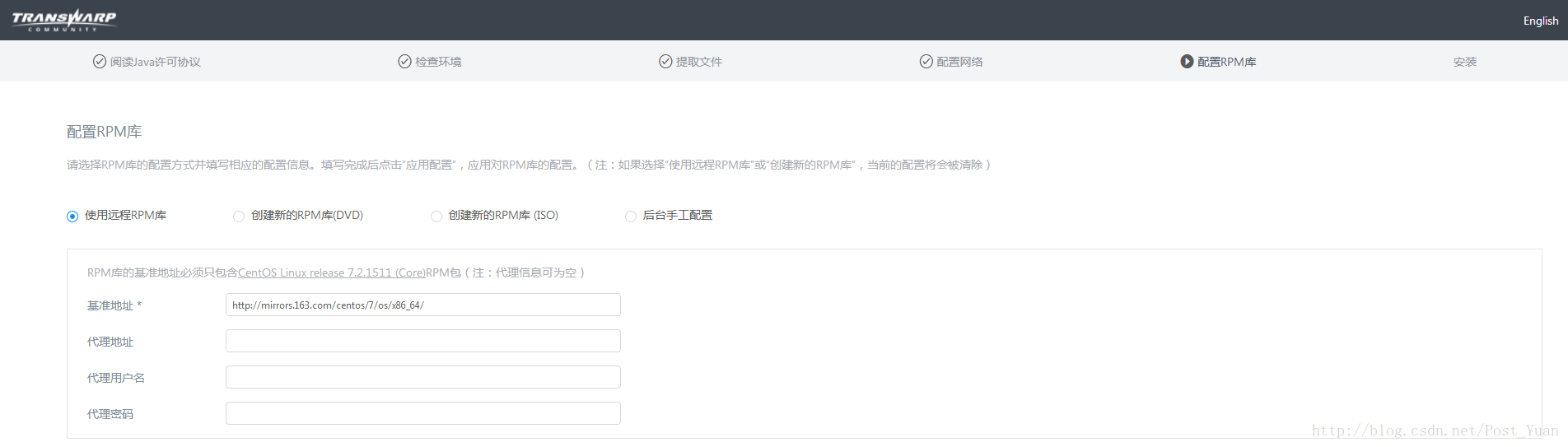

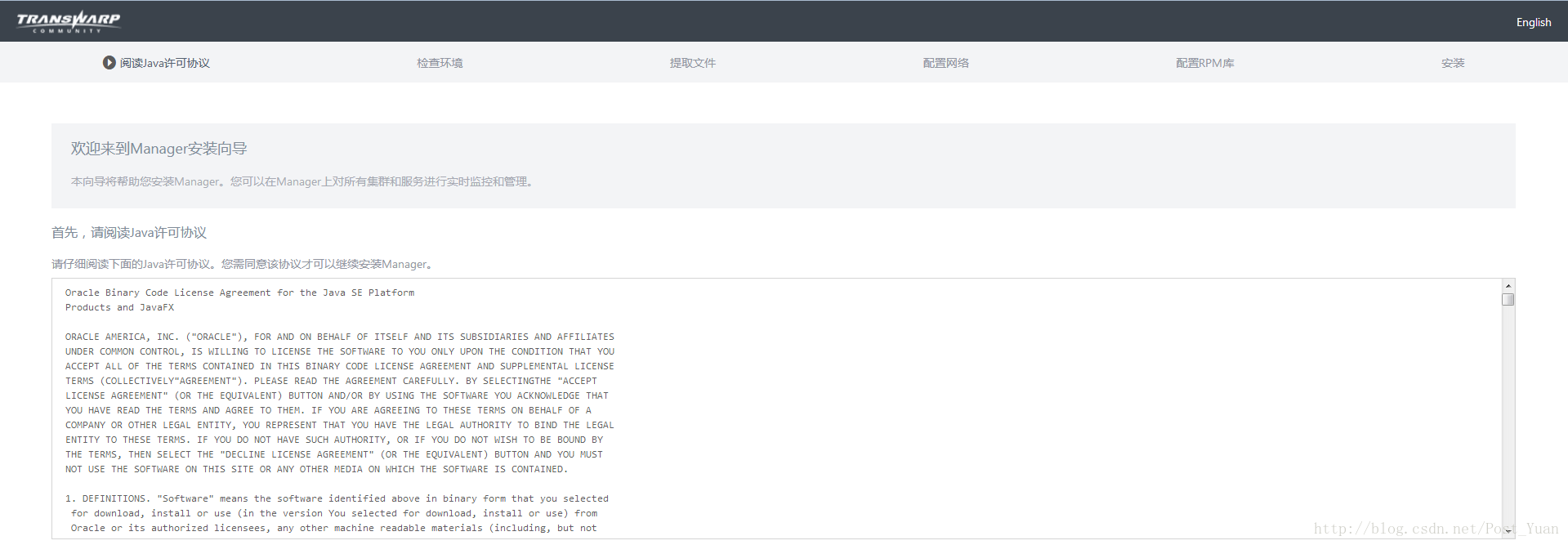

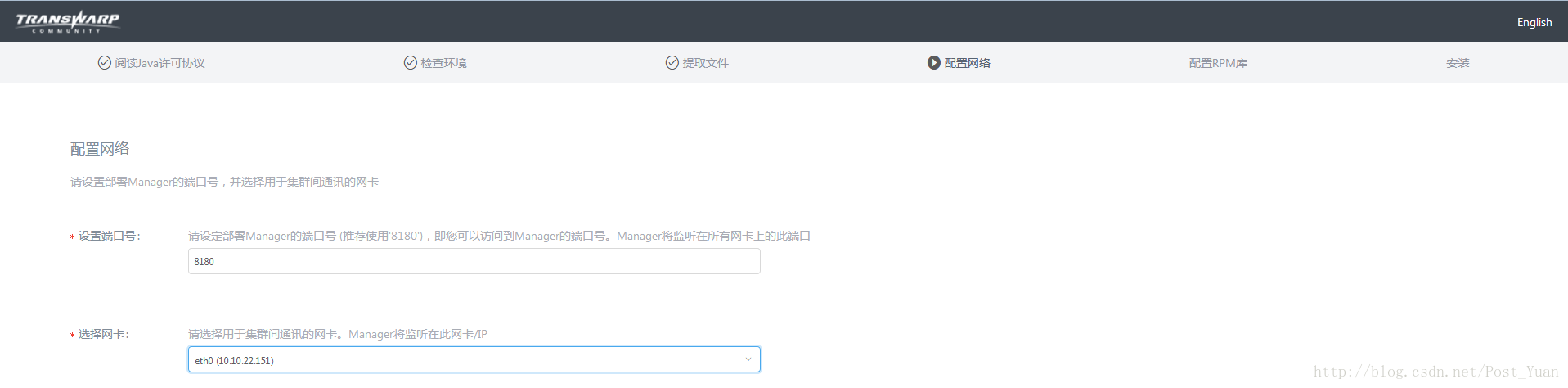

打开http://10.10.22.151:8179/继续执行安装步骤，安装步骤包括：（1）阅读Java许可协议；（2）检查环境；（3）提取文件；（4）配置网络；（5）配置RPM库；（6）安装Manager。具体步骤如下截图，安装完成后会启用8180作为默认的TDH Manager网页端口，后续可通过8180端口继续Hadoop集群的安装。





注：在最后一步安装Manager时遇到以下错误

Volume group "docker" not found
  Cannot process volume group docker
Missing specific volume group named 'docker'

解决方法为在每个节点添加一块至少40G的volume group，这时因为新版本的TDH将所有的组件都包装在了docker中，为了更好的资源隔离和性能使用。

yum install -y lvm2;
pvcreate /dev/vdb;
vgcreate docker /dev/vdb
[root@esggy-del-n001 ~]# vgs
  VG     #PV #LV #SN Attr   VSize  VFree
  docker   2   2   0 wz--n- 39.99g 7.88g

6 安装Hadoop集群

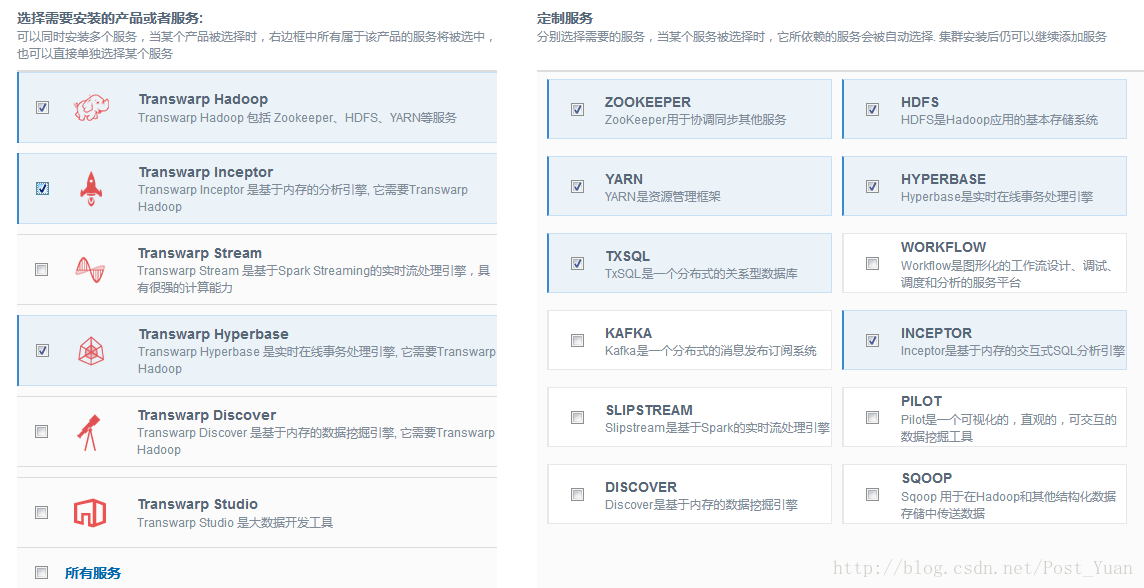

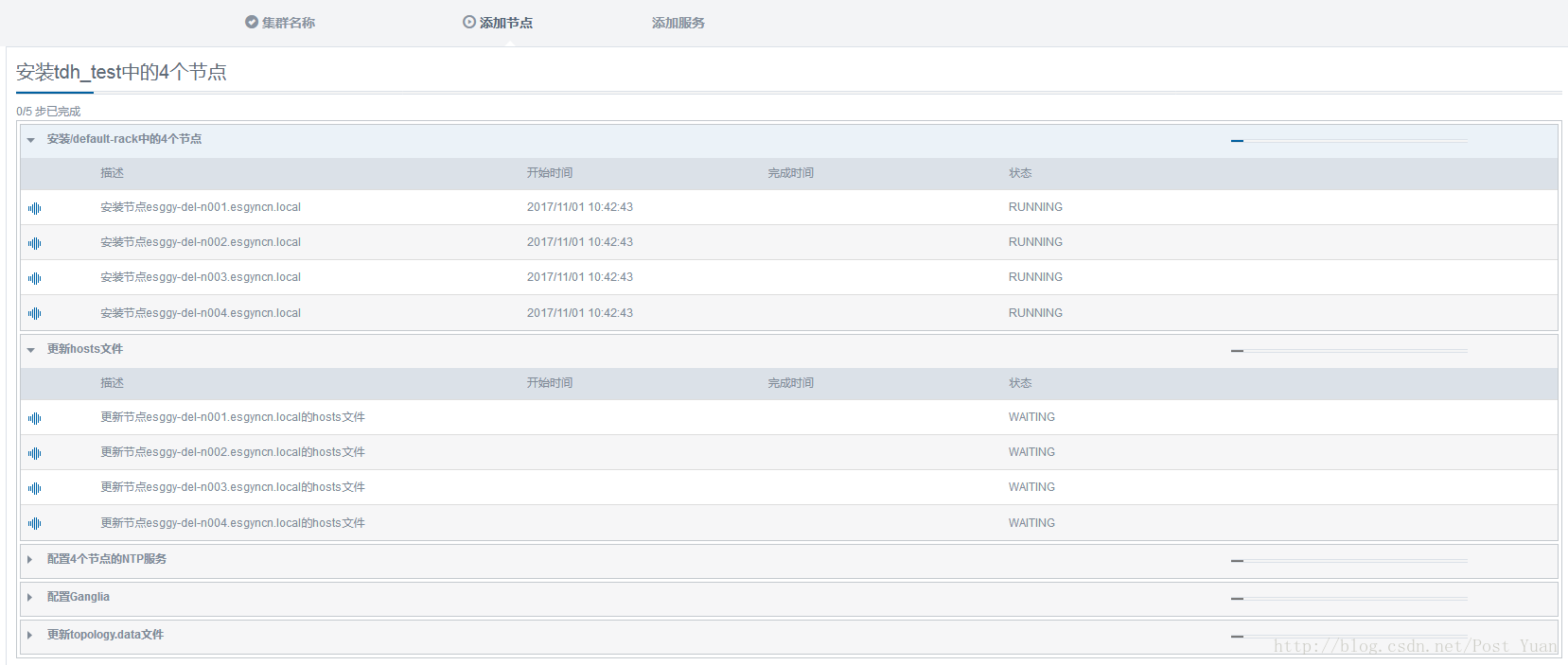

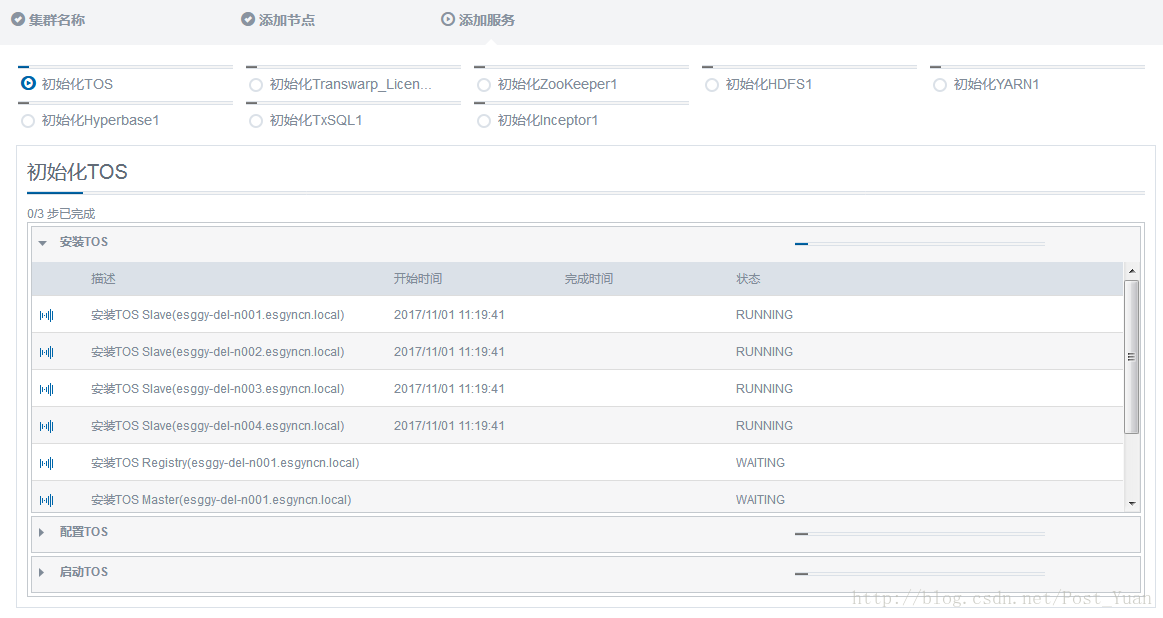

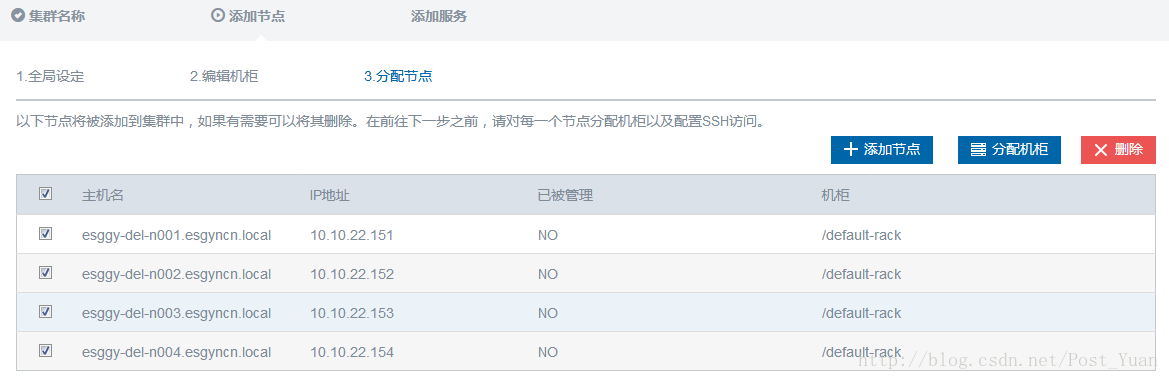

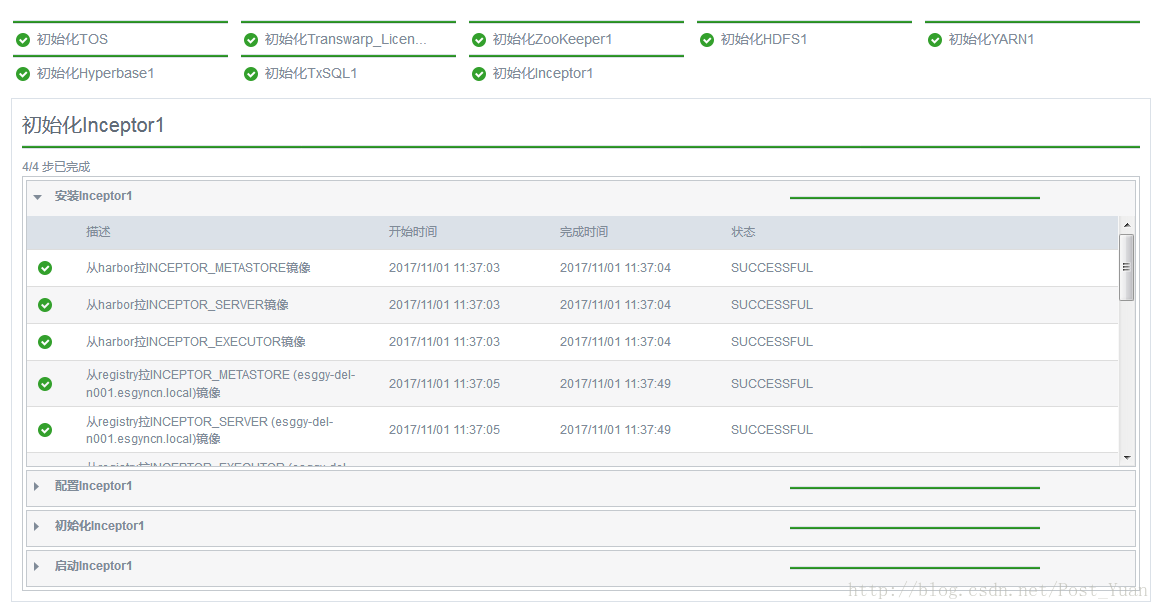

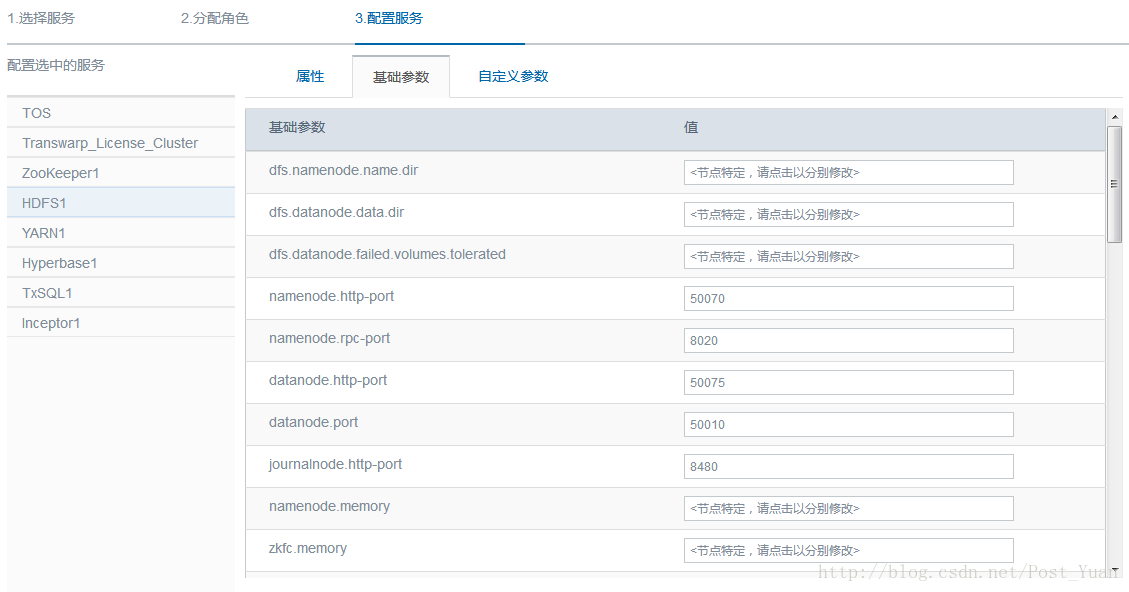

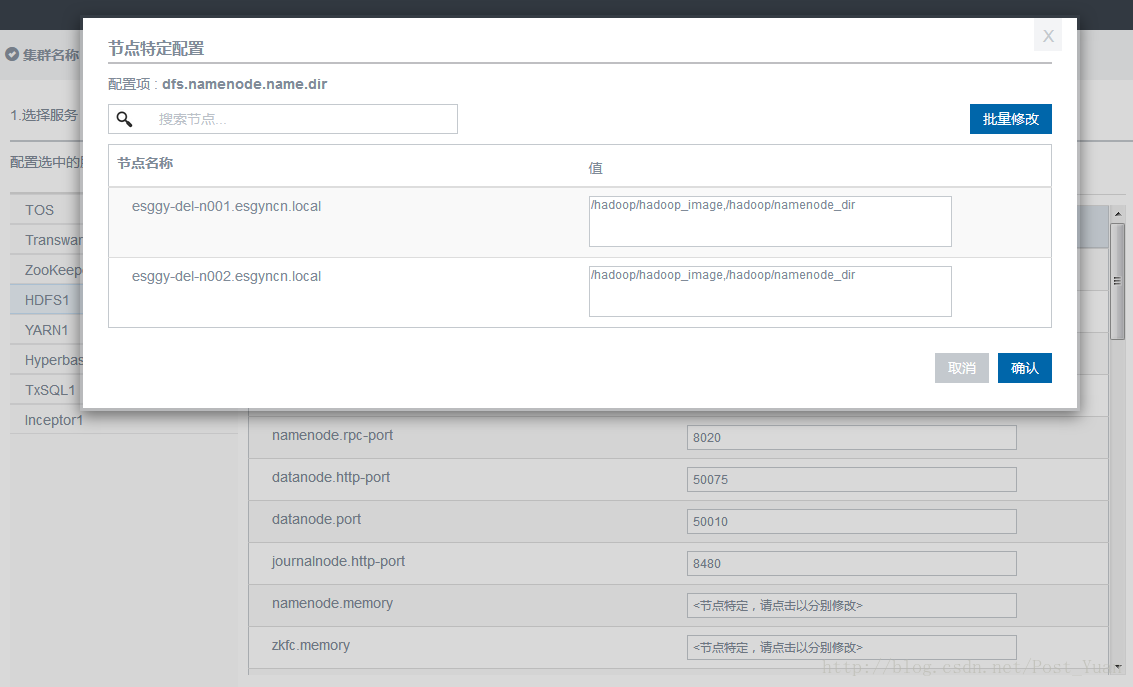

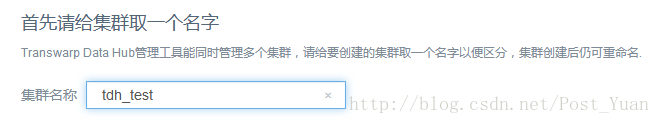

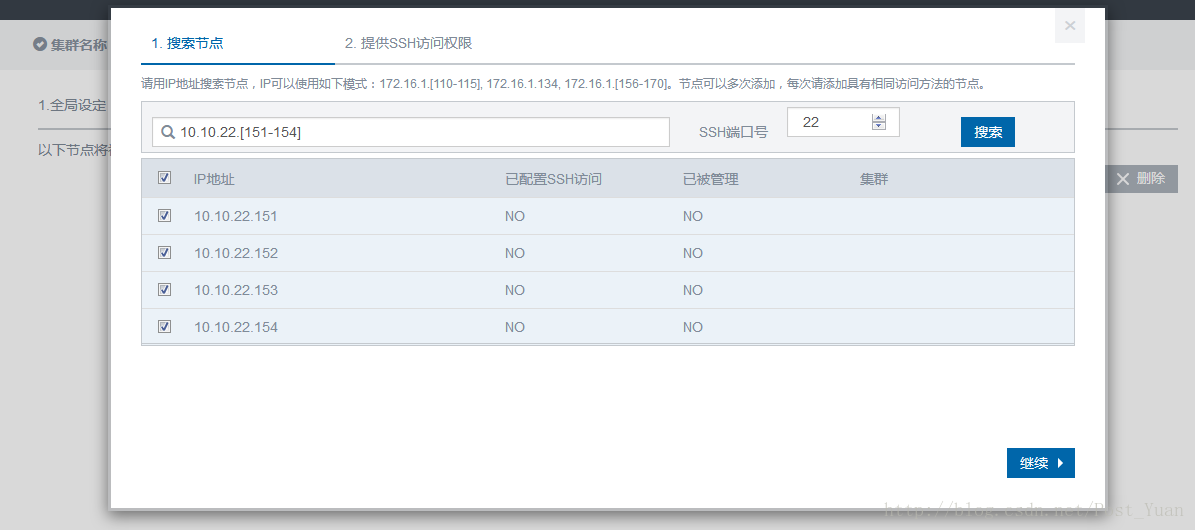

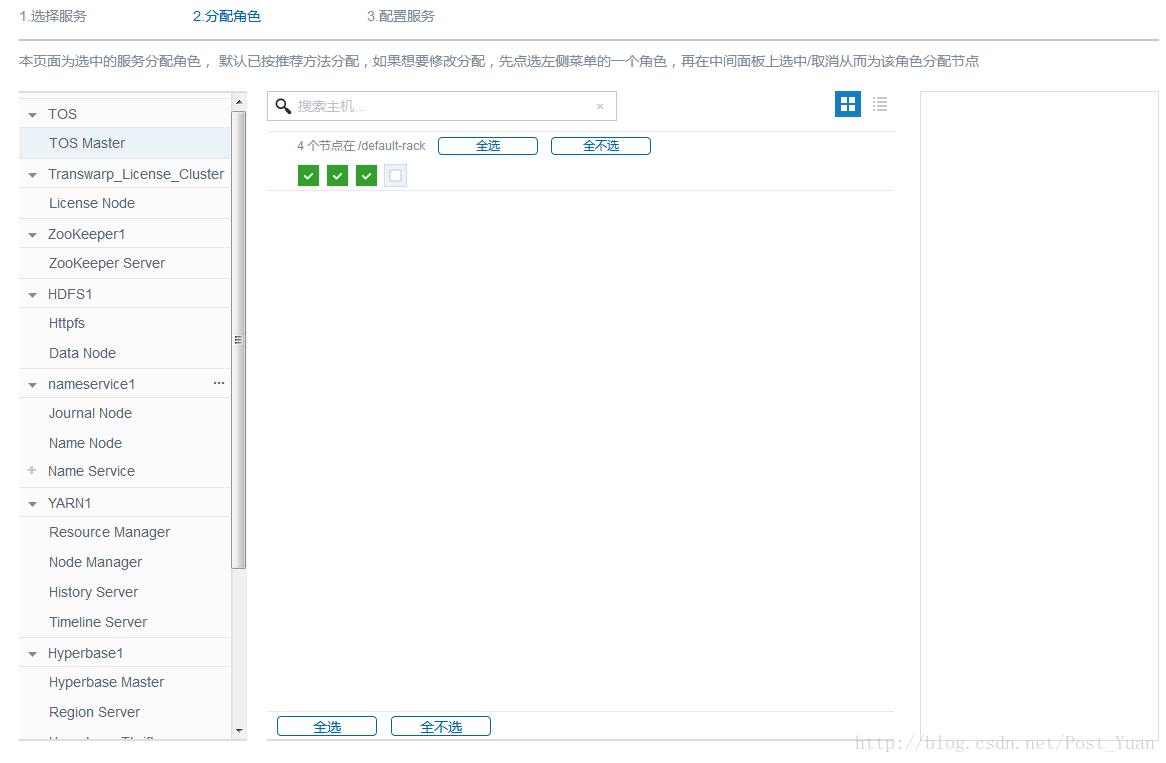

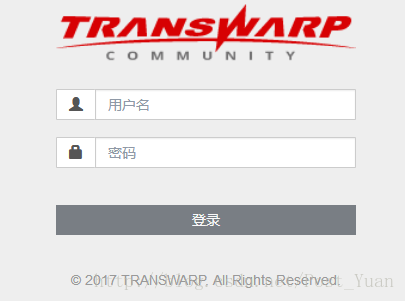

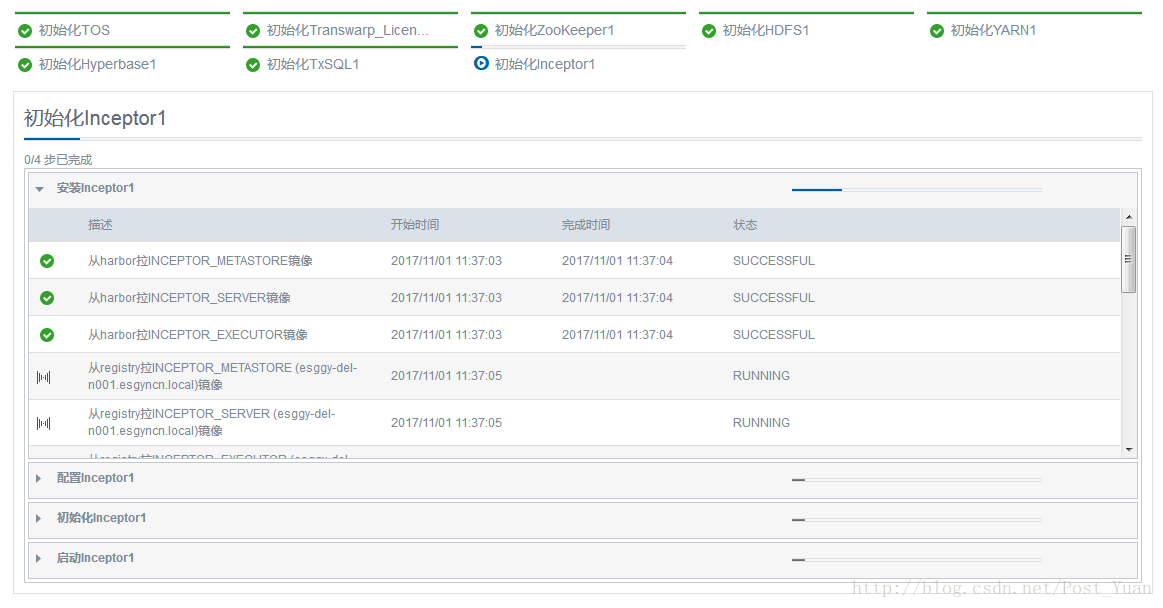

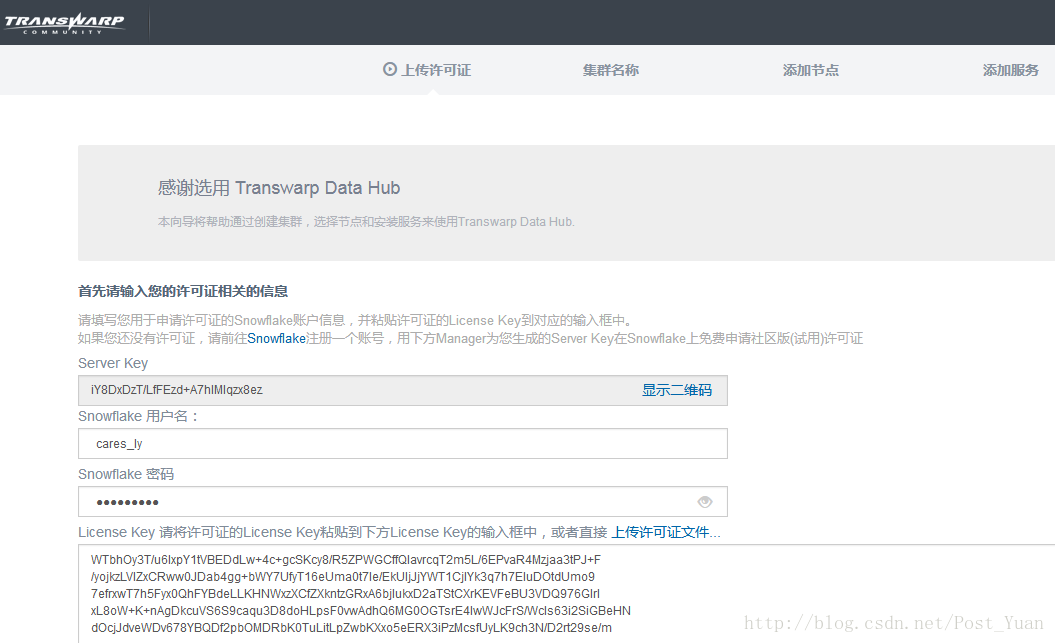

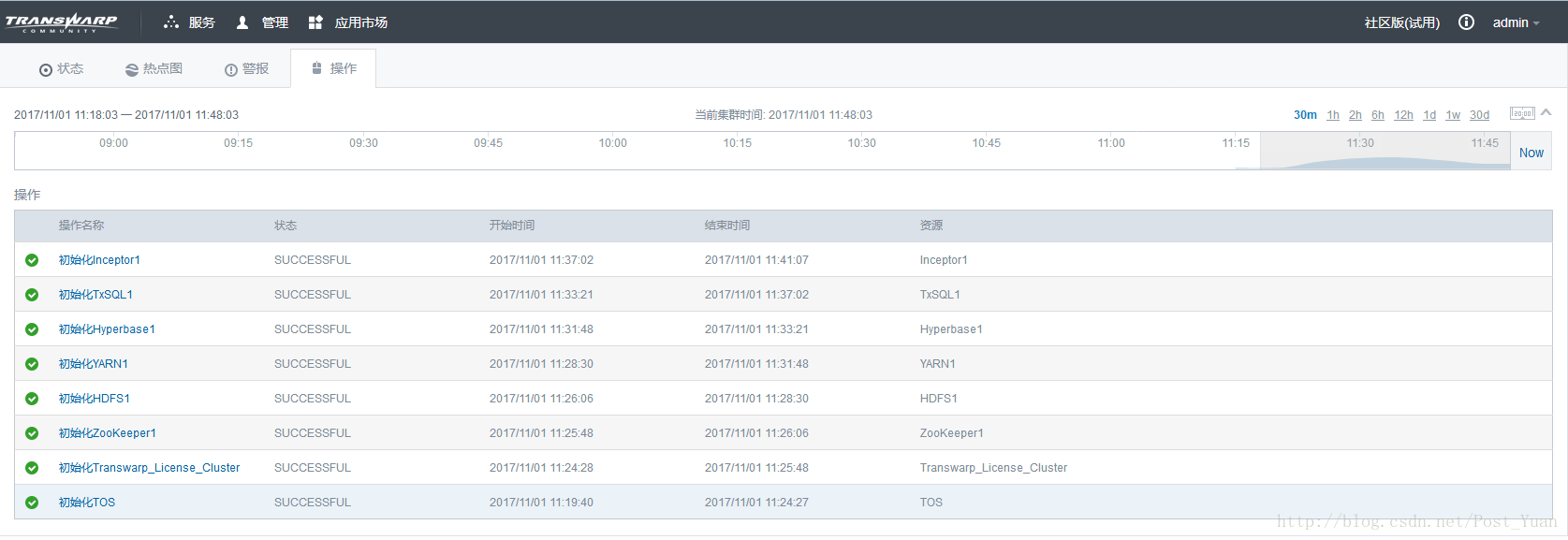

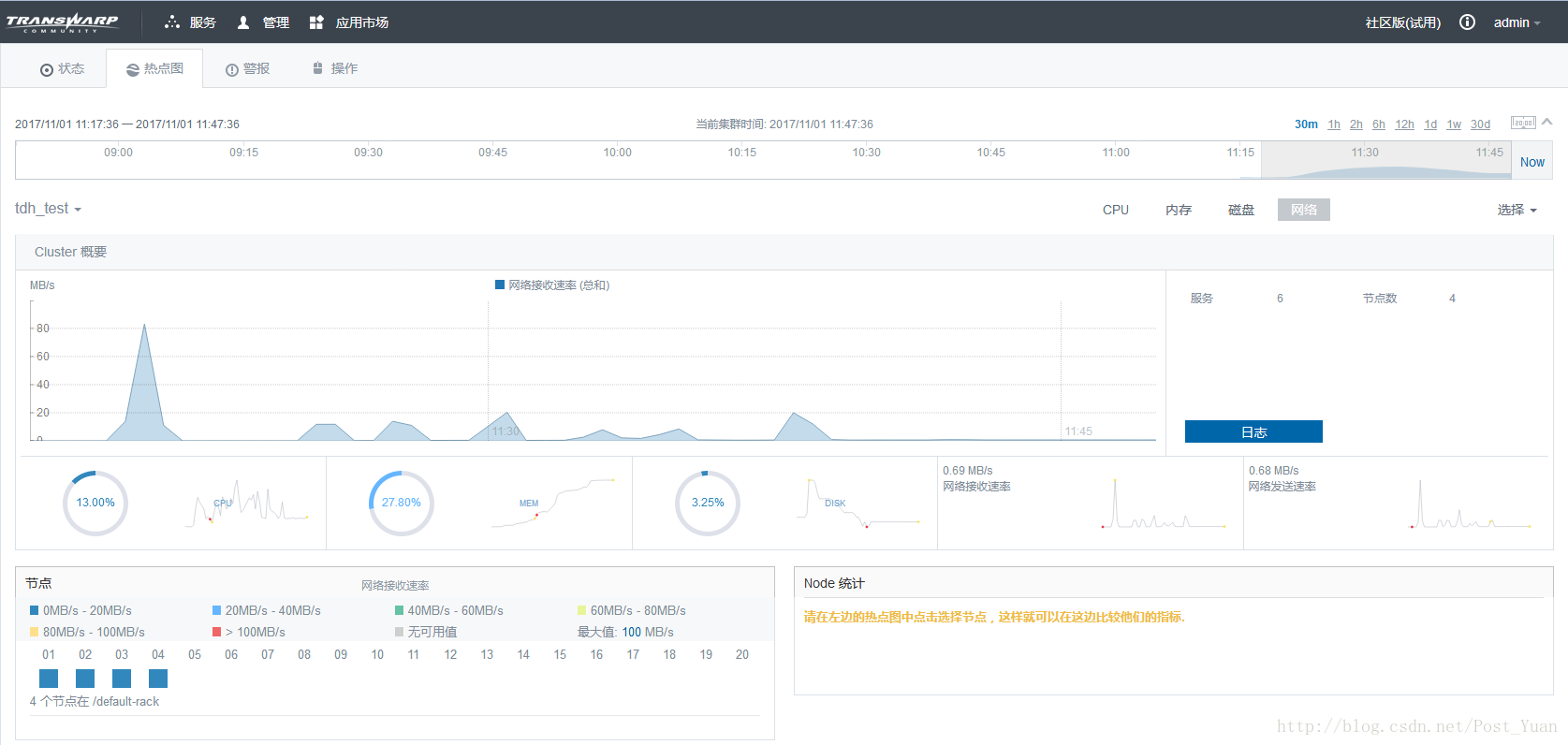

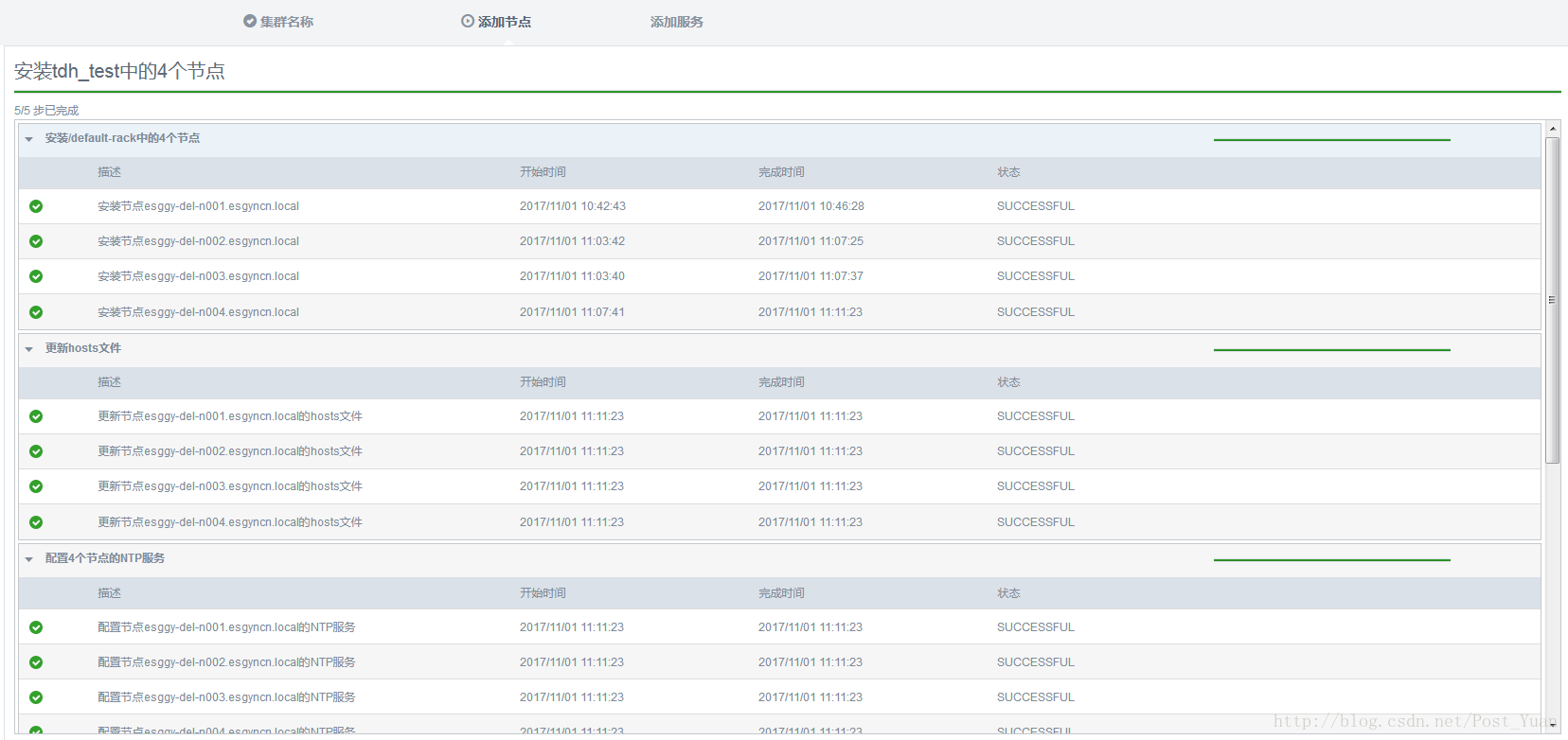

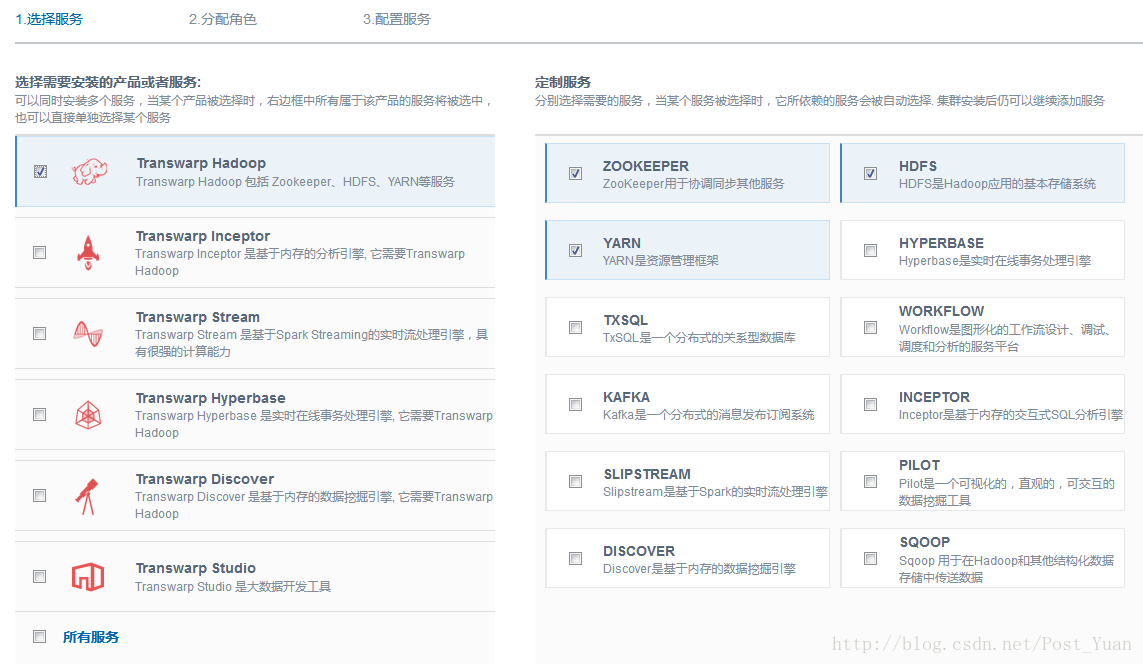

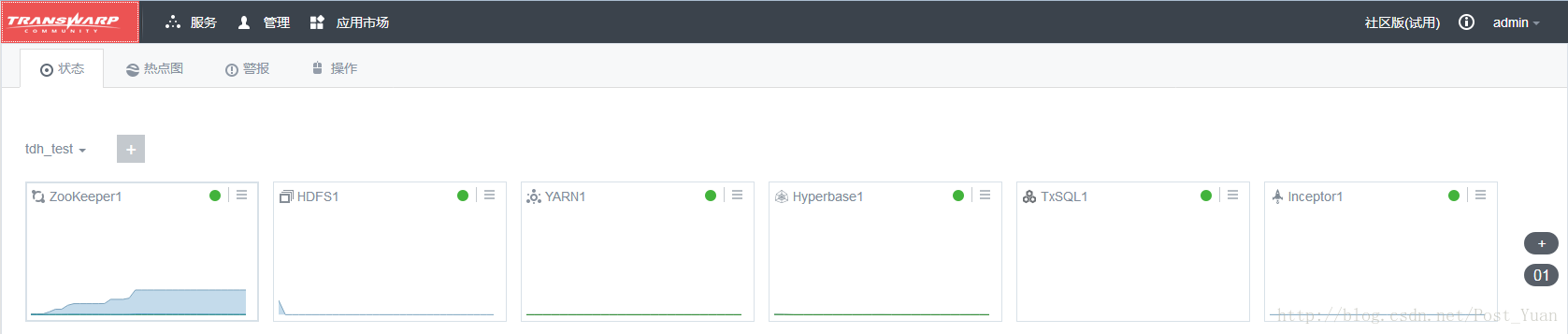

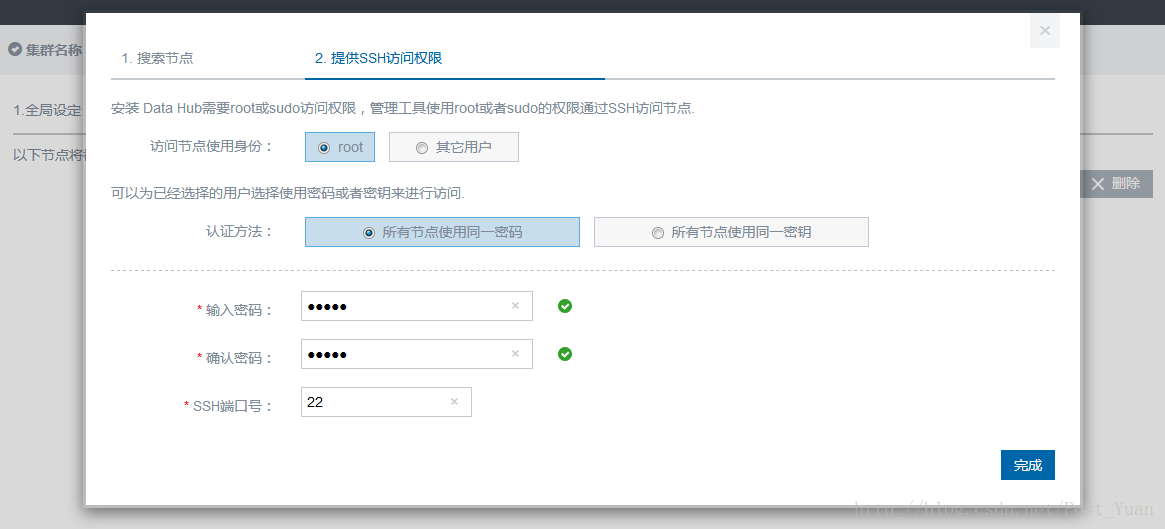

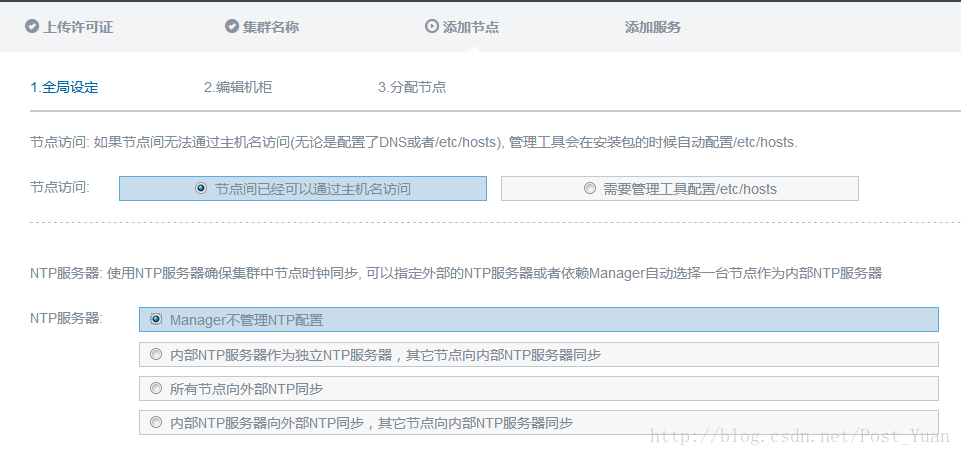

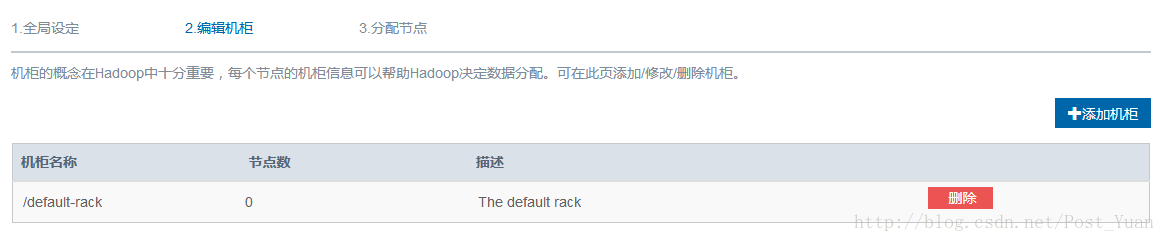

打开8180网页，使用admin/admin登陆TDH Manager，依次执行上传许可证、配置集群名称、添加节点、添加服务等步骤。这些步骤与CDH Manager执行安装十分相似，稍微有所不同，具体步骤如下面截图。

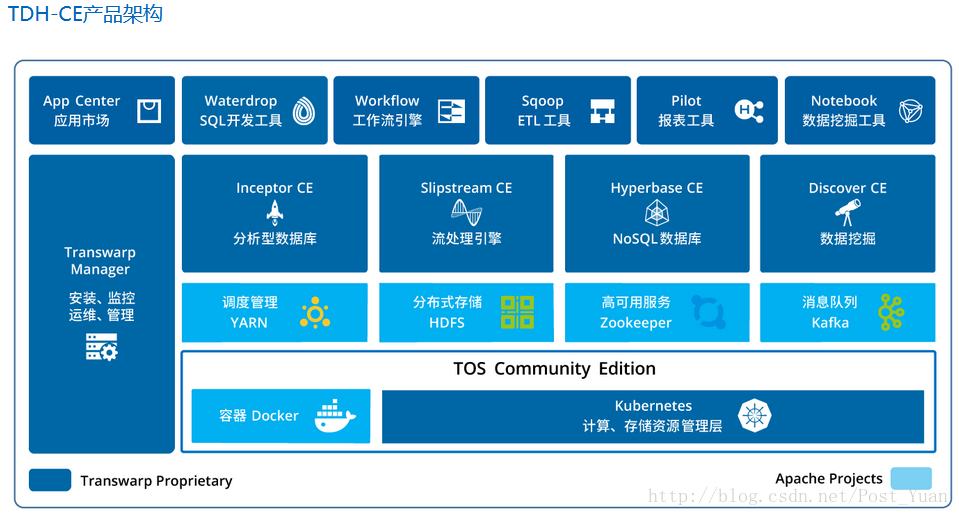

7 附TDH架构图
